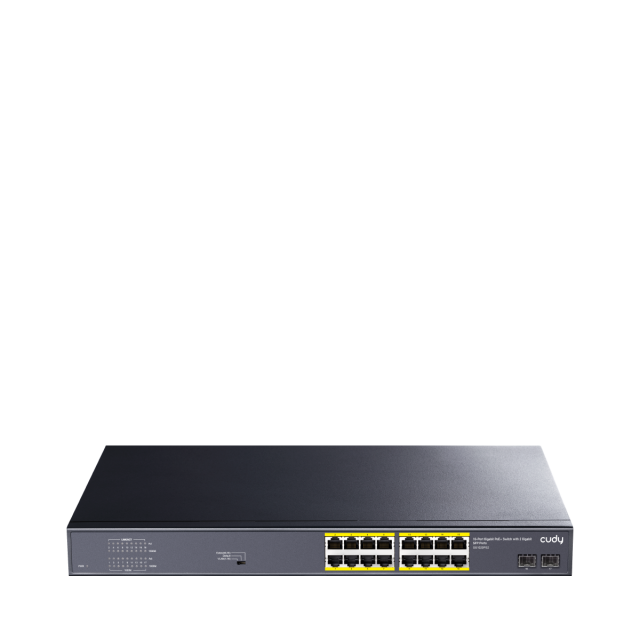

Cudy GS1020PS2

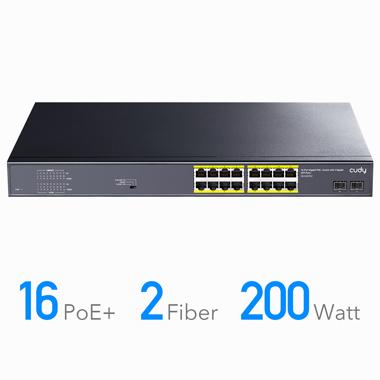

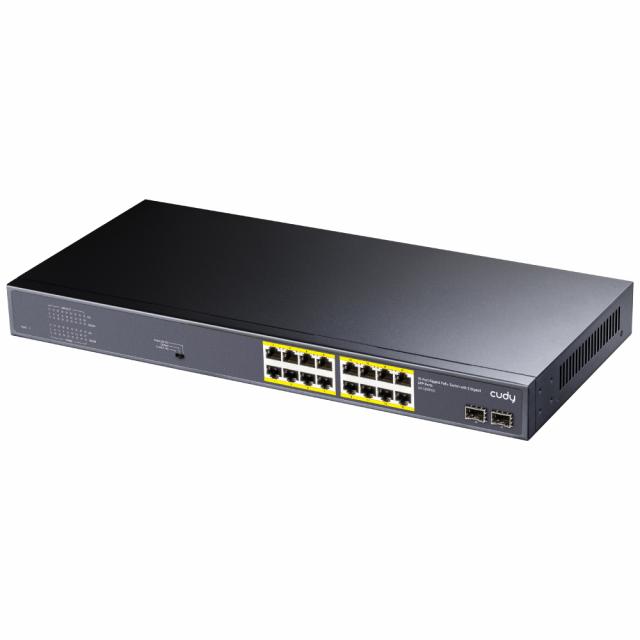

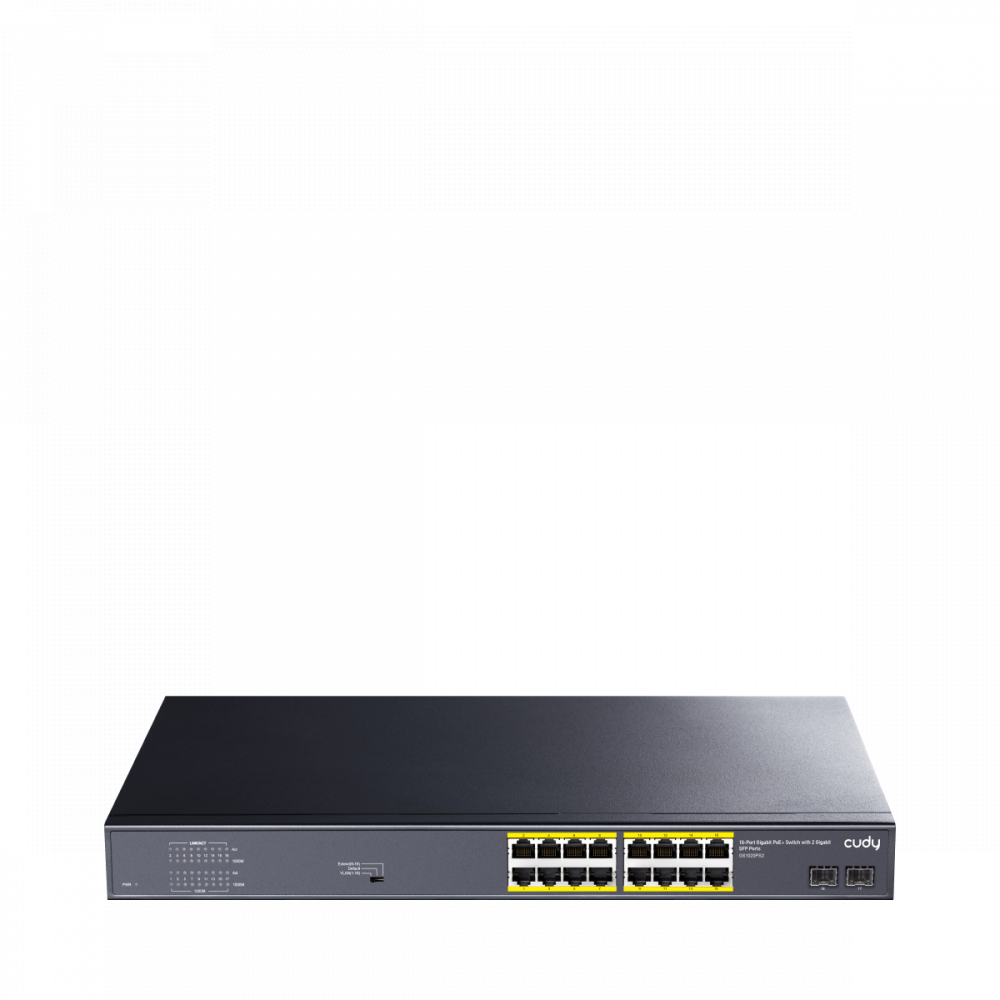

Switch Cudy GS1020PS2, 16 x Gigabit PoE, 2 x Gigabit SFP
Cod produs: CUDY-SWITCH-GS1020PS2
Întrebare despre Cudy GS1020PS2
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 24 luni |
| Tip | PoE Switch |
| Viteză de transfer (LAN) | 1 Gbps |
| Port-uri LAN | 16 |
| SFP Ports | 2x SFP |
Related products
Tip:
Sistem mesh
Standard WI-FI:
BE3600
Viteză de transfer (Wi-Fi):
până la 3570 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
2
Tip:
Sistem mesh
Standard WI-FI:
AX3000
Viteză de transfer (Wi-Fi):
până la 2976 Mbps
Viteză de transfer (LAN):
1 Gbps, 2.5 Gbps
Port-uri LAN:
2
Tip:
Sistem mesh
Standard WI-FI:
BE3600
Viteză de transfer (Wi-Fi):
până la 3570 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
2
Tip:
PoE, Switch-uri cu management
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
24
SFP Ports:
2x SFP
Tip:
Router portabil
Standard WI-FI:
LTE, 4G
Viteză de transfer (Wi-Fi):
până la 1167 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
4
Tip:
Router portabil
Standard WI-FI:
AC1200, LTE, 4G
Viteză de transfer (Wi-Fi):
până la 1667 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
4
Tip:
Sistem mesh
Standard WI-FI:
AX3000
Viteză de transfer (Wi-Fi):
până la 2976 Mbps
Viteză de transfer (LAN):
1 Gbps, 2.5 Gbps
Port-uri LAN:
2
Tip:
Router
Standard WI-FI:
BE6500
Viteză de transfer (Wi-Fi):
până la 6453 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
4
Tip:
Access Point
Standard WI-FI:
AX3000
Viteză de transfer (Wi-Fi):
până la 2976 Mbps
Viteză de transfer (LAN):
2.5 Gbps
Port-uri LAN:
1
Tip:
Access Point
Standard WI-FI:
AX3000
Viteză de transfer (Wi-Fi):
până la 2977 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
1
Tip:
Access Point, PoE
Standard WI-FI:
AX3000
Viteză de transfer (Wi-Fi):
până la 2973 Mbps
Viteză de transfer (LAN):
2.5 Gbps
Port-uri LAN:
1
● Compliant cu standardul IEEE 802.3af / 802.3at
● buget total de putere 200-watt PoE, pana la 30 wati pe port
● 16xGbE PoE+ Port + 2 x port SFP

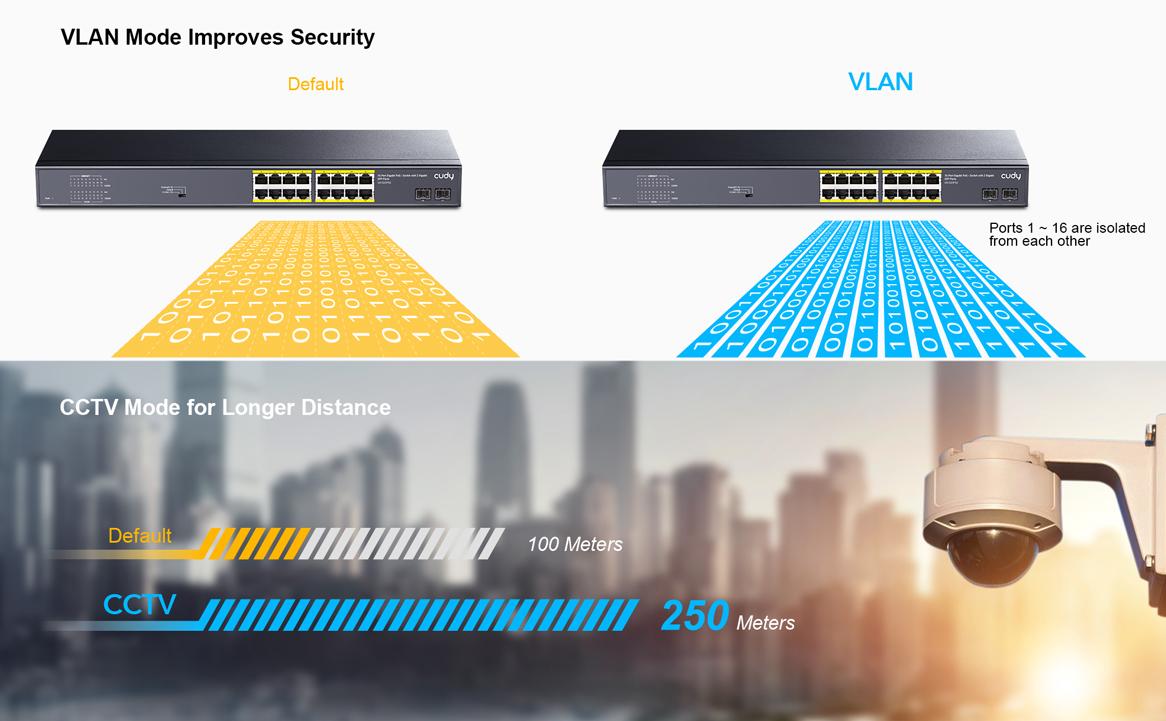

● Modul CCTV accepta alimentarea la distanta cu date de pana la 250M
● Modul VLAN accepta 16 porturi POE+ izolate unul de celalalt
● Indicatoare LED pentru diagnosticarea retelei

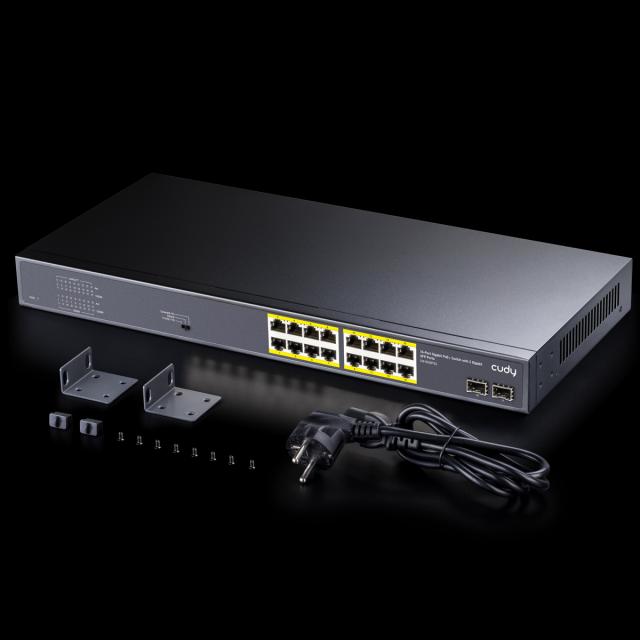

● carcasa metalica de 19 inch, design intern de putere
Latimea de banda 52 Gbps
Rata de expediere a pachetelor 38.7Mpps
Memorie de tamponare a pachetelor 4M
MAC Address 8K

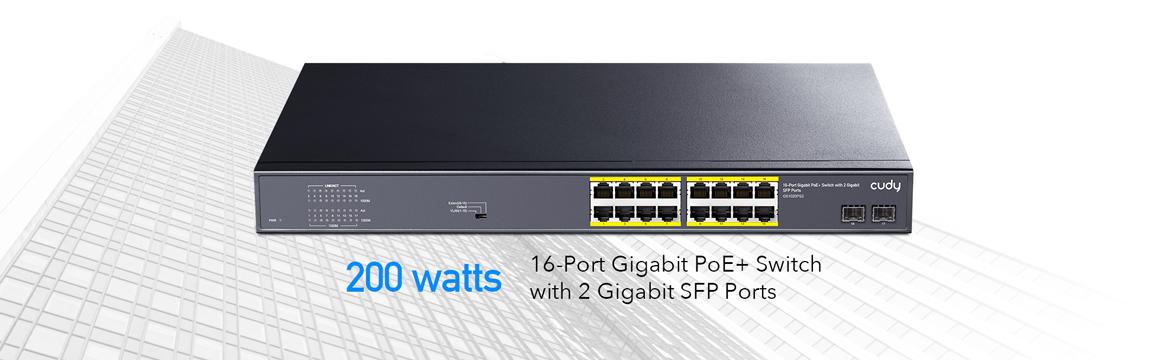

16-Port PoE + 2-Port Fiber
● 10/100 / 1000Mbps Ethernet ports
● IEEE 802.3af / 802.3at compliant
● 200W total PoE power supply.

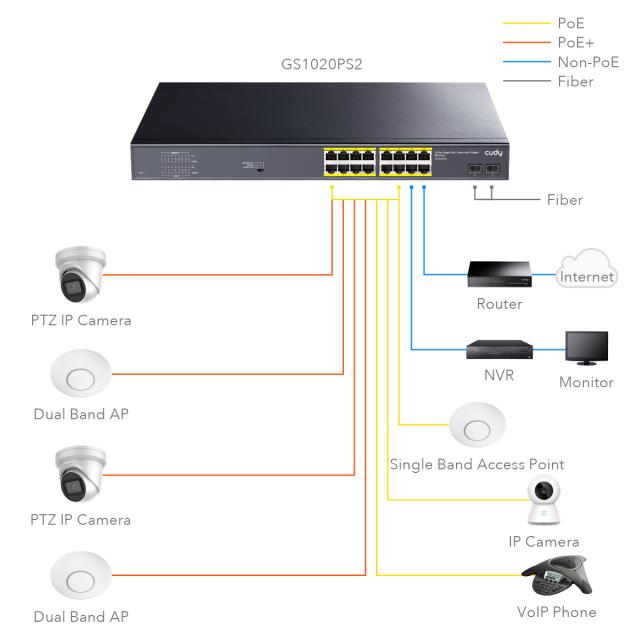

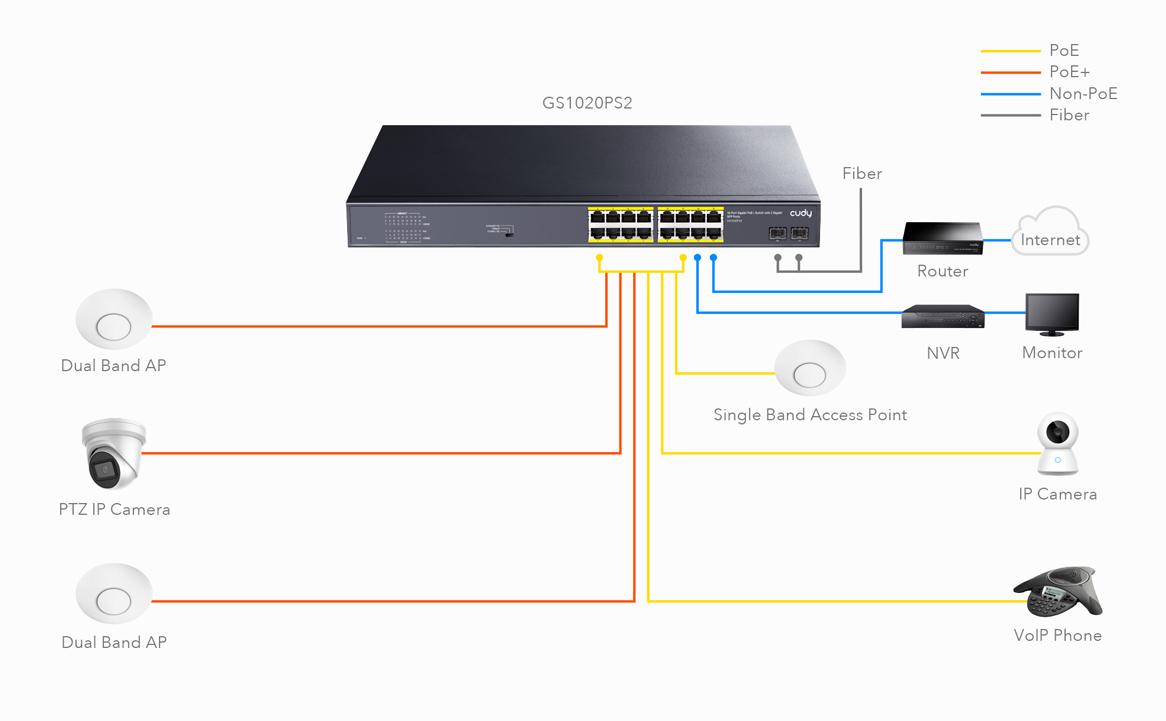

● Ideal for installing 16 PoE devices
● Auto-sensing technology delivers up to 30W of power to an 802.3at PoE + device with backwards compatibility for 802.3af PoE (15.4W) devices

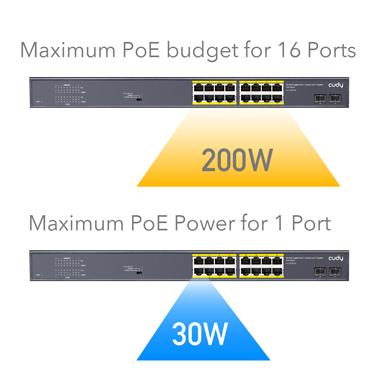

200W Power budget & 30W Maximum One Port
Supports 200W total PoE+ power and up to 30W for one PoE port. Auto detect power device, will not burned non-standard PoE device or normal PoE switch. Complies with IEEE802.3af/at Standard.

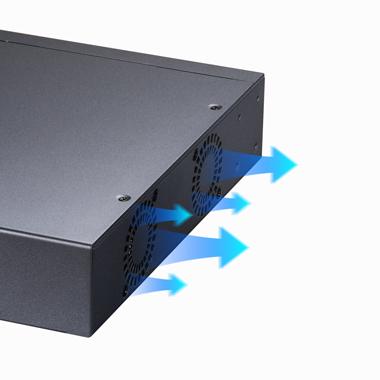

Heat Dissipation
● Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment.
High Quality TPS PoE chipset inside
● High Quality TPS PoE chipset inside ensure High performance and stable operation of the product.
Auto-sensing technology
● The port power prioritization technology ensures the continuous power supply of the key nodes.
Lightning protection
● Electrostatic standard: contact 6KV, air 8KV
● MTBF > 50000 hour
Specifications
| Model | GS1020PS2 | ||
| Connector Type | 16*10/100/1000M PoE Ports + 2*Gigabit SFP Uplink Ports | ||
| Network Media (Cable) |
IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab IEEE802.3z |
||
|
PoE Parameters |
PoE Standard: IEEE802.3af /IEEE802.3at | ||
|
Max each port: 15.4W ( IEEE 802.3af ) Max each port：30W ( IEEE 802.3at ) |
|||
| PoE compatibility: IEEE 802.3af/at adaptive | |||
| PoE port output: DC48-55V | |||
| Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) | |||
| Network Media |
10BASE-T: Cat 5E UTP(≤250 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
||
| Optical |
MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km |
||
| Performance Specification | Bandwidth: 52Gbps | ||
| MAC: 8K | |||
| Packet Buffer Memory: 4M | |||
| Packet Forwarding Rate: 38.7Mpps | |||
| Power Supply | Power input: AC100-240V 50/60Hz, Power Budget: 200W | ||
| LED Indicator | PWR |
Power supply indicator (Red) |
Lighting：Powered Un-Light：No Power |
| 1-26 |
RJ-45 LINK indicator (Green) |
Lighting：1000M Connect Un-Light：100M or Disconnect |
|
| 1-26 |
RJ-45 ACT indicator (Green) |
Lighting：Connecting Flashing：Data Transmit Un-Light：Disconnect |
|
| Working Environment |
Operating Temperature: -20℃ ~ 50℃; Storage Temperature: -40℃ ~ 80℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
||
