Cudy FS1026PS1

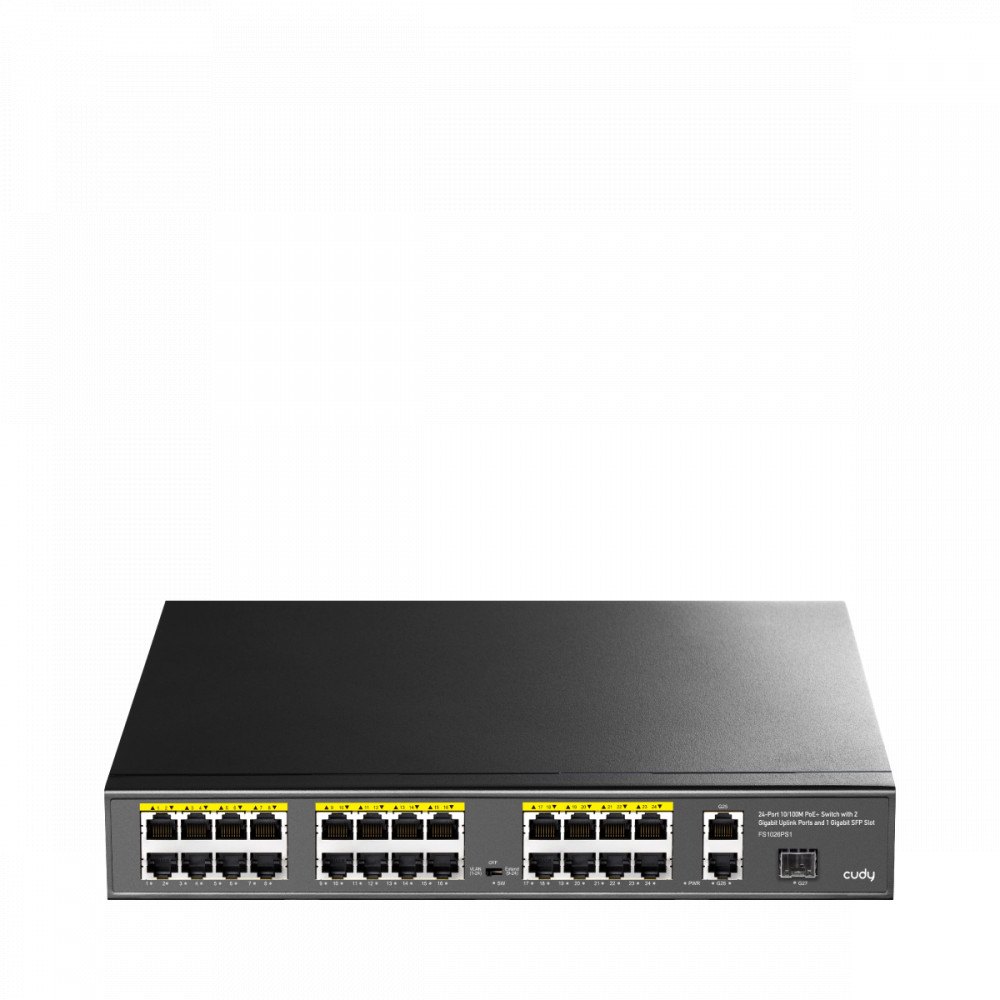

Switch Cudy FS1026PS1, 24-Port 10/100M PoE+ Switch 2 x Gigabit ports, 1 x SFP Slot
Cod produs: CUDY-SWITCH-FS1026PS1
Întrebare despre Cudy FS1026PS1
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 24 luni |
| Tip | PoE Switch |
| Viteză de transfer (LAN) | 1 Gbps |
| Port-uri LAN | 24 |
| SFP Ports | 1x SFP |
Related products
Tip:
Router portabil
Standard WI-FI:
LTE, 4G
Viteză de transfer (Wi-Fi):
până la 1167 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
4
Tip:
Router portabil
Standard WI-FI:
AC1200, LTE, 4G
Viteză de transfer (Wi-Fi):
până la 1667 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
4
Tip:
Sistem mesh
Standard WI-FI:
AX3000
Viteză de transfer (Wi-Fi):
până la 2976 Mbps
Viteză de transfer (LAN):
1 Gbps, 2.5 Gbps
Port-uri LAN:
2
Tip:
Router
Standard WI-FI:
BE6500
Viteză de transfer (Wi-Fi):
până la 6453 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
4
Tip:
Sistem mesh
Standard WI-FI:
BE3600
Viteză de transfer (Wi-Fi):
până la 3570 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
2
Tip:
Access Point
Standard WI-FI:
AX3000
Viteză de transfer (Wi-Fi):
până la 2976 Mbps
Viteză de transfer (LAN):
2.5 Gbps
Port-uri LAN:
1
Tip:
Access Point
Standard WI-FI:
AX3000
Viteză de transfer (Wi-Fi):
până la 2977 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
1
Tip:
Sistem mesh
Standard WI-FI:
AX3000
Viteză de transfer (Wi-Fi):
până la 2976 Mbps
Viteză de transfer (LAN):
1 Gbps, 2.5 Gbps
Port-uri LAN:
2
Tip:
Access Point, PoE
Standard WI-FI:
AX3000
Viteză de transfer (Wi-Fi):
până la 2973 Mbps
Viteză de transfer (LAN):
2.5 Gbps
Port-uri LAN:
1
Tip:
Sistem mesh
Standard WI-FI:
AC1200
Viteză de transfer (Wi-Fi):
până la 1167 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
2
Tip:
Router
Standard WI-FI:
BE3600
Viteză de transfer (Wi-Fi):
până la 3570 Mbps
Viteză de transfer (LAN):
1 Gbps, 2.5 Gbps
Port-uri LAN:
4
● 24 x porturi 10/100M PoE+
● 2 x port Gigabit Uplink
● 1 x slot 1.25Gbps SFP
● 300 Wati buget de putere PoE
● Compatibil cu standardele IEEE 802.3at / IEEE 802.3af
● Plug&play, configurare simpla fara configurare necesara
Gama de tensiune: AC100~240V
PoE: Maxim fiecare port: 15.4W ( IEEE 802.3af )
Maxim fiecare port：30W ( IEEE 802.3at )
Viteza: 1~24 Port: 10/100/Mbps
G25~G26 Port:10/100/1000Mbps
G27 Port: Porturi SFP Gigabit Uplink
Standard Ethenet: IEEE802.3
IEEE802.3u
IEEE802.3ab
IEEE802.3x
IEEE802.3z
Adresa MAC: 2K Tabelul de adrese MAC
Dimensiuni: 320 x 210 x 46 mm

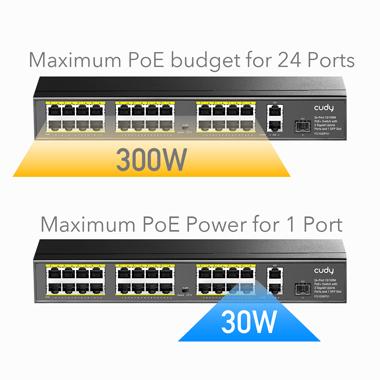

300 W Power budget & 30 W Maximum One Port
Supports a total PoE power of 300 W and up to 30 W for one PoE port. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.

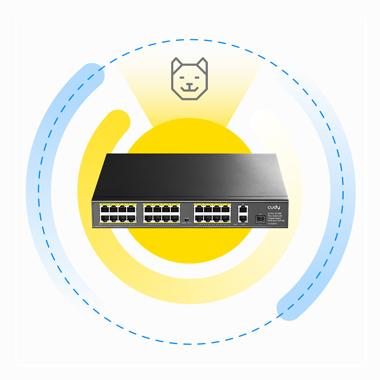

Watchdog guarantees uninterrupted operation of the PoE devices
The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

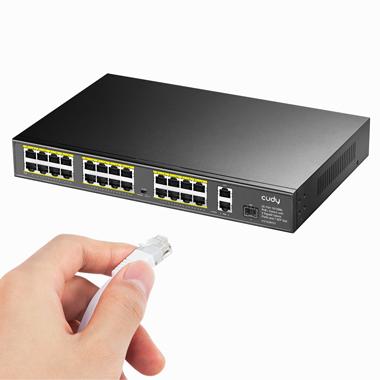

Plug&Play, Fanless design
Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)

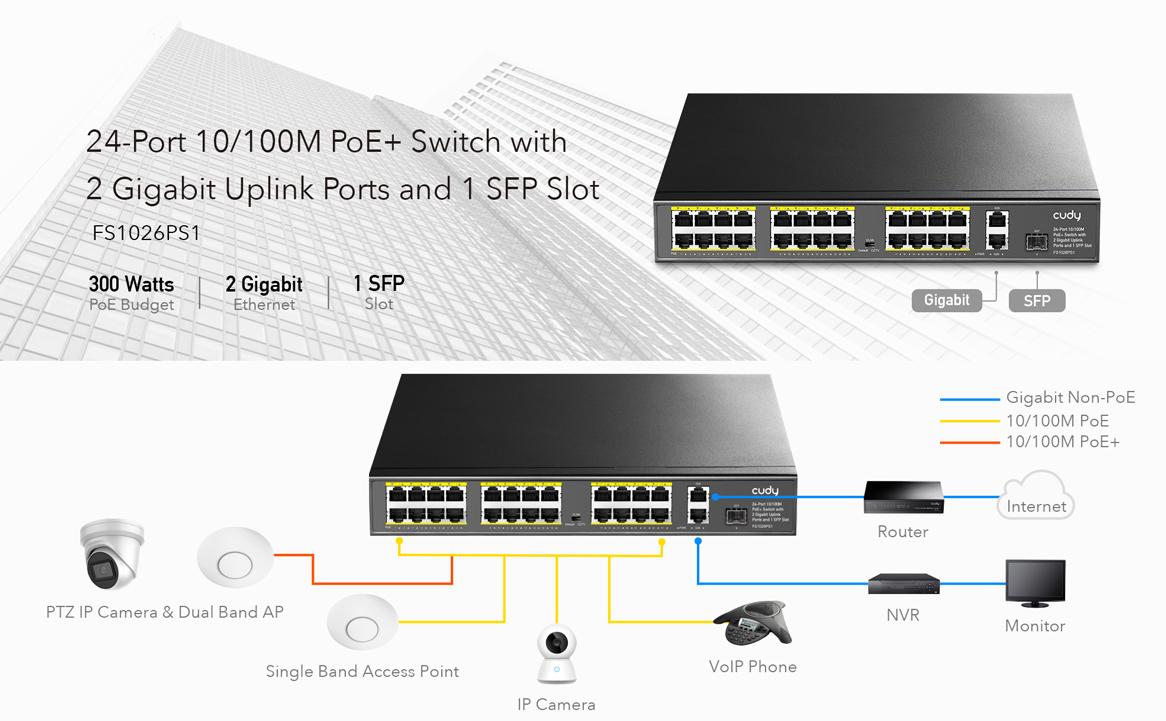

Surveillance
Works with IP Cameras for home and office, small business
VoIP Conference Call
Works with VoIP phones for business conference
Wi-Fi Coverage
Works with WiFi APs for office and business
Specifications
|
Mode |
FS1026PS1 |
||
|
Connector Type |
24-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports and 1 SFP Slot | ||
|
Network Protocols |
IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3x IEEE802.3z |
||
|
PoE Parameters |
PoE Standard: IEEE802.3af /IEEE802.3at |
||
|
Max each port: 15.4W ( IEEE 802.3af ) Max each port：30W ( IEEE 802.3at ) |
|||
|
PoE compatibility: IEEE 802.3af/at adaptive |
|||
|
PoE port output: DC48-55V |
|||
|
Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) |
|||
|
Network Media |

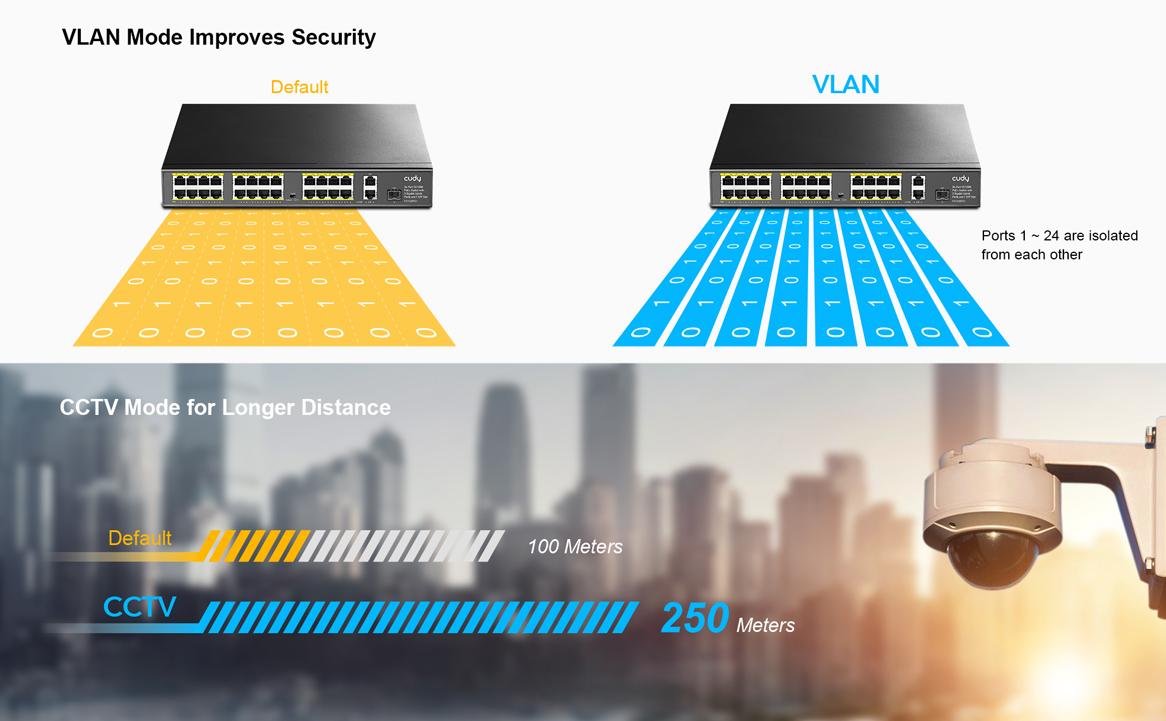

10BASE-T: Cat 6 UTP(≤250 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
||
|
Optical |
MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km |
||
|
Performance Specification |
Bandwidth: 10.8Gbps |
||
|
MAC Address: 2K |
|||
|
Packet Buffer Memory: 1M |
|||
|
Packet Forwarding Rate: 8Mpps |
|||
|
Forwarding Mode: Store-And-Forward |
|||
|
Power Supply |
Product Input Voltage: AC100-240V 50/60Hz Power Budget: 300W |
||
|
Led indicator |
PWR |
Power supply indicator (Red) |
Lighting：Powered Un-Light：No Power |
|
Led indicator |
SW |
DIP indicator (Green) |
OFF: Normal |
|
1-27 |
RJ-45 ACT indicator (Green) |
Lighting：Connecting |
|
|
Working Environment |
Operating Temperature: -20℃ ~ 50℃; |
||
|
Storage Temperature: -40℃ ~ 85℃; |
|||
|
Operating Humidity: Max 90%, non-condensing |
|||
|
Storage Humidity: Max 95%, non-condensing |
|||
|
Working Height: Max to 10,000 feet (3,000 meters） |
|||
|
Storage Height: Max to 10,000 feet (3,000 meters) |
|||
|
Physical Parameter |
Product Dimension (L*W*H): 320mm*210mm*46mm |
||
|
Package Dimension (L*W*H): 375mm*270mm*85mm |
|||
|
N.W: 1.9KG |
|||
|
G.W: 2.4KG |
|||
|
MTBF |
100,000 hours |
||
