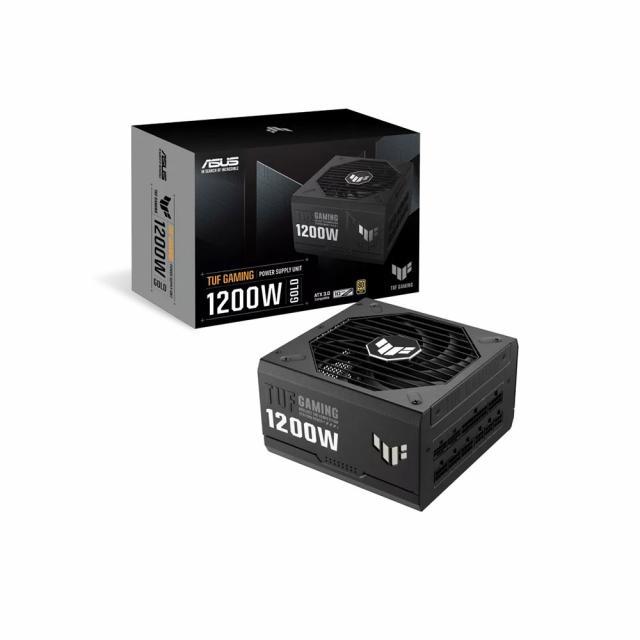

ASUS TUF Gaming 1200W Gold
Sursa de alimentare ASUS TUF Gaming 1200W, 80+ Gold PCIe 5.0, Fully Modular
Cod produs: ASUS-PS-TUF-GAMING-1200G
Întrebare despre ASUS TUF Gaming 1200W Gold
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 120 luni |
| Putere | 1200W |
| Certificat | 80+ Gold |
| Eficienţă | 80 % |
| Tip | Modulară |
| Form Factor | ATX |
| Specificație | ATX 3.0 |
| PCIe Gen5 | Da |
| Iluminare RGB | Nu |
| Culoare | Negru |
| Garanție | 120 luni |
Related products
Putere:
1000W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1000W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1200W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1000W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1000W
Certificat:
80+ Gold
Eficienţă:
89 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Gold
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Gold
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1200W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
750W
Certificat:
80+ Bronze
Eficienţă:
85 %
Tip:
Nemodulară
Form Factor:
ATX
Putere:
750W
Certificat:
80+ Bronze
Eficienţă:
85 %
Tip:
Nemodulară
Form Factor:
ATX
Putere:
1600W
Certificat:
80+ Titanium
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
3000W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX

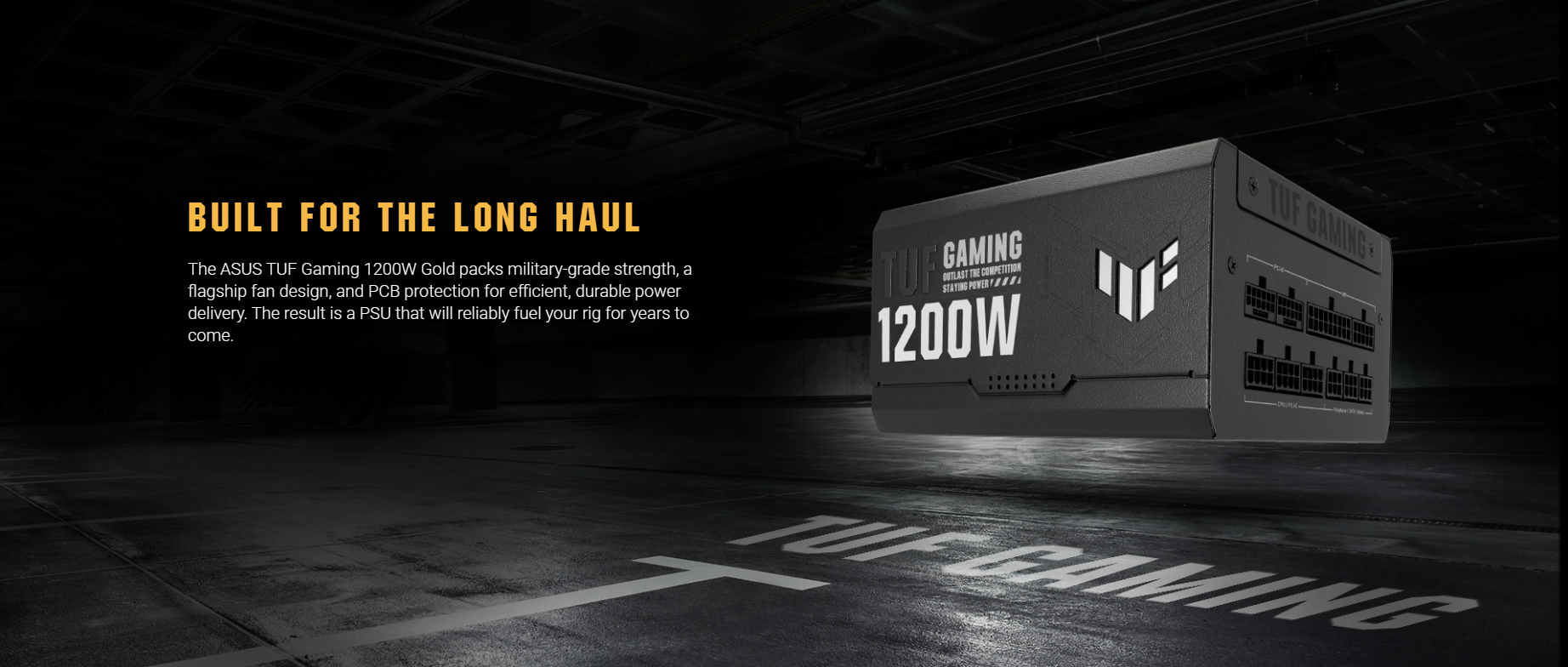

TUF Gaming 1200W Gold este un PSU eficient, rezistent si de incredere, conceput pentru utilizare pe termen lung
- Condensatoarele si sufocarile trec teste solicitante pentru a obtine certificarea de grad militar
- Rulmentii de ventilator cu bile duble pot dura pana la de doua ori mai mult decat modelele de rulmenti cu maneca
- O acoperire PCB de protectie protejeaza impotriva umiditatii, prafului
- O certificare Gold 80 Plus este rezultatul condensatoarelor japoneze si al altor componente premium
- Designul Axial-tech al ventilatorului dispune de un butuc de ventilator mai mic, care faciliteaza lamele mai lungi si un inel de bariera care creste presiunea aerului in jos.
- Cablurile gravate complet modulare va mentin echipamentul ingrijit si ordonat.
Durability

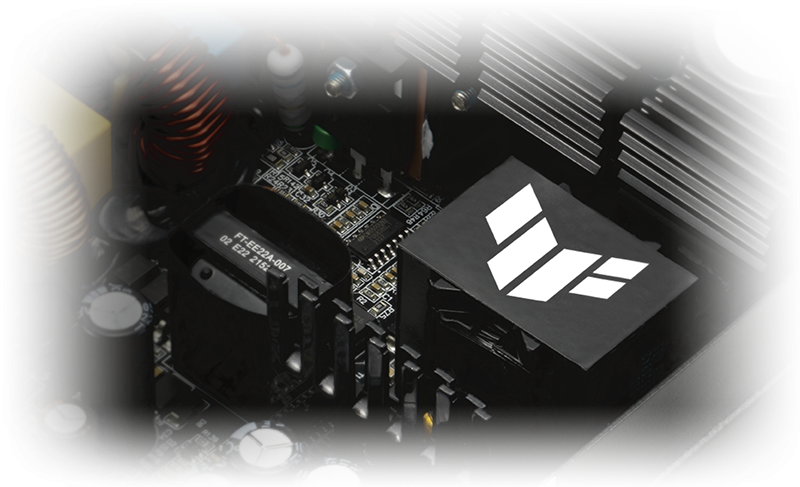

TUF Components
Top marks
With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 1200W Gold empowers you to build in confidence.

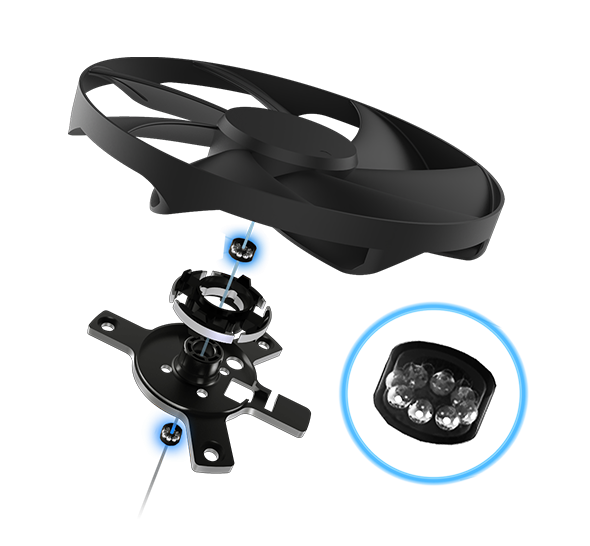

Dual Ball Fan Bearings
2x longer lifespan
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

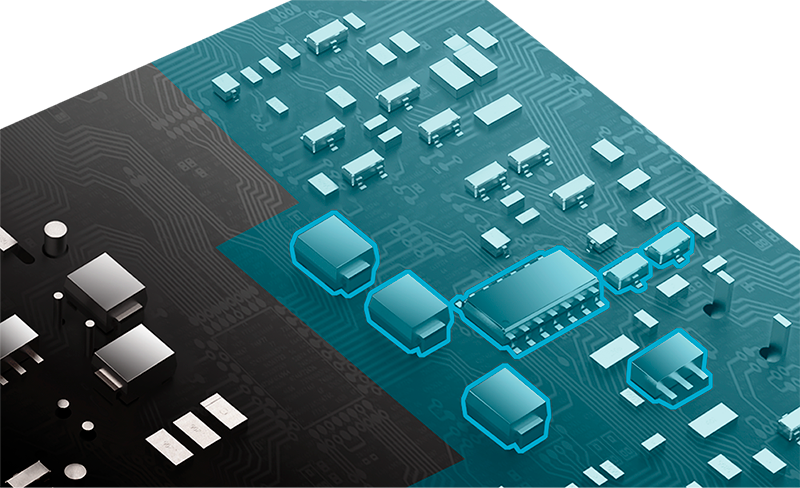

Protective PCB Coating
All wrapped up
A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.
ENGINEERING

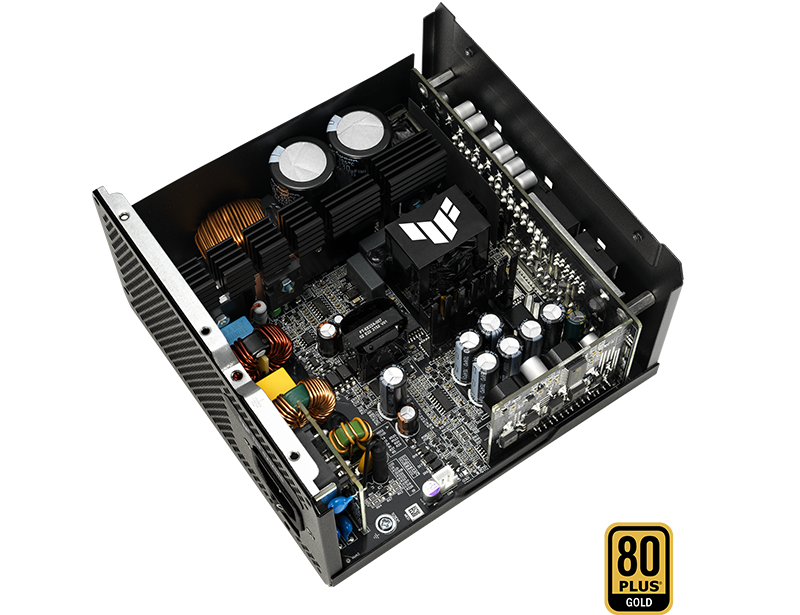

80 Plus Gold Certification
Heart of gold
The TUF Gaming 1200W Gold features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
ATX 3.0 Compatible
Step into the future

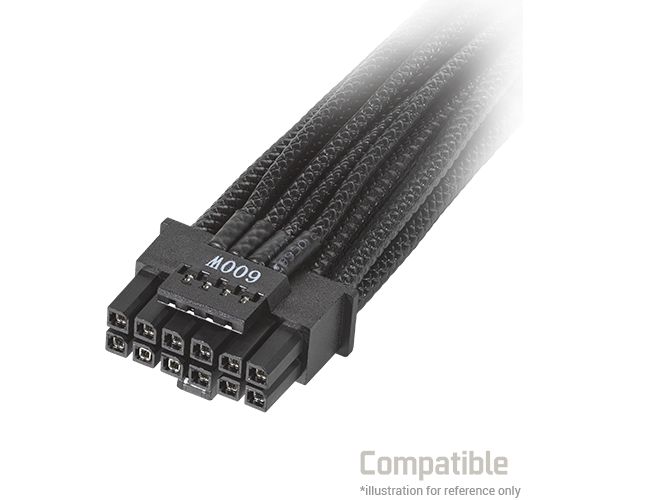

The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1200W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.
Axial-tech Fan Design
Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.
EXPERIENCE
10-year Warranty
A decade of power
We're so confident about the reliability of the TUF Gaming 1200W Gold that we back it with a 10-year worldwide warranty.

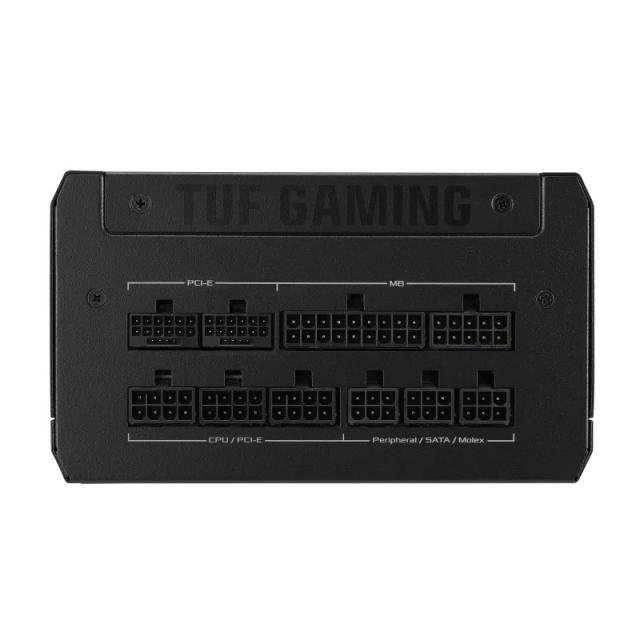

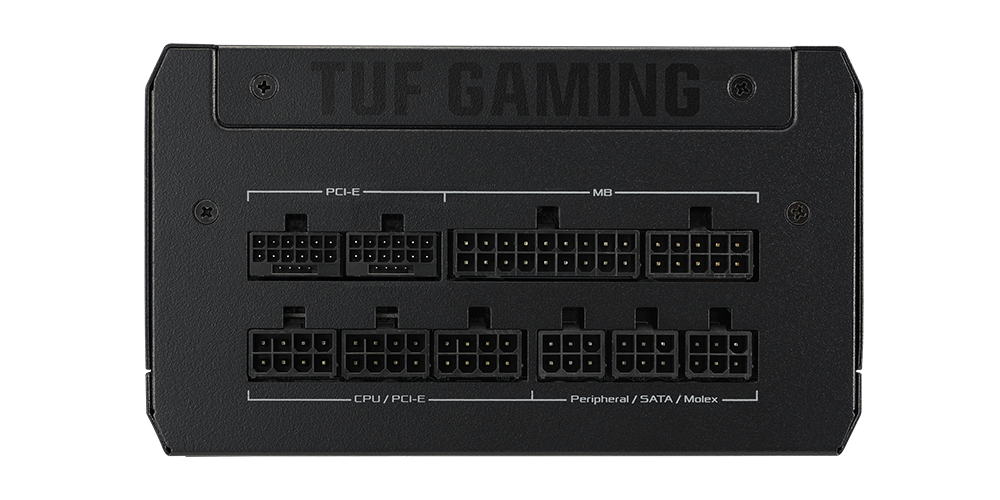

Fully Modular Etched Cables
Supple ply
The included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces.
Tech Specs
Model |
TUF Gaming 1200W Gold |
DC Output Voltage |
+3.3V +5V +12V -12V +5Vsb |
Intel Form Factor |
ATX12V |
Maximum Load |
25A25A99A 0.8A 3A |
ATX 3.0 |
Yes |
Combined Load |
130W 130W 1188W 9.6W 15W |
Dimensions |
150 x 150 x 86 mm |
Total Output |
1200W |
Efficiency |
80Plus Gold |
Connectors |
MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 2 PCI-E 8-pin x 3 SATA x 5 PERIPHERAL x 4 |
Protection Features |
OPP/OVP/UVP/SCP/OCP/OTP |
Package Contents |
Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 2 (675mm) PCI-E 1-to-1 Cable x 1 (675mm) PCI-E 1-to-2 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120 mm) SATA 1-to-3 Cable x 1 (400+120+120 mm) Peripheral 1-to-4 x 1 (400+150+150+150 mm) TUF Gaming Cable tie x 3 User Manual x 1 |
Hazardous Materials |
ROHS |
Weight |
2.66kg (single PSU) |
AC Input Range |
100-240Vac |
0dB Fan Button |
No |
