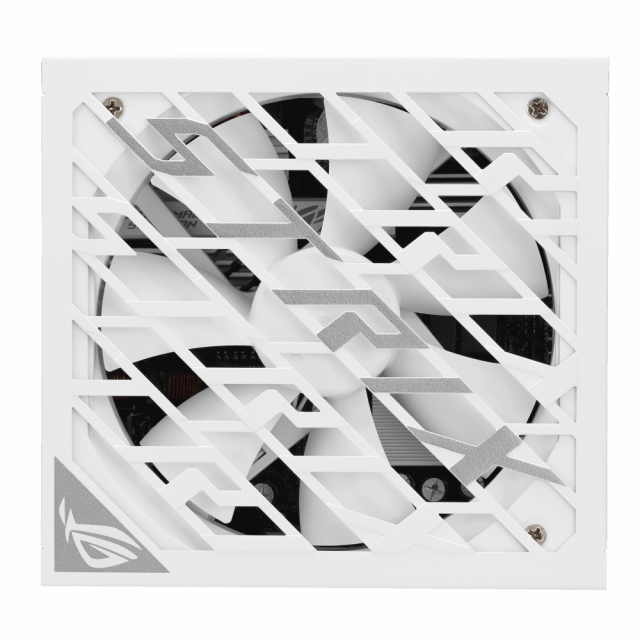

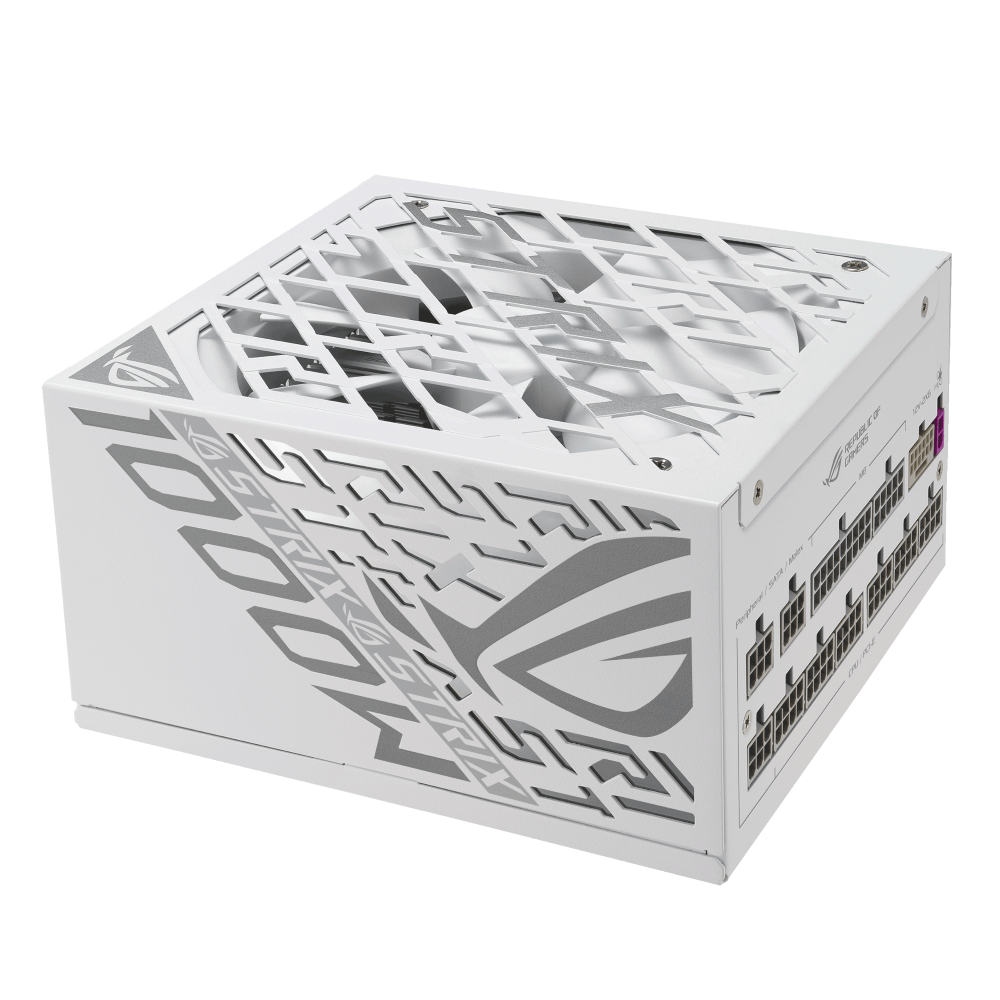

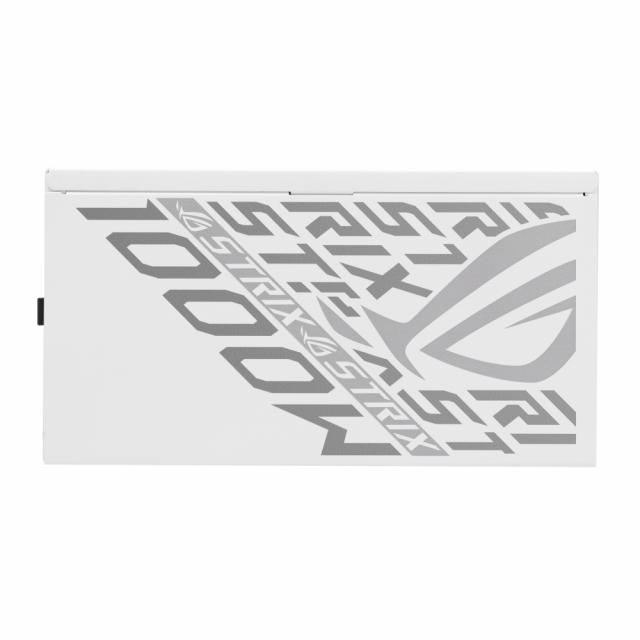

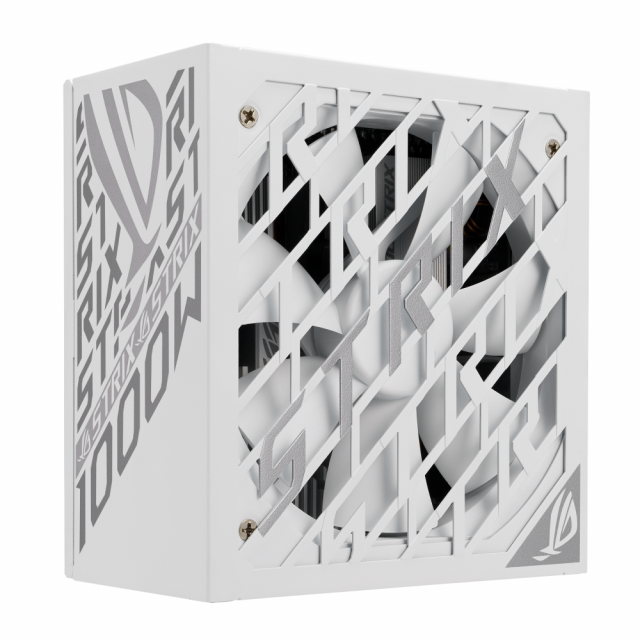

ASUS ROG Strix 1000W Platinum White Edition
Sursa de alimentare ASUS ROG STRIX 1000W White Edition, 80+ Platinum PCIe 5.1, Fully Modular
Întrebare despre ASUS ROG Strix 1000W Platinum White Edition
| Putere | 1000W |
| Certificat | 80+ Platinum |
| Eficienţă | 92 % |
| Tip | Modulară |
| Form Factor | ATX |
| Specificație | ATX 3.1 |
| PCIe Gen5 | Da |
| Iluminare RGB | Nu |
| Culoare | Alb |
| Garanție | 120 luni |
Related products
ASUS ROG Strix 1000W Platinum White Edition este o sursa de alimentare ATX 3.1 complet modulara, ideala pentru sisteme high-end de gaming si PC-uri personalizate care cer eficienta extrema, racire avansata si compatibilitate cu hardware de ultima generatie.
- Putere stabila si eficienta ridicata: 1000W cu certificare 80 PLUS Platinum – pana la 92% eficienta la 50% sarcina, mai putina caldura si consum redus
- Compatibilitate PCIe 5.1 si ATX 3.1: conector nativ 12V-2x6 inclus – suporta placi video de generatie noua cu pana la 600W consum
- Tehnologie GaN MOSFET pentru eficienta superioara: cu pana la 30% mai eficienta decat MOSFET-urile clasice – design intern optimizat si racire mai buna
- Stabilizator inteligent de tensiune GPU-FIRST: imbunatateste livrarea tensiunii cu pana la 45% catre placa video – gameplay fluid si performanta constanta

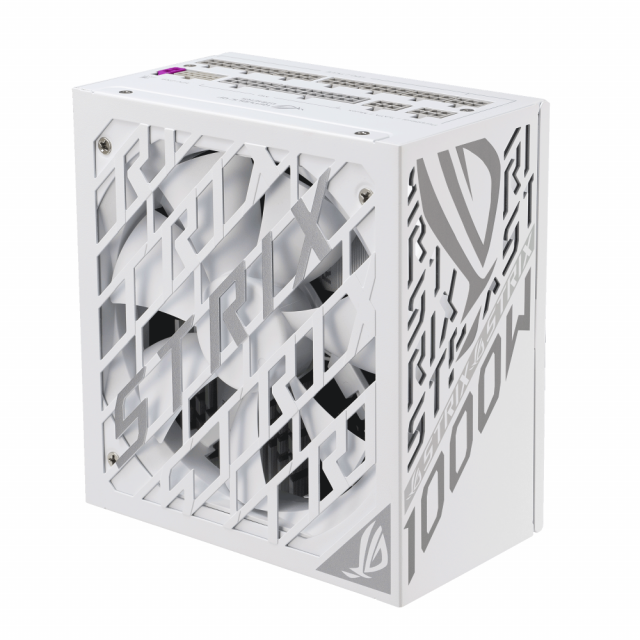

- Racire avansata si silentioasa: radiatoare ROG + ventilator cu rulmenti dubli + 0dB mode – functionare silentioasa sub 40% sarcina si durata de viata extinsa
- Design complet modular si cabluri flexibile: cabluri gravate, usor de gestionat si rezistente la temperaturi ridicate – airflow optim si instalare usoara
- Certificare Lambda A+ pentru zgomot redus: sub 20 dB – ideal pentru setup-uri silentioase si medii de lucru linistite
- Protectie completa pentru sistem: OVP, OCP, SCP, OTP – siguranta impotriva supratensiunii, scurtcircuitului si supraincalzirii
- Personalizare vizuala si DIY-friendly: stickere incluse + conector CPU cu clip distinct – instalare usoara si aspect personalizat

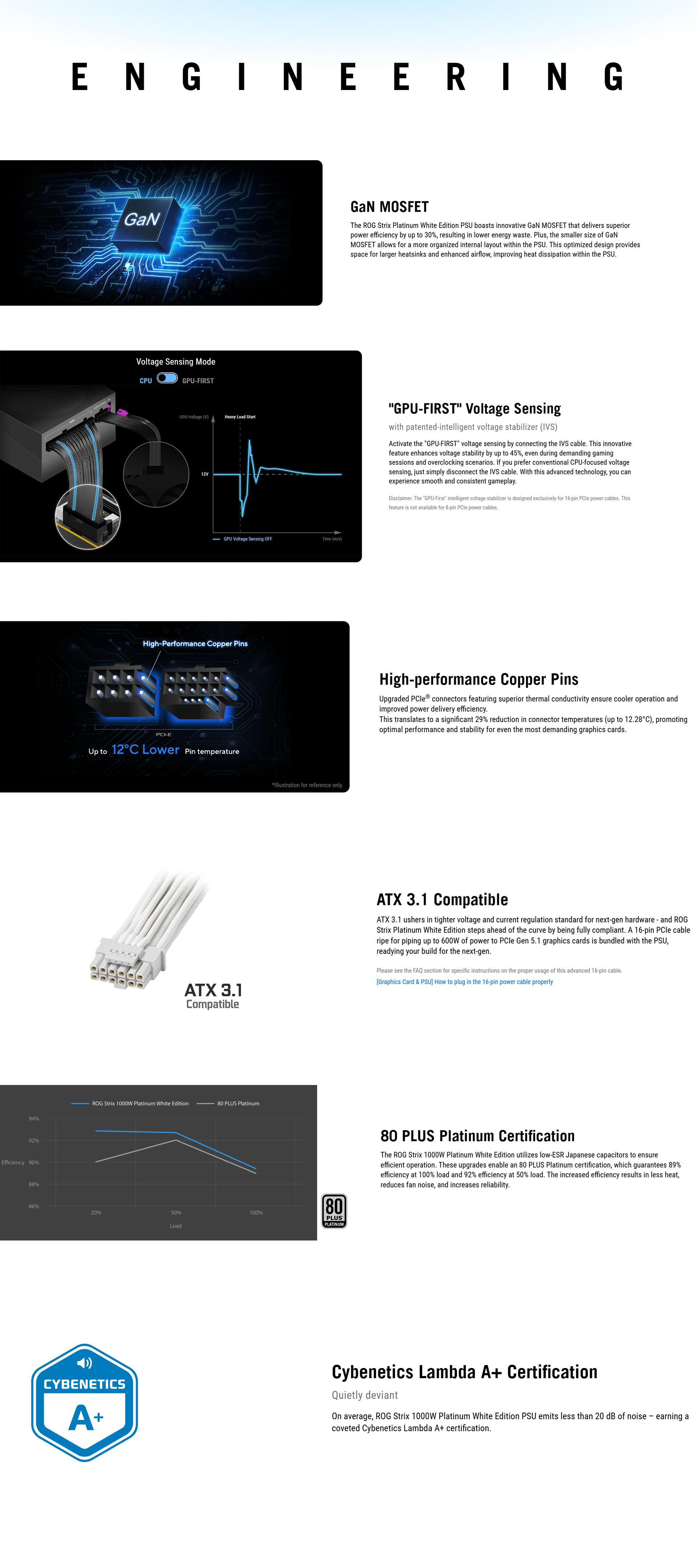

The ROG Strix Platinum White Edition PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring next-gen GaN MOSFET for superior power efficiency. The “GPU-FIRST” voltage sensing with patented-intelligent voltage stabilizer ensures a steady flow of power to the graphics card. Plus, it is ready for latest hardwares with ATX 3.1 compliance and a native 12V-2x6 connector. The ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.
Specifications
| Model | ROG Strix 1000W Platinum White Edition |
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 160 x 150 x 86 mm |
| Efficiency | 80Plus Platinum |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A 25A 83.3A 0.3A 3A |
| Combined Load | 130W 130W 1000W 3.6W 15W |
| Total Output | 1000W |

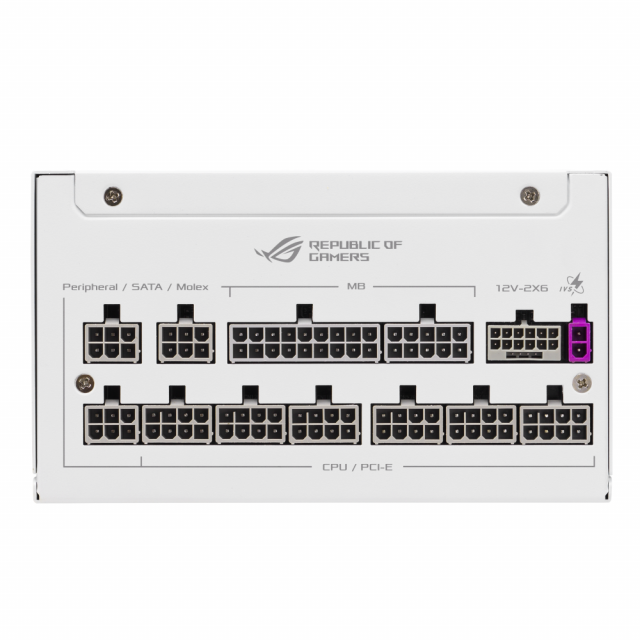

| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 6+2-pin x 4 SATA x 6 PERIPHERAL x 3 |

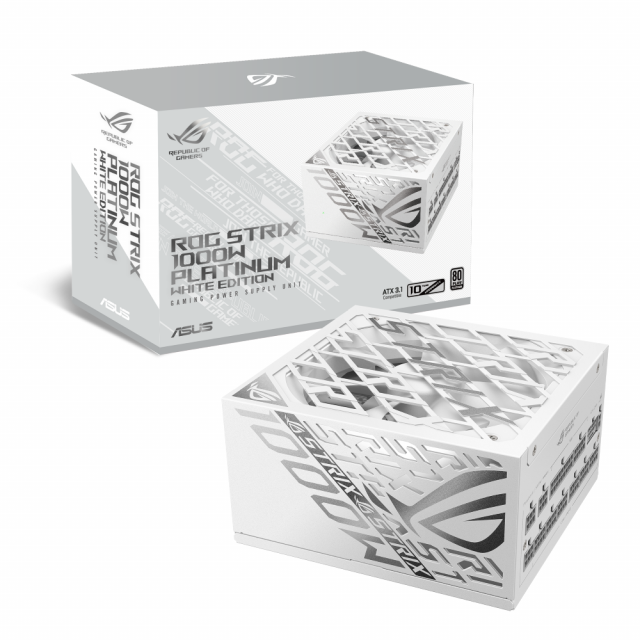

| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm) PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm) SATA 1-to-3 Cable x 2 (400+120+120mm) Peripheral 1-to-3 Cabel x 1 (400+150+150mm) ROG Strix DIY sticker x 1 User Manual x 1 |
| Weight | 1.81 kg (single PSU) |
| Cybenetics Noise Level Certification | A+ |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load |

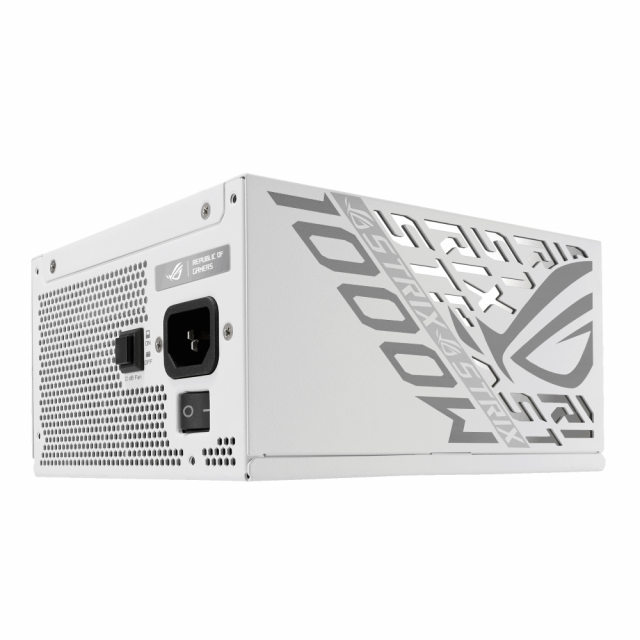

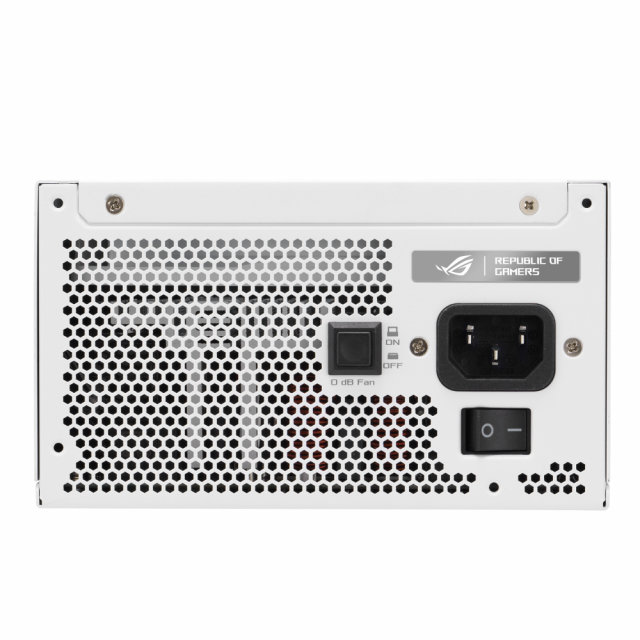

| 0dB Fan Button | Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
