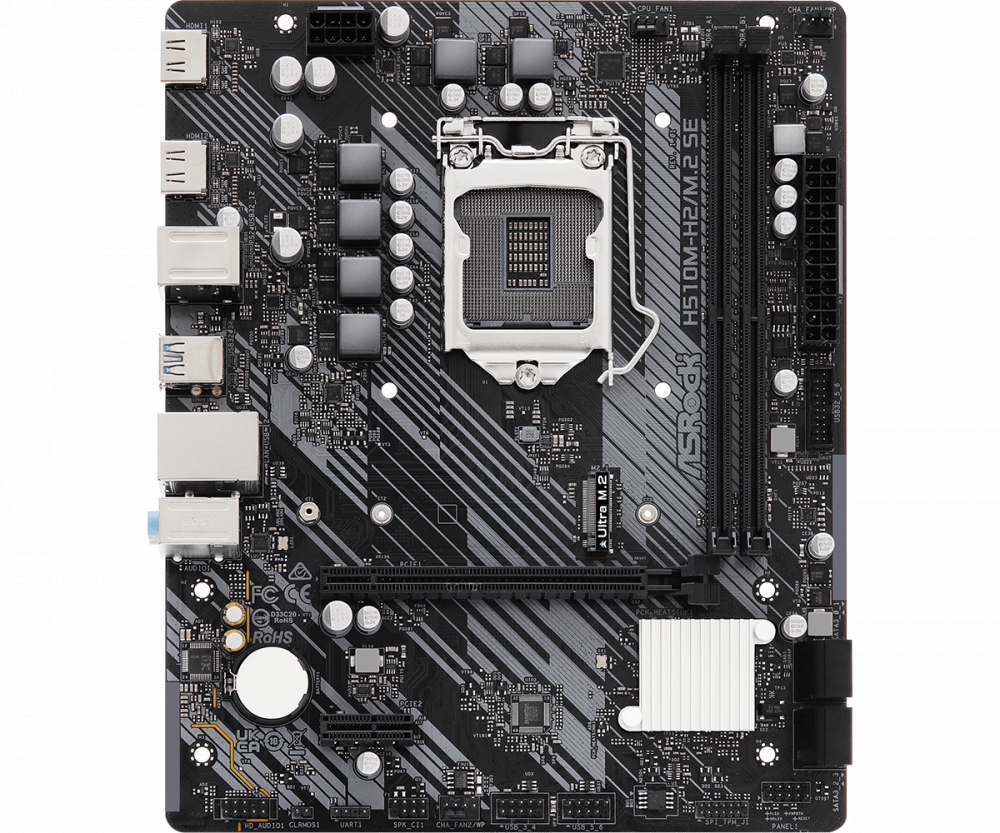

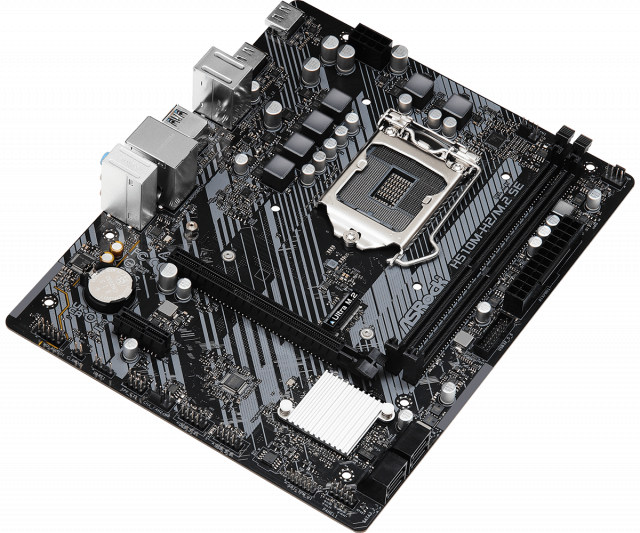

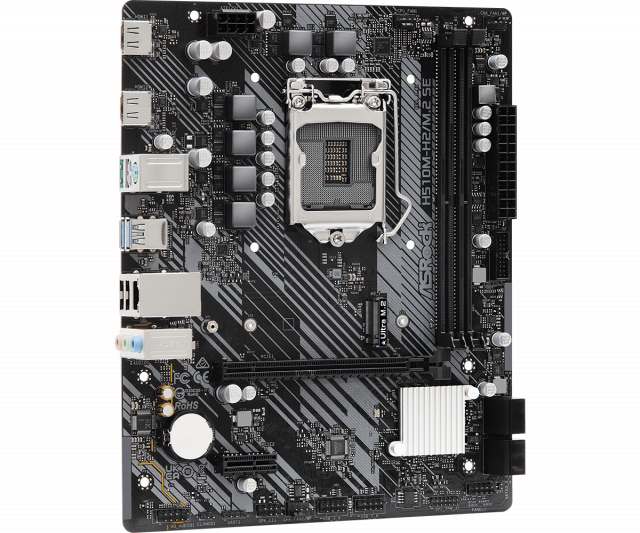

ASRock H510M-H2/M.2 SE
Placa de baza ASRock H510M-H2/M.2 SE, LGA1200, DDR4, mATX
Cod produs: ASR-MB-H510M-H2-M2-SE
Întrebare despre ASRock H510M-H2/M.2 SE
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 36 luni |
| Socket | Intel 1200 |
| Form Factor | Micro ATX |
| Chipset | Intel H510 |
| Numărul de sloturi pentru memorie | 2 |
| Capacitate RAM | până la 64 GB |
| Frecvența memoriei | până la 3200 MHz |
| Iluminare RGB | Nu |
| Memorie suportată | DDR4 |
| Wi-Fi încorporat | Nu |
Related products
Socket:
Intel 1200
Form Factor:
Micro ATX
Chipset:
Intel H510
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 64 GB
Socket:
AMD AM4
Form Factor:
Micro ATX
Chipset:
AMD A520
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 64 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel H610
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 96 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel H610
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 64 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel H610
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 64 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel H610
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 96 GB
Socket:
AMD AM4
Form Factor:
ATX
Chipset:
AMD B450
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 64 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD A620A
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 128 GB
Socket:
AMD AM4
Form Factor:
Micro ATX
Chipset:
AMD B550
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
Intel 1851
Form Factor:
Micro ATX
Chipset:
Intel H810
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 128 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B650
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 128 GB
ASRock H510M-H2/M.2 SE este o placa de baza compacta si fiabila, ideala pentru sisteme accesibile si eficiente. Ofera suport pentru procesoare Intel de generatie moderna, slot M.2 pentru stocare rapida si conectivitate esentiala pentru utilizarea zilnica. Designul sau Micro-ATX permite integrarea usoara in carcase mici si medii.
- Compatibilitate procesoare Intel – suport pentru procesoare Intel Core din generatiile 10 si 11.
- Slot M.2 – permite instalarea unui SSD NVMe pentru viteze ridicate de incarcare.
- Format Micro-ATX – dimensiuni compacte, potrivite pentru sisteme economice si versatile.
- Memorie DDR4 – suport pentru module DDR4 stabile si eficiente energetic.
- Conectivitate esentiala – porturi USB, HDMI, LAN si audio pentru utilizare completa.
- Constructie fiabila – componente de calitate pentru functionare stabila pe termen lung.
Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Auto Driver Installer
No need to worry about lack of disk drive!
Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
Specifications
| Unique Feature | Rock-Solid Durability - 4 Power Phase EZ Update - ASRock Auto Driver Installer |
| CPU | - Supports 10th Gen & 11th Gen Intel Core Processors (LGA1200) - Supports Intel Turbo Boost Max 3.0 Technology |
| Chipset | - Intel H510 |
| Memory | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB** - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots * 11th Gen Intel Core (i9/i7/i5) support DDR4 3200 natively; Core (i3), Pentium and Celeron support DDR4 2666 natively.
10th Gen Intel Core (i9/i7) support DDR4 2933 natively; Core (i5/i3), Pentium and Celeron support DDR4 2666 natively. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - 2 x HDMI Intel 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz Intel 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Graphics specifications may vary between CPU types. |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | - Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H |
| Slots | Intel 11th Gen & 10th Gen Processors: - 1 x PCIe 4.0 x16 Slot (PCIE1)* Intel H470 Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)** * Intel 11th Gen Processors support PCIe 4.0 x16
Intel 10th Gen Processors support PCIe 3.0 x16 ** Supports NVMe SSD as boot disks |
| Storage | Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors *Supports Intel Optane Technology
Supports NVMe SSD as boot disks |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | - 6 x USB 3.2 Gen1 (4 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) *All USB ports support ESD Protection
|
| Connector | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) *CPU_FAN1 supports the fan power up to 1A (12W).
** CHA_FAN1~2/WP support the fan power up to 2A (24W). CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.
|

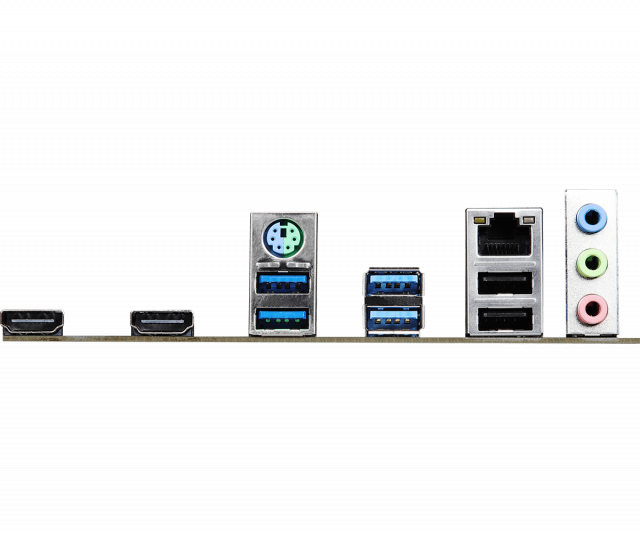

| Rear Panel I/O | - 1 x PS/2 Mouse/Keyboard Port - 2 x HDMI Ports - 2 x USB 2.0 Ports - 4 x USB 3.2 Gen1 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Accessories | - 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
| Form Factor | - Micro ATX Form Factor: 9.1-in x 7.36-in, 23.1 cm x 18.7 cm |
| OS | - Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
