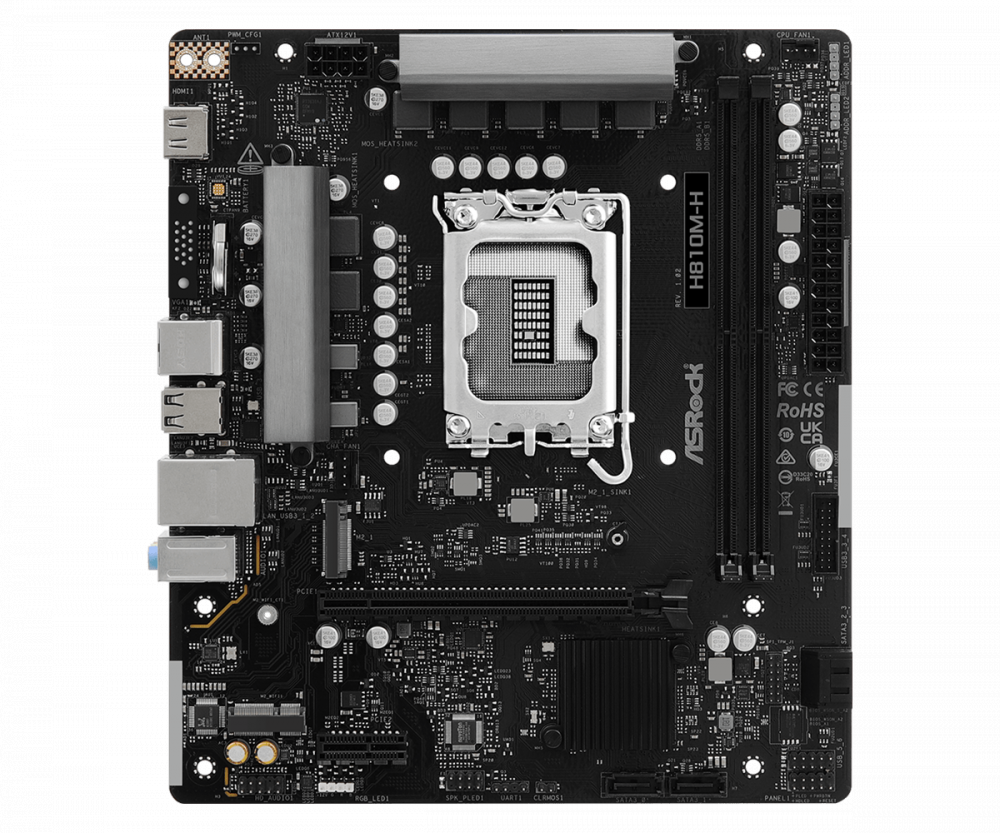

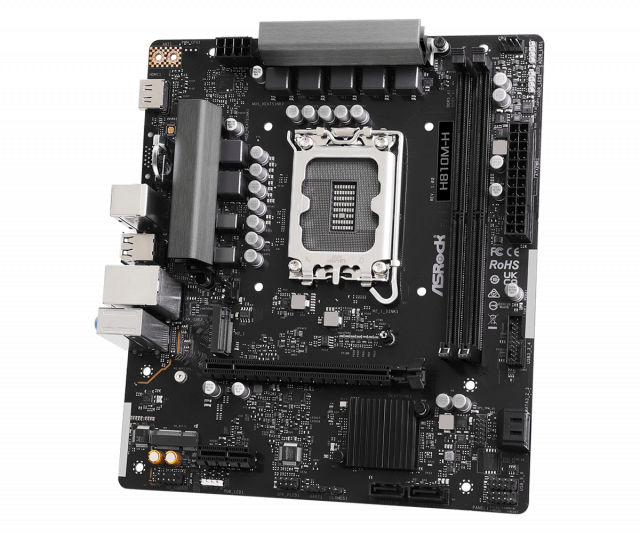

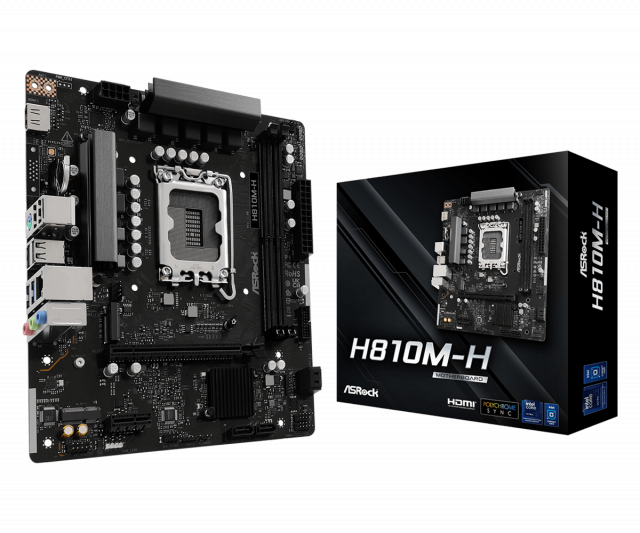

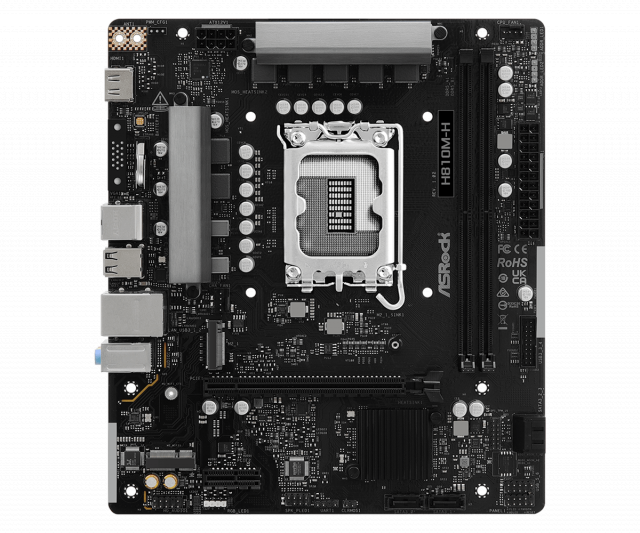

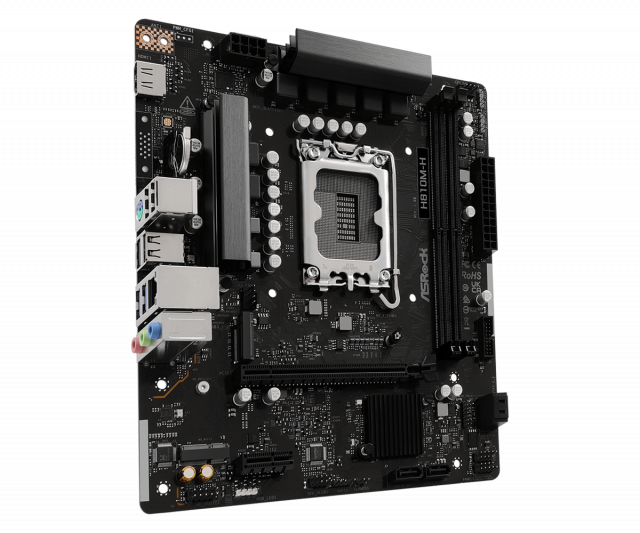

ASRock H810M-H
Placa de baza ASRock B810M-H, LGA1851
Cod produs: ASR-MB-H810M-H
Întrebare despre ASRock H810M-H
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 36 luni |
| Socket | Intel 1851 |
| Form Factor | Micro ATX |
| Chipset | Intel H810 |
| Numărul de sloturi pentru memorie | 2 |
| Capacitate RAM | până la 128 GB |
| Frecvența memoriei | până la 6400 MHz |
| Iluminare RGB | Nu |
| Memorie suportată | DDR5 |
| Wi-Fi încorporat | Nu |
Related products
Socket:
AMD AM4
Form Factor:
Micro ATX
Chipset:
AMD B550
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B650
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 128 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD A620A
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 128 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD A620A
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 128 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 64 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD A620A
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM4
Form Factor:
Micro ATX
Chipset:
AMD B550
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
AMD AM4
Form Factor:
ATX
Chipset:
AMD B450
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD A620A
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 128 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel H610
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 96 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel H610
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 64 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel H610
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 64 GB

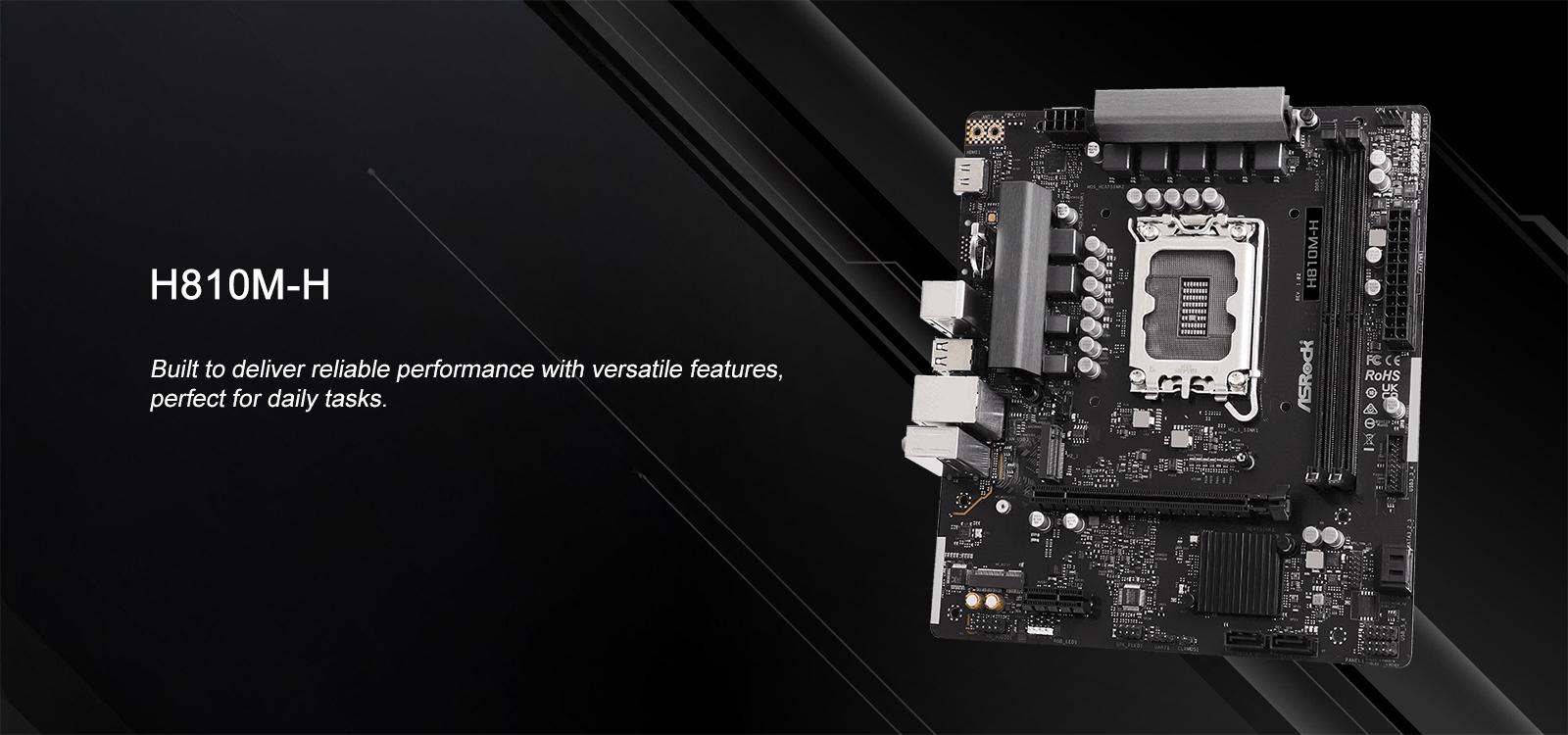

ASRock H810M‑H este o placa de baza compacta si fiabila, ideala pentru sisteme office sau configuratii entry‑level. Ofera suport pentru procesoare Intel moderne, conectivitate esentiala si o constructie solida, fiind o alegere echilibrata pentru utilizare zilnica.
- Socket LGA1700 — Compatibila cu procesoare Intel din generațiile recente pentru performanta stabila.
- Format Micro‑ATX — Dimensiune compacta, potrivita pentru carcase mici si sisteme economice.
- Memorie DDR5 — Suporta module DDR5 pentru viteze mai mari si eficienta imbunatatita.
- Conectivitate esentiala — Include porturi USB, HDMI si LAN pentru utilizare versatila.
- Slot PCIe — Permite instalarea unei placi video dedicate sau a altor extensii.
- Constructie durabila — Componente de calitate pentru functionare sigura si stabila pe termen lung.

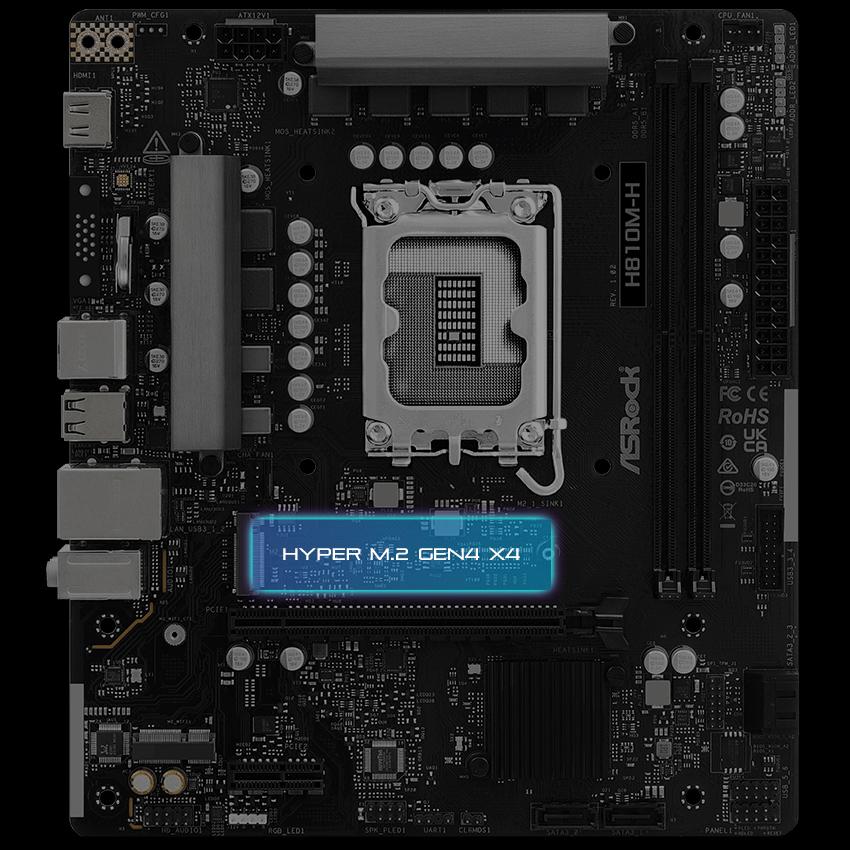

High Speed M.2 Solution
Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

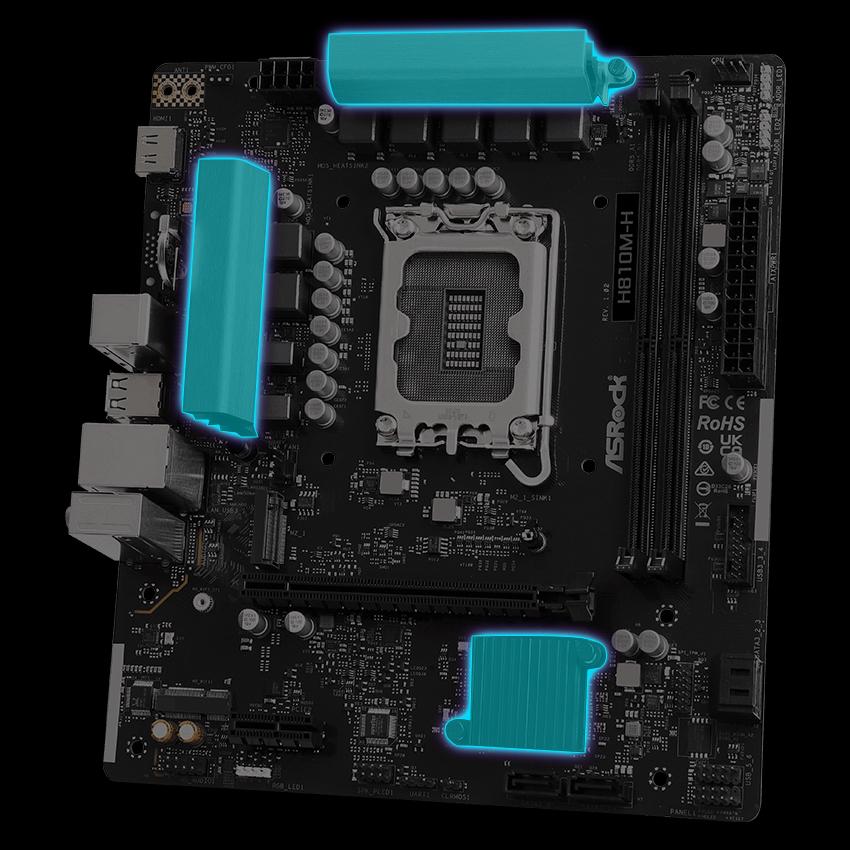

Intelligent Cooling Design
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

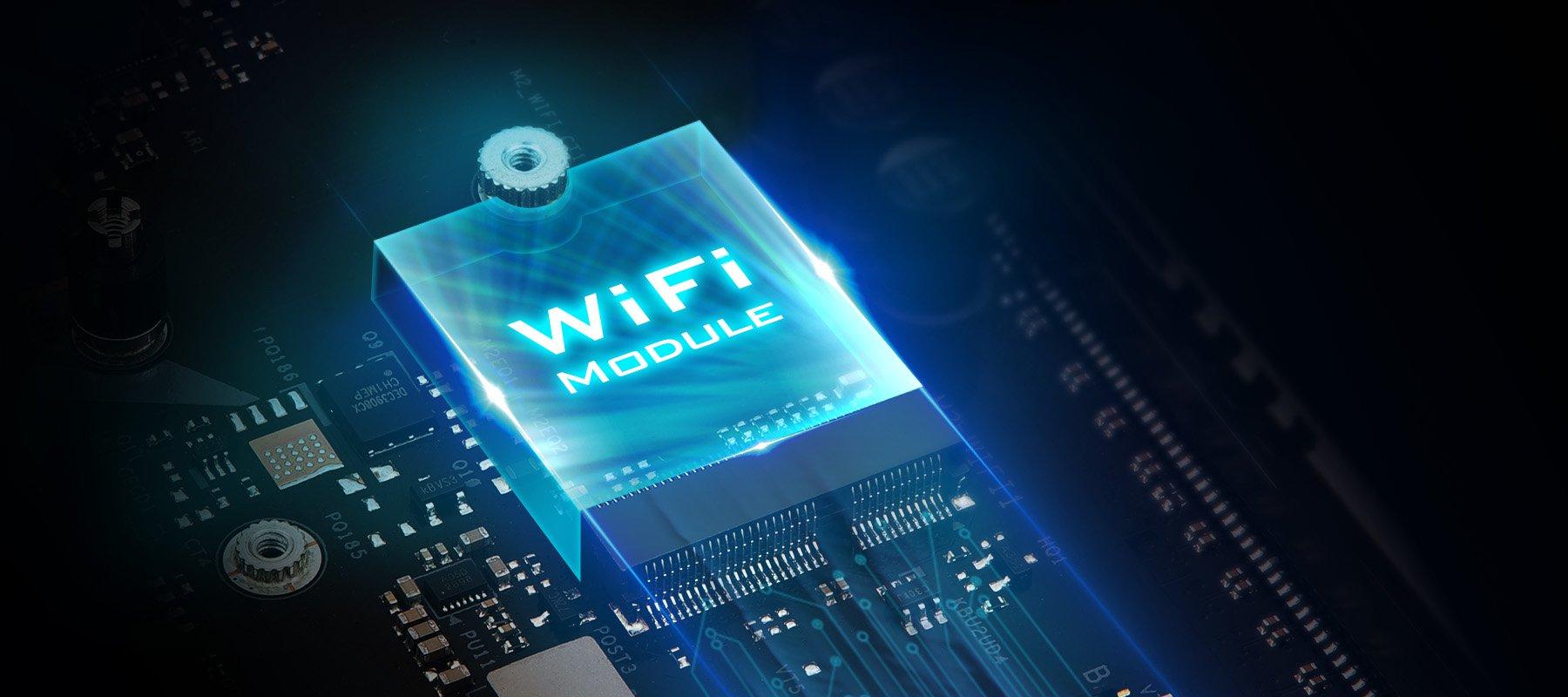

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.
Specifications
| Unique Feature | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 6+1+1+1+1 Power Phase -ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology EZ Update - ASRock Auto Driver Installer |
| CPU | - Supports Intel Core Ultra Processors (Series 2) (LGA1851) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) - Integrated NPU for dedicated AI acceleration |
| Chipset | - Intel H810 |
| Memory | - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 6400* - Supports Clocked Unbuffered DIMM (CUDIMM) - Max. capacity of system memory: 128GB* - Supports Intel Extreme Memory Profile (XMP) 3.0x* * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - Intel Xe LPG Graphics Architecture - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
|
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec |
| LAN | - Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H |
| Slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module *Supports NVMe SSD as boot disks
|
| Storage | Chipset: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks |
| USB | Chipset: - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 6 x USB 2.0 (4 Rear, 2 Front) *All USB ports support ESD Protection
|
| Connector | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) * Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W).
**** CHA_FAN1 supports the fan power up to 3A (36W).
CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.
|

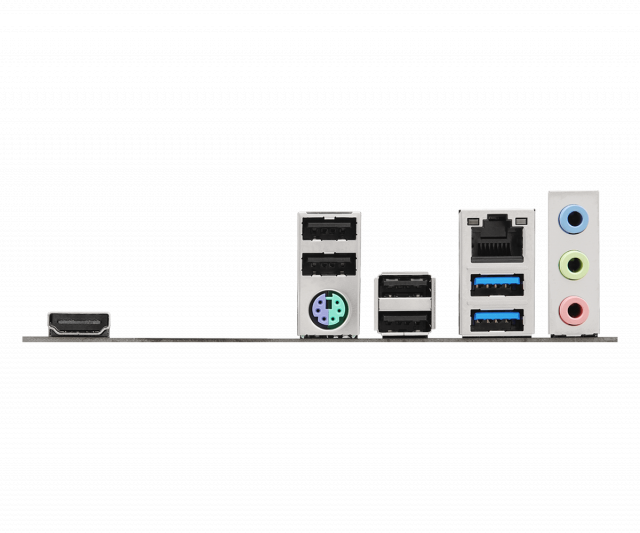

| Rear Panel I/O | - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Accessories | - 1 x I/O Shield - 2 x SATA Data Cables - 1 x Screws for M.2 Socket |
| Form Factor | - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
| OS | - Microsoft Windows 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
