Arctic P14 Pro A-RGB
Ventilator ARCTIC P14 Pro A-RGB - 140mm PWM
Întrebare despre Arctic P14 Pro A-RGB
| Garanție | 72 luni |
| Dimensiuni | 140 x 140 x 27 mm |
| Turație | până la 2500 RPM |
| Flux de aer | până la 110 CFM |
| Conector | 4-pin PWM, 3-pin 5V ARGB |
| Reverse | Nu |
| Culoare | Negru |
| Iluminare | ARGB |
Related products
ARCTIC P14 Pro A-RGB este un ventilator de 140 mm cu presiune statica ridicata, iluminare A‑RGB adresabila si un design al palelor optimizat pentru performanta excelenta pe radiatoare si carcase moderne. Motorul avansat, rulmentul FDB si controlul PWM ofera functionare lina, silentioasa si eficienta, completata de iluminare uniforma pentru un aspect premium.

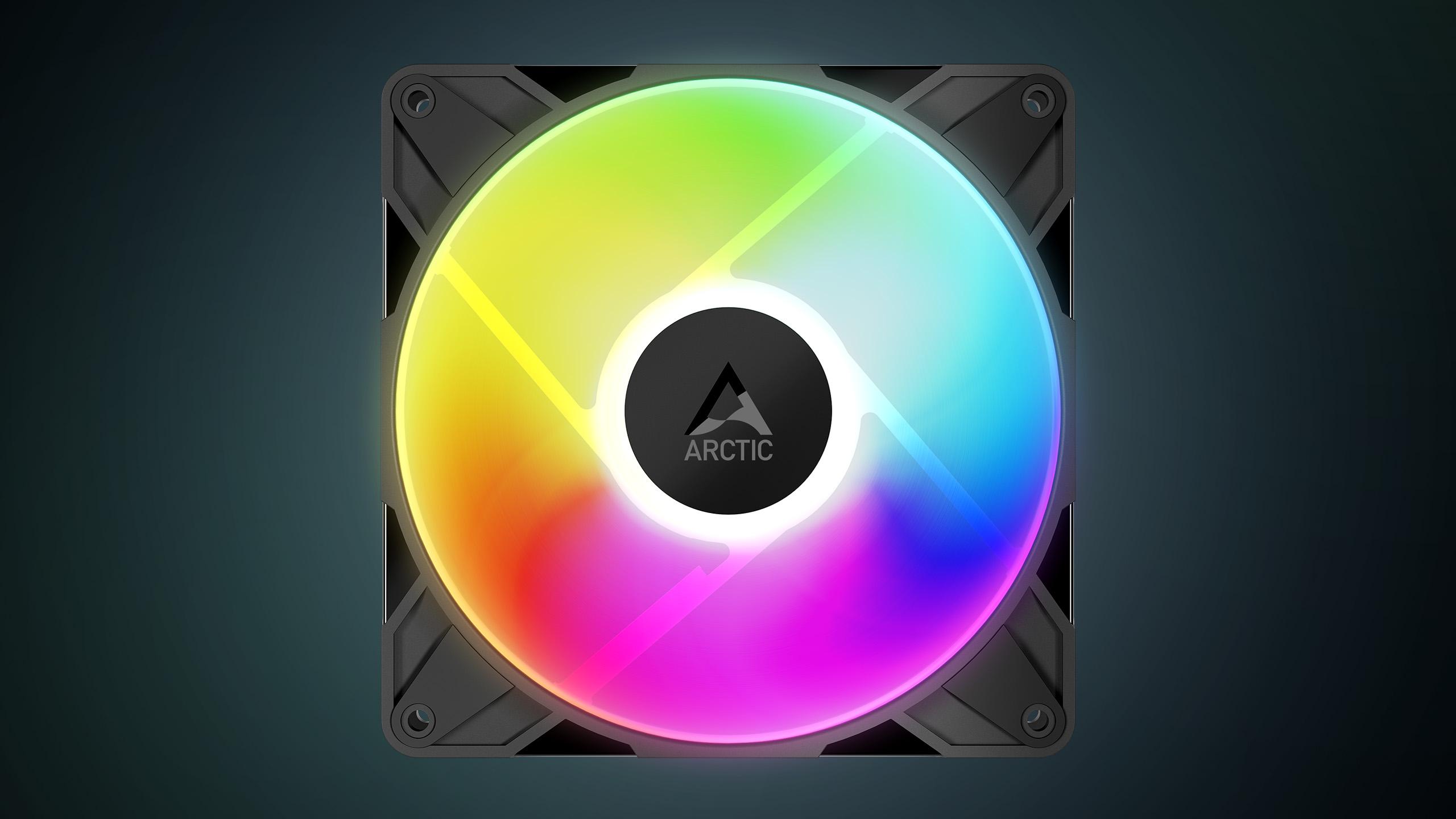

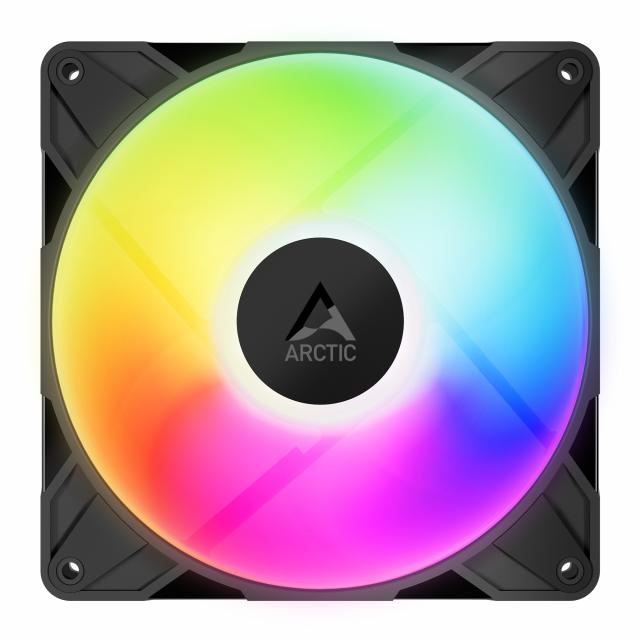

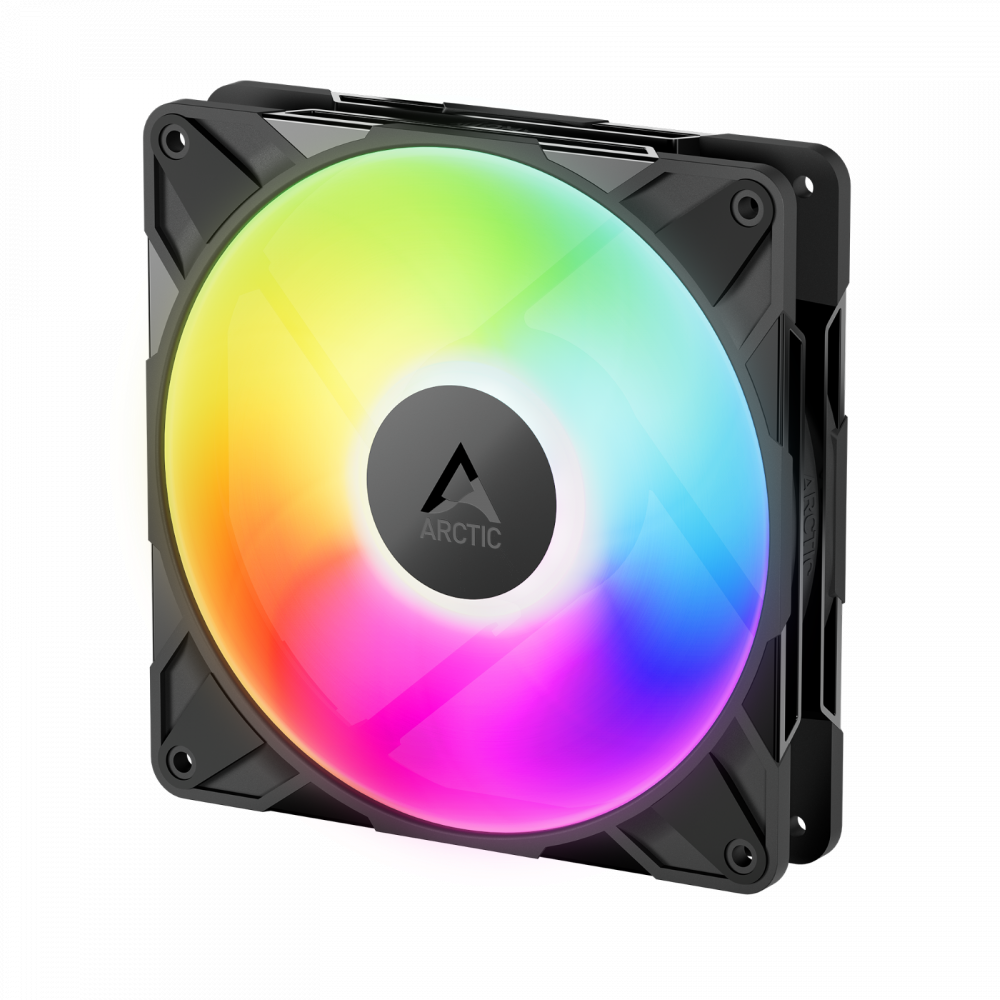

- Iluminare A‑RGB adresabila – LED-uri integrate cu efecte luminoase uniforme si compatibilitate larga cu ecosisteme populare de iluminare.
- Presiune statica ridicata – ideal pentru radiatoare AIO mari, coolere tower si panouri restrictive.
- Pale optimizate pentru performanta – design aerodinamic pentru flux de aer puternic si zgomot redus.
- Rulment FDB de calitate – vibratii reduse, stabilitate crescuta si durata de viata extinsa.
- Control PWM precis – permite ajustarea turatiei pentru echilibru optim intre racire si silentiozitate.
- Format de 140 mm – acopera o suprafata mai mare si ofera performanta superioara in carcase spatioase sau sisteme high-end.
Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces.
This makes them ideal for radiators, perforated panels, and mesh filters.
Maximum Performance, Redefined

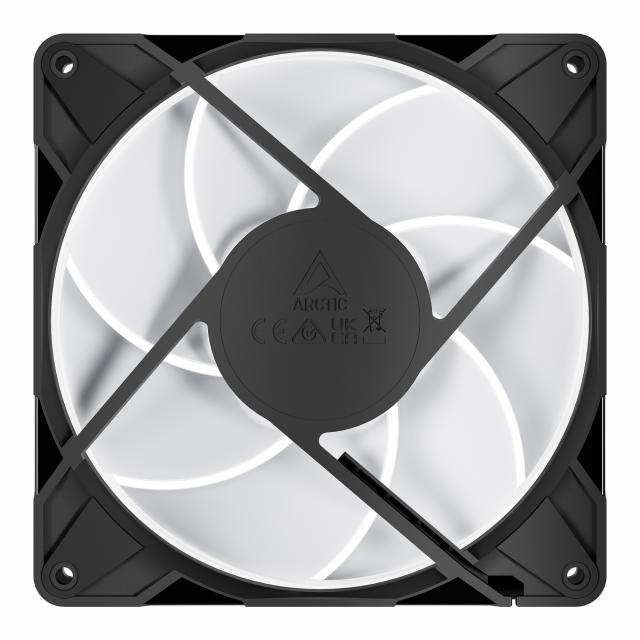

Revised fan blade design for an optimal balance of performance and smooth operation.

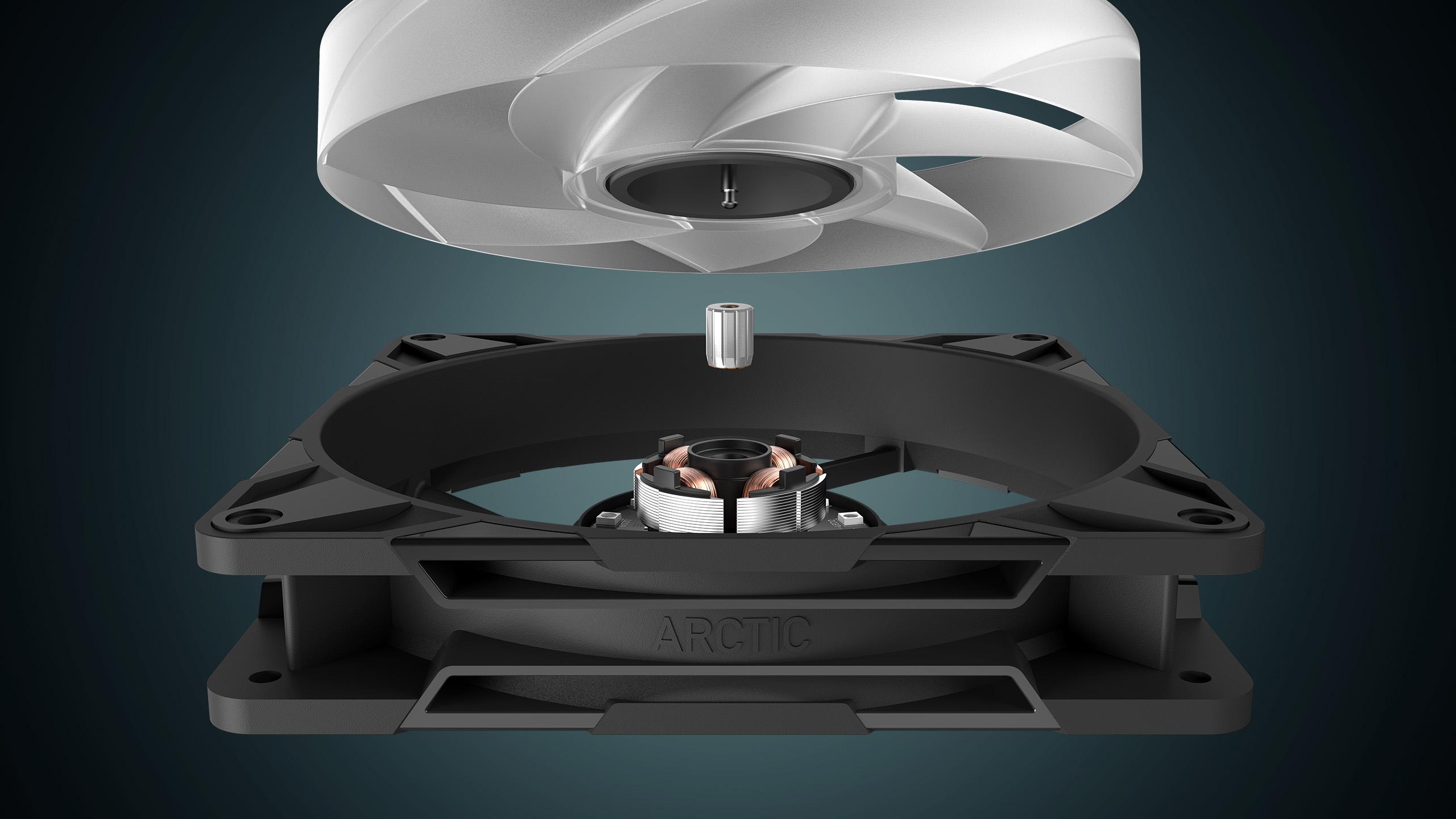

Optimized Bearing-Shaft Design (FDB)
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
Automated Two-Plane Balancing
An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels.

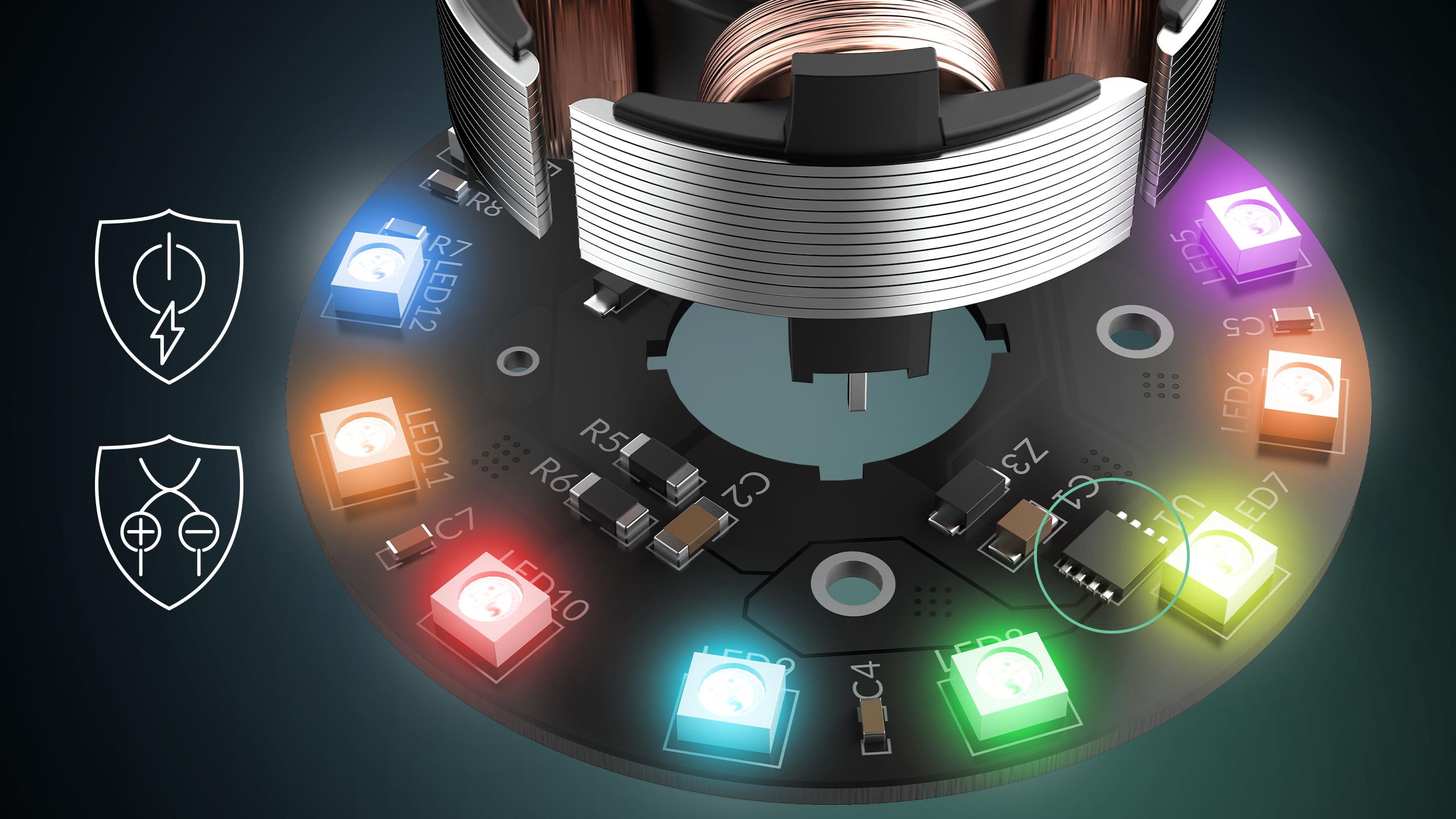

SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

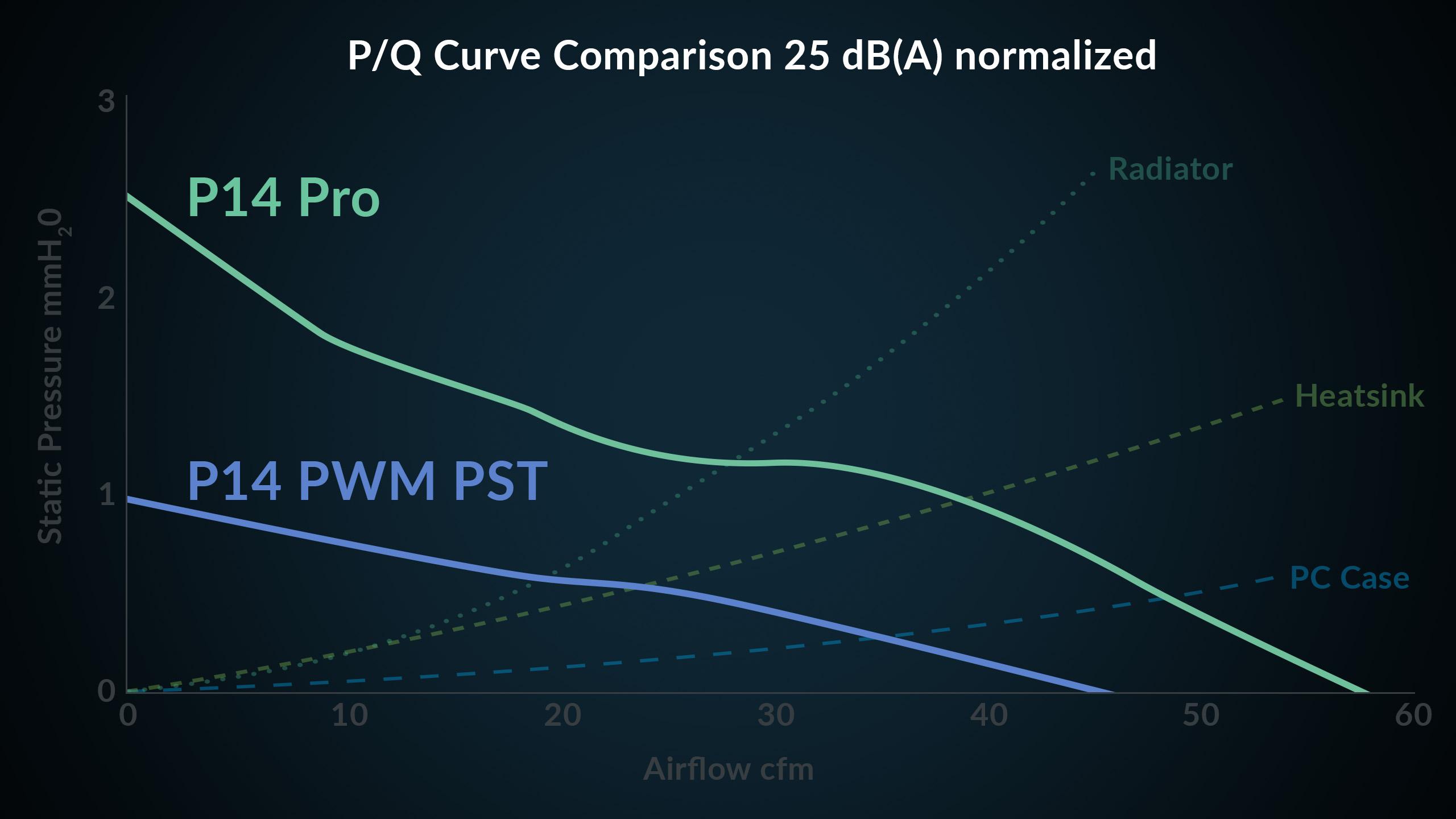

More Power – Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

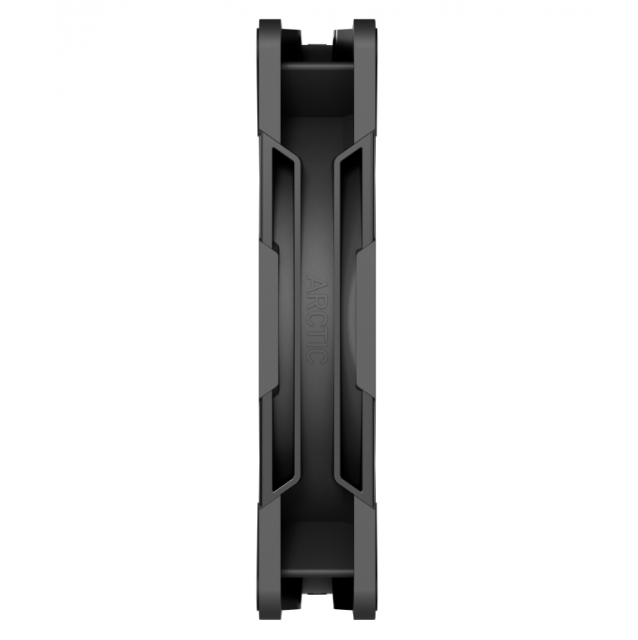

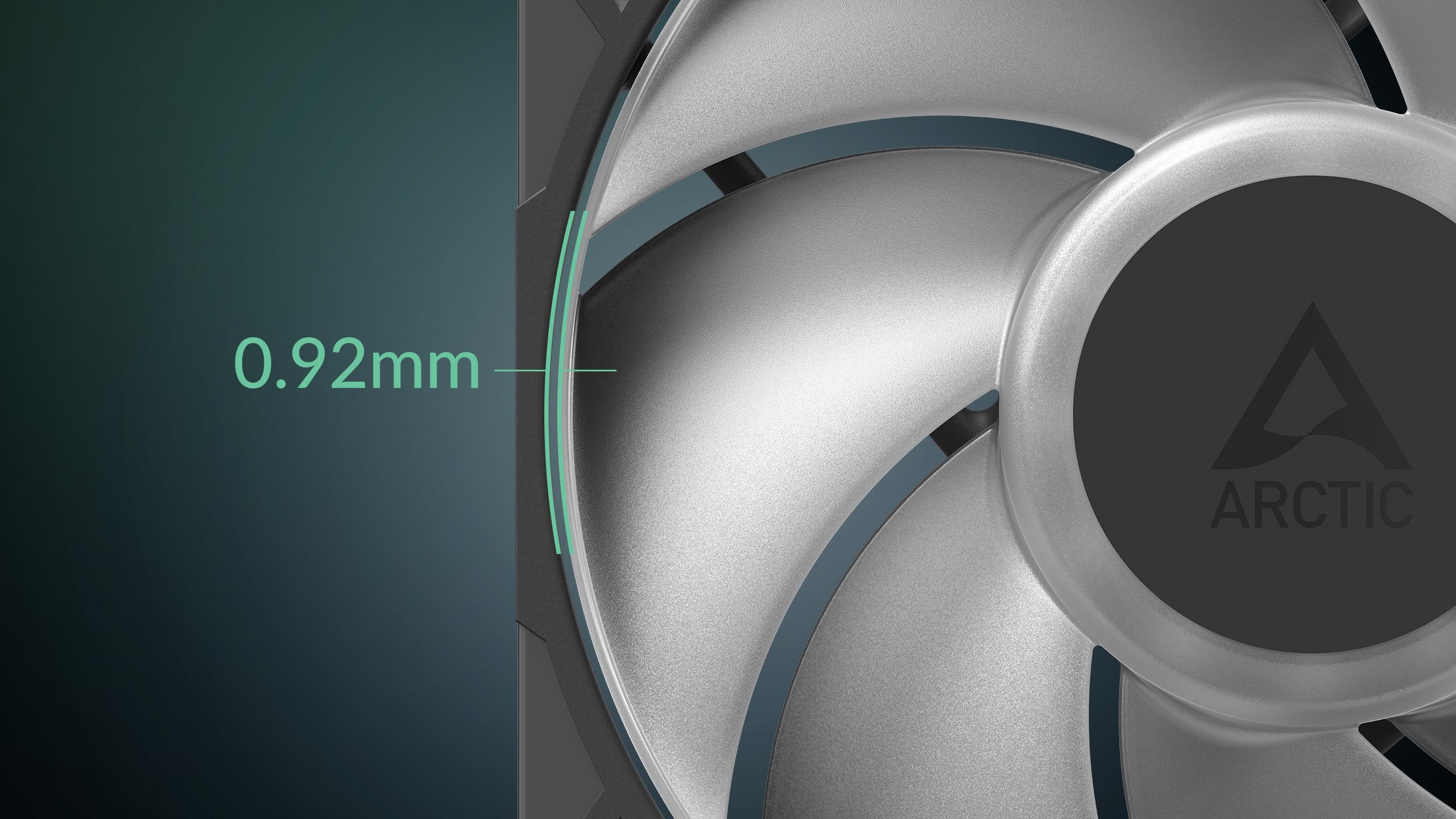

Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
PST – PWM-Based Synchronized Fan Control
An additional PWM connector allows multiple fans to be synchronized in series using a single header.
Specifications
Fan & RGB Specifications
| Fan Speed | 400–2500 rpm, PWM controlled 0 rpm below 5 % PWM |
| Airflow | 110 cfm | 186 m³/h |
| Static Pressure | 5.2 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 5 V DC |
| Current | 0.35 A |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable |
| Connector | 4-Pin Fan Plug + 4-Pin Socket |
| LEDs | 12x A-RGB Gen2 LEDs |
| Current | Voltage | 0.40 A | 5 V DC |
| Connector | 3-Pin A-RGB Plug + 3-Pin Socket |
General Specifications
| Operating Ambient Temperature | 0–40 °C |
| Dimensions | 140 (L) x 140 (W) x 27 (H) mm |
| Net Weight | 237 g |
| Packaging |
Width: 145 mm |
