Arctic P12 Pro A-RGB
Ventilator ARCTIC P12 Pro White A-RGB 120mm PWM
Întrebare despre Arctic P12 Pro A-RGB
| Garanție | 72 luni |
| Dimensiuni | 120 x 120 x 25 mm |
| Turație | până la 3000 RPM |
| Flux de aer | până la 77 CFM |
| Conector | 4-pin PWM, 3-pin 5V ARGB |
| Reverse | Nu |
| Culoare | Alb |
| Iluminare | ARGB |
Related products
ARCTIC P12 Pro A-RGB este un ventilator de 120 mm cu presiune statica ridicata, iluminare A‑RGB adresabila si un motor optimizat pentru performanta si silentiozitate. Combinatia dintre palele eficiente, rulmentul FDB si controlul PWM il face ideal pentru radiatoare, carcase moderne si build‑uri cu accent pe estetica.

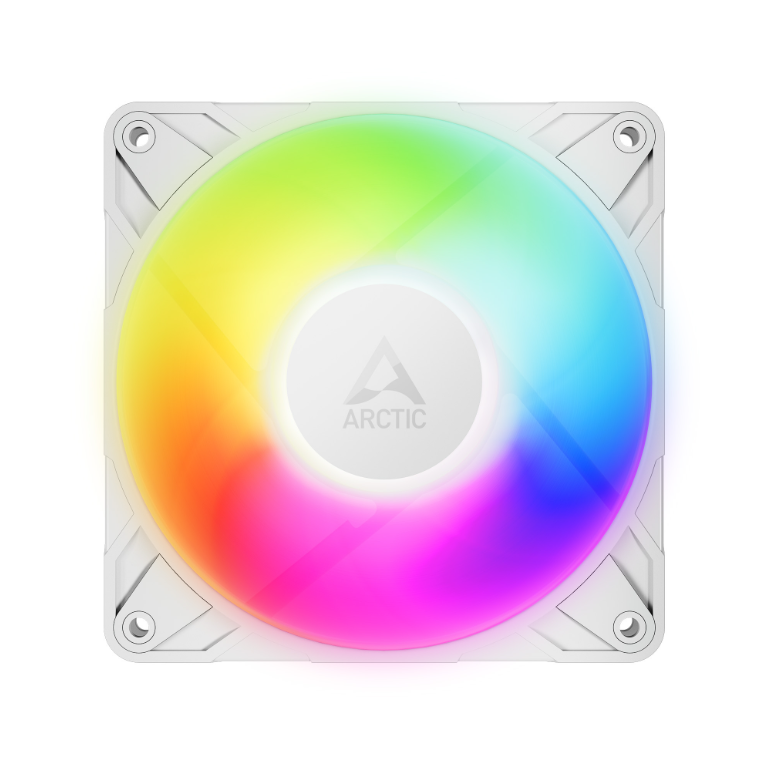

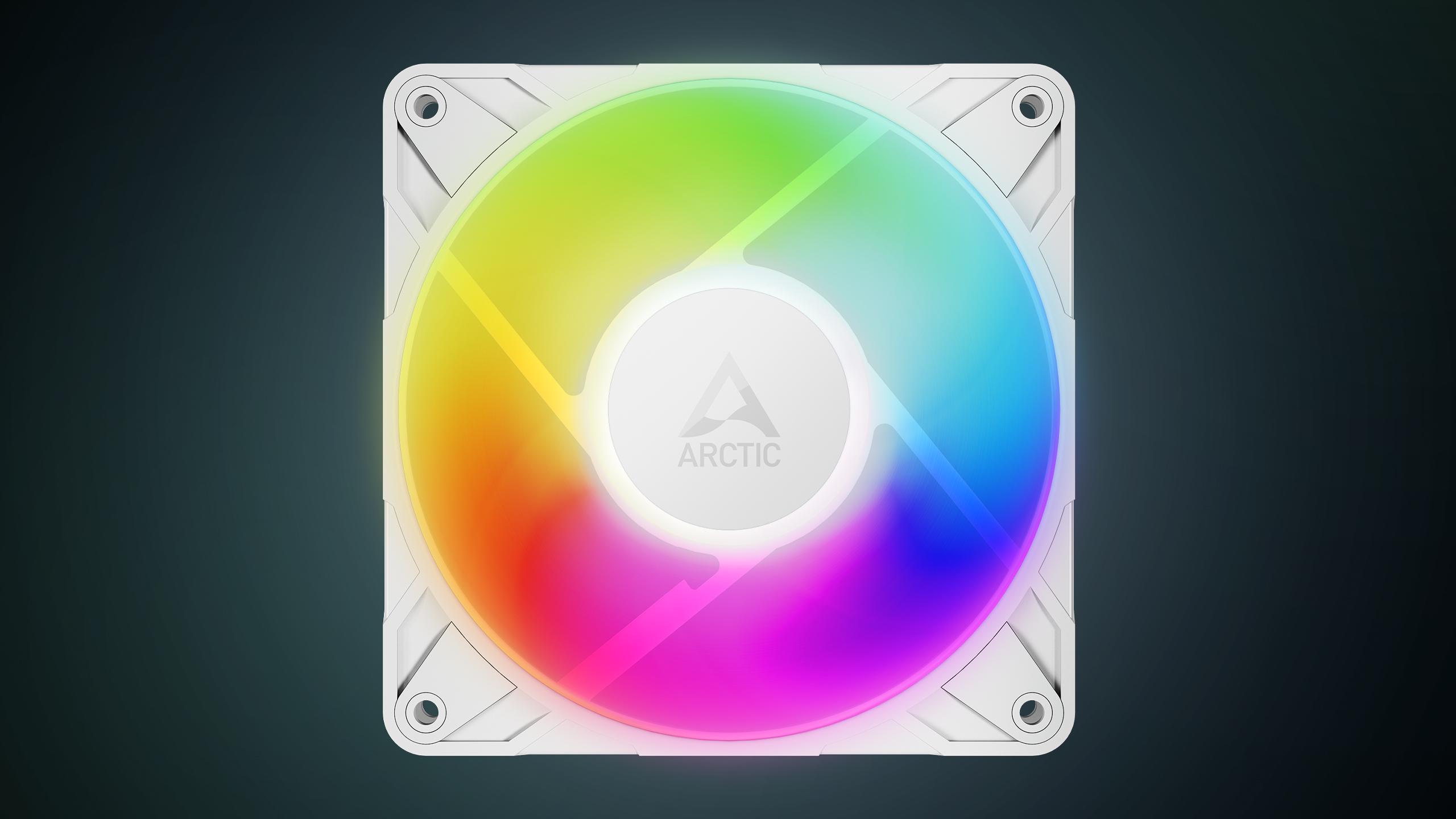

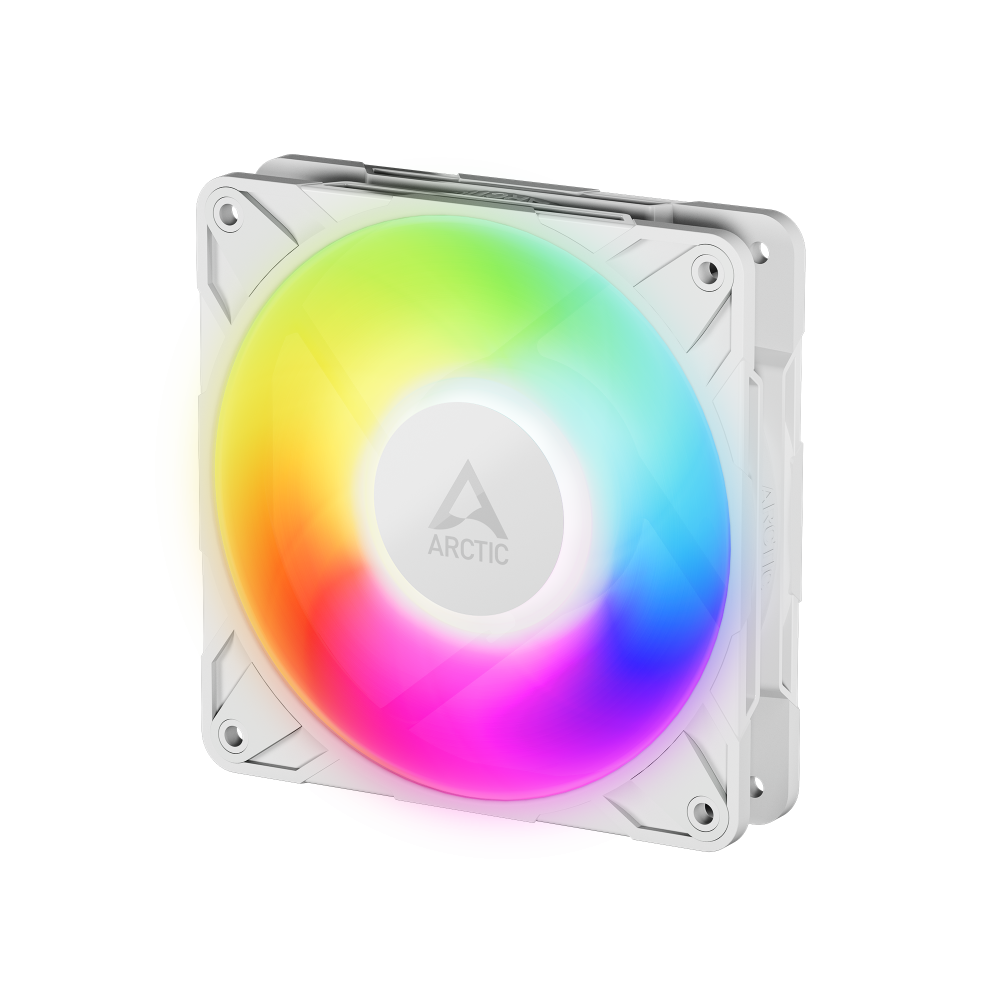

- Iluminare A‑RGB adresabila – LED-uri integrate cu efecte uniforme, compatibile cu majoritatea ecosistemelor de iluminare.
- Presiune statica ridicata – excelent pentru radiatoare AIO, coolere tower si panouri restrictive.
- Pale optimizate pentru flux si silentiozitate – design aerodinamic pentru performanta stabila chiar la turatii ridicate.
- Rulment FDB durabil – vibratii reduse, functionare lina si durata de viata extinsa.
- Control PWM precis – permite ajustarea turatiei pentru echilibru perfect intre racire si zgomot.
- Constructie solida – materiale rezistente si stabilitate buna pentru sisteme de gaming si workstation.
Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces.
This makes them ideal for radiators, perforated panels, and mesh filters.
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.

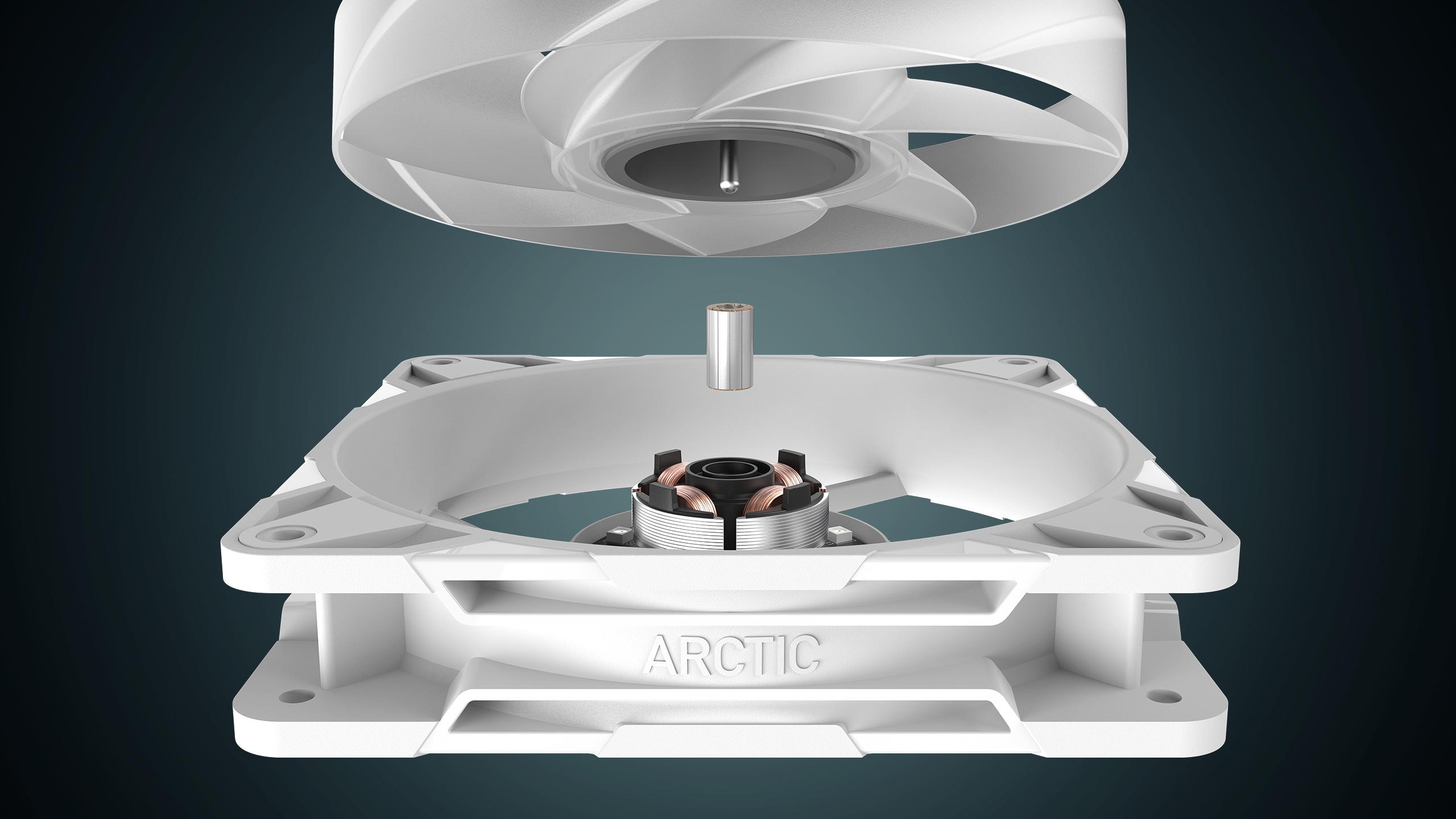

Optimized Bearing-Shaft Design (FDB)
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
Automated Balancing
An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

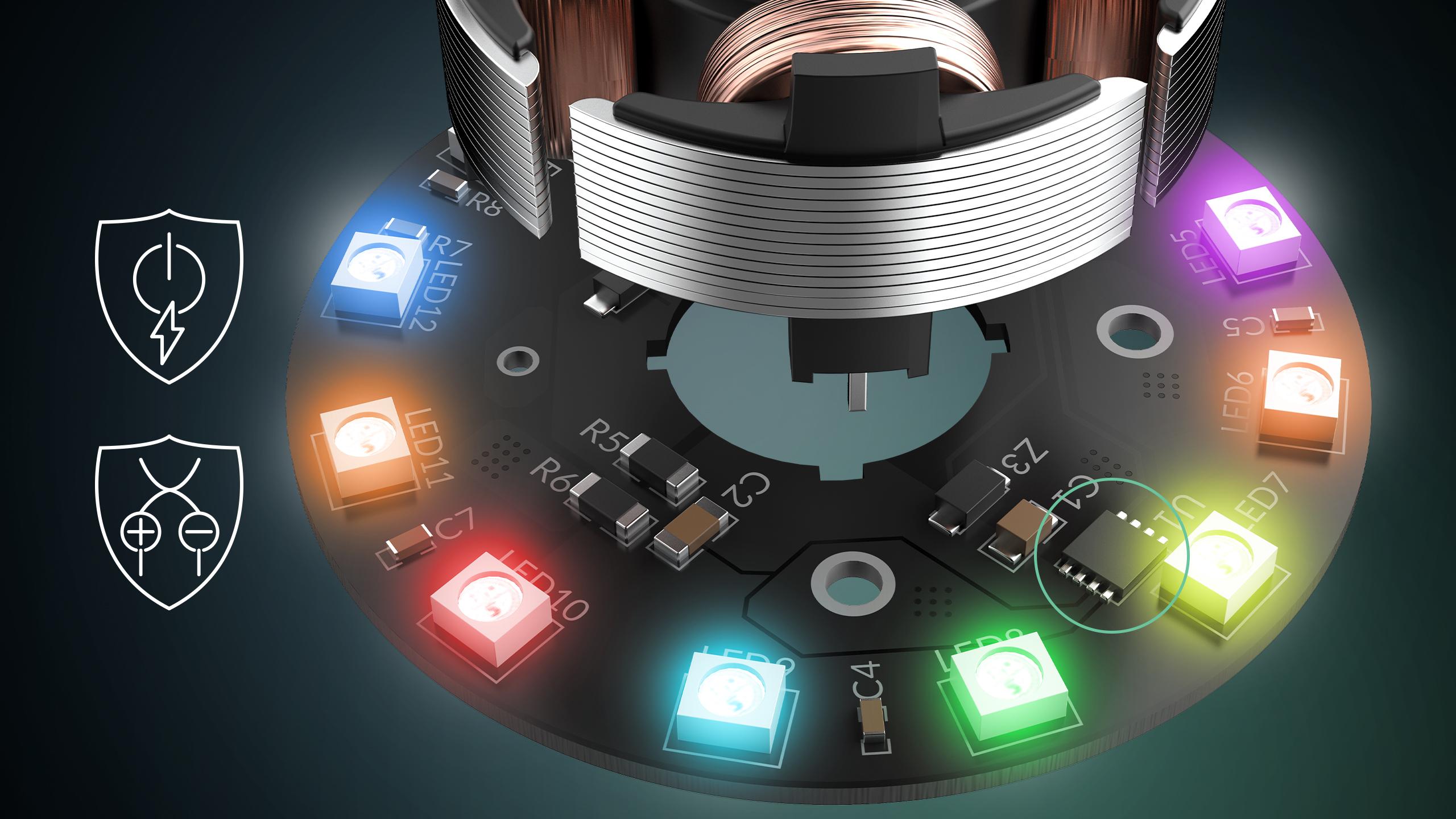

SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

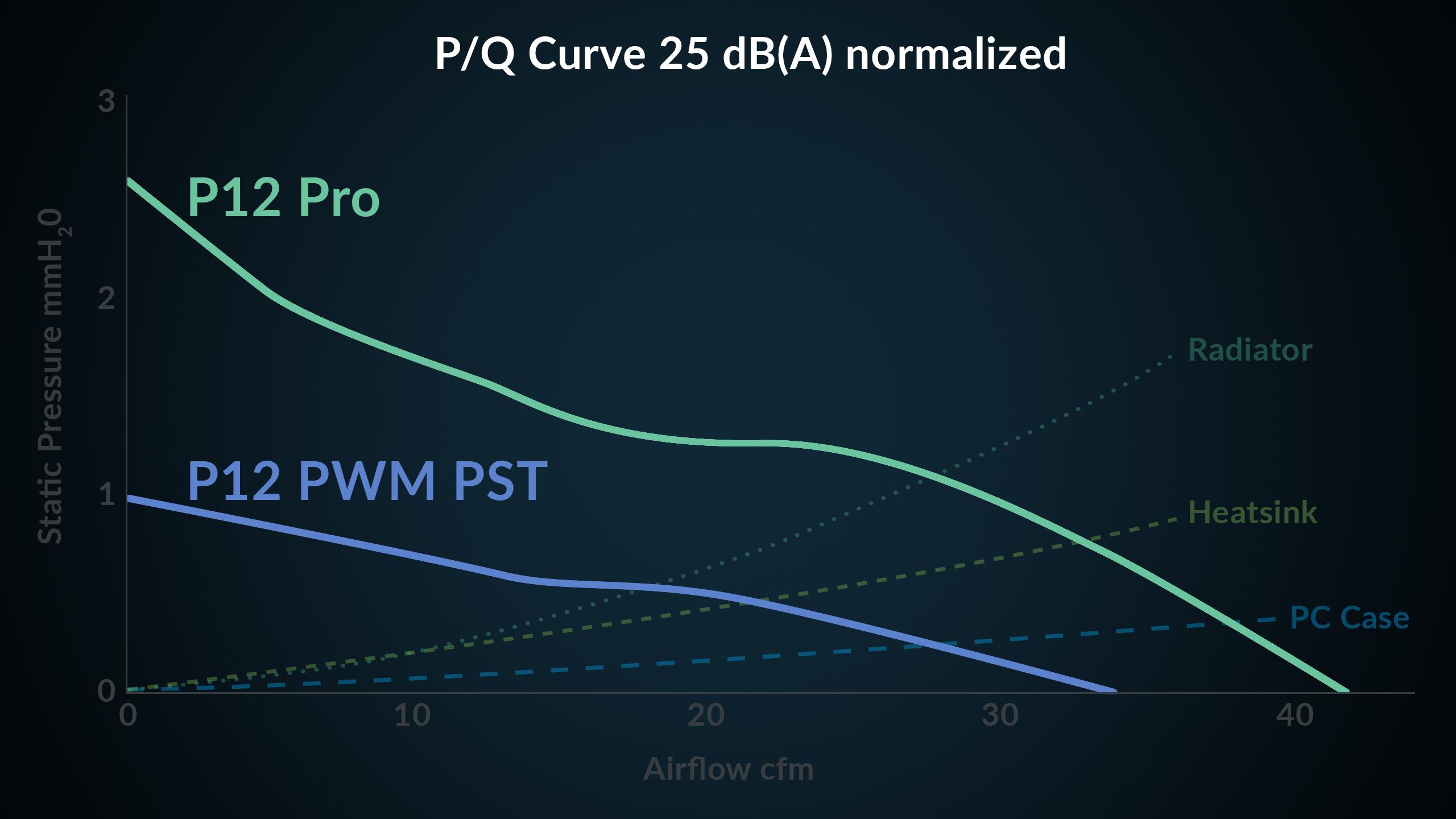

More Power – Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

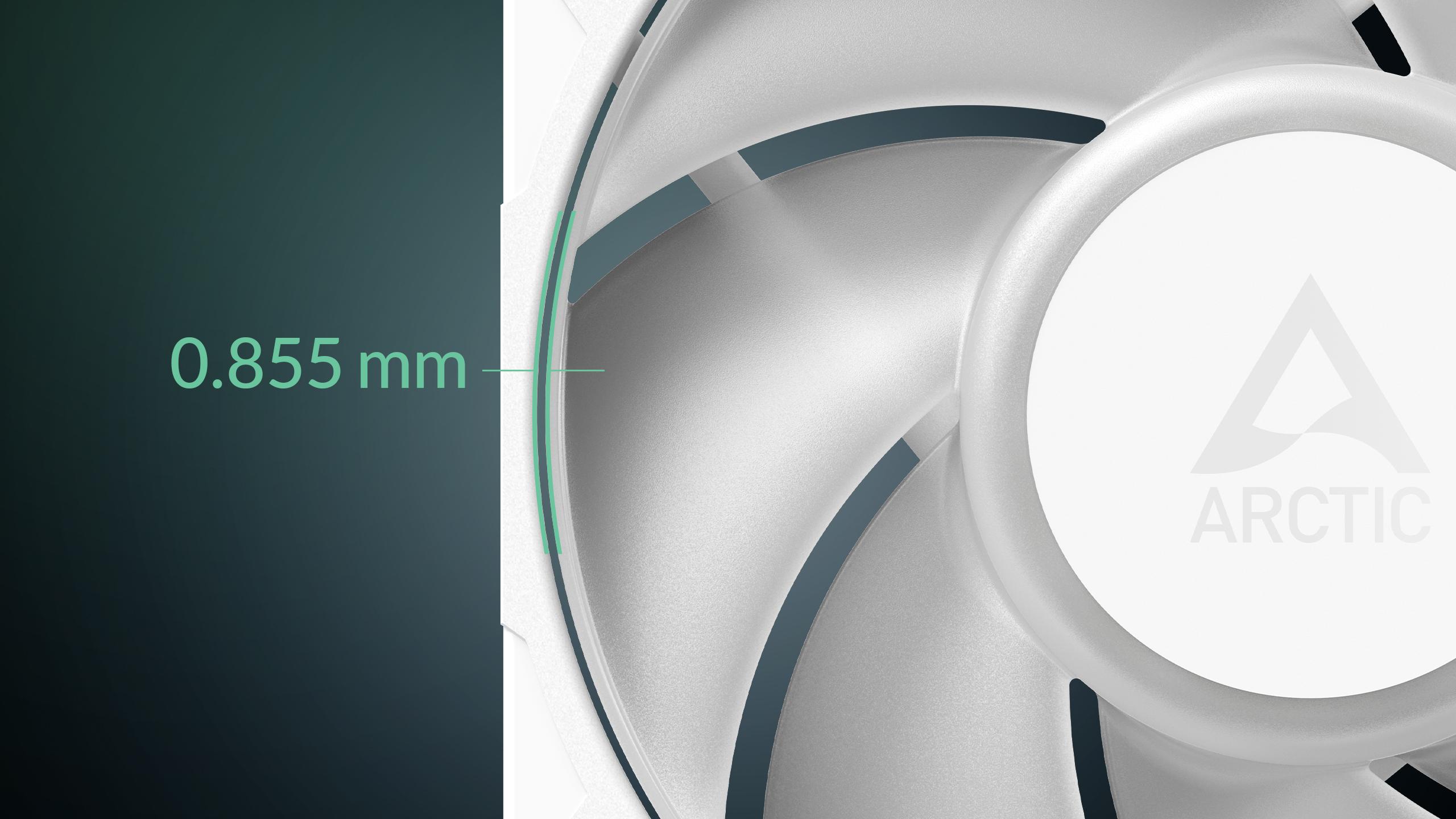

Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
PST – PWM-Based Synchronized Fan Control
An additional PWM connector allows multiple fans to be synchronized in series using a single header.
Specifications
Fan & RGB Specifications
| Fan Speed | 600–3000 rpm, PWM controlled 0 rpm below 5 % PWM |
| Airflow | 77 cfm | 131 m³/h |
| Static Pressure | 6.9 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 3.3 V DC |
| Current | 0.33 A |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable |
| Connector | 4-Pin Fan Plug + 4-Pin Socket |
| LEDs | 12x A-RGB Gen2 LEDs |
| Current | Voltage | 0.40 A | 5 V DC |
| Connector | 3-Pin A-RGB Plug + 3-Pin Socket |
General Specifications
| Operating Ambient Temperature | 0–40 °C |
| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Net Weight | 185 g |
| Packaging |
Width: 125 mm |
