ARCTIC P14

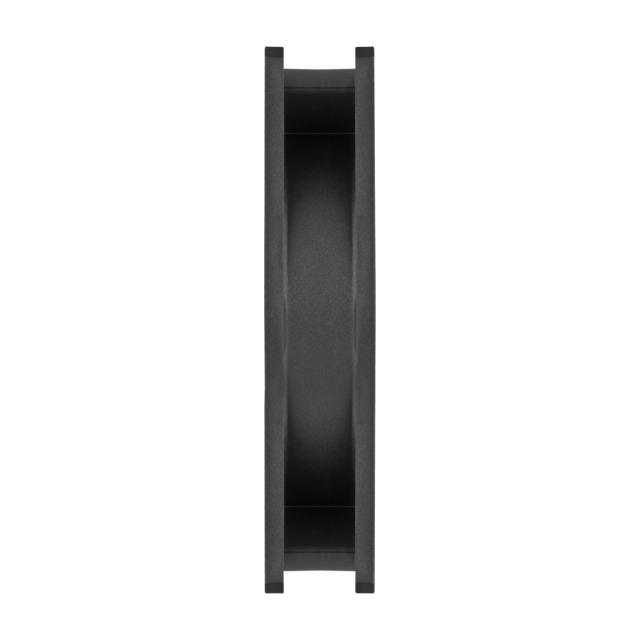

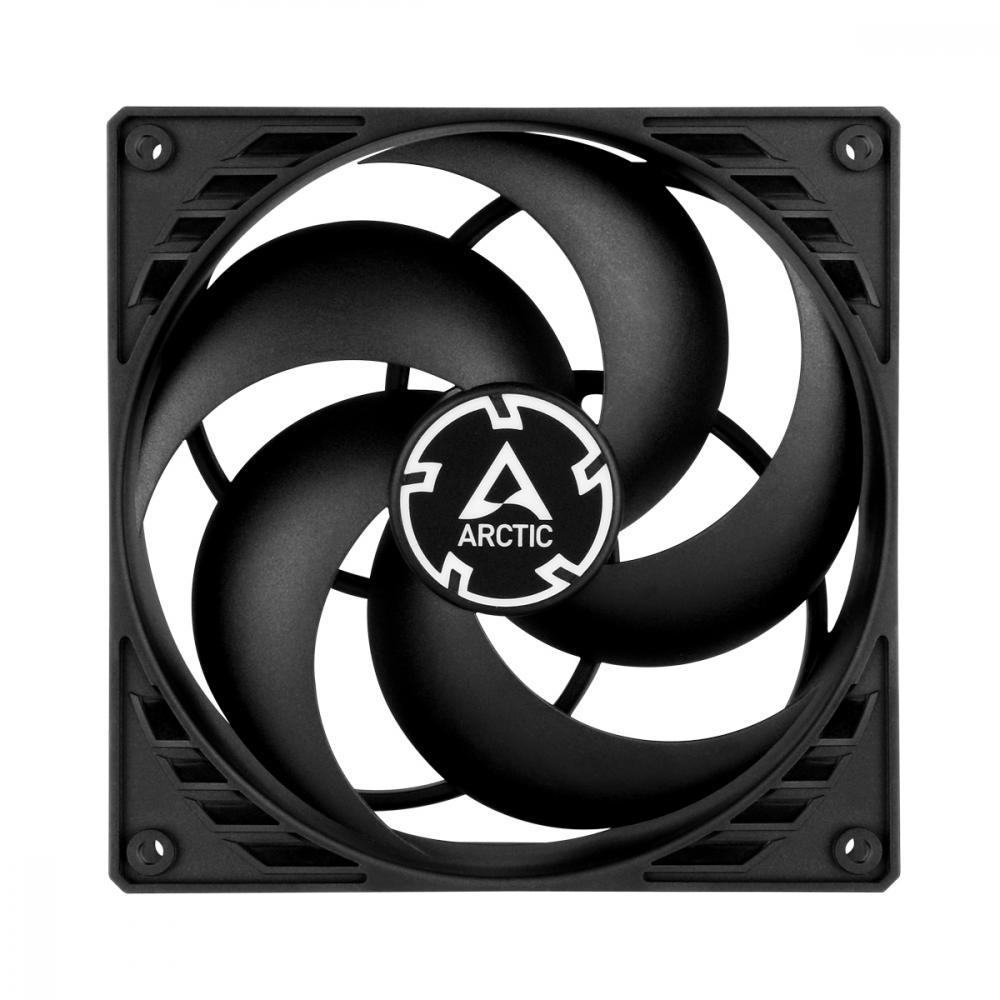

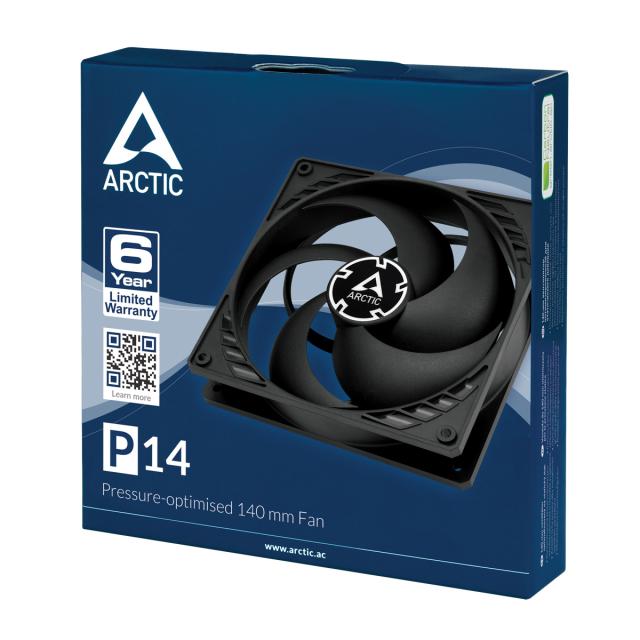

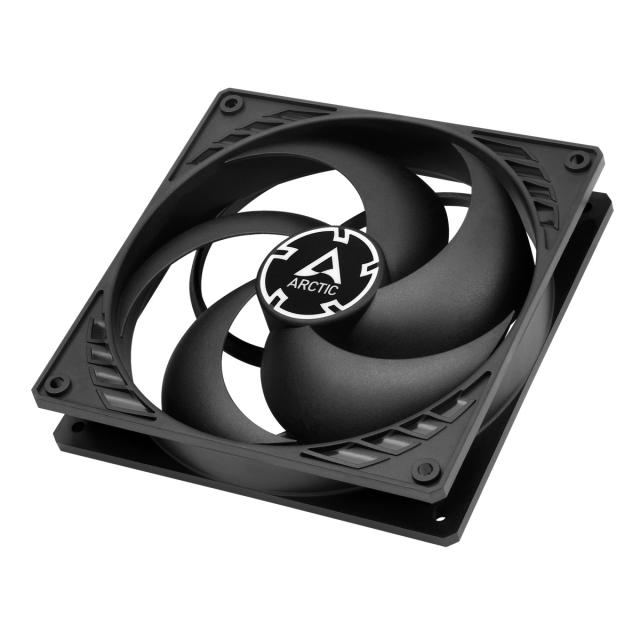

Ventilator ARCTIC P14, 4-pin, 140 mm

Cod produs: ARCTIC-FAN-ACFAN00123A
disponibil

Întrebare despre ARCTIC P14

Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
Garanție 72 luni
Dimensiuni 140 x 140 x 27 mm
Turație până la 1700 RPM
Nivel de zgomot până la 23 dBA
Flux de aer până la 72.8 CFM
Conector 3-pin
Reverse Nu
Culoare Negru
Iluminare Nu

Related products

Ventilatorul garanteaza o racire extrem de eficienta, chiar si cu o rezistenta crescuta la aer. Prin urmare, P14 este

adecvat in special pentru utilizare pe radiatoare si radiatoare.



Conector: conector cu 3 pini

Viteza ventilatorului: 1700 rpm

Flux de aer: 72,8 cfm

Lungimea cablului: 400 mm

Rulment ventilator: rulment dinamic fluid

Dimensiune: 140 x 140 x 27 mm

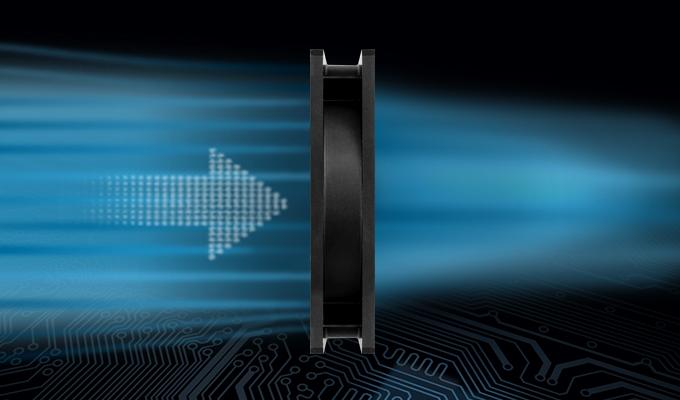

Optimised for Static Pressure

During the development of the new P14, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 is particularly suitable for use on heatsinks and radiators.

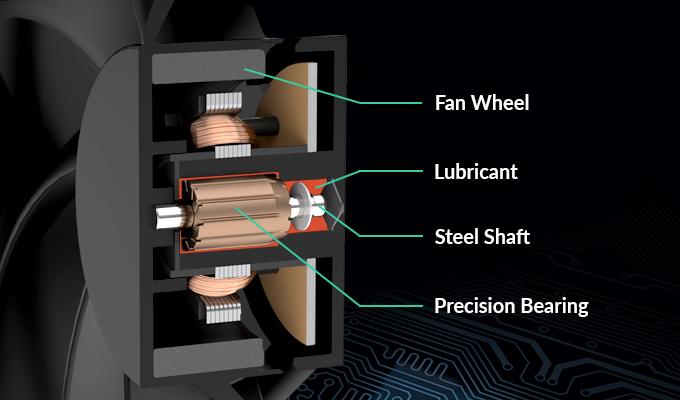

High-Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

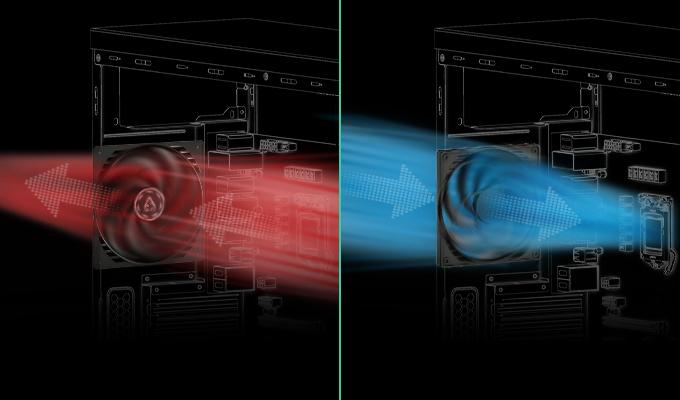

Two Way Installation

  • Push warm air out of the case
  • Pull cool air into your case

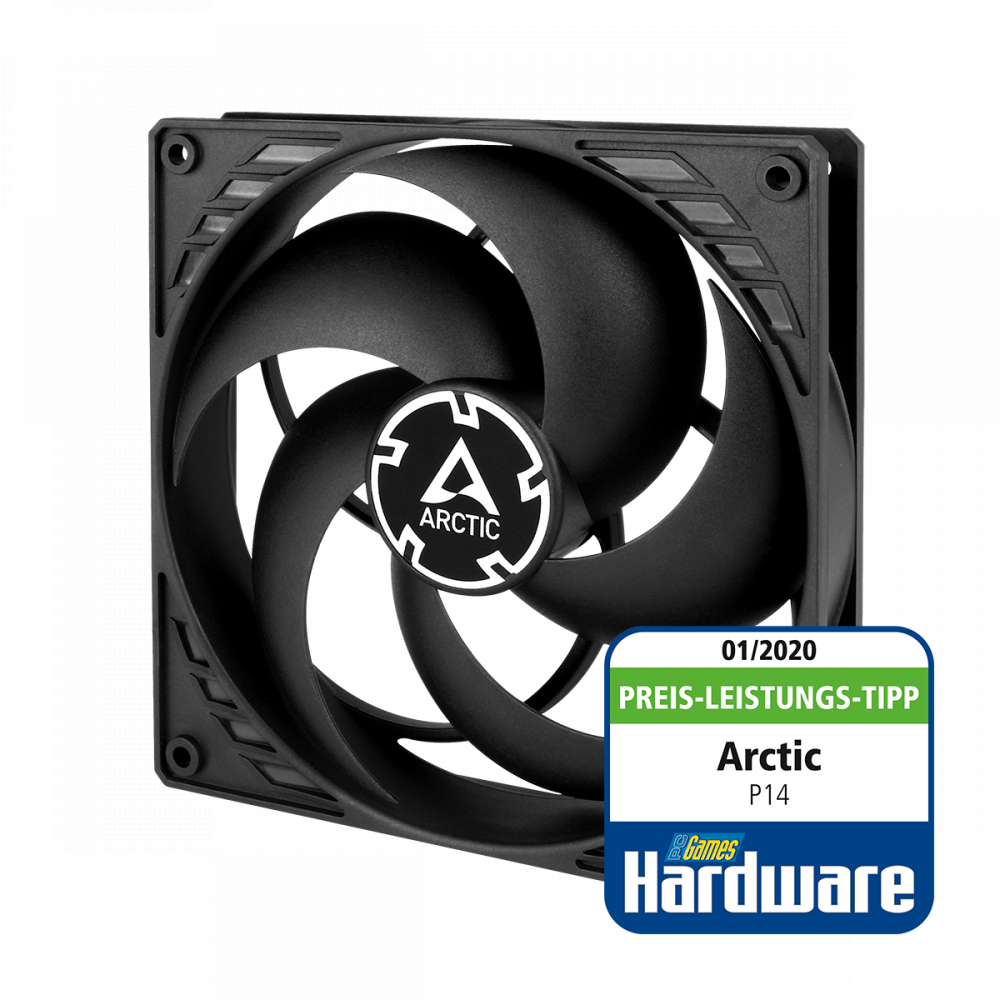

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how to improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also durability. It's a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the P14.

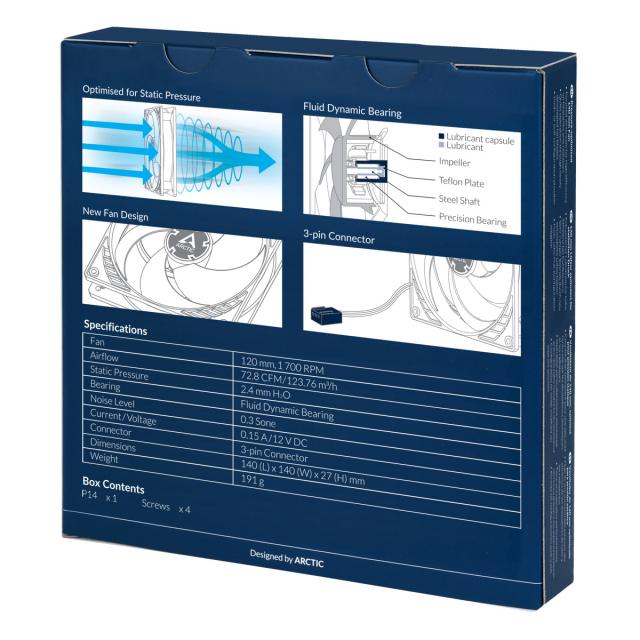

Specifications





Performance

Fan Speed 1700 rpm Static Pressure 2.40 mmH2O
Airflow 72.8 cfm | 123.76 m³/h Noise Level 0.3 Sone



Fan

Fan Frame Standard Fan Bearing Fluid Dynamic Bearing
Control Type Fixed Speed Operating Ambient Temperature 0-40°C
Connector 3-Pin Connector Warranty 6 Years



Electric Characteristics

Typical Voltage 12 V DC Current | Voltage 0.15 A | 12 V DC
Starting Voltage 2.1 V Cable Length 400 mm



Size & Weight

Length 140 mm Height 27 mm
Width 140 mm Weight 191 g
