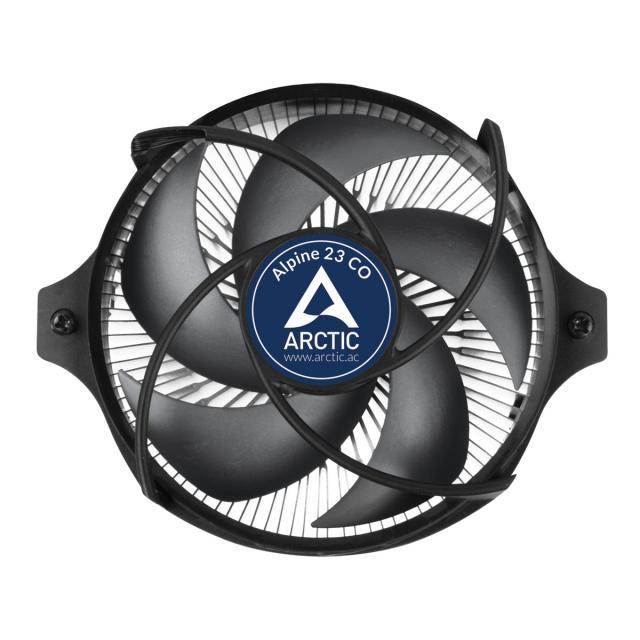

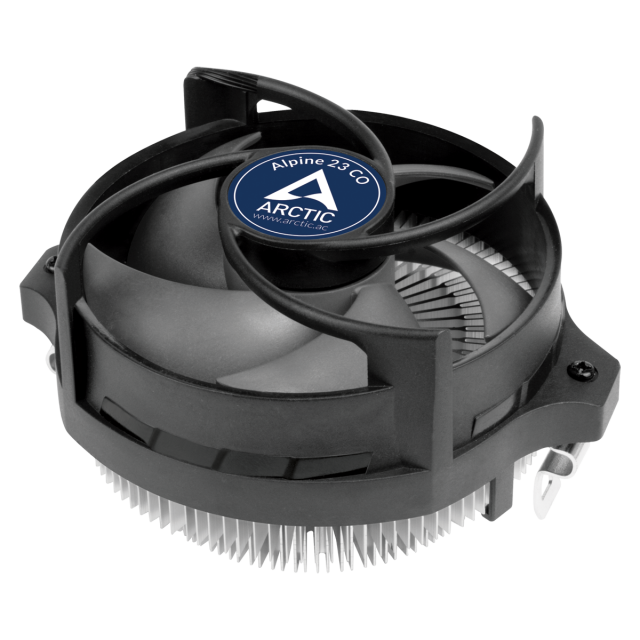

Arctic Alpine 23 CO
Cooler procesor CPU-Cooler Arctic Alpine 23 CO, AM4, AM5
Cod produs: ARCTIC-FAN-ACALP00036A
Întrebare despre Arctic Alpine 23 CO
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 72 luni |
| Tip | Răcire cu aer |
| Socket | AM4, AM5 |
| Înălţime | 65 mm |
| Turatia ventilatorului | până la 2700 RPM |
| Nivel de zgomot | până la 23 dBA |
| Dimensiune ventilator | 90 x 15 mm |
| Conector | 4-pin PWM |
| Iluminare | Nu |
| Culoare | Negru |
Related products
Tip:
Răcire cu aer
Socket:
1700
Înălţime:
77 mm
Turatia ventilatorului:
până la 2000 RPM
Tip:
Răcire cu aer
Socket:
AM4, AM5
Înălţime:
65 mm
Turatia ventilatorului:
până la 2000 RPM
Tip:
Răcire cu aer
Socket:
1700
Înălţime:
78.8 mm
Turatia ventilatorului:
până la 2700 RPM
Tip:
Răcire cu aer
Socket:
AM4, AM5
Înălţime:
136 mm
Turatia ventilatorului:
până la 2300 RPM
Tip:
Răcire cu aer
Socket:
AM4, AM5
Înălţime:
136 mm
Turatia ventilatorului:
până la 2300 RPM
Tip:
Răcire cu aer
Socket:
1700, 1851
Înălţime:
136 mm
Turatia ventilatorului:
până la 2300 RPM
Tip:
Răcire cu aer
Socket:
1700, 1851
Înălţime:
136 mm
Turatia ventilatorului:
până la 2300 RPM
Tip:
Răcire cu aer
Socket:
AM4, 1700, AM5, 1851
Înălţime:
159 mm
Turatia ventilatorului:
până la 1800 RPM
Flux de aer:
până la 56.3 CFM
Tip:
Răcire cu aer
Socket:
AM4, 1700, AM5, 1851
Înălţime:
159 mm
Turatia ventilatorului:
până la 1800 RPM
Flux de aer:
până la 56.3 CFM
Tip:
Răcire cu aer
Socket:
AM4, 1700, AM5, 1851
Înălţime:
159 mm
Turatia ventilatorului:
până la 1800 RPM
Flux de aer:
până la 56.3 CFM
Tip:
Răcire cu aer
Socket:
AM4, 1700, AM5, 1851
Înălţime:
159 mm
Turatia ventilatorului:
până la 1800 RPM
Flux de aer:
până la 56.3 CFM

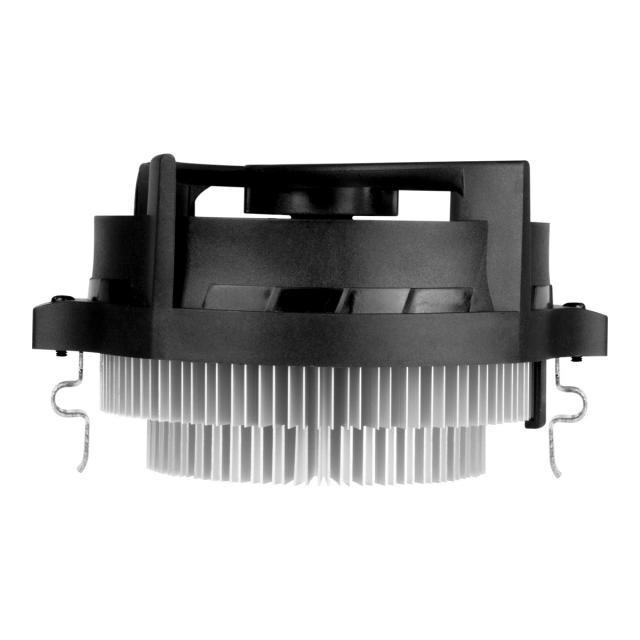

Cooler pentru procesor CPU-Cooler Arctic Alpine 23 CO, AM4
- Performanta de racire imbunatatita prin noul proces de productie
- Gama larga de RPM
- Consum redus de energie si vibratii minime
- Rulment de inalta calitate
- Pentru functionare continua
- Durata de viata extinsa
- Pasta termica MX-2 pre-aplicata
- Instalare usoara si fara instrumente
Viteza ventilatorului: 100-2 000 RPM
Bearing: Dual Ball Bearing
Nivelul de zgomot: 0,3 Sone
Curent / tensiune: 0.06A / 12V
Future-Proof Compatibility
At the end of 2022, AMD released the AM5 socket, the successor to its popular AM4 platform. Because all mechanical dimensions remain identical, we can guarantee the compatibility of ARCTIC coolers with AMD's new processors.

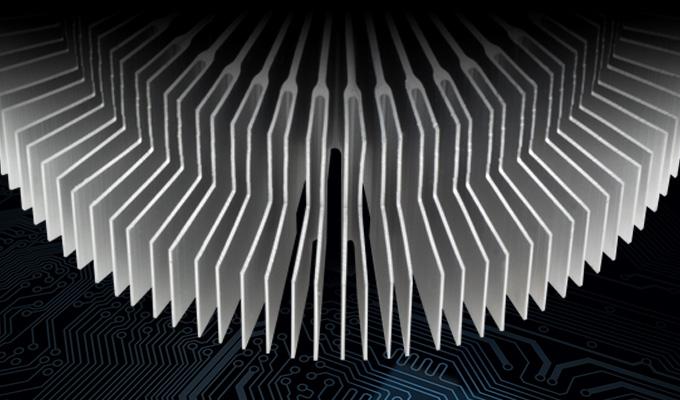

Improved Cooling Performance by New Production Process
The high thermal conductivity of aluminum is fully retained by a new type of extrusion. This new production process creates a powerful yet very compact radial heat sink. The particularly thin cooling fins of the new Alpine are fanned out in a Y-shape. This increases the surface area of the heat sink and therefore the cooling capacity.

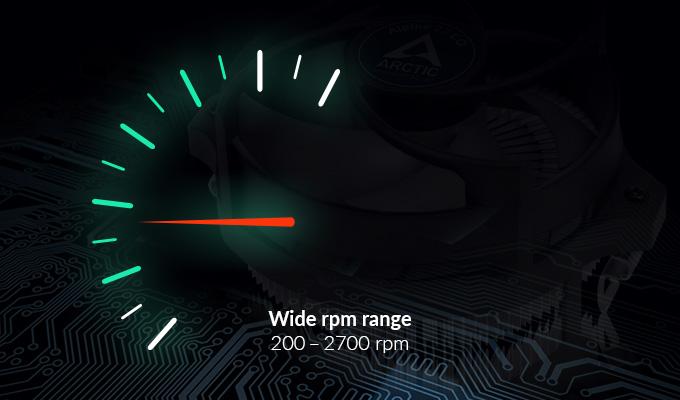

Wide rpm Range
The Alpine 23 CO features a new motor technology with a very wide, PWM-controlled rpm range. This keeps the noise level at a minimum while guaranteeing maximum cooling performance when needed.

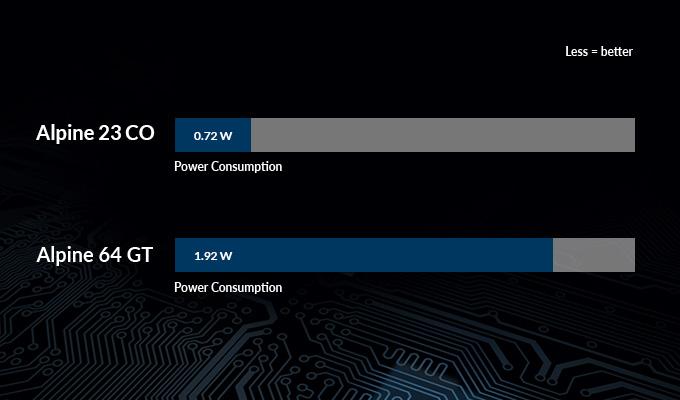

Lower Power Consumption & Minimum Vibration
The new Alpine 23 CO is powered by an updated motor and runs much more efficiently than its predecessors. Due to sinus-magnetizing the new motor creates just 5 % of the vibration from the commutation of a regular DC motor. These factors contribute to saving energy, lowering the coil temperature, and reducing vibrations to a minimum without compromising performance.
For Continuous Operation
The premium quality dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.

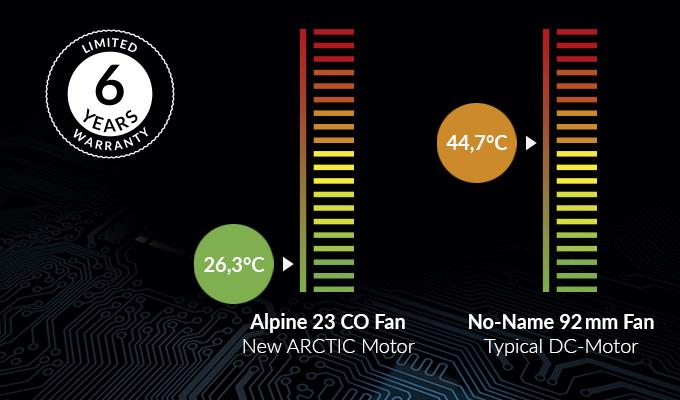

Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
Pre-Applied MX-2 Thermal Paste
The pre-applied, high-performance MX-2 thermal compound ensures fast and clean installation.

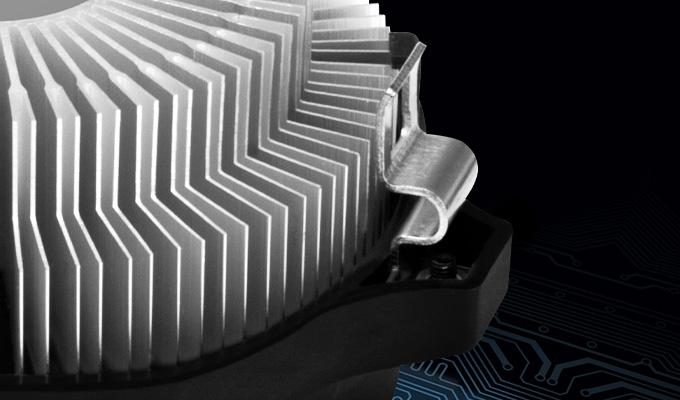

Easy and Fast Installation
Thanks to the mounting clips, the installation is really easy. Alpine 23 CO is simply plugged into the existing AMD retention modules and screwed tight.
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how to improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also durability. It's a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the Alpine 23 CO.
Specifications
Compatibility
| AMD Socket | AM5, AM4 | Warranty | 6 Years |
| Ram Clearance | unlimited | Operating Ambient Temperature | 0—40 °C |
Heatsink
| Outer Diameter | 93.4 mm | Number of Fins | 50 Y-shaped Fins |
| Fin Material | Aluminum | Thermal Paste | MX-2 pre-applied |
Fan
| Fan Diameter | 90 mm | Noise Level | 0.3 Sone |
| Fan Speed | 200—2700 rpm | Current | 0.09 A |
| Fan Bearing | Dual Ball Bearing | Connector | 4-Pin |

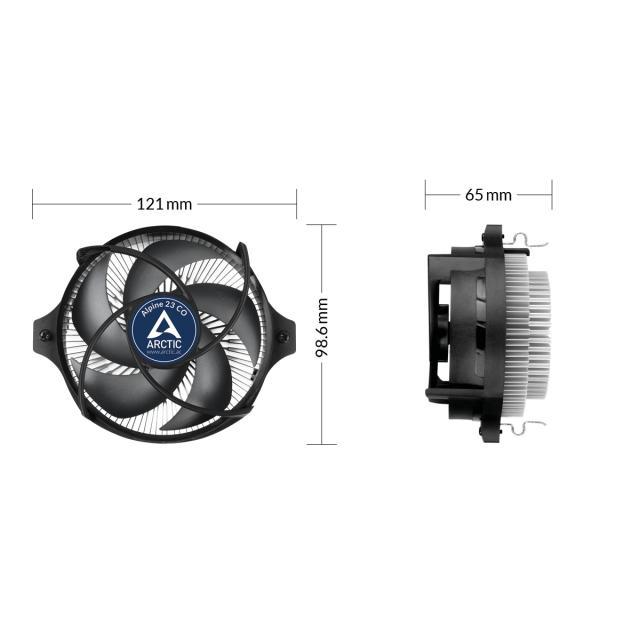

Size & Weight
| Length | 98.6 mm | Height | 65 mm |
| Width | 121 mm | Weight | 275.5 g |
