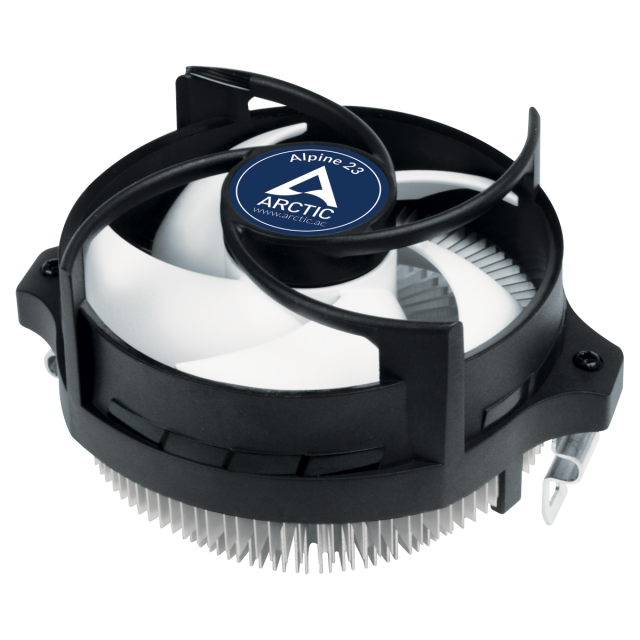

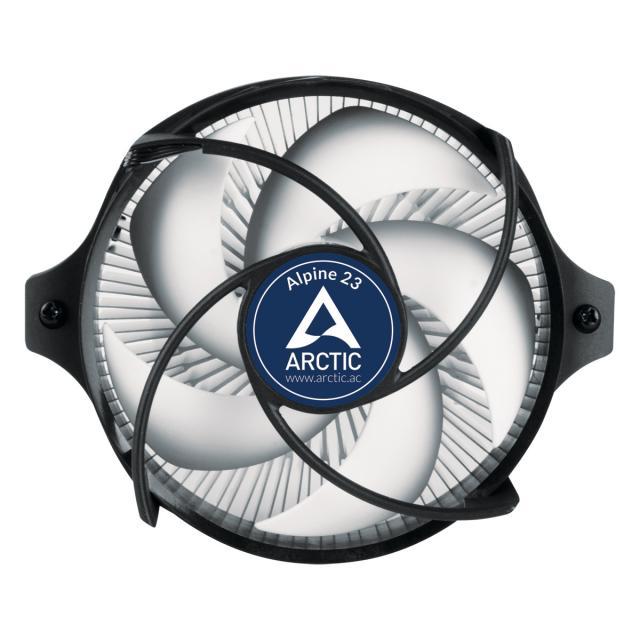

Arctic Alpine 23

Cooler CPU Arctic Alpine 23, AMD

Cod produs: ARCTIC-FAN-ACALP00035A

disponibil

Întrebare despre Arctic Alpine 23

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	72 luni
Tip	Răcire cu aer
Socket	AM4, AM5
Înălţime	65 mm
Turatia ventilatorului	până la 2000 RPM
Nivel de zgomot	până la 23 dBA
Dimensiune ventilator	90 x 15 mm
Conector	4-pin PWM
Iluminare	Nu
Culoare	Negru, Alb

Related products

Arctic Alpine 17

Tip: Răcire cu aer

Socket: 1700

Înălţime: 77 mm

Turatia ventilatorului: până la 2000 RPM

Arctic Alpine 23 CO

Tip: Răcire cu aer

Socket: AM4, AM5

Înălţime: 65 mm

Turatia ventilatorului: până la 2700 RPM

Arctic LGA1700 Mounting Kit - Freezer 34 (black)

Accesorii: Bracket

Arctic Alpine 17 CO

Tip: Răcire cu aer

Socket: 1700

Înălţime: 78.8 mm

Turatia ventilatorului: până la 2700 RPM

Arctic Freezer 8A

Tip: Răcire cu aer

Socket: AM4, AM5

Înălţime: 136 mm

Turatia ventilatorului: până la 2300 RPM

Arctic Freezer 8A CO

Tip: Răcire cu aer

Socket: AM4, AM5

Înălţime: 136 mm

Turatia ventilatorului: până la 2300 RPM

Arctic Freezer 8i

Tip: Răcire cu aer

Socket: 1700, 1851

Înălţime: 136 mm

Turatia ventilatorului: până la 2300 RPM

Arctic Freezer 8i CO

Tip: Răcire cu aer

Socket: 1700, 1851

Înălţime: 136 mm

Turatia ventilatorului: până la 2300 RPM

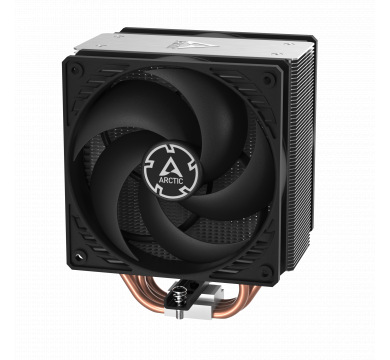

Arctic Freezer 36

Tip: Răcire cu aer

Socket: AM4, 1700, AM5, 1851

Înălţime: 159 mm

Turatia ventilatorului: până la 1800 RPM

Flux de aer: până la 56.3 CFM

Arctic Freezer 36 CO

Tip: Răcire cu aer

Socket: AM4, 1700, AM5, 1851

Înălţime: 159 mm

Turatia ventilatorului: până la 1800 RPM

Flux de aer: până la 56.3 CFM

Arctic Freezer 36 Bulk (Black)

Tip: Răcire cu aer

Socket: AM4, 1700, AM5, 1851

Înălţime: 159 mm

Turatia ventilatorului: până la 1800 RPM

Flux de aer: până la 56.3 CFM

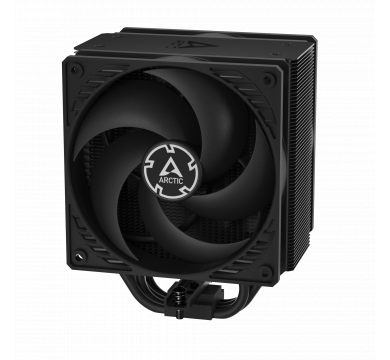

Arctic Freezer 36 (Black)

Tip: Răcire cu aer

Socket: AM4, 1700, AM5, 1851

Înălţime: 159 mm

Turatia ventilatorului: până la 1800 RPM

Flux de aer: până la 56.3 CFM

Cooler CPU Arctic Alpine 23, AM4

Performanta de racire imbunatatita prin noul proces de productie
Gama larga de RPM
Consum redus de energie si vibratii minime
Rulment de inalta calitate
Pentru functionare continua
Durata de viata extinsa

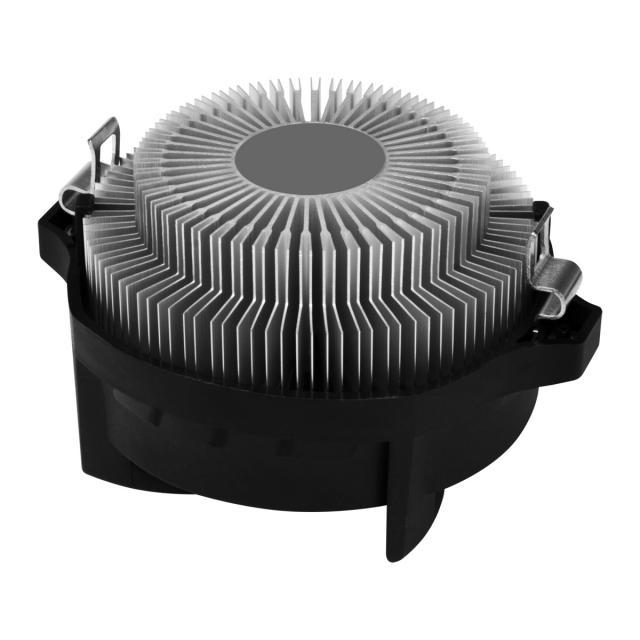

Pasta termica MX-2 pre-aplicata
Instalare usoara si fara instrumente

Diametru: 90 mm
Viteza ventilatorului: 100-2 000 RPM
Bearing: Fluid Dynamic Bearing
Nivelul de zgomot: 0,3 Sone
Curent / tensiune: 0.06A / 12V

Future-Proof Compatibility

At the end of 2022, AMD released the AM5 socket, the successor to its popular AM4 platform. Because all mechanical dimensions remain identical, we can guarantee the compatibility of ARCTIC coolers with AMD's new processors.

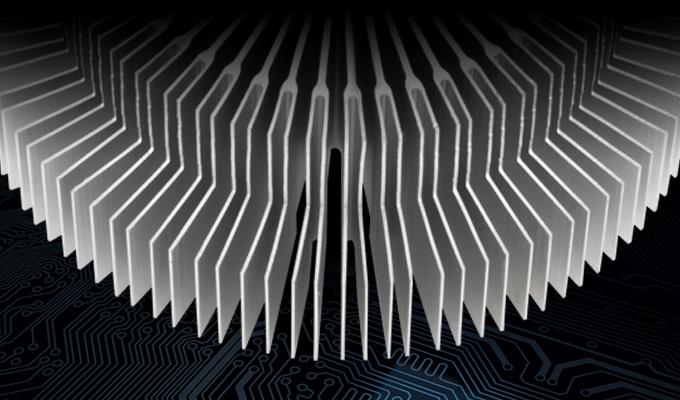

Improved Cooling Performance by New Production Process

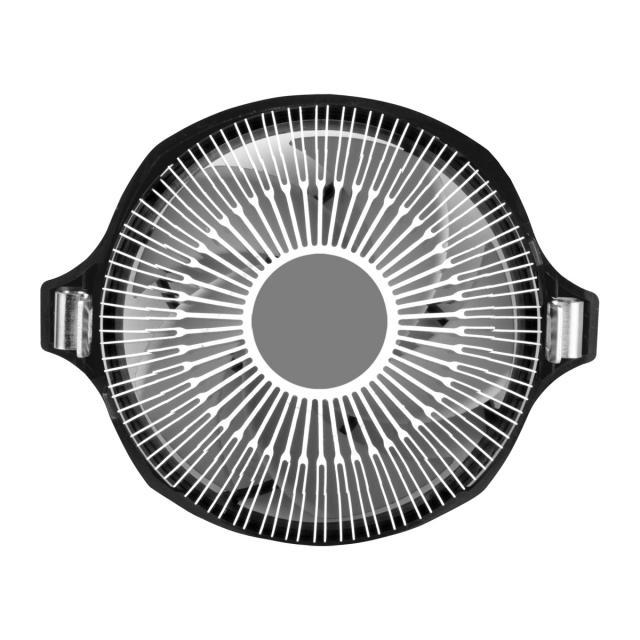

The high thermal conductivity of aluminum is fully retained by a new type of extrusion. This new production process creates a powerful yet very compact radial heat sink. The particularly thin cooling fins of the new Alpine are fanned out in a Y-shape. This increases the surface area of the heat sink and therefore the cooling capacity.

Wide rpm Range

The Alpine 23 features a new motor technology with a very wide, PWM-controlled rpm range. This keeps the noise level at a minimum while guaranteeing maximum cooling performance when needed.

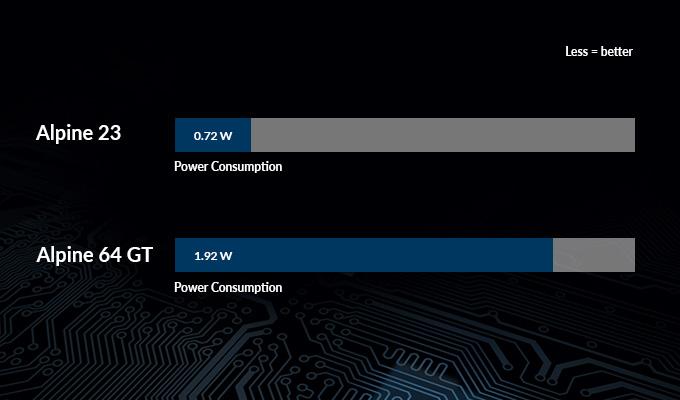

Lower Power Consumption & Minimum Vibration

The new Alpine 23 is powered by an updated motor and runs much more efficiently than its predecessors. Due to sinus-magnetizing the new motor creates just 5 % of the vibration from the commutation of a regular DC motor. These factors contribute to saving energy, lowering the coil temperature, and reducing vibrations to a minimum without compromising performance.

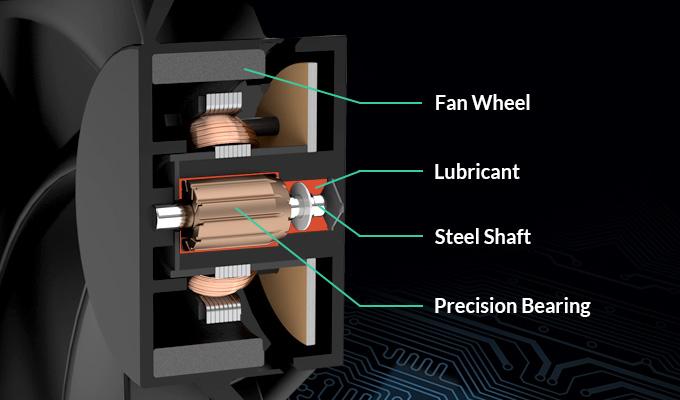

High-Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.

Pre-Applied MX-2 Thermal Paste

The pre-applied, high-performance MX-2 thermal compound ensures fast and clean installation.

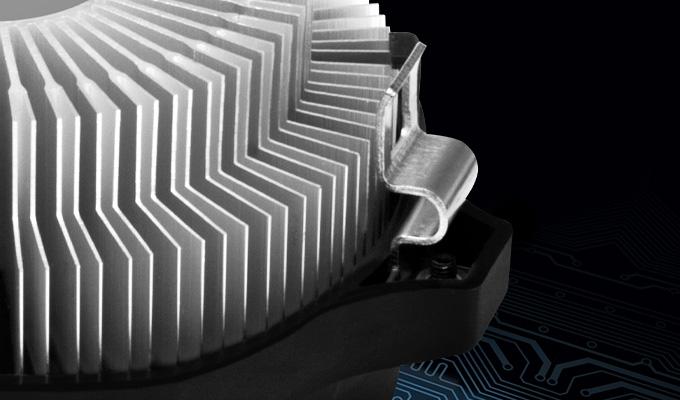

Easy and Fast Installation

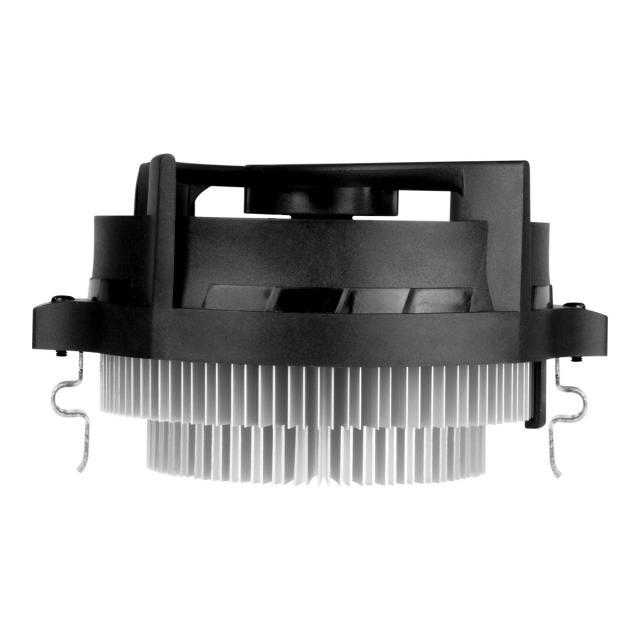

Thanks to the mounting clips, the installation is really easy. Alpine 23 is simply plugged into the existing AMD retention modules and screwed tight.

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how to improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also durability. It's a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the Alpine 23.

Specifications

Compatibility

AMD Socket	AM5, AM4	Warranty	6 Years
Ram Clearance	unlimited	Operating Ambient Temperature	0—40 °C

Heatsink

Outer Diameter	93.4 mm	Number of Fins	50 Y-shaped Fins
Fin Material	Aluminum	Thermal Paste	MX-2 pre-applied

Fan

Fan Size	90 mm	Noise Level	0.3 Sone
Fan Speed	100—2000 rpm	Current	0.06 A
Fan Bearing	Fluid Dynamic Bearing	Connector	4-Pin

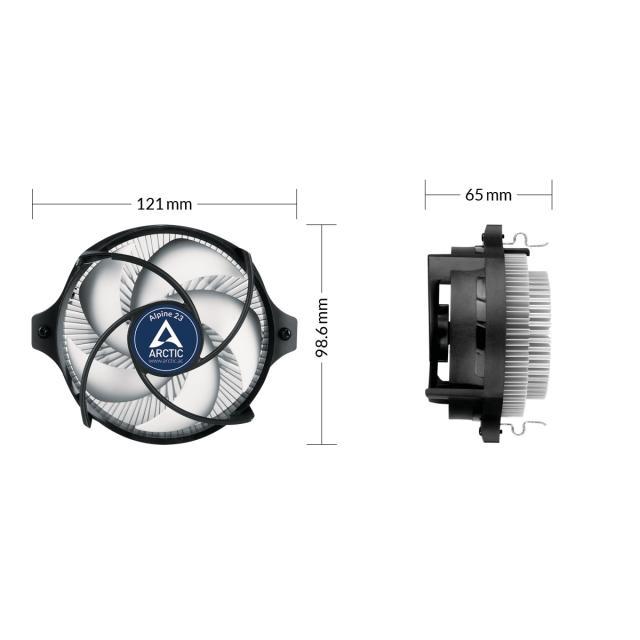

Size & Weight

Length	98.6 mm	Height	65 mm
Width	121 mm	Weight	275.5 g
