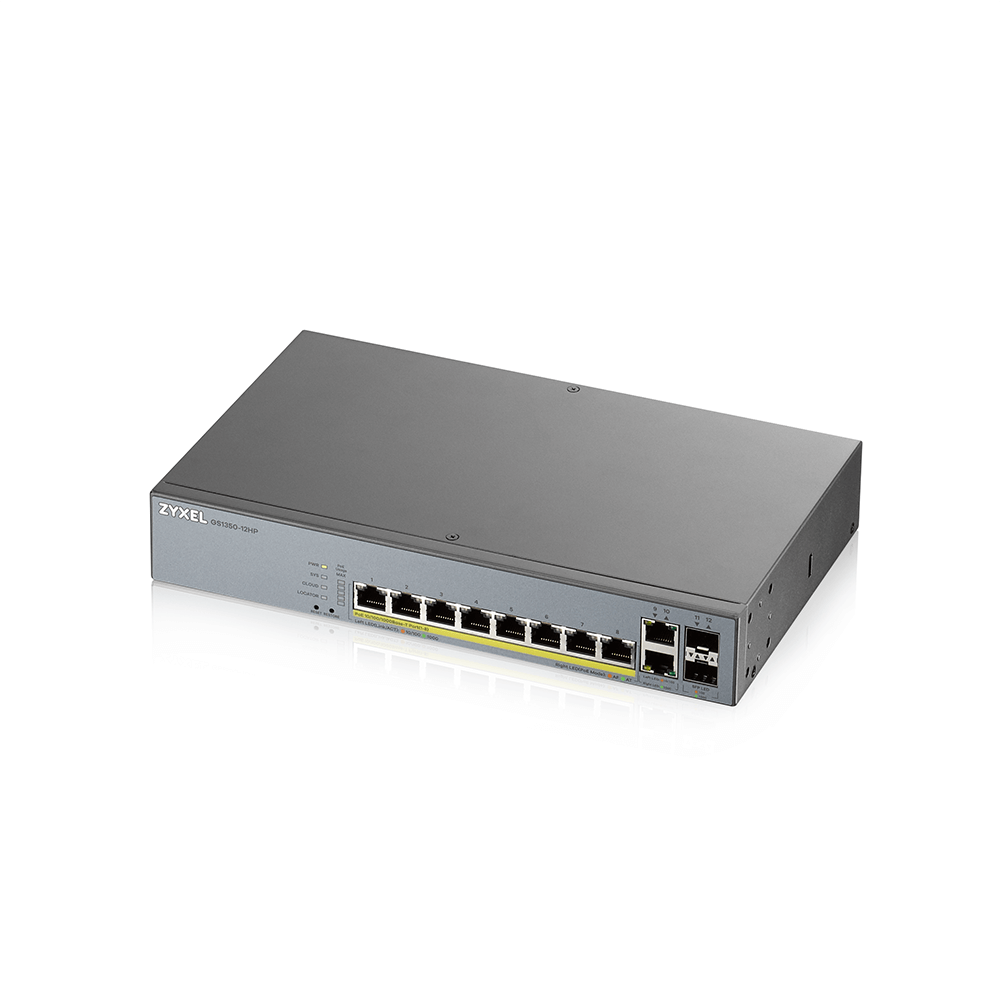

ZyXEL GS1350-12HP
Switch ZyXEL GS1350-12HP, 12 porturi, Gigabit, Gestionabil, PoE 130W
Cod produs: ZYXEL-GS1350-12HP
Întrebare despre ZyXEL GS1350-12HP
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 120 luni |
| Tip | PoE Switch |
| Viteză de transfer (LAN) | 1 Gbps |
| Port-uri LAN | 10 |
| SFP Ports | 2x SFP |
Related products
Tip:
Access Point
Standard WI-FI:
AX5400
Viteză de transfer (Wi-Fi):
până la 5375 Mbps
Viteză de transfer (LAN):
1 Gbps, 2.5 Gbps
Port-uri LAN:
2
Tip:
Switch-uri cu management
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
24
SFP Ports:
4x SFP
Tip:
PoE, Switch-uri cu management
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
24
Tip:
PoE, Switch-uri cu management
Viteză de transfer (LAN):
1 Gbps, 10 Gbps
Port-uri LAN:
11
SFP Ports:
1x SFP+
Tip:
PoE, Switch-uri cu management
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
24
Tip:
PoE, Switch-uri cu management
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
8
SFP Ports:
2x SFP
Tip:
Switch-uri cu management
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
48
SFP Ports:
2x SFP
Tip:
Switch-uri cu management
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
8
SFP Ports:
2x SFP
Tip:
Switch-uri cu management
Viteză de transfer (LAN):
1 Gbps, 10 Gbps
Port-uri LAN:
24
SFP Ports:
4x SFP+
Tip:
Access Point
Standard WI-FI:
AX1800
Viteză de transfer (Wi-Fi):
până la 1775 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
1
Tip:
Router
Standard WI-FI:
AX5400
Viteză de transfer (Wi-Fi):
până la 5375 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
5
Tip:
Router portabil
Standard WI-FI:
AX1800, LTE, 5G
Viteză de transfer (Wi-Fi):
până la 1774 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
2
Numar de porturi: 12
100/1000 Mbps: 10
Gigabit SFP: 2
Porturi configurabile cu raza extinsa: 8
Porturi PoE: 8
Buget total PoE (wati): 130W
Standard PoE: 802.3af/at
Buffer (byte): 525 K
Tabel de adrese MAC: 8 K
Intrare: 100 - 240 V AC, 50/60 Hz
Consum maxim de putere (wati): 160.3
Dimensiuni: 267 x 162 x 44 mm
Greutate: 1.63 kg
MTBF (ore): 1,065,025.45
Just For Surveillance
Crafted for CCTV, Zyxel introduces the titanium grey GS1350 smart managed
switch for your surveillance network
Smart Surveillance
Experience
The GS1350 Series offers a smart, intuitive web
UI experience, specifically for your surveillance
applications.
Monitor your cameras and PoE status at a
glance and setup your surveillance network
with absolute ease.
Manage it your way!
The GS1350 Series joins the Zyxel NebulaFlex Pro family, which allows you to easily switch between standalone management and
intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled with just a few simple clicks. Both management
options have dedicated surveillance features to help you manage your surveillance network with ease.
Anytime, Anywhere with
Nebula Mobile App
-
-
-
-
-
- Easy device onboarding: QR code scan
- At a glance of network status
- Remote control your network
- Reboot AP, Camera by PoE power cycle
- Block clients with unusual traffic
-
-
-
-
Specialized PoE software features for surveillance
|
Auto Camera Recovery Detect and recover failed IP cameras and powered devices automatically with customizable granular parameters suitable for any types of devices and scenarios. |
Continuous PoE Delivers nonstop power to keep cameras in operation, even if switch under-goes maintenance for firmware or configuration updates, significantly reducing reboot time. |

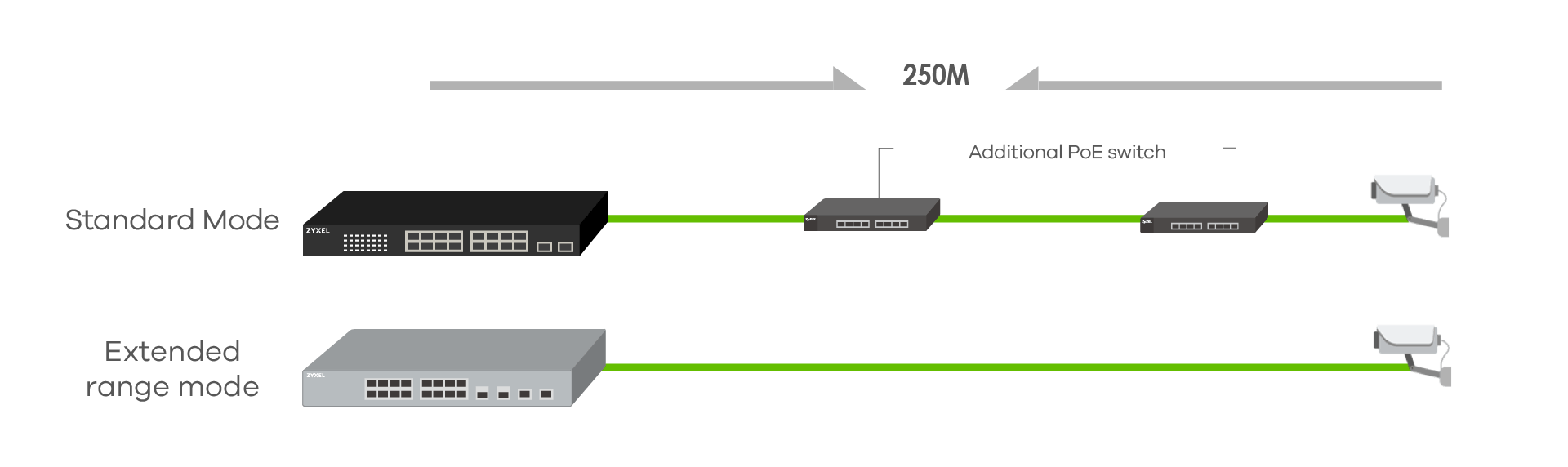

Easy for long-distance deployment
Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the
need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode,
instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE.

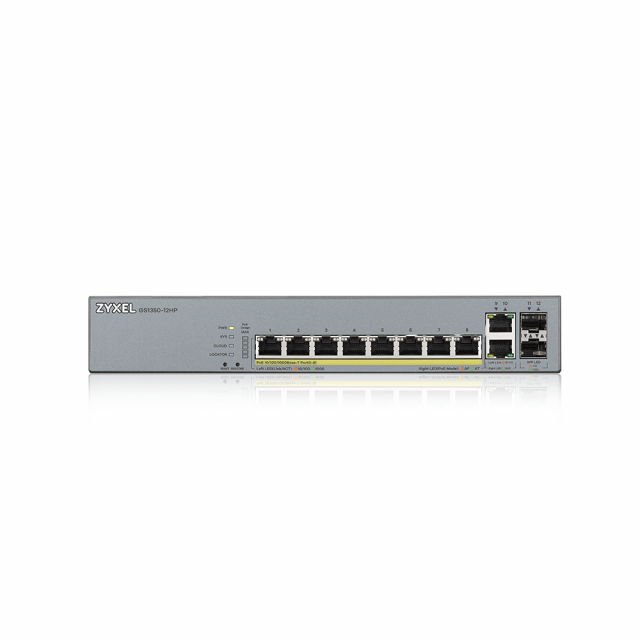

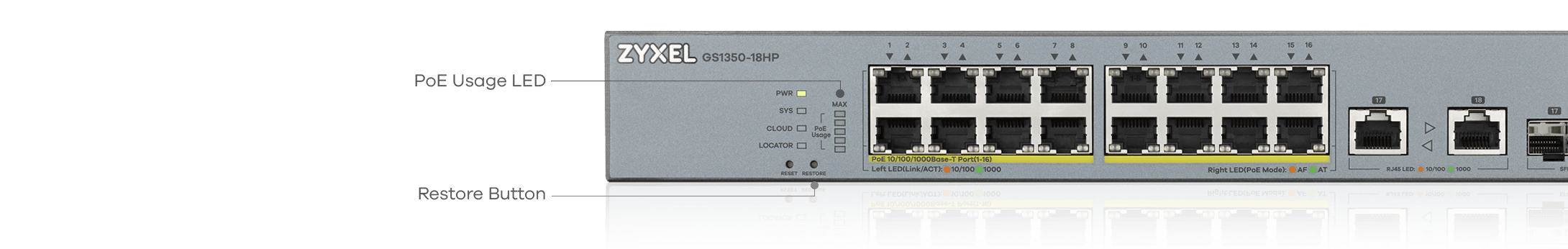

High power budget, intuitive front panel design
The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering
up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-
touch “Restore” button on GS1350 Series helps effortless recovery from misconfigurations.
Specifications
Model
| Product name | 8-port GbE Smart Managed PoE Switch with GbE Uplink | Switch class | Smart Managed |
Port Density
| Total port count | 12 | Gigabit SFP | 2 |
| 100/1000 Mbps | 10 | Configurable extended range ports | 8 |
PoE
| PoE ports | 8 | PoE Standard | 802.3af/at |
| Total PoE budget (watt) | 130 |
Performance
| Switching capacity (Gbps) | 24 | Packet buffer (byte) | 525 K |
| Forwarding rate (Mpps) | 17.8 | MAC address table | 8 K |
Power
| Input | 100 - 240 V AC, 50/60 Hz | Max. power consumption (watt) | 160.3 |
Physical Specifications
| Dimensions (WxDxH)(mm/in.) | 267 x 162 x 44 / 10.51x 6.38 x1.73 |
Included accessories |
|
| Weight (kg/lb.) | 1.63/3.59 |
ESD/Surge Protections
| Ethernet port surge protection | 4 KV | Power supply surge protection: Line-Line | 2 KV |
| Power supply surge protection: Line-GND | 4 KV | Ethernet port ESD protection (air/contact) | 15 KV/8 KV |
Environmental Specifications
| Operating | Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing) |
Heat dissipation (BTU/hr) | 546.62 |
| Storage | Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing) |
Acoustic noise @ 25°C (dBA) | 27.3 |
| MTBF (hr) | 1,065,025.45 |
*All specifications are subject to change without notice.
