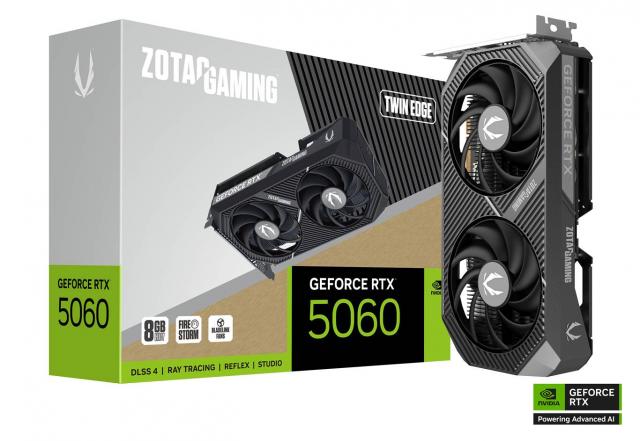

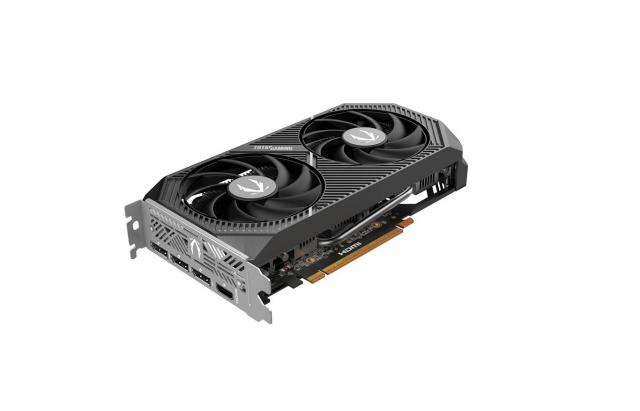

ZOTAC GAMING GeForce RTX 5060 8GB Twin Edge

Placa video ZOTAC GAMING RTX 5060 Twin Edge 8GB GDDR7

Cod produs: ZOTAC-VC-N5060-8GB-TW
disponibil

Întrebare despre ZOTAC GAMING GeForce RTX 5060 8GB Twin Edge

Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
Garanție 36 luni
Memorie 8 GB
Nuclee 3840 CUDA
Frecvență 2497 MHz
BUS memorie 128 biți
Ieșiri HDMI, DisplayPort
Tip memorie GDDR7
Serie RTX 5000 Series

Related products

ZOTAC GAMING GeForce RTX 5060 8GB Twin Edge este o placa video compacta si eficienta, construita pe arhitectura NVIDIA Blackwell. Cu 8GB de memorie GDDR7 ultra-rapida si suport pentru DLSS 4, ofera performanta excelenta pentru gaming la rezolutii ridicate si aplicatii creative. Designul Twin Edge imbina racirea avansata cu dimensiuni reduse, fiind potrivita pentru sisteme SFF.

  • Arhitectura: NVIDIA Blackwell cu nuclee Tensor de generatia a 5-a si Ray Tracing de generatia a 4-a pentru realism si viteza.
  • Memorie: 8GB GDDR7 cu viteza de 28 Gbps si magistrala de 128-bit pentru incarcare rapida si fluiditate in jocuri.
  • DLSS 4: Tehnologie AI care imbunatateste framerate-ul si calitatea imaginii prin Multi Frame Generation si Ray Reconstruction.

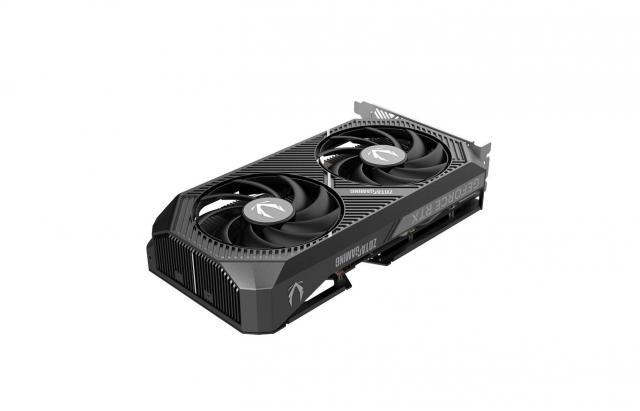

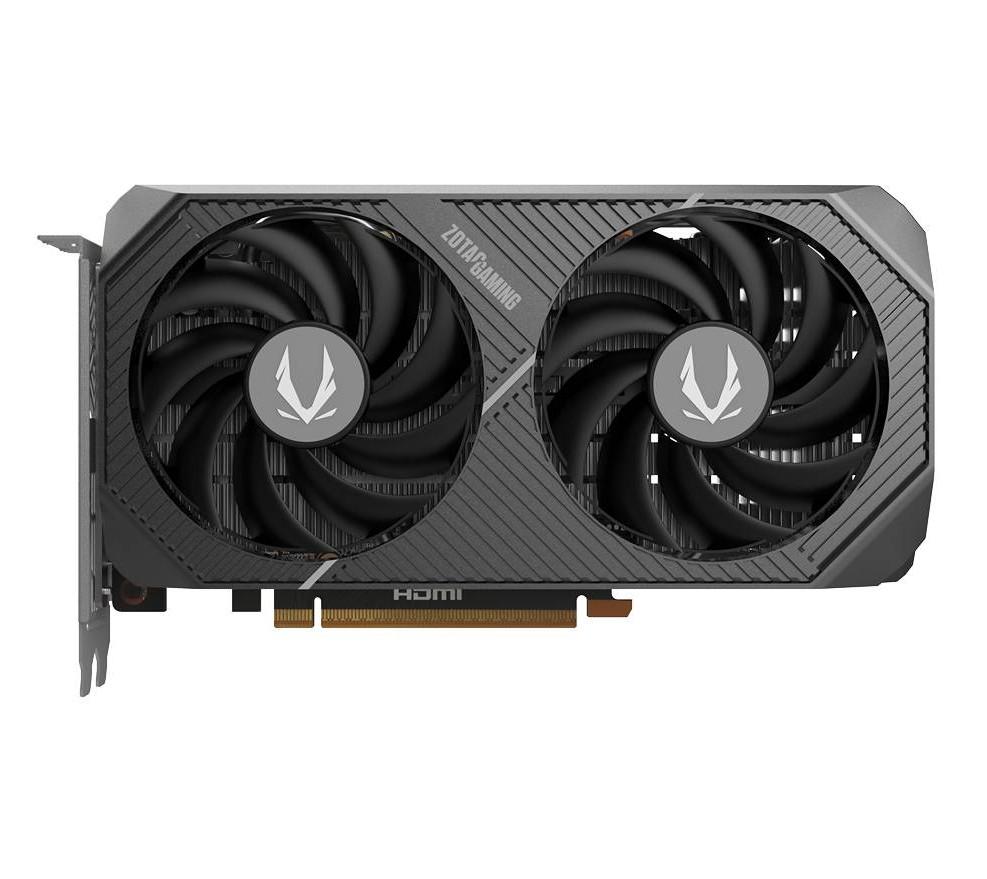

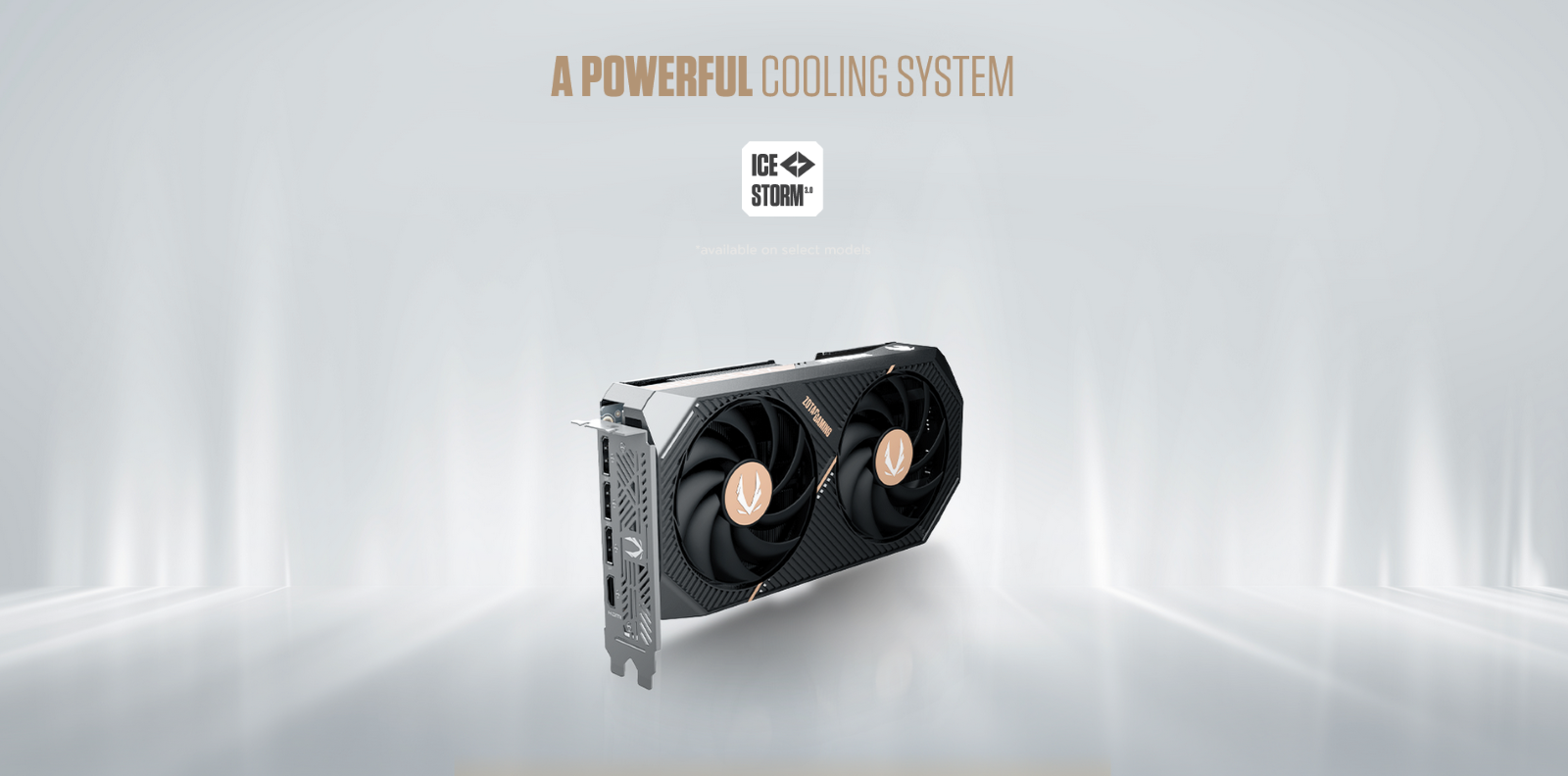

  • Racire: Sistem cu doua ventilatoare BladeLink de 90mm, heatpipe-uri compozite si design Pass-thru Airflow pentru disipare eficienta.

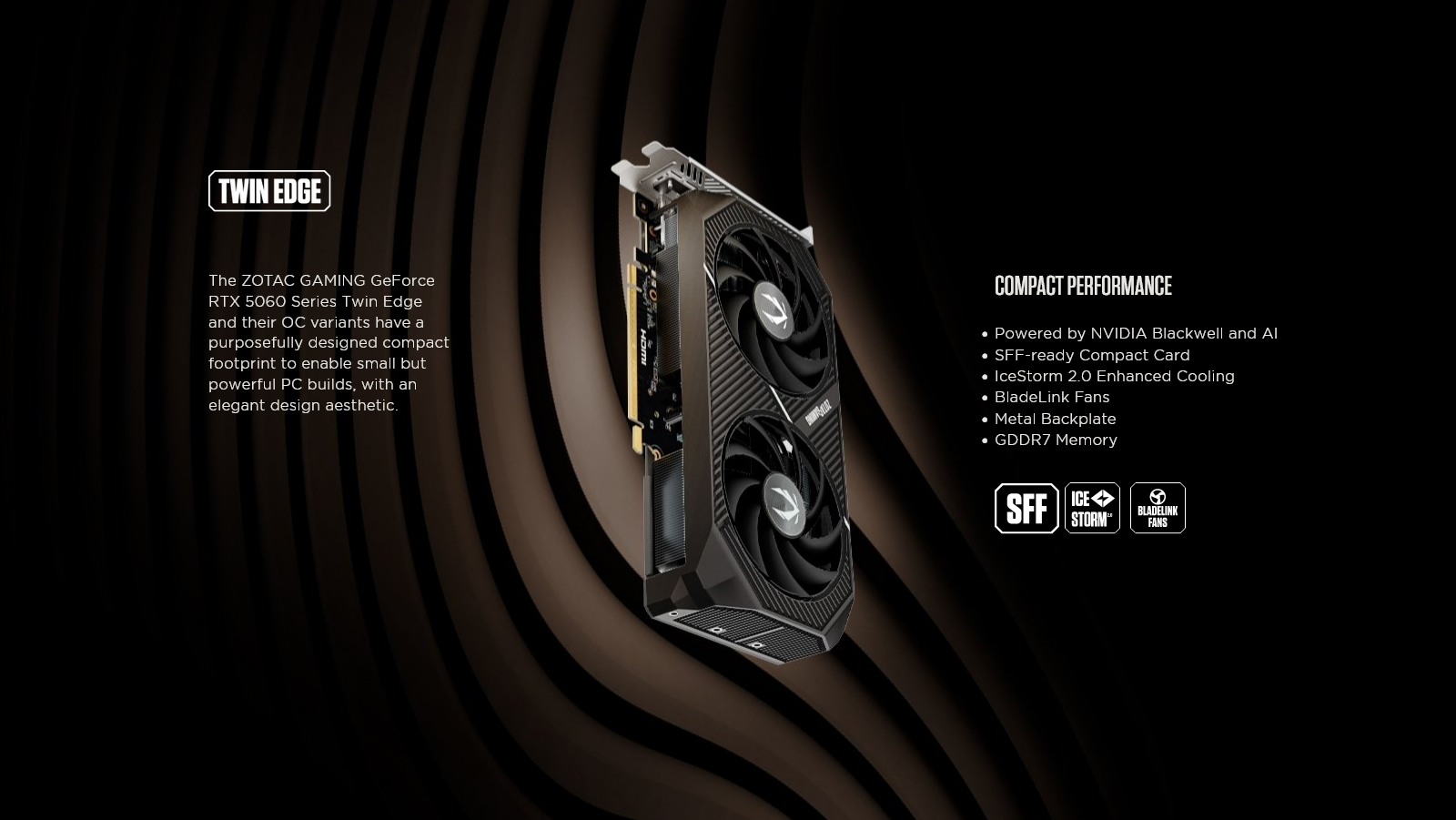

  • Dimensiuni: Design compact SFF-ready cu lungime de 220.5 mm si grosime dual-slot, ideal pentru carcase mici.

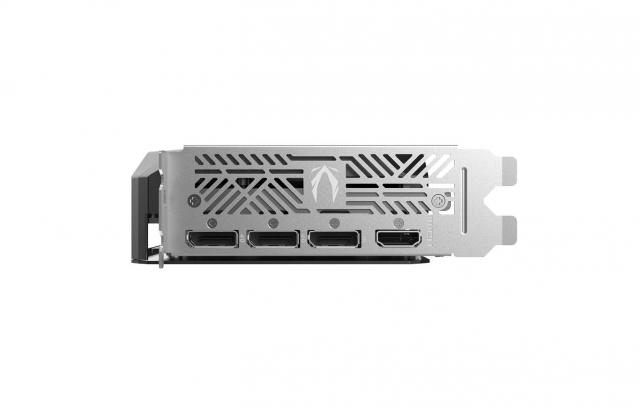

  • Conectivitate: 3x DisplayPort 2.1b si 1x HDMI 2.1b, compatibilitate 8K, suport pentru VR si HDCP 2.3.
  • Backplate: Placa metalica pe spate pentru rigiditate si protectie suplimentara.
  • Software: FireStorm Utility pentru monitorizare, ajustare si personalizare a performantei placii video.











STANDARD 8-PIN POWER

A single 8-pin PCIe power connector is all that’s needed to power this GPU. A lower 650W minimum recommended power supply (PSU) means that there are potentially less components needed for an upgrade, making the 5060 Series a more appealing upgrade choice.













































FREEZE FAN STOP

Fans remain frozen when idle

*available on select models

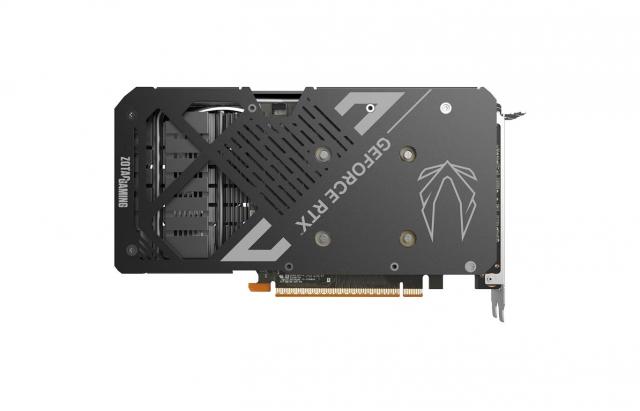

METAL BACKPLATE

The ZOTAC GAMING GeForce RTX 5060 Series rigidity is achieved with a metal backplate, giving it a strong foundation in durability.

*available on select models





























A REFRESHED LOOK

The ZOTAC GAMING FireStorm Utility has a new fresh coat of paint for the 50 series, matching the elegance of our new design. FireStorm comes with a host of tuning and monitoring options that include clock speeds, GPU memory frequencies, voltage, fan speed, fan curve settings, and SPECTRA RGB lighting effects.





















Specifications



GPU NVIDIA GeForce RTX 5060 GPU Power Consumption 155W
CUDA cores 3840 Power Input 1 x 8-pin power input
Video Memory 8GB GDDR7 DirectX  Microsoft DirectX 12 Ultimate
Memory Bus 128-bit OpenGL 4.6
Engine Clock 2497 MHz Cooling Air Cooled
Memory Clock 28 Gbps
Slot Size  2
PCI Express PCI Express 5.0 x8 SLI  No
Display Outputs 3 x DisplayPort 2.1b with UHBR20
(up to 4K 480Hz or 8K 165Hz with DSC)

1 x HDMI Connector
(Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification)
HDCP Support 2.3
Supported OS Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
Multi Display Capability Quad Display Card Length  220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6"
Recommended Power Supply  550W Accessories User Manual
