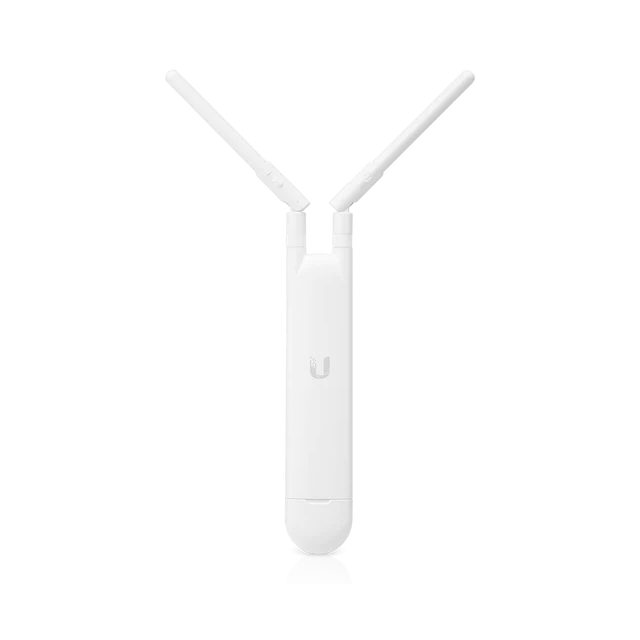

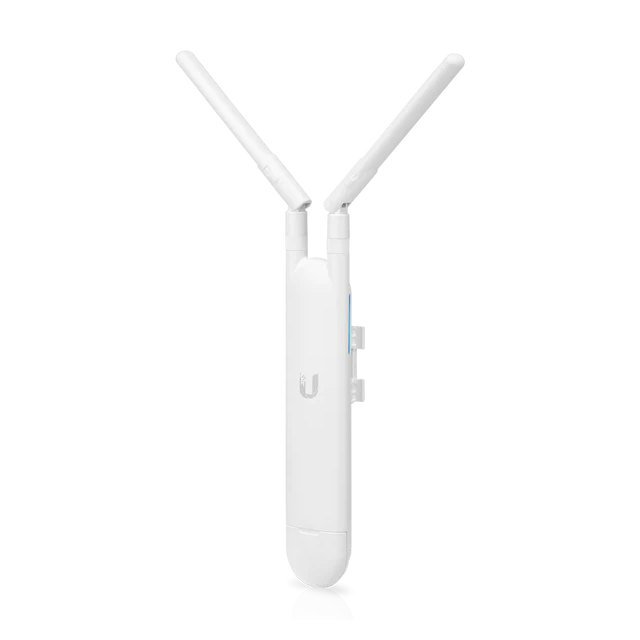

UBIQUITI Access Point AC Mesh

Access Point Ubiqity AC Mesh, 2.4/5 GHz, 300 - 867Mbps, PoE, Alb

Cod produs: UB-UAP-AC-M
ultima bucată

Întrebare despre UBIQUITI Access Point AC Mesh

Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
Tip Access Point
Standard WI-FI AC1200
Culoare Alb
Viteză de transfer (Wi-Fi) până la 1167 Mbps
Viteză de transfer (LAN) 1 Gbps
Port-uri LAN 1
Port USB Nu

Related products

PRODUCT SUMMARY

Mechanical

Dimensions 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35") Weight 152 g (5.36 oz)



Hardware

Networking interface (1) 10/100/1000 MbE port Max. TX power 20 dBm
Management interface Ethernet
Bluetooth
Button Factory reset
Power method 24V Passive PoE (pairs 4, 5+; 7, 8 return)
PoE alternative A (pairs 1, 2+; 3, 6 return)
Mounting Wall/pole/fast-mount (Included)
Power supply 24V, 0.5A Gigabit PoE adapter*
*5-packs do not come with PoE injectors.
Operating temperature -30 to 70° C (-22 to 158° F)
Supported voltage range 44—57V DC Operating humidity 5 to 95% noncondensing
Max. power consumption 8.5W Certifications CE, FCC, IC
Antennas (2) Dual-band antennas



Software

WiFi standards 802.11a/b/g/n/ac Guest traffic isolation Supported
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) Power save Supported
VLAN 802.1Q WMM Voice, video, best effort, and background
BSSID Up to 4 per radio Concurrent clients 100+
Advanced QoS Per-user rate limiting



Supported Data Rates (Mbps)

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11b 1, 2, 5.5, 11 Mbps 802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
