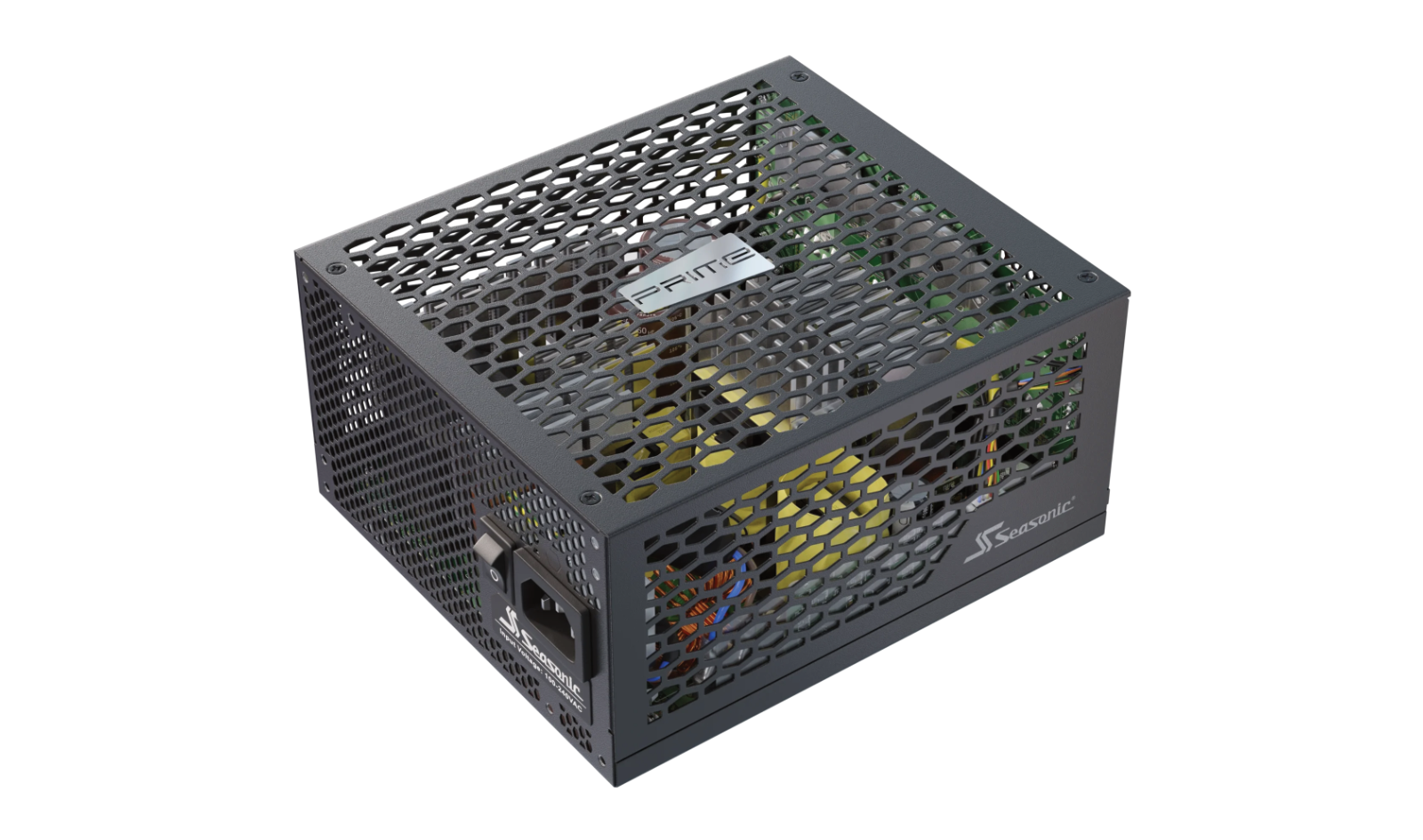

SEASONIC PRIME FANLESS TX 700W

Name: SEASONIC PRIME FANLESS TX 700W
Brand: SEASONIC
SKU: SS-PS-SSR-700TL
Price: 1356.74 RON
Availability: OutOfStock

Sursa de alimentare SEASONIC PRIME TX-700 70W 80+ Titanium, Fully Modular

Cod produs: SS-PS-SSR-700TL

nu este disponibil

Întrebare despre SEASONIC PRIME FANLESS TX 700W

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Putere	700W
Certificat	80+ Titanium
Eficienţă	94 %
Tip	Modulară
Form Factor	ATX
PCIe Gen5	Nu
Iluminare RGB	Nu
Culoare	Negru
Garanție	144 luni

Related products

Seasonic FOCUS GX ATX 3 (2024) 1000W

Putere: 1000W

Certificat: 80+ Gold

Eficienţă: 90 %

Tip: Modulară

Form Factor: ATX

Seasonic VERTEX PX-750 750W

Putere: 750W

Certificat: 80+ Platinum

Eficienţă: 92 %

Tip: Modulară

Form Factor: ATX

SEASONIC FOCUS GX ATX 3 (2024) 850W

Putere: 850W

Certificat: 80+ Gold

Eficienţă: 90 %

Tip: Modulară

Form Factor: ATX

SEASONIC FOCUS GX ATX 3 (2024) 750W

Putere: 750W

Certificat: 80+ Gold

Eficienţă: 90 %

Tip: Modulară

Form Factor: ATX

Seasonic CORE GX White ATX 3.1 850W (2024)

Putere: 850W

Certificat: 80+ Gold

Eficienţă: 90 %

Tip: Modulară

Form Factor: ATX

Seasonic CORE GX 850W ATX 3 (2024)

Putere: 850W

Certificat: 80+ Gold

Eficienţă: 90 %

Tip: Modulară

Form Factor: ATX

Seasonic PRIME PX ATX 3.1 1600W

Putere: 1600W

Certificat: 80+ Platinum

Eficienţă: 92 %

Tip: Modulară

Form Factor: ATX

Seasonic CORE GX 650W ATX 3 (2024)

Putere: 650W

Certificat: 80+ Gold

Eficienţă: 90 %

Tip: Modulară

Form Factor: ATX

Seasonic G12 GM-550W

Putere: 550W

Certificat: 80+ Gold

Eficienţă: 90 %

Tip: Semi-modulară

Form Factor: ATX

Seasonic 12V-2×6 90° Cable

Accesorii: 12-Pin 12VHPWR

Seasonic PRIME TX-1600 ATX 3.0 1600W

Putere: 1600W

Certificat: 80+ Titanium

Eficienţă: 94 %

Tip: Modulară

Form Factor: ATX

Seasonic 12VHPWR 600W 16-Pin to 2x8-Pin Cable

Accesorii: 12-Pin 12VHPWR

80 PLUS Titanium

The PRIME Fanless TX Series achieves the
highest level of 80 PLUS Titanium certification on
the market with its 94% efficiency
at 50% system load.

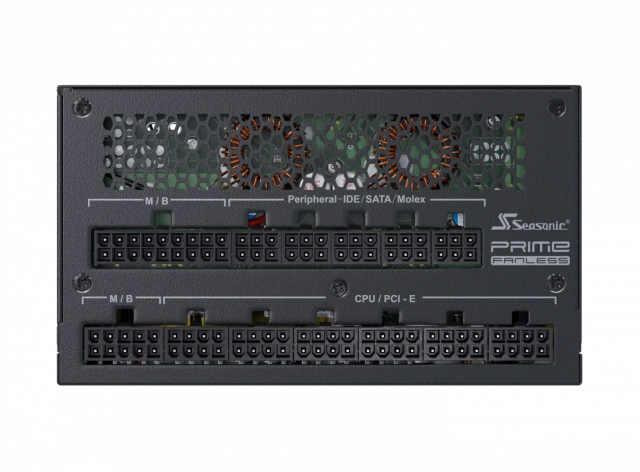

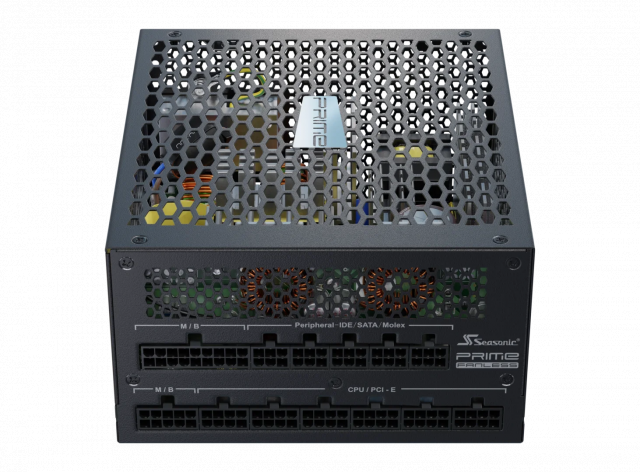

Fully Modular

Cabling

Dimensions

170 mm (L) x 150 mm (W) x 86 mm (H)

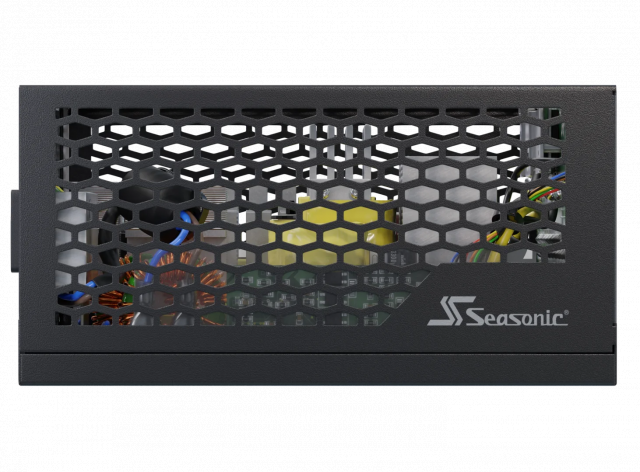

True Fanless

Design

Cybenetics - PRIME Fanless TX-700

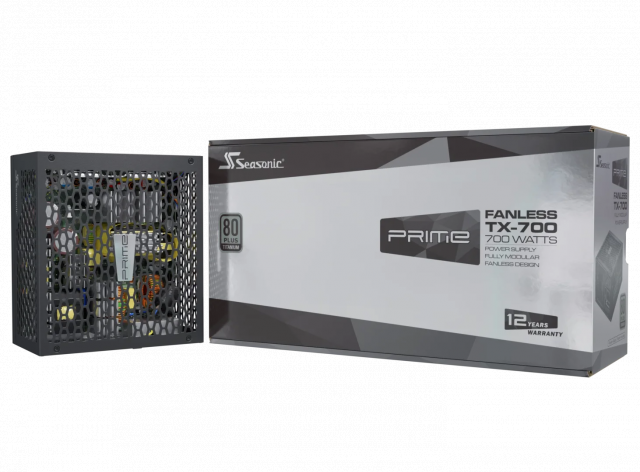

PRIME Fanless TX-700 Unboxing

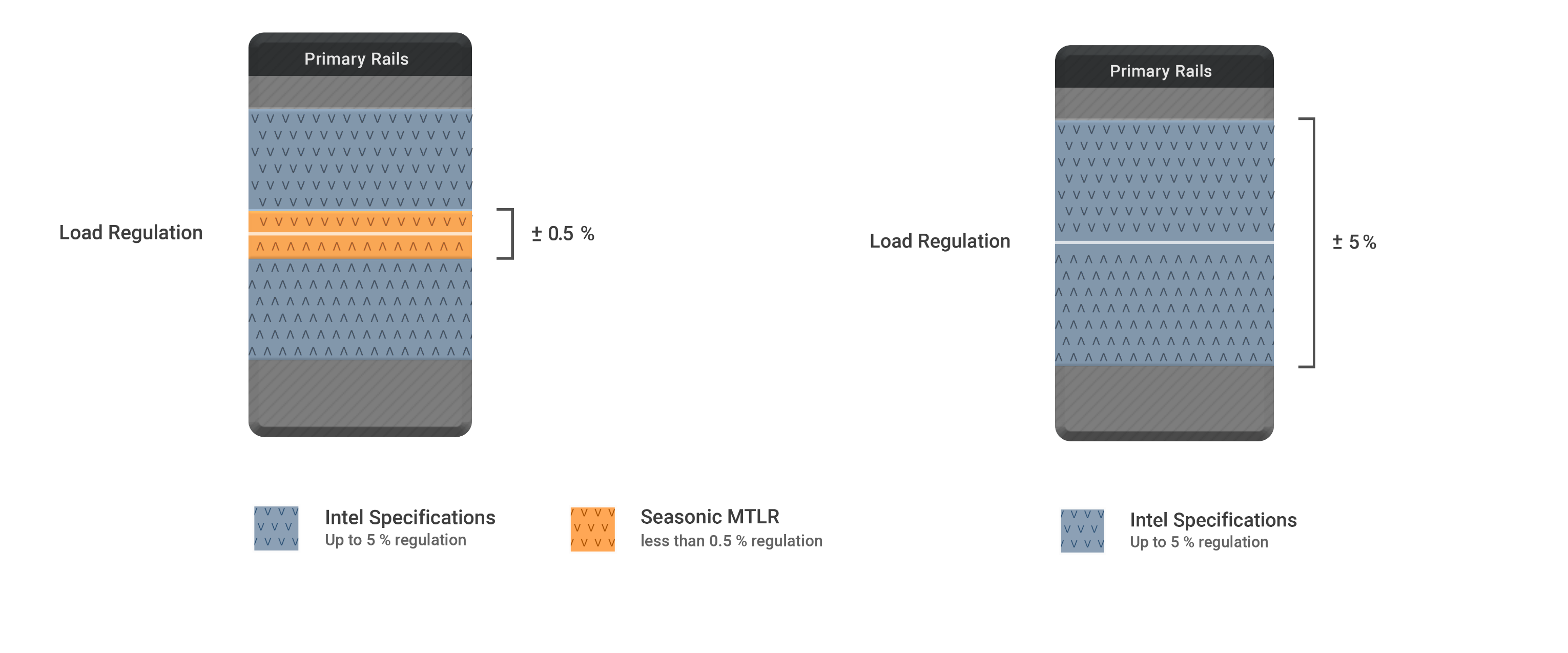

Micro Tolerance Load
Regulation

Seasonic’s latest design keeps the output voltage within a very
tight range, achieving under 0.5 % load regulation. This impressive
electrical performance and stability makes this power supply an
ideal choice for high-performance systems.

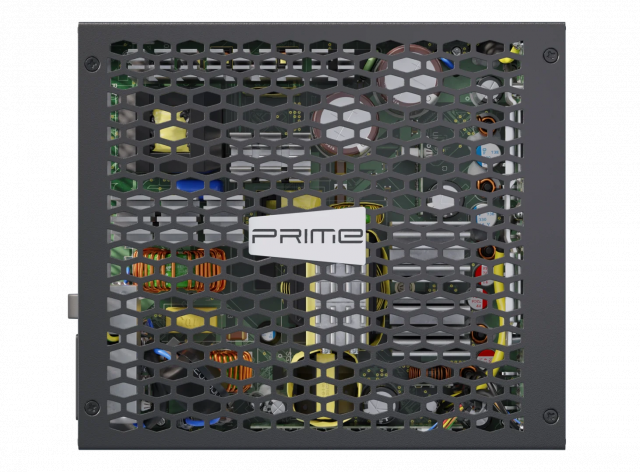

Seasonic Fanless Design

Cooling fans inside the power supply are replaced by passive cooling based on heat dissipation. Silent
operation does not only provide a more pleasant working environment but it also results in less power
consumption and lower utility bills.

Cables

Specifications

80PLUS		Titanium
Cybenetics Efficiency Level		Titanium
Cybenetics Noise Level		A++
Form Factor		ATX/EPS
Dimensions		170 × 150 × 86 mm
Fan Information	Fan Size	Fanless
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Webbed cables (MB, CPU, PCIe) - Flat Black Cables
Electrical Features	Operating Temperature	0 - 45 °C (derating from 100 % to 80% from 40 °C to 45 °C linearly)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		12 Years

Power Output

AC Input	100 V - 240 V
	9-4.5 A
	50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	58 A	0.3 A	3 A
		100 W		696 W	3.6 W	15 W
	Total continuous power	700 W
