Seasonic G12 GM-550W

Sursa de alimentare Seasonic G12 GM-550, 550W, 80+ GOLD

Cod produs: SS-PS-G12-GM-550

nu este disponibil

Întrebare despre Seasonic G12 GM-550W

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Putere	550W
Certificat	80+ Gold
Eficienţă	90 %
Tip	Semi-modulară
Form Factor	ATX
PCIe Gen5	Nu
Iluminare RGB	Nu
Culoare	Negru
Garanție	60 luni

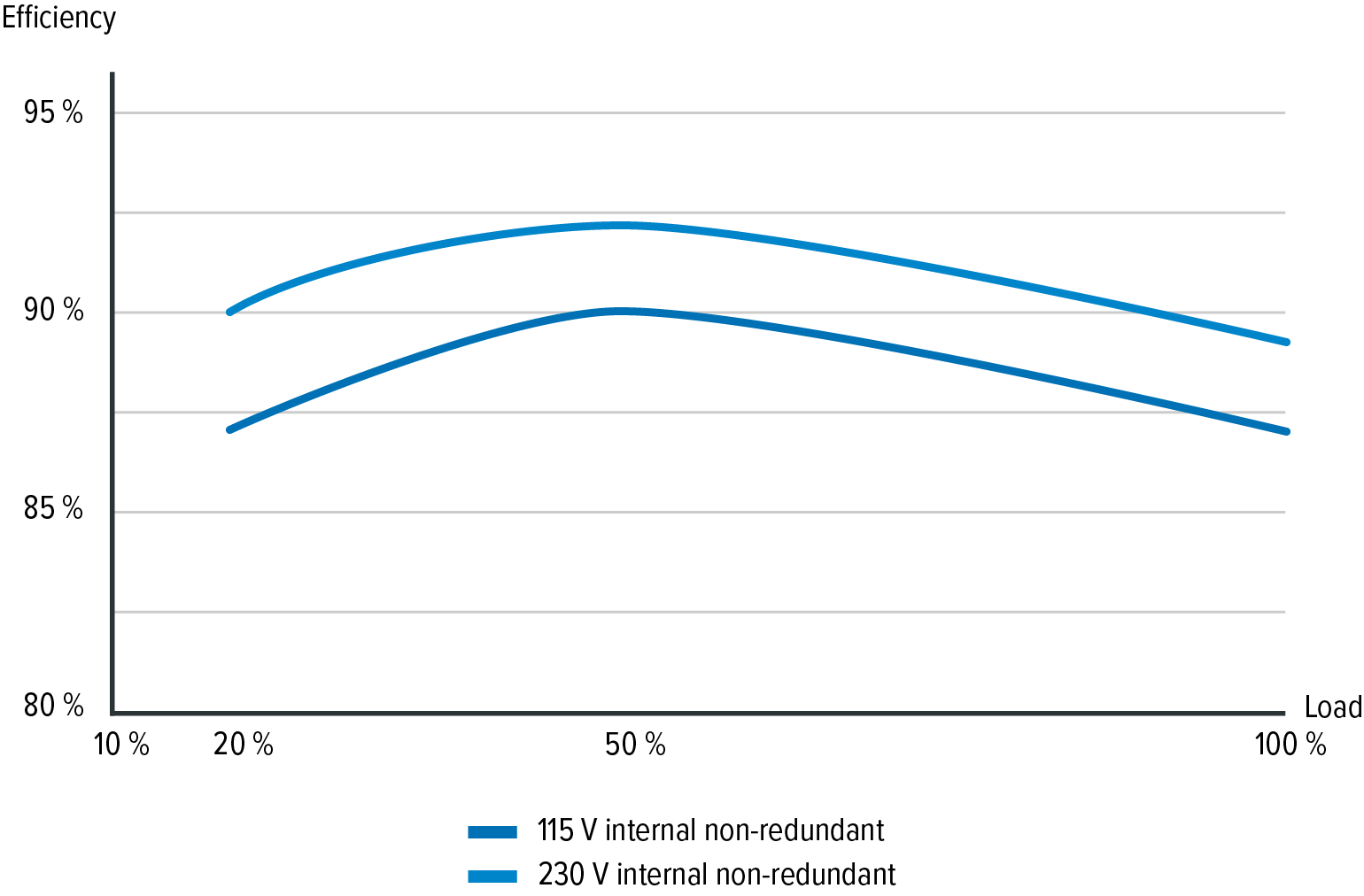

80 PLUS GOLD

The G12 GC achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.

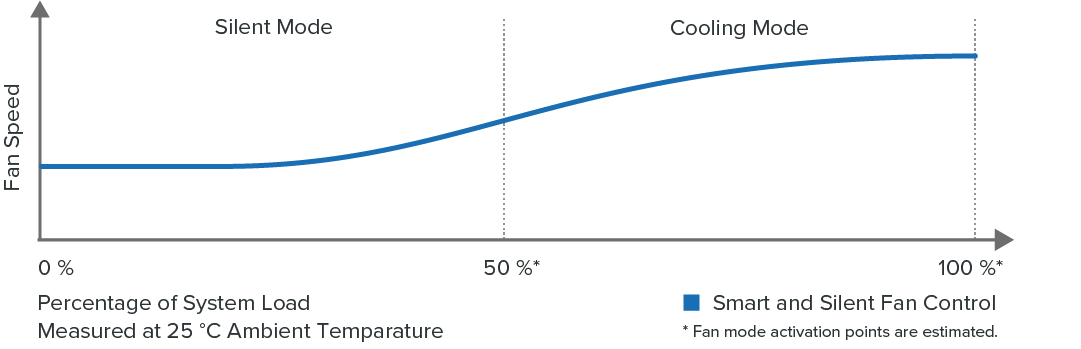

S2FC - SMART AND SILENT FAN CONTROL

The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.

	FEATURE SUMMARY
	80 PLUS Gold certified Semi-modular cables Tight Voltage Regulation	S2FC - Smart and Silent Fan Control 5 years warranty

Technical Specifications

80PLUS		Gold
Cybenetics Efficiency Level		TBA
Cybenetics Noise Level		TBA
Form Factor		Intel ATX 12 V
Dimensions		140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	120 mm
	Fan Control	Smart and Silent Fan Control
	Fan Bearing	Sleeve Bearing
	Life Expectancy	25,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Semi-modular cables
Cable Information	Cable type	Flat black cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, OCP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, CE, FCC
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		5 Years

Power Output

AC Input	Voltage: 100 V - 240 V
	Current: 10 A Max.
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	45 A	0.3 A	2.5 A
		100 W		540 W	3.6 W	12.5 W
	Total continuous power	550 W

Cables

Cable type	Connector(s) per cable	Total Length (mm)	Number(s) of cable(s) included
MB (24/20 pins)	1	550	1
CPU (8/4 pins)	1	600	1
PCIe (8/6 pins)	2	700	1
PCIe (8/6 pins)	1	750	0
SATA	4	810	0
SATA	4	860	0
SATA	4	760	0
SATA	3	720	2
SATA	2	700	0
SATA	2	600	0
SATA	2	470	0
SATA	2	450	0
Molex	3	690	1
Molex	2	470	0
Molex to SATA 3.3 Adapter	2	300	0
Molex to FDD Adapter	1	101	0
