Seasonic CORE GX White ATX 3.1 850W (2024)
Sursa de alimentare Seasonic CORE GX White 850W 80+ Gold, Fully Modular, ATX 3.1, PCIe 5.1
Cod produs: SS-PS-SSR-850W-CORE-W
Întrebare despre Seasonic CORE GX White ATX 3.1 850W (2024)
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Putere | 850W |
| Certificat | 80+ Gold |
| Eficienţă | 90 % |
| Tip | Modulară |
| Form Factor | ATX |
| Specificație | ATX 3.1 |
| PCIe Gen5 | Da |
| Iluminare RGB | Nu |
| Culoare | Alb |
| Garanție | 84 luni |
Related products
Putere:
750W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
650W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
750W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1000W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
ATX
Putere:
550W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Semi-modulară
Form Factor:
ATX
Putere:
700W
Certificat:
80+ Titanium
Eficienţă:
94 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1600W
Certificat:
80+ Platinum
Eficienţă:
92 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1600W
Certificat:
80+ Titanium
Eficienţă:
94 %
Tip:
Modulară
Form Factor:
ATX
Seasonic CORE GX White ATX 3.1 850W este o sursa complet modulara, certificata 80+ Gold, compatibila cu cele mai noi standarde ATX 3.1 si PCIe 5.1. Ofera performanta stabila, racire silentioasa si cabluri albe impletite, fiind ideala pentru configuratii moderne cu placi video din generatia RTX 40/50.
- Putere: 850W, suficienta pentru sisteme high-end cu cerinte energetice ridicate
- Certificare: 80+ Gold, eficienta energetica de peste 90% la sarcina medie
- Standard: Compatibila cu ATX 3.1 si PCIe 5.1, include cablu nativ 12V-2x6 pentru GPU-uri moderne

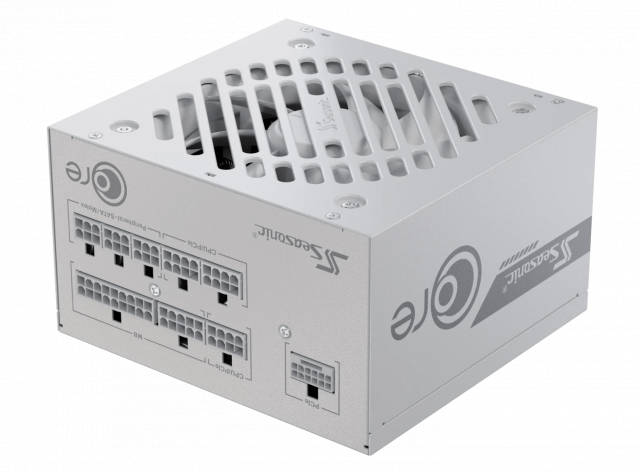

- Modularitate: Design complet modular cu cabluri albe impletite pentru management eficient

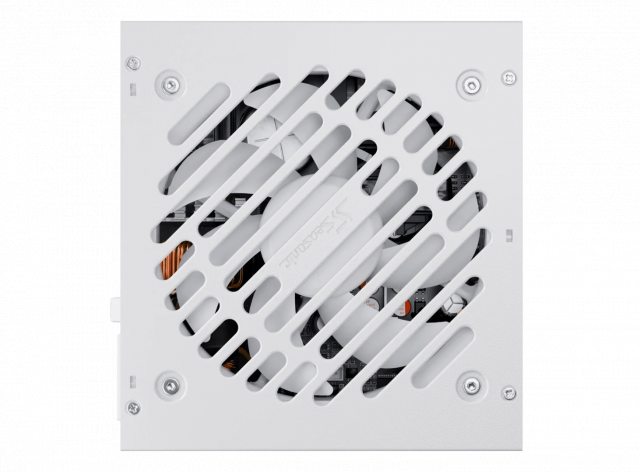

- Racire: Ventilator de 120 mm cu rulment hidrodinamic si control inteligent pentru functionare silentioasa
- PCB optimizat: Layout reproiectat cu componente compacte si disipare termica imbunatatita
CORE GX White ATX 3.1
The updated Seasonic CORE GX White ATX 3.1 Series complies with the latest ATX 3.1 and PCIe 5.1 standards and includes four output ranges from 1000 W to 650 W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS Gold certified Seasonic’s Core GX White line is a fully modular design equipped with white cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm Hydro Dynamic Bearing fan is combined with Seasonic’s Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level. These quality power supplies are backed up by Sea Sonic’s 7-year worldwide manufacturer’s warranty.
The CORE GX White ATX 3 Series is for region sales exclusively. Please contact us for more information.
New Seasonic OptiSink Design

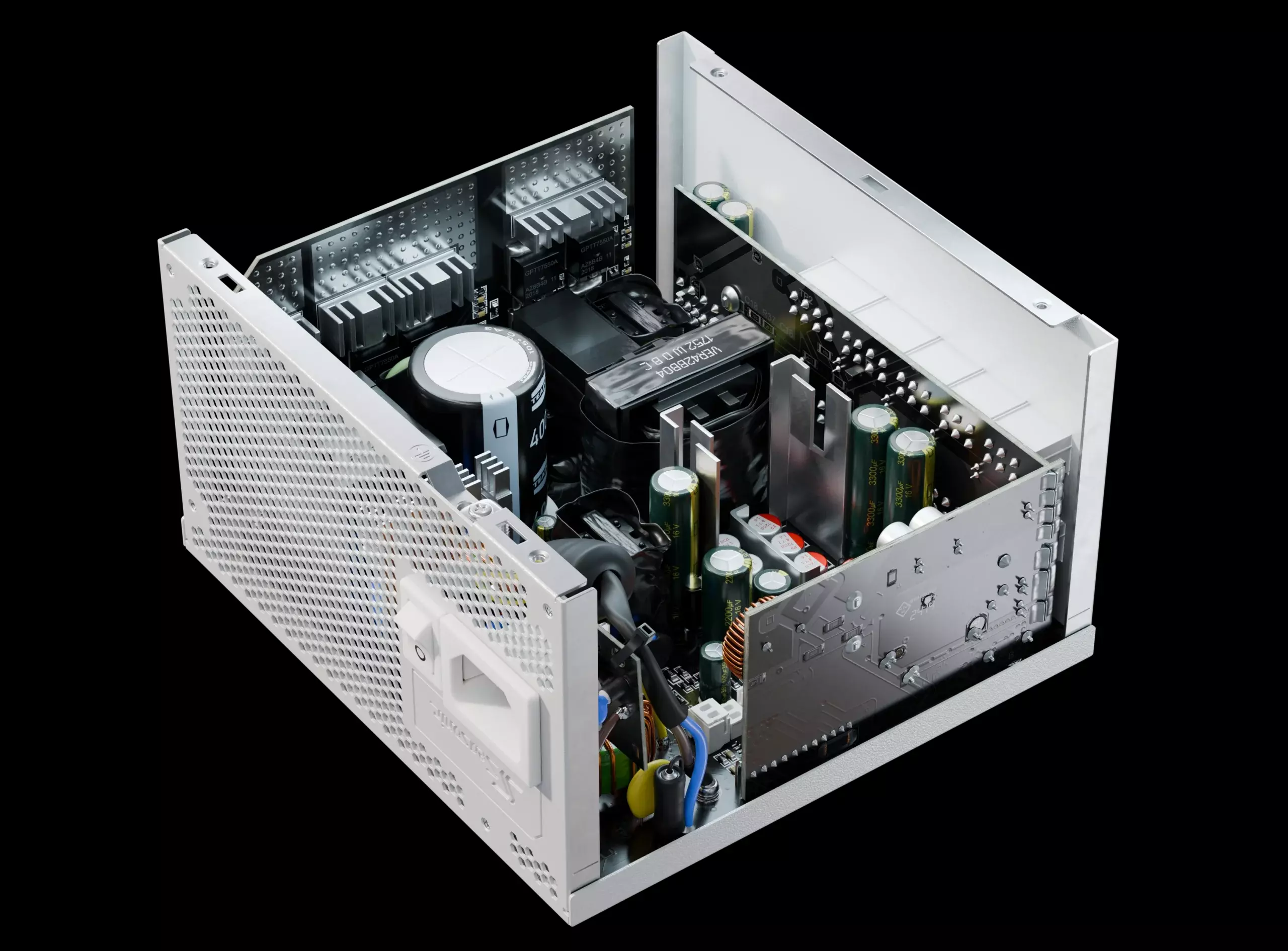

The overall quality and reliability of the new CORE GX White ATX 3.1 Series has been greatly improved by a brand-new PCB (Printed Circuit Board) layout and the implementation of automated surface mount technology during production, which minimizes human production errors.
By using a redesigned PCB combined with smaller MOSFET and heat sink components, the internal space within the power supply was increased to enhance heat dissipation and airflow to result in better component cooling.
The eightfold increase in heat dissipation keeps the internals of the power supply cooler, eventually leading to improved product quality, long-term reliability, and more efficient operation.

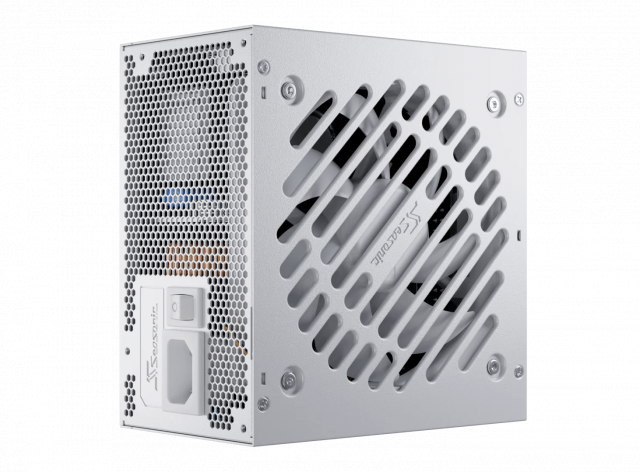

The redesigned layout of the power supply components and its improved thermal performance creates versatility and allows the power supply to be safely installed in any orientation.
The OptiSink design is an eco-friendly solution that not only lowers the costs of material usage and production but also leads to energy savings in the long run.
Specifications
| 80PLUS | Gold | |
| Cybenetics Efficiency Level | Platinum | |
| Cybenetics Noise Level | A- | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | Smart and Silent Fan Control | |
| Fan Bearing | Hydro Dynamic Bearing | |
| Life Expectancy | 25,000 hours at 40 °C, 15 % — 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Individual White Cables with Braided Pattern | |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OCP, OPP, OTP, OVP, UVP, SCP | |
| Safety and Environmental | Safety and EMC | BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA |
| Environmental Compliance | Energy Star, ErP Lot 6, REACH, RoHS, WEEE | |
| Warranty | 7 Years | |
Power Output
| AC Input | 100 V - 240 V | |||||
| 11 - 5.5 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 70 A | 0.3 A | 3 A | |
| 100 W | 840 W | 3.6 W | 15 W | |||
| Total continuous power | 850 W | |||||
