NZXT H7 Flow 2024 Edition
Carcasa NZXT H7 Flow 2024 Edition, Alb
Cod produs: NZXT-CASE-H72FW-01
Întrebare despre NZXT H7 Flow 2024 Edition
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 24 luni |
| Form Factor | Mid Tower |
| Format | ATX, Micro ATX, Mini ITX, EATX |
| Ventilatoare incluse | 3x 120 mm |
| Panou frontal | Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C |
| Culoare | Alb |
| Lungime | 468 mm |
| Lăţime | 244 mm |
| Înălţime | 544 mm |
| Înălțimea maximă a coolerului cu aer | 185 mm |
| Lungimea maximă a plăcii video | 410 mm |
| Ventilatoare suportate în față | 3x 120mm, 3x 140mm |
| Ventilatoare suportate în spate | 1x 120mm, 1x 140mm |
| Ventilatoare suportate în partea de sus | 2x 140mm, 3x 120mm |
| Ventilatoare suportate în partea de jos | 3x 120mm |
| Coolere cu lichid suportate în fată | 1x 280mm, 1x 240mm, 1x 360mm, 1x 420mm |
| Coolere cu lichid suportate în spate | 1x 120mm, 1x 140mm |
| Coolere cu lichid suportate în partea de sus | 1x 240mm, 1x 280mm, 1x 360mm |
| Panou Mesh frontal | Da |
Related products
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
3x 120 mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
3x 120 mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
4x 140mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
3x 120 mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
4x 120mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
4x 120mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
1x 120mm, 3x 140mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
1x 120mm, 3x 140mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
2x 120mm, 2x 140mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
3x 120 mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
3x 120 mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
3x 120 mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Alb

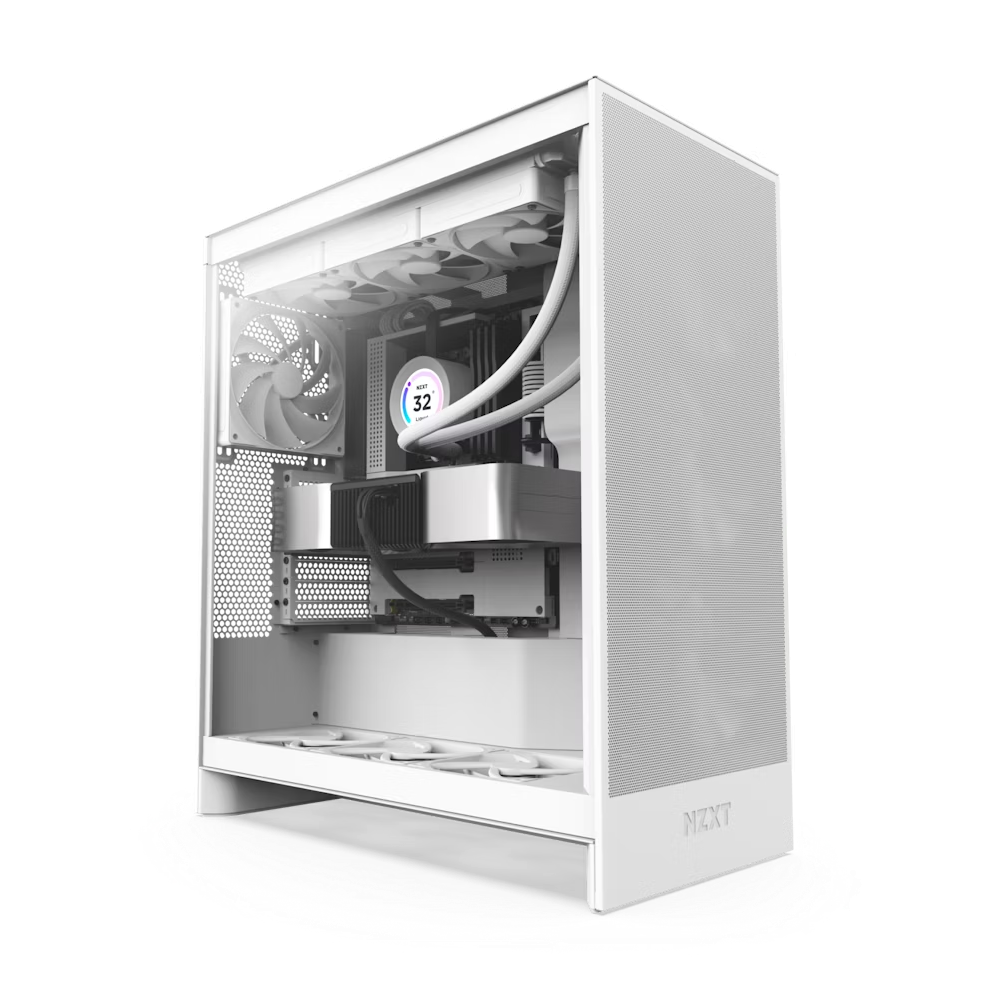

Carcasa NZXT H7 Flow 2024 Edition, Alb
- Sprijina trei ventilatoare de 120 mm montate in partea de jos pentru racire directa a GPU-ului, pastrand in acelasi timp o amprenta ingusta mid-tower.
- Vine echipat cu trei ventilatoare de 120 mm montate frontal pentru racire exceptionala direct din fabrica.
- Panourile mesh de inalta performanta maximizeaza fluxul de aer atat pentru admisie, cat si pentru iesire aerului, precum si pentru filtrarea prafului.
- Sprijina radiatoare de pana la 420mm pe partea frontala si radiatoare de pana la 360mm pe partea de sus pentru potential de racire puternica.
- Sistem intuitiv de gestionare a cablurilor cu canale largi, carlige incorporate si curele incluse pentru o rutare usoara.
- Capacitate de pana la 10 ventilatoare in total: 3 pe partea de sus, 3 pe partea frontala, 3 pe partea de jos, si 1 pe parte de spate.
- Accesati convenabil 2 x porturi USB-A si 1 x USB-C situate pe panoul superior.
- Accesul fara unelte la panourile din fata, de sus si laterale face ca construirea si modernizarea sa fie extrem de usor.

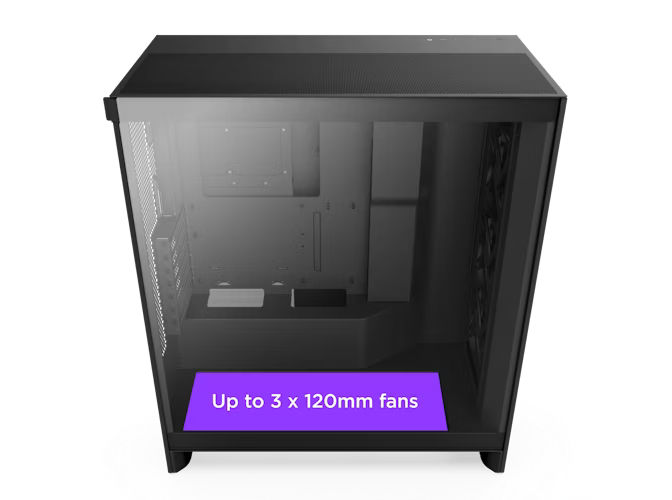

Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans
for direct GPU cooling in a narrow mid-tower
footprint.
for direct GPU cooling in a narrow mid-tower
footprint.

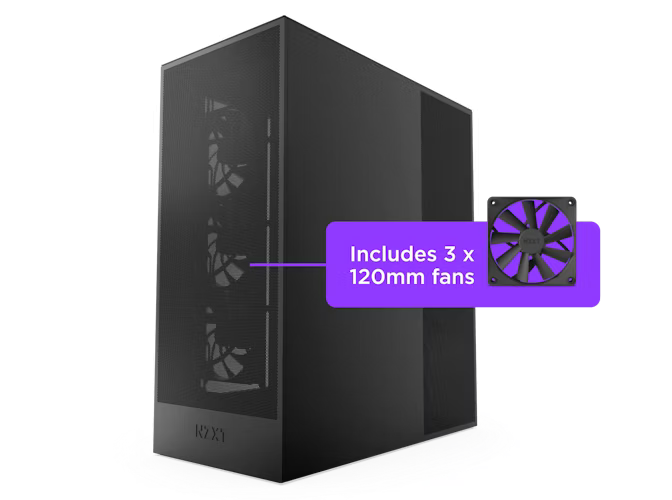

Out-of-the-Box Performance
Comes equipped with 3 x 120mm front-
mounted fans for exceptional out-of-the-box
cooling performance.
mounted fans for exceptional out-of-the-box
cooling performance.
Optimized for
Airflow
High-performance mesh panels
maximize airflow for both intake
and exhaust, as well as filter dust.
maximize airflow for both intake
and exhaust, as well as filter dust.

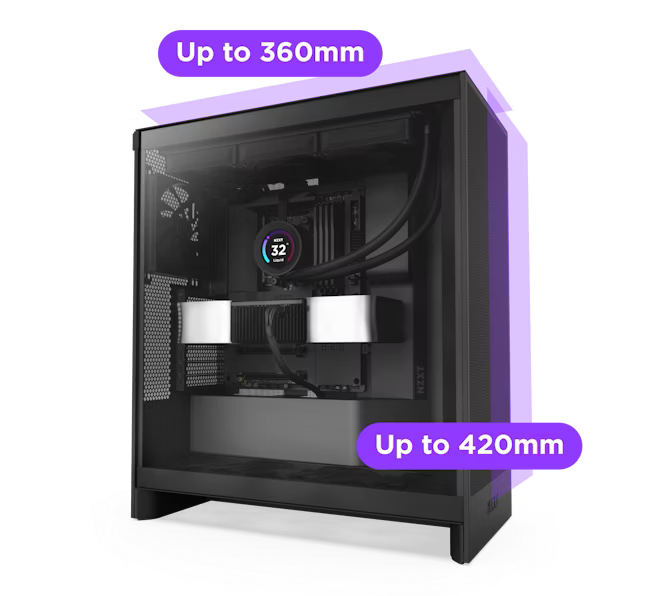

Large Radiator
Support
Supports up to a 420mm radiator
in front and 360mm radiator up
top for max cooling potential.
in front and 360mm radiator up
top for max cooling potential.

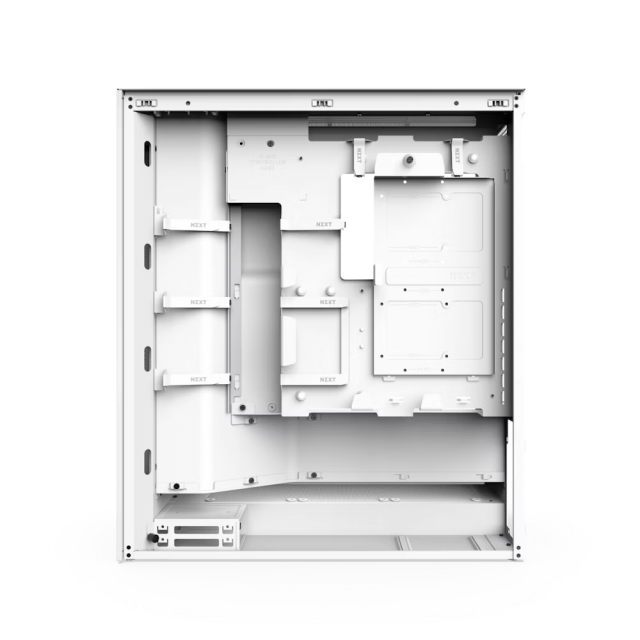

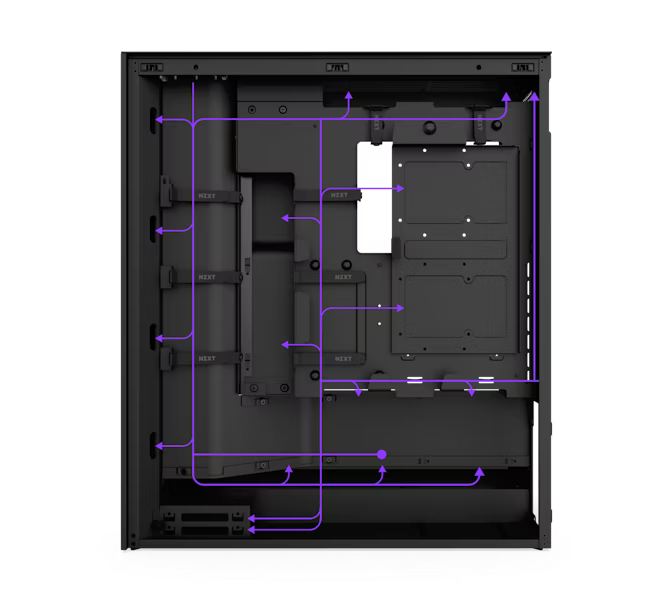

Easily Manage
Cables
Intuitive cable management system
with wide channels, built-in hooks, and
included straps for easy routing.
with wide channels, built-in hooks, and
included straps for easy routing.

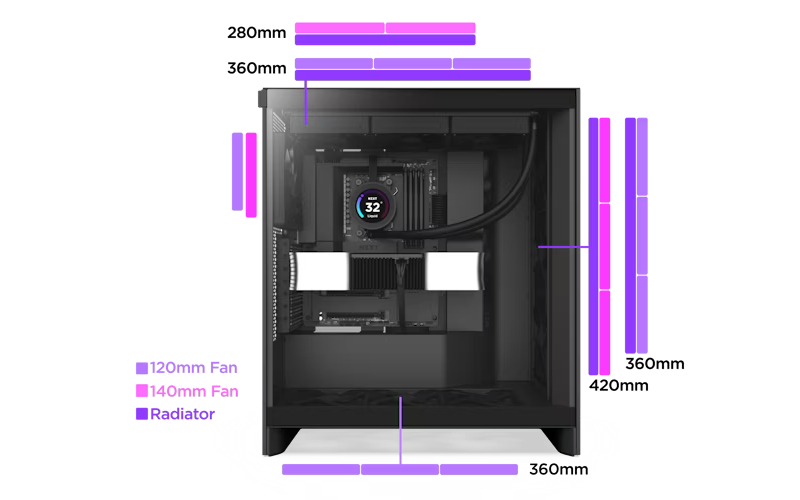

10-Fan Capacity
Capacity for up to 10 fans in total: 3 up
top, 3 in front, 3 on bottom, and 1 in the
rear.
top, 3 in front, 3 on bottom, and 1 in the
rear.

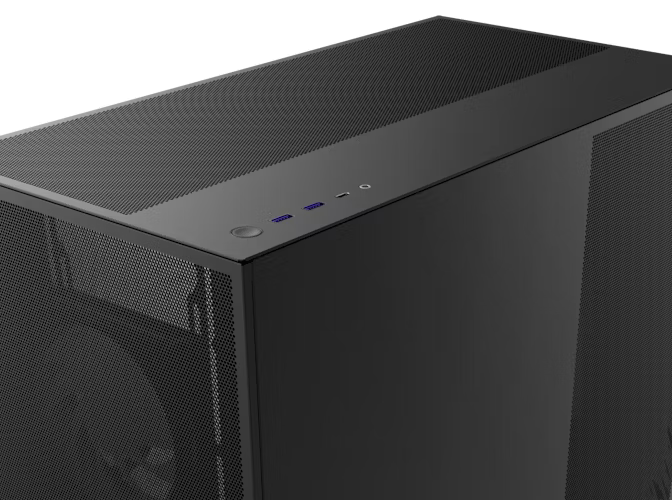

Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C
ports located on the top panel.
ports located on the top panel.

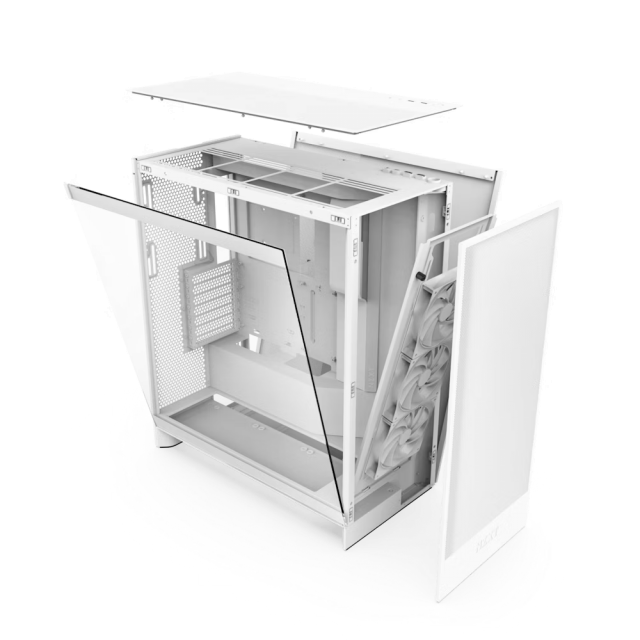

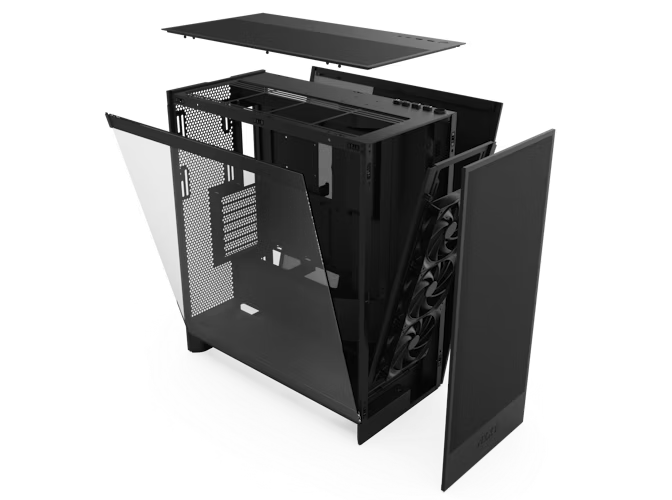

Tool-less Panel Access
Tool-less access to the front, top, and side
panels makes building and upgrading a breeze.
panels makes building and upgrading a breeze.
Tech Specs
Key Specs
| Motherboard Support | E-ATX (Up to 27.7mm), ATX, Micro-ATX, Mini-ITX | Case Material | SGCC Steel, Ultra-Clear Tempered Glass (White) |
| Enclosure Type | Mid-Tower |
Dimensions
| Height (with feet) | 544 mm | Depth | 468 mm |
| Width | 244 mm | Weight | 11.13 kg |
Compatibility & Clearance
| CPU Cooler Height | Up to 185 mm | Cable Management | Up to 34.5 mm |
| GPU Length | Up to 410 mm | Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness | Up to 57 mm |
| PSU Length | Up to 200 mm |
Front I/O Ports
| USB 3.2 Gen 1 Type-A | 2 | Headset Audio Jack | 1 |
| USB 3.2 Gen 2 Type-C | 1 |
Expansion Slots
| Standard | 7 | Vertical | 0 |
Drive Bays
| 2.5" | 2+2 | 3.5" | 2 |
Fan Support
| Front | 3 x 120 mm / 3 x 140 mm (3 x F120Q included) | Rear | 1 x 120 mm / 1 x 140 mm |
| Top | 3 x 120 mm / 2 x 140 mm | Filters | High-Performance Mesh |
Radiator Support
| Front | Up to 420 mm | Rear | Up to 140mm |
| Top | Up to 360mm |
Fan Specs
| Model | F120Q Airflow Fan (Case Version) | Static | 1.05 mm - H2O |
| Speed | 1,350 ± 150 RPM | Noise | 24.1 dBA |
| Airflow | 60.2 CFM | Fan Connector | 3-pin |
General
| Warranty | 2 Years | UPC | 810074845564 (White) |
| Model Number | CM-H72FW-01 (White) | EAN | 5056547205519 (White) |
