Noctua NM-AMB12
Kit de montare Noctua NM-AMB12 pentru socket AM4/AM5 pentru coolere NH-D15(S), NH-D14, NH-D9L, NH-C14S, NH-L9x65
Cod produs: NOCTUA-KIT-NM-AMB12
Întrebare despre Noctua NM-AMB12
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Accesorii | Bracket |
Related products
Noctua Mounting Kit NM-AMB12
Cele mai recente procesoare Ryzen de la AMD au Core Complex Die(s) nu in centru, ci usor spre partea de sud a procesorului. Prin deplasarea radiatorului chiar deasupra hotspot-ului creat de CCD-uri si aplicarea unei presiuni optime de contact acolo unde conteaza cel mai mult, performanta termica poate fi adesea imbunatatita semnificativ.
In timp ce rezultatele pot varia din cauza densitaților diferite ale fluxului de caldura, tolerantelor atat ale procesorului, cat si ale radiatorului, precum si ale altor factori, cum ar fi aplicarea pastei termice, montarea cu NM-AMB12 poate aduce imbunatatiri semnificative, cu reduceri tipice ale temperaturilor de baza intre 1 si 3°C pe procesoarele AM5 high-end. Aceste castiguri pot fi folosite pentru a lasa procesorul sa functioneze mai rece, pentru a obtine frecvente clock mai mari sau pentru a reduce viteza ventilatorului si nivelurile de zgomot.
Pentru Coolere NOCTUA:
NH-C12P
NH-C12P SE14
NH-C14
NH-C14S
NH-D14
NH-D14 SE2011
NH-D15 (chromax.black)
NH-D15 SE-AM4
NH-D15S (chromax.black)
NH-D9L
NH-L12
NH-L9x65
NH-L9x65 SE-AM4
NH-P1

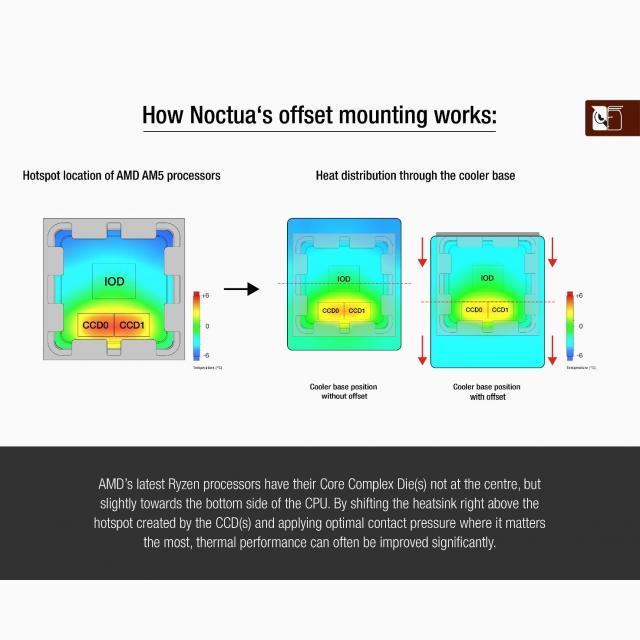

Offsetting for the hotspot
AMD’s latest Ryzen processors have their Core Complex Die(s) not at the centre, but slightly towards the south side of the CPU. By shifting the heatsink right above the hotspot created by the CCD(s) and applying optimal contact pressure where it matters the most, thermal performance can often be improved significantly.
Cooler, faster, quieter
While the results can vary due to different heat flux densities, tolerances of both the CPU and heatsink as well as other factors such as thermal paste application, the offset mounting can yield significant improvements with typical reductions in core temperatures ranging between 1 and 3°C on high-end AM5 processors. These gains can be used to let the CPU run cooler, to achieve higher boost clock frequencies or to reduce fan speeds and noise levels.

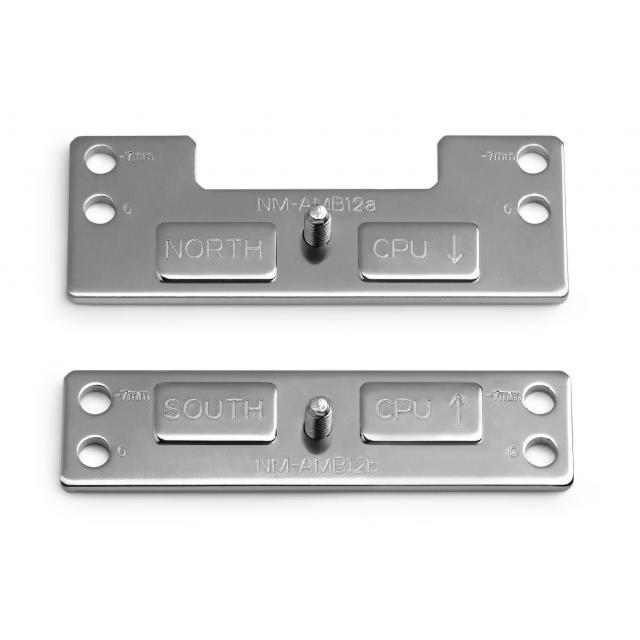

One bar, two positions
The offset mounting bars feature two hole sets, one for offsetting the cooler 7mm towards the south side of the socket and one for the standard, non-offset position. The latter can be used in the unlikely case that the offset position causes compatibility issues, such as clearance problems with motherboard heatsinks or PCIe cards.
Compatible with AM5 and AM4
While primarily designed for AM5, the offset mounting bars can also be used on AM4, where they may yield slight improvements on Ryzen 5000 and 3000 series processors. However, the improvements when using the offset mounting position on these CPUs tend to be much smaller, typically <1°C instead of the 1-3°C gains that can be achieved on AM5.
