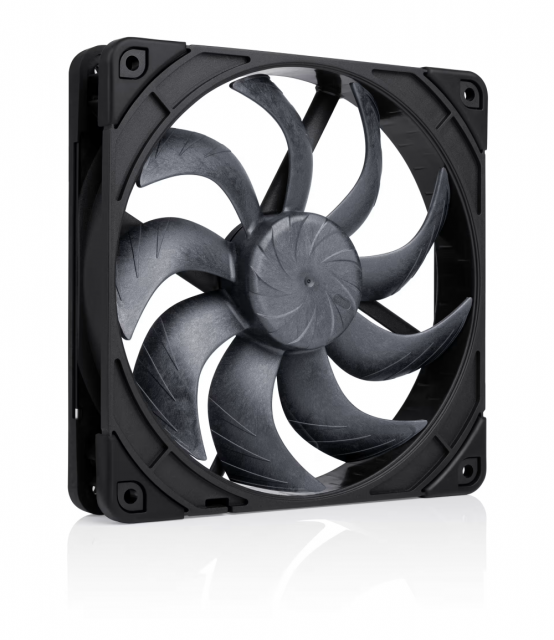

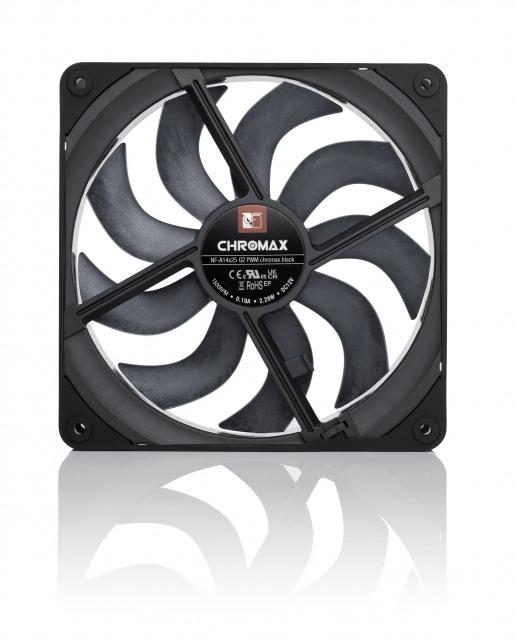

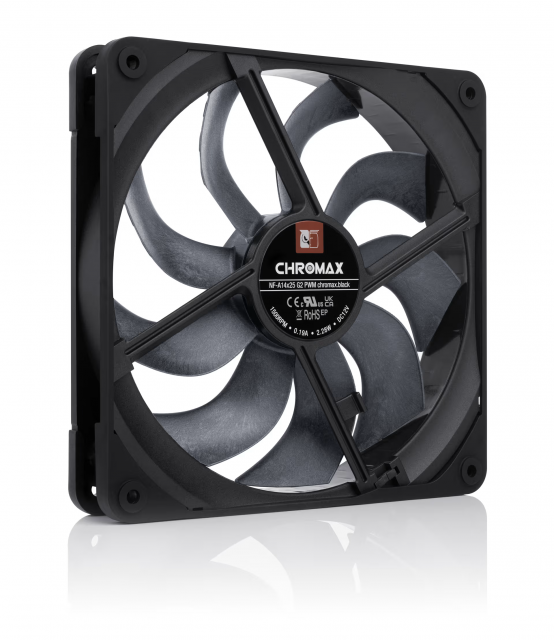

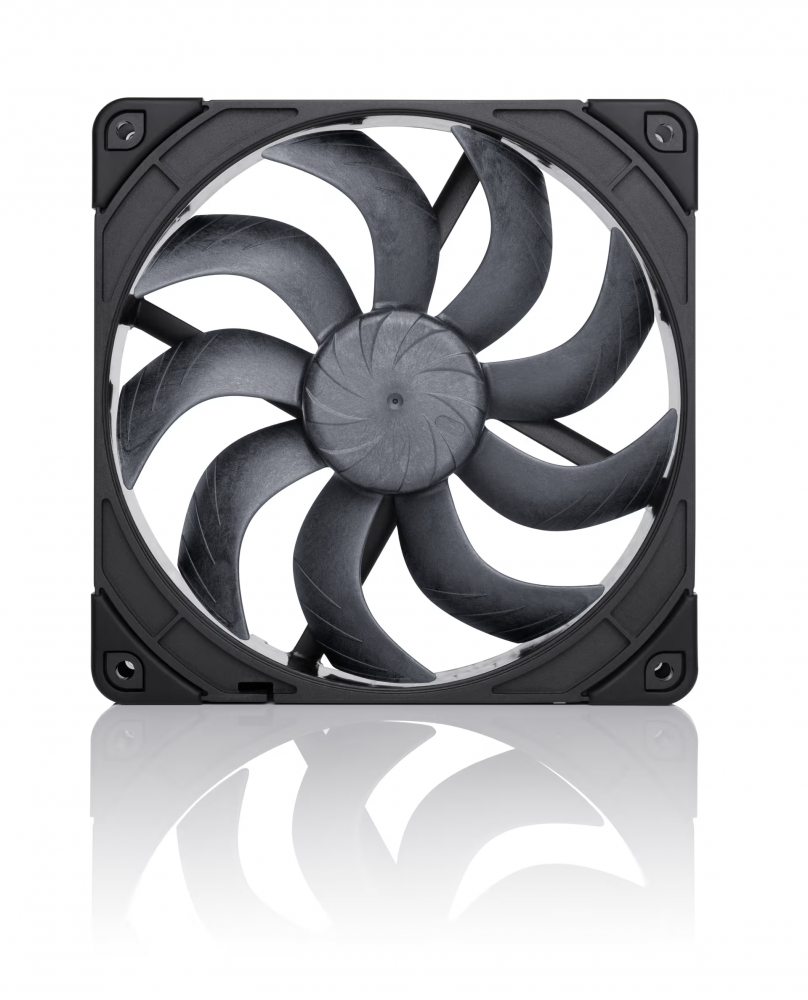

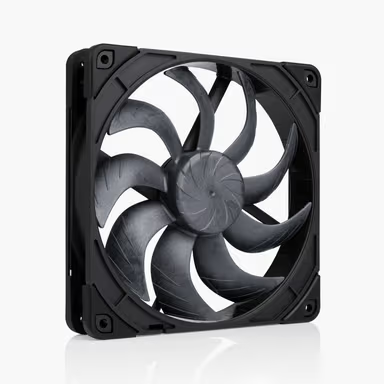

Noctua NF-A14x25 G2 PWM chromax.black

Ventilator Noctua A14x25 G2 PWM chromax.black, 140 x 140 x 25 mm

Cod produs: NOCTUA-FAN-NF-A14x25G2PCH
disponibil

Întrebare despre Noctua NF-A14x25 G2 PWM chromax.black

Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
Garanție 72 luni
Dimensiuni 140 x 140 x 25 mm
Turație până la 1500 RPM
Nivel de zgomot până la 24.8 dBA
Flux de aer până la 91.58 CFM
Conector 4-pin PWM
Reverse Nu
Culoare Negru
Iluminare Nu

Related products

Noctua NF-A14x25 G2 PWM chromax.black este un ventilator premium de 140 mm din noua generatie, proiectat pentru performanta excelenta la presiune statica si flux de aer, cu nivel de zgomot extrem de redus si design complet negru pentru sisteme elegante.

  • Design next-gen 140x25 mm – succesor al modelului NF-A14, optimizat pentru performanta superioara in carcase, radiatoare si coolere CPU.
  • Material Sterrox LCP – constructie din polimer lichid cu rigiditate ridicata pentru vibratii minime si stabilitate la turatii mari.
  • Toleranta ultra-stransa de 0.7 mm – eficienta crescuta datorita distantei foarte mici intre pale si rama ventilatorului, imbunatatind presiunea statica.
  • Rotație pana la 1500 RPM – echilibru excelent intre flux de aer (91.5 CFM) si silentiozitate (24.8 dB(A)) pentru utilizare universala.
  • Rulment SSO2 – sistem de rulment avansat pentru durabilitate extinsa si functionare lina pe termen lung.
  • Centrifugal Turbulator Hub – design al butucului pentru stabilitate aerodinamica si eficienta sporita.
  • Compatibilitate larga – ideal pentru radiatoare AIO, coolere high-end si ventilatie de carcasa, oferind performanta de top in orice scenariu.

Award-winning NF-A14x25 G2 design

Providing a significant performance boost over the renowned first-generation NF-A14, the NF-A14x25 G2 has become a new favourite among quiet cooling enthusiasts. With rave reviews and dozens of awards from hardware media around the world, the G2 model is a proven premium choice for the highest demands.

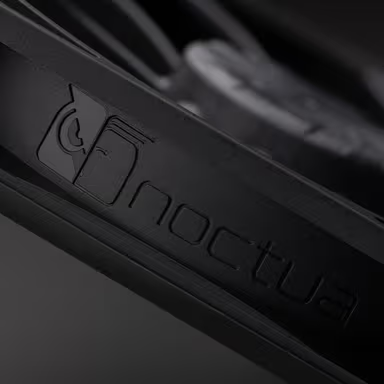

chromax.black edition

From the impeller and fan frame to the anti-vibration pads, anti-vibration mounts, screws and cables, the chromax.black edition is black from head to toe, making it easy to integrate into all-black PC builds and various other environments.

SupraTorque

Most fans become slightly slower when working against back pressure such as on heatsinks and radiators, which results in reduced performance. Enabled by the new NA-FD6 driver IC, Noctua’s SupraTorque technology allows the fan to leverage additional torque headroom when required in order to keep its RPM speed at the desired level no matter the airflow resistance, ensuring consistent performance even in the most demanding conditions.

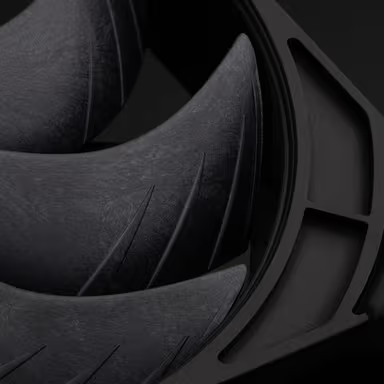

Ultra-tight tip clearance

The NF-A14x25 G2 has a record tight tip clearance (distance between the blade tips and the inside of the frame) of only 0.7mm. This highly ambitious design sets a new benchmark for 140mm fans and helps the NF-A14x25 G2 to work more efficiently against back pressure, such as on heatsinks or radiators, by reducing leak flows through the gap between impeller and frame.

Specifications



Size (Form factor) 140 x 140 x 25 mm (square) Static pressure (max.) 2.56 mm H₂O
Speed range 0 – 1500 rpm Rated voltage 12 V
Airflow (max.) 155.6 m³/h (91.58 CFM) Connector 4-pin
Acoustical noise (max.) 24.8 dB(A) Colour Black
Scope of delivery
  • NA-RC16 Low-Noise Adaptor (L.N.A.)
  • NA-YC1 chromax.black 4-pin PWM splitter cable
  • NA-EC1 chromax.black 30cm extension cable
  • 4x NA-AV2 chromax.black anti-vibration mounts
  • NA-AVG2-LR chromax.black anti-vibration gasket
  • 4x NA-AVP1-LR chromax.black load-relief anti-vibration pads
  • Black fan screws
Warranty 6 years
