NEC PE506UL

Proiector LCD profesional cu laser NEC PE506UL, 1920 x 1200 (WUXGA) , 5200 ANSI, LCD, 3000000:1

Cod produs: NEC-PROJ-PE506UL

la cerere (contactați-ne)

Întrebare despre NEC PE506UL

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	36 luni
Luminozitate	5200 ansi lm
Rezoluţie (native)	1920x1200
Contrast	3 000 000:1
Tip	Standard
Durata de viață lampa	10000 ore
Tehnologie	3LCD
Format	16:10
Culoare	Alb

Tehnologie de proiectare 3LCD
Rezolutie Nativa
1920 x 1200 (WUXGA)
Raport de aspect 16:10
Raport de contrast 1 3000000:1
Luminozitate 1 5200 ANSI Lumen
Deplasare a lentilelor H:-29,+29, V:-0,+60
Corectie trapezoidala +/- 30° manual horizontal / +/- 30° manual vertical
Factor de proiectie 1.2 – 2 : 1
Distanta de proiectare [m] 0.75 – 13
Marimea ecranului (diagonala) [cm] / [inch] 76.2 / 30" - 762 / 300"
Zoom x1.7
Reglarea focalizarii Manual

Intrare RGB (analog): 1 x Mini D-sub 15-pin, compatibil cu componenta (YPbPr)
Iesire: 1 x Mini D-sub 15 pin
Intrare semnal digital: 2 x HDMI™ (Deep Color, Lip sync)
Intrare audio: 1 x 3.5 mm Stereo Mini Jack; 1 x RCA Stereo
Iesire: 1 x 3.5 mm Stereo Mini Jack
Intrare de control: 1 x D-Sub 9 pin (RS-232) (tata)
LAN 1 x RJ45; WLAN optional
USB 1 x Tip B; 1x Tip A (USB 2 de mare viteza) cu 2 surse de alimentare
Video Signals NTSC; PAL; PAL60; SECAM

Dimensiuni (W x H x D) [mm] 405 x 137 x 358 (fara lentila si picioare)
Greutate [kg] 7.95
Zgomot a ventilatorului [dB (A)] 27 / 37 (Eco / Normal)
Variante de culoare Alb

Caracteristici speciale AMX Beacon; Modul Auto Eco; contor de economii de carbon; managementul culorilor; transmiterea continutului prin retea; Crestron RoomView; PJ LINK

Accesorii optionale Montare universala pentru tavan (PJ01UCM); modul wireless LAN (NP05LM2; NP05LM4; NP05LM5)


Projection Technology	3LCD Technology	Keystone correction	+/- 30° manual horizontal / +/- 30° manual vertical
Native Resolution	1920 x 1200 (WUXGA)	Projection Factor	1.2 – 2 : 1
Aspect Ratio	16:10	Projection Distance [m]	0.75 – 13
Contrast Ratio	3000000:1	Screen Size (diagonal) [cm] / [inch]	76.2 / 30" - 762 / 300"
Brightness	5200 ANSI Lumen	Zoom	x1.7
Lens shift	H:-29,+29, V:-0,+60	Focus Adjustment	Manual

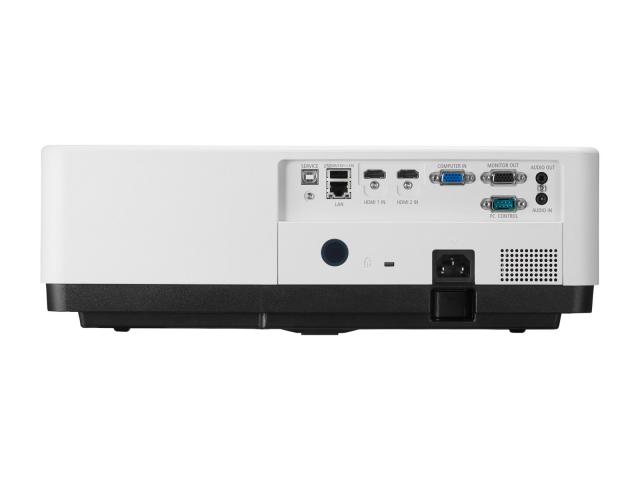

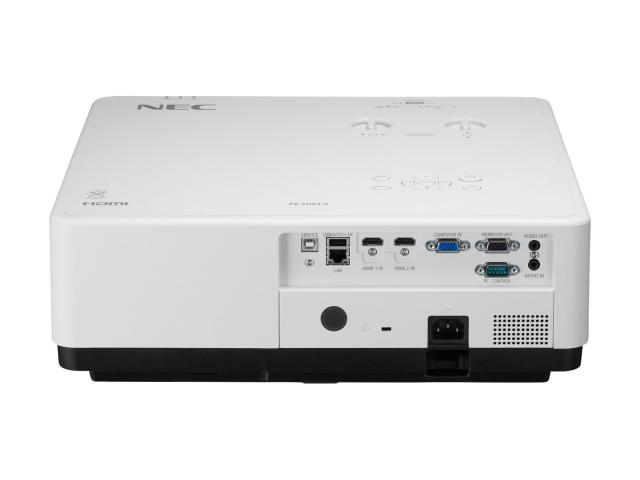

CONNECTIVITY

RGB (analog)	Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr) Output: 1 x Mini D-sub 15 pin	LAN	1 x RJ45; Optional WLAN
Digital	Input: 2 x HDMI (Deep Color, Lip sync)	USB	1 x Type B; 1x Type A (USB 2 high speed) with 2 Power Supply
Audio	Input: 1 x 3.5 mm Stereo Mini Jack; 1 x RCA Stereo Output: 1 x 3.5 mm Stereo Mini Jack	Video Signals	NTSC; PAL; PAL60; SECAM
Control	Input: 1 x D-Sub 9 pin (RS-232) (male)

REMOTE CONTROL

Remote Control

Aspect Ratio; Auto Adjust; AV Mute; Digital Zoom; Freeze; ID set; Optional Presentation and Mouse Control

ELECTRICAL

Power Supply

120-240 V AC; 50 - 60 Hz

Power Consumption [W]

335 (Normal) / 177 (Eco) / 2 (Network Stand-by) / 0.5 (Stand-by)

MECHANICAL

Dimensions (W x H x D) [mm]	405 x 137 x 358 (without lens and feet)	Fan Noise [dB (A)]	27 / 37 (Eco / Normal)
Weight [kg]	7.95	Colour Versions	White

ENVIRONMENTAL CONDITIONS

Operating Temperature [°C]	0 to 40	Storage Temperature [°C]	-10 to 50
Operating Humidity [%]	20 to 88

OTHERS

Speakers [W]	1 x 16 (mono)	Light Source	3 years or 10000h (whatever comes first)
Special Characteristics	AMX Beacon; Auto Eco Mode; Carbon Savings Meter; Colour Management; Content Transmission via Network; Crestron RoomView; PJ LINK	Shipping Contents	2x AAA Batteries; IR Remote Control (RD-477E); Mini D-SUB Signal Cable (1.8 m); Quick Setup Guide; Security Sticker; Users Manual on CD-ROM; Utility software
Ecological Materials	100% recyclable packaging; Downloadable manuals; ECO packaging	Optional Accessories	Universal Ceiling Mounts (PJ01UCM); Wireless LAN module (NP05LM2; NP05LM4; NP05LM5)
Projectors	3 years pan-European service
