Mikrotik Audience

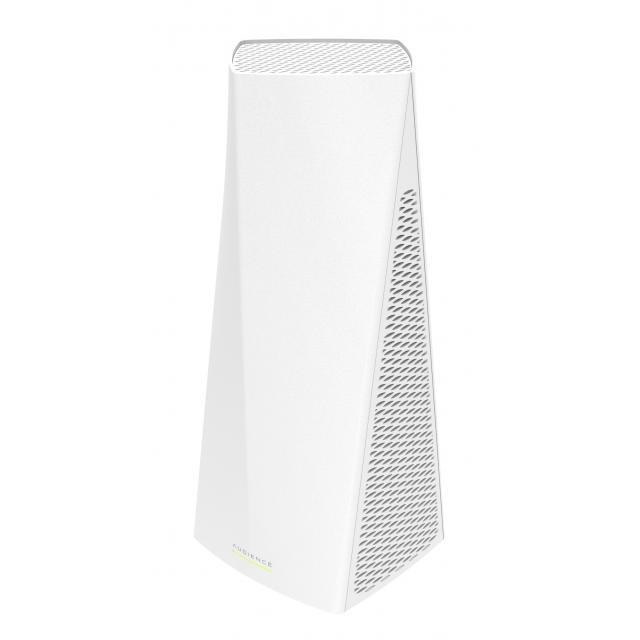

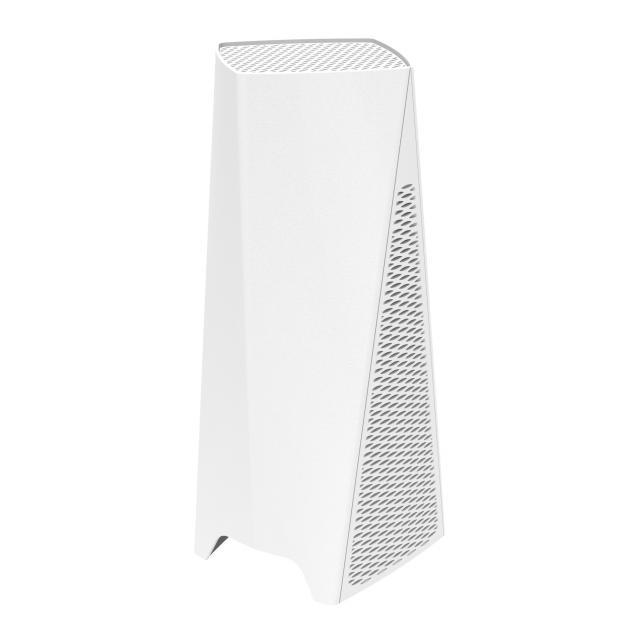

Access Point MikroTik RBD25G-5HPacQD2HPND, Pentru interior, 256MB RAM, 3xLAN 10/100/1000, 2.4/5 Ghz, Alb
Cod produs: MIKRO-RBD25G-5HPacQD2HPND
Întrebare despre Mikrotik Audience
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 12 luni |
| Tip | Access Point |
| Standard WI-FI | AC2900 |
| Viteză de transfer (Wi-Fi) | până la 2900 Mbps |
| Viteză de transfer (LAN) | 1 Gbps |
| Port-uri LAN | 2 |
| Port USB | Nu |
Related products
Tip:
Access Point
Standard WI-FI:
AC1200
Viteză de transfer (Wi-Fi):
până la 1167 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
2
Tip:
Switch-uri cu management
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
24
SFP Ports:
2x SFP+
Tip:
Switch-uri cu management
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
1
SFP Ports:
4x SFP+
Tip:
Switch-uri cu management
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
24
SFP Ports:
2x SFP+
Tip:
Switch-uri cu management
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
24
SFP Ports:
2x SFP+
Tip:
Switch-uri cu management
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
8
SFP Ports:
4x SFP
Tip:
Switch-uri fără management
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
1
Tip:
Router, Access Point, PoE
Standard WI-FI:
AX1800
Viteză de transfer (Wi-Fi):
până la 1774 Mbps
Viteză de transfer (LAN):
1 Gbps, 2.5 Gbps
Port-uri LAN:
4
Tip:
Router, Router portabil
Standard WI-FI:
AC1200, LTE
Viteză de transfer (Wi-Fi):
până la 1167 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
5
Tip:
Access Point
Viteză de transfer (Wi-Fi):
până la 867 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
5
Tip:
PoE, Switch-uri cu management
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
8
SFP Ports:
2x SFP+
Tip:
Access Point, PoE
Standard WI-FI:
AX1800
Viteză de transfer (Wi-Fi):
până la 1774 Mbps
Viteză de transfer (LAN):
1 Gbps
Port-uri LAN:
2
Memorie de procesor: IPQ-4019 - 716 MHz
RAM: 256 MB
Memorie flash: 128 MB
Sistem de operare inclus: RouterOS
2,4 GHz: Da
5 GHz: Da
Viteza maxima de transfer de date in retea: 1733 Mbps
Viteza maxima de transfer de date (2,4 GHz): 300 Mbit/s
Viteza maxima de transfer de date (5 GHz): 1733 Mbps
Rate de transfer de date Ethernet LAN: 10/100/1000 Mbps
Standard de retea: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Numar de porturi Ethernet LAN (RJ-45): 2
Intrare curent continuu (DC-in): Da
Tip antena: Interna
Castig antena (max): 4,5 dBi dBi
Dimensiuni: 251 x 129 x 39 mm
Audience
Tri-band (one 2.4 GHz & two 5 GHz) home access point with meshing technology
Wi-Fi has to be fast, reliable, easy to manage, it must reach every room and every corner. That is exactly what Audience devices can deliver in grand style – even in the biggest houses!
Audience is a tri-band (one 2.4 GHz & two 5 GHz) home access point with meshing technology. If you need Wi-Fi in a huge building with all kinds of obstacles, simply add more Audience devices to your network – with a press of a button they will sync seamlessly and create a single Wi-Fi network to cover the whole premises. The initial setup is also very simple – download the iOS or Android MikroTik app, it will connect to the router and guide you through a quick setup process.
In some cases a single Audience unit might be able to replace several other routers – in our tests it covered 1858 m² (20000 square feet) easily. It depends on the amount of obstacles, Wi-Fi clients and interference, so results may vary.
Dual-chain 2.4 GHz and 5 GHz wireless coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the 2.4 GHz channel for all your household mobile devices and reserve the 5 GHz channel for your PC or TV.
Order your Audience today and start living in the future. The future of easy and elegant networking.
Specifications
| Product code | RBD25G-5HPacQD2HPnD | Operating System | RouterOS |
| Architecture | ARM 32bit | Size of RAM | 256 MB |
| CPU | IPQ-4019 | Storage size | 128 MB |
| CPU core count | 4 | Storage type | NAND |
| CPU nominal frequency | 716 MHz | MTBF | Approximately 200'000 hours at 25C |
| Switch chip model | IPQ-4019 | Tested ambient temperature | -40°C to 60°C |
| Dimensions | 100 x 235 x 97 mm | IPsec hardware acceleration | Yes |
| RouterOS license | 4 |
Wireless capabilities
| Wireless 2.4 GHz Max data rate | 300 Mbit/s | Antenna gain dBi for 2.4 GHz | 3.5 |
| Wireless 2.4 GHz number of chains | 2 | Wireless 2.4 GHz chip model | IPQ-4019 |
| Wireless 2.4 GHz standards | 802.11b/g/n | Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s | Antenna gain dBi for 5 GHz | 4.5 |
| Wireless 5 GHz number of chains | 2 | Wireless 5 GHz chip model | IPQ-4019 |
| Wireless 5 GHz standards | 802.11a/n/ac | Wireless 5 GHz generation | Wi-Fi 5 |
| Wireless 5 GHz Max data rate | 1733 Mbit/s | Antenna gain dBi for 5 GHz | 4.5 |
| Wireless 5 GHz number of chains | 4 | Wireless 5 GHz chip model | QCA9984 |
| Wireless 5 GHz standards | 802.11a/n/ac | Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| 10/100/1000 Ethernet ports | 2 |
Powering
| Number of DC inputs | 2 (DC jack, PoE-IN) | Cooling type | Passive |
| DC jack input Voltage | 12-57 V | PoE in | Passive PoE |
| Max power consumption | 27 W | PoE in input Voltage | 24-57 V |
| Max power consumption without attachments | 27 W |
Certification & Approvals
| Certification | CE, FCC, IC, EAC, ROHS | IP | IP20 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
| 1MBit/s | 26 | -100 |
| 11MBit/s | 26 | -94 |
| 6MBit/s | 29 | -96 |
| 54MBit/s | 26 | -80 |
| MCS0 | 29 | -96 |
| MCS7 | 25 | -75 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
| 6MBit/s | 28 | -95 |
| 54MBit/s | 25 | -78 |
| MCS0 | 28 | -95 |
| MCS7 | 24 | -75 |
| MCS9 | 22 | -70 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
| 6MBit/s | 32 | -96 |
| 54MBit/s | 28 | -80 |
| MCS0 | 32 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 25 | -72 |
