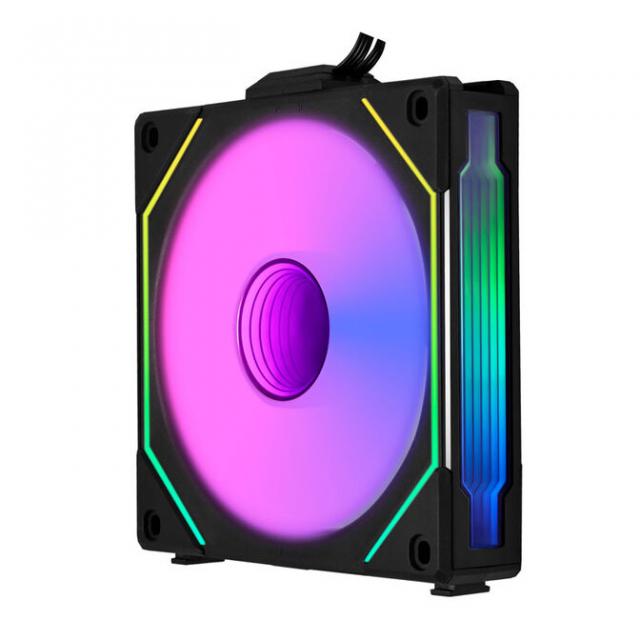

Lian Li UNI FAN SL-INFINITY 120 Reverse Blade 3 Fan Pack
Set de 3 Ventilatoare Lian-Li UNI SL-INF 120 ARGB Reverse Blade PWM + Controler - Negru
Cod produs: LL-FAN-LULI-139
Întrebare despre Lian Li UNI FAN SL-INFINITY 120 Reverse Blade 3 Fan Pack
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 24 luni |
| Dimensiuni | 120 x 120 x 25 mm |
| Turație | până la 2100 RPM |
| Nivel de zgomot | până la 32 dBA |
| Flux de aer | până la 63.6 CFM |
| Conector | 4-pin PWM, 3-pin 5V ARGB |
| Reverse | Da |
| Culoare | Negru |
| Iluminare | ARGB |
Related products
Dimensiuni:
120 x 120 x 25 mm
Turație:
până la 2100 RPM
Nivel de zgomot:
până la 29 dBA
Flux de aer:
până la 61.3 CFM
Iluminare:
ARGB
Dimensiuni:
120 x 120 x 25 mm
Turație:
până la 2100 RPM
Nivel de zgomot:
până la 29 dBA
Flux de aer:
până la 61.3 CFM
Iluminare:
ARGB
Dimensiuni:
120 x 120 x 25 mm
Turație:
până la 2100 RPM
Nivel de zgomot:
până la 32 dBA
Flux de aer:
până la 63.6 CFM
Iluminare:
ARGB
Dimensiuni:
124 x 120 x 28 mm
Turație:
până la 2200 RPM
Nivel de zgomot:
până la 32.2 dBA
Flux de aer:
până la 69.7 CFM
Iluminare:
ARGB
Dimensiuni:
124 x 120 x 28 mm
Turație:
până la 2300 RPM
Nivel de zgomot:
până la 29.2 dBA
Flux de aer:
până la 67 CFM
Iluminare:
ARGB
Dimensiuni:
124 x 120 x 28 mm
Turație:
până la 2300 RPM
Nivel de zgomot:
până la 29.2 dBA
Flux de aer:
până la 67 CFM
Iluminare:
ARGB
Dimensiuni:
124 x 120 x 28 mm
Turație:
până la 2200 RPM
Nivel de zgomot:
până la 32.2 dBA
Flux de aer:
până la 69.7 CFM
Iluminare:
ARGB
Dimensiuni:
120 x 124.5 x 28 mm
Turație:
până la 1900 RPM
Nivel de zgomot:
până la 29.5 dBA
Flux de aer:
până la 58.08 CFM
Iluminare:
ARGB
Dimensiuni:
120 x 124.5 x 28 mm
Turație:
până la 1900 RPM
Nivel de zgomot:
până la 29.5 dBA
Flux de aer:
până la 58.08 CFM
Iluminare:
ARGB
Dimensiuni:
120 x 124.5 x 28 mm
Turație:
până la 2000 RPM
Nivel de zgomot:
până la 31 dBA
Flux de aer:
până la 69.5 CFM
Iluminare:
ARGB
Dimensiuni:
120 x 124.5 x 28 mm
Turație:
până la 2000 RPM
Nivel de zgomot:
până la 31 dBA
Flux de aer:
până la 69.5 CFM
Iluminare:
ARGB
Dimensiuni:
120 x 124.5 x 28 mm
Turație:
până la 1900 RPM
Nivel de zgomot:
până la 29.5 dBA
Flux de aer:
până la 58.08 CFM
Iluminare:
ARGB
Lian Li UNI FAN SL‑INFINITY 120 Reverse Blade 3 Fan Pack este un set de trei ventilatoare premium concepute pentru racire eficienta si un efect vizual impresionant. Cu lame inversate pentru flux de aer optim in configuratii speciale, iluminare Infinity Mirror si design modular, acest pachet este ideal pentru sisteme moderne de gaming sau workstation.

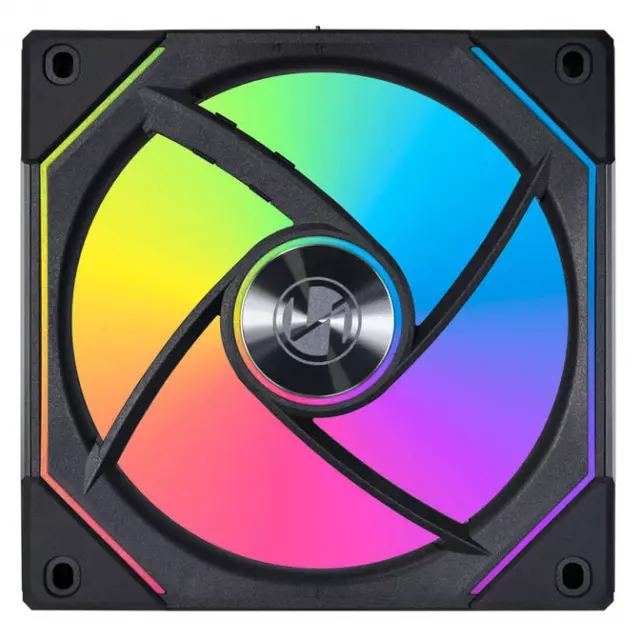

- Lame reverse – directionare optimizata a fluxului de aer atunci cand ventilatoarele sunt montate cu partea din spate vizibila.
- Iluminare Infinity Mirror – efecte luminoase profunde si spectaculoase pentru un aspect premium.

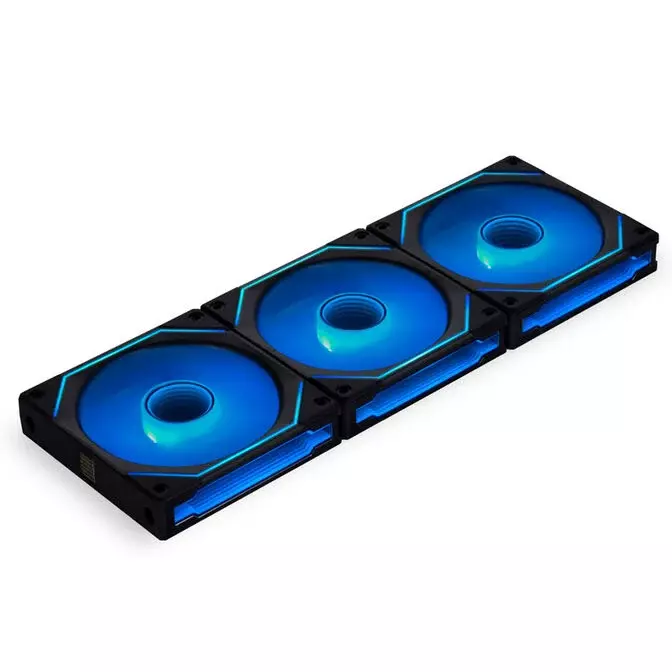

- Pachet de 3 ventilatoare – solutie completa pentru imbunatatirea fluxului de aer in carcasa sau pe radiatoare.
- Design modular – conectare inteligenta intre ventilatoare pentru cablare minima si instalare rapida.
- Performanta ridicata – presiune statica buna si racire eficienta chiar si in sisteme solicitante.
- Functionare silentioasa – zgomot redus pentru un mediu de lucru sau gaming mai linistit.
- Compatibilitate extinsa – potrivit pentru carcase moderne si configuratii avansate.
AVAILABLE IN TWO COLORS
| 120 Black | 140 Black | 120 White | 140 White |
 |
 |
 |
 |
 |
 |
||
 |
 |
||

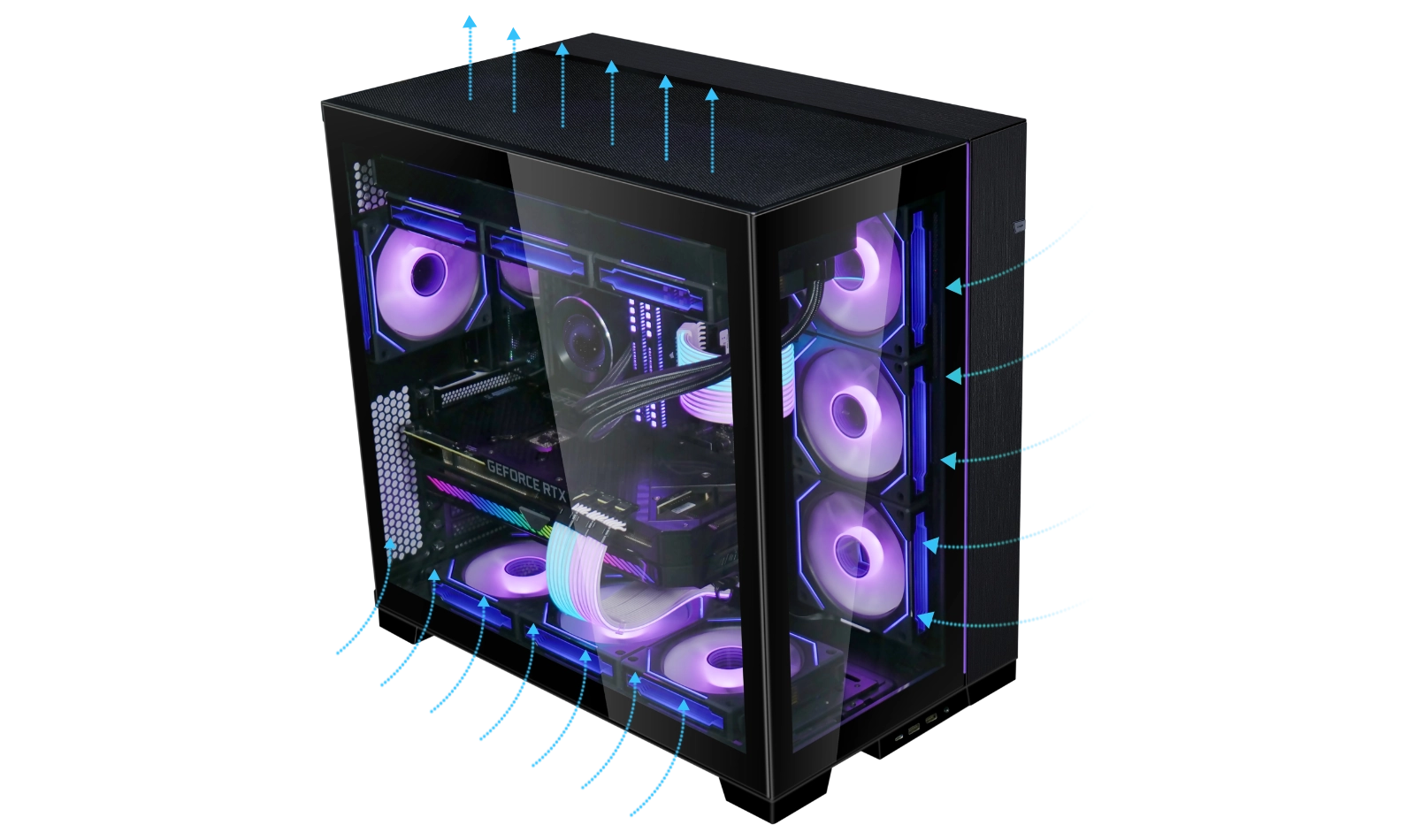

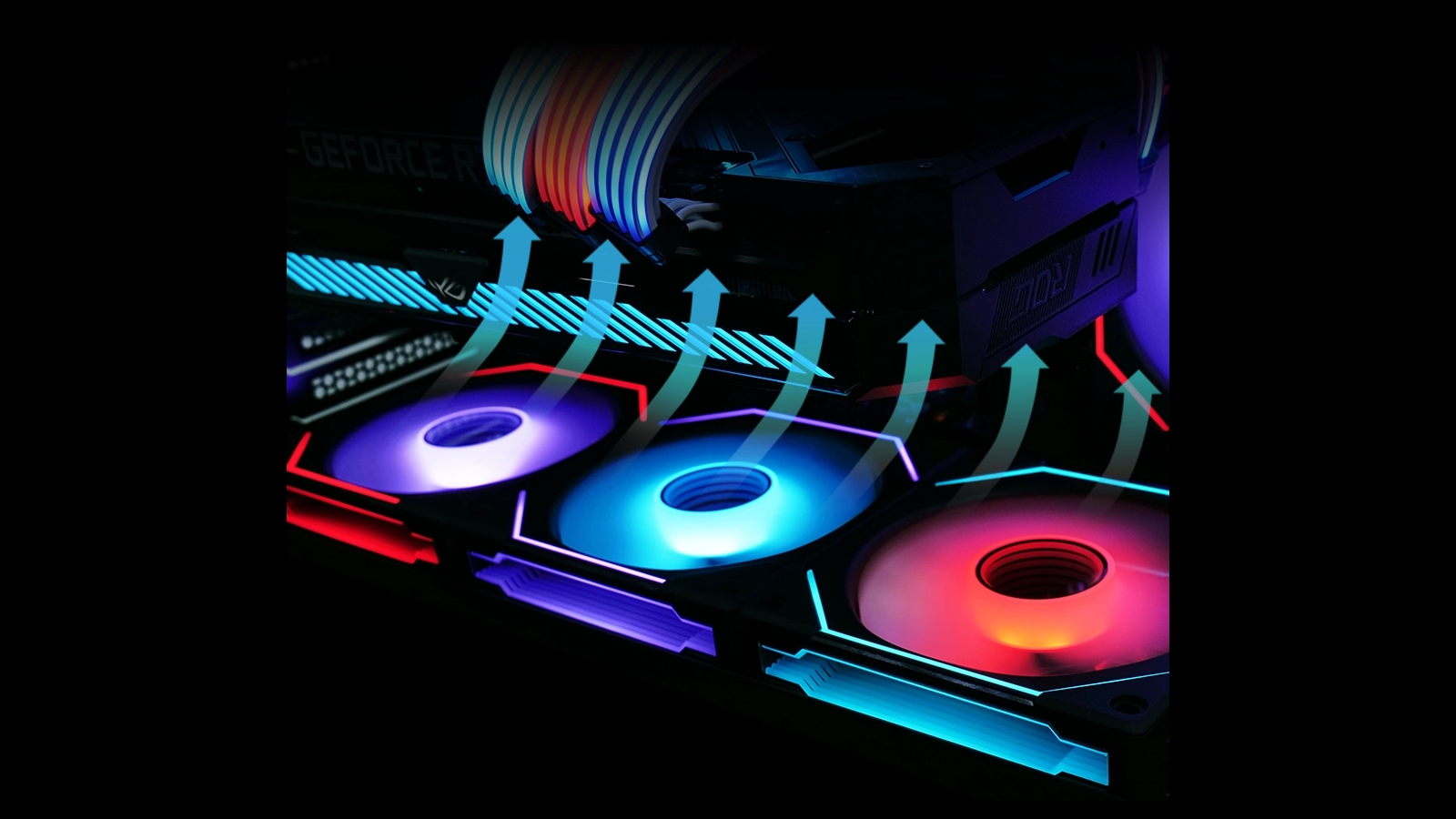

CONSISTENT APPEARANCE
No matter intake or exhaust SL-INF fans

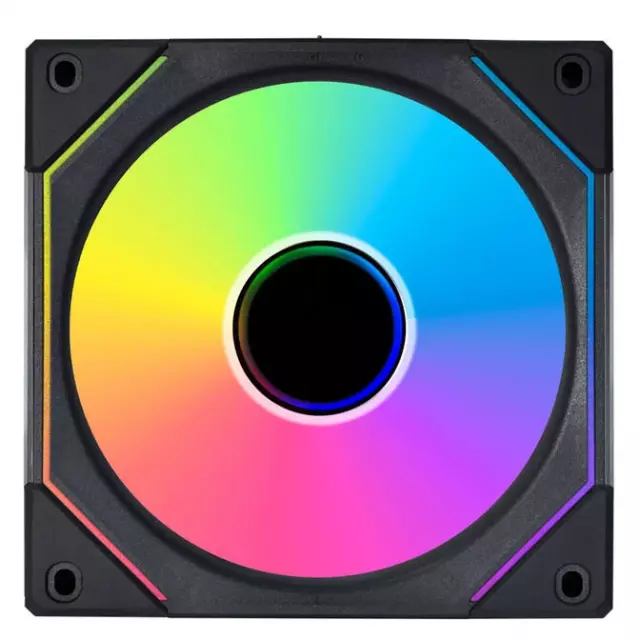

INFINITY MIRROR FAN
A combination of the original UNI FAN SL and AL with a touch of infinity
mirror, the SL-Infinity fans glow clear with multi-layer effects from any
visible angle.
CENTERED INFINITY MIRROR ARGBThe circular-shaped infinity mirror at the center |
SIDE FRAME ARGBFollowing the iconic angular lighting style of SL fans, |
ALUMINUM TRIM SURROUNDED
|
REAR RIM OF LED AROUND
|
UNPRECEDENTED MODULARITY
The 2nd generation of UNI FAN SL revisits the interlocking style that can connect up to 4 fans in a
cluster and makes cable management simpler and improves compatibility with radiators fittings.
DAISY CHAIN FANA pin-to-pad contact point passes the signal |
|
|
REMOVABLE KEYLOCKThe interlocking key on each fan is now removable |

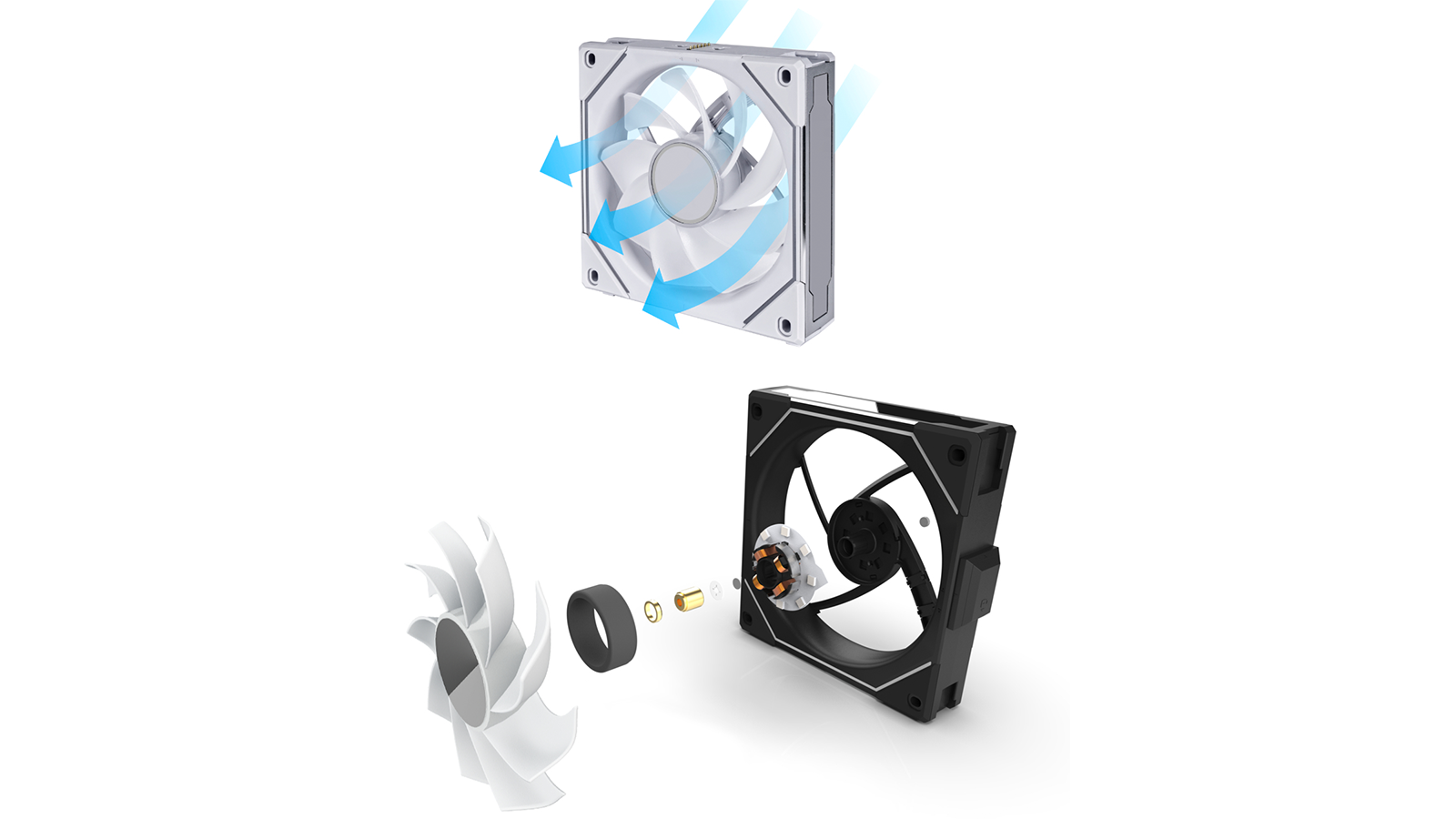

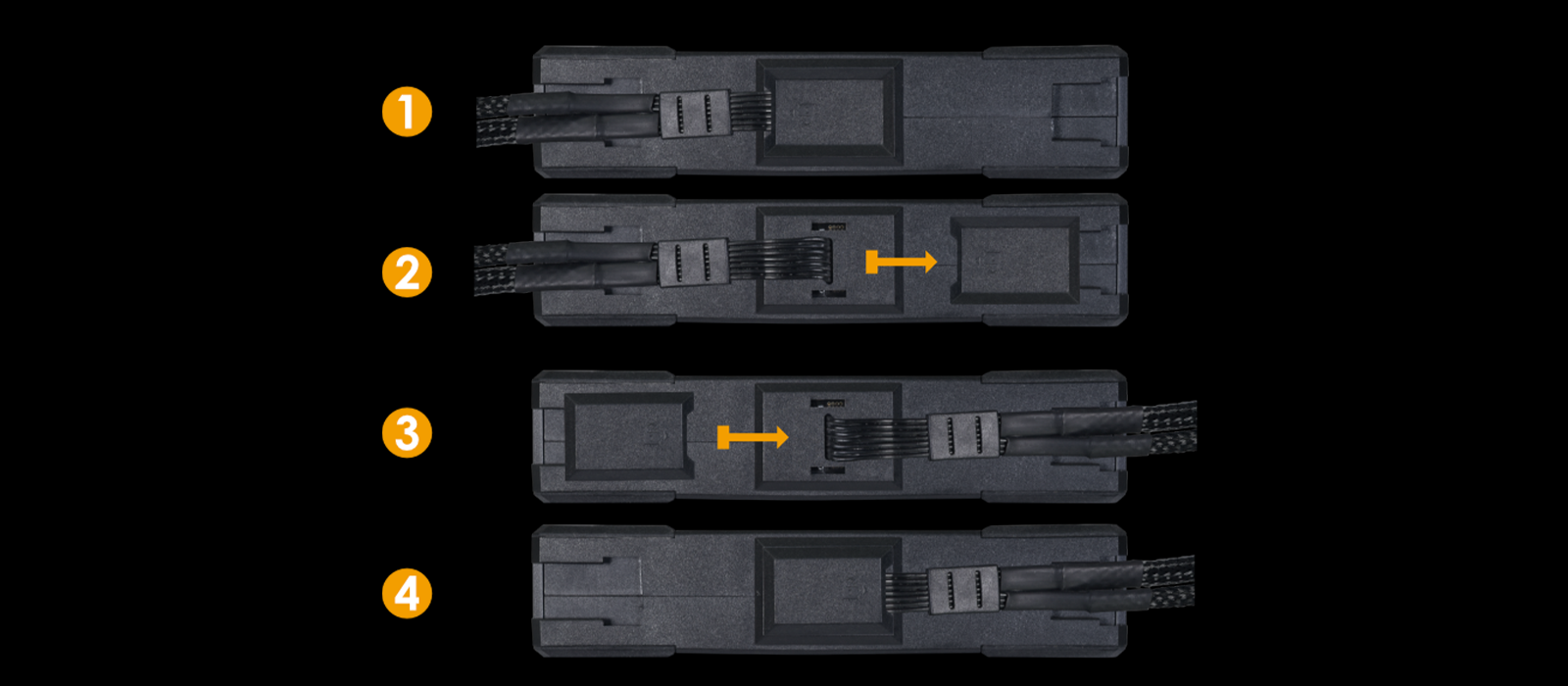

REVERSIBLE CABLE MODULE
The cable module is now placed at the center of the fan and can switch orientation to reduce clearance issues with the radiator inlet and outlet.
UNCOMPROMISED PERFORMANCE
The UNI FAN SL-INF Reverse blade operates with a slightly higher noise level
with a better airflow (63.6 CFM Max) comparing to the original UNI FAN SL-INF.
LOWER WIND NOISE

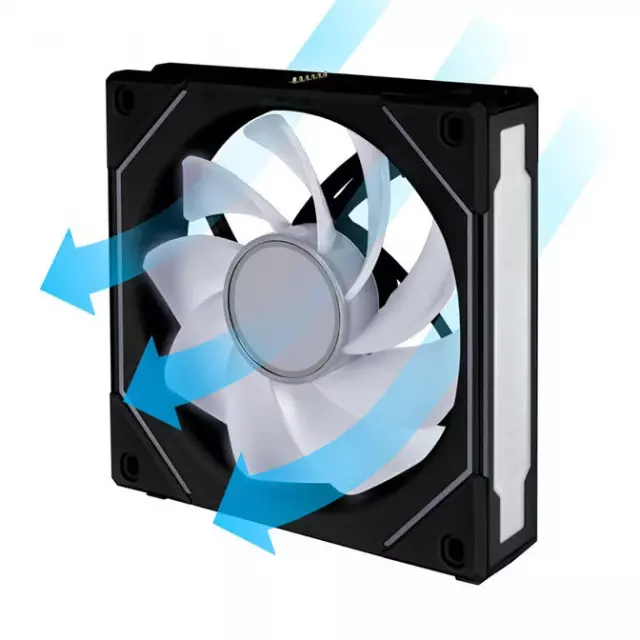

When installed as intake fan with the reverse blade, the wind noise is lower than the regular blade.
Note: More obvious when installed on a radiator
THE SAME CONTROLLER AS SL-INF
16 FANS IN ONE GO FOR EACH GROUP OF FANS
The included controller is in the SLIN120 Triple Pack,supporting up to 16 fans (4 fans in each group) and 2 SM-type connecting devices.
L-CONNECT 3 SOFTWARE TO CONTROL SL-INF FANS
Control and preview with precision the lighting effect of the SL-Infinity fans with the new L-Connect interface.
Note: Only available when connecting via a UNI FAN SL-INFINITY controller, controller is sold separately or included in triple pack regular fan.
L3-Connect
| ❶ Select lighting effect of blades / fan frame / both LED | ❷ Set personalized color / brightness / speed / direction |
ENDLESS LIGHTING EFFECTS
Similar to the AL fans, L-Connect 3 can set the lighting effects of the SL-Infinity fans for both
the fan blades and the fan frame inner edges separately, or go with pre-set combined lighting effects.
Option 1. Set the fan blade and inner fan frame lighting modes individually to achieve a custom look.
 |
 |
 |
| Fan Blade & Center Infinity Mirror LED | Angle Fan Frame & Side Infinity Mirror LED | Fan Blade & Center Infinity Mirror + Angle Fan Frame & Side Infinity Mirror LED |
Option 2. Select the combining lighting mode
 |
 |
 |
| Electric Current | Mixing | Tide |
INTELLIGENT START/ STOP FAN
Unique to the SL-Infinity fans, L-Connect 3 features a Start/ Stop mode to completely stop the fan when
the CPU or GPU is running below your set temperature (the maximum 50°C),
achieving minimal acoustic levels when the system is at low temperature.
SYNC FAN SPEED TO MOTHERBOARD
L-Connect 3 now offers an option to sync fan speed to the motherboard,
also known as the PWM mode in the earlier L-Connect version.
∎ Click to pass fan speed control to motherboard
QUICK SYNC LIGHTING WITH UNI FAN SL/ AL AND STRIMER PLUS V1/V2
The quick sync function saves time to synchronize all LIAN LI device lighting effects with one click.
Moreover, synchronize all devices to the motherboard software with one click.
∎ Click to pass lighting control to motherboard
DAZZLING AT ALL ANGLE
|
|
|
 |
 |
Specifications
| MODEL NAME | UNI FAN SL-INF 120 REVERSE BLADE | |
| COLOR | Black | White |
| CONNECTOR TYPE | 1 × 4-PIN PWM + 3-PIN ARGB | 1 × 4-PIN PWM + 3-PIN ARGB |
| MATERIAL | PBT/PC/Aluminum | |
| FAN DIMENSION | 120 X 122 X 25 ( mm ) | |
| RATED VOLTAGE | DC 12V (FAN) & 5V (LED) | |
| FAN SPEED | 0, 200-2100 RPM | |
| MAX. AIR PRESSURE | 2.02 mmH2O (Maximum) | |
| MAX. AIRFLOW | 63.6 CFM (Maximum) | |
| ACOUSTIC NOISE | 32 dB(A) | |
| LOCKED CURRENT | ≧50mA | |
| BEARING TYPE | Fluid Dynamic Bearing (FDB) | |
| START-UP VOLTAGE | ≦6V | |
| INPUT CURRENT | 180mA (FAN) /600mA (LED) | |
| INPUT POWER | 5.16W | |
