Lian Li HydroShift II LCD-S 360N Fanless

THREE MODELS, TWO COLORS

The new HydroShift II LCD-S AIO is available in three models and two color options in black and white,
allowing builders to freely customize both aesthetics and performance for an enjoyable DIY experience.

1. UNI FAN TL Wireless

Pre-installed with UNI FAN TL Wireless, this flagship option pairs standout style with formidable thermal performance.

Note: Only this configuration includes the L-Wireless controller.

2. UNI FAN CL Wireless

This model is equipped with UNI FAN CL Wireless for high-efficiency airflow.
Integrated RGB illumination shines through, and both the light strips and fan blades support independent effect control.

3. FANLESS EDITION

The HydroShift II LCD-S also comes in a fanless version, giving users the freedom to customize and install
their own fans according to personal preference—perfect for those who love full DIY flexibility and visual creativity.

 Note: The fanless edition requires compatible fans for proper operation.

DYNAMIC INTERACTION, COMPLETE CONTROL

Enjoy a vivid, high-definition visual experience with a 480 × 480 resolution display boasting 500 nits of peak brightness.
Even under bright lighting, every animation and metric remains crystal clear. The 60 Hz refresh rate ensures smooth,
tear-free visuals for a fluid real-time monitoring experience.

3.4" IPS Display	500 nits Brightness, 24-bit Color	60 Hz Refresh Rate

MAGNETIC HOT-SWAP DISPLAY

Featuring magnetically aligned pogo-pin connectors, the screen securely snaps into place without powering down,
allowing for fast installation or removal. Precise magnetic alignment ensures a safe, reliable connection,
letting users conveniently attach the display after system assembly to avoid accidental damage.

TEMPERATURE TEST Test Setup • Chassis: LANCOOL 207 (with default fans) • CPU: Intel i9-14900K • Fans: UNI FAN TL Wireless (2600 RPM) • Pump Speed: Full speed

The HydroShift II LCD-C performs similarly to the first-generation HydroShift,
while the HydroShift II Square shows a clear improvement in thermal efficiency.
With a more compact design and finer radiator fins, HydroShift II delivers lower noise and better cooling performance,
achieving superior compatibility without compromising power.

USB power and data cables are integrated directly into the tubing, removing visible wires from the front and delivering a cleaner, more refined interior.

Pre-installed triple tube clips keep the tubing secured along the radiator edge, ensuring clean routing and a tidier case layout.

Note: The screws are pre-tightened before shipping.

If adjustment of the support bracket is required, slightly loosen the positioning screws before making any adjustments.

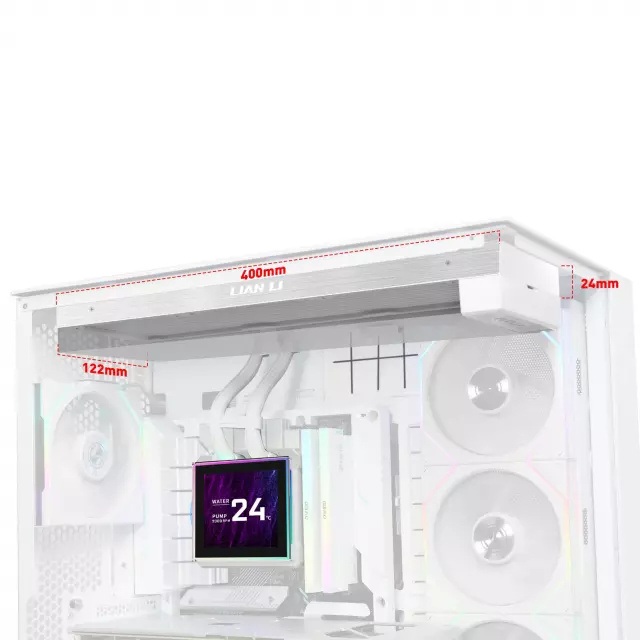

BROAD COMPATIBILITY,SEAMLESS SUPPORT

The HydroShift II LCD-S AIO offers easy installation and broad CPU socket compatibility,
featuring an upgraded AM4/AM5 bracket that ensures even pressure and improved thermal performance.

Compatible Platforms Compatible Platforms

Note: HydroShift II LCD-S interferes with the ROG MAXIMUS Z890 EXTREME
and ROG MAXIMUS Z890 HERO motherboards. Please verify installation space before mounting.

INTUITIVE CONTROL,COMPLETE CUSTOMIZATION

The L-Connect 3 software offers fast theme switching and layout customization with integrated hardware monitoring.
Easily capture screenshots or record videos using built-in editing tools, and enhance your display with 3D effects,
sensor-based visuals, overlays, and watermarks. All designed for a personalized, immersive experience.

THREE MODES, MULTIPLE EXPERIENCES

1. Offline Mode (No USB Connection)

Operates with preset themes to monitor coolant temperature and pump speed. No cables, no system resources required.

Note: Lighting theme and effects cannot be changed while in offline mode.

2. Wireless Mode

(L-Wireless Controller Connection, no USB connection)

Connect through the L-Wireless 2.4G Controller to customize screen themes, parameters, and lighting effects via L-Connect.
Wireless Mode also allows for lighting synchronization with other wireless products, including CL Wireless and TL Wireless,
while keeping your motherboard’s USB 9P ports free for other devices.
Enjoy a cleaner setup with reduced cable clutter and minimal system load.

Advanced Wireless Mode:

Combines Streaming and Wireless modes to deliver the best performance and flexibility.
With both the L-Wireless Controller and a USB connection to the motherboard, lighting, pump,
and fan controls remain wireless, while the USB link enables full LCD customization.

Click the Advanced Mode button in the wireless utility to instantly activate advanced mode.	Once in Advanced Mode, you can directly adjust the cooler’s lighting and themes within the wireless utility interface.

 3. Streaming Mode (USB Connection)

Connect via USB to gain full control through L-Connect 3. Easily switch screen themes, upload custom images,
or design personalized layouts, turning the display into a dynamic secondary screen that enhances both functionality and visual appeal.

Secondary Display Support	Upload Images or Videos	Customizable Widgets
