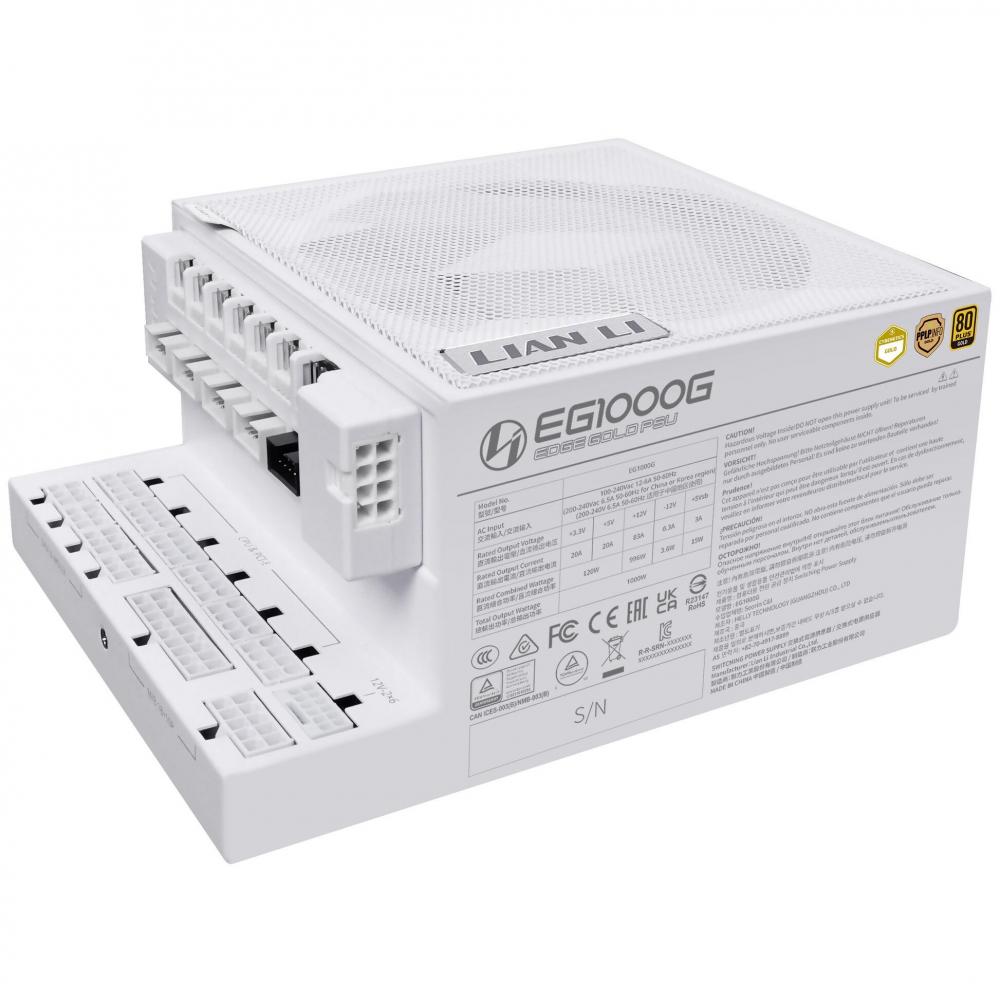

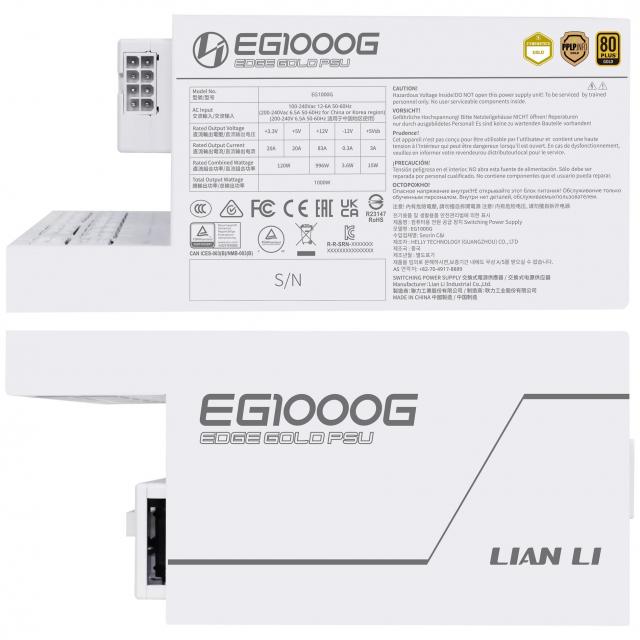

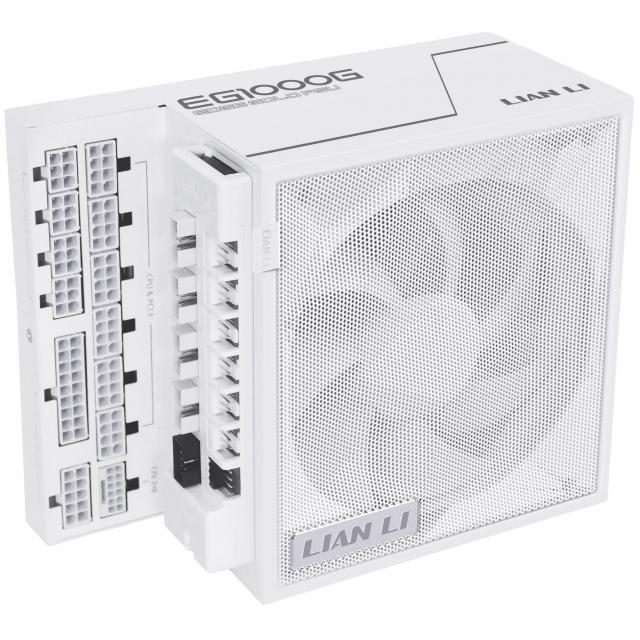

Lian Li EDGE EG1000G
Sursa de alimentare Lian Li EDGE 1000W 80+ Gold PCIe 5.1, ATX 3.1 - Alb
Cod produs: LL-PS-NELI-022
Întrebare despre Lian Li EDGE EG1000G
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Putere | 1000W |
| Certificat | 80+ Gold |
| Eficienţă | 91.24 % |
| Tip | Modulară |
| Form Factor | ATX |
| Specificație | ATX 3.1 |
| PCIe Gen5 | Da |
| Iluminare RGB | Nu |
| Culoare | Alb |
| Garanție | 120 luni |
Related products
Putere:
1000W
Certificat:
80+ Gold
Eficienţă:
91.24 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1200W
Certificat:
80+ Platinum
Eficienţă:
94 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1200W
Certificat:
80+ Platinum
Eficienţă:
94 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
SFX
Putere:
850W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
SFX
Putere:
1000W
Certificat:
80+ Platinum
Eficienţă:
94 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1000W
Certificat:
80+ Platinum
Eficienţă:
94 %
Tip:
Modulară
Form Factor:
ATX
Lian Li EDGE EG1000G 1000W este o sursa de alimentare modulara, optimizata pentru performanta ridicata si compatibilitate extinsa cu sistemele moderne.
- Putere: 1000W, suficienta pentru configuratii high-end.
- Certificare: 80 PLUS Gold, oferind eficienta energetica de 91.24%.

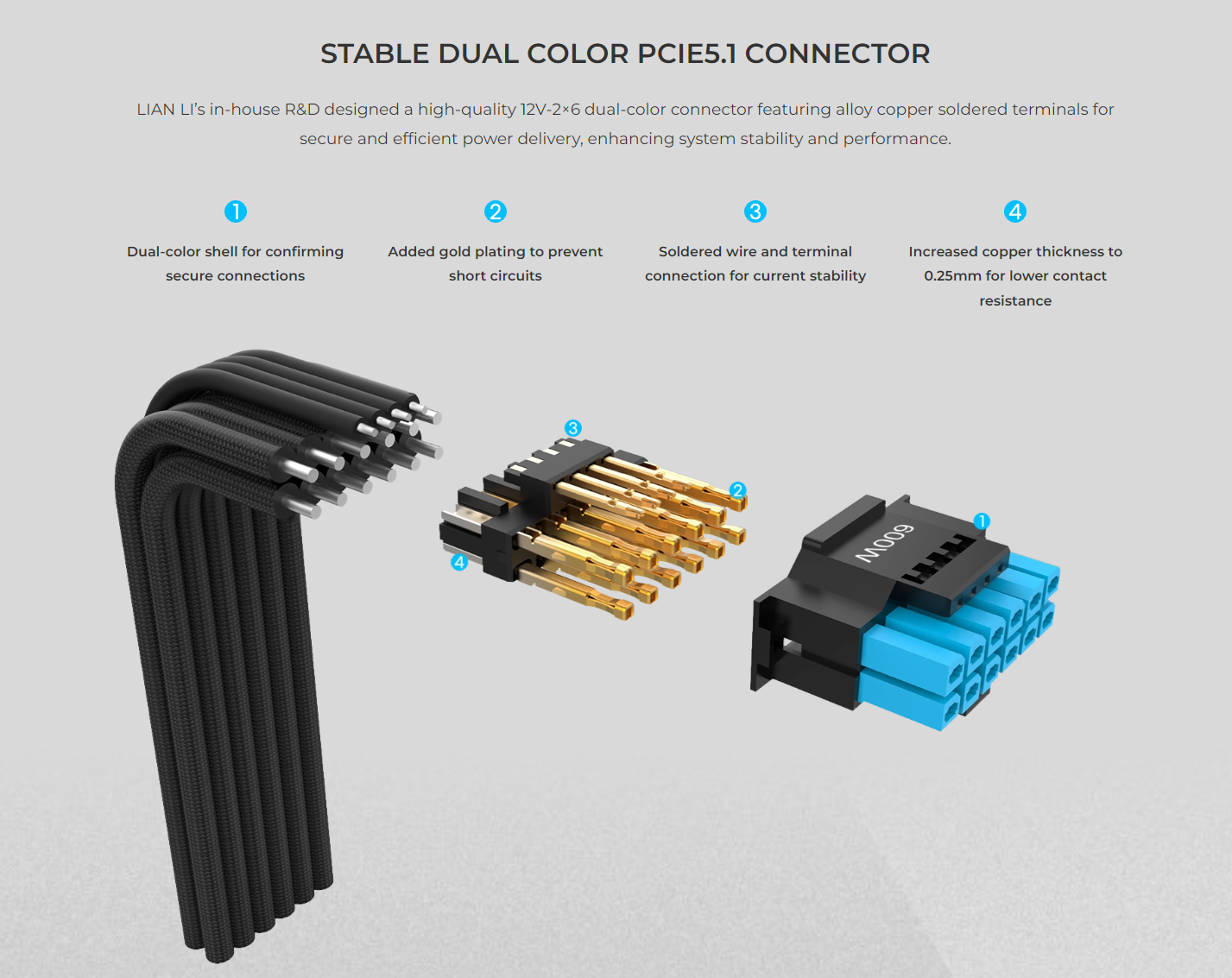

- Compatibilitate: ATX 3.1, pregatita pentru PCIe Gen 5.1 si conector 12V-2×6.
- Design L-Shape: ideal pentru carcase cu dual-chamber, simplificand gestionarea cablurilor.
- Modularitate completa: cabluri detasabile pentru o configuratie curata si organizata.

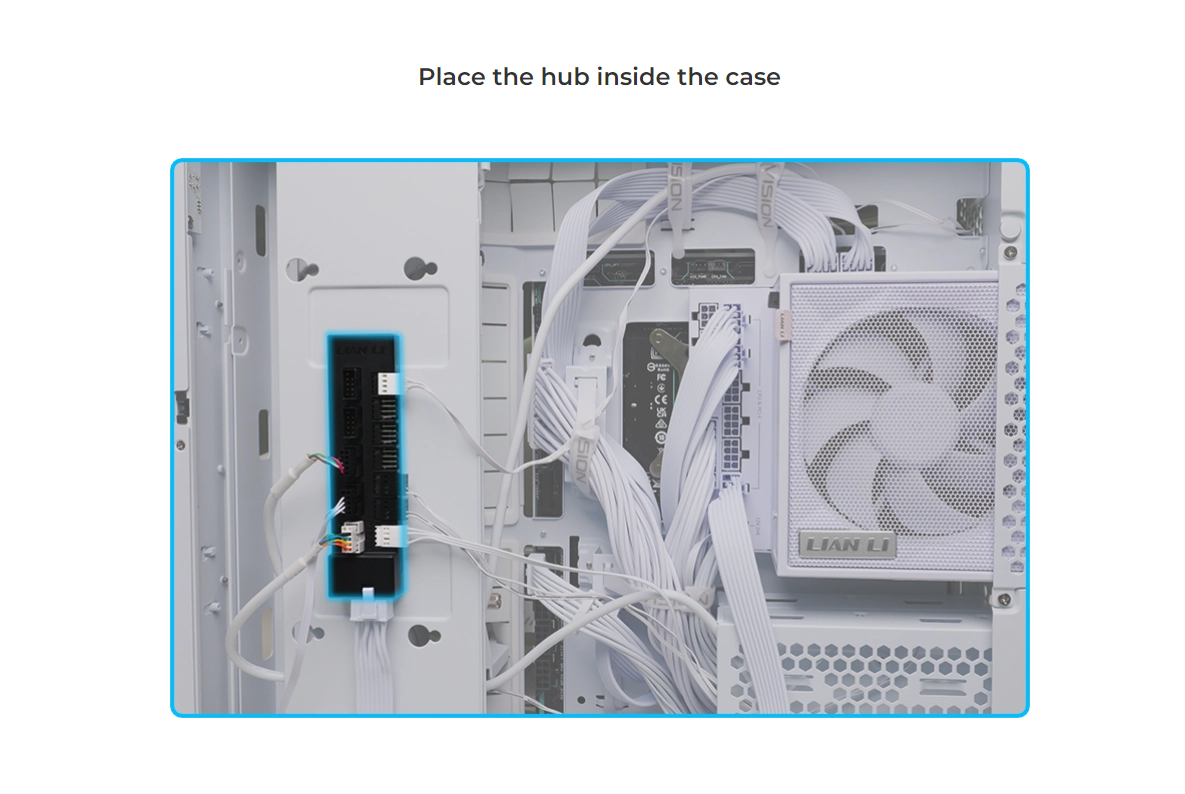

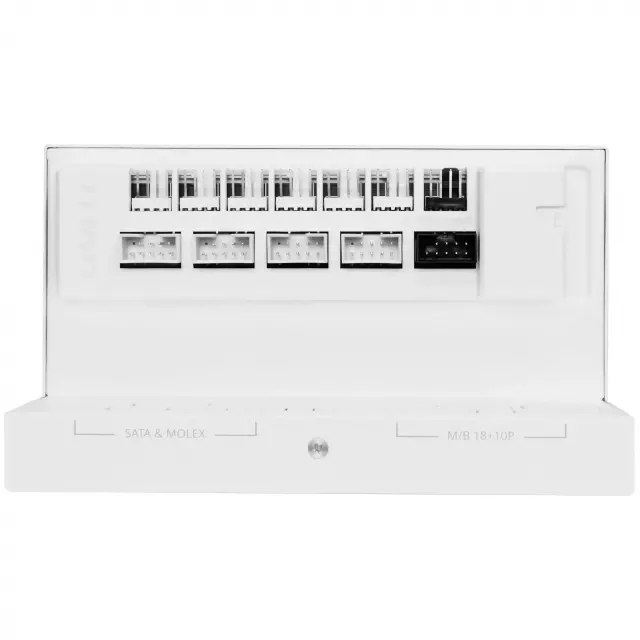

- Hub USB integrat: include 4 porturi USB 2.0 interne, permitand conectarea accesoriilor precum ventilatoare si controllere RGB.
- Filtru de praf magnetic: usor de curatat, protejand componentele interne.
- Durabilitate extinsa: construit cu condensatori EPCOS de calitate industriala.

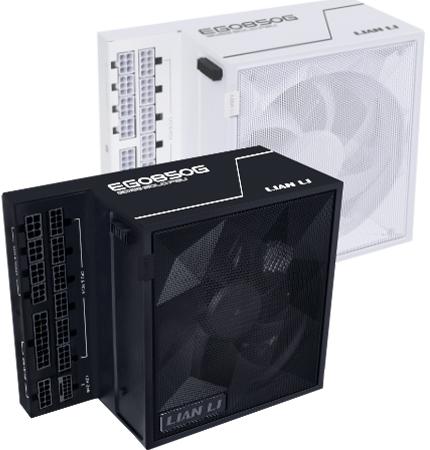

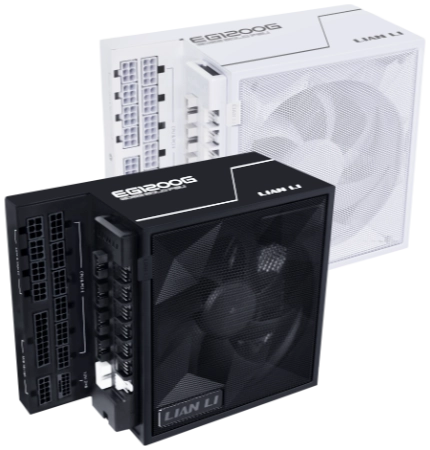

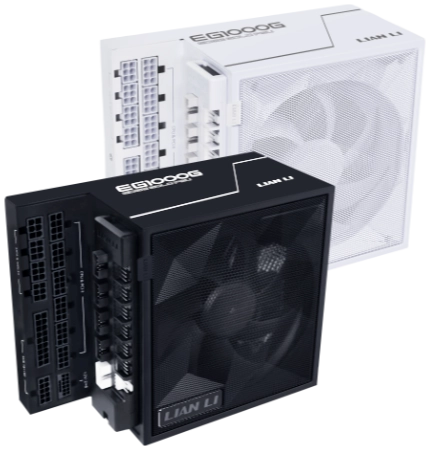

AVAILABLE IN 2 COLORS AND 4 WATTAGES
Offering versatile options, the EDGE Gold PSU is available in multiple configurations
with or without a USB hub to meet different power needs and match the components’ colors.
750W
Black
(USB hub not included)
850W
Black/ White
(USB hub not included)
1000W
Black/ White
1200W
Black/ White

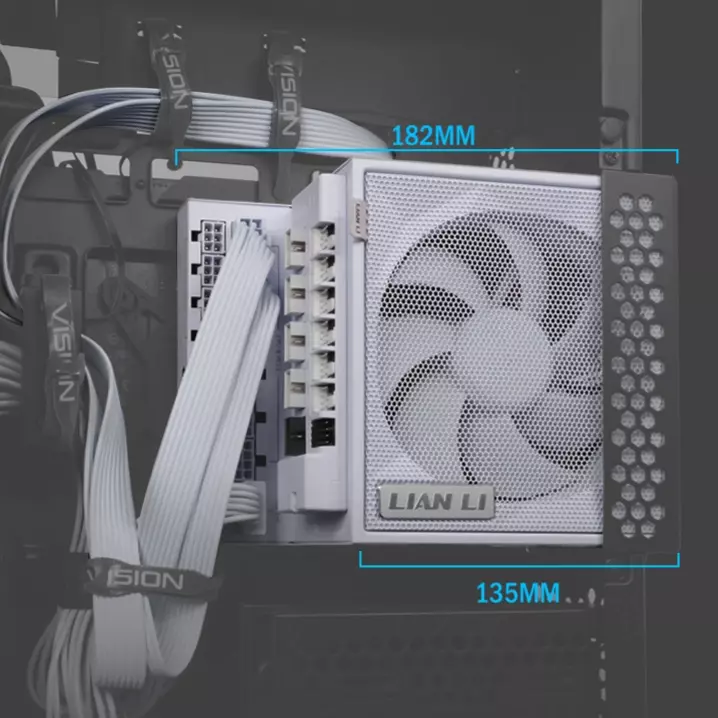

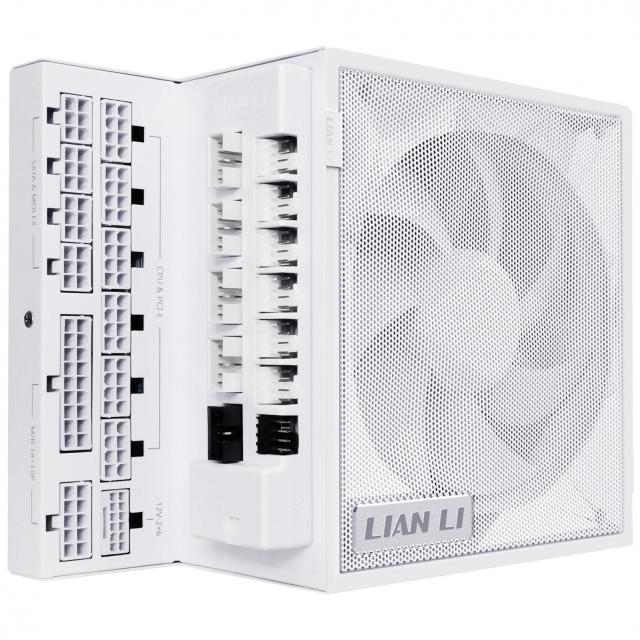

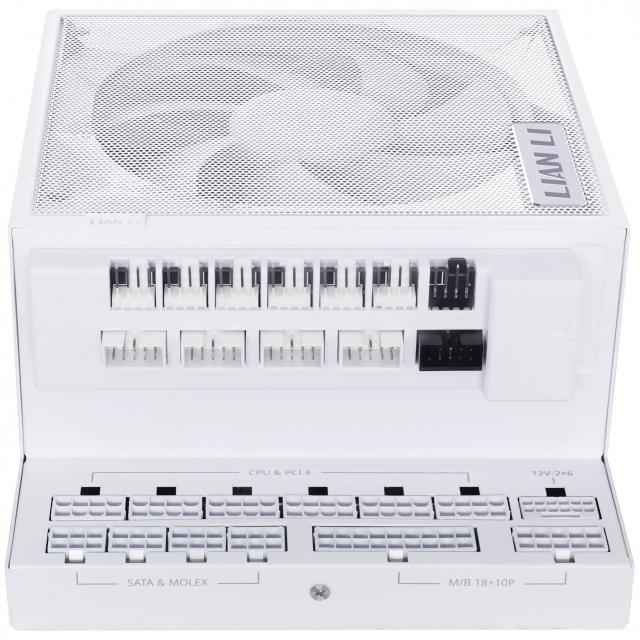

INNOVATIVE L-SHAPE DESIGN

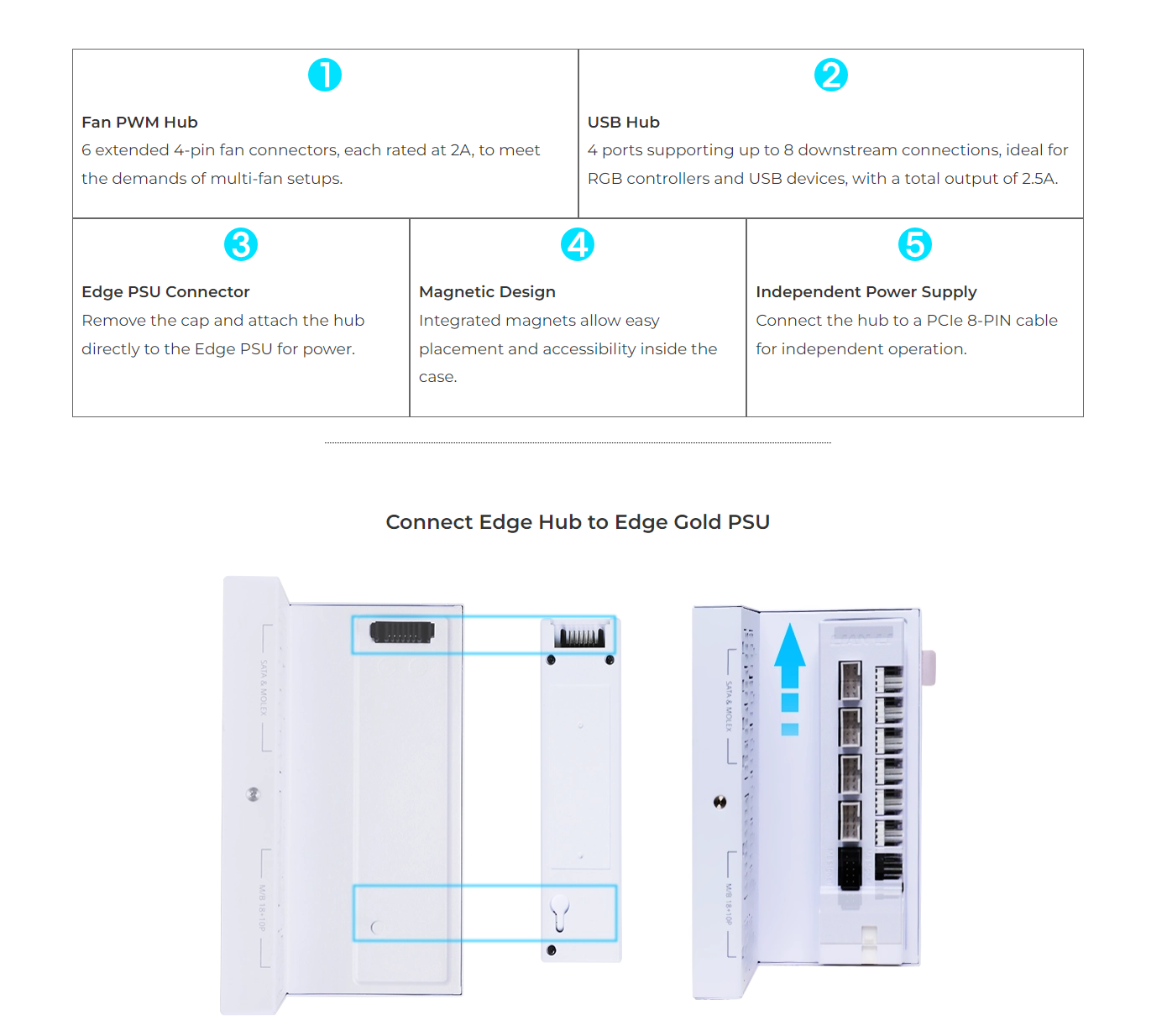

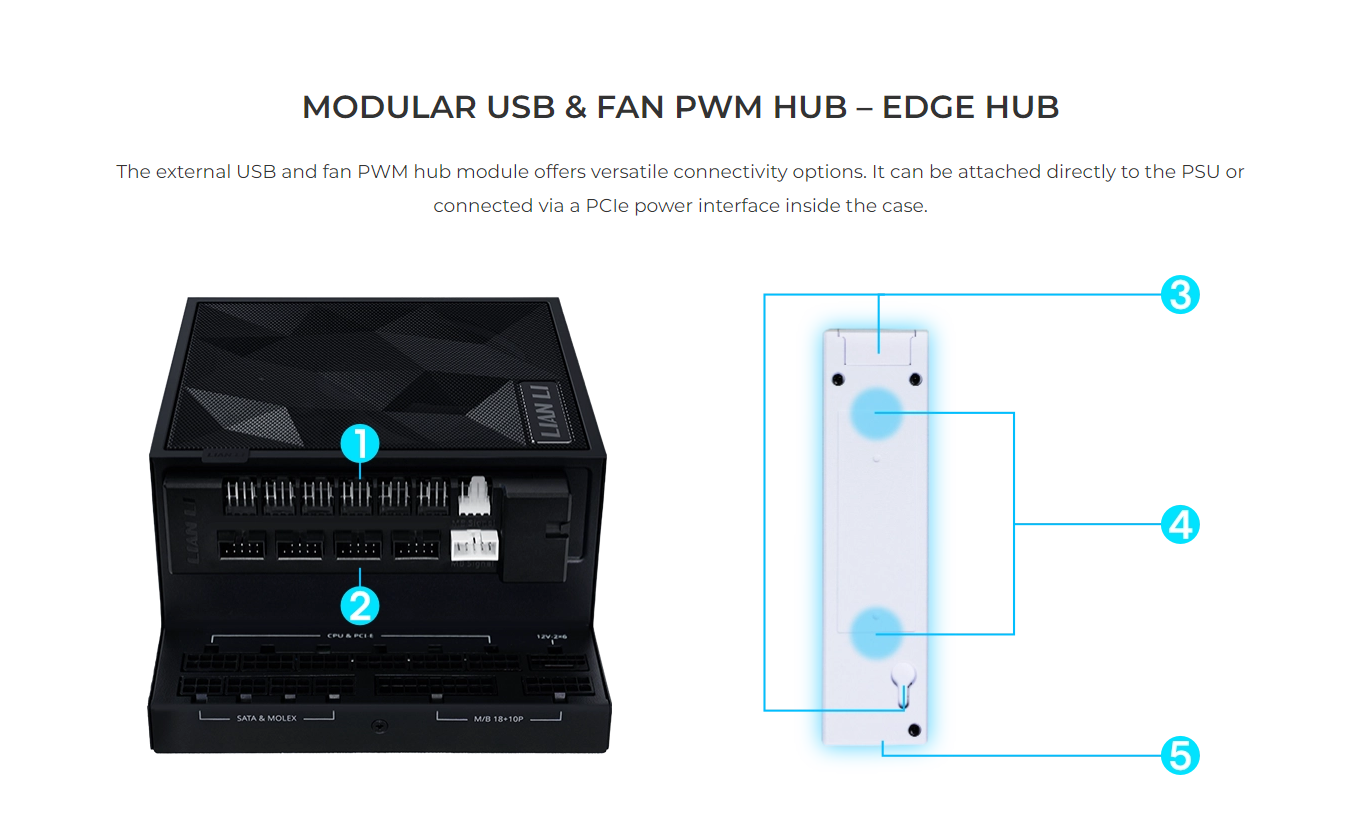

Introducing the world’s first PSU with a detachable USB and PWM fan hub that also functions independently, and that features a removable magnetic dust filter. This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.

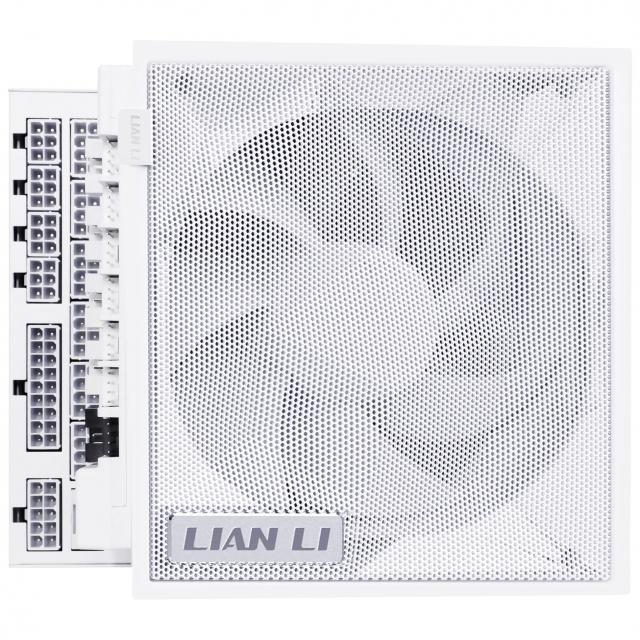

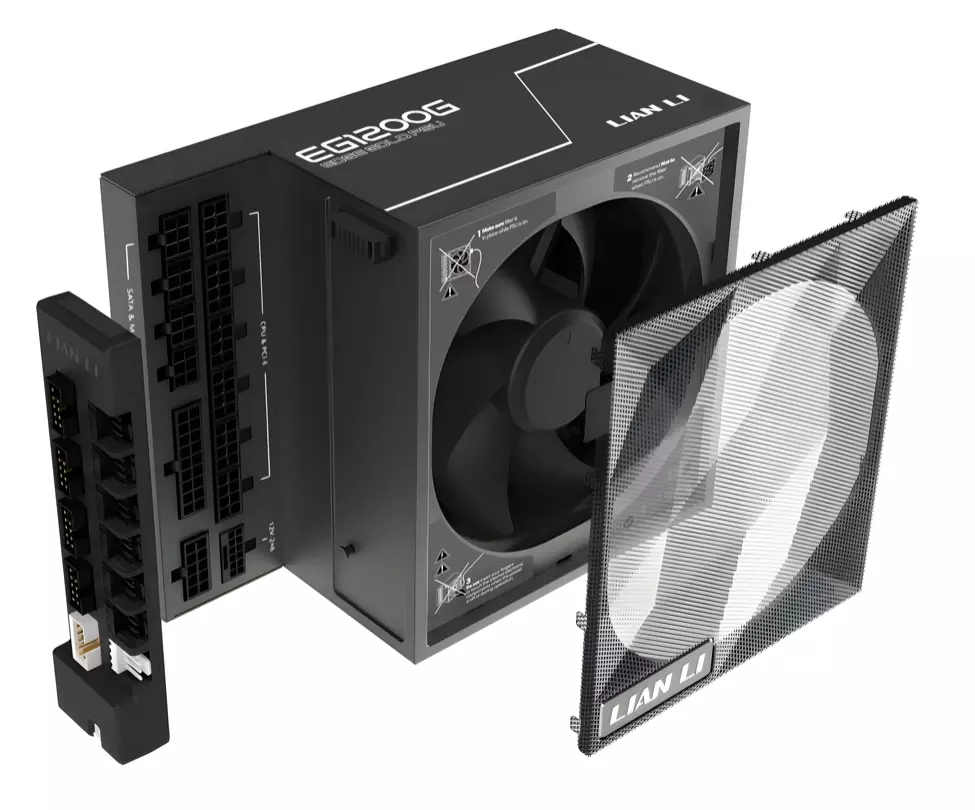

MAGNETIC DUST FILTER
The magnetic mesh dust filter on top of the fan can be easily removed for regular cleaning, ensuring dust-free operation.
A high porosity of 66.9% ensures ample ventilation and airflow with quiet fan operation, extending the PSU’s lifespan and reliability.
Specifications
| PRODUCT NAME | EDGE GOLD 750 | EDGE GOLD 850 | EDGE GOLD 1000 | EDGE GOLD 1200 |
| MODEL | EG0750G | EG0850G | EG1000G | EG1200G |
| DIMENSIONS | (D)182 mm X (W)86 mm X (H)150 mm | |||
| POWER SUPPLY DESIGN | Fully modular | |||
| COLOR | Black | Black/ White | ||
| MATERIAL | Steel | |||
| FORM FACTOR | ATX 3.1 | |||
| CERTIFICATION | 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD | |||
| MAX. DC OUTPUT | 750W | 850W | 1000W | 1200W |
| COMBINED +3.3V & +5V | 120W | 120W | 120W | 120W |
| COMBINED +12V | 744W | 849W | 996W | 1200W |
| INPUT VOLTAGE | 100-240Vac | 100-240Vac | 100-240Vac | 100-240Vac |
| INPUT FREQUENCY RANGE | 9-4.5A 50-60Hz | 10-5A 50-60Hz | 12-6A 50-60Hz | 15-7.5A 50-60Hz |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz | |||
| EFFICIENCY | 90.52%MAX | 90.71%MAX | 91.24%MAX | 91.64%MAX |
| PROTECTIVE CIRCUIT | OCP/OVP/OTP/OPP/SCP/UVP | |||

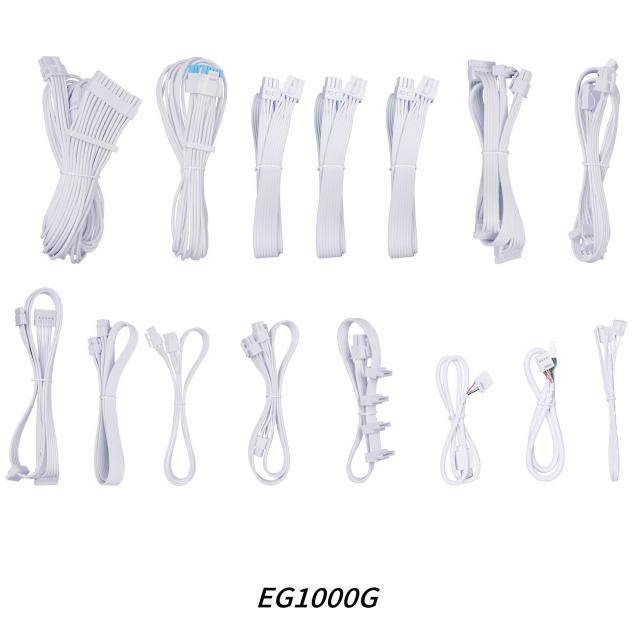

| CONNECTORS | 1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU connector (750mm) x1pcs 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs 1 x 12V – 2X6 450W connector (650mm) x1pcs 2 x 6+2 Pin GPU connector (650mm) x2pcs |
1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU connector (750mm) x1pcs 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs 1 x 12V – 2X6 450W connector (650mm) x1pcs 2 x 6+2 Pin GPU connector (650mm) x2pcs |
1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 6+2 Pin PCle connector (650mm + 100mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 1 x 12V – 2X6 600W connector (650mm) x1pcs USB*9pin – USB*9pin connector (470mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 6+2 Pin PCle connector (650mm + 100mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 1 x 12V – 2X6 600W connector (650mm) x1pcs 1 x 12V – 2X6 -2*8 600W connector (650mm) x1pcs USB*9pin – USB*9pin connector (470mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
| FAN TYPE | 120mm FDB Fan | |||
| FAN SPEED | 2000RPM | 2400RPM | ||
| FAN NOISE LEVEL | 30.9dBA | 39.3dBA | ||
| WARRANTY | 10 Years ( Hub 2 Years ) | |||
