Lian Li EDGE EG0850G
Sursa de alimentare Lian Li EDGE EGO850 Black 850W 80+ Gold PCIe 5.1, ATX 3.1
Cod produs: LL-PS-NELI-023
Întrebare despre Lian Li EDGE EG0850G
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Putere | 850W |
| Certificat | 80+ Gold |
| Eficienţă | 90.71 % |
| Tip | Modulară |
| Form Factor | ATX |
| Specificație | ATX 3.1 |
| PCIe Gen5 | Da |
| Iluminare RGB | Nu |
| Culoare | Negru |
| Garanție | 120 luni |
Related products
Putere:
850W
Certificat:
80+ Gold
Eficienţă:
90.71 %
Tip:
Modulară
Form Factor:
ATX
Putere:
750W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
SFX
Putere:
750W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
SFX
Putere:
850W
Certificat:
80+ Platinum
Eficienţă:
92.41 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Platinum
Eficienţă:
92.41 %
Tip:
Modulară
Form Factor:
ATX
Lian Li EDGE EG0850G este o sursa de alimentare premium de 850W, conceputa pentru stabilitate, eficienta si un management al cablurilor impecabil. Cu certificare 80 Plus Gold, design complet modular si componente de calitate, este alegerea ideala pentru sisteme performante si configuratii curate.
- Putere de 850W – potrivita pentru sisteme high‑end cu placi video si procesoare puternice
- Certificare 80 Plus Gold – eficienta energetica ridicata si consum optimizat
- Design complet modular – permite utilizarea doar a cablurilor necesare pentru un interior ordonat
- Constructie premium – componente durabile pentru stabilitate si functionare pe termen lung
- Functionare silentioasa – ventilator optimizat pentru zgomot redus si racire eficienta
- Compatibilitate extinsa – ideala pentru configuratii moderne cu cerinte ridicate
- Protectii multiple – include OVP, OCP, SCP si alte sisteme de siguranta pentru protectia componentelor

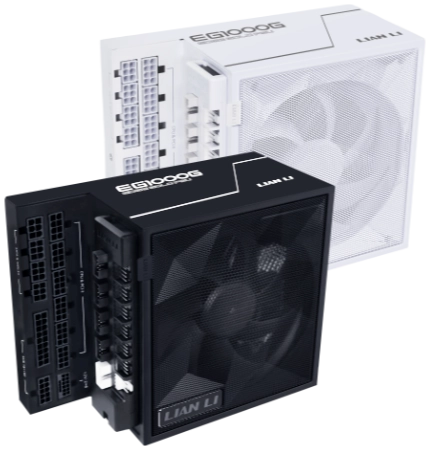

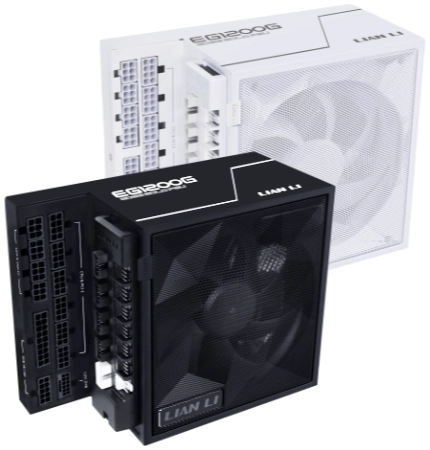

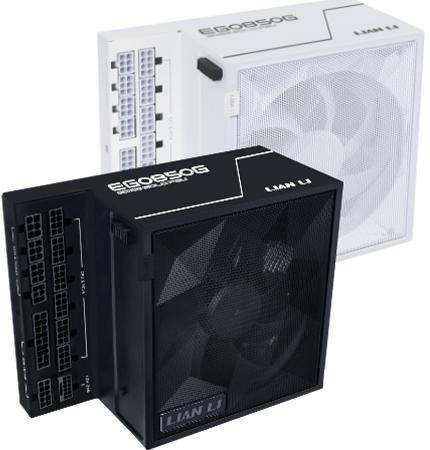

AVAILABLE IN 2 COLORS AND 4 WATTAGES
Offering versatile options, the EDGE Gold PSU is available in multiple configurations
with or without a USB hub to meet different power needs and match the components’ colors.
750W
Black
(USB hub not included)
850W
Black/ White
(USB hub not included)
1000W
Black/ White
1200W
Black/ White

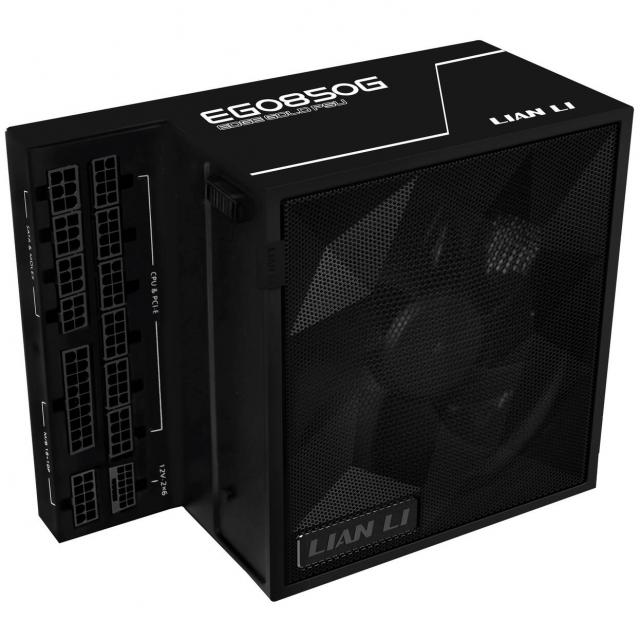

INNOVATIVE L-SHAPE DESIGN

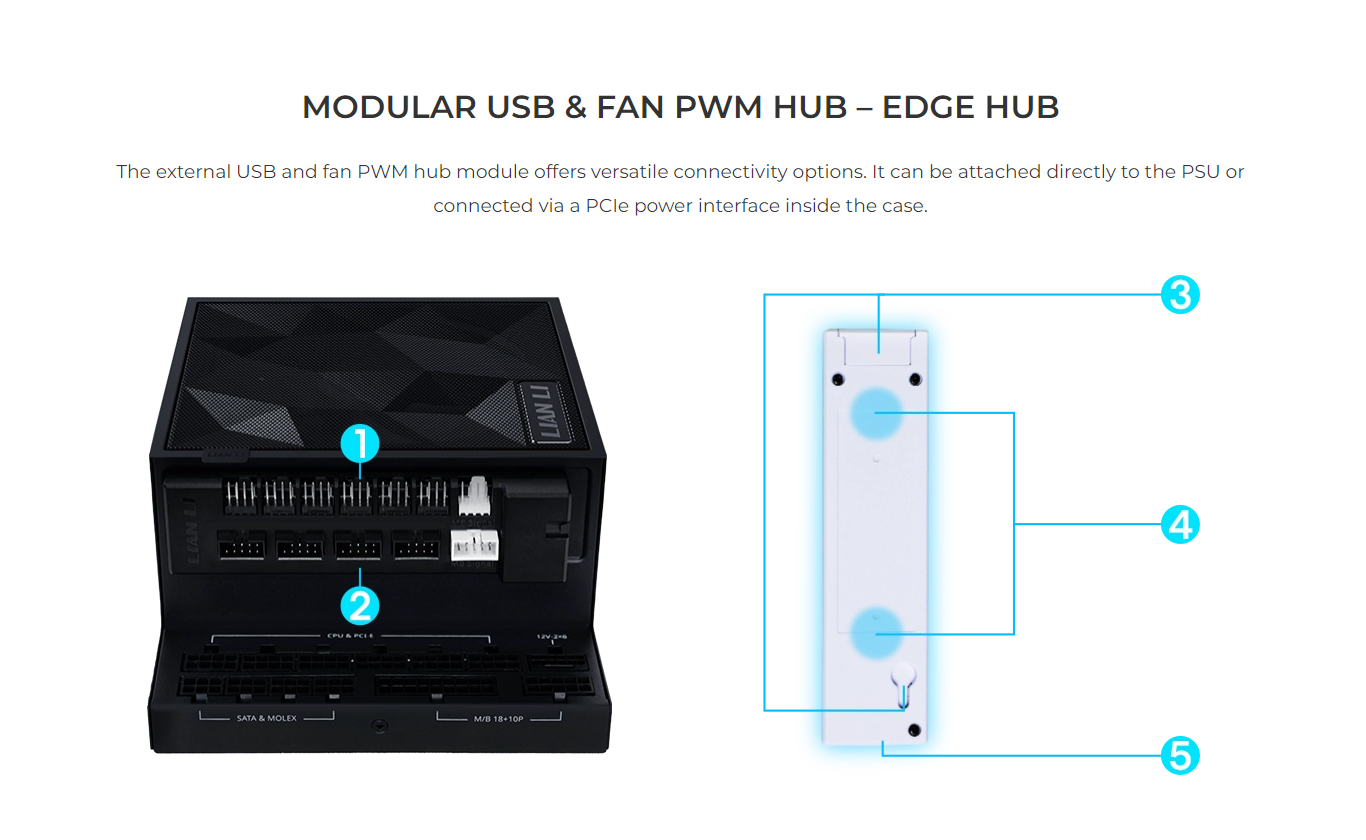

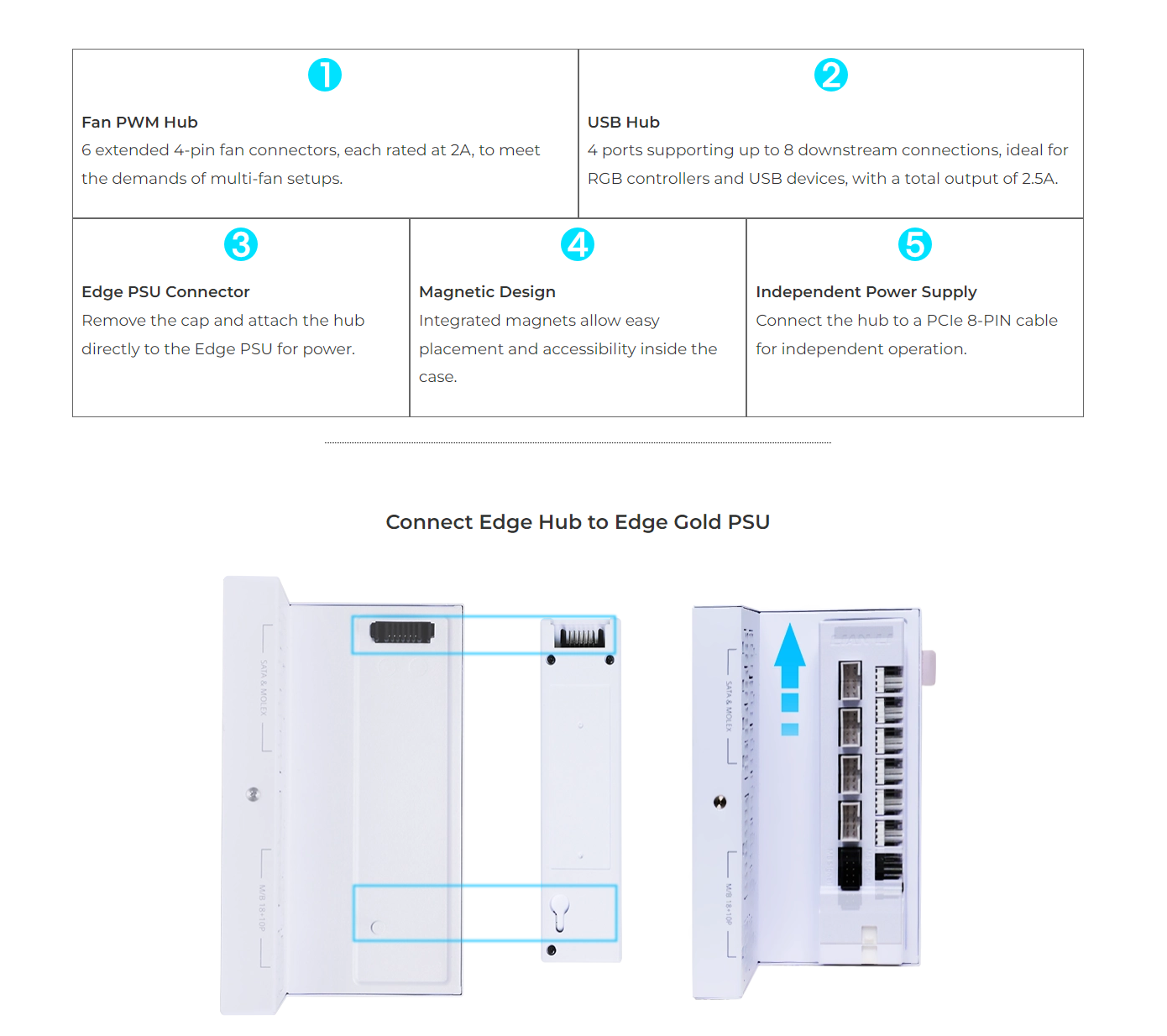

Introducing the world’s first PSU with a detachable USB and PWM fan hub that also functions independently, and that features a removable magnetic dust filter. This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.

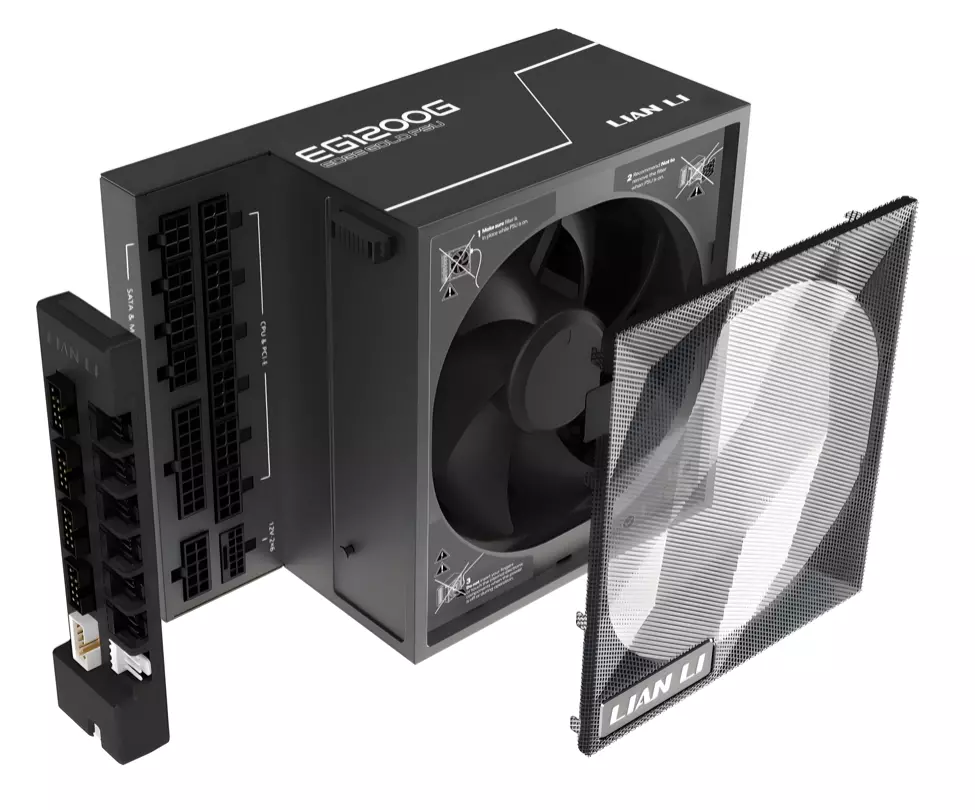

MAGNETIC DUST FILTER
The magnetic mesh dust filter on top of the fan can be easily removed for regular cleaning, ensuring dust-free operation.
A high porosity of 66.9% ensures ample ventilation and airflow with quiet fan operation, extending the PSU’s lifespan and reliability.
Specifications
| PRODUCT NAME | EDGE GOLD 750 | EDGE GOLD 850 | EDGE GOLD 1000 | EDGE GOLD 1200 |
| MODEL | EG0750G | EG0850G | EG1000G | EG1200G |

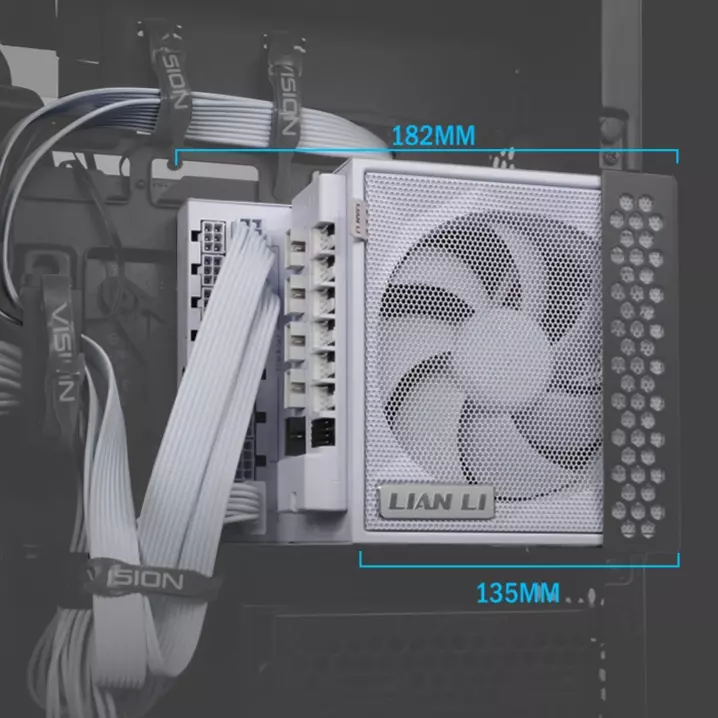

| DIMENSIONS | (D)182 mm X (W)86 mm X (H)150 mm | |||
| POWER SUPPLY DESIGN | Fully modular | |||
| COLOR | Black | Black/ White | ||
| MATERIAL | Steel | |||
| FORM FACTOR | ATX 3.1 | |||
| CERTIFICATION | 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD | |||
| MAX. DC OUTPUT | 750W | 850W | 1000W | 1200W |
| COMBINED +3.3V & +5V | 120W | 120W | 120W | 120W |
| COMBINED +12V | 744W | 849W | 996W | 1200W |
| INPUT VOLTAGE | 100-240Vac | 100-240Vac | 100-240Vac | 100-240Vac |
| INPUT FREQUENCY RANGE | 9-4.5A 50-60Hz | 10-5A 50-60Hz | 12-6A 50-60Hz | 15-7.5A 50-60Hz |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz | |||
| EFFICIENCY | 90.52%MAX | 90.71%MAX | 91.24%MAX | 91.64%MAX |
| PROTECTIVE CIRCUIT | OCP/OVP/OTP/OPP/SCP/UVP | |||

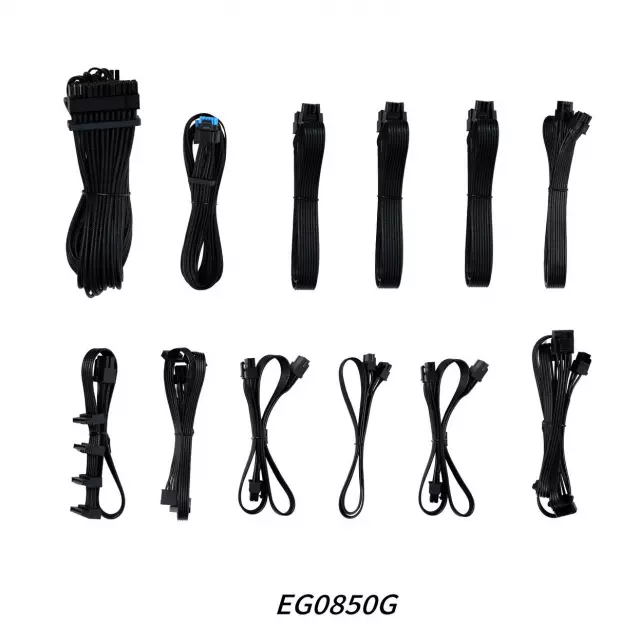

| CONNECTORS | 1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU connector (750mm) x1pcs 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs 1 x 12V – 2X6 450W connector (650mm) x1pcs 2 x 6+2 Pin GPU connector (650mm) x2pcs |
1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU connector (750mm) x1pcs 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs 1 x 12V – 2X6 450W connector (650mm) x1pcs 2 x 6+2 Pin GPU connector (650mm) x2pcs |
1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 6+2 Pin PCle connector (650mm + 100mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 1 x 12V – 2X6 600W connector (650mm) x1pcs USB*9pin – USB*9pin connector (470mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 6+2 Pin PCle connector (650mm + 100mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 1 x 12V – 2X6 600W connector (650mm) x1pcs 1 x 12V – 2X6 -2*8 600W connector (650mm) x1pcs USB*9pin – USB*9pin connector (470mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
| FAN TYPE | 120mm FDB Fan | |||
| FAN SPEED | 2000RPM | 2400RPM | ||
| FAN NOISE LEVEL | 30.9dBA | 39.3dBA | ||
| WARRANTY | 10 Years ( Hub 2 Years ) | |||
