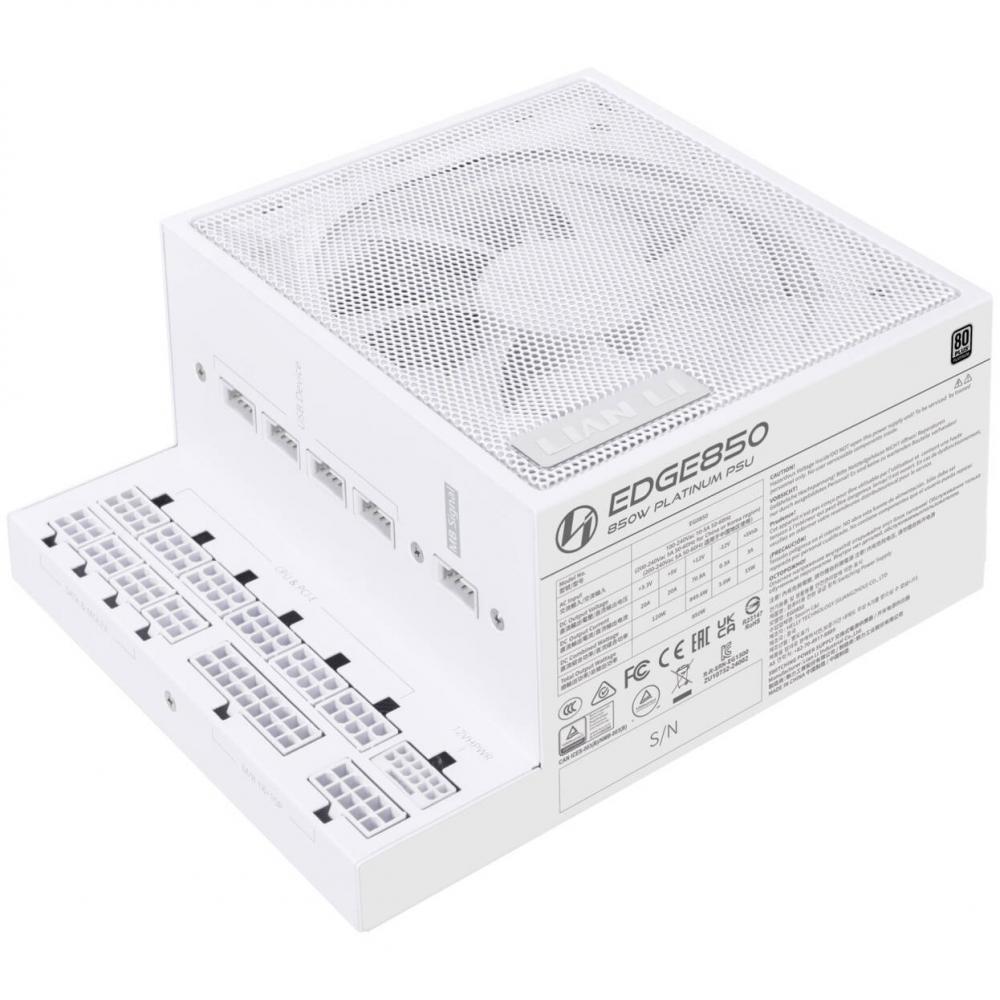

Lian Li EDGE EG0850

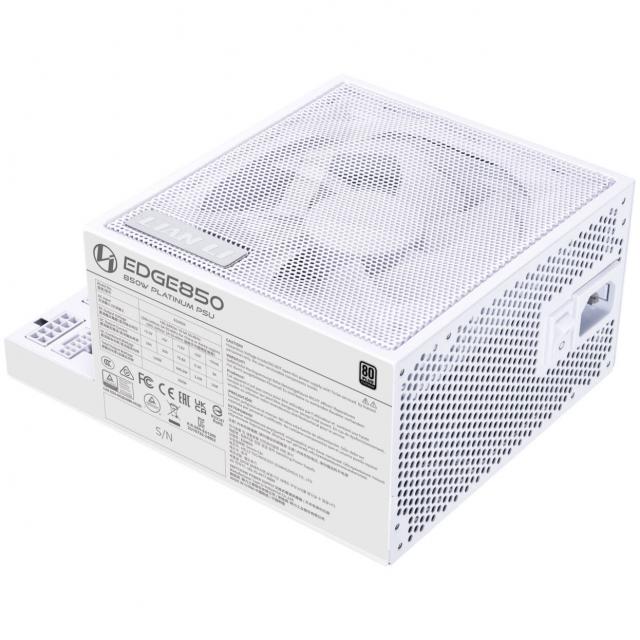

Sursa de alimentare Lian Li EDGE EG0850 White 850W 80+ Platinum PCIe 5.1, ATX 3.1
Cod produs: LL-PS-NELI-018
Întrebare despre Lian Li EDGE EG0850
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Putere | 850W |
| Certificat | 80+ Platinum |
| Eficienţă | 92.41 % |
| Tip | Modulară |
| Form Factor | ATX |
| Specificație | ATX 3.1 |
| PCIe Gen5 | Da |
| Iluminare RGB | Nu |
| Culoare | Alb |
| Garanție | 120 luni |
Related products
Putere:
850W
Certificat:
80+ Platinum
Eficienţă:
92.41 %
Tip:
Modulară
Form Factor:
ATX
Putere:
850W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
SFX
Putere:
850W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
SFX
Putere:
1000W
Certificat:
80+ Platinum
Eficienţă:
94 %
Tip:
Modulară
Form Factor:
ATX
Putere:
1000W
Certificat:
80+ Platinum
Eficienţă:
94 %
Tip:
Modulară
Form Factor:
ATX
Putere:
750W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
SFX
Putere:
750W
Certificat:
80+ Gold
Eficienţă:
90 %
Tip:
Modulară
Form Factor:
SFX
Lian Li EDGE EG0850 este o sursa de alimentare premium de 850W, proiectata pentru stabilitate, eficienta si un management al cablurilor impecabil. Cu certificare 80 Plus Gold, design modern si conectivitate modulara, este alegerea ideala pentru sisteme performante si configuratii curate.
- Putere de 850W – suficienta pentru sisteme high‑end cu placi video puternice
- Certificare 80 Plus Gold – eficienta energetica ridicata si consum optimizat
- Design complet modular – permite folosirea doar a cablurilor necesare pentru un interior curat
- Constructie premium – componente de calitate pentru stabilitate si durabilitate pe termen lung
- Compatibilitate extinsa – potrivita pentru configuratii moderne cu cerinte ridicate
- Functionare silentioasa – ventilator optimizat pentru zgomot redus si racire eficienta
- Protectii multiple – include OVP, OCP, SCP si alte sisteme de siguranta pentru protectia componentelor

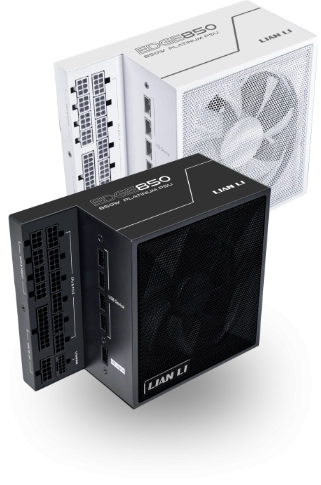

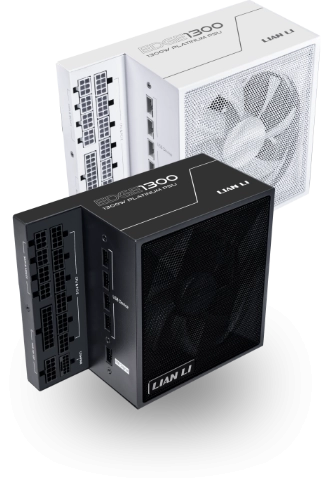

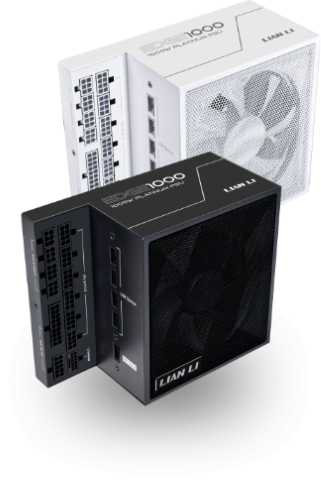

AVAILABLE IN 2 COLORS AND 3 WATTAGES
Offering versatile options, the EDGE PSU is available in multiple configurations to meet different power needs or match the components’ color.
850W
Black/ White
1000W
Black/ White
1300W
Black/ White

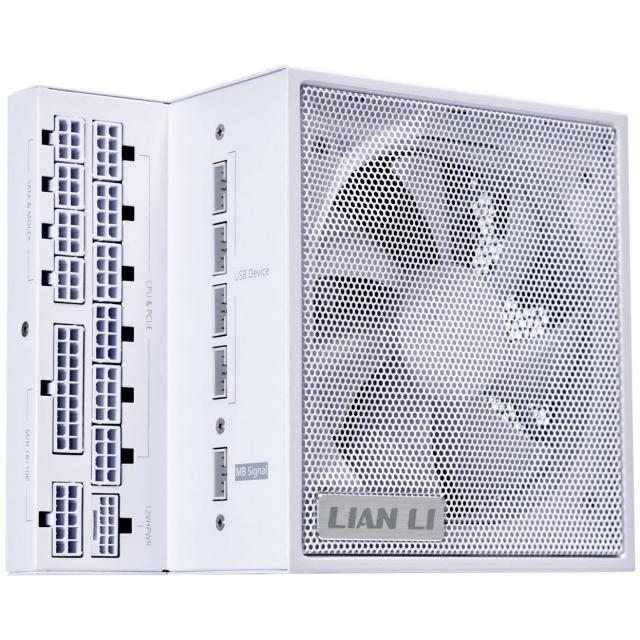

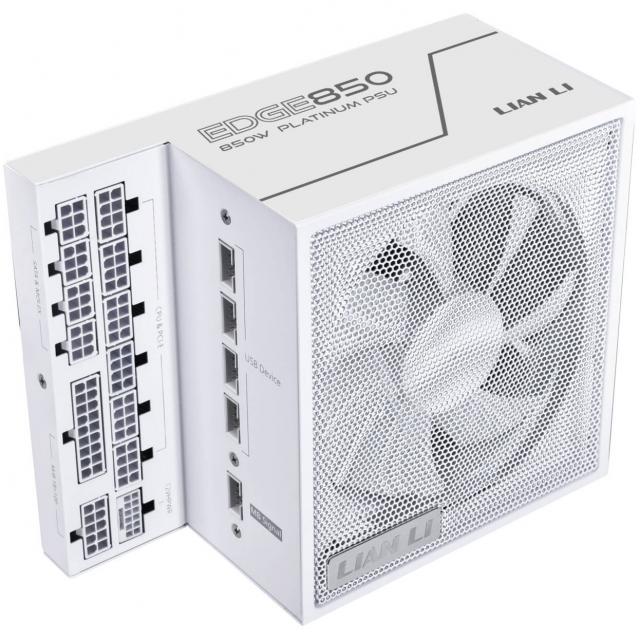

INNOVATIVE L-SHAPE DESIGN

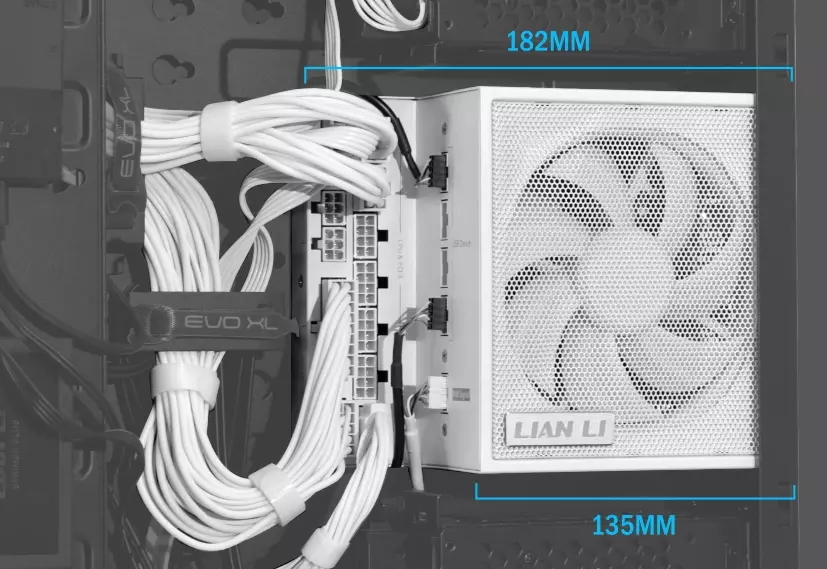

Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE PSU’s L-shape design is ideal for vertical installation at the second chamber.

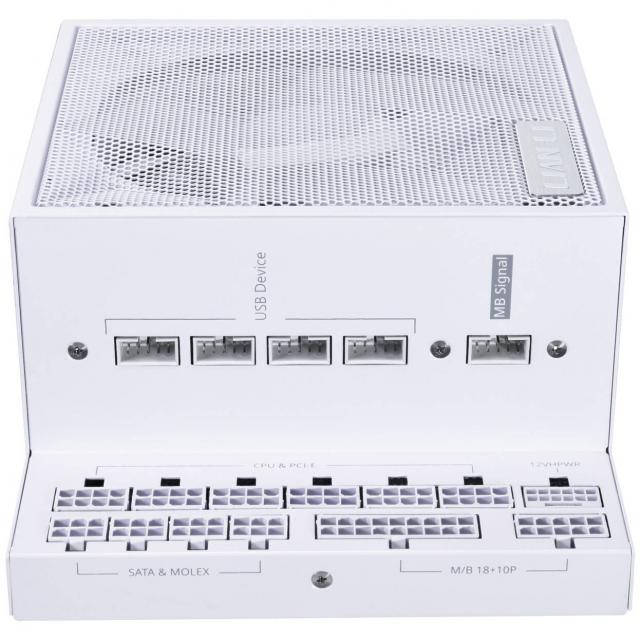

This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.
Specifications
| MODEL NAME | EDGE850 | EDGE1000 | EDGE1300 |
| MODEL NO. | EG0850 | EG1000 | EG1300 |
| DIMENSIONS | (D)182 mm X (W)86 mm X (H)150 mm |
||
| POWER SUPPLY DESIGN | Fully modular | ||
| COLOR | Black/ White | ||
| MATERIAL | Steel | ||
| FORM FACTOR | ATX 3.1 | ||
| CERTIFICATION | 80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM | ||
| MAX. DC OUTPUT | 850W | 1000W | 1300W |
| COMBINED +3.3V & +5V | 120W | 120W | 120W |
| COMBINED +12V | 849.6W | 996W | 1296W |
| INPUT VOLTAGE | 100-240Vac | 100-240Vac | 100-240Vac |
| INPUT FREQUENCY RANGE | 10-5A 50-60Hz | 12-6A 50-60Hz | 15-7.5A 50-60Hz |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz | ||
| EFFICIENCY | 92.41%MAX | 92.36% MAX | 92.39% MAX |
| PROTECTIVE CIRCUIT | OCP/OVP/OTP/OPP/SCP/UVP/SIP/NLP | ||

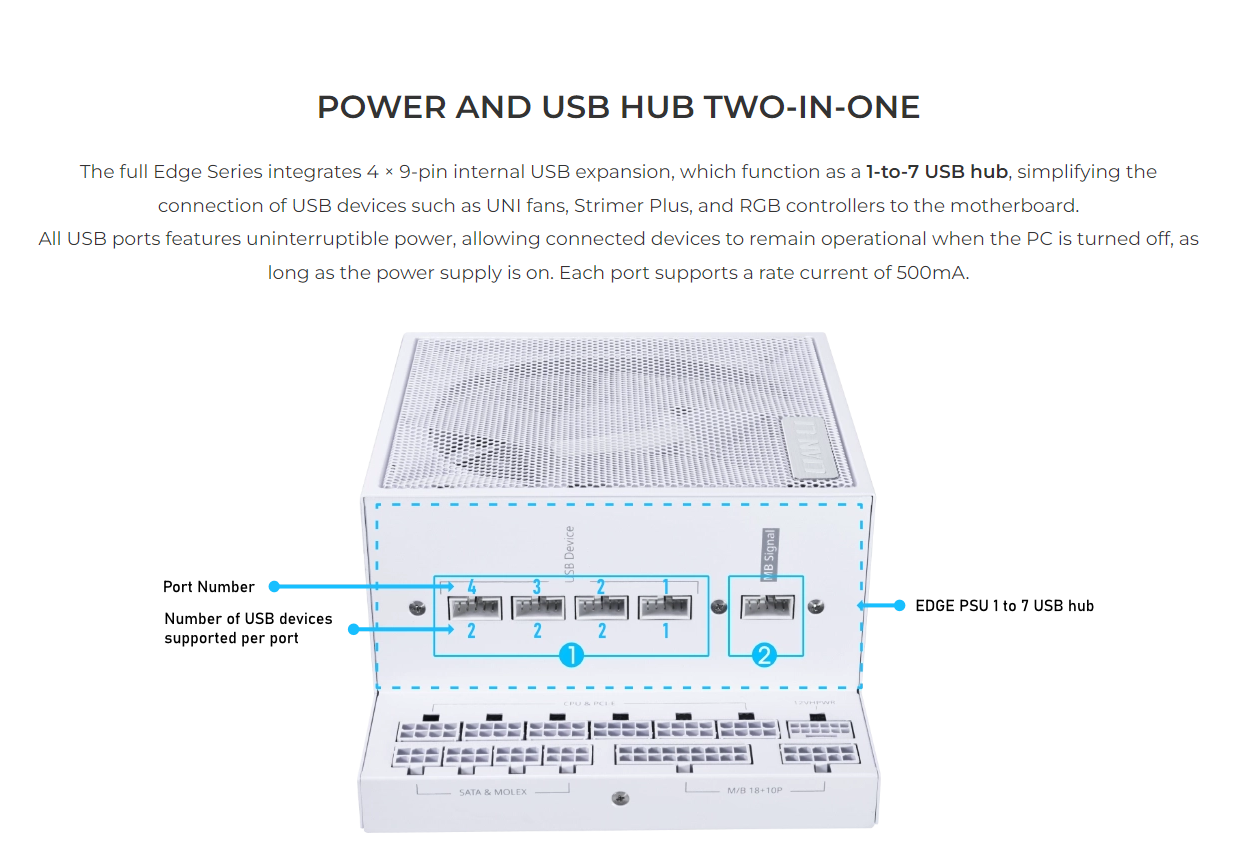

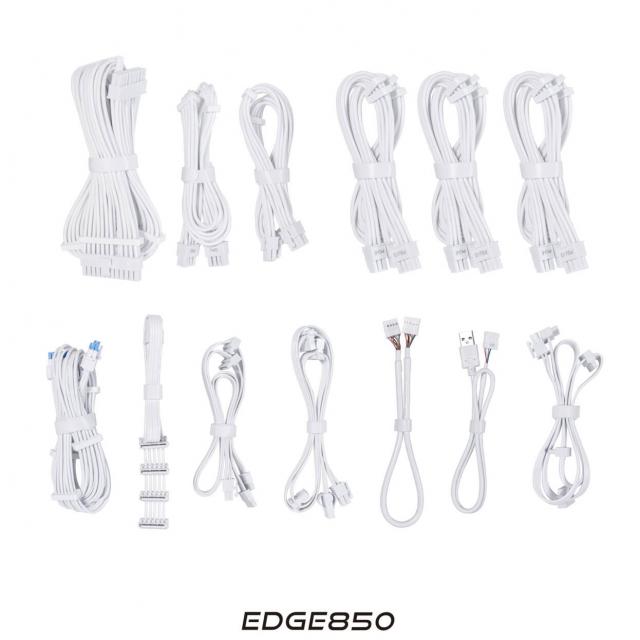

| CONNECTORS | 1 x 24/20-Pin motherboard connector (500mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs 1 x 8/6+2 Pin PCle connector (550m m) x3pcs 1 x 12V-2×6 connector (550mm) × 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (400mm-125mm x 2) x1pcs USB*9pin – USB*9pin connector (350mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
1 x 24/20-Pin motherboard connector (500mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs 1 x 8/6+2 Pin PCle connector (550m m) x4pcs 1 x 12V-2×6 connector (550mm) × 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (400mm-125mm*2) x1pcs USB*9pin – USB*9pin connector (350mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
1 x 24/20-Pin motherboard connector (500mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs 1 x 8/6+2 Pin PCle connector (550m m) x4pcs 1 x 12V-2×6 connector (550mm) × 1pcs 1 x 12V-2×6 – 2 x 8pin connector (550mm) × 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (400mm-125mm*2) x1pcs USB*9pin – USB*9pin connector (350mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
| FAN TYPE | 120mm FDB Fan | ||
| FAN SPEED | 2000RPM | 2400RPM | |
| FAN NOISE LEVEL | 25.96dBA | 33.61dBA | |
| WARRANTY | 10 Years | ||
