Lian Li A3-mATX

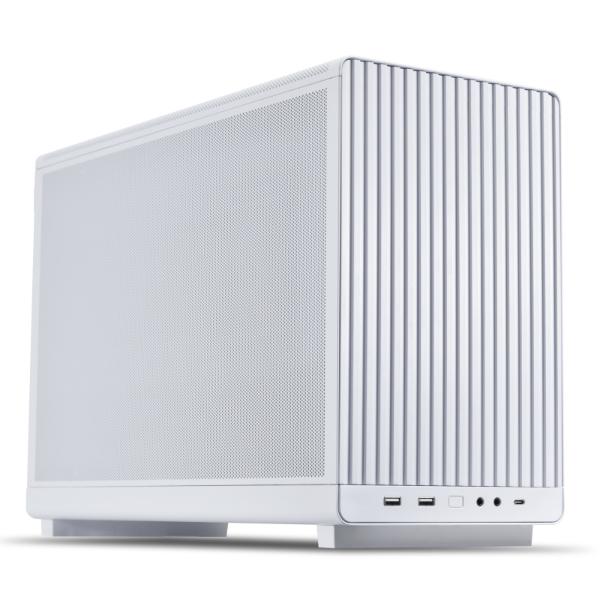

Carcasa Lian-Li DAN A3-mATX, Micro Tower, Alb
Cod produs: LL-CASE-GELI-954
Întrebare despre Lian Li A3-mATX
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 24 luni |
| Form Factor | Mini Tower |
| Format | Micro ATX, Mini ITX |
| Ventilatoare incluse | Nu |
| Panou frontal | USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C) |
| Culoare | Alb |
| Lungime | 443 mm |
| Lăţime | 194 mm |
| Înălţime | 321.5 mm |
| Înălțimea maximă a coolerului cu aer | 165 mm |
| Lungimea maximă a plăcii video | 415 mm |
| Ventilatoare suportate în partea de jos | 3x 120mm |
| Ventilatoare suportate în spate | 1x 120mm |
| Ventilatoare suportate în partea de sus | 3x 120mm |
| Ventilatoare suportate pe lateral | 3x 120mm, 2x 140mm |
| Coolere cu lichid suportate în partea de jos | 1x 240mm |
| Coolere cu lichid suportate în partea de sus | 1x 240mm, 1x 360mm |
| Coolere cu lichid suportate pe lateral | 1x 240mm, 1x 280mm, 1x 360mm |
| Panou Mesh frontal | Nu |
Related products
Form Factor:
Mini Tower
Format:
Micro ATX, Mini ITX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Negru
Form Factor:
Mini Tower
Format:
Micro ATX, Mini ITX
Ventilatoare incluse:
4x 120mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
4x 120mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
4x 120mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
2x 120mm, 2x 140mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
2x 120mm, 2x 140mm
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Alb
Form Factor:
Mini Tower
Format:
Micro ATX, Mini ITX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Negru, Maro
Form Factor:
Mini Tower
Format:
Micro ATX, Mini ITX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Alb, Maro
Form Factor:
Mini Tower
Format:
Micro ATX, Mini ITX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Negru, Maro
Form Factor:
Mini Tower
Format:
Micro ATX, Mini ITX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Culoare:
Alb, Maro
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
1x 140mm, 2x 160mm
Panou frontal:
USB 3.0, Audio In & Out, Type-C
Culoare:
Negru
Form Factor:
Mini Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
Nu
Panou frontal:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
- Design minimalist elegant, cu un sasiu cu factor de forma micro de 26,3L
- Panourile laterale si superioare sunt proiectate cu plasa de otel
- Acopera placa de baza M-ATX si ITX cu 4 sloturi GPU de 415 mm
- Suporta pana la 360 de radiatoare si ventilatoare de 10 x 120 mm
- Suporta ATX/SFX/SFX-L si LIAN LI Edge PSU care pot fi montate lateral sau pe front
- In colaborare cu DAN Cases pentru proiectarea carcasei in timp ce fabricat si vandut de LIAN LI.
The LIAN LI & DAN Cases A3-mATX is a versatile M-ATX mesh PC case that maintains a
minimal chassis size while accommodating large components. Thanks to the relocatable
PSU bracket, the A3-mATX empowers you to build a powerful and compact PC system
tailored to your needs and preferences.

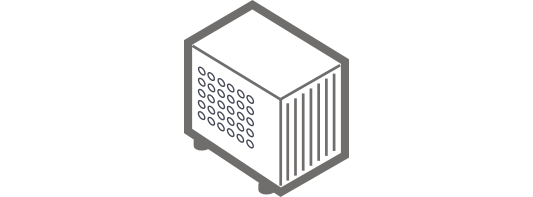

Minimalist Design
Enhanced Modularity

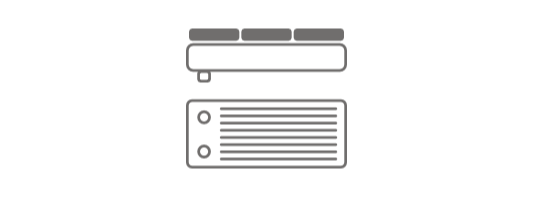

360mm AIO Layout

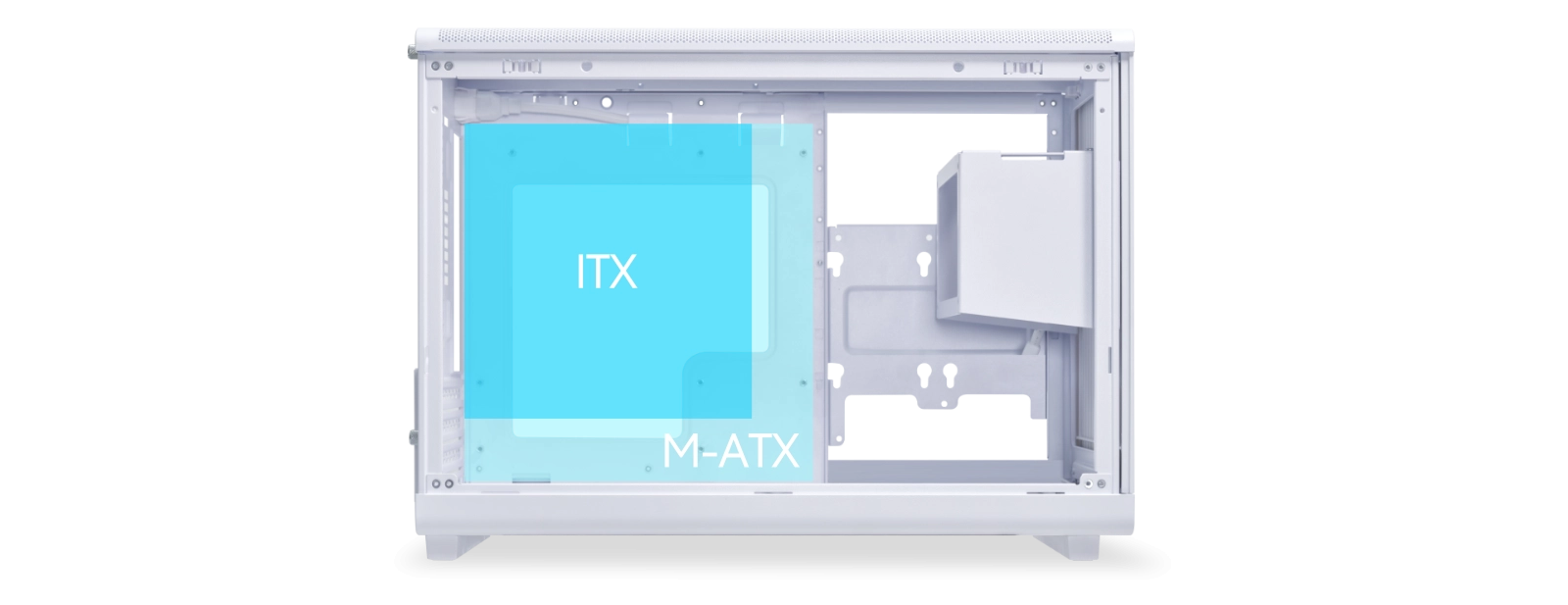

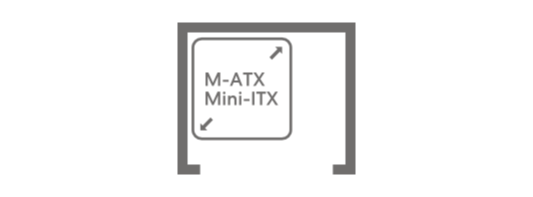

For M-ATX / Mini ITX MB

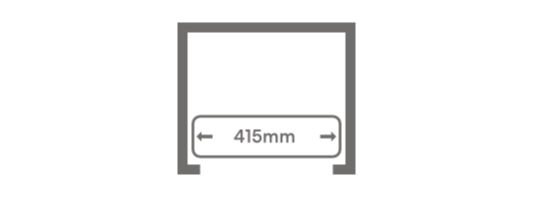

415mm GPU Compatibility

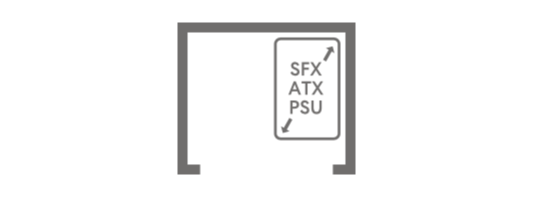

Flexible SFX/ ATX PSU
COMPACT DESIGN,MASSIVE POTENTIAL
Dive into the realm of compactness with the A3-mATX,
which unlocks the potential of a small form factor PC case.

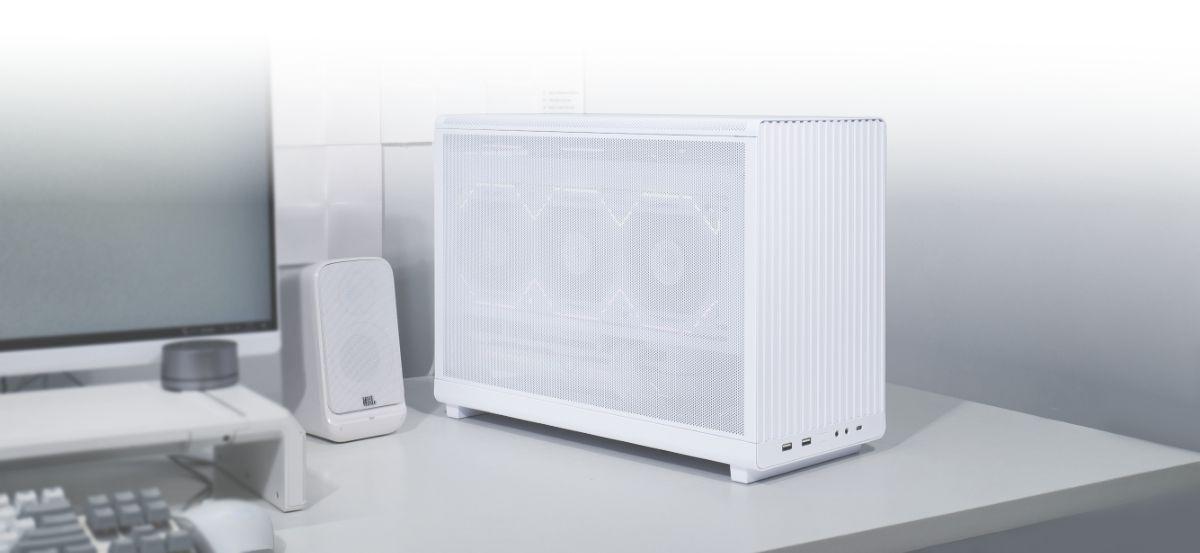

WELL VENTILATED, MINIMALIST DESIGN
With three sides featuring minimalist mesh panels and a sleek front panel,
the A3-mATX combines functionality with style,
making it the perfect touch to your setup.

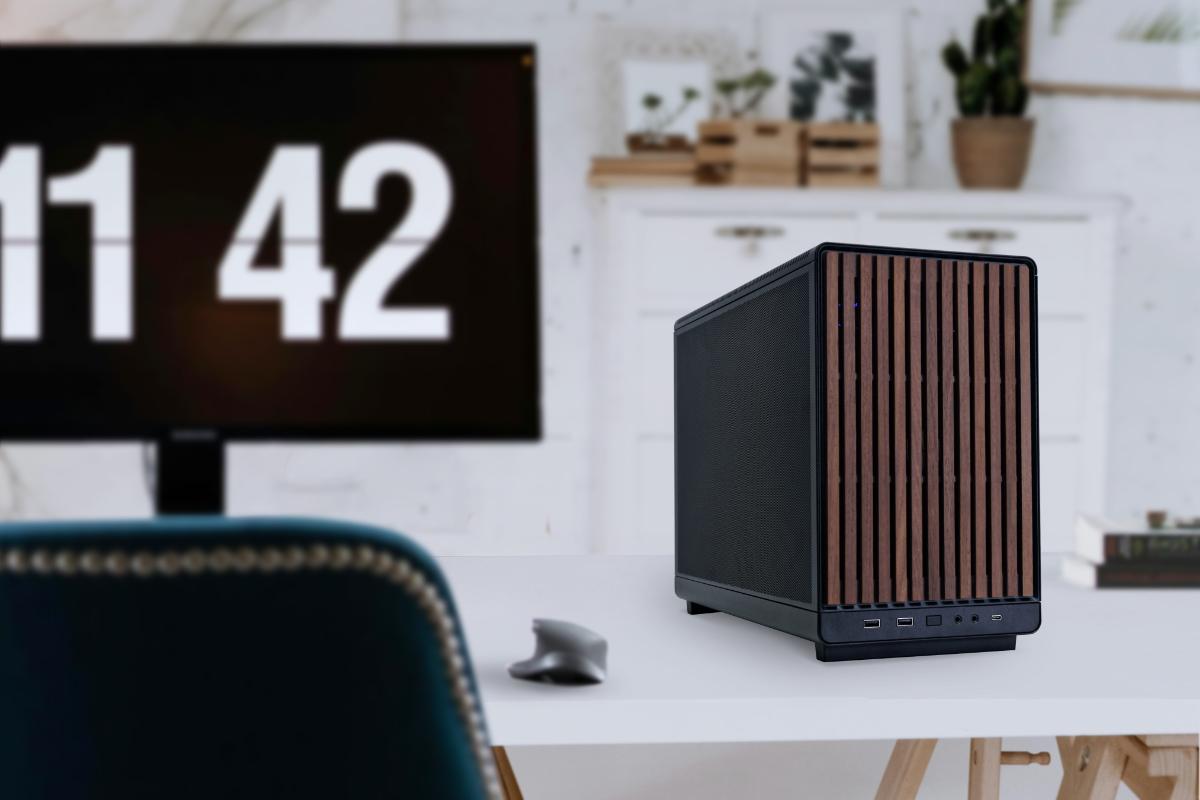

The A3-mATX Wood Edition front panel is made of a sophisticated black walnut trim, make is a perfect balance
of style and functionality.
RECOMMEND SET UPS

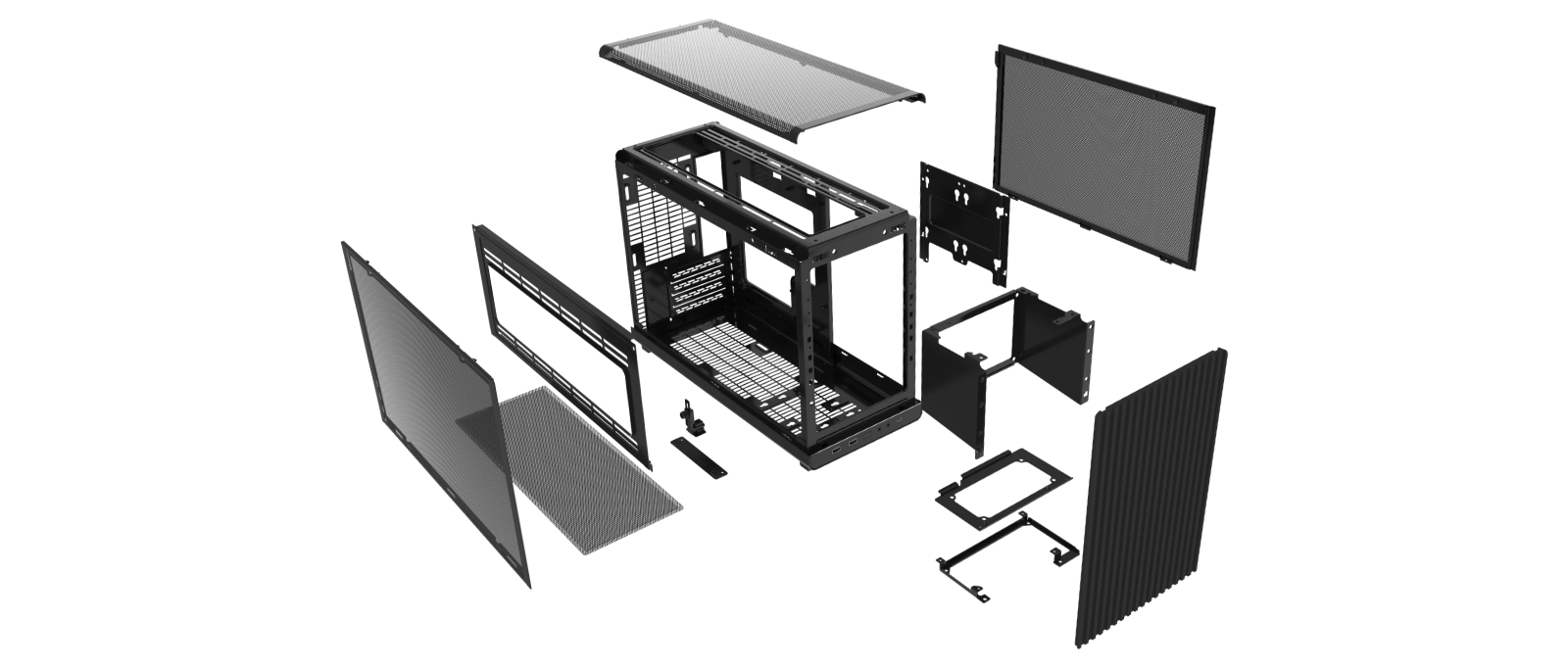

EFFORTLESS MODULARITY, STREAMLINED BUILDS
The toolless removal of all exterior panels and modular brackets provide easier access for installation
and cable management. With a removable bottom dust filter, ensuring the system stays clean and
efficient.
VERSATILE COMPATIBILITY, ULTIMATE CUSTOMIZATION
Unleash your creativity with the flexible compatibility A3-mATX without compromising on high-
performance, large size components.
The A3-mATX case accommodates a maximum CPU cooler height of 165mm and a 4-slot thick GPU
with a maximum length of 415mm. Note that with a 25mm thick fan installed at the bottom, the
GPU thickness will be limited to 61mm, allowing for only a 3-slot GPU. Additionally, when installing a
radiator and fan combo, there will be no space for the GPU.

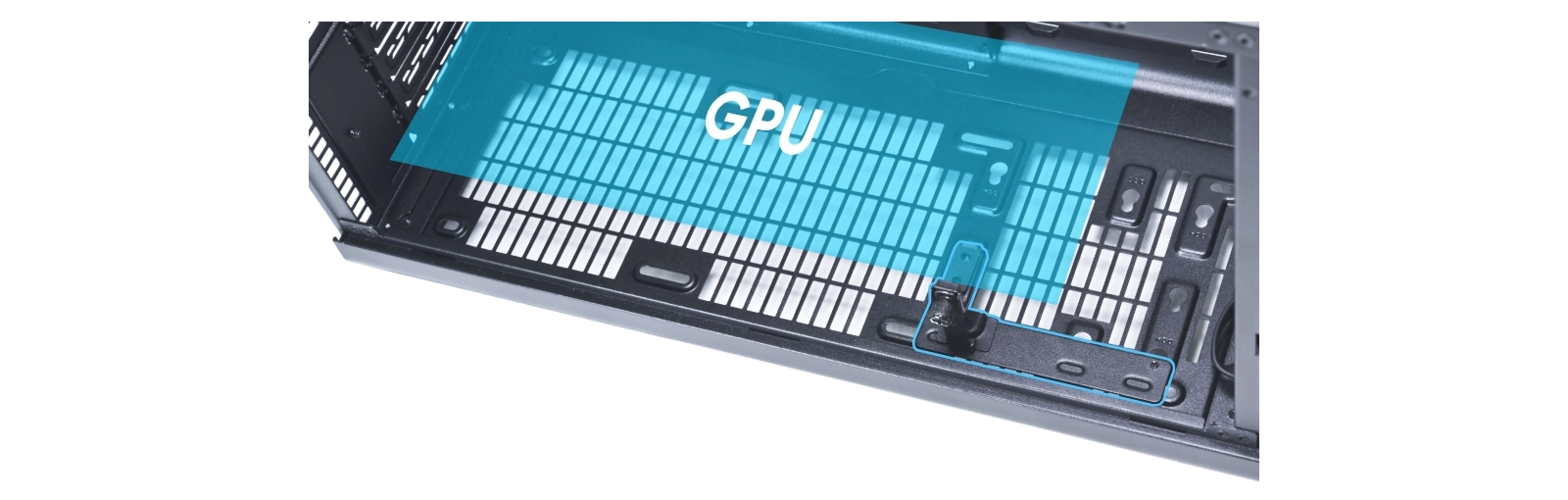

The anti-sag GPU bracket is included in the box to ensure the perfect alignment of the graphics card.

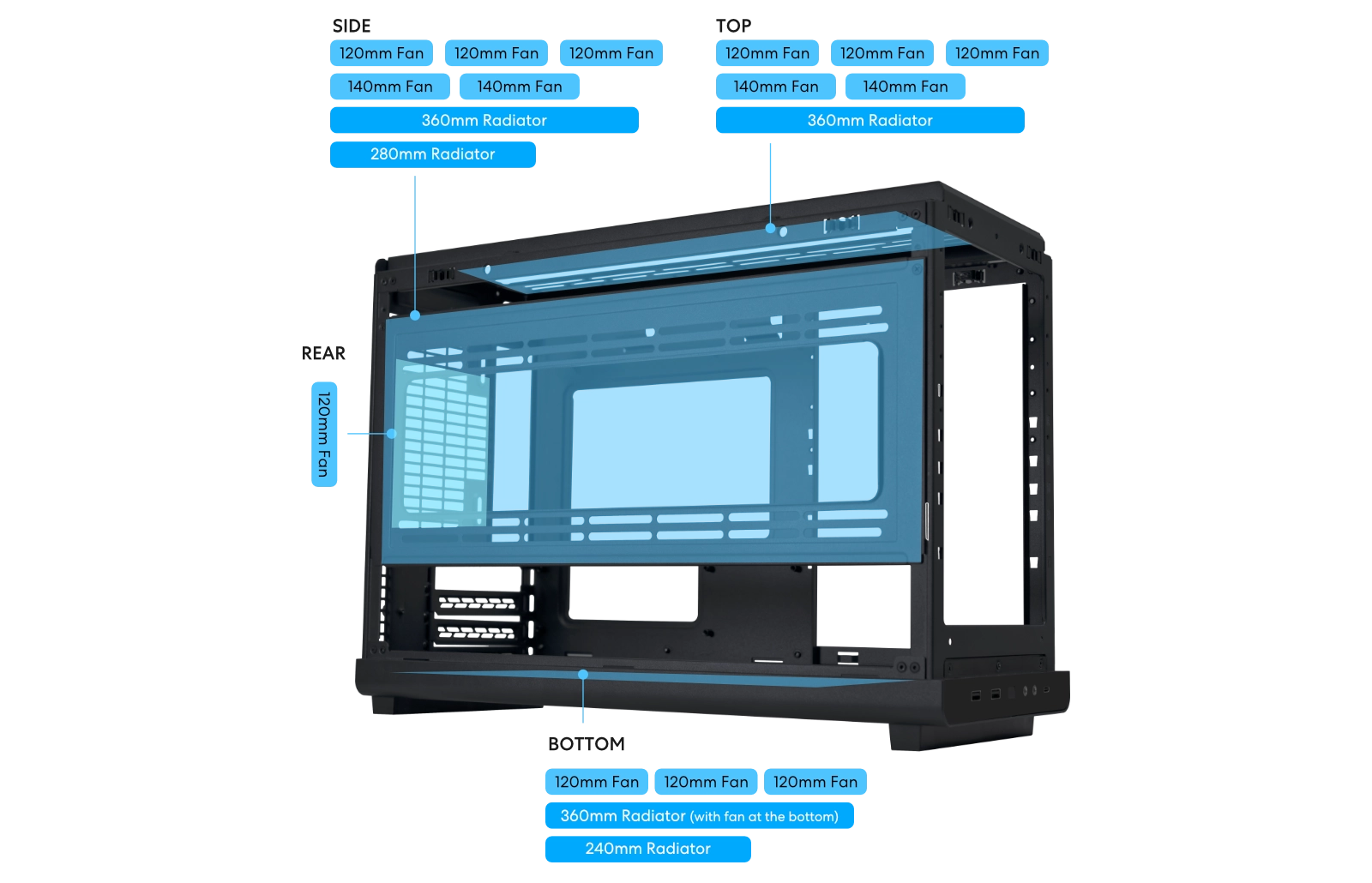

SPACE MAXIMIZED FOR COOLING
Maximizing the cooling capacity of this 26.3 liter case, 360mm AIO can be mounted to
efficiently cool high-end components.
FLEXIBLE PSU INSTALLATION
Offers multiple mounting slots for a maximum of 220mm ATX/SFX/SFX-L or LIAN LI Edge PSU for
ideal PSU placement to best suit your build requirements.

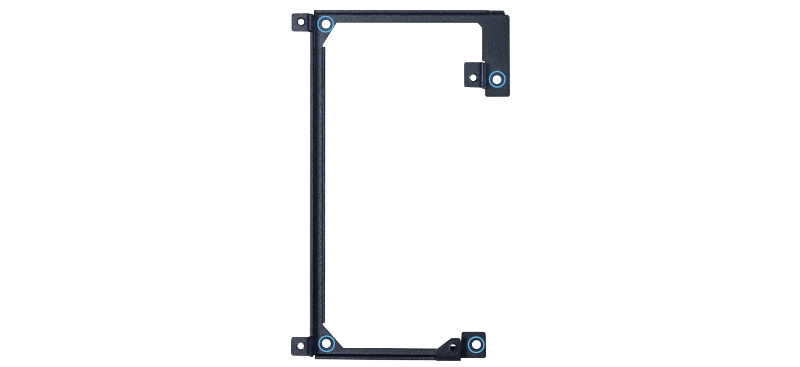

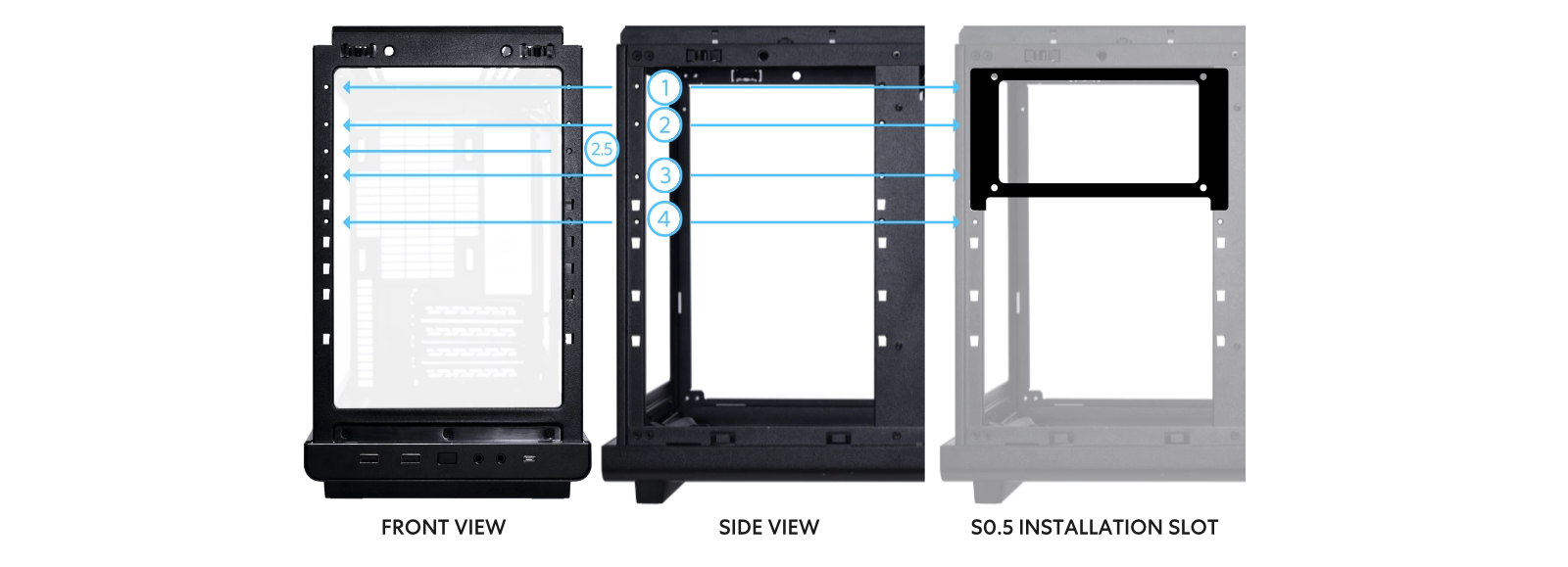

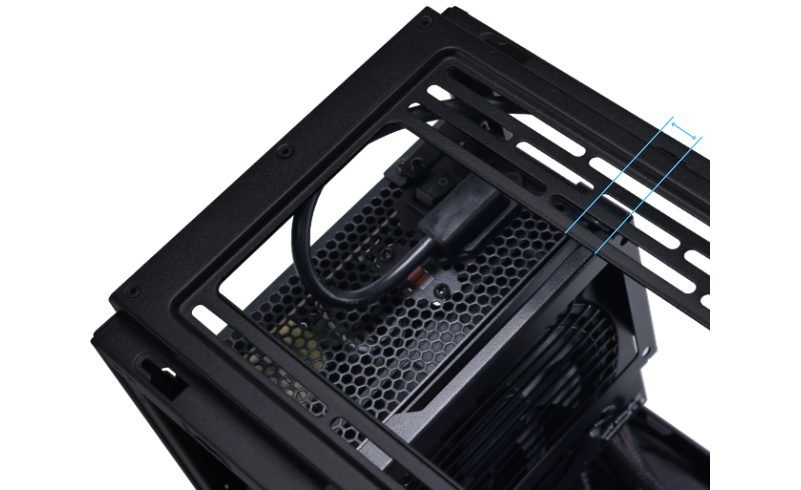

Includes an ATX PSU offset bracket in order to allow longer
GPU installation at positions F2 and F2.5

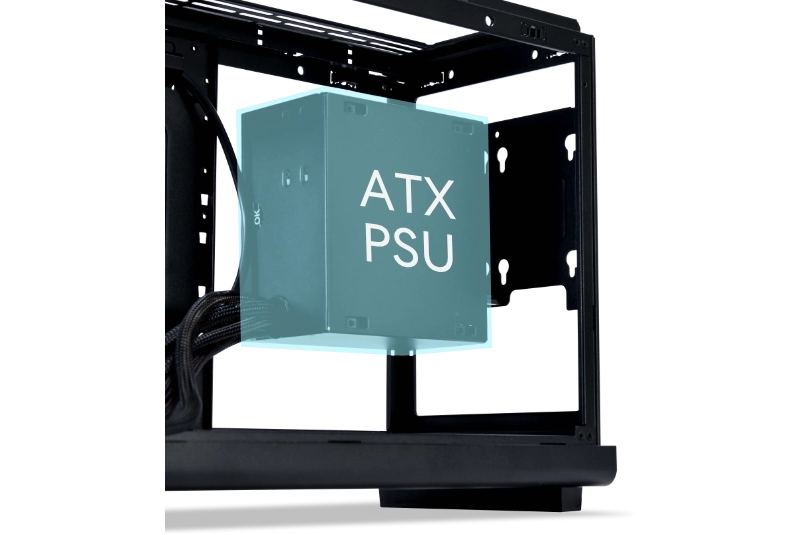

Supports front installation of ATX PSU by mounting it on the
SSD bracket using the standoff tool.

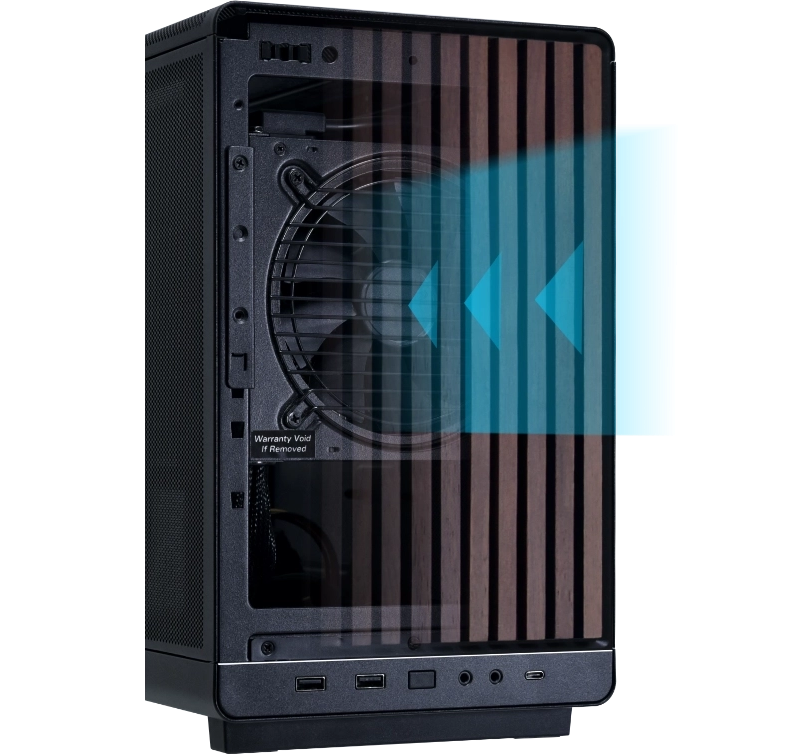

The wooden edition open-space design of the front panel
allows for optimal airflow, ensuring fresh air intake for the PSU
when the PSU is mounted at the front with the fan facing
outward, enhancing cooling efficiency.
ADAPTABLE STORAGE SOLUTIONS
Provides 3 drive bays to meet storage needs in a comprehensive build.

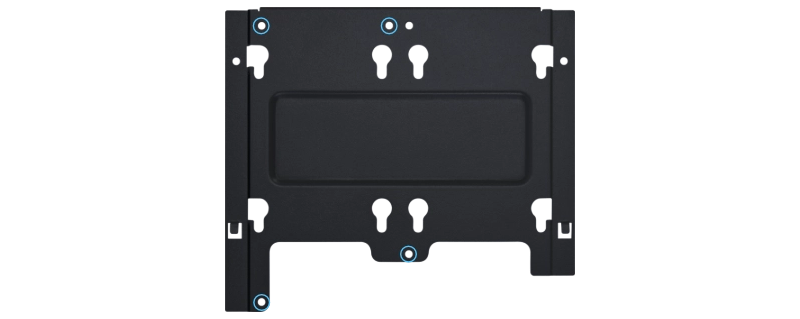

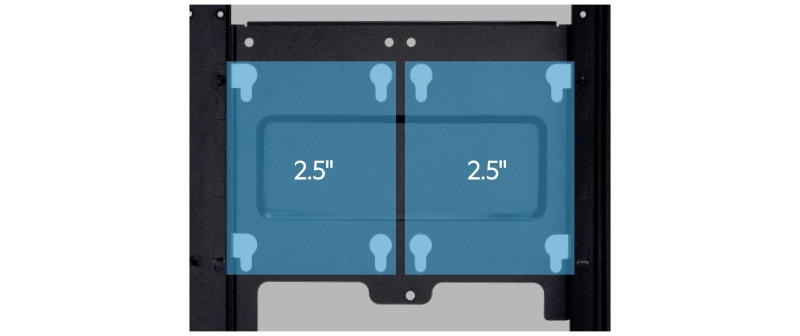

REMOVABLE SSD TRAY
Use the same mounting point as the PSU bracket,
can relocate as needed.
2 × 2.5” SSD

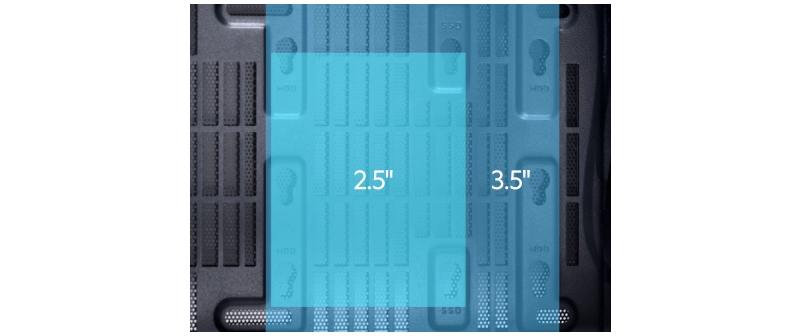

BOTTOM DRIVE SPACE
Offers a mounting point at the bottom of the chassis.
1 × 2.5” SSD or 1 × 3.5” HDD

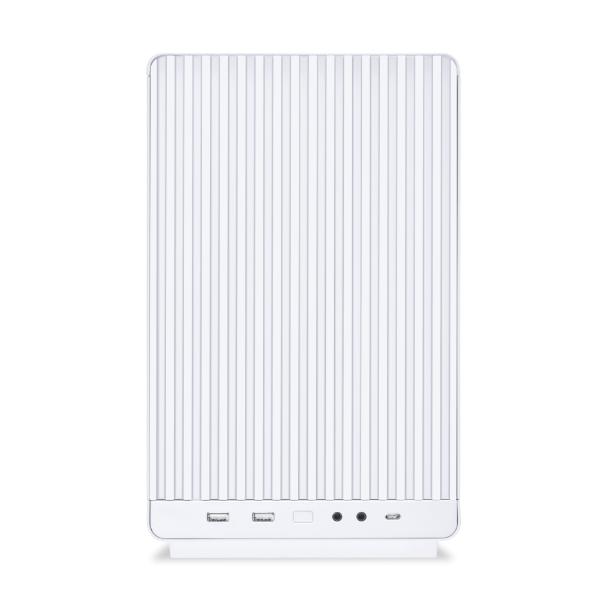

SEAMLESS CONNECTIVITY, STYLISH I/O
With its front I/O featuring essential ports and buttons, along with a sleek and stylish front panel
design, the A3-mATX ensures seamless connectivity while showcasing on the desk.

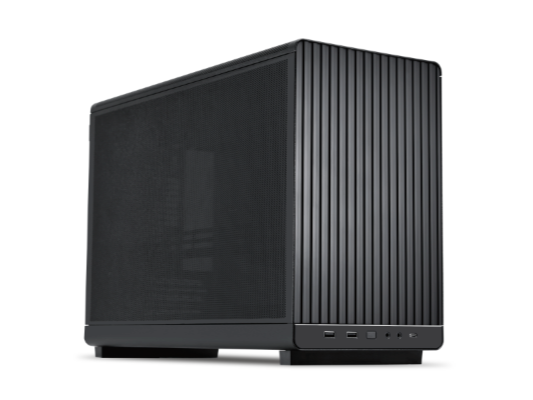

AVAILABLE IN 2 COLORS AND A SPECIAL EDITION
Offering 2 color choices that combine innovative design, flexible cooling solutions, and extensive
compatibility options, making it an ideal choice for enthusiasts seeking a compact yet powerful
M-ATX case.
Black

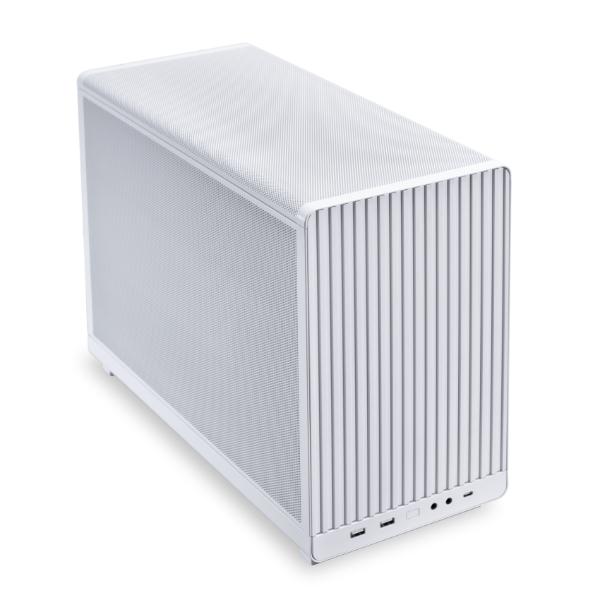

White

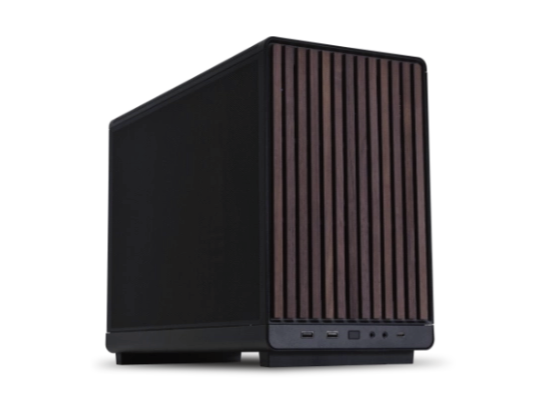

Wood Edition

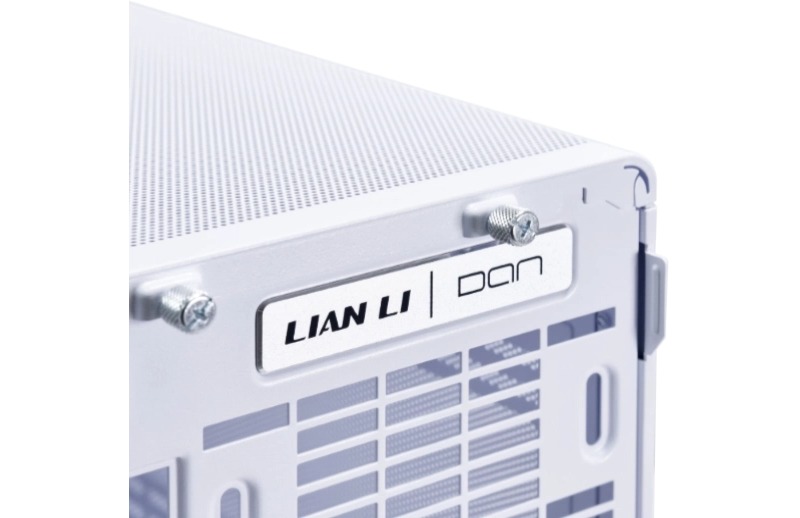

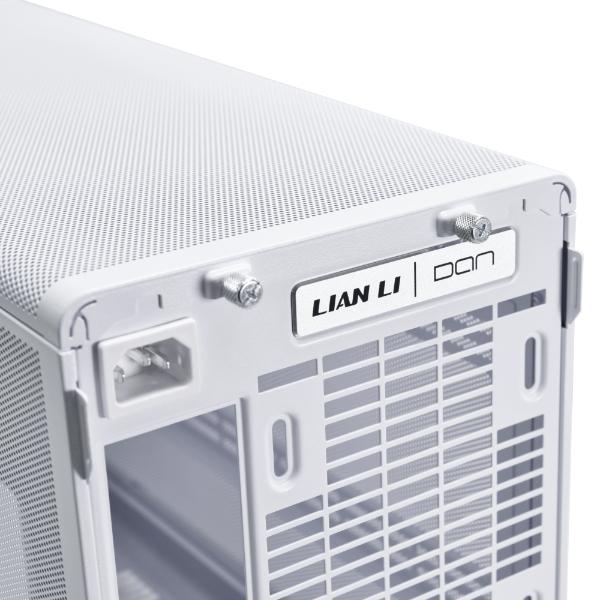

A DAN CASES COLLABORATION
Combining the design of Daniel Hansen from DAN Cases with
LIAN Li’s manufacturing prowess, the collaboration brings the
A3-mATX to life.
Specifications
| MODEL NAME | A3-mATX | FAN SUPPORT | Top: 3 x 120mm Side: 3 x 120mm or 2 x 140mm Bottom: 3 x 120mm Rear: 1 x 120mm |
| MODEL NO. | A3-mATX WHITE | RADIATOR SUPPORT | Top: 1 x 360/240mm Side: 1 x 360/280/240mm Bottom: 1 x 240mm (360mm with fan at the bottom) |
| COLOR | White | DRIVE SUPPORT | Tray: 2 × 2.5” SSD Bottom: 1 × 2.5” SSD or 1 × 3.5” HDD |
| CASE TYPE | MFF (Micro Form Factor) | GPU LENGTH CLEARANCE | Max 415mm |
| DIMENSION | (D) 443mm x (W) 194mm x (H) 321.5mm (D) 443mm x (W) 194mm x (H) 306mm(w/o feet) | CPU HEIGHT CLEARANCE | Max 165mm |
| CAPACITY | 26.3L | EXPANSION SLOTS | 4 |
| MATERIAL | Steel | I/O PORTS | 1 x Power Button 2 x USB 3.0 TYPE-A 1 x USB 3.1 TYPE-C 1 x Mic 1 x HD Audio |
| MOTHERBOARD SUPPORT | M-ATX/ITX | DUST FILTER | 1 x Bottom |
| PSU SUPPORT | ATX/SFX/SFX-L (Max 220mm) | WARRANTY | 2 year |
