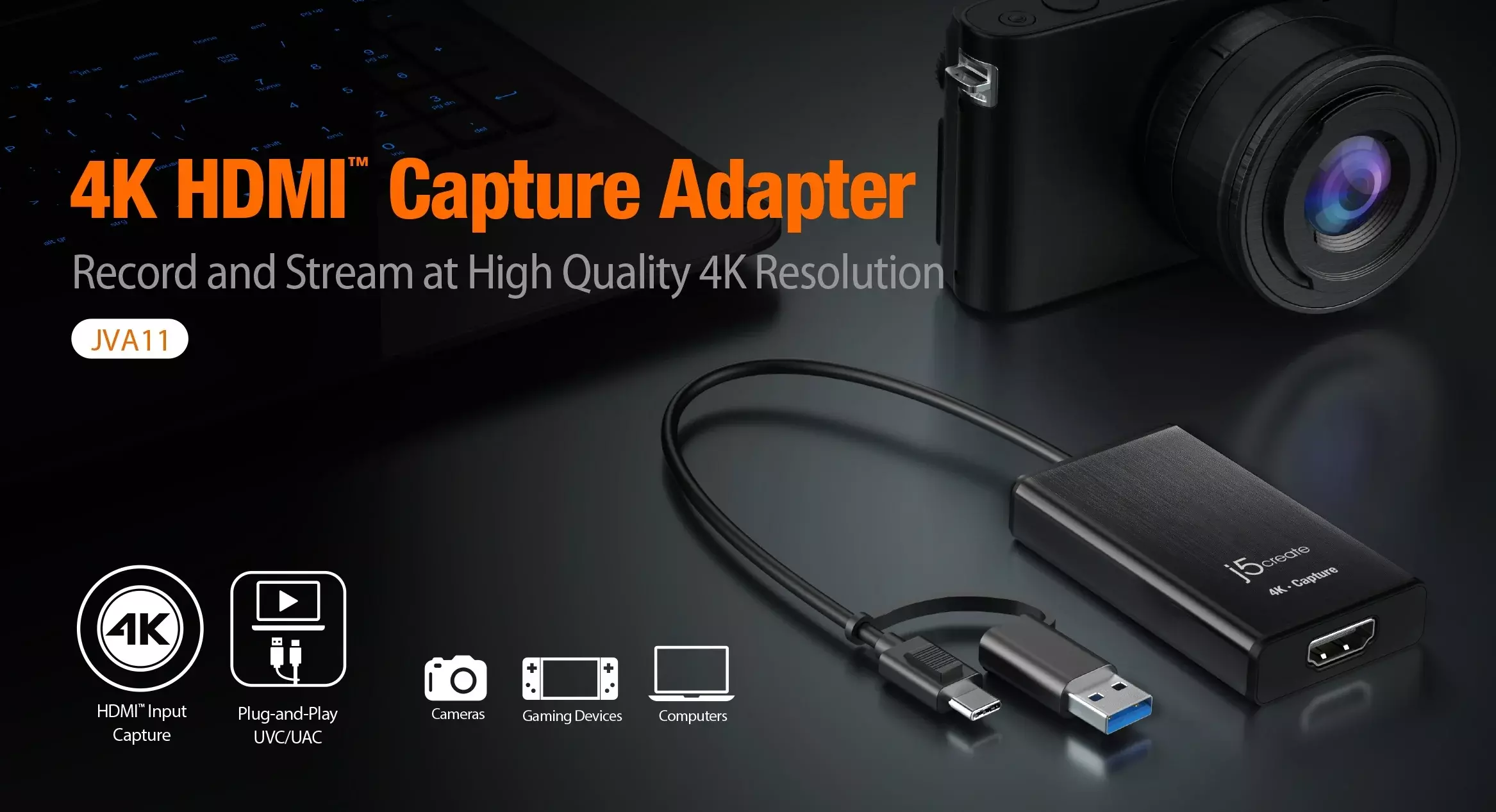

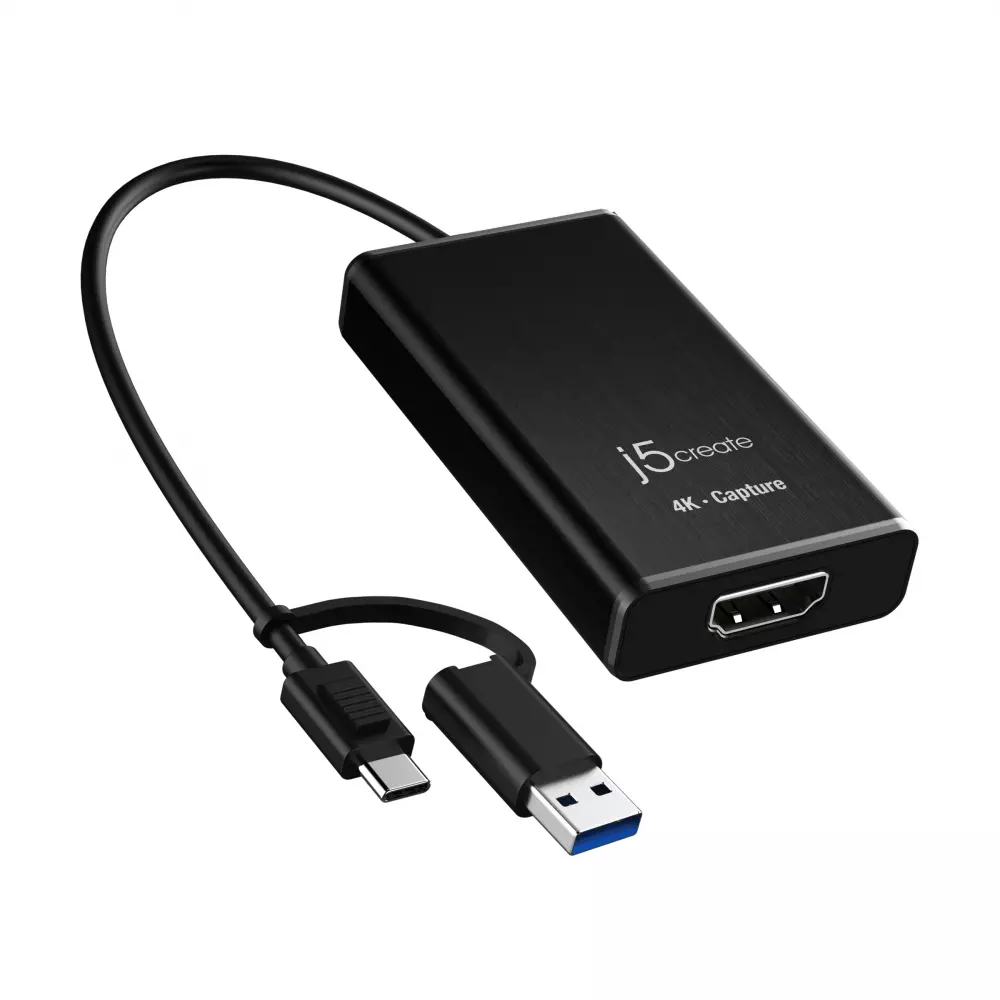

j5create JVA11 4K HDMI Capture Adapter

Placa de captura video j5create JVA11, HDMI - USB-C, 4K, Negru

Cod produs: J5-JVA11

ultima bucată

Întrebare despre j5create JVA11 4K HDMI Capture Adapter

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	24 luni
Interfață	USB 3.2 Gen 1
Rezoluție maximă	2160p30
Ieșiri	HDMI

Related products

j5create JVA02 Live Capture Adapter HDMI™ to USB-C

Interfață: USB 3.1 Gen 1

Rezoluție maximă: 1080p60

Ieșiri: HDMI, 3.5 mm Audio jack

j5create Video Capture USB Hub

Interfață: USB-C

Rezoluție maximă: 2160p30

Ieșiri: HDMI, USB-C, 3.5 mm Audio jack, USB 3.0

j5create JVA06

Interfață: USB-C

Rezoluție maximă: 1080p60

Ieșiri: HDMI, 3.5 mm Audio jack

- Intrare HDMI pentru captare
- Inregistrare video si audio de inalta performanta 4K prin USB-C 3.2 Gen 1
- Standard UVC - Nu este necesara instalarea driverului
- Flux de latenta ultra-scazut prin conexiune USB-C 3.2 Gen 1
- Productia de camp simplificata cu dimensiunea sa compacta

conector gazda: 1 - USB-C 3.2 Gen 1 mama ( Tip A la USB-C )
porturi: 1 - USB-C 3.2 Gen 1 ( Gazda )
1 - Intrare HDMI
intrare video: 1 - HDMI mama
canal audio: 2.1 prin HDMI
frecventa audio: 48 kHz
compresii: USB 3.0: RGB / YUV4: 2: 2 / YUV4: 2: 0
USB 2.0: YUV4: 2: 0
rezolutii de intrare hdmi: 3840 x 2160 @ 30
capacitate maxima de captare: USB 3.0: 3840 x 2160 @ 30
USB 2.0: 1280 x 720 @ 30
rata maxima de actualizare a capturii: 4K30 fps, 2K60 fps, 1080p120 fps

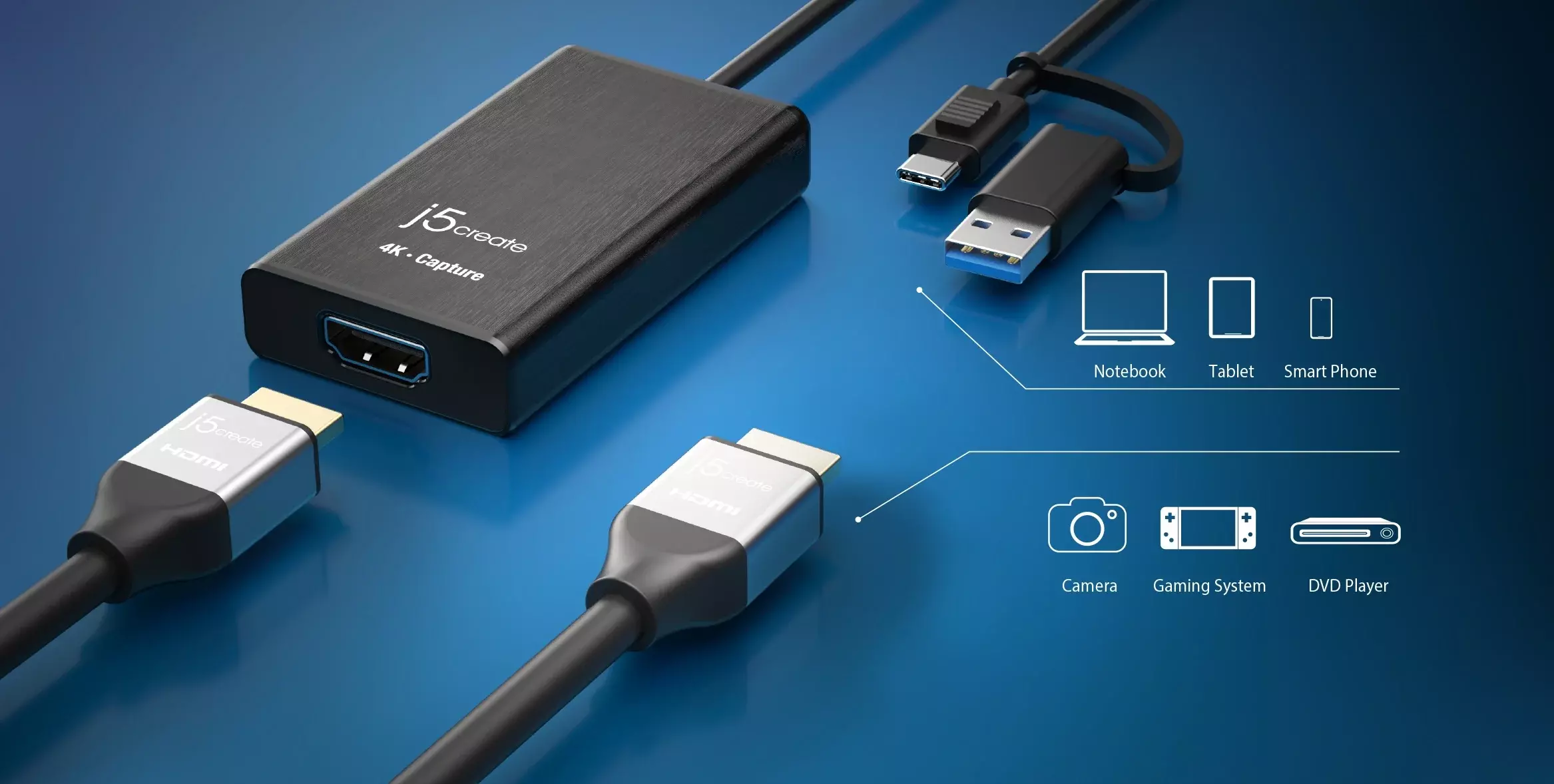

Use With Various Devices

Three HDMI Input Resolutions For Recording

Ablility To Capture 4K@30 FPS, 2K60 FPS, 1080P 120 FPS

Ideal for live streaming, broadcasting, and gaming

It works with OBS, XSplit, CameraFi, QuickTime, and other video streaming software.
Compatible with PlayStation 4/5, Xbox Series X/S, Xbox One X/S, and Switch gaming consoles.

Third-Party Software Support

Capture and Record in 4K Resolution For a Clear Visual Experience

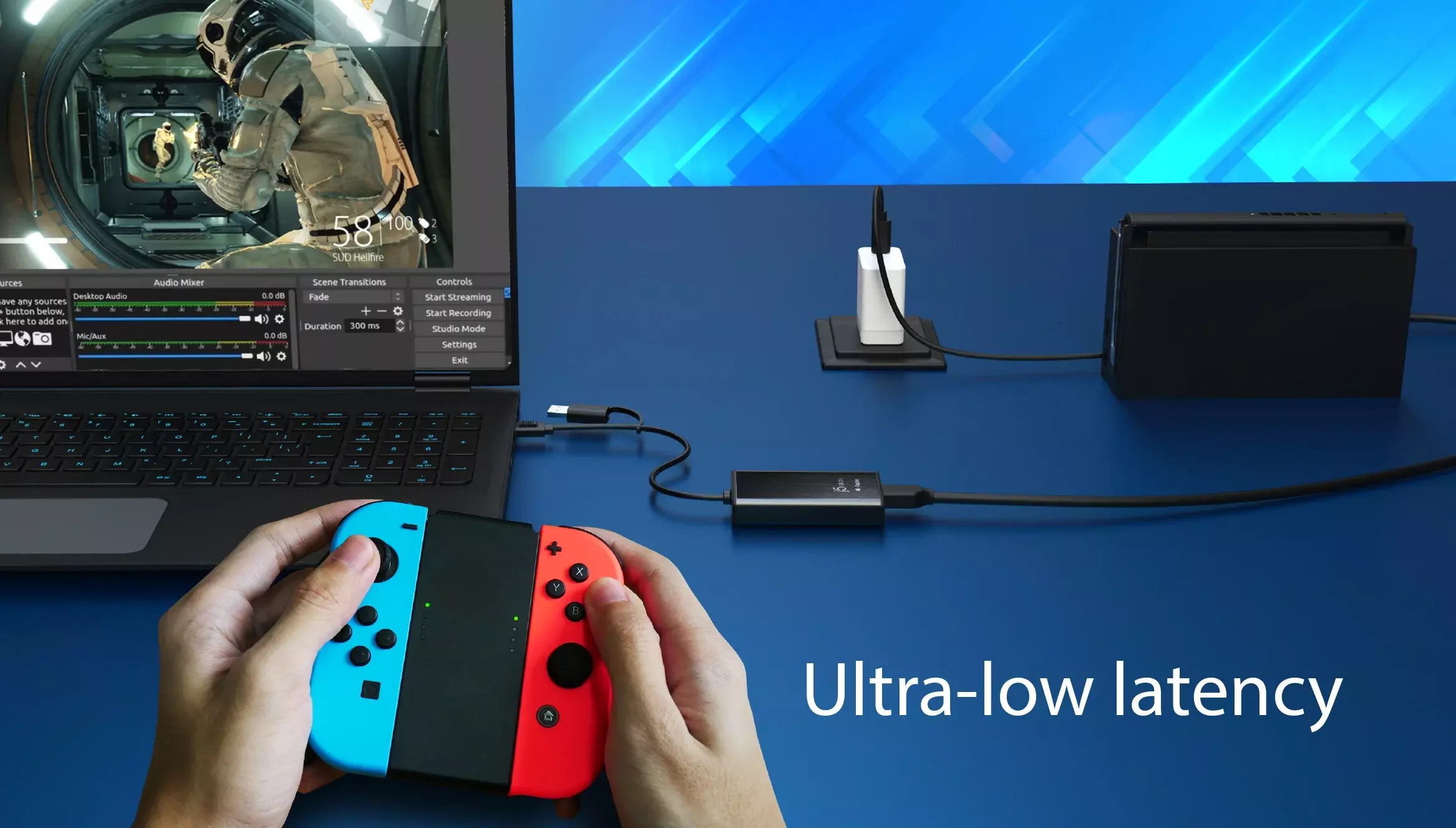

Stream with Ultra-Low Latency and a High-Performance USB-C 3.2 Connection

No Driver Installation Required

Compliance with the UVC/UAC Standard

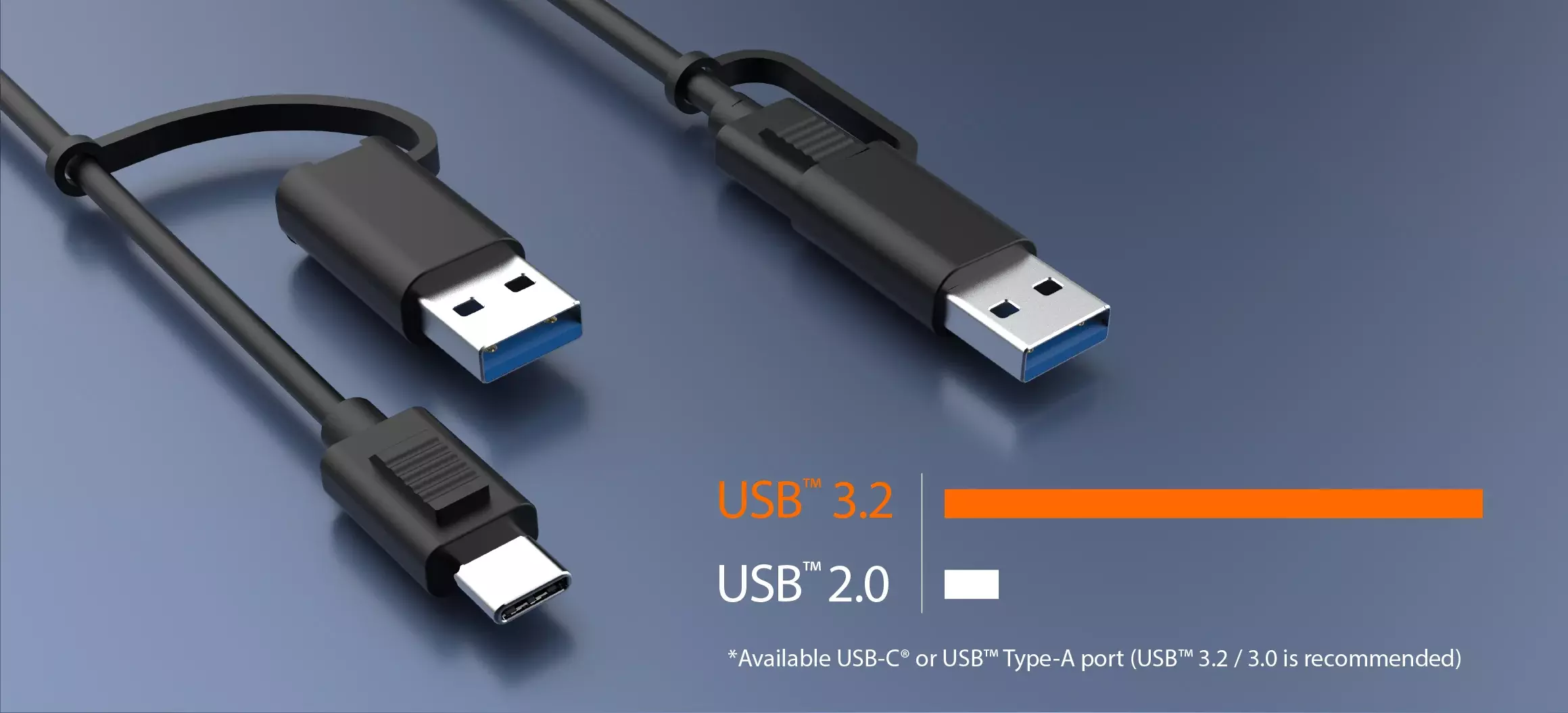

USB-C Cable Includes a Type-A Adapter for Added Compatibility

Ideal For a Variety Of Uses

• Gaming • Video Conferencing • Live Streaming • Broadcasting

Specifications

Hardware

Audio Input	1 - HDMI Female
Audio Output	N/A
Audio Switcher	N/A
Host Connector	1 - USB-C 3.2 Gen 1 Female (Type-A to USB-C)
Ports	1 - USB-C 3.2 Gen 1 (Host) 1 - HDMI Input
Power Source	N/A
Video Input	1 - HDMI Female
Video Output	N/A
Video Switcher	N/A
Warranty	2 Year Limited

Performance

Audio Channel	2.1 via HDMI
Audio Frequency	48 kHz
Compressions	USB 3.0: RGB / YUV4:2:2 / YUV4:2:0 USB 2.0: YUV4:2:0
Hdmi Input Resolutions	3840 x 2160 @ 30
Hdr Supported	No
Headset	N/A
Maximum Capture Capability	USB 3.0: 3840 x 2160 @ 30 USB 2.0: 1280 x 720 @30
Maximum Capture Refresh Rate	4K30 fps, 2K60 fps, 1080p120 fps
Max Display Refresh Rate	N/A
Microphone	N/A

Power

Input Current	1.5A
Input Voltage	5V
Output Current	N/A
Output Voltage	N/A
Power Consumption	≤ 530mA
Power Delivery	N/A

Physical Specifications

Cable Length	7.87 in. (20 cm)
Color	Black
Enclosure Type	Aluminum
Operating Humidity	<80% non-condensing
Operating Temperature	32 to 104°F (0 to 40°C)
Product Depth	0.56 in. (14.14 mm)
Product Height	2.83 in. (72 mm)
Product Weight	1.94 oz (55g)
Product Width	1.61 in. (41 mm)
Storage Humidity	<85% non-condensing
Storage Temperature	14 to 149°F (-10 – 65℃)
