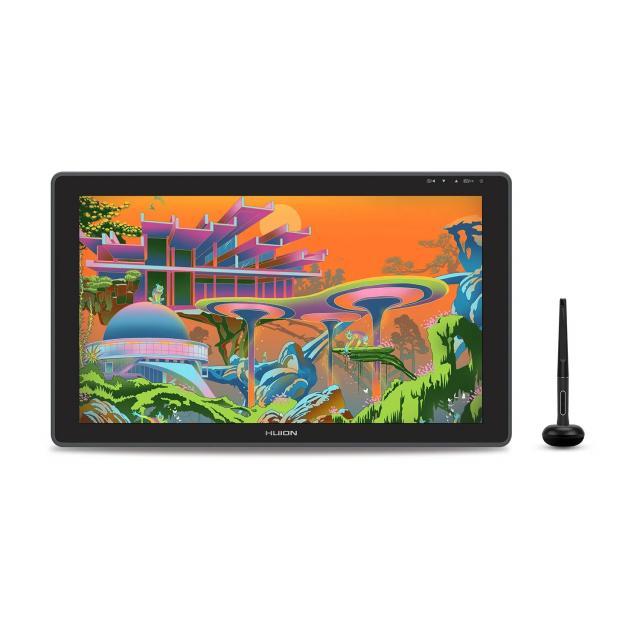

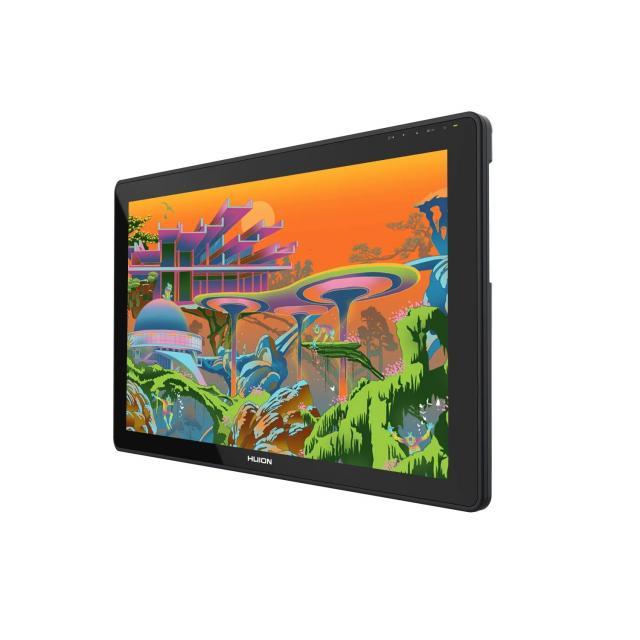

HUION Kamvas 22
Tableta Grafica HUION Kamvas 22, 21.5", 1920 x 1080, Negru
Cod produs: HUION-TAB-GS2201
Întrebare despre HUION Kamvas 22
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 12 luni |
| Suprafață activă | 476 x 268 mm |
| Rezoluţie | 5080 lpi |
| Ecran tactil | Nu |
| Introducere cu stilou | Da |
| Sensibilitatea la presiune | 8192 niveluri |
Related products
Suprafață activă:
286 x 179 mm
Rezoluţie:
5080 lpi
Ecran tactil:
Nu
Introducere cu stilou:
Da
Sensibilitatea la presiune:
8192 niveluri
Suprafață activă:
345 x 194 mm
Rezoluţie:
5080 lpi
Ecran tactil:
Nu
Introducere cu stilou:
Da
Sensibilitatea la presiune:
8192 niveluri
Suprafață activă:
350 x 197 mm
Rezoluţie:
5080 lpi
Ecran tactil:
Nu
Introducere cu stilou:
Da
Sensibilitatea la presiune:
16384 niveluri
Suprafață activă:
294 x 165 mm
Rezoluţie:
5080 lpi
Ecran tactil:
Nu
Introducere cu stilou:
Da
Sensibilitatea la presiune:
8192 niveluri
Suprafață activă:
294 x 165 mm
Rezoluţie:
5080 lpi
Ecran tactil:
Nu
Introducere cu stilou:
Da
Sensibilitatea la presiune:
16384 niveluri
Suprafață activă:
409 x 230 mm
Rezoluţie:
5080 lpi
Ecran tactil:
Dа
Introducere cu stilou:
Da
Sensibilitatea la presiune:
16384 niveluri
Suprafață activă:
345 x 194 mm
Rezoluţie:
5080 lpi
Ecran tactil:
Dа
Introducere cu stilou:
Da
Sensibilitatea la presiune:
8192 niveluri
Suprafață activă:
216 x 135 mm
Ecran tactil:
Dа
Introducere cu stilou:
Da
Sensibilitatea la presiune:
4096 niveluri
Suprafață activă:
345 x 194 mm
Rezoluţie:
5080 lpi
Ecran tactil:
Dа
Introducere cu stilou:
Da
Sensibilitatea la presiune:
8192 niveluri
Suprafață activă:
527 x 296 mm
Rezoluţie:
5080 lpi
Ecran tactil:
Dа
Introducere cu stilou:
Da
Sensibilitatea la presiune:
8192 niveluri
Suprafață activă:
345 x 216 mm
Rezoluţie:
5080 lpi
Ecran tactil:
Nu
Introducere cu stilou:
Da
Sensibilitatea la presiune:
8192 niveluri
Suprafață activă:
267 x 167 mm
Rezoluţie:
5080 lpi
Ecran tactil:
Nu
Introducere cu stilou:
Da
Sensibilitatea la presiune:
8192 niveluri
Rezolutie: 1920 x 1080 (16:9)
PPI (Pixels Per Inch): 102 PPI
LCD Tipe: IPS
Zona activa: 476.64 x 268.11mm
Raport de Contrast: Kamvas 22: 1000:1 / Kamvas 22 Plus: 1200:1
Luminozitate: 220cd/m2 (Max.)
Timp de raspuns: 14ms
Unghi de vizualizare: 89°/89°(H)/89°/89°(V) (Typ.)(CR＞10)
Gama de culori: 120% sRGB
Culori: 16.7M (8bit)
Tehnologia stiloului: Rezonanta electromagnetica fara baterii
Rezolutia stiloului: 5080 LPI
Niveluri de presiune: 8192 niveluri
Precizie: ±0.3mm (Centru), ±2mm (Colt)
Inaltime de citire: 10mm
Recunoasterea inclinarii: ±60°
Stilou digital: PW517
Interfata Video: USB-C × 2; USB-A × 1
Suport Reglabil: ST100A (Gri)
Sistem de operare: Windows 7 sau mai noua versiune, macOS 10.12 sau mai noua versiune Android（USB3.1 DP1.2）
AG Glass: Anti-Glare Matte Film
Tensiune de intrare: AC 100-240V, 50/60Hz
Tensiune de iesire: 12V 3A
Consum de energie: ≤24W
Consum in mod de asteptare: ≤0.3W
Culoare: Negru
Dimensiuni: 546 x 323 x 19~26.7 mm (fara suport)
Greutate neta: 3.9 KG (cu suport)
Compatibilitate VESA: 75 × 75mm
Kamvas 22
Simple, But Powerful.
Professional display for your creativity.
Immersed in this
colorful world.
A wide color space.
A 21.5inch screen that boasts 120% sRGB color gamut enables 16.7 million colors to be
displayed naturally and vividly on Kamvas 22. Together with the contrast ratio of 1000:1,
Kamvas 22 can bring users an immersive visual effect.
Panel Size21.5inch |
Gamut120%sRGB |
Contrast Ratio1000:1 |
Every detail is clear and crisp.
The anti-glare matte film applied on Kamvas 22 is to alleviate the glare of reflection and
guarantee clear display effects. The matte finish can also mimic the feel of drawing on paper.
Besides, 178° wide viewing angle together with 1920 × 1080 display resolution allows users to
enjoy delicate details from different directions.
178° viewing angle
Unleash your creativity
with natural strokes.
Refined works with natural and accurate lines.
Digital Pen PW517 that featured PenTech3.0 has a lowered magnetic core, which makes its pen nib more stable and brings better drawing experience. Moreover, with 8192 levels of pressure sensitivity, digital pen PW517 allows users to render lines in different widths and saturations as pressure applied changed.
Tilt your pen to create more.
The digital pen can be tilted within ±60° to draw shadows like a real pencil. Additionally, lines input is smooth and natural without occurance of lagging and jittering.
Innovative
design is in the details.

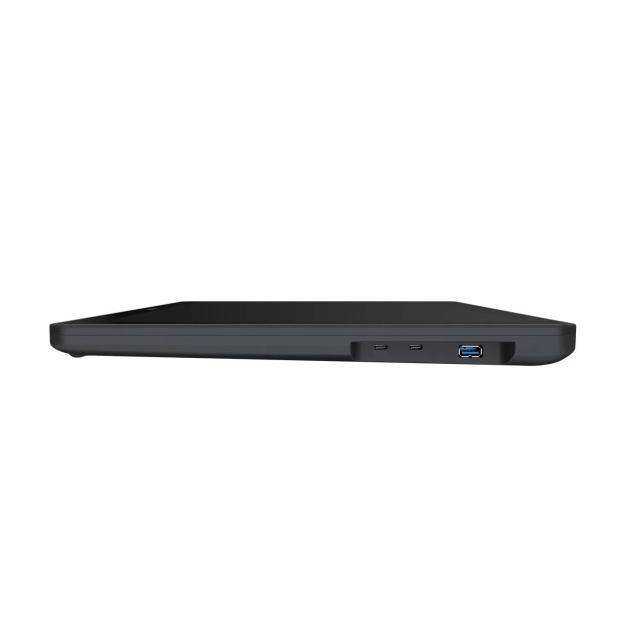

Dual USB-C ports bring more fun.
Two USB-C ports equipped on Kamvas 22 allow users to connect the pen display to
the computer, Android phone or tablet via a 3-in-1 cable or a USB-C to USB-C cable.
While the USB-A port is designed for the connection to external peripherals such as
keyboard, USB disk, etc.
*Extra power supply is needed when connected via a USB-C to USB-C cable.
 |
 |
 |
| Connection with Android phone (USB-C) | Connection with USB flash disk (USB-A) | Connection with Keyboard (USB-A) |

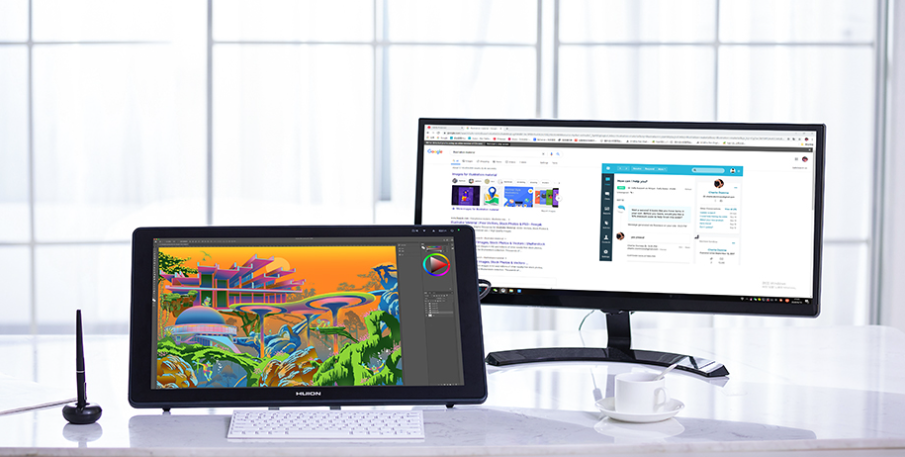

The extension of your screen.
A USB-C port is designed on Kamvas 22 Plus for the connection to your tablet, computer, game console, or Android phone. Via a USB-C to USB-C cable, users can enjoy working or gaming on this 21.5inch large screen.
Android Phone/Tablet Connection

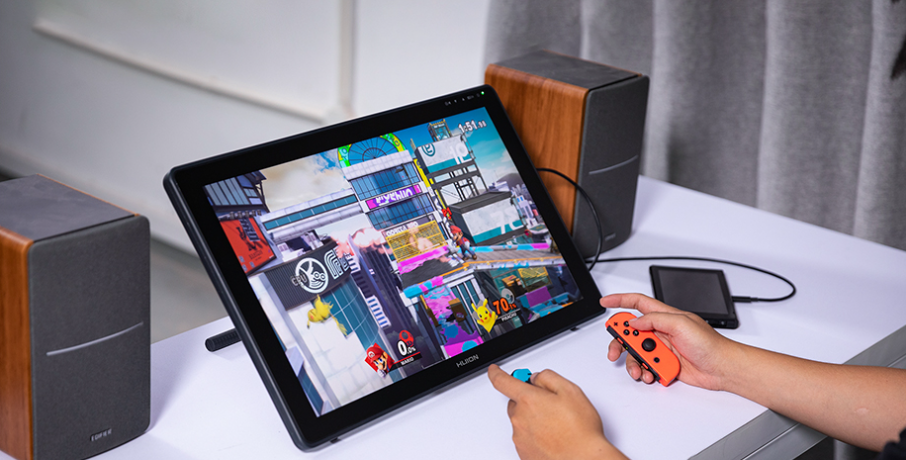

Game console connection
Computer connection
* USB-C ports on phones, tablets and PCs should at least support USB3.1 GEN1 data transfer protocol and DP1.2.

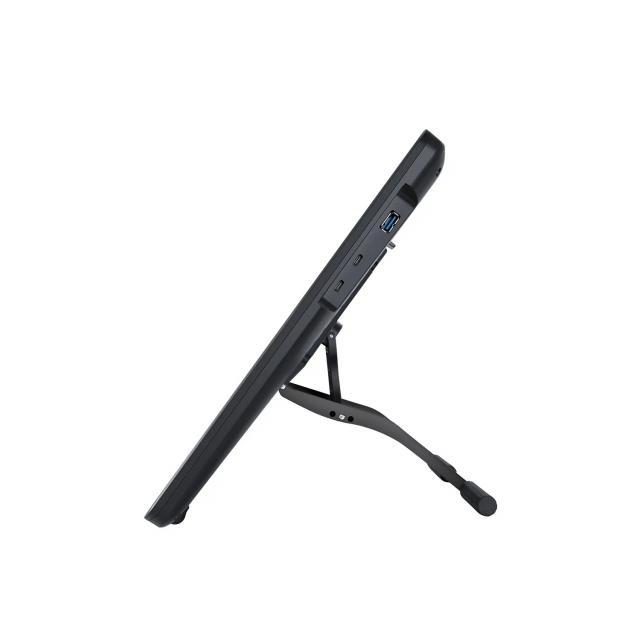

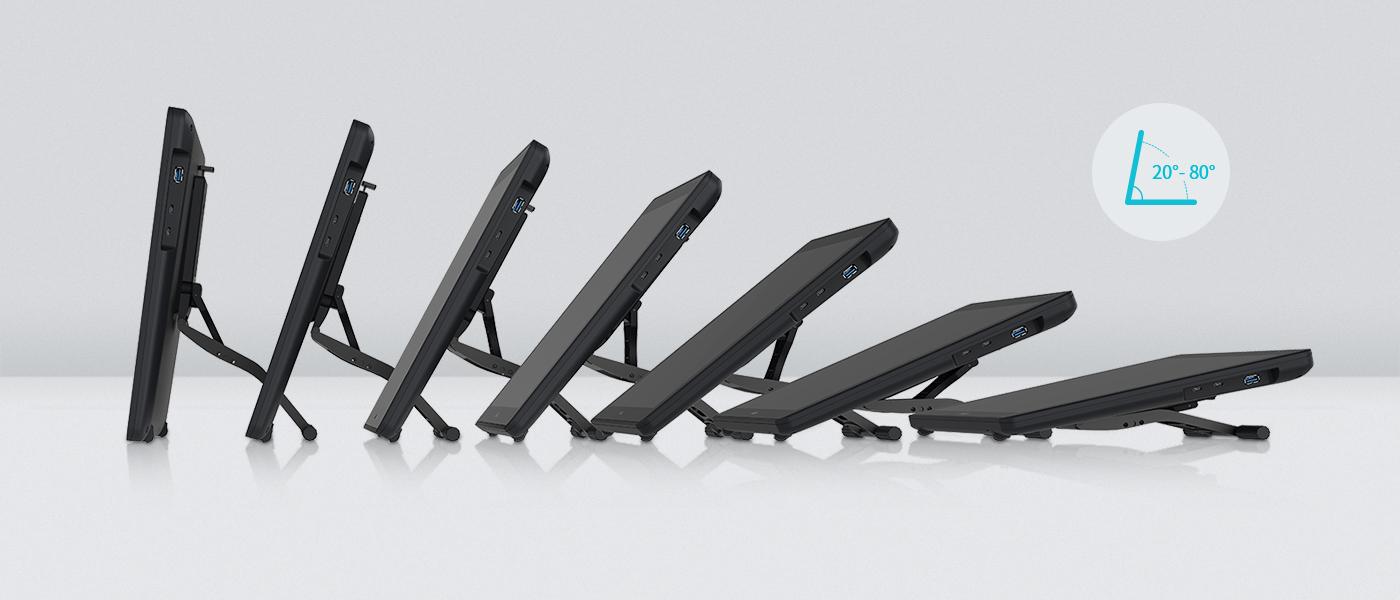

Adjustable stand for better efficiency.
The ergonomically designed grey metallic stand not only matches the color of the pen display but also
allows users to create at a more comfortable angle from 20°to 80°, which helps to improve the
productivity. Additionally, the device is sleek and slim with its thickness ranges from 19mm to 26.7mm.

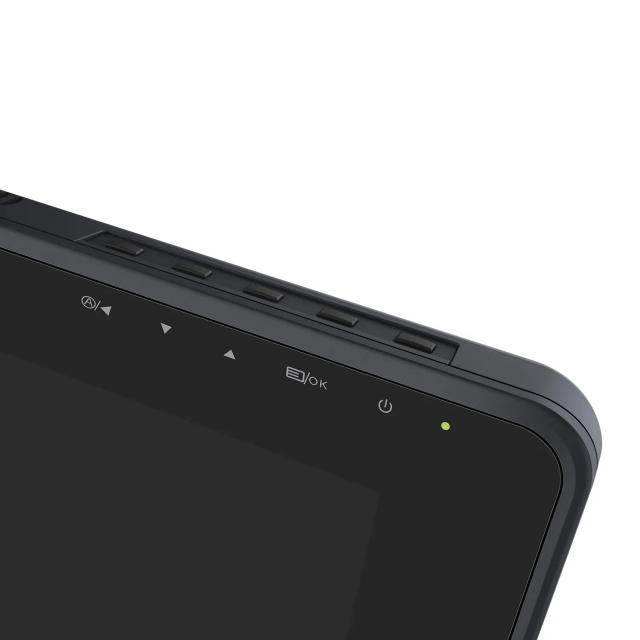

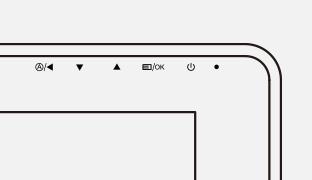

OSD Icons

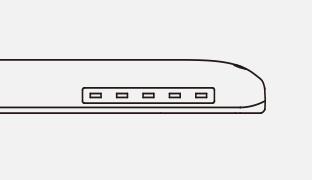

Buttons

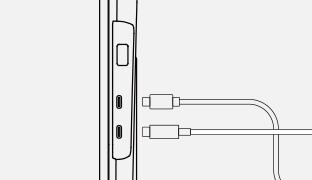

Ports

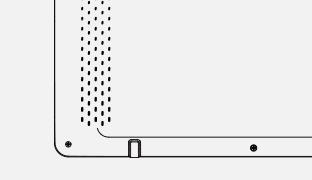

Heat Vent
Strong compatibility.Kamvas 22 can work seamlessly with devices running on
Windows, macOS, Linux OS or Android, and supports various
mainstream drawing and designing software.
|
 |
 |
 |
 |
 |
 |
 |
 |
Appearance
| Color: | Dark Gray |
| Dimension: | 546 x 323 x 19~26.7mm |
| Working Area: | 476.64 x 268.11mm |
| Net Weight: | 3.9KG（With Stand） |
| Touch: | - |
| Stand: | Adjustable Stand 20°~80° |
| Video Interface: | USB-C, Full-Featured USB-C |
Screen
| Resolution: | 1920 x 1080（16:9） |
| LCD Type: | IPS |
| AG Glass: | Anti-glare matte film |
| Full Lamination: | NO |
| Contrast Ratio: | 1000:1 |
| Brightness: | 220cd/m2 (Max.) |
| Response Time: | 14ms |
| Viewing Angle: | 89°/89°(H)/89°/89°(V) (Typ.)(CR＞10) |
| Gamut Volume: | 120% sRGB |
| Display Color: | 16.7M(8bit) |
Technical Specifications
| Digital Pen: | PW517 |
| Pen Technology: | Battery-Free Electromagnetic Resonance |
| Pen Resolution: | 5080LPI |
| Pressure Sensitivity: | 8192Levels |
| Tilt Support: | ±60° |
| Sensing Height: | 10mm |
| Report Rate: | ＞220PPS |
| Accuracy: | ±0.3mm（center） ±2mm（corner） |
| Press Keys: |
Operating Conditions
| Input Voltage: | AC 100-240V, 50/60Hz |
| Output Voltage: | 12V 3A |
| Power Consumption: | ≤24W |
| Standby Consumption: | ≤0.3W |
| Working Temp. and Humidity: | 0-40°C 、 20-80% |
| Storage Temp. and Humidity: | -20°C~60°C、 10-90% |
OS Compatibility
| Windows | 7 or later |
| macOS | 10.12 or later |
| Android | (USB3.1 DP1.2） |
| Linux |
