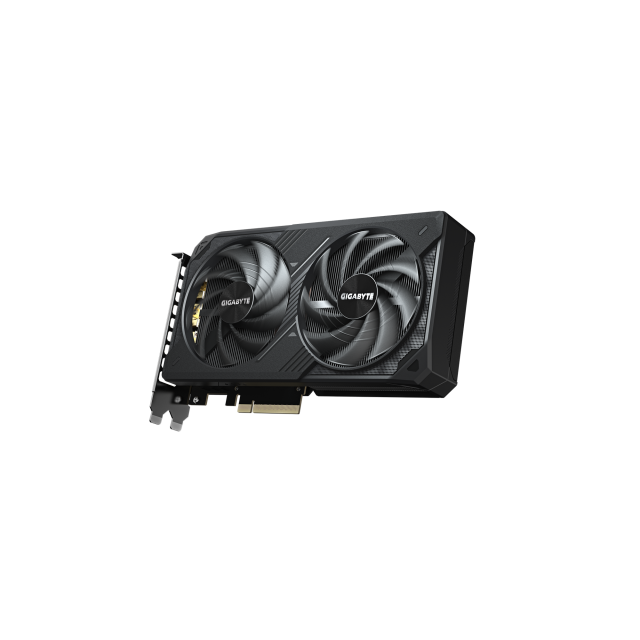

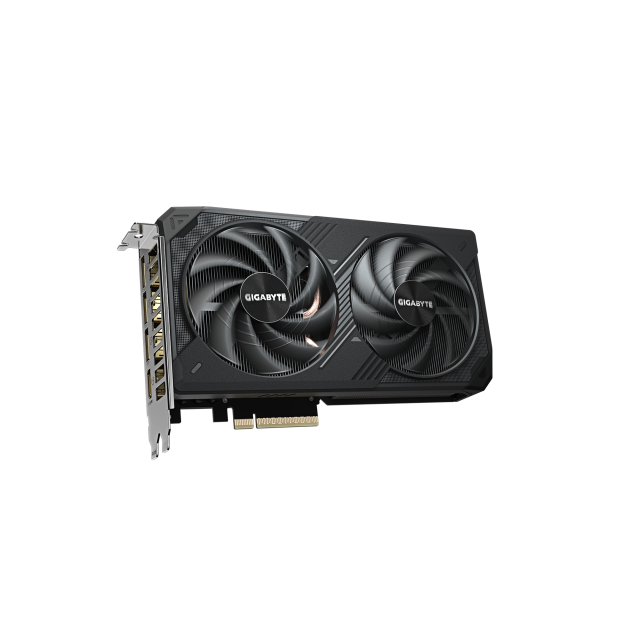

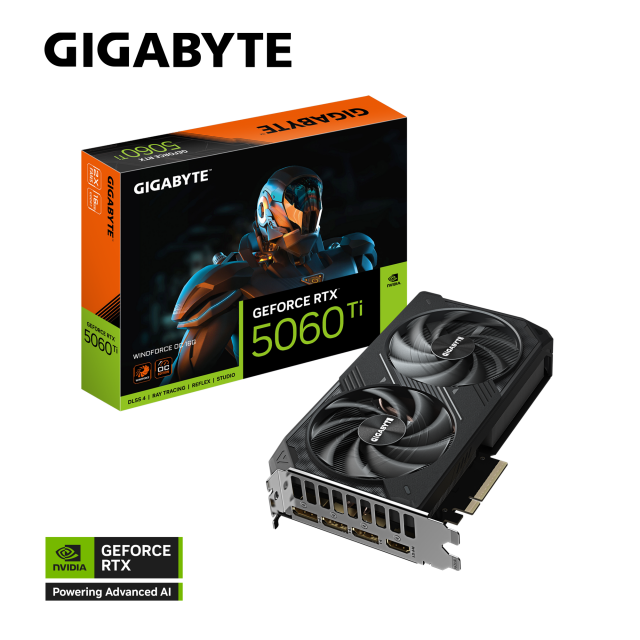

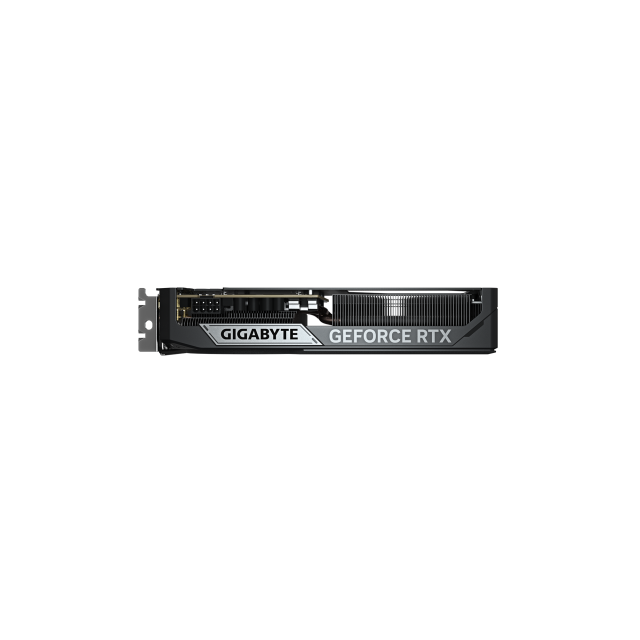

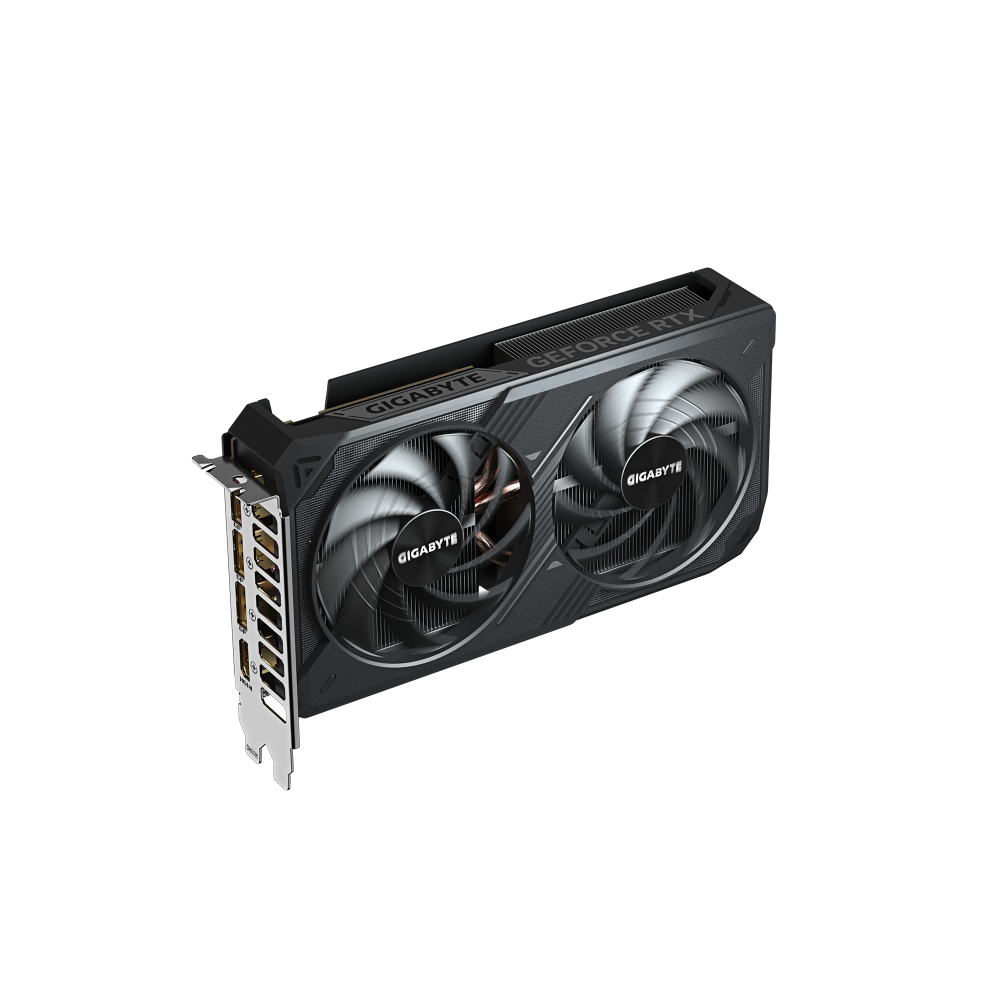

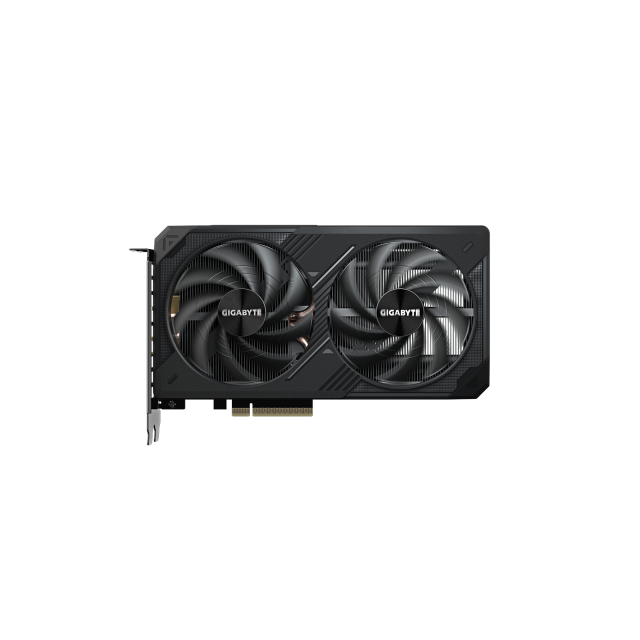

GIGABYTE GeForce RTX 5060 Ti WINDFORCE OC 16G

Placa video GIGABYTE RTX 5060 TI WINDFORCE OC 16GB GDDR7

Cod produs: GA-VC-N506TWF2-OC-16GD
nu este disponibil

Întrebare despre GIGABYTE GeForce RTX 5060 Ti WINDFORCE OC 16G

Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
Garanție 36 luni
Memorie 16 GB
Nuclee 4608 CUDA
Frecvență 2587 MHz
BUS memorie 128 biți
Ieșiri HDMI, DisplayPort
Tip memorie GDDR7
Serie RTX 5000 Series

Related products

GIGABYTE GeForce RTX 5060 Ti WINDFORCE OC 16G este o placa video moderna si echilibrata, bazata pe arhitectura NVIDIA Blackwell. Cu 16 GB GDDR7, racire WINDFORCE si frecvente ridicate, este ideala pentru gaming 1080p/1440p, creatie digitala si aplicatii AI, oferind performanta fluida, eficienta termica si fiabilitate extinsa.

  • Arhitectura GPU: NVIDIA Blackwell GB206 cu 4608 nuclee CUDA, Tensor Cores Gen 5 si Ray Tracing Cores Gen 4 pentru realism grafic si accelerare AI
  • Memorie video: 16 GB GDDR7 pe 128 biti, cu latime de banda de 448 GB/s si frecventa efectiva de 28 Gbps pentru multitasking fluid si rezolutii inalte
  • Frecvente ridicate: Boost clock de 2587 MHz (referinta 2572 MHz), oferind un plus de performanta fata de modelul standard
  • Racire WINDFORCE: Sistem cu ventilatoare Hawk, heatpipe-uri compozite, placa de cupru, gel termic de nivel server si ecranare activa 3D pentru disipare eficienta si silentiozitate
  • Design compact si robust: Format dual-slot, lungime de 241 mm, alimentare prin conector 8-pin si recomandare de sursa 450W

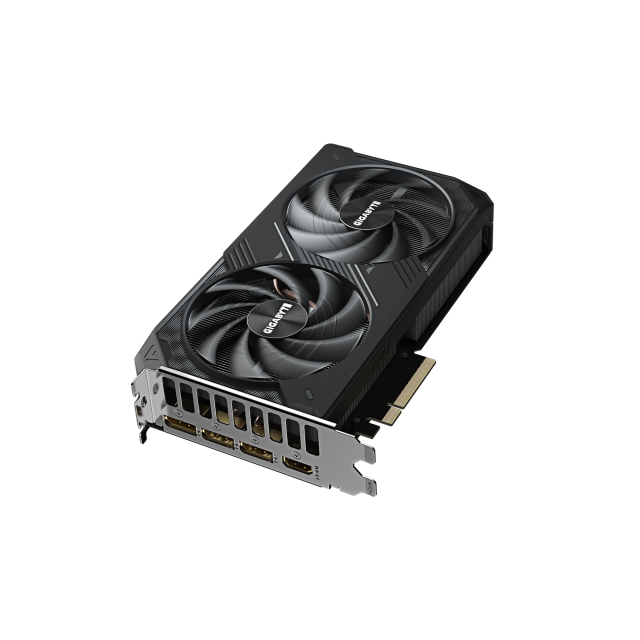

  • Conectivitate video: 3x DisplayPort 2.1b si 1x HDMI 2.1b pentru afisare 8K si suport multi-monitor
  • Tehnologii NVIDIA: DLSS 4 cu Multi Frame Generation, Reflex 2 cu Frame Warp, ACE pentru asistenti digitali si suport complet pentru DirectX 12 Ultimate
  • Compatibilitate PCIe: Interfata PCIe 5.0 x8 pentru transferuri ultra-rapide si latenta redusa










FEATURES

            1. Powered by the NVIDIA Blackwell architecture and DLSS 4
            2. Powered by GeForce RTX 5060 Ti
            3. Integrated with 16GB GDDR7 128bit memory interface
            4. WINDFORCE cooling system
              1. Hawk fan
              2. Server-grade Thermal conductive gel
            5. Reinforced structure

CORE CLOCK
2587 MHz (Reference card :2572 MHz)



















































                                                                          WINDFORCE                                                                                                                                           COOLING SYSTEM     The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

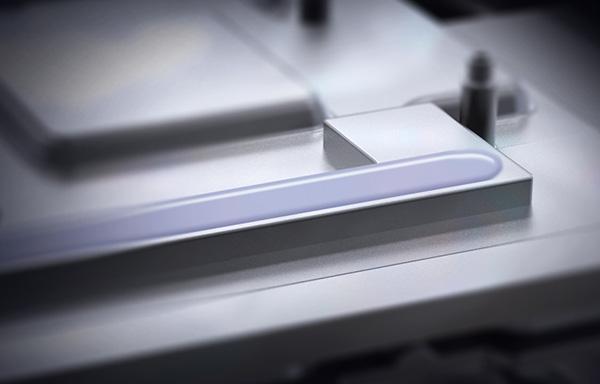

SERVER-GRADE THERMAL
CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

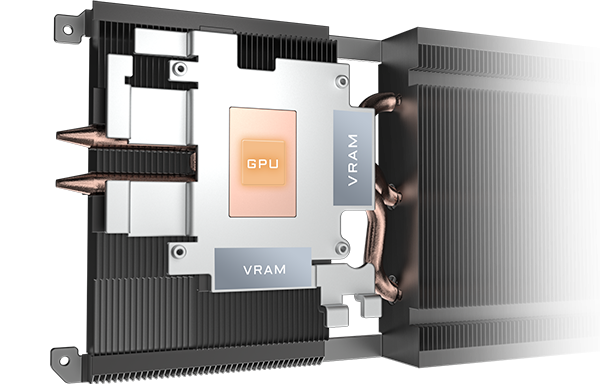

COPPER PLATE & COMPOSITE COPPER HEAT PIPE

The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

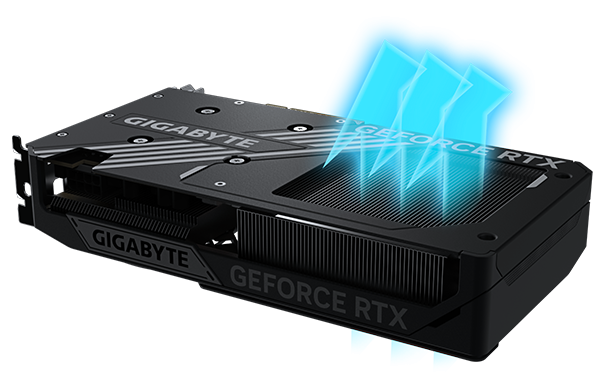

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.









EXCELLENCE IN ESSENTIAL

























REINFORCED STRUCTURE

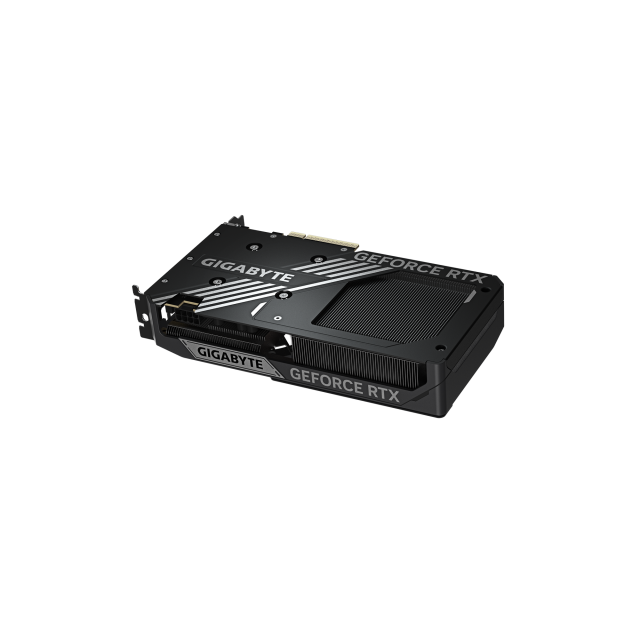

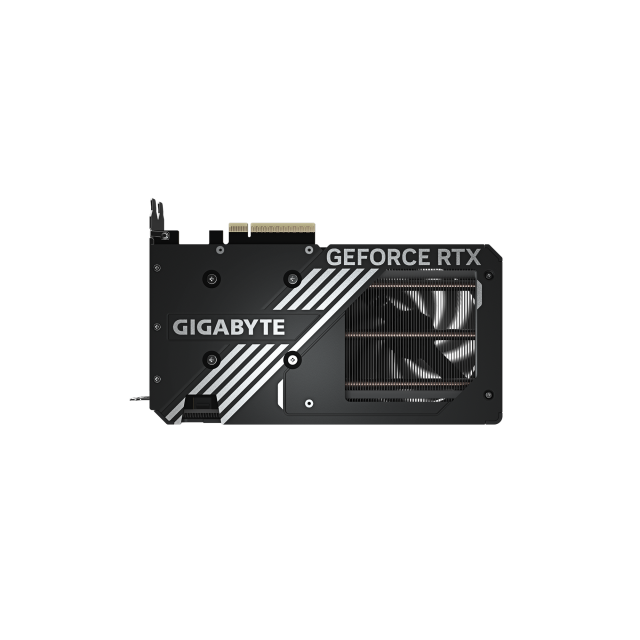

The reinforced metal backplate securely fastened to the I/O bracket, provides exceptional structural integrity.















GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.



LEARN MORE









Specifications



Graphics Processing GeForce RTX 5060 Ti Multi-view 4
Core Clock 2587 MHz (Reference card :2572 MHz) Card size L=208 W=120 H=40 mm
CUDA Cores 4608 PCB Form ATX
Memory Clock 28 Gbps DirectX DirectX 12 API
Memory Size 16 GB OpenGL 4.6
Memory Type GDDR7 Recommended PSU 650W
Memory Bus 128 bit Power Connectors 8 Pin*1

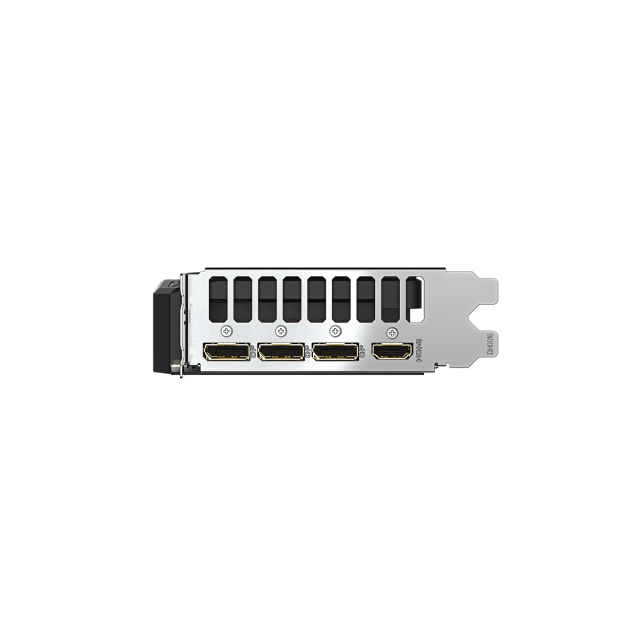

Card Bus PCI-E 5.0 Output DisplayPort 2.1b *3
HDMI 2.1b *1
Digital max resolution 7680x4320 Accessories Quick guide
