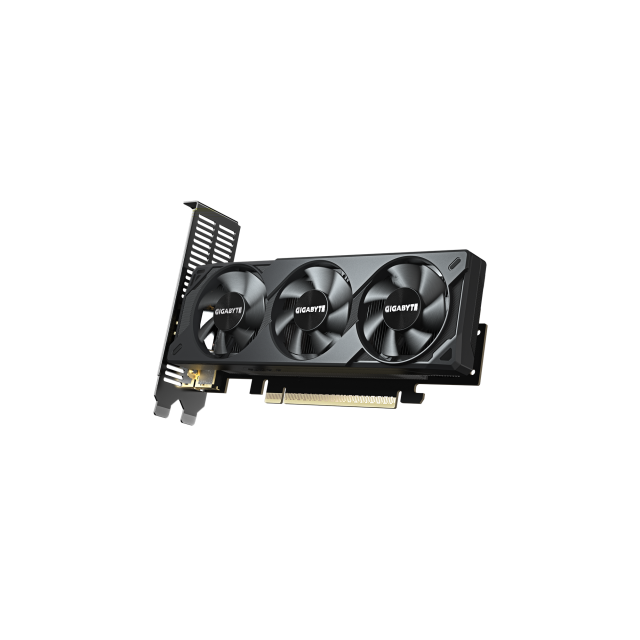

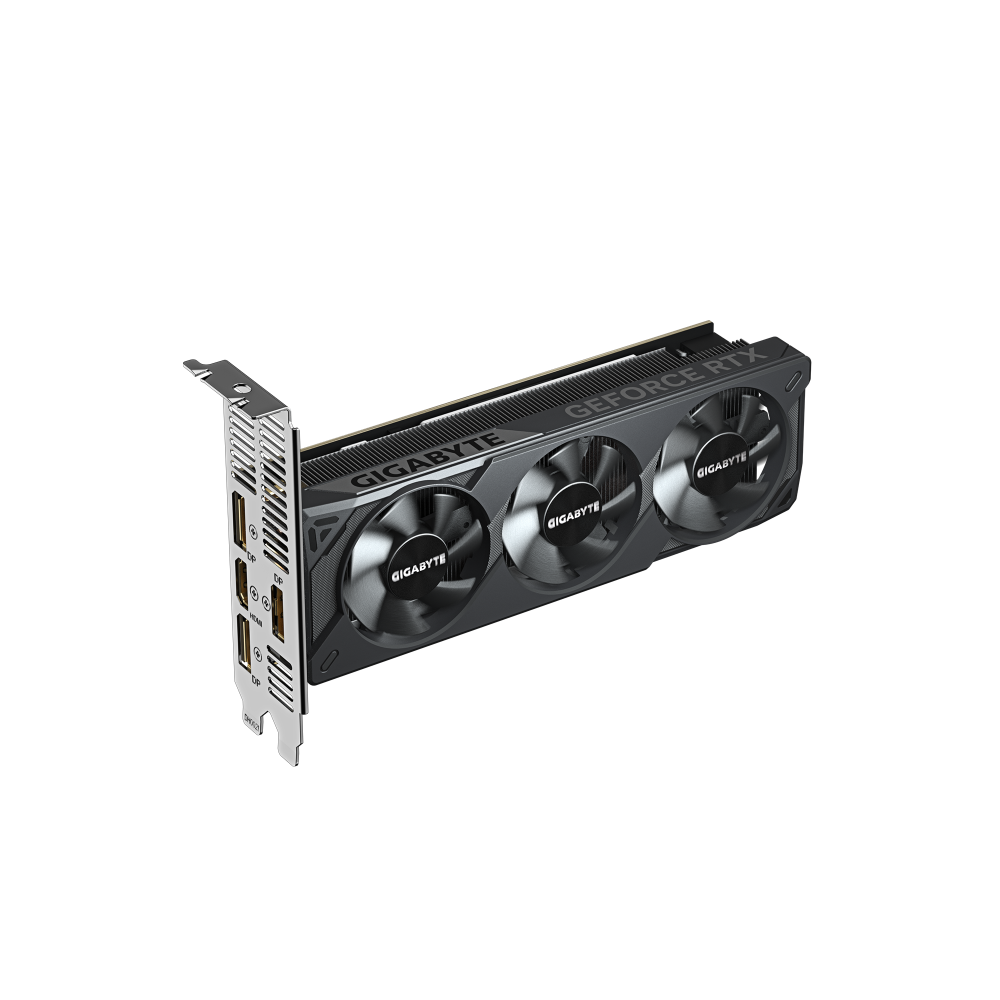

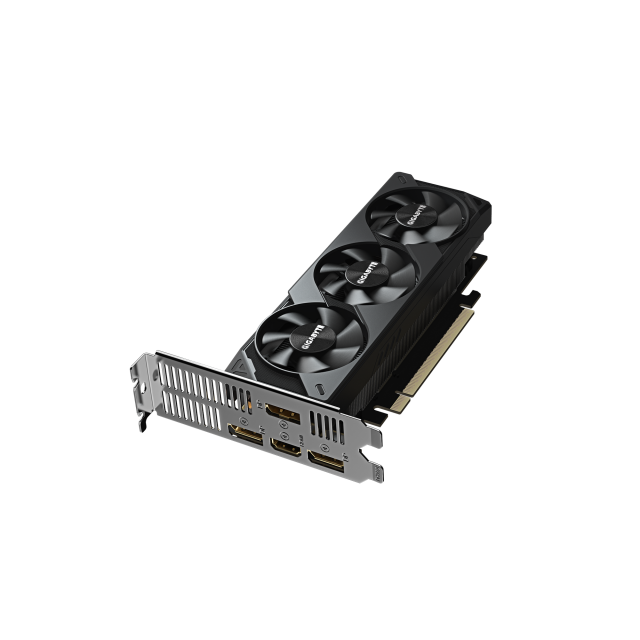

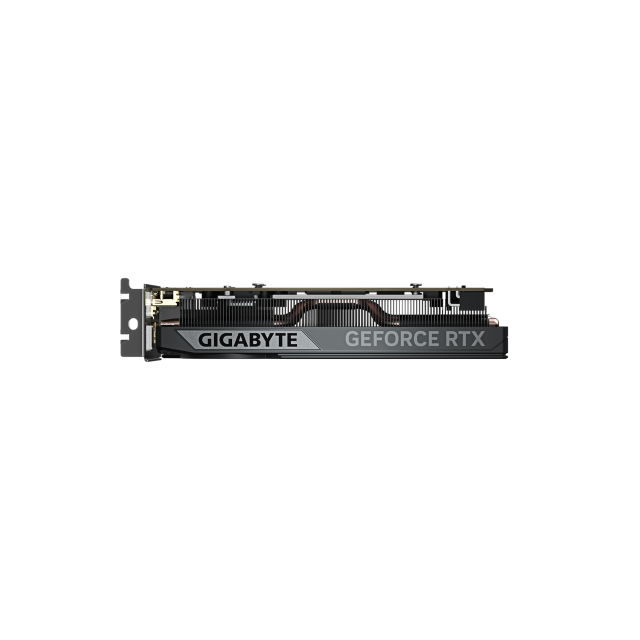

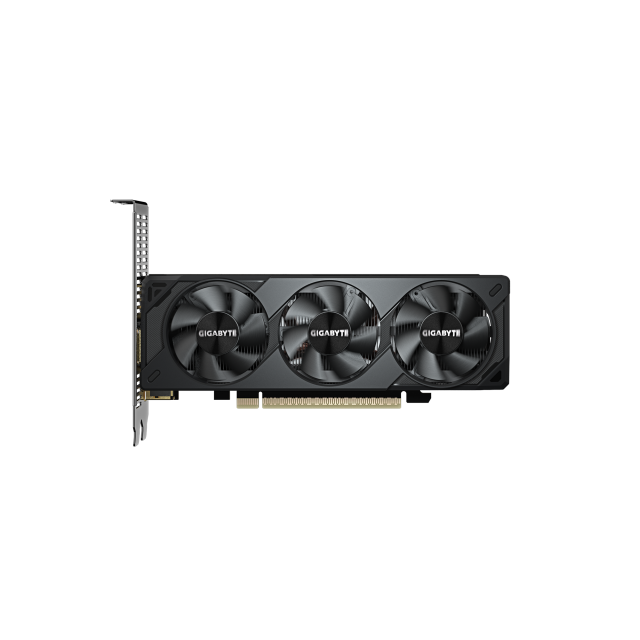

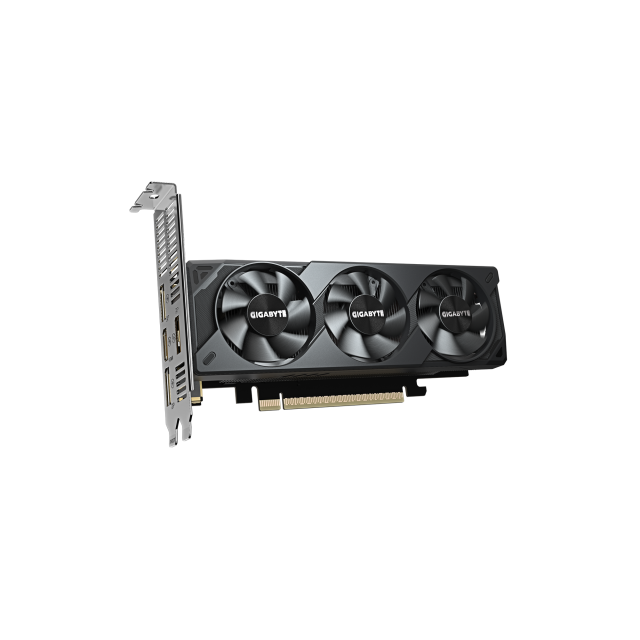

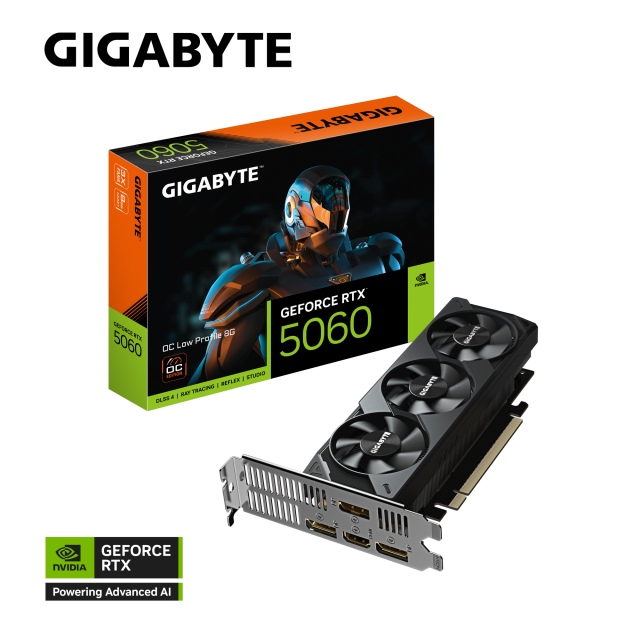

GIGABYTE GeForce RTX 5060 OC Low Profile 8G

Placa video GIGABYTE RTX 5060 Low Profile OC 8GB GDDR7

Cod produs: GA-VC-N5060-OC-8GL
nu este disponibil

Întrebare despre GIGABYTE GeForce RTX 5060 OC Low Profile 8G

Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
Garanție 36 luni
Memorie 8 GB
Nuclee 3840 CUDA
Frecvență 2512 MHz
BUS memorie 128 biți
Ieșiri HDMI, DisplayPort
Tip memorie GDDR7
Serie RTX 5000 Series

Related products

GIGABYTE GeForce RTX 5060 OC Low Profile 8G este o placa video ultra-compacta si eficienta, bazata pe arhitectura NVIDIA Blackwell. Cu 8 GB GDDR7, design low profile si racire optimizata, este ideala pentru sisteme mici, gaming 1080p si aplicatii AI, oferind performanta stabila si compatibilitate extinsa in carcase Micro-ATX sau slim.

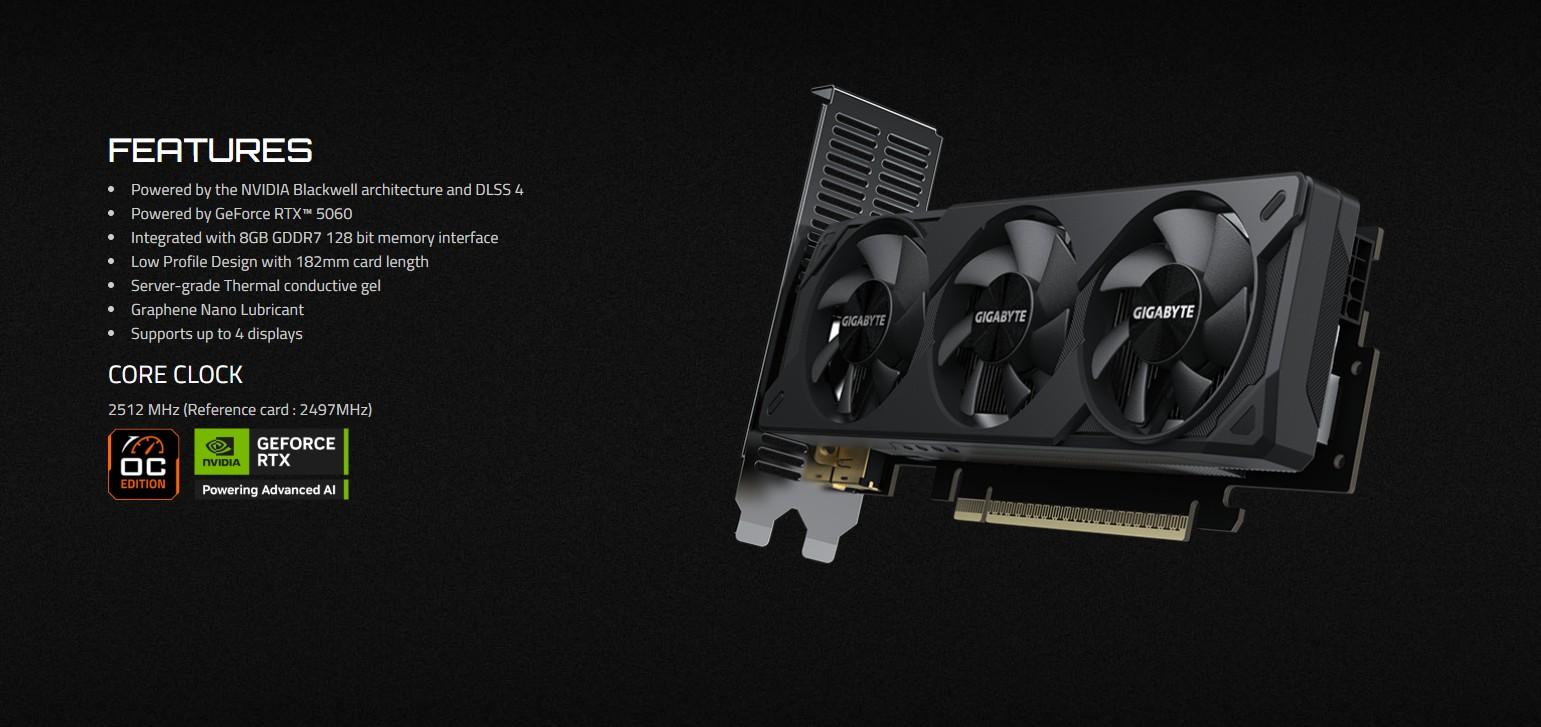

  • Arhitectura GPU: NVIDIA Blackwell GB206 cu 3840 nuclee CUDA, Tensor Cores Gen 5 si Ray Tracing Cores Gen 4 pentru realism grafic si accelerare AI
  • Memorie video: 8 GB GDDR7 pe 128 biti, cu latime de banda de 448 GB/s si frecventa efectiva de 28 Gbps pentru multitasking fluid si rezolutii inalte
  • Frecvente ridicate: Boost clock de 2512 MHz (referinta 2497 MHz), oferind un plus de performanta fata de modelul standard

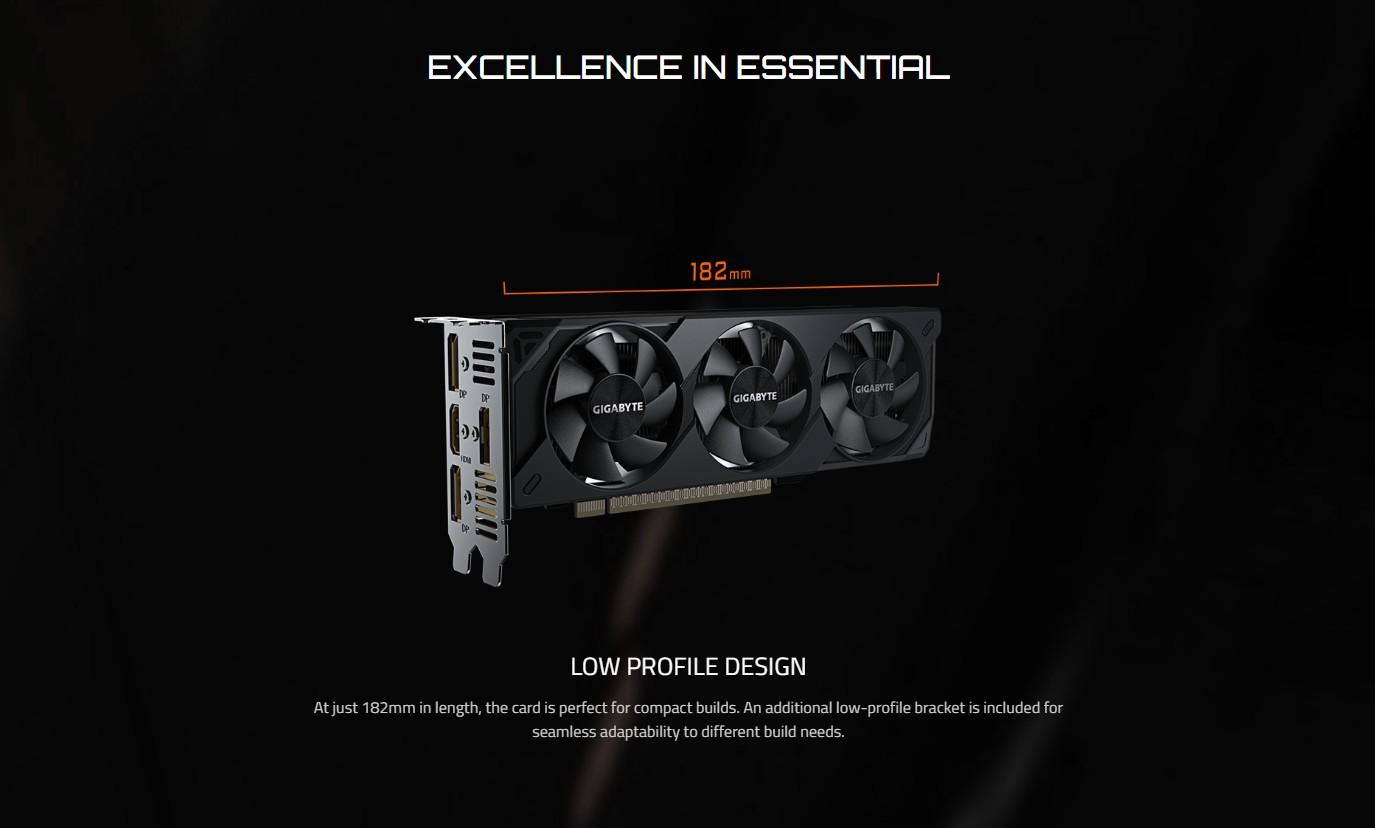

  • Racire compacta: Design low profile cu lungime de doar 182 mm, ventilatoare optimizate si gel termic de nivel server pentru disipare eficienta in spatii restranse
  • Conectivitate video: 3x DisplayPort 2.1b si 1x HDMI 2.1b, suport pentru pana la 4 monitoare si afisare 8K
  • Tehnologii NVIDIA: DLSS 4 cu Multi Frame Generation, Reflex 2 cu Frame Warp, ACE pentru asistenti digitali, NVIDIA Studio si Broadcast pentru creatori de continut
  • Compatibilitate PCIe: Interfata PCIe 5.0 x8 pentru transferuri ultra-rapide si latenta redusa
  • Dimensiuni si consum: Lungime 182 mm, grosime dual-slot, TDP de 145W si sursa recomandata de 300W

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

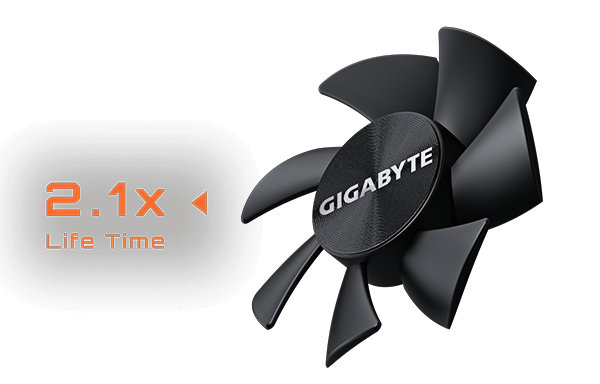

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

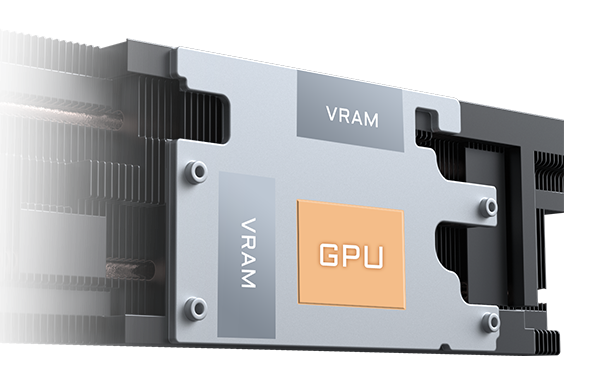

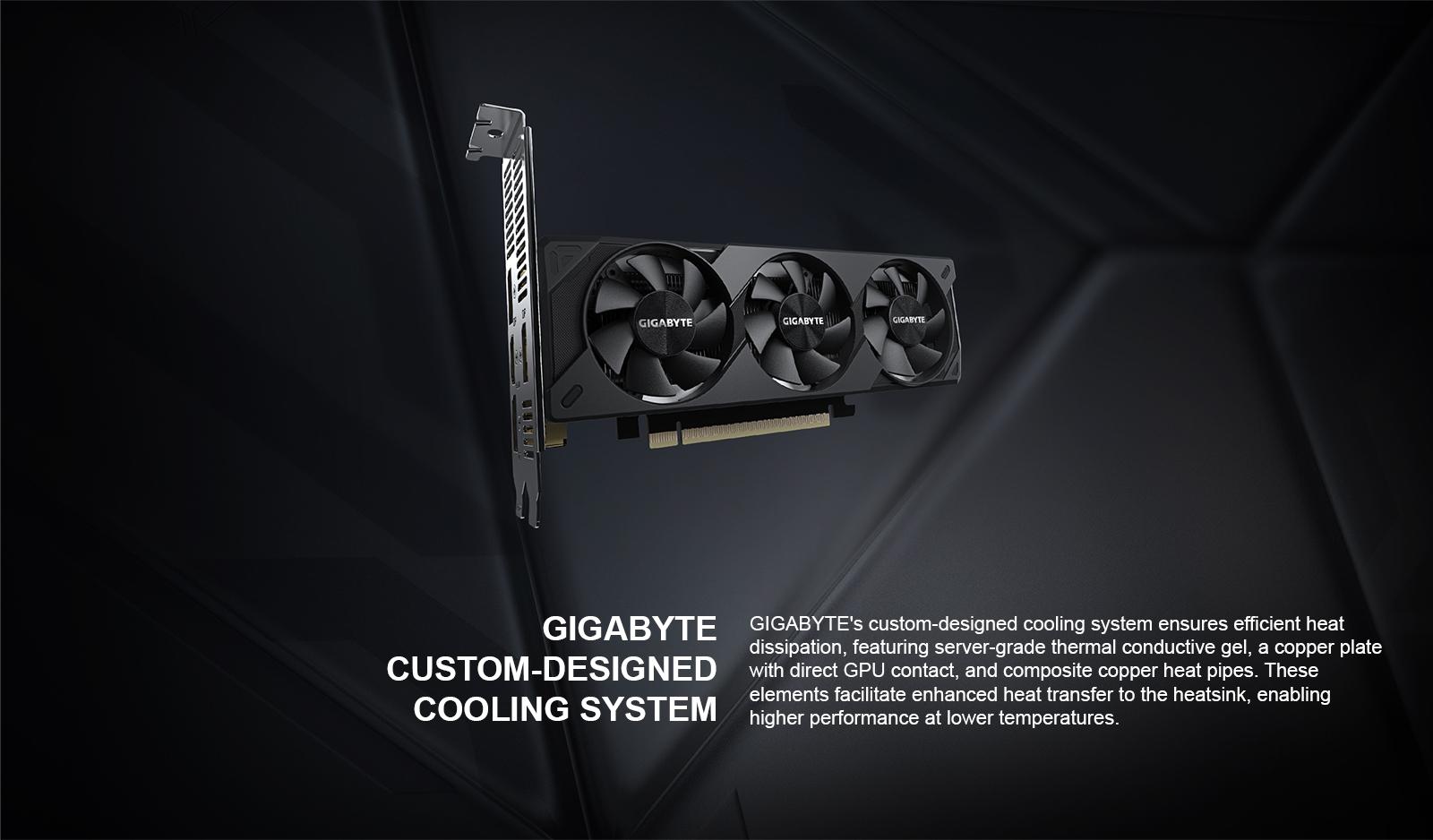

COPPER PLATE & COMPOSITE COPPER HEAT PIPE

The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

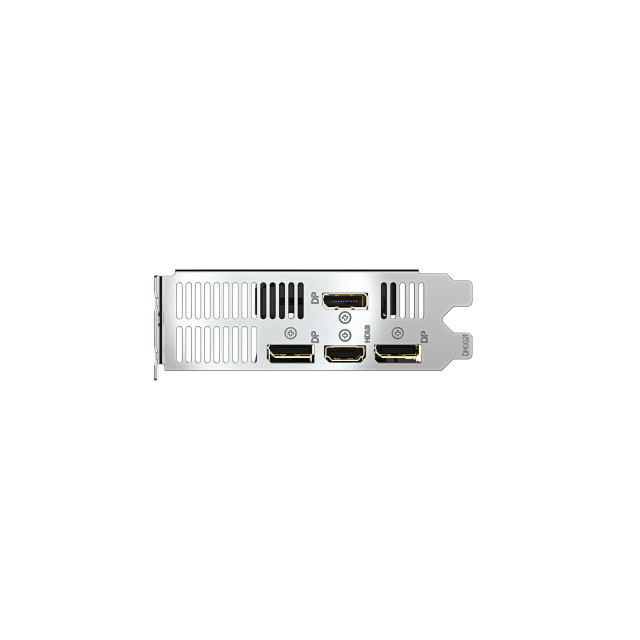

AMPLE CONNECTIVITY

Enjoy versatile display options with three DisplayPorts and one HDMI port,
supporting up to four displays simultaneously. Meets the demands of multi-display setups,
high-resolution applications, and delivers an ultimate gaming performance experience.

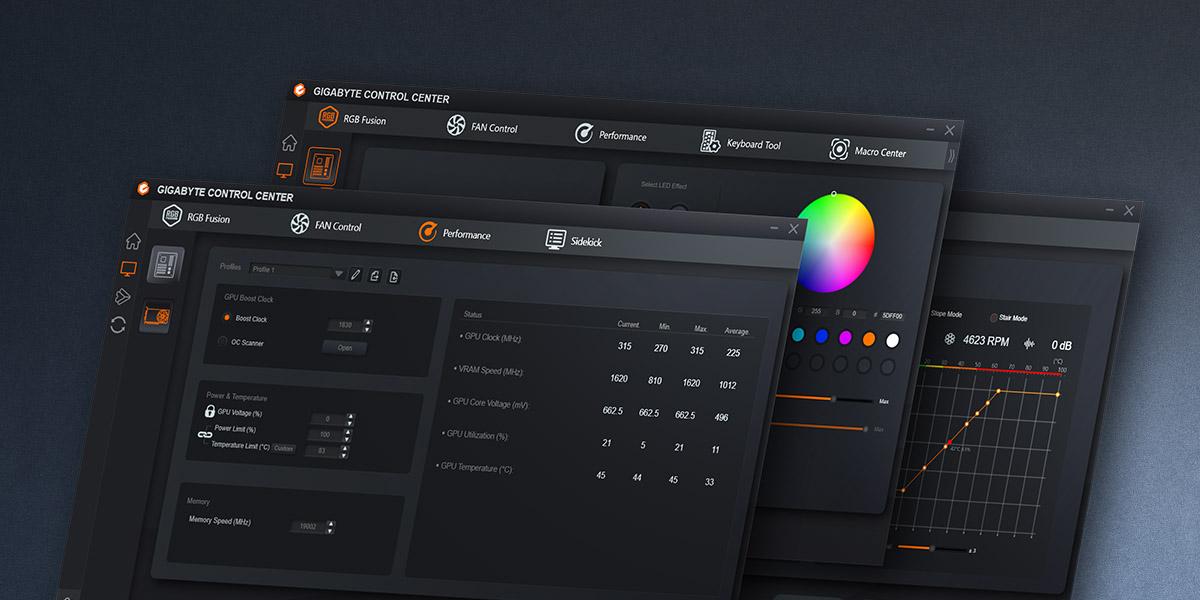

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.



LEARN MORE









Specifications



Graphics Processing GeForce RTX 5060 Multi-view 4
Core Clock 2512 MHz (Reference card : 2497MHz) Card size L=182 W=69 H=36
CUDA Cores 3840 PCB Form ATX
Memory Clock 28 Gbps DirectX DirectX 12 API
Memory Size 8GB OpenGL OpenGL 4.6
Memory Type GDDR7 Recommended PSU 550W
Memory Bus 128 bit Power Connectors 8 pin*1
Card Bus PCI-E 5.0 Output DisplayPort 2.1b *2
DisplayPort 1.4a *1
HDMI 2.1b *1
Digital max resolution 7680 x 4320 Accessories 1. Quick guide
2. Low Profile Bracket
