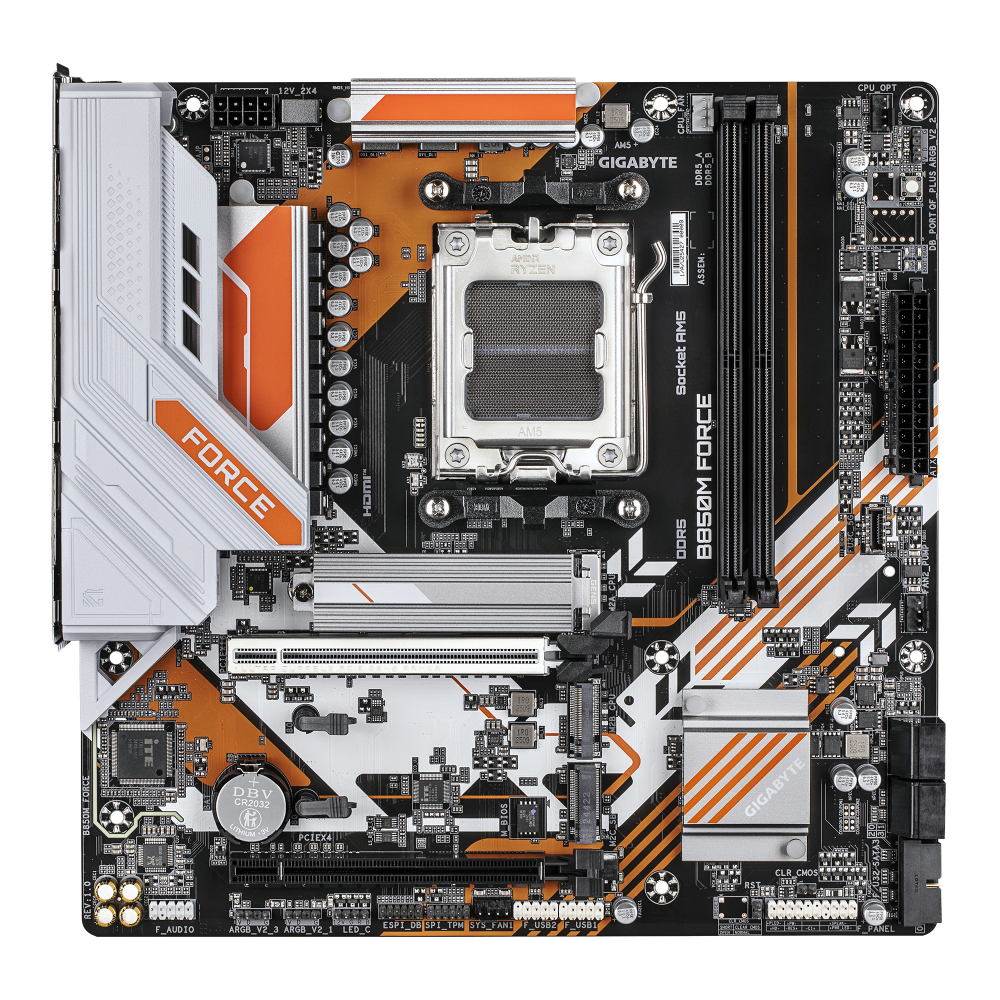

GIGABYTE B850M FORCE
Placa de baza GIGABYTE B850M FORCE socket AM5
Cod produs: GA-MB-B850M-FORCE
Întrebare despre GIGABYTE B850M FORCE
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 36 luni |
| Socket | AMD AM5 |
| Form Factor | Micro ATX |
| Chipset | AMD B850 |
| Numărul de sloturi pentru memorie | 2 |
| Capacitate RAM | până la 128 GB |
| Frecvența memoriei | până la 9600 MHz |
| Iluminare RGB | Nu |
| Memorie suportată | DDR5 |
| Wi-Fi încorporat | Nu |
Related products
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1700
Form Factor:
ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B650
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
Micro ATX
Chipset:
Intel B860
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 128 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B650
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM4
Form Factor:
ATX
Chipset:
AMD B550
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
Intel 1851
Form Factor:
Micro ATX
Chipset:
Intel B860
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B650
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM4
Form Factor:
Micro ATX
Chipset:
AMD B450
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 64 GB
Socket:
Intel 1700
Form Factor:
ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB

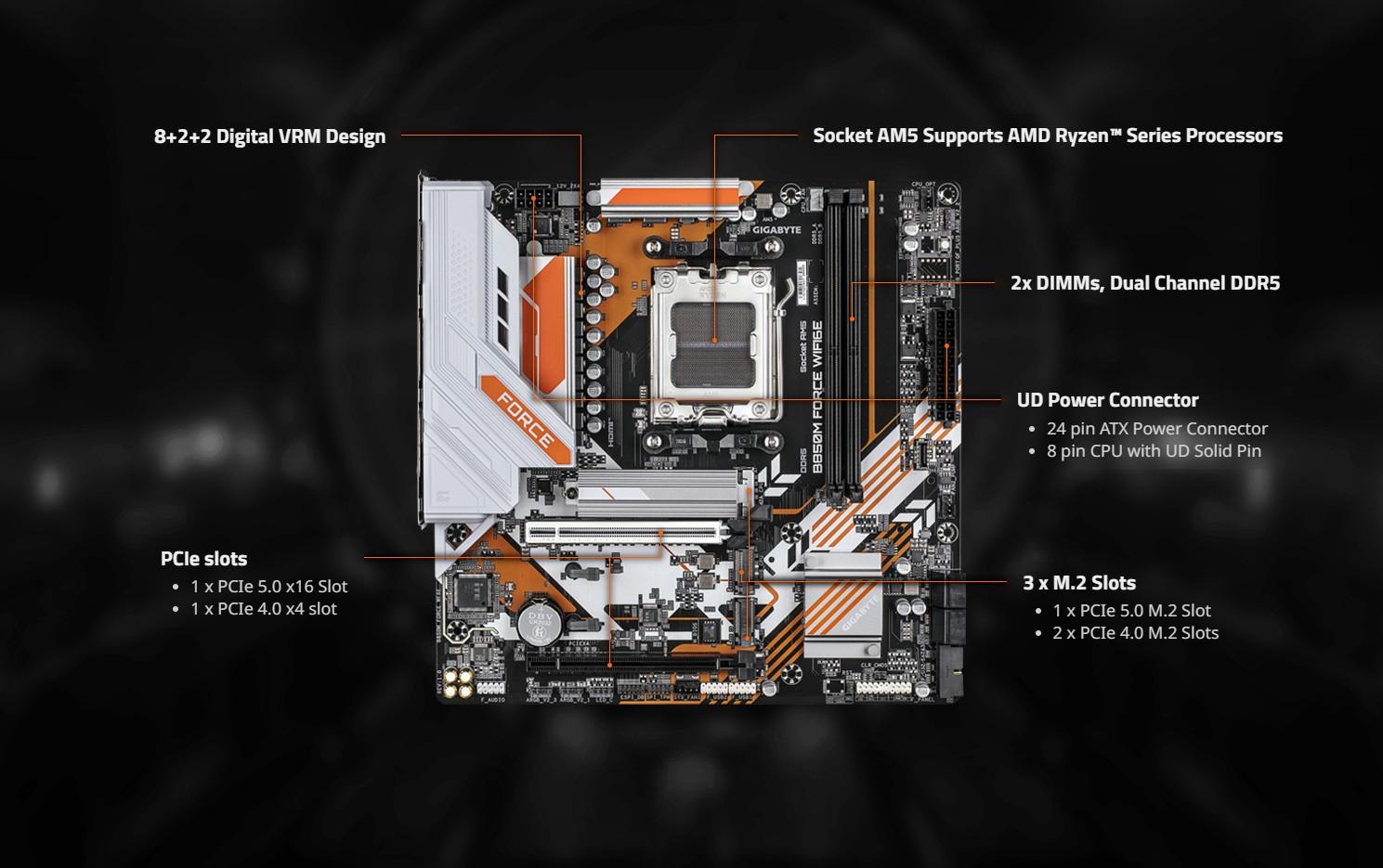

GIGABYTE B850M FORCE este o placa de baza moderna si puternica, conceputa pentru sisteme de gaming si creatie care necesita stabilitate, performanta si suport pentru tehnologii de ultima generatie. Formatul mATX o face potrivita pentru sisteme compacte, fara a compromite functiile avansate.
- Chipset Intel B850 – Ofera suport pentru procesoare Intel moderne, asigurand performanta ridicata si stabilitate.
- Format mATX – Design compact, ideal pentru carcase mai mici, pastrand totusi functii esentiale pentru gaming.
- Suport DDR5 – Compatibilitate cu memorie DDR5 de viteza mare pentru performanta superioara in multitasking si jocuri.
- Slot PCIe de generatie noua – Pregatita pentru placi video moderne, oferind latime de banda crescuta.
- Stocare M.2 NVMe – Sloturi rapide pentru SSD-uri de mare viteza, cu racire eficienta.

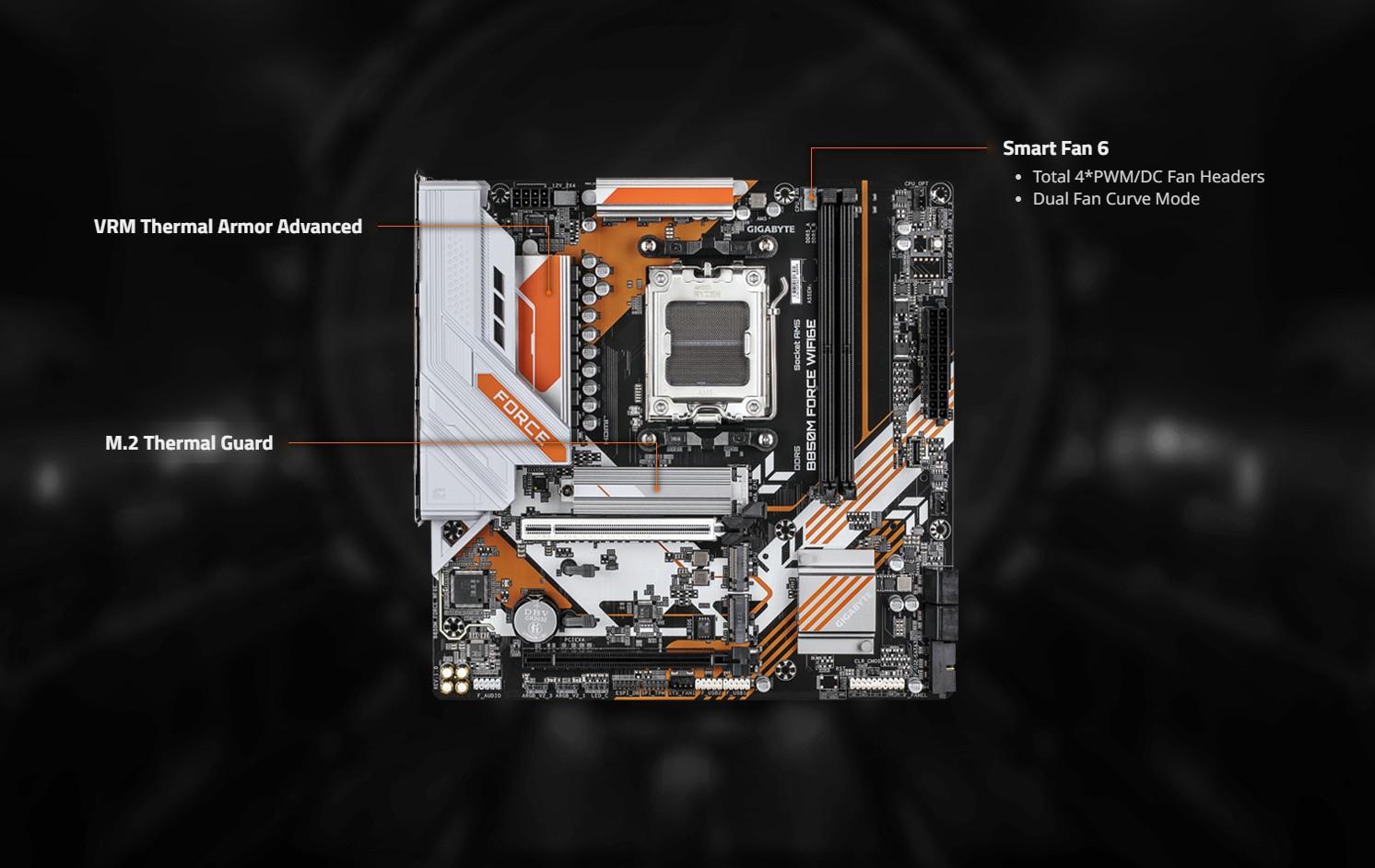

- Racire avansata – Heatsink-uri solide si design termic optimizat pentru temperaturi stabile in sarcini intense.
- Conectivitate extinsa – Porturi USB moderne, LAN de mare viteza si suport pentru configuratii variate.
- Constructie Ultra Durable – Componente de calitate superioara pentru fiabilitate si durata lunga de viata.
Specifications
| CPU |
AMD Socket AM5, support for:
AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD B850 |
| Memory |
Support for DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support forAMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. (Graphics specifications may vary depending on CPU support.) |
| Audio |
Realtek Audio CODEC
High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Storage Interface |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB |
CPU:
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector

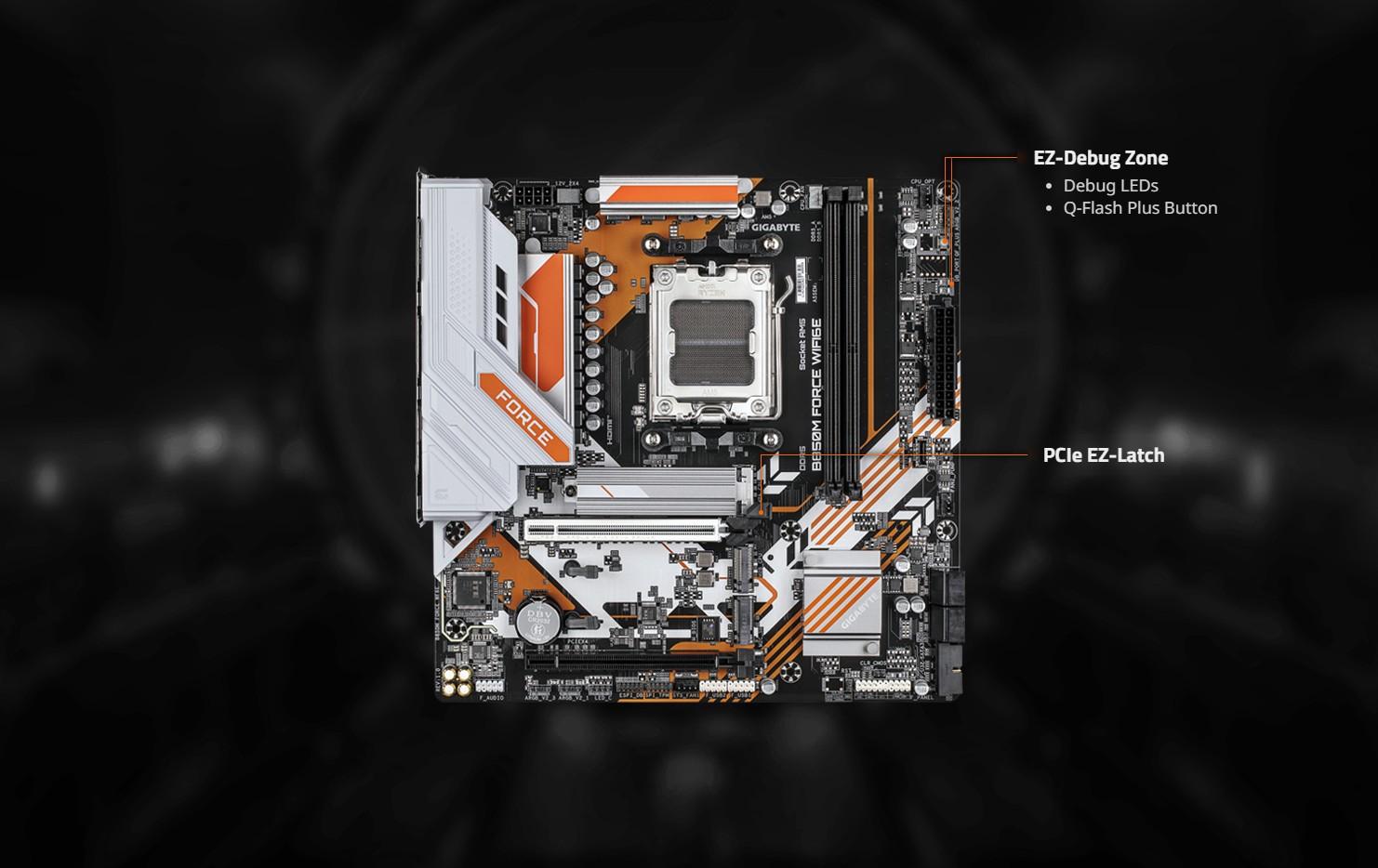

1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper 1 x Q-Flash Plus button |

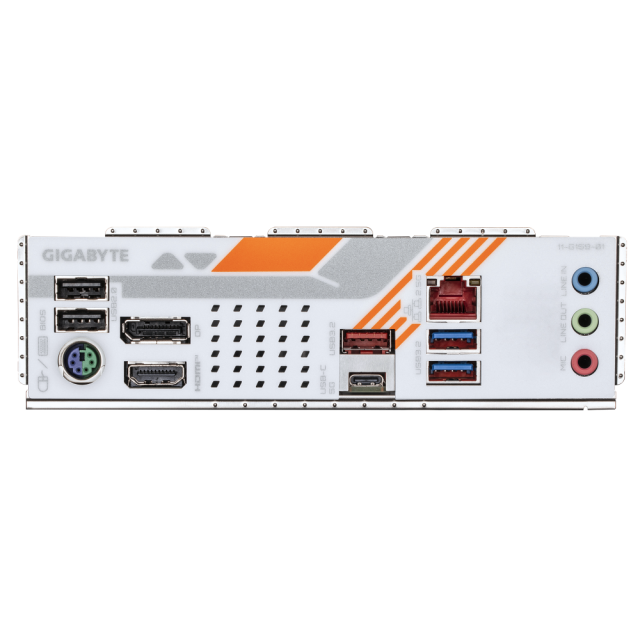

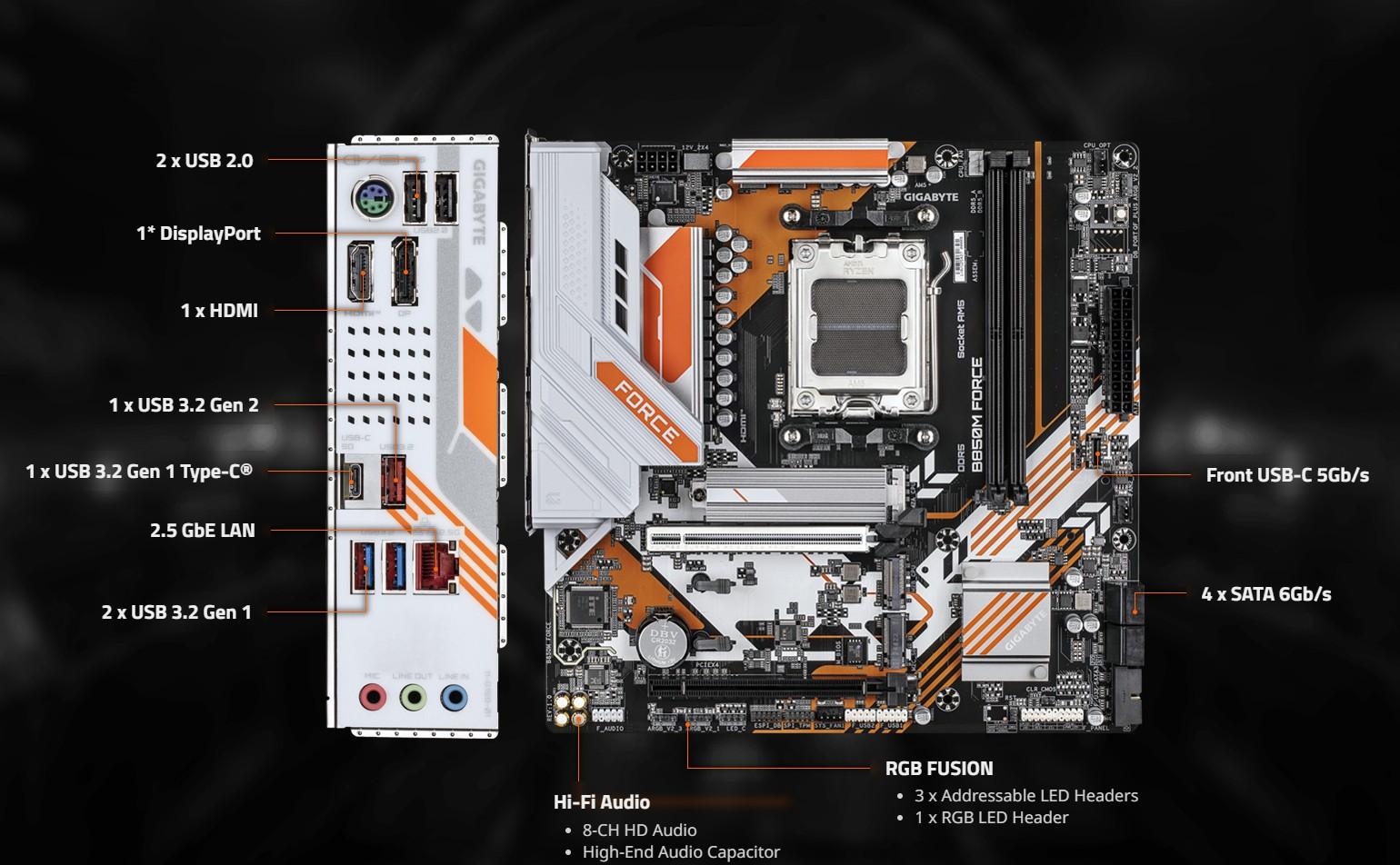

| Back Panel Connectors |
1 x HDMI port (Note)
1 x DisplayPort (Note) 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU. |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring |
Voltage detection
Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS |
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
