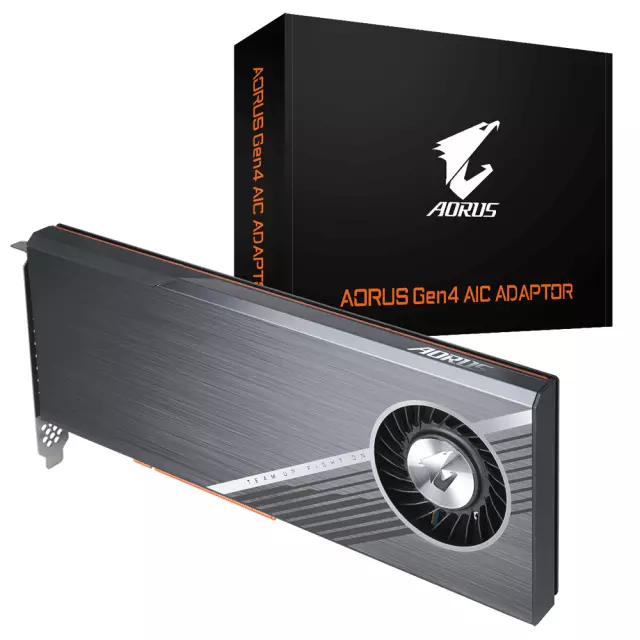

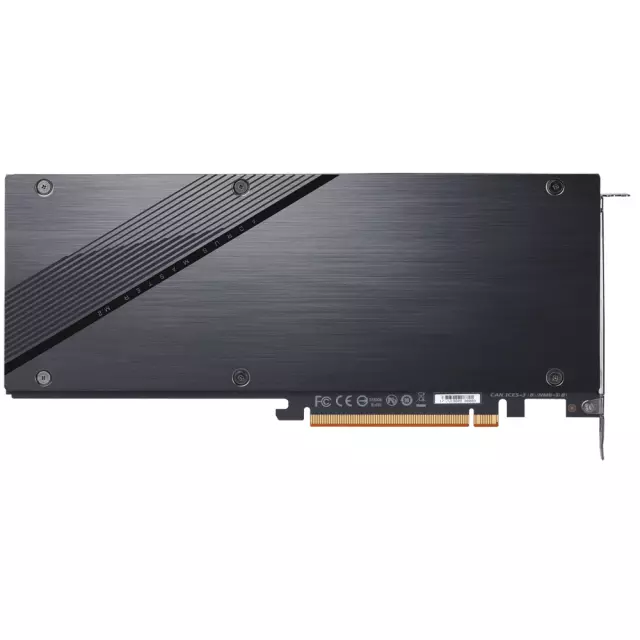

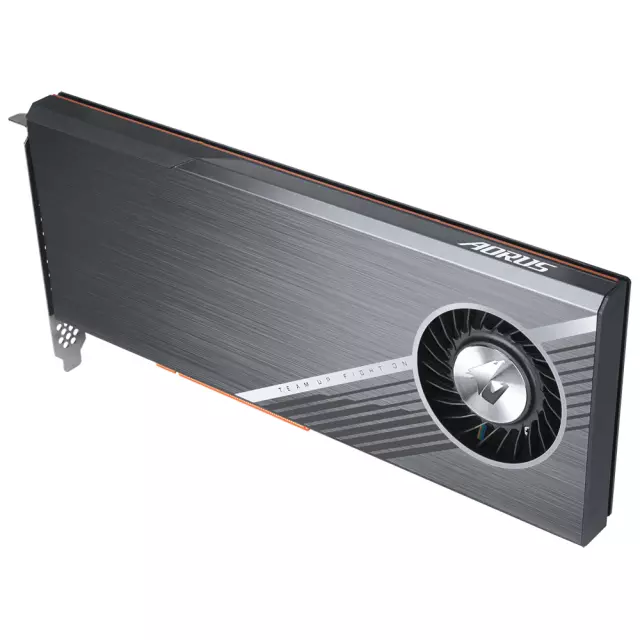

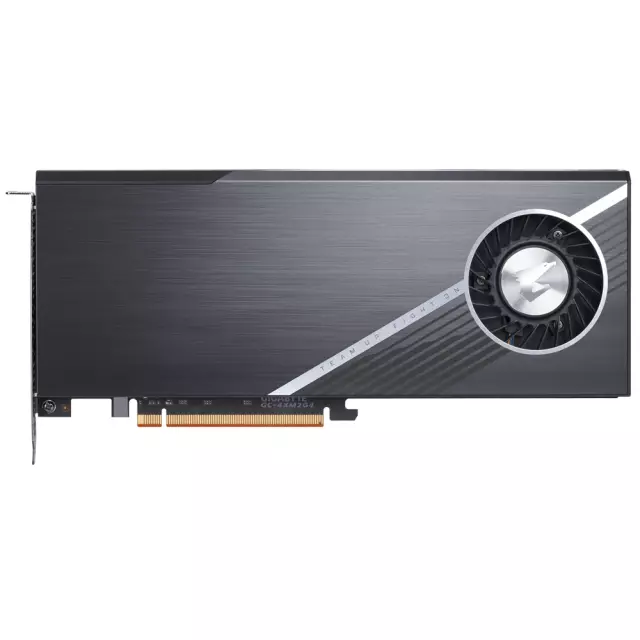

GIGABYTE AORUS Gen4 AIC Adaptor

Adaptor GIGABYTE AORUS AIC Gen4, PCIe 4.0 SSD

Cod produs: GA-GC4XM2G4

la cerere (contactați-ne)

Întrebare despre GIGABYTE AORUS Gen4 AIC Adaptor

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	12 luni
Tip	Controler
Interfață	PCI-E
Ieșiri	M.2 PCIe

RAID usor cu un singur clic de AORUS Storage Manager, Full PCIe 4.0 Design, Solutie termica avansata pentru SSD PCIe 4.0

4 x slot-uri PCIe 4.0/3.0 M.2
Proiectare completa PCI Express 4.0 Ready
Solutie termica avansata pentru SSD PCIe 4.0
Software RAID usor cu un singur clic pentru a obtine performante uimitoare
Manager personalizat de stocare AORUS

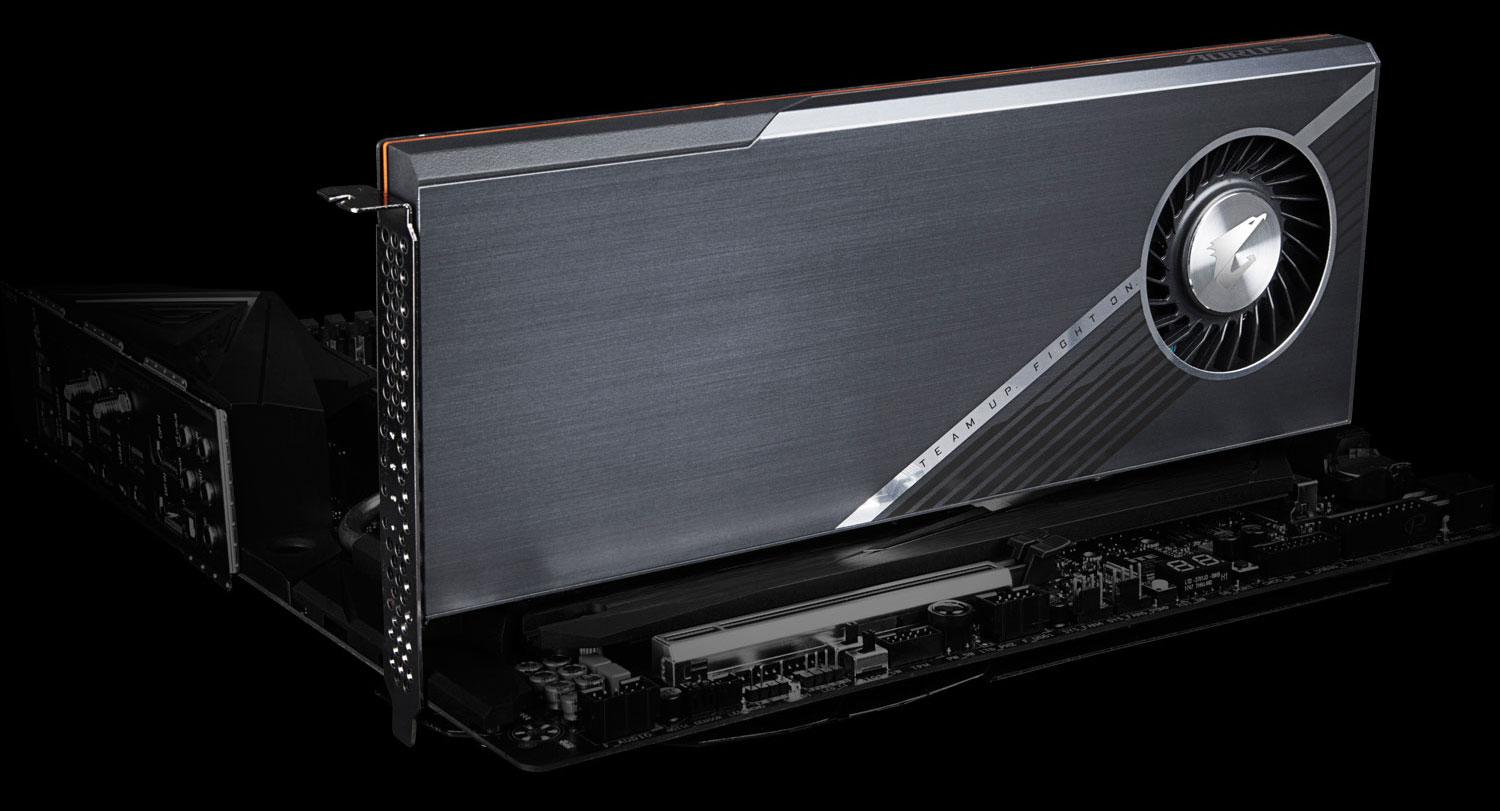

Xtreme Storage Performance

Unprecedented Performance

With AORUS Gen4 AIC Adaptor and 4 PCIe 4.0 2TB SSD, Read/Write performance reaches amazing 15,000 MB/s*

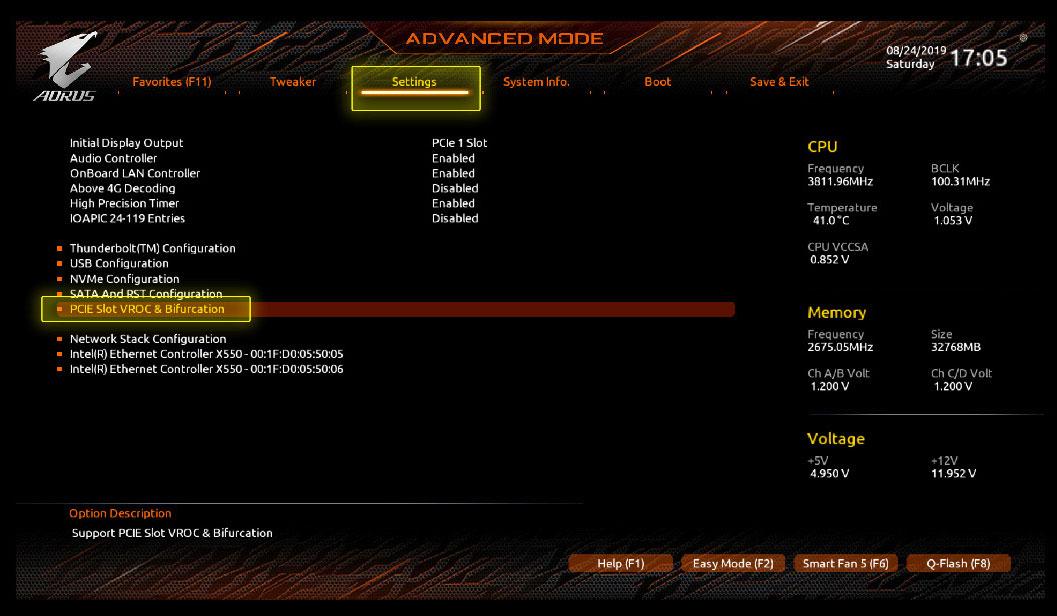

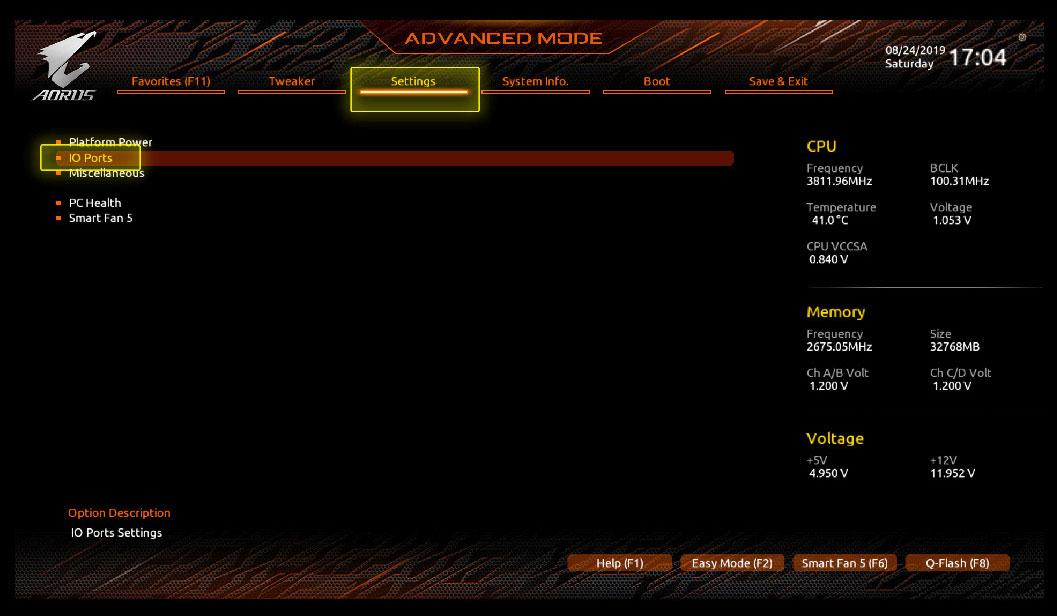

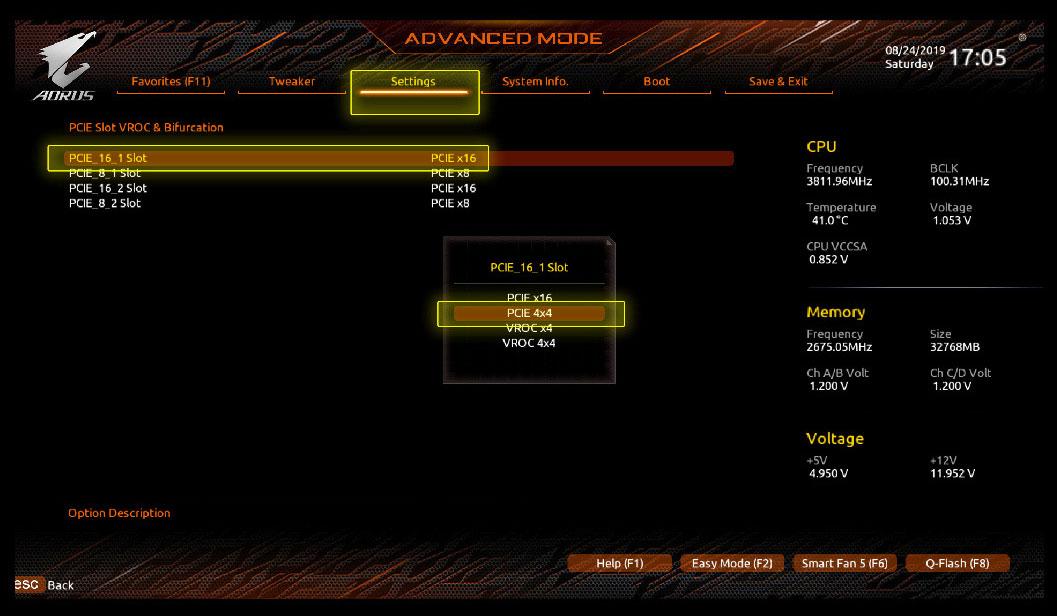

Easy RAID with a single click

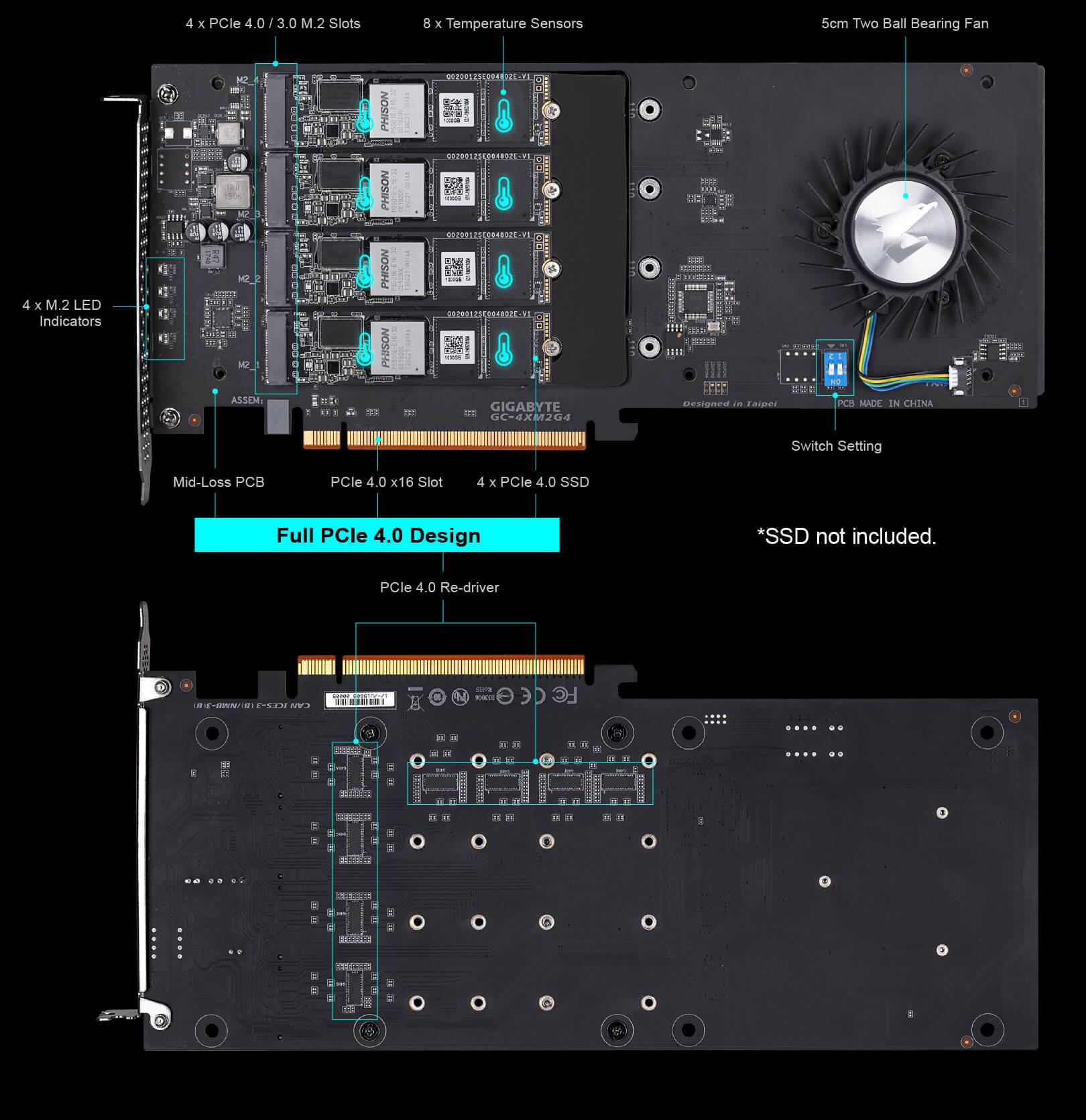

Full PCIe 4.0 Design

Advanced Thermal Solution

AORUS Gen4 AIC Adaptor equips very advanced thermal solution, including 5.5mm pure copper heatsink, 5cm double ball bearing fan, M.2 SSD baseplate and multiple thermal pads to cool down both sides of 4 M.2 high performance SSD with active cooling.
Users can choose 3 different fan profile based on hardware configuration to reach perfect balance of high storage performance and low noise.

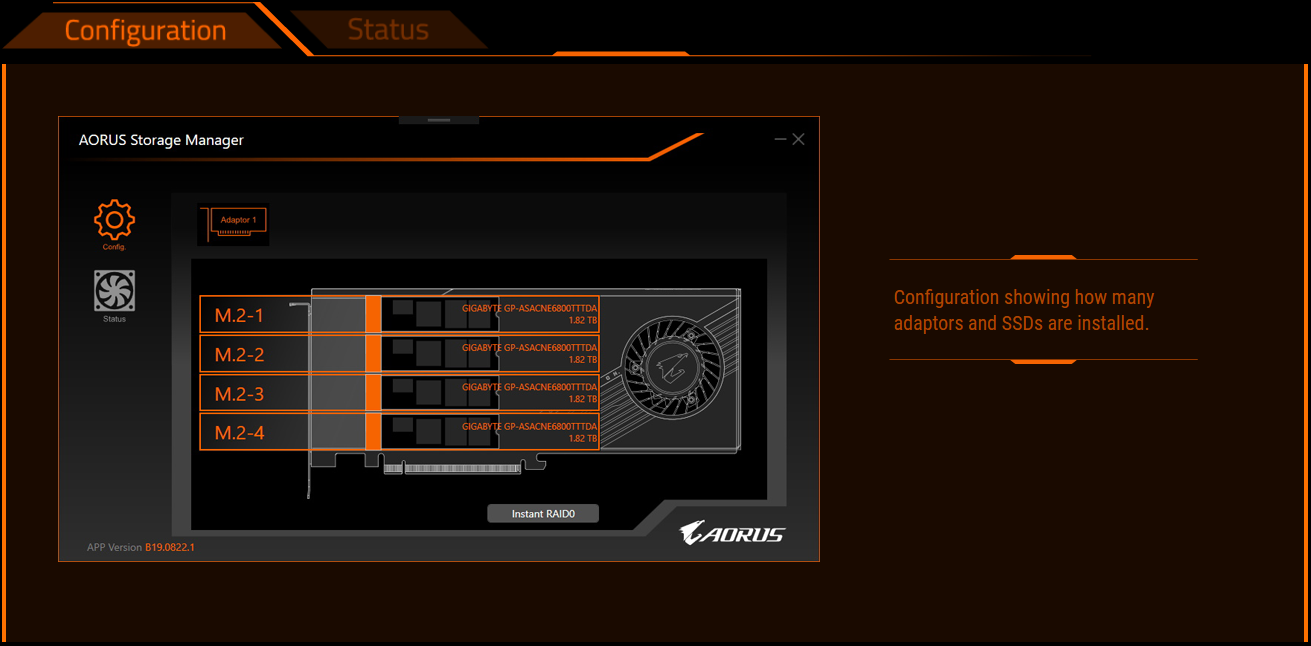

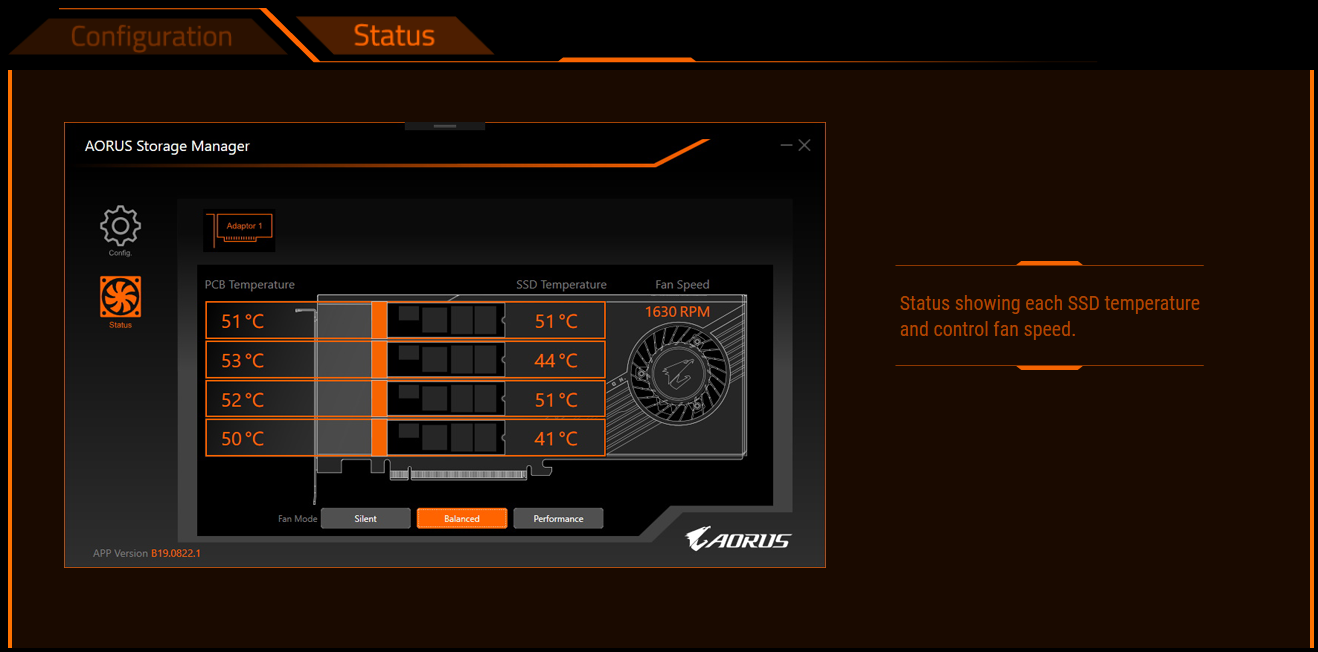

AORUS Storage Manager

AORUS Storage Manager, a dedicated software for AORUS Gen4 AIC Adaptor, allows users to enable RAID 0 on multiple M.2 SSD in a single click, also monitor overall temperature on SSD and PCB to change different fan profile based on users' hardware configuration.

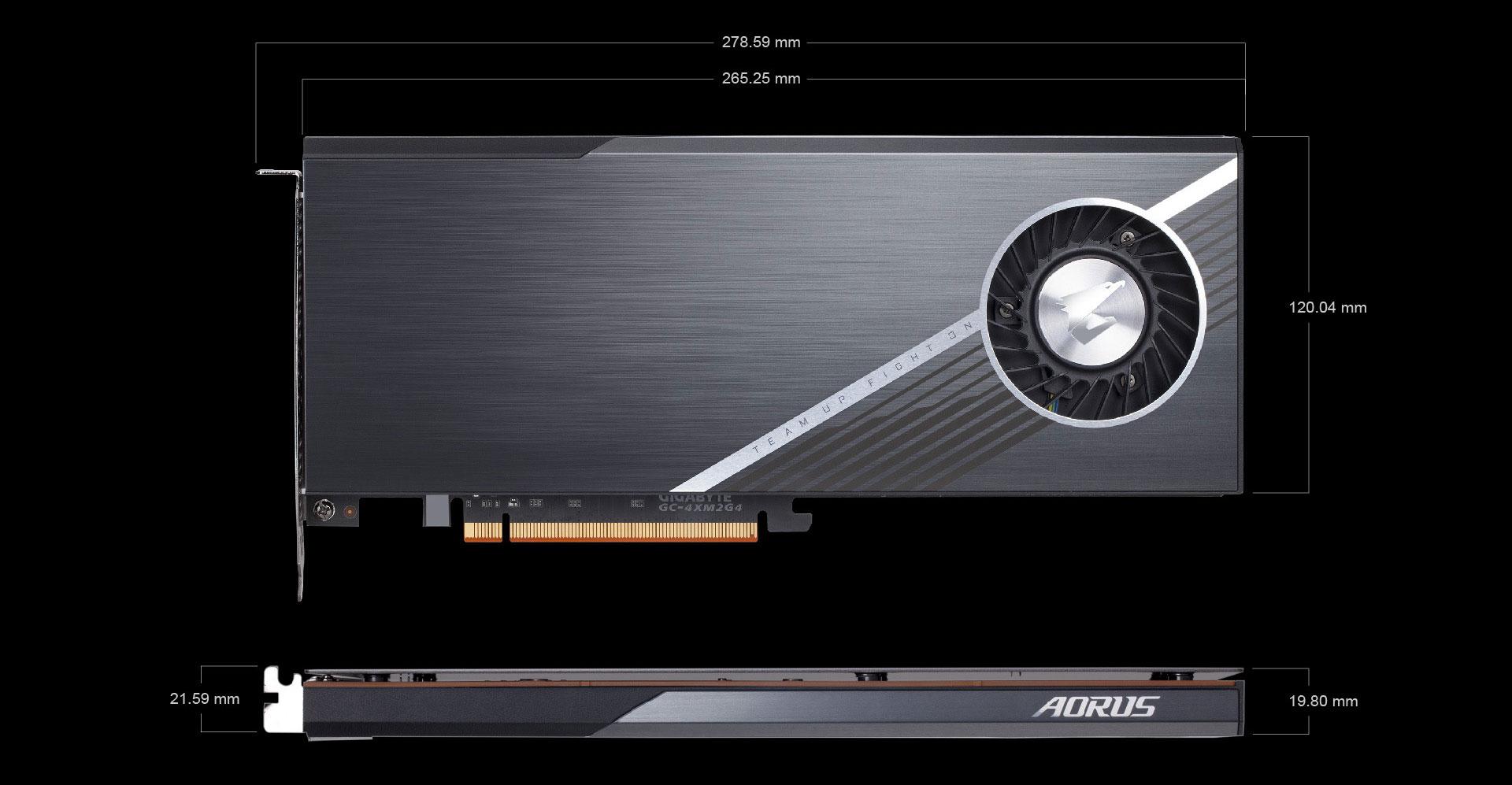

Dimension

Specifications

Interface	PCI Express x16, compatible with PCI Express x16 and x8 slots (If the adaptor card is installed in a x8 slot, only the M2_1 and M2_2 connectors can be used.)
LED	4 x M.2 activity LEDs
Storage Interface	4 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4 SSD support) Support for RAID 0, RAID 1, and RAID 10* * Supported RAID levels vary by platform.
Dimension	26.2cm x 11.5cm
