Delock Cable USB Type-C 2.0 male to USB 2.0 Type Mini-B male 0.5 m
Cablu Delock Cable USB-C tata - USB Mini-B tata, USB 2.0, 0.5 m, Negru
Întrebare despre Delock Cable USB Type-C 2.0 male to USB 2.0 Type Mini-B male 0.5 m
| Conector 1 | USB-C |
| Conector 2 | mini USB |
| Standard USB | USB 2.0 |
| Transfer de date | 0.48 Gbit/s |
| Lungime | 0.5 m |
| În plus | Conectori placați cu aur |
| Conectori | Tată-Tată |
| Performanţă maximă a conexiunii | 0.5 A |
Related products
Conector:
1 x USB Type-C™ 2.0 male >
1 x USB 2.0 Type Mini-B male
30 AWG data line
24 AWG power line
Conector 1: USB Type-C™
Conector 2: USB Type Mini-B
Resistor: 5.1 kΩ
Curent de iesire: pana la 500 mA
Diametru cablu: ca. 3 mm
Rata de transfer date: 480 Mbps
Culoare: Negru
Description

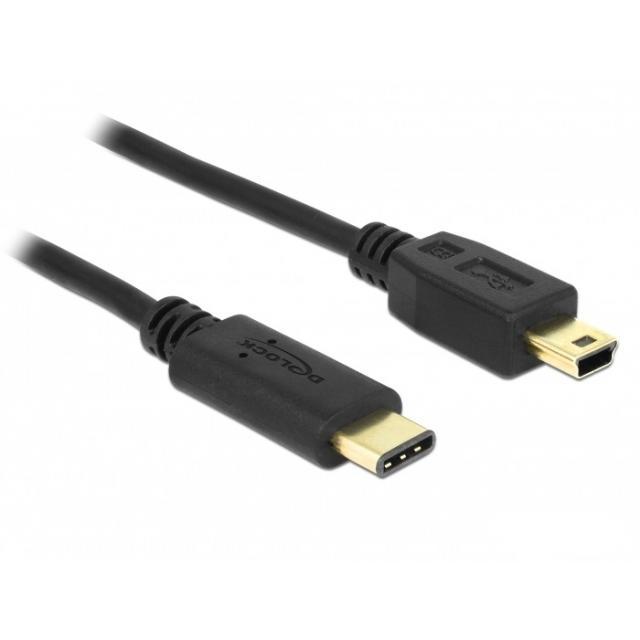

This USB cable by Delock enables the connection between a device with a USB Type Mini-B connector and a PC or a laptop equipped with a free USB Type-C port.
Specification
- Connector:
1 x USB Type-C 2.0 male >
1 x USB 2.0 Type Mini-B male - Cable gauge:
30 AWG data line
24 AWG power line - Host = USB Type-C; Device = USB Type Mini-B
- Resistor: 5.1 kΩ
- Output current: up to 500 mA
- Cable diameter: ca. 3 mm
- Data transfer rate up to 480 Mbps
- Colour: black
- Length without connector: ca. 0.5 m
System requirements
- PC or laptop with a free USB Type-C port
- Device with USB 2.0 type Mini-B port
Technical details
| Specification | USB 2.0 | Cable diameter | 3 mm |
| Connector 1 | 1 x USB 2.0 Type-C male | Pin finishing | gold-plated |
| Connector 2 | 1 x USB 2.0 Type Mini-B male | Conductor gauge | 30 AWG data line 24 AWG power line |
| Data transfer rate | 480 Mbps | Length | 50 cm |
| Maximum current | 500 mA | Colour | black |
| Resistor | 5.1 kΩ |
