Cudy AP3000

Name: Cudy AP3000
Brand: Cudy
SKU: CUDY-ROUT-AP3000
Price: 447.36 RON
Availability: InStock

Access Point Cudy AP3000, AX3000, 2.4/5 GHz, 571 - 2402 Mbps, 1× 2.5 Gbps Ethernet Port (PoE In)

Cod produs: CUDY-ROUT-AP3000

disponibil

Întrebare despre Cudy AP3000

Livrare gratuită

pentru comenzi peste 399 Lei

Specificații tehnice

Garanție	24 luni
Tip	Access Point, PoE
Standard WI-FI	AX3000
Viteză de transfer (Wi-Fi)	până la 2973 Mbps
Viteză de transfer (LAN)	2.5 Gbps
Port-uri LAN	1
Port USB	Nu

Related products

Cudy AP3000 Outdoor

Tip: Access Point

Standard WI-FI: AX3000

Viteză de transfer (Wi-Fi): până la 2977 Mbps

Viteză de transfer (LAN): 1 Gbps

Port-uri LAN: 1

Cudy M1300 (3-Pack)

Tip: Sistem mesh

Standard WI-FI: AC1200

Viteză de transfer (Wi-Fi): până la 1167 Mbps

Viteză de transfer (LAN): 1 Gbps

Port-uri LAN: 2

Cudy WR3600H

Tip: Router

Standard WI-FI: BE3600

Viteză de transfer (Wi-Fi): până la 3570 Mbps

Viteză de transfer (LAN): 1 Gbps, 2.5 Gbps

Port-uri LAN: 4

Cudy IG1008P

Tip: PoE Switch

Viteză de transfer (LAN): 1 Gbps

Port-uri LAN: 8

Cudy LT500 Outdoor

Tip: Router portabil

Standard WI-FI: AC1200, LTE, 4G

Viteză de transfer (Wi-Fi): până la 1167 Mbps

Viteză de transfer (LAN): 100 Mbps

Port-uri LAN: 1

Cudy FS1018PS1

Tip: PoE, Switch-uri fără management

Viteză de transfer (LAN): 100 Mbps, 1 Gbps

Port-uri LAN: 18

SFP Ports: 1x SFP

Cudy AP3000

Tip: Access Point

Standard WI-FI: AX3000

Viteză de transfer (Wi-Fi): până la 2976 Mbps

Viteză de transfer (LAN): 2.5 Gbps

Port-uri LAN: 1

Cudy WR6500

Tip: Router

Standard WI-FI: BE6500

Viteză de transfer (Wi-Fi): până la 6453 Mbps

Viteză de transfer (LAN): 1 Gbps

Port-uri LAN: 4

Cudy TR3000

Tip: Router

Standard WI-FI: AX3000

Viteză de transfer (Wi-Fi): până la 2976 Mbps

Viteză de transfer (LAN): 1 Gbps

Port-uri LAN: 1

Cudy M1500 (2-Pack)

Tip: Sistem mesh

Standard WI-FI: AX1500

Viteză de transfer (Wi-Fi): până la 1501 Mbps

Viteză de transfer (LAN): 1 Gbps

Port-uri LAN: 2

Cudy M3600 (1-Pack)

Tip: Sistem mesh

Standard WI-FI: BE3600

Viteză de transfer (Wi-Fi): până la 3570 Mbps

Viteză de transfer (LAN): 1 Gbps

Port-uri LAN: 2

Cudy GS1010PE

Tip: PoE, Switch-uri fără management

Viteză de transfer (LAN): 1 Gbps

Port-uri LAN: 10

- Premium AX3000 Wi-Fi 6
- Port ecranat de 2,5G pentru debit multi-gig
- Maxim 512 clienti cu 512 MB RAM mare
- Cinci antene pentru o acoperire Wi-Fi mai larga
- 802.3at/af PoE, PoE pasiv sau alimentare DC
- Mesh cu Router Cudy Mesh /AC

CPU: 1.3 GHz Dual-Core ARM CPU
Flash: 256 MB NAND (2 Gbit)
DDR: 512 MB DDR4 (4 Gbit)
Interfata: 1 x 2.5 Gbps Ethernet Port (PoE In)
           1 x buton de resetare
Sursa de alimentare: 802.3af/at PoE
               48-57 V Passive PoE (+4,5pins; -7,8 pini)
               12 V - 1.5 A DC
Dimensiuni:   Φ231.9×57.1 mm (Φ9.13×2.25 inci)
Tip antena: 4 x antene omnidirectionale interne
Frecventa: 2.4 GHz si 5 GHz
Rata de semnal:   5 GHz: pana la 2402 Mbps
               2.4 GHz: pana la 571 Mbps

Connects 512 Devices with 512 MB RAM

1.3 GHz dual-core CPU, large RAM, and the upgraded UL/DL MU-MIMO and OFDMA technologies significantly reduce transmission latency to and from the AP when connecting multiple devices.

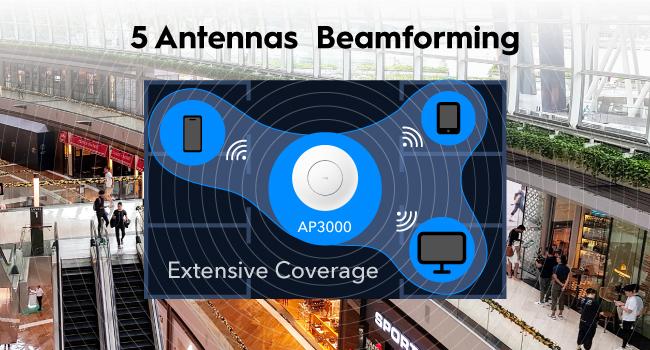

5 Antennas and 3+2 Strucutre Boost Coverage

Five antennas plus 3+2 structure create more paths to bypass obstacles. Beamforming tracks connected devices' directions and boosts signal towards them.

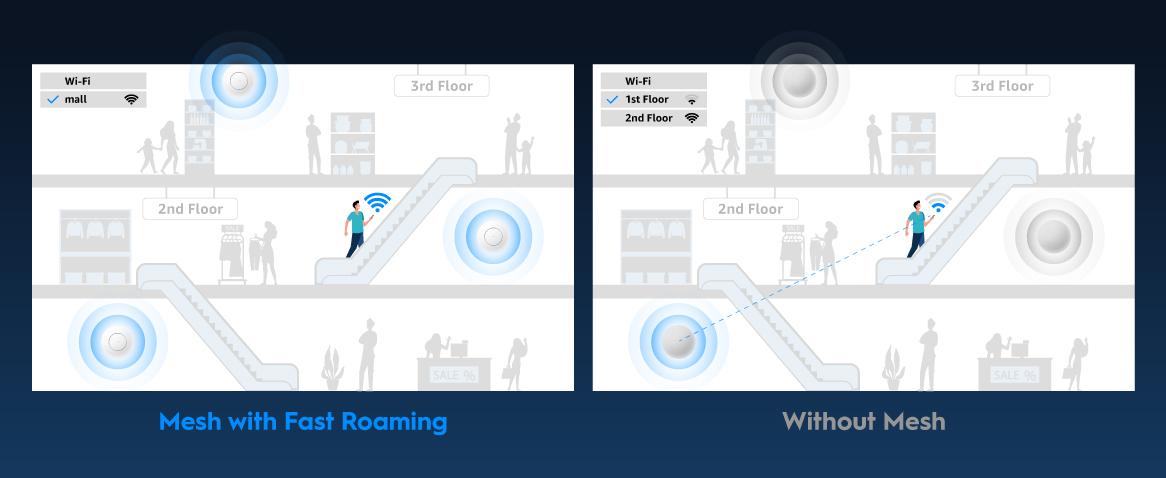

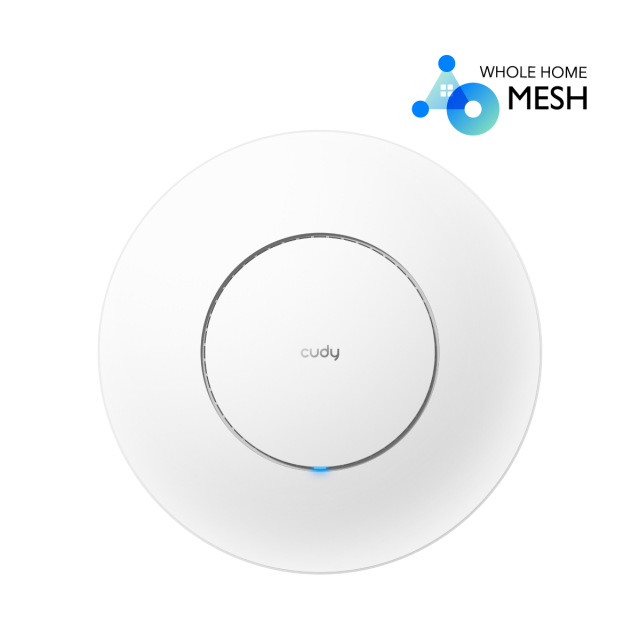

Mesh Ready for Seamless Coverage

Mesh support (802.11k/v) allows clients to switch between access points seamlessly,ensuring uninterrupted Wi-Fi calling or live streaming when moving around.
*Requires a Cudy Wi-Fi router/Mesh unit/VPN router/AC as a gateway with firmware newer than 15.28.

Flexible Wired-and-Wireless Hybrid Backhaul

Simple Wireless Mesh Backhaul

Hybrid Backhaul for Higher Performance

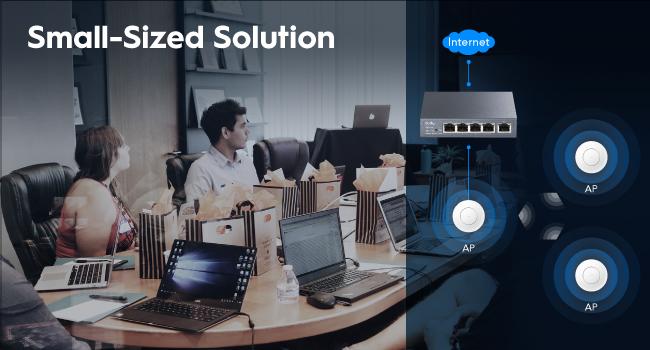

Multi-Mode for Multiple Scenarios

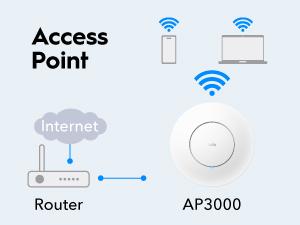

Access Point

Simply create a Wi-Fi spot behind a router.

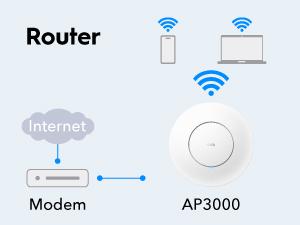

Wi-Fi Router

When PPPoE authorization or creating a separate subnet is needed, please use the Router mode.

Range Extender

Wi-Fi Extender (repeater) mode extends a existing Wi-Fi coverage to hard-to-cover area.

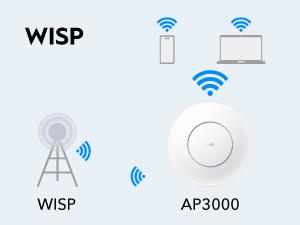

WISP

WISP extends Wi-Fi but creates a subnet for connected devices, so it's safer than extender mode.

Advanced Business AP Features

Captive Portal

Improve your brand awareness by displaying a customized login page for new clients.

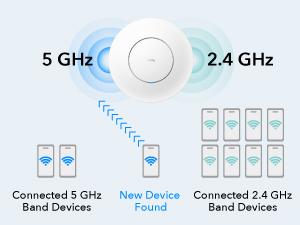

Band Steering

Assigns devices to less congested bands.

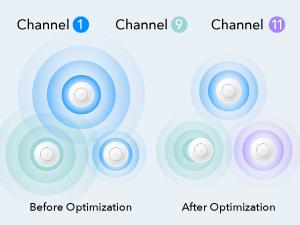

Auto Channel Optimization

Automatically avoid signal interruptions with nearby access points.

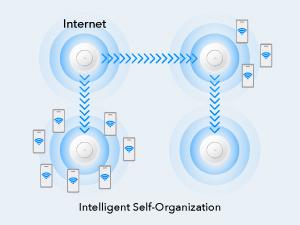

Self-Organizing Mesh

Form mesh backhaul
via less congested routes automatically.

*The advanced business features require a Cudy access point controller as a gateway. Cudy AP controller is coming soon.

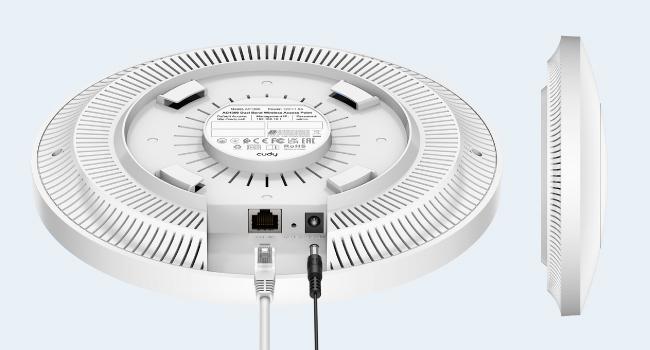

Versatile Powering and Installation

PoE or DC Power Supply

802.3af/at PoE
48-57 V Passive PoE (+4,5 pins; -7,8 pins)
DC (DC adapter is included in the box)

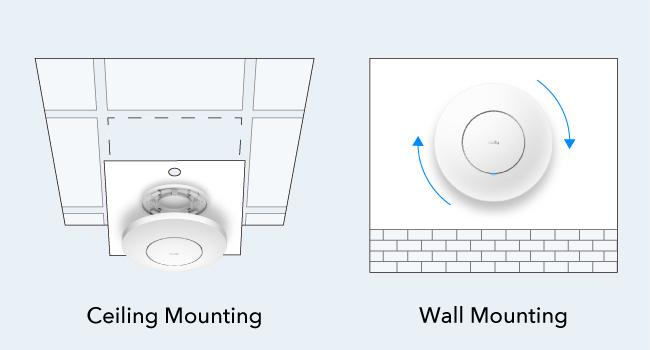

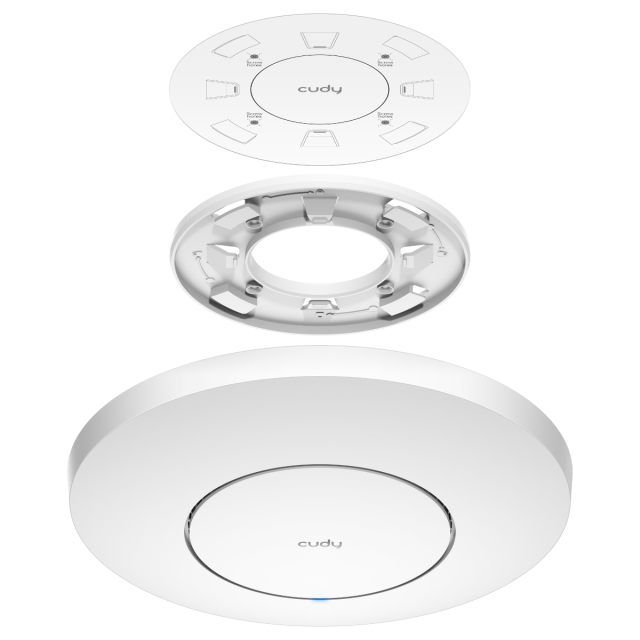

Versatile Mounting

Mounting kits are included in the box.

Specifications

Hardware Features	Highlights	CPU: 1.3 GHz Dual-Core ARM CPU
		Flash: 256 MB NAND (2 Gbit)
		DDR: 512 MB DDR4 (4 Gbit)

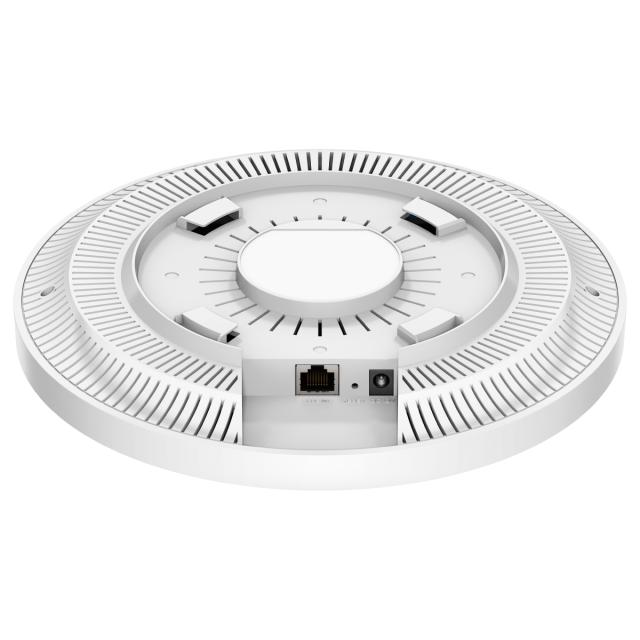

	Interface	1× 2.5 Gbps Ethernet Port (PoE In)
		1× Reset Button
		1× DC Jack
	Power Supply	802.3af/at PoE
		48-57 V Passive PoE (+4,5pins; -7,8pins)
		12 V ⎓ 1.5 A DC
	Power Consumption	PoE Idle: 5.7 W 12 V DC Idle: 6.1 W
		PoE Max: 12 W 12 V DC Max: 11 W 48 V DC Max: 12 W
	Dimensions (Dia.×H )	Φ231.9×57.1 mm (Φ9.13×2.25 inches)
	Antenna Type	4× Internal Omni-directional Antennas
	Mounting	Ceiling/Wall Mounting (Kit included)
Wireless Function	Wireless Standards	Wi-Fi 6 (802.11ax/ac/n/g/b/a)
	Frequency	2.4 GHz and 5 GHz
	Signal Rate	5 GHz: Up to 2402 Mbps
		2.4 GHz: Up to 571 Mbps
	Channel Width	20/40/80/160 MHz
	Wireless Functions (Features with * require a Cudy AC as the gateway. Cudy AC is coming soon) (Features with ** require a Cudy WR1300/WR3000 or Cudy AC as the gateway)
		Multiple SSID *
		Captive Portal **
		Seamless Roaming Mesh
		Self-Organizing Mesh
		Band Steering *
		Auto Channel Optimization *
		Enable/Disable Wireless Radio
		Transmit Power Control
		QoS (WMM)
		MU-MIMO
		Beamforming
		Rate Limit
		Reboot Schedule
		Wireless Schedule
	Wireless Encryption	WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-PSK/WPA2-PSK, WPA2-PSK/WPA3-SAE
	Security (Features with * require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023)	IP/MAC Filtering
		AP Isolation*
Operating Modes	Wireless Access Point Mode
	Wireless Router Mode
	Wireless Extender Mode
	WISP Mode

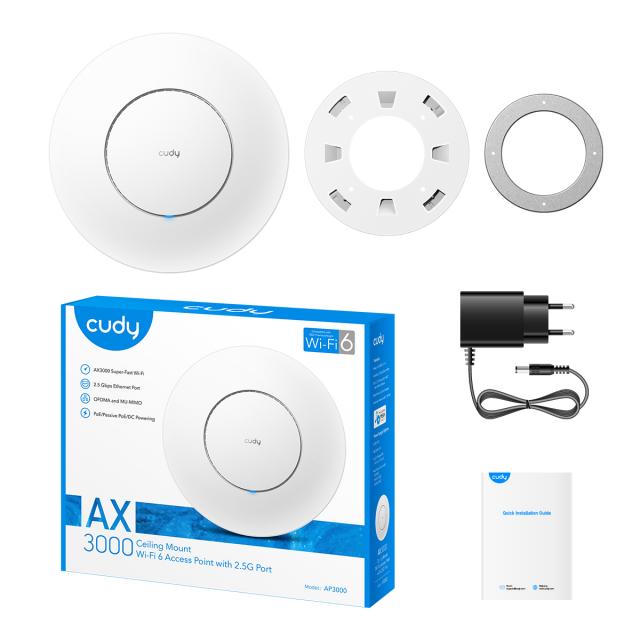

Package Content	Access Point
	DC Adapter
	Mounting Kit
	Installation Guide
Environments	Operating Temperature: 0~40 °C (32~104 °F)
	Storage Temperature: -40~70 °C (-40~158 °F)
	Operating Humidity: 10~90% RH non-condensing
	Storage Humidity: 5~90% RH non-condensing
System Requirements	Windows, MAC OS, NetWare, UNIX, or Linux
	Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other web browser
	A fiber/cable/DSL Modem, or other devices providing wired internet
	Subscription with an internet service provider for internet access
	A power socket for AC power supply, or PoE power supply
	Advanced business AP features require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023. Mesh features require a Cudy Mesh unit/Mesh router or AC as the gateway with firmware newer than 15.28.
