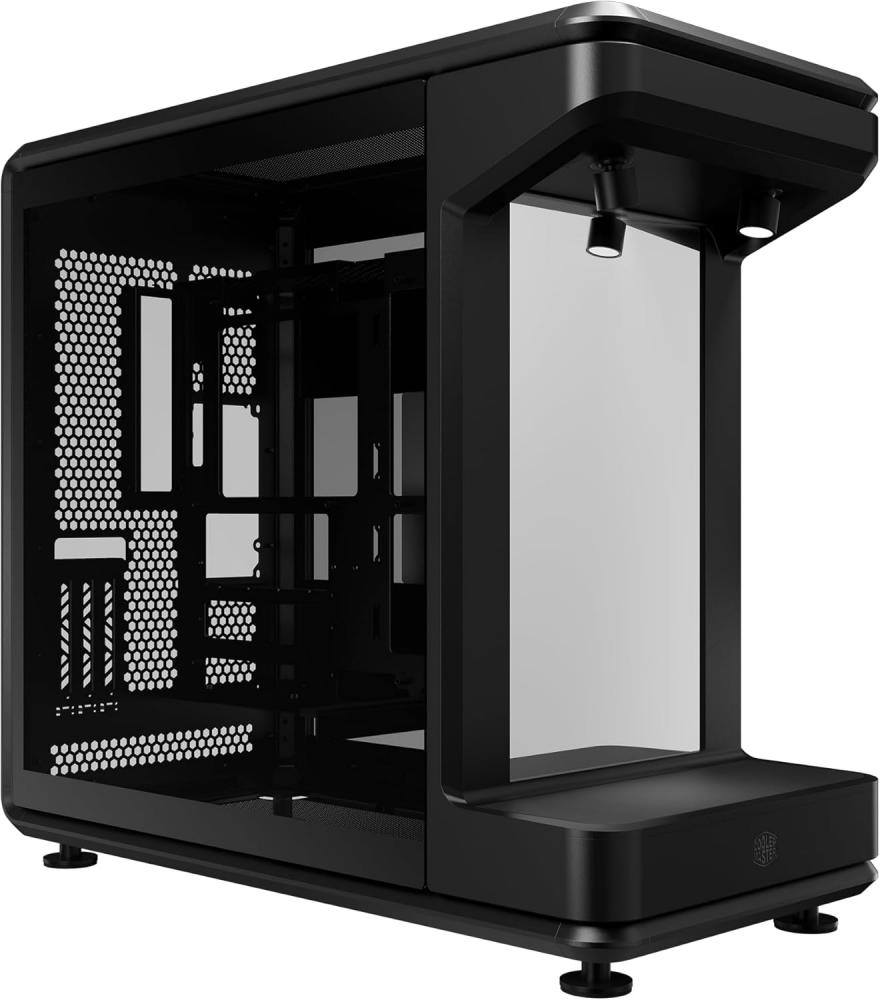

Cooler Master MasterFrame 360 Stage Mirror
Carcasa Cooler Master MasterFrame 360 Stage Mirror
Întrebare despre Cooler Master MasterFrame 360 Stage Mirror
| Garanție | 24 luni |
| Form Factor | Mid Tower |
| Format | ATX, Micro ATX, Mini ITX |
| Ventilatoare incluse | Nu |
| Panou frontal | Audio In & Out, USB 3.2 Gen1, USB 4.0 |
| Culoare | Negru |
| Lungime | 549 mm |
| Lăţime | 291 mm |
| Înălţime | 581 mm |
| Înălțimea maximă a coolerului cu aer | 145 mm |
| Lungimea maximă a plăcii video | 430 mm |

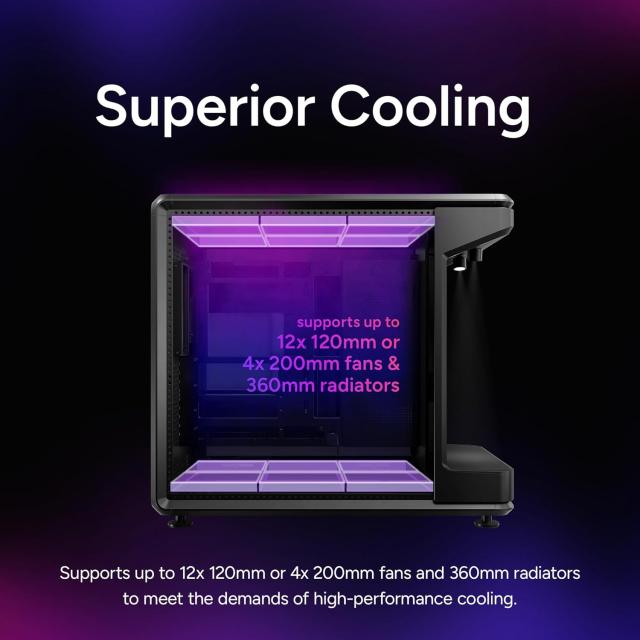

| Ventilatoare suportate în partea de sus | 2x 140mm, 2x 200mm, 6x 120mm, 2x 180mm |
| Ventilatoare suportate în partea de jos | 2x 140mm, 6x 120mm, 2x 180mm, 2x 200mm |
| Coolere cu lichid suportate în partea de sus | 1x 240mm, 1x 120mm, 1x 140mm, 1x 280mm, 1x 360mm |
| Coolere cu lichid suportate în partea de jos | 1x 240mm, 1x 280mm, 1x 360mm, 1x 120mm, 1x 140mm |
| Panou Mesh frontal | Nu |
Related products

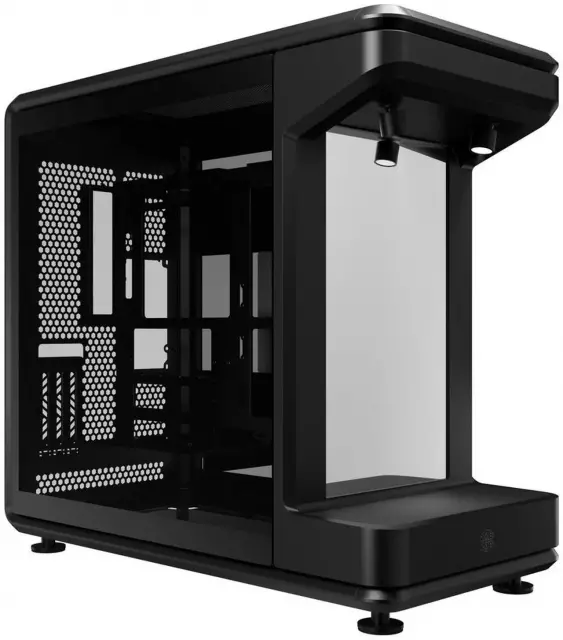

Cooler Master MasterFrame 360 Stage Mirror este o editie speciala a celebrului MasterFrame 360, echipata cu un panou frontal tip oglinda care ofera un efect vizual spectaculos. Este conceputa pentru entuziastii care doresc un open‑frame modular, ideal pentru build‑uri premium, prezentari hardware si proiecte custom.
- Design open‑frame modular – Permite configurare flexibila pentru test bench sau sistem complet.

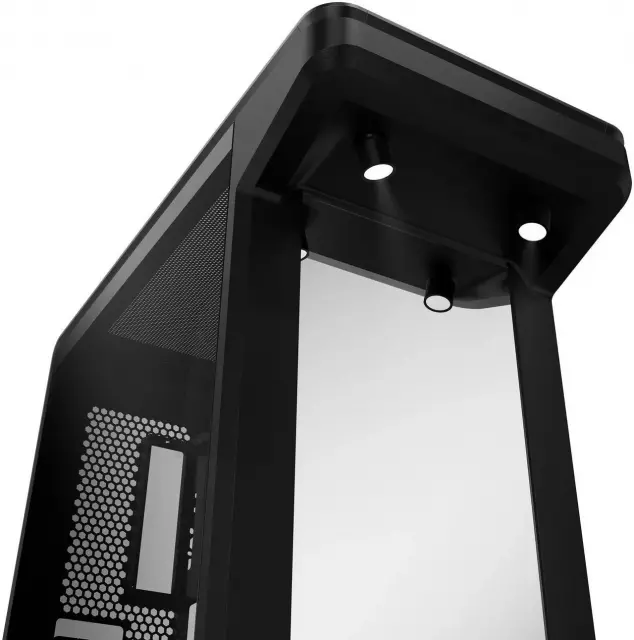

- Panou Stage Mirror – Oglinda frontala cu efect vizual unic, perfecta pentru build‑uri de prezentare.
- Compatibilitate extinsa – Suporta radiatoare de pana la 360 mm si componente high‑end.
- Brate articulate – Permit ajustarea unghiului pentru expunere sau acces facil la componente.
- Constructie solida – Materiale premium pentru stabilitate si durabilitate.
- Optimizat pentru racire – Design deschis pentru flux de aer excelent si temperaturi scazute.
- Suport hardware generos – Compatibil cu placi de baza E‑ATX, ATX, mATX si ITX.
- Montaj versatil – Poate fi folosit pe birou sau montat pe perete.
- Ideal pentru modding – Ofera libertate maxima pentru personalizare si iluminare RGB.
- Brand Cooler Master – Recunoscut pentru inovatie si solutii premium pentru PC‑uri custom.
SHOWCASE WITHOUT COMPROMISE
Cooler Master MasterFrame 360 extends the FreeForm 2.0 design philosophy into a visual-first, showcase-ready platform.
Featuring Cooler Master’s signature aluminum exo-structure and a new central cable management chamber, it delivers clean builds that put hardware center stage.

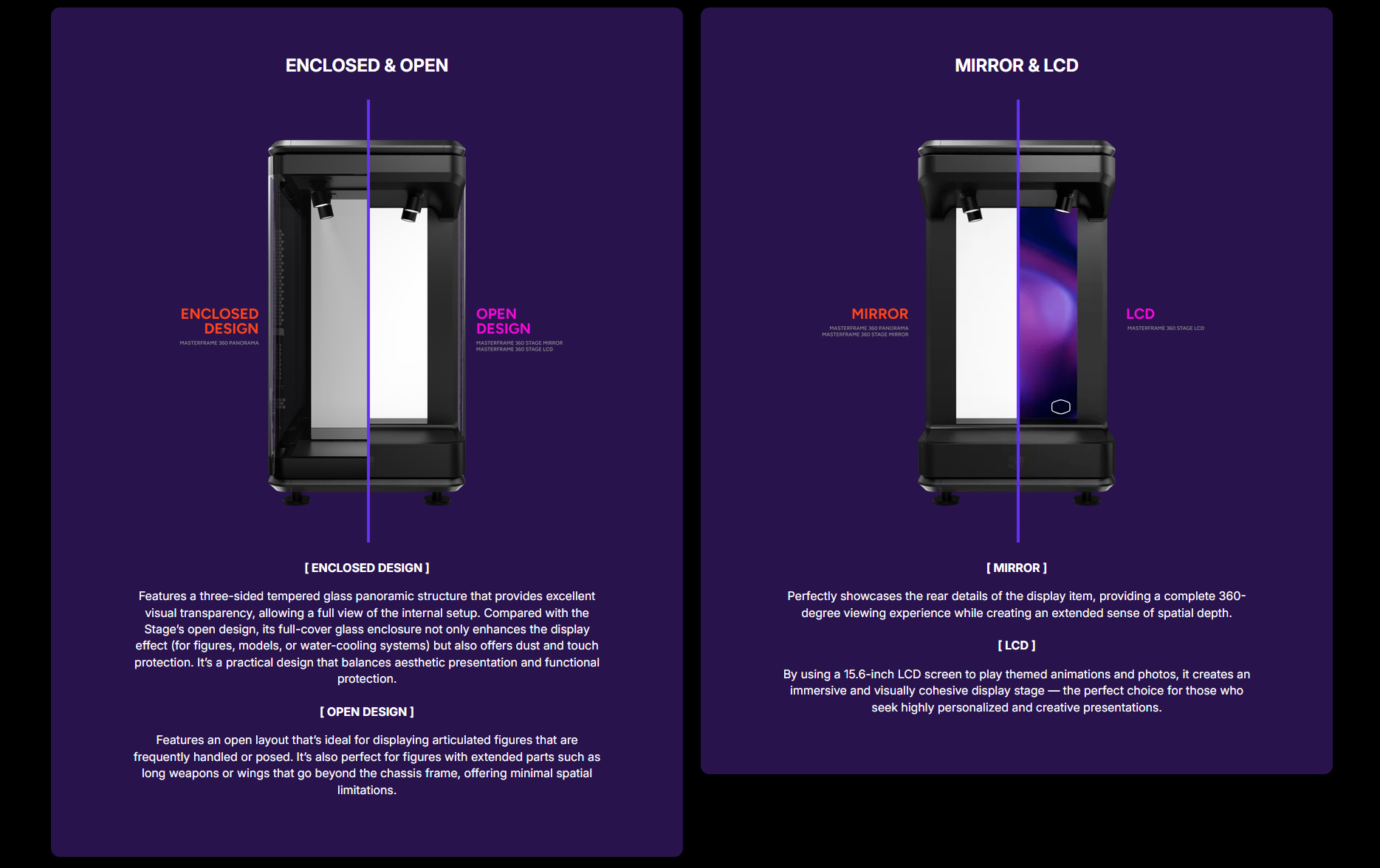

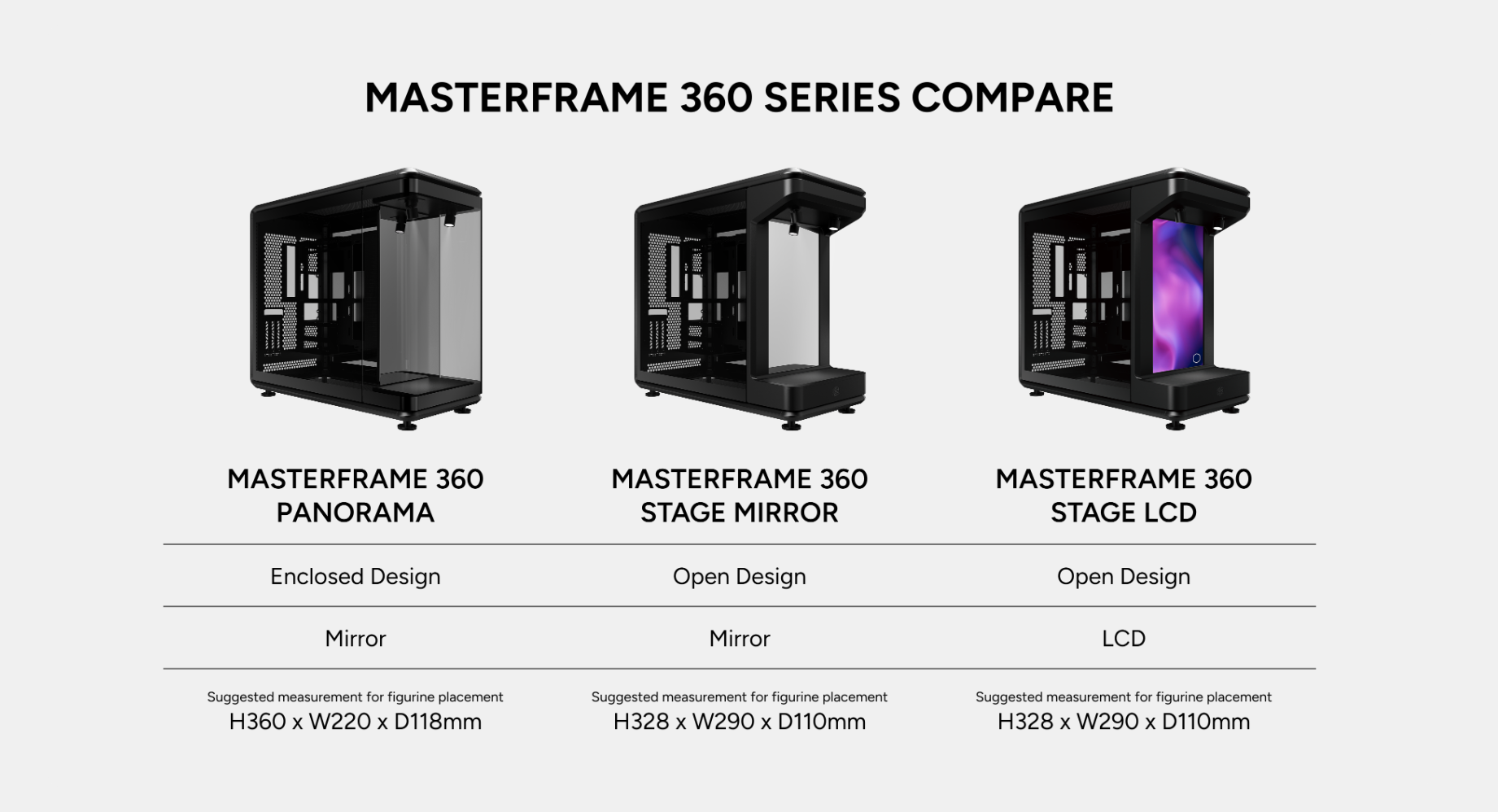

Available in three distinct models — PANORAMA, STAGE LCD, and STAGE MIRROR — the 360 series offers creators a refined platform to build, express, and be seen.
The PC is no longer just a machine — it’s a statement.
Specifications
| Product Name | MASTERFRAME 360 PANORAMA | Product Name | MASTERFRAME 360 STAGE LCD |
| Product Name | MASTERFRAME 360 STAGE MIRROR | Model Number | MASTERFRAME 360 PANORAMA: MF360-KINN-S00 |
| Model Number | MASTERFRAME 360 STAGE LCD: MF360-KHNN-S02 | Model Number | MASTERFRAME 360 STAGE MIRROR: MF360-KHNN-S01 |
| Color(s) | Black | Materials - Exterior | SGCC |
| Materials - Side panel (Right / Left) | TG / TG | Dimensions (L x W x H) | 549 x 291 x 581 mm (Incl. Protrusions), 511 x 291 x 581 mm (Excl. Protrusions) |

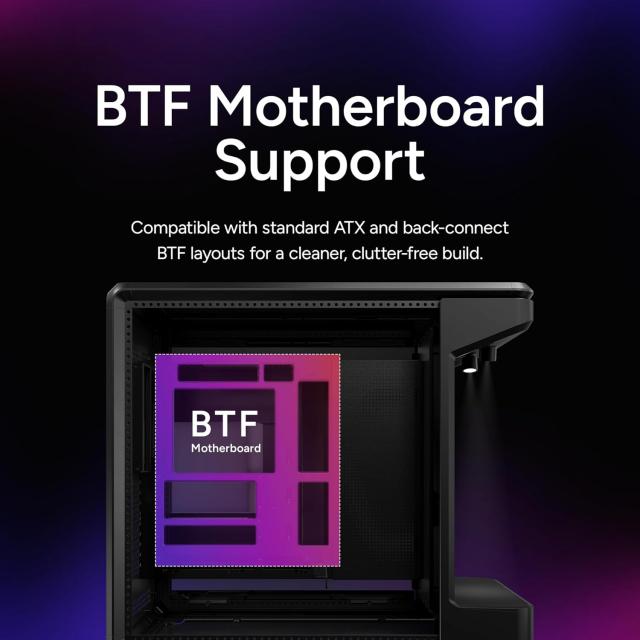

| Volume | 86 L (w/o panel, protrusions and feet), 93 L (with panel, protrusions and feet) | Motherboard Support | Mini-ITX, Micro-ATX, ATX, BTF (ATX) |
| Power Supply Support | ATX | PCI Expansion Slots | 3.5 |
| Drive bay support - 3.5" Drive Bays | 0 | Drive bay support - 2.5" / 3.5" Drive Bays (or SSD) | 1x HDD or 2x SSD |
| Preinstalled Drive bay - 3.5" Drive Bay (remark Toolfree quantity) / 2.5" Drive Bay(or SSD)(remark Toolfree quantity) | 1x HDD or 2x SSD | I/O Panel - USB Ports | 2x USB 3.2 Gen 1 Type-A 5G, 1x USB 4.0 Gen 2x2 Type-C 20G |

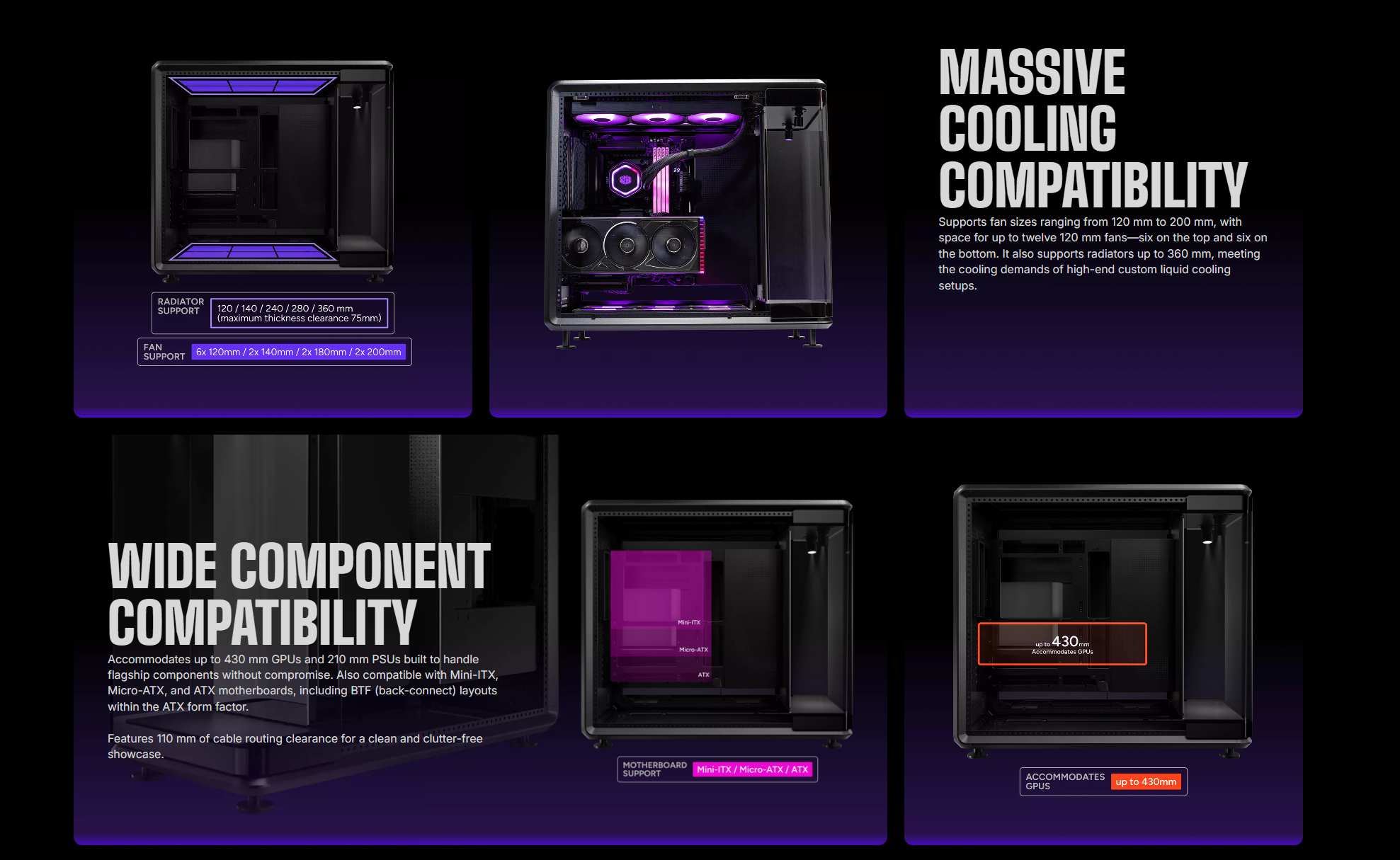

| I/O Panel - Audio In / Out | 1x 3.5mm Headset Jack (Audio+Mic) | Fan Support - Top | 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm |
| Fan Support - Bottom | 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm | Radiator Support - Top | 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm) |
| Radiator Support - Bottom | 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm) | Dust Filters | Mesh Only (Removable Filters) |

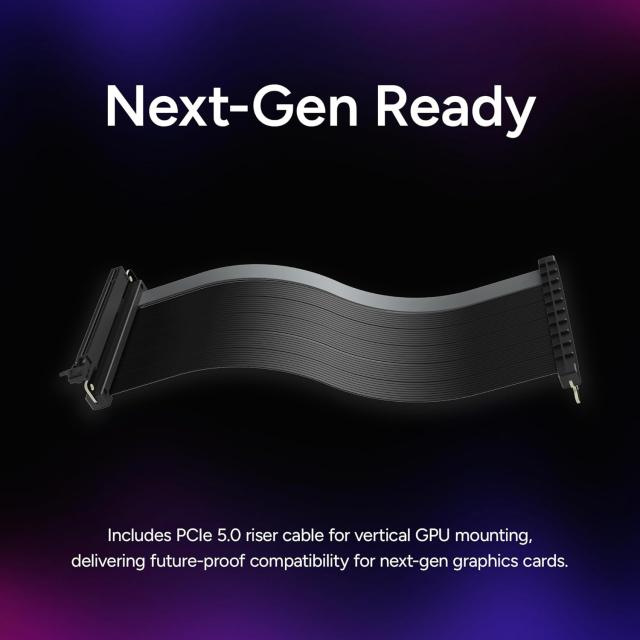

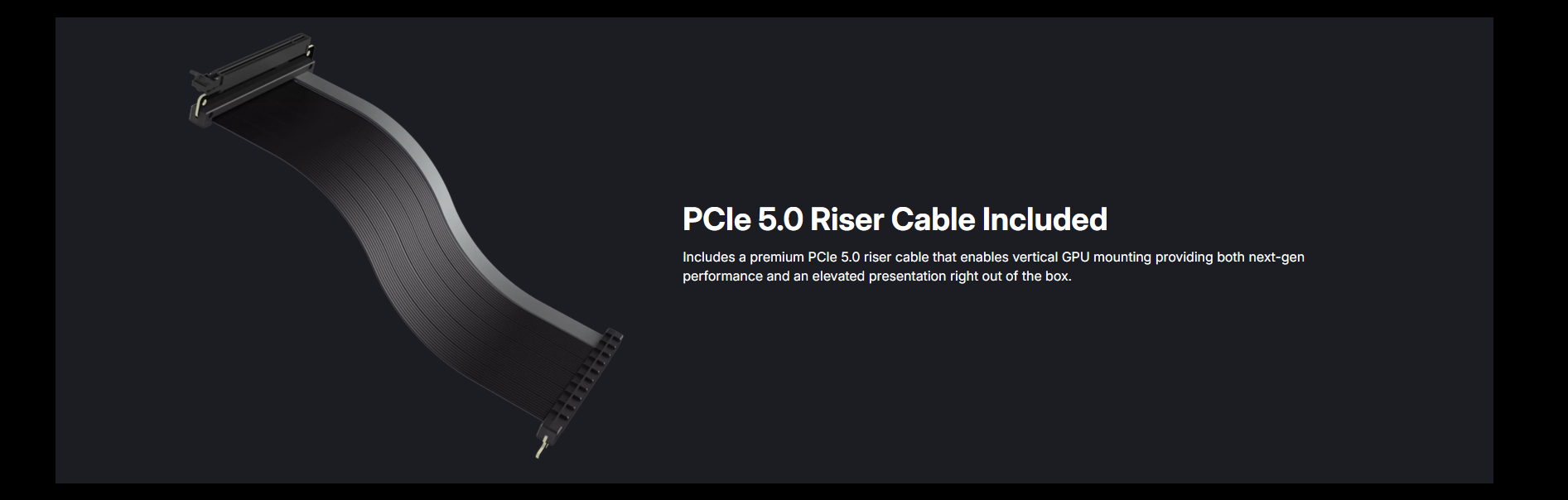

| Other electronic components | 1x PCI-e 5.0 Riser / 2x ARGB spotlight | Maximum Dimensions for Front Collectibles Display (H x W x D) | 328 x 290 x 110 mm |
| DIY tank & Pump support | MASTERFRAME 360 PANORAMA: Yes (with right side tank & pump bracket) | DIY tank & Pump support | MASTERFRAME 360 STAGE LCD & MIRROR: Yes (Left side) |
| Toolbox | Yes | Clearances - CPU Cooler | 145 mm |
| Clearances - Power Supply | 210 mm | Clearances - Graphics Card | 430 mm |
| Cable Routing - Behind Motherboard Tray | 110 mm | Series | MasterFrame Series |
| Size | Mid Tower |
