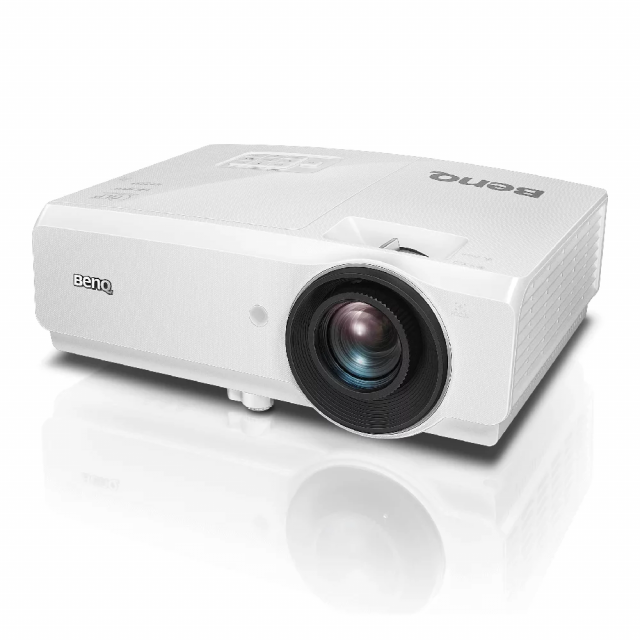

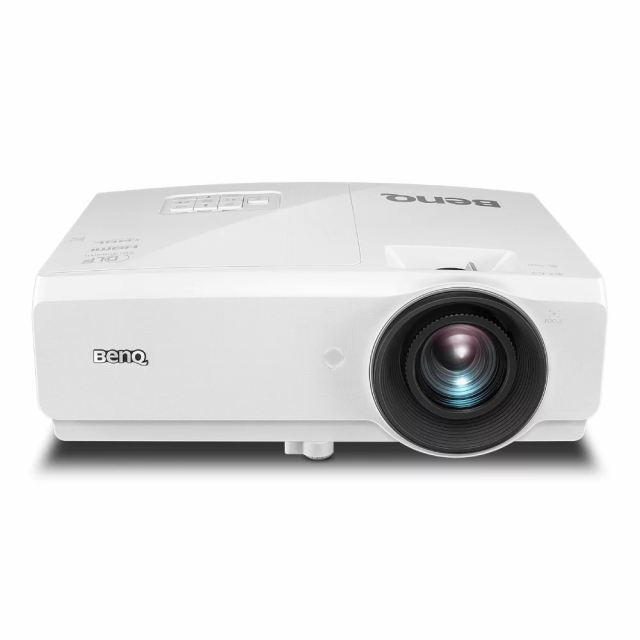

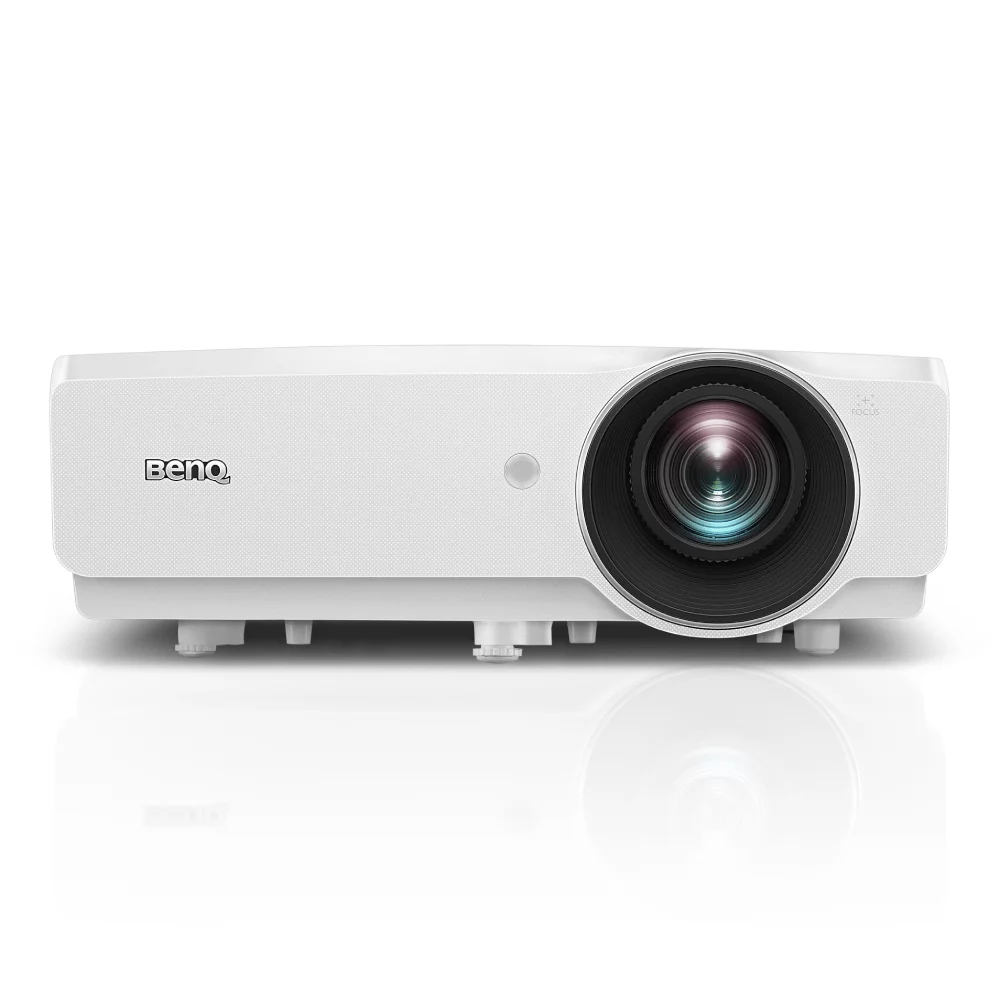

BenQ SH753+
Proiector BenQ BenQ SH753P, DLP, Full HD, 5000lm, 13 000:1, HDMI, LAN, VGA
Întrebare despre BenQ SH753+
| Garanție | 36 luni |
| Luminozitate | 5000 ansi lm |
| Rezoluţie (native) | 1920х1080 |
| Contrast | 13 000:1 |
| Tip | Standard |
| Durata de viață lampa | 2500 ore |
| Tehnologie | DLP |
| Format | 16:9 |
| Culoare | Alb |
Related products
BENQ SH753 + este un puternic proiector multimedia Full HD 1080p, potrivit pentru utilizarea in multimile mijlocii in salile de conferinte. Rezolutia Full HD va va oferi o calitate 100% a imaginii daca afisati o prezentare sau materiale video, in timp ce lumenele ANSI 5000 va vor permite sa proiectati perfect chiar si cu luminile aprinse. BENQ SH753 + este conceput pentru a repala eficient proiectoarele vechi in salile de sedinte corporative. Modelul este, de asemenea, conceput pentru a fi usor de instalat si de integrat perfect in infrastructurile centralizate si pentru a satisface standardele ridicate ale mediului corporativ, fara a fi nevoie de reparatii costisitoare. Zoom flexibil de 1,5x permite utilizarea standurilor de tavan. SH753 + poate fi instalat oriunde de la 3,7 pana la 5,5 metri de ecran si imagini de proiect pana la 120 ", dimensiunea tipica a imaginii pentru salile de sedinte corporative. Proiectorul are optiunea de reglare a curbei trapezoide pana la ± 30 grade atat pe linia orizontala cat si pe cea verticala, pentru a evita efectul trapez - o problema comuna cu proiectarea. Instalatorii pot utiliza controlul Corner Fit pentru a regla fiecare colt pentru o geometrie simetrica ideala a imaginii. Proiectorul ofera o varietate de intrari de conexiune, inclusiv doua porturi HDMI, astfel incat sa va puteti conecta la doua surse contemporane, odata ce trebuie sa comutati cabluri. Pentru a satisface nevoia din ce in ce mai mare de BYOD ( Aduceti-va propriul dispozitiv ), BenQ ofera dongle Wi-Fi QCast pentru a permite diferitilor membri ai intalnirii sa proiecteze continut multimedia FULL HD prin utilizarea conexiunii wireless - videoclipuri, documente si sesiuni de apeluri video de la orice tip de dispozitiv mobil.
- Full HD ( 1920x1080 ) rezolutie si contrast 13000:1
- Luminozitate ridicata de 5000 de lumeni ANSI pentru utilizare in camere iluminate de dimensiuni medii;
- Instalare si utilizare usoara;
- Calitatea imaginii perfecta;
Superb Image Quality
Vivid Clarity in Ambient Environments
SH753+’s 5,000lm high brightness allows presenters and participants to deliver presentations in comfortably lit medium-sized conference rooms, while supporting uncompromised debate, collaboration, note-taking and interaction to achieve the most productive meetings. The high luminance provides professional picture quality for installers to satisfy stringent corporate standards.
Full HD Resolution for Crisp Image Clarity and Increased Content DensityWith Full HD (1920 x 1080) native resolution in expanded 16:9 aspect ratio, SH753+ offers subtle details, ultra-sharp readability and highly enhanced display capacity for professional presentations.
|
Advanced Presentation Modes for Supreme Projection Quality
BenQ’s SH753+ provides several presentation modes that are tailored toward different kinds of presentation venues and content. It includes two advanced presentation modes designed to satisfy the specific needs during different kinds of presentations. The newly released Infographic Mode is perfect for showcasing the text and graphics of infographics in detail due to SH753+’s high color brightness and better color gradation, ensuring more saturated and lively color performance than presentation mode. Additionally, Vivid Mode is designed for supreme color performance during video or image presentation.
High Flexibility for Efficient Installation

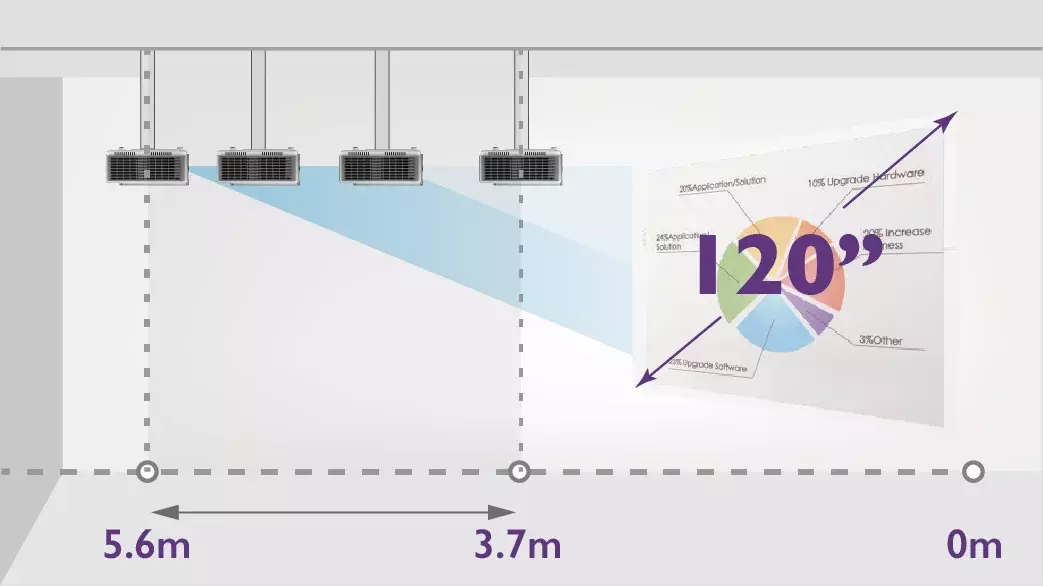

Flexible Throw Ratio and the 1.5x Zoom for Efficient Upgrades
With flexible throw ratio ranges and a 1.5x Big Zoom, corporations can easily and economically replace outdated projectors by making use of existing ceiling mounts to project large-scale images in restricted spaces. The 1.5x zoom allows SH753+ to be mounted anywhere from 3.7 to 5.6 meters from the screen and project images of 120", which is the typical image size for corporate meeting rooms, avoiding costly renovation or installation downtime.
Advanced Image Calibration for Ideal Projection Alignment

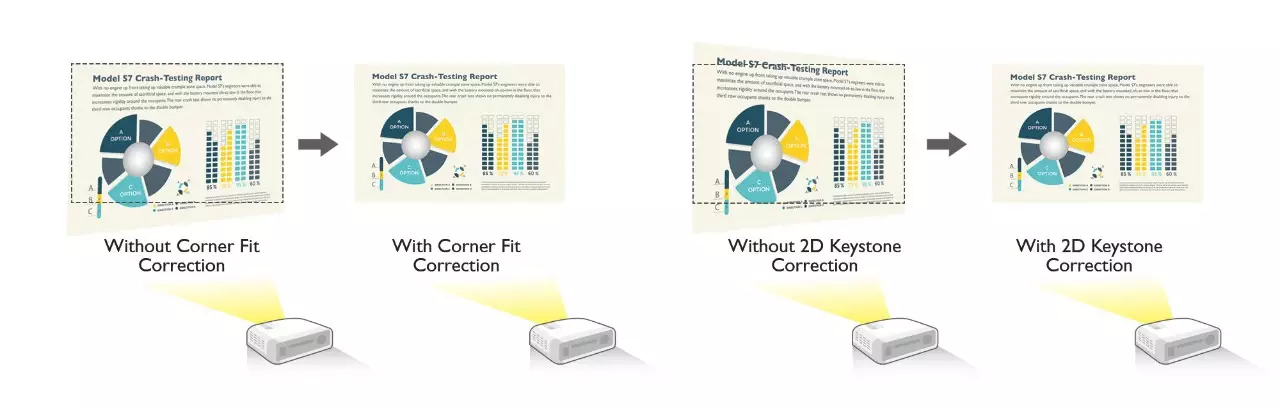

SH753+ is equipped with a two-dimensional keystone correction range of ±30° on both horizontal and vertical axes to counteract the trapezoid effect, a common phenomenon when the projector must be installed off-center. Installers can use Corner Fit control to adjust each corner respectively, for perfectly aligned image geometry.
Highly Integrated Network Control and Management System Compatibility

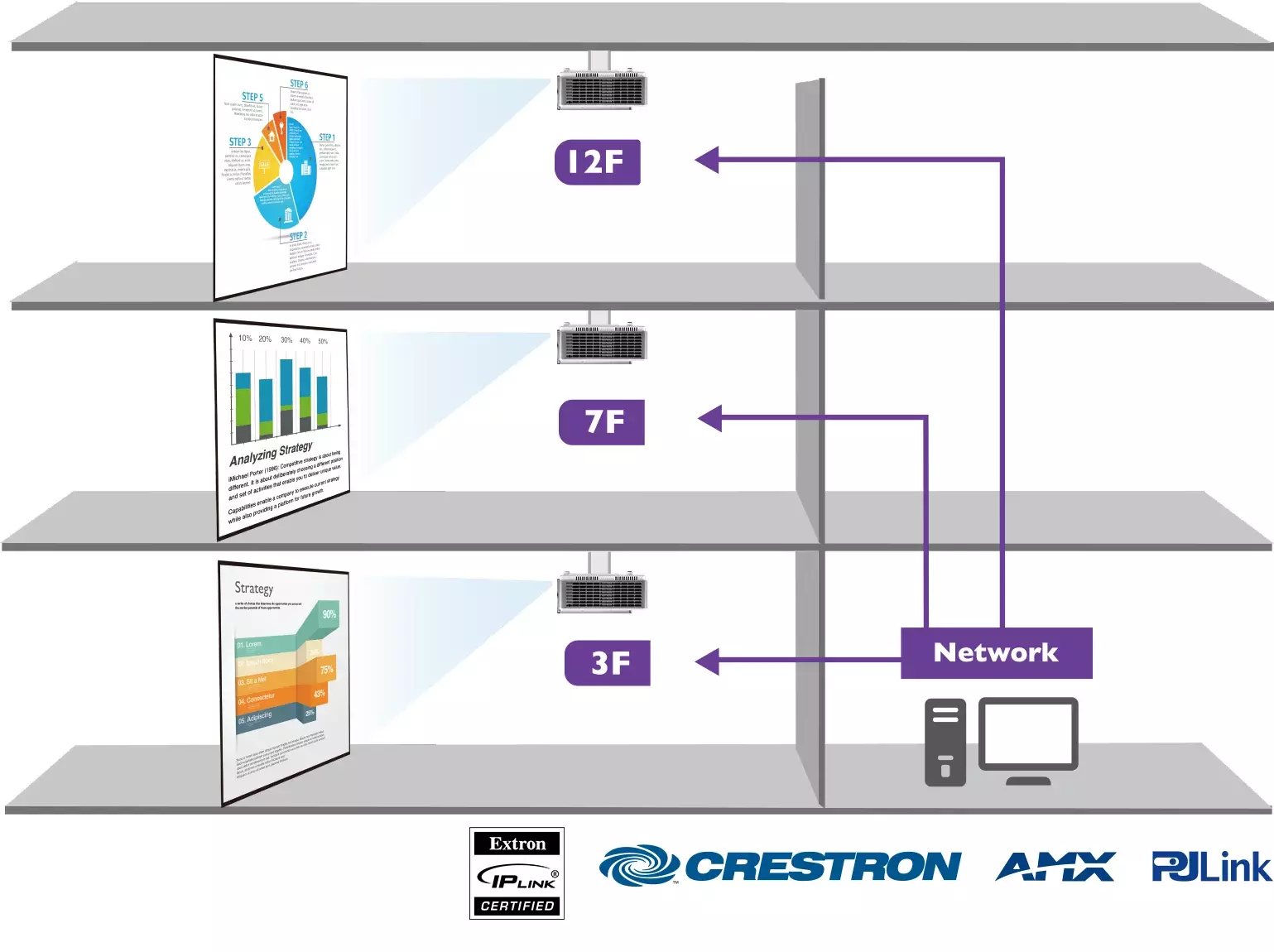

Comprehensive Control System Compatibility
SH753+ is widely compatible with leading projector control systems including Crestron, AMX, Extron* and PJ-Link, which fulfills network control via LAN, making it simple to integrate into corporate network infrastructures. When there is no LAN infrastructure, SH753+ also supports RS-232 for reliable long-distance Installations up to 15 meters.

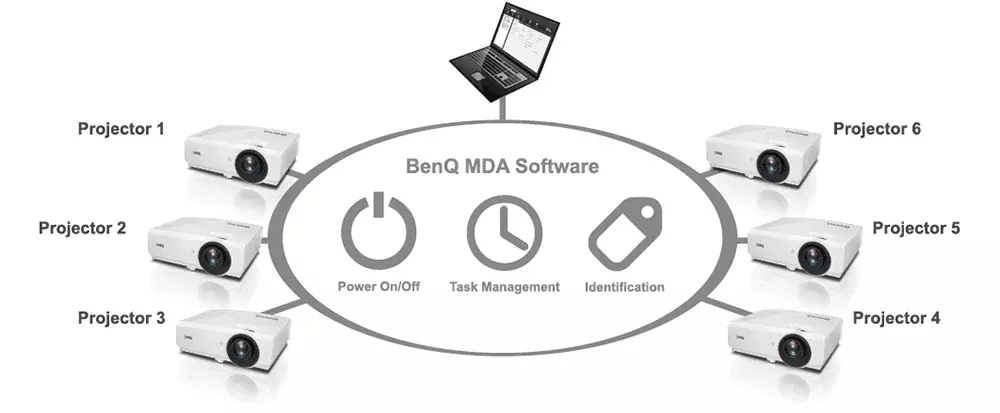

Centralized Control with BenQ’s MDA Software
The BenQ Multiple Display Administrator (MDA) software provides powerful centralized multiple-projector management, including automated opening and closing procedures for public spaces, remotely controlled power on and off, and scheduling for institutions and corporations.
Versatile Wireless Presentation Solutions
BenQ offers a complete line of Full HD wireless presentation solutions* to fulfill diverse meeting room applications, ranging from the premium level InstaShow wireless presentation system to the easy-to-use QCast WiFi dongle:
* Optional accessories for SH753.
One Button to Start Full HD Wireless Presentations

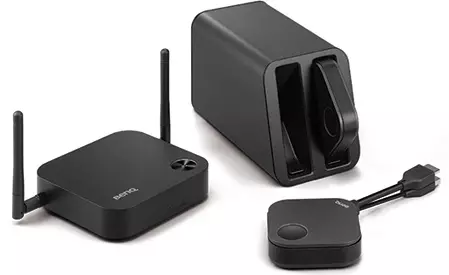

BenQ InstaShow WDC10 is a unique zero software solution that allows up to 16 presenters to lead from any device. The plug and play device requires no driver installation and is compatible with any OS or hardware platform, making it easy for presenters to wirelessly take turns delivering seamless presentations for improved meeting efficiency.
*Compatibility requirements are: USB/HDMI ports on source laptop and HDMI input on display device.
Wireless Multimedia Presentations from Smart Devices
To satisfy corporate employees’ growing BYOD needs, BenQ offers the QCast Wi-Fi dongle to let meeting participants wirelessly project Full HD multimedia content, including videos, documents, and live camera (video) sessions from any mobile device. With the multiple presenter capability accommodating up to four presenters in four split screens, BenQ wireless solutions encourage full participant engagement, collaborative teamwork, and inspirational discussions for highly effective meetings.
Enduring Efficiency and Simplified Corporate Maintenance

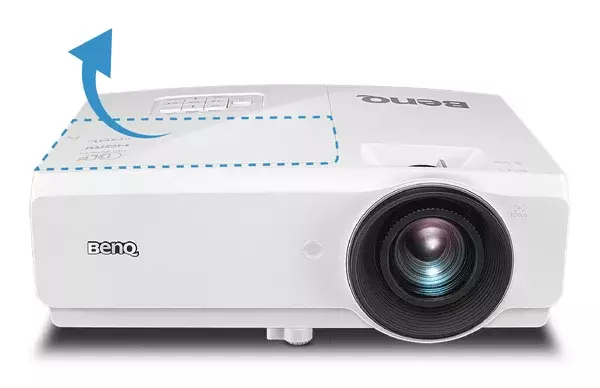

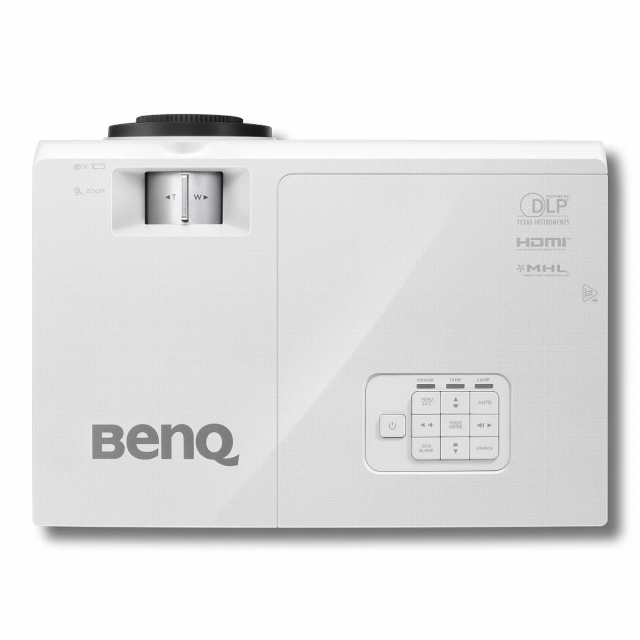

Upper Lamp Door for Simplified Lamp Maintenance
A quick-release lamp door provides IT managers’ convenient access for efficient lamp maintenance without having to remove the projector from the ceiling mount.
Long-Lasting DLP Prevents Color Decay and Conserves Energy
Equipped with the durability of digital micromirror devices and a nearly-sealed projection engine designed to prevent dust image, the DLP-powered SH753+ resists color decay and image degradation. This preserves picture quality even after thousands of hours of operation.
BenQ’s Exclusive SmartEco Technology
An exclusive BenQ innovation, SmartEco Technology perfects DLP's energy saving capabilities, while simultaneously delivering uncompromised brightness, exquisite picture quality, and optimized lamp life with reduced lamp usage.
Specifications
Display
| Brightness (ANSI lumens) | 5000 | Display Color | 30-bit (1.07 billion colors)13,000:1 |
| Native Resolution | 1080P (1920x1080) | Light Source | Lamp |
| Native Aspect Ratio | 16:9 | Light Source Life | a. Normal 2500 hrs, b. ECO 3500 hrs, c. SmartEco 4500 hrs |
| Contrast Ratio (FOFO) | 13,000:1 |
Optical
| Throw Ratio | 1.39~2.09 | Projection Offset (Full-Height) | 115% |
| Zoom Ratio | 1.5x | Keystone Adjustment | 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees |
| Lens | F/#= 2.42 ~2.97, f = 20.7 ~ 31.05mm |
| Picture Modes | 3D, Bright, Infographic, Presentation, sRGB, Vivid |
Compability
| Resolution Support | VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking | Vertical Scan Rate | 23~120KHz |
| Horizontal Frequency | 15K~102KHz |

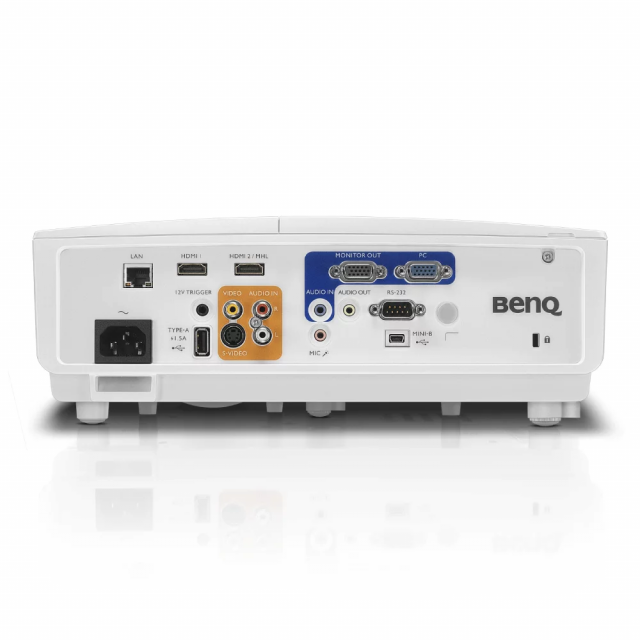

I/O Interface
| PC in (D-sub 15pin) | (x1) | LAN (RJ45) | (x1) |
| Monitor out (D-sub 15pin) | (x1) | USB Type A | (x1), USB Type A-1 (2.0/Power Supply1.5A) |
| Composite Video in (RCA) | (x1) | USB Type Mini B | (x1), USB Type Mini B-1(service/Page up&down) |
| S-Video in (Mini DIN 4pin) | (x1) | RS232 in (DB-9pin) | (x1) |
| HDMI in | (x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4/MHL) | DC 12V Trigger (3.5mm Jack) | (x1) |
Audio
| Speaker | (x1), 10W | Audio out (3.5mm Mini Jack) | (x1) |
| Audio in (3.5mm Mini Jack) | (x1) | Microphone in (Mini Jack) | (x1) |
Environment
| Operating Temperature | 0~40℃ | Stand-by Power Consumption | <0.5W |
| Power Supply | AC 100 to 240 V, 50/60 Hz | Network Stand-by Power Consumption | <2W |
| Typical Power Consumption (110V) | 365W/110V | Acoustic Noise (Typ./Eco.)(dB) | 36/31 dB |
Accessories
| Remote Control w/ Battery | RCS011 | 3D Glasses | (Optional), DGD5 |
| Power Cord (by region) | x1 (1.8M) | Quick Start Guide | (x1) 18L |
| VGA(D-sub 15pin) Cable | 1 (1.5m) | Warranty Card (by region) | Yes |
| User Manual CD | 1 (24L) | Universal Ceiling Mount | (Optional), CM00G3 |
Dimensions & Weight
| Dimensions (WxHxD) (mm) | 314 x117 x 233 | Net Weight (kg) | 3.3 kg |
Projection System
| Projection System | DLP |
