ATEN USB-C Multiport Dock with Power Pass-Through
Docking Station ATEN UH3237, USB-C, Power Pass-Through
Cod produs: ATEN-UH3237-AT
Întrebare despre ATEN USB-C Multiport Dock with Power Pass-Through
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 24 luni |
| Interfață | USB-C |
| Standard USB | USB 3.1 Gen 1 |
| Porturi | USB-A, USB-C, VGA, HDMI, LAN, SD Card reader, microSD card reader, 3.5 mm audio jack |
| Rezoluție suportată | 1080p@60Hz, 4K@30Hz |
Related products
Interfață:
USB-C
Standard USB:
USB 3.2 Gen1
Porturi:
USB-A, HDMI, LAN, SD Card reader, microSD card reader, 3.5 mm audio jack
Rezoluție suportată:
4K@120Hz, 8K@30Hz

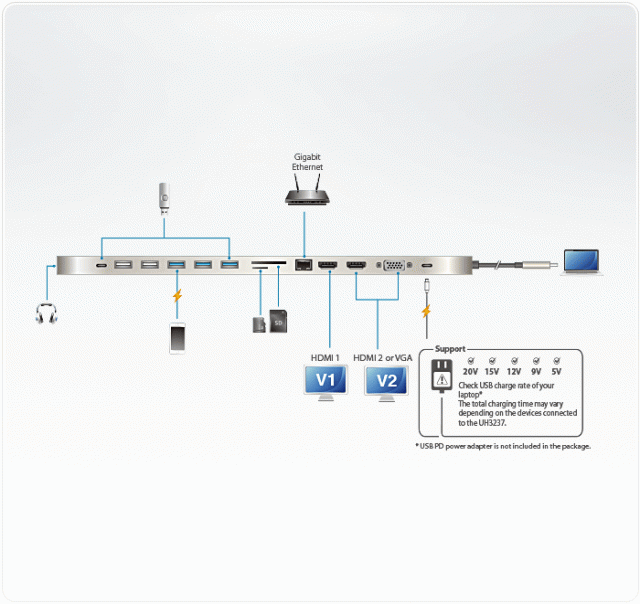

- Extinde pana la 13 dispozitive instantaneu printr-un cablu USB-C
- Suporta USB power delivery 3.0 (PD3.0) pentru incarcarea laptopurilor pana la 85W prin intermediul adaptorului de alimentare USB-C PD - profilurile de alimentare includ 5V, 9V, 12V, 15V, 20V
- Suporta rezolutia de iesire a unui singur afisaj de pana la 4K@30 (3840x2160@30Hz) pe un singur HDMI sau iesire dubla la 1080p (1920x1080@60Hz)
- Compatibil cu dispozitivele cu cip Apple M1; 1 x port USB 3.2 Gen 1 Tip-A suporta specificatia de incarcare a bateriei Revizia 1.2 (BC 1.2) pentru dispozitiv cu incarcare rapida

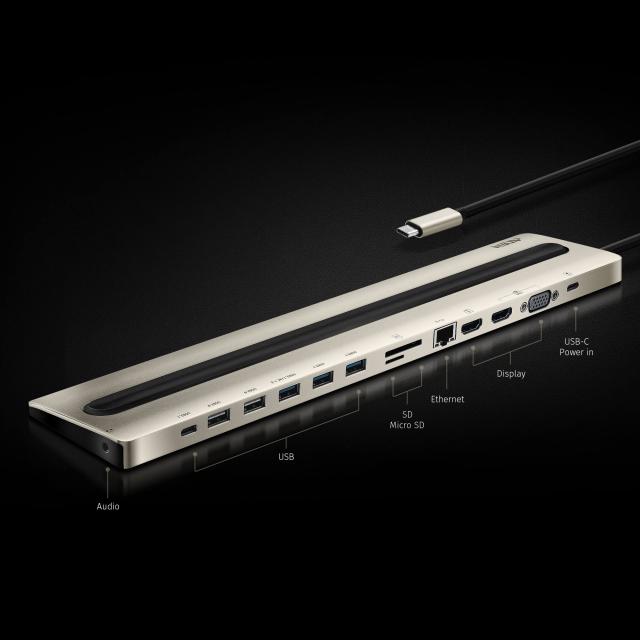

Conexiuni pentru computer: 1
Conectori:
Computer: Cablu USB 3.1 Gen1 Type-C de 30 cm
Dispozitiv: 2 x USB 2.0 tip A mama (negru)*
3 x USB 3.2 Gen 1 Tip-A mama (albastru)*
1 x USB 3.2 Gen 1 Type-C mama (numai date)*: 1 x USB 3.2 Gen 1 Type-C mama (numai date)*.
*Puterea totala a celor 6 porturi USB este de max. 5V, 10W.
Iesire video: 2 x HDMI mama
1 x VGA mama
Porturi LAN: 1 x Gigabit Ethernet mama (negru)
Audio: 1 x 3,5 mm stereo cu 4 poli, cu microfon si mufa pentru casti
Alimentare: 1 x USB Type-C mama
Memorie flash: 1 x slot pentru carduri SD (SD/SDHC/SDXC)
1 x slot pentru carduri Micro SD (Micro SD/SDHC/SDXC de pana la 128G)
Rezolutie video:
Vedere unica: HDMI - 3840x 2160@30hz sau VGA -1920 x 1080@60hz
Vedere dubla: 2 x HDMI - 1920 x 1080@60hz
Dimensiuni: 35,03 x 7,50 x 1,48 cm

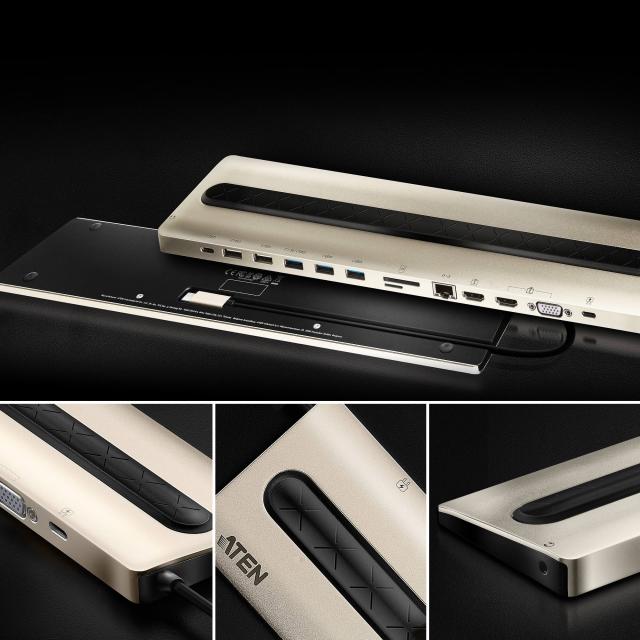

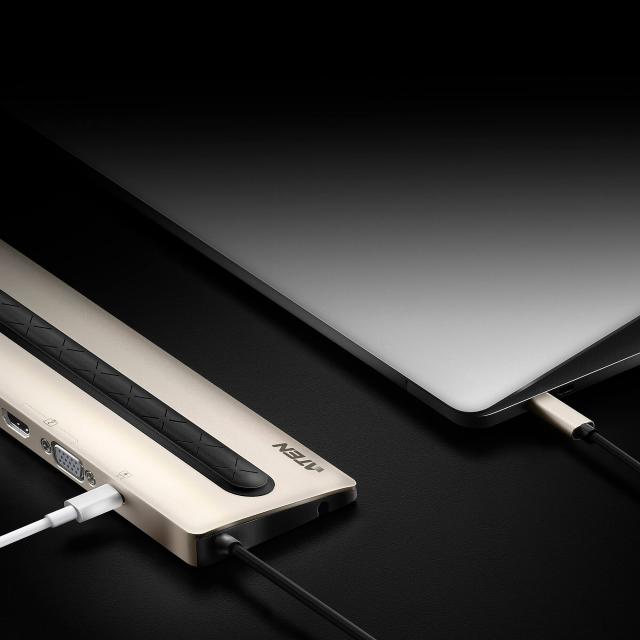

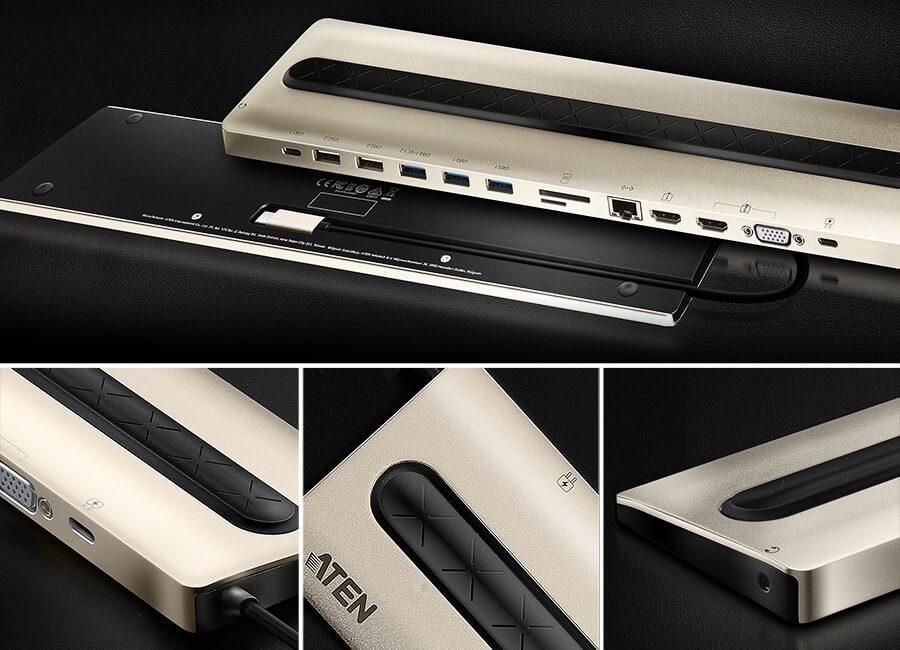

GOLD-AND-BLACK PREMIUM DESIGN
Expansion can be stylish now. The UH3237 is an elegant
masterpiece, exquisitely crafted from solid aluminum with a gold-
and-black premium design. Slim, stylish, and powerful – all forged
into one.

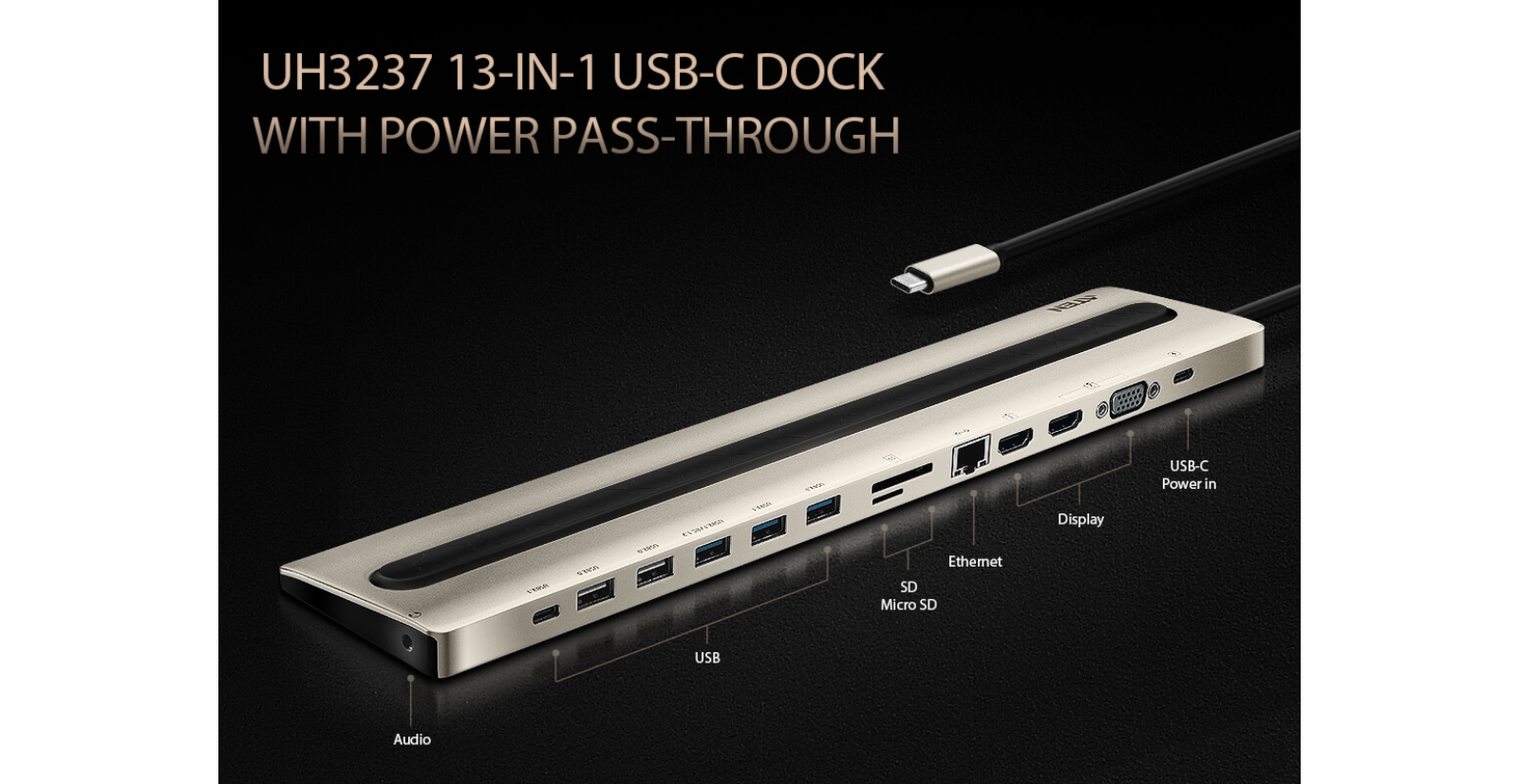

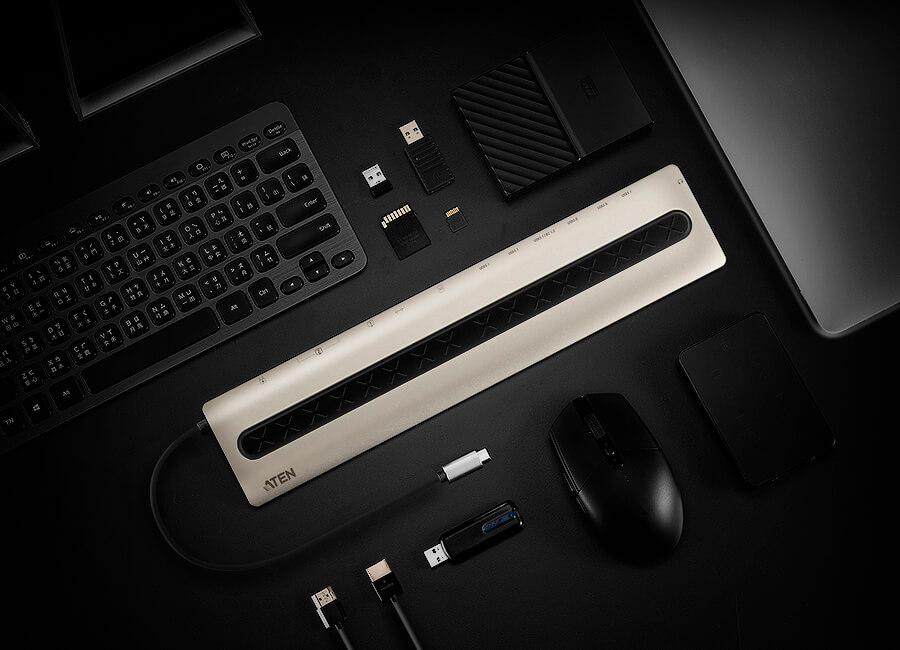

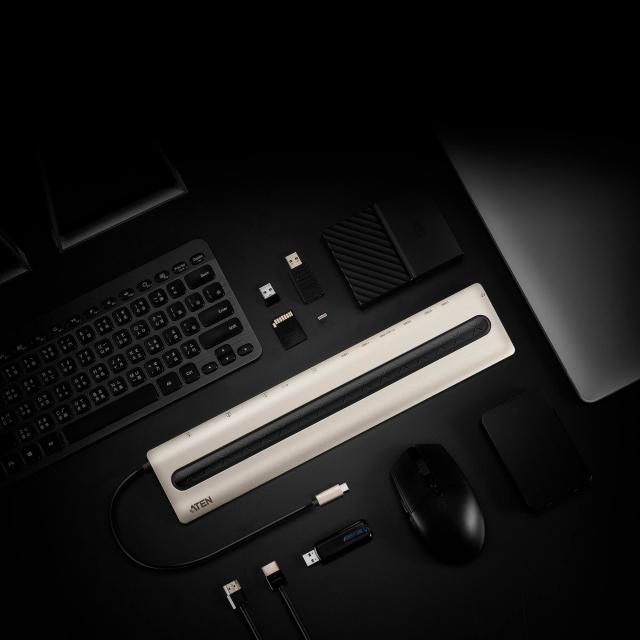

13-IN-1, CREATE WITHOUT CONSTRAINT
This ultimate USB-C dock covers every port you could ever imagine
for your laptop/MacBook. Power, video, audio, and data, all through
one single cable.

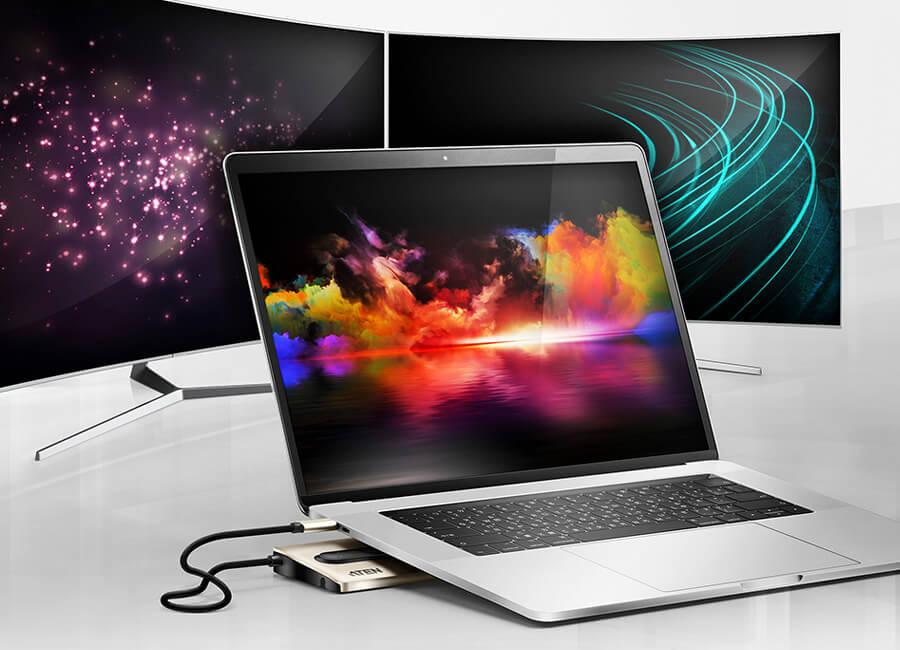

More Pixels, More Productivity
Expand your view by connecting up to two additional displays with
versatile video output ports, which support single 4K resolution or
dual 1080P resolution.

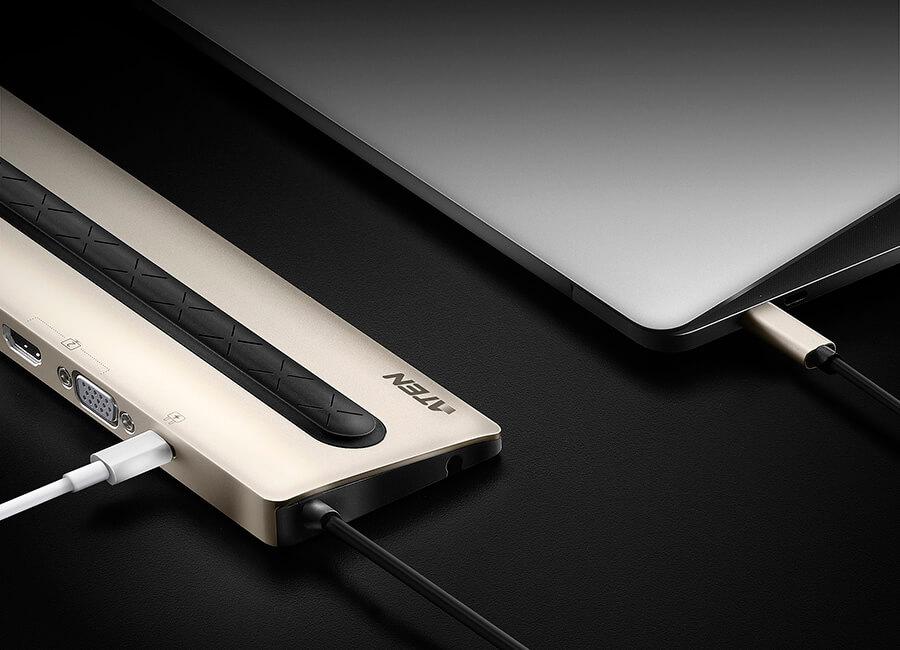

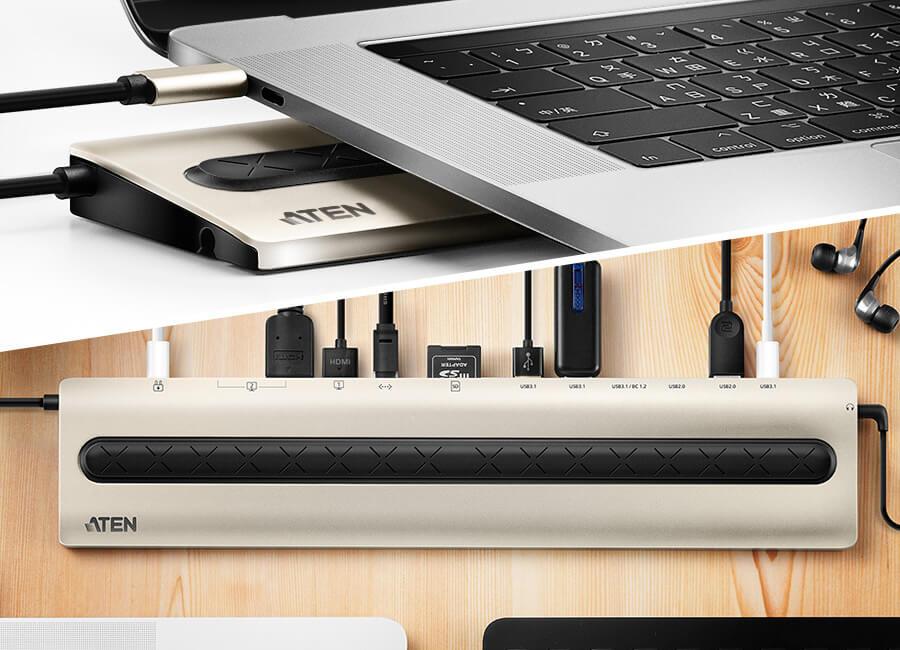

ONE DOCK, TWO USAGE SCENARIOS
You can either put it beside the laptop or place your laptop directly

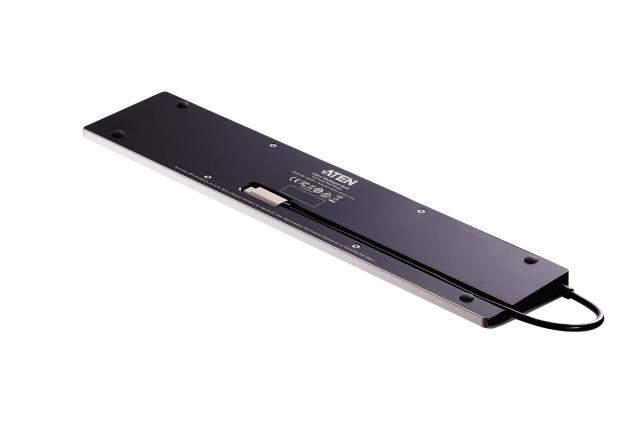

on top of the dock for a neat and clean space. The connector cable
can also be folded under the dock, making it easier to carry on-the-
go
85W POWER TO EVERYTHING YOU NEED
The 85W USB-C power delivery pass-through charges your
laptop/MacBook and also handles your power-hungry devices.
Specifications
| Computer | 30 cm USB 3.1 Gen1 Type-C tethered cable | Power Consumption | DC5V:15W:66BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Device | 2 x USB 2.0 Type-A Female (Black)* 3 x USB 3.2 Gen 1 Type-A Female (Blue)* 1 x USB 3.2 Gen 1 Type-C Female (Data Only)* *The total output of 6 USB Ports is max. 5V, 10W. |
System Requirements | Windows 10 and above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby- Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en /processors /processor-numbers.html Mac OS X 10.12 and above, USB-C enabled computer iPadOS 13.1 and above, iPad Pro (USB-C)* *iPad Pro only supports single view in mirror mode |
| Video Output | 2 x HDMI Female 1 x VGA Female |
Operating Temperature | 0–40°C |
| LAN Ports | 1 x Gigabit Ethernet Female (Black) | Storage Temperature | -20–60°C |
| Audio | 1 x 3.5mm stereo 4-pole microphone and headphone jack | Humidity | 0–80% RH, Non-condensing |
| Power | 1 x USB Type-C Female* * Supports USB Power Delivery 3.0 for charging up to 85W, power profiles includes 5V, 9V, 12V, and 20V. * For device charging, a Limited Power Source (LPS) certified single port USB-C PD power adapter over 65 Watt is recommended. * The minimum system power requirement for basic USB functions and video output should be at least 5V, 15W. |
Housing | Top Cover – Aluminum Bottom Panel - Plastic |
| Flash Memory | 1 x SD Card Slot (SD/SDHC/SDXC) 1 x Micro SD Card Slot (Micro SD/SDHC/SDXC up to 128G) |
Weight | 0.37 kg ( 0.81 lb ) |
| Video Resolution | Single View: HDMI - 3840x 2160@30hz or VGA -1920 x 1080@60hz Dual View*: 2 x HDMI – 1920 x 1080@60hz * For Dual-View to work, a computer's graphics card must support MST technology. Mac computers only support a single-view output. |
Dimensions (L x W x H) | 35.03 x 7.50 x 1.48 cm (13.79 x 2.95 x 0.58 in.) |
