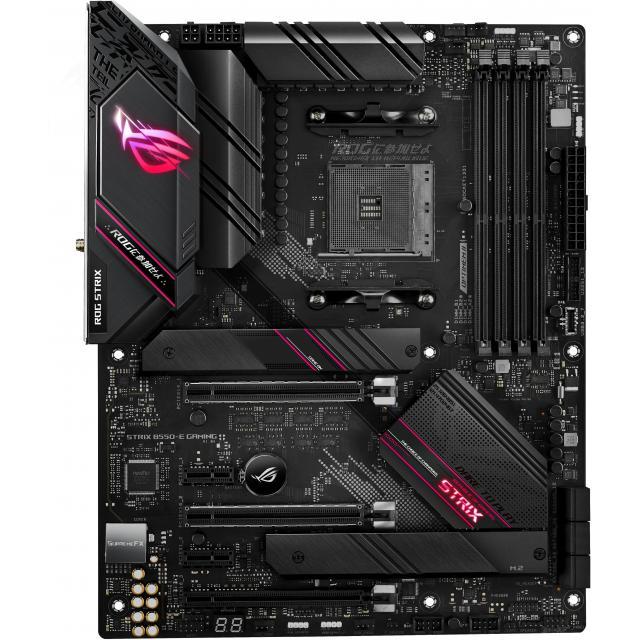

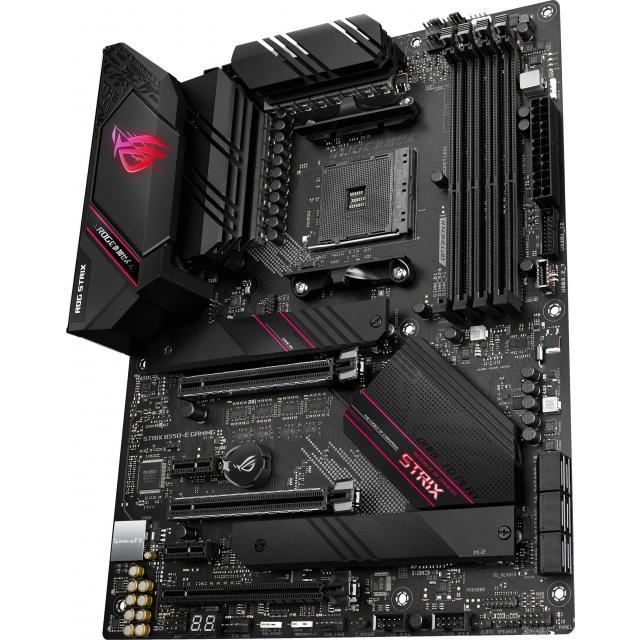

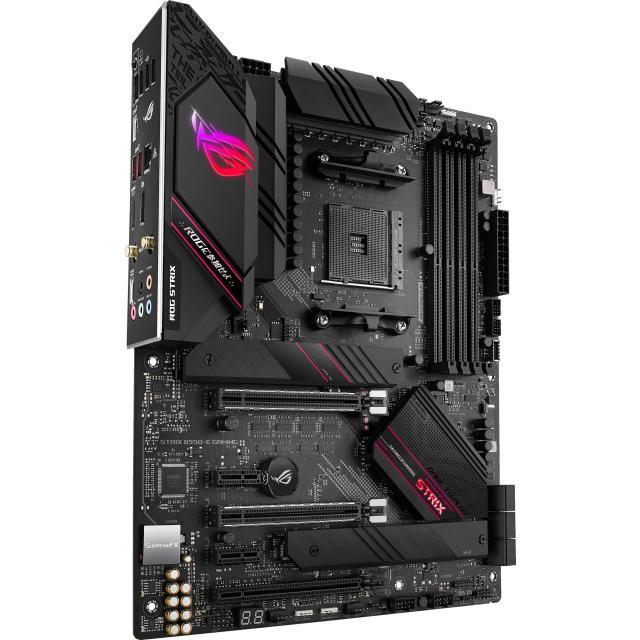

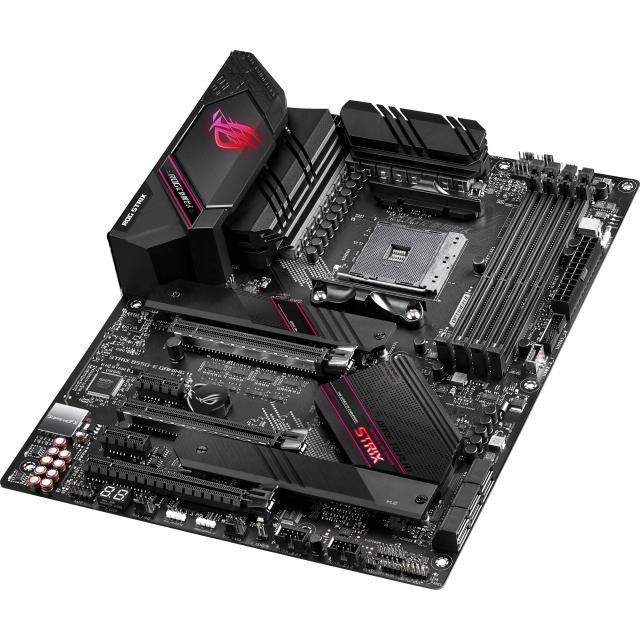

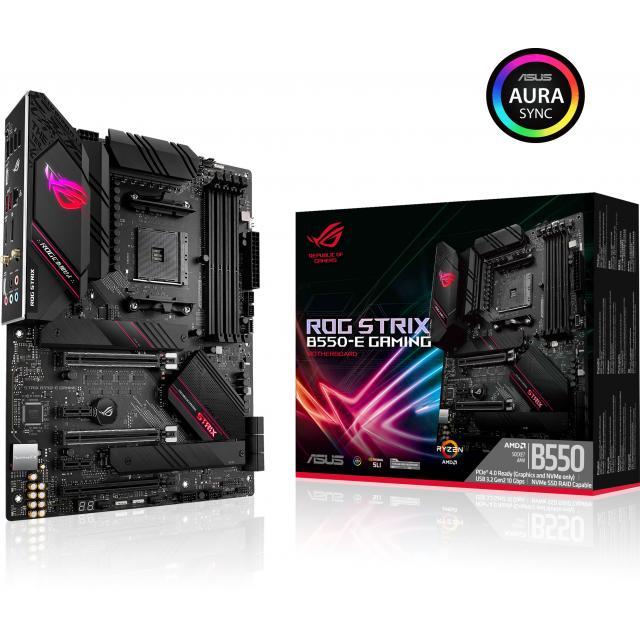

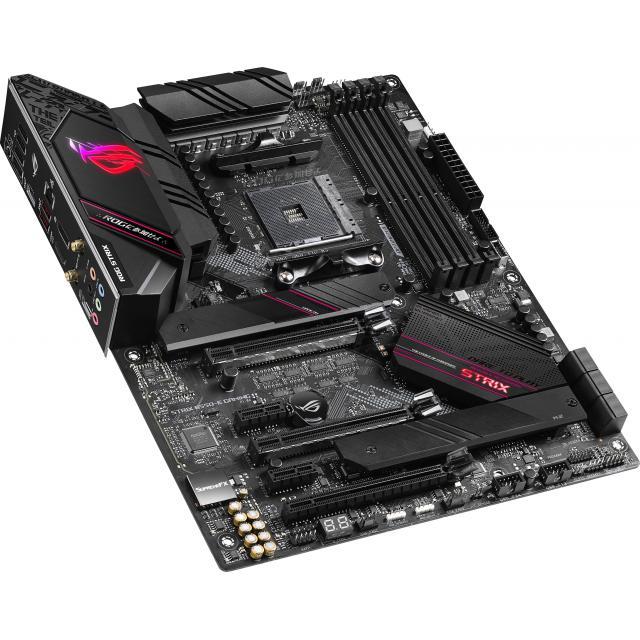

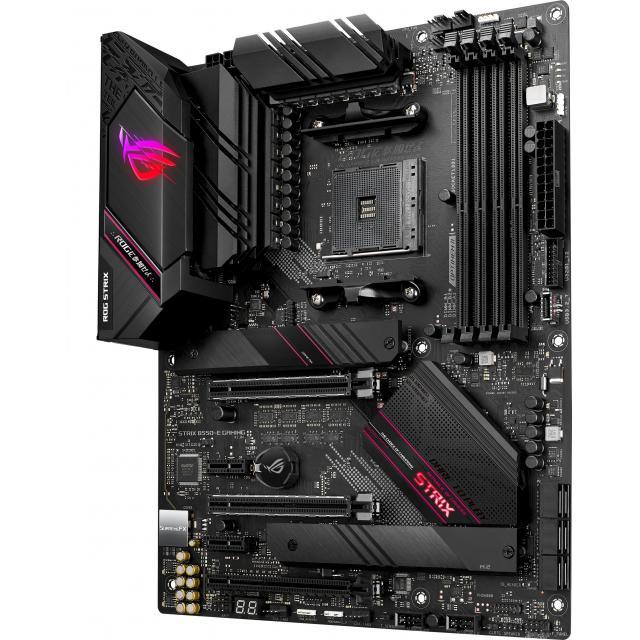

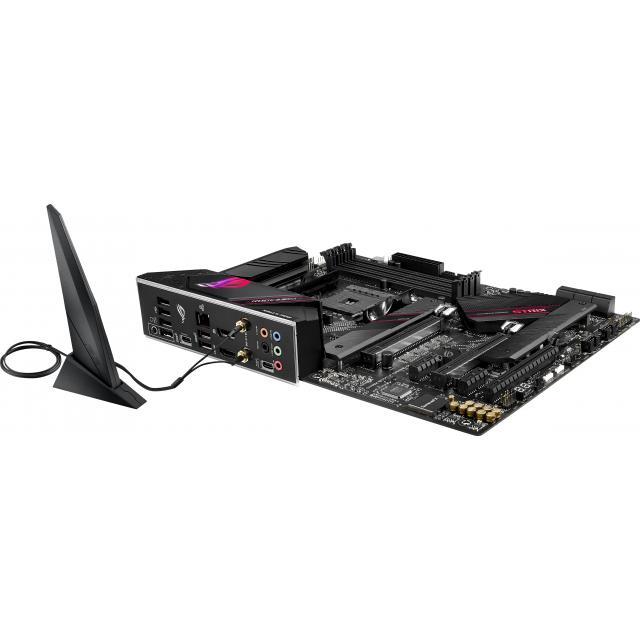

ASUS ROG STRIX B550-E GAMING
Placa de baza ASUS ROG STRIX B550-E GAMING (WI-FI 6) socket AM4, 4xDDR4, Aura Sync, PCIe 4.0, Dual M.2, 2.5GB Lan
Cod produs: ASUS-MB-STRIX-B550E
Epuizat
Întrebare despre ASUS ROG STRIX B550-E GAMING
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 36 luni |
| Socket | AMD AM4 |
| Form Factor | ATX |
| Chipset | AMD B550 |
| Numărul de sloturi pentru memorie | 4 |
| Capacitate RAM | până la 128 GB |
| Frecvența memoriei | până la 5100 MHz |
| Iluminare RGB | Dа |
| Memorie suportată | DDR4 |
| Wi-Fi încorporat | Da |
Related products
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
ATX
Chipset:
Intel B860
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
ATX
Chipset:
Intel B860
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD X870
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1700
Form Factor:
ATX
Chipset:
Intel Z790
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 128 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
ATX
Chipset:
Intel B860
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
ATX
Chipset:
Intel B860
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Placa de baza ASUS ROG STRIX B550-E GAMING (WI-FI 6) socket AM4, 4xDDR4, Aura Sync, PCIe 4.0, Dual M.2, 2.5GB Lan
RIDICATI DEASUPRA CAMPULUI DE LUPTA
Placile de baza din seria ROG Strix B550 Gaming ofera un set de caracteristici gasit de obicei in gamele superioare ROG Strix X570 Gaming, incluzand cele mai recente PCIe® 4.0. Cu o putere robusta de furnizare si o racire eficienta, ROG Strix B550 Gaming este bine echipat pentru a gestiona procesoarele AMD Ryzen ™ de a treia generatie. Cu o estetica futurista si un software ROG intuitiv, ROG Strix B550-E Gaming va ofera o pornire primordiala asupra constructiei de vise.
- Socket AMD AM4 si PCIe 4.0: Asocierea perfecta pentru procesoare AMD Ryzen de a 3-a gen
- Solutie de alimentare imbunatatita: 14 + 2 etaje de alimentare DrMOS, cu cocuri de aliaj de inalta calitate si condensatoare durabile, asigura o putere de incredere pentru cele mai noi procesoare AMD cu numar mare de miez.
- Racire cuprinzatoare: solutiile termice VRM fara ventilator si chipset-urile cu design ASUS Stack Cool 3+ iti mentin sistemul functionand in conditii de incarcare sub sarcini mari, sporind capacitatea de racire pasiva pentru componentele de bord critice.
- Retelele de jocuri performante: WiFi 6 de bord (802.11ax), Bluetooth V5.1 si 2.5 Gb LAN cu ASUS LANGuard
- Cea mai buna conectivitate pentru jocuri: accepta iesire HDMI 2.1 (4K @ 60HZ) si iesire DisplayPort 1.2, cu sloturi M.2 duble (NVMe SSD) - una cu conectivitate PCIe 4.0 x4, conector USB 3.2 Gen 2 panou frontal Tip C, USB 3.2 Gen 2 Port de tip C, USB Audio Type-C incorporat cu cablu adaptor de 3,5 mm si antet 3 Thunderbolt
CPU |
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
* Refer to www.asus.com for CPU support list
|
Chipset |
AMD B550 |
Memory |
4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/ 4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
AMD RyzenTM 4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
OptiMem II
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
|
Graphic |
1 x HDMI 2.1(4K@60HZ)
1 x DisplayPort 1.2
*Graphics specifications may vary between CPU types.
Integrated Graphics Processor
|
Multi-GPU Support |
Supports NVIDIA 2-Way SLI® Technology
Supports AMD 3-Way CrossFireX™ Technology
|
Expansion Slots |
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode) *
2 x PCIe 3.0 x1
2 x PCIe 4.0 x16 (x16 or dual x8)
2 x PCIe 3.0 x16 (x16 or dual x8)
|
Storage |
1 x M.2_2 socket 3,
AMD RyzenTM 4000 G-Series Processor :
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*
Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset :
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
|
LAN |
Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
|
Wireless Data Network |
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Intel® Wi-Fi 6 AX200
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
|
Bluetooth |
Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.
|
Audio |
- Rear audio USB Type-C® port
- Audio Shielding
ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A
- Premium Japanese audio capacitors
- Audio Cover
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- Supports up to 32-Bit/192kHz playback *
Audio Feature :
- SupremeFX Shielding™ Technology
|
USB Ports |
3 x USB 3.2 Gen 2 port(s)(2 x Type-A +1 x USB Type-C®)
1 x USB 2.0 port(s)(1 x audio USB Type-C® )
4 x USB 2.0 port(s)(4 x Type-A)
Rear USB Port ( Total 8 )
Front USB Port ( Total 7 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
1 x USB 3.2 Gen 2 front panel connector port(s)
|
Software Features |
ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync Ai noise cancelling microphone AI Suite 3: - 5-way Optimization TPU EPU DIGI+ VRM Fan Xpert 4 Turbo APP - EZ update WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
ASUS Special Features |
Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-CODE - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS Flashback™ button -BIOS FlashBack™ LED -Clear CMOS header -Procool -Pre-mounted I/O shield - SafeSlot Rear audio USB Type-C® connector |
Back I/O Ports |
3 x USB 3.2 Gen 2 (2 x Type-A+1 x USB Type-C®)
5 x USB 2.0 (1 for audio USB Type-C®)
1 x BIOS FlashBack™ Button(s)
1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
5 x Audio jack(s)
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
|
Internal I/O Ports |
1 x AAFP connector
1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Thunderbolt header(s)
1 x Q-Code
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
2 x Aura RGB Strip Header(s)
2 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
|
Accessories |
1 x ROG audio USB Type-C® cable
1 x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s)
1 ROG key chain
1 x Wi-Fi moving antenna
User´s manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x ROG Thank you card
|
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Operating System |
Windows® 10 64-bit |
Form Factor |
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
Note |
*Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2 ** When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled. ´* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1-Channel audio. |
