ASUS ROG Hyperion GR701 BTF Edition
Carcasa PC ASUS ROG Hyperion GR701 BTF Edition, Full Tower
Cod produs: ASUS-CASE-ROG-HYP-BTF
Întrebare despre ASUS ROG Hyperion GR701 BTF Edition
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 24 luni |
| Form Factor | Full Tower |
| Format | ATX, Micro ATX, Mini ITX, EATX |
| Ventilatoare incluse | 4x 140mm |
| Panou frontal | Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C, USB 4.0 |
| Culoare | Negru |
| Lungime | 639 mm |
| Lăţime | 268 mm |
| Înălţime | 659 mm |
| Înălțimea maximă a coolerului cu aer | 190 mm |
| Lungimea maximă a plăcii video | 460 mm |
| În plus | Butoane de control al iluminarii, Fan Hub, ARGB Hub |
| Ventilatoare suportate în față | 3x 120mm, 3x 140mm |
| Ventilatoare suportate în spate | 1x 120mm, 1x 140mm |
| Ventilatoare suportate în partea de sus | 3x 120mm, 3x 140mm |
| Coolere cu lichid suportate în fată | 1x 280mm, 1x 120mm, 1x 240mm, 1x 360mm, 1x 140mm, 1x 420mm |
| Coolere cu lichid suportate în spate | 1x 120mm, 1x 140mm |
| Coolere cu lichid suportate în partea de sus | 1x 240mm, 1x 120mm, 1x 140mm, 1x 280mm, 1x 360mm, 1x 420mm |
| Panou Mesh frontal | Nu |
Related products
Form Factor:
Full Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
4x 140mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
4x 140mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
4x 140mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX, Mini DTX
Ventilatoare incluse:
1x 140mm, 2x 200mm
Panou frontal:
USB 2.0, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX, Mini DTX
Ventilatoare incluse:
1x 140mm, 2x 200mm
Panou frontal:
USB 2.0, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
4x 120mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX
Ventilatoare incluse:
4x 120mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
4x 140mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Alb
Form Factor:
Mid Tower
Format:
ATX, Micro ATX, Mini ITX, EATX
Ventilatoare incluse:
4x 140mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX
Ventilatoare incluse:
1x 120mm, 2x 160mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Negru
Form Factor:
Mid Tower
Format:
ATX
Ventilatoare incluse:
1x 120mm, 2x 160mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Bej
Form Factor:
Mid Tower
Format:
ATX
Ventilatoare incluse:
1x 120mm, 2x 160mm
Panou frontal:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Culoare:
Negru

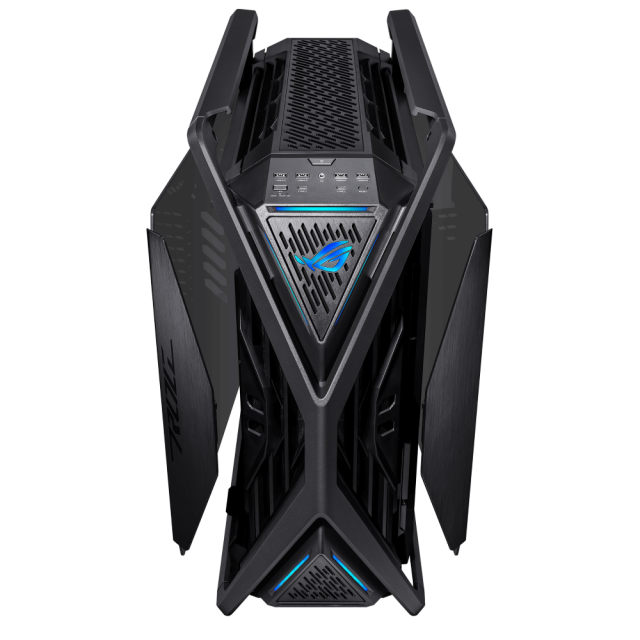

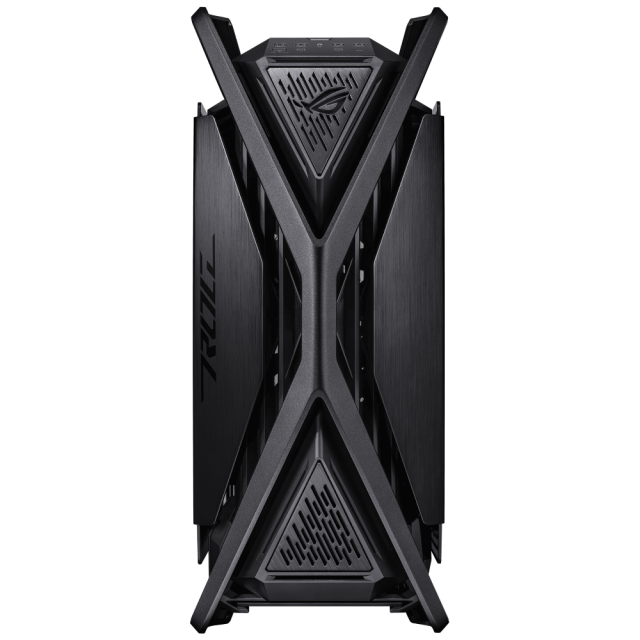

ASUS ROG Hyperion GR701 BTF Edition este o carcasa E-ATX ultra-premium, gandita pentru entuziasti si gameri care vor performanta termica extrema, design futurist si un build complet fara cabluri vizibile. Ofera suport pentru componente BTF, racire masiva si functionalitati avansate pentru un setup de top.
- Design BTF (Back-To-Future): compatibil cu placi de baza si GPU-uri cu conectori ascunsi – estetica ultra-curata
- Ventilatie avansata: 4x ventilatoare PWM 140 mm preinstalate + suport pentru 2x radiatoare de 420 mm
- Layout dual-chamber: separa zona de alimentare si cabluri – airflow directionat si management eficient

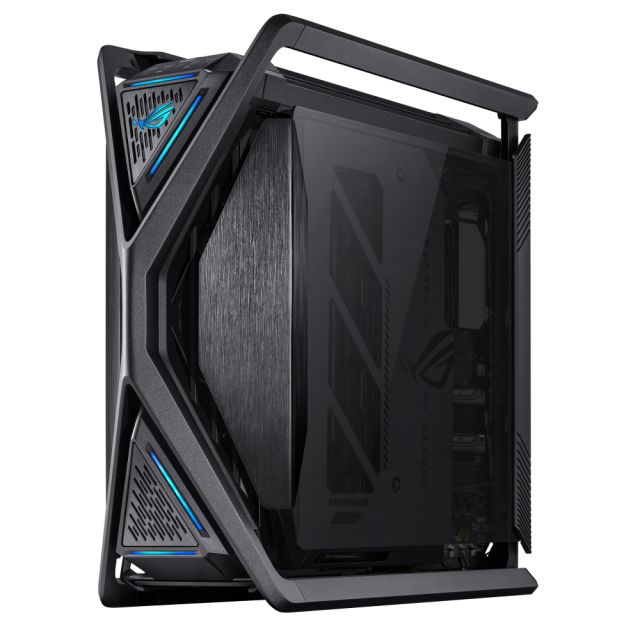

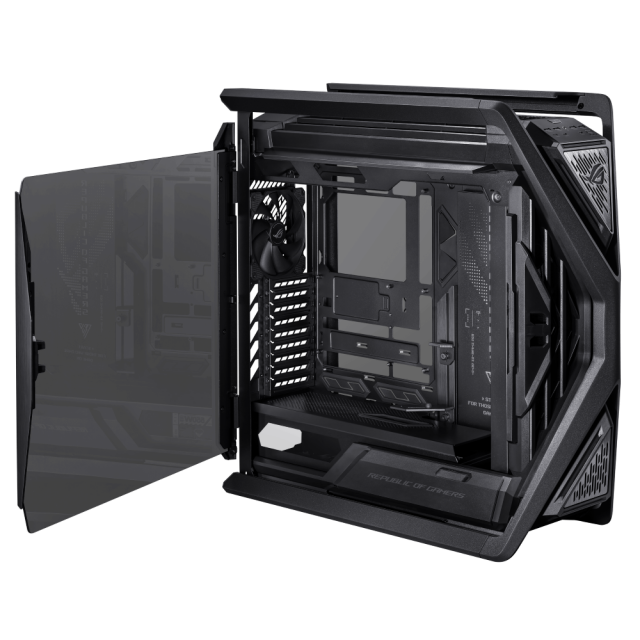

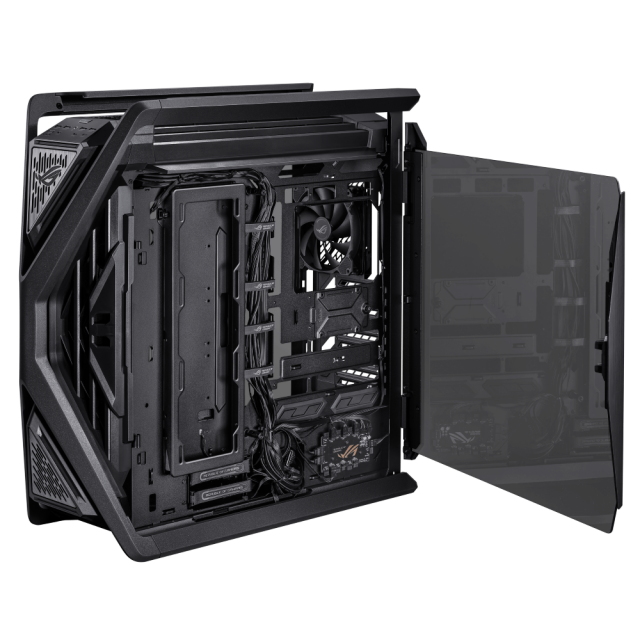

- Panouri laterale tool-less: sticla securizata cu balamale – acces rapid si sigur

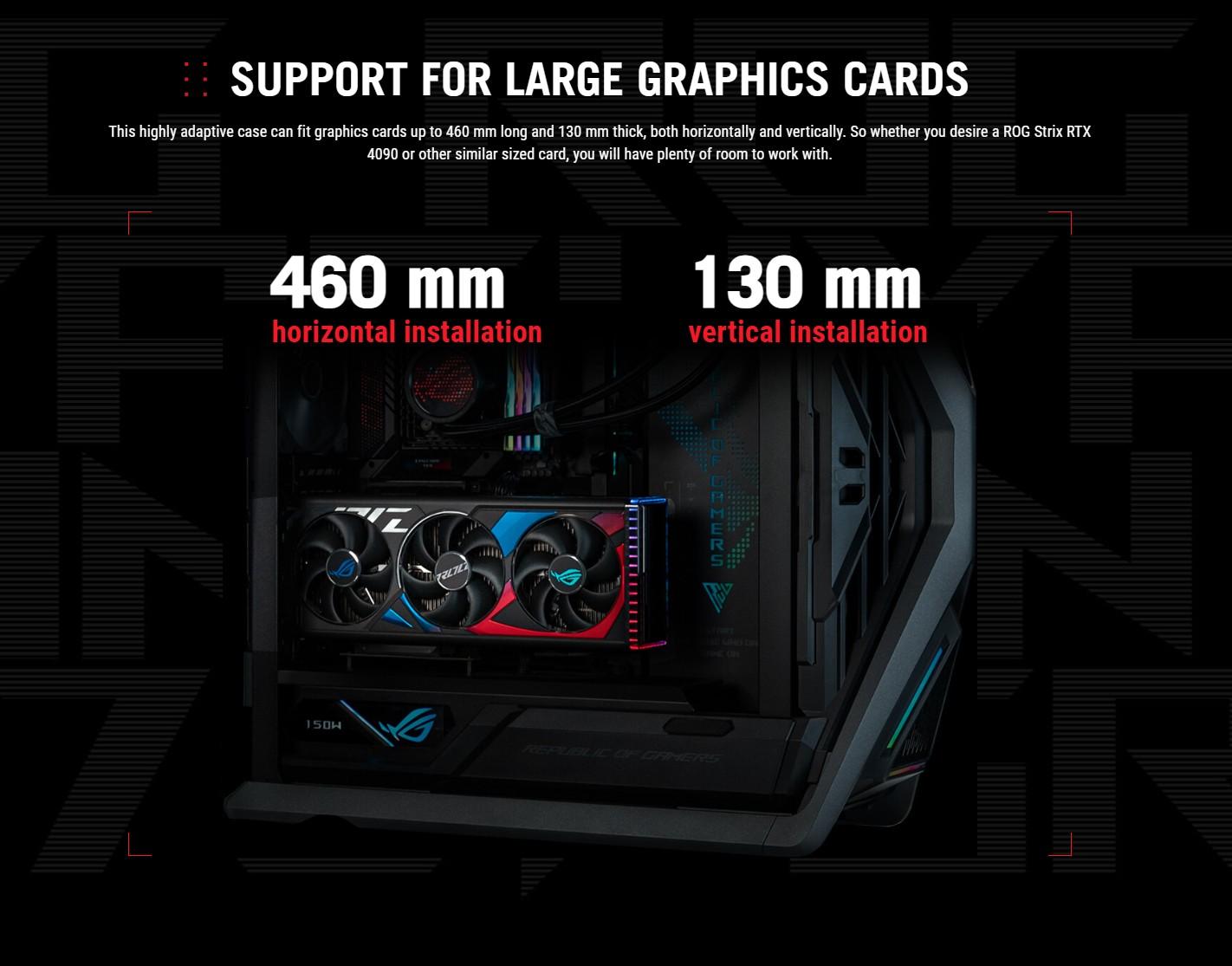

- Suport GPU masiv: placi video pana la 460 mm lungime si 130 mm grosime – montaj orizontal sau vertical

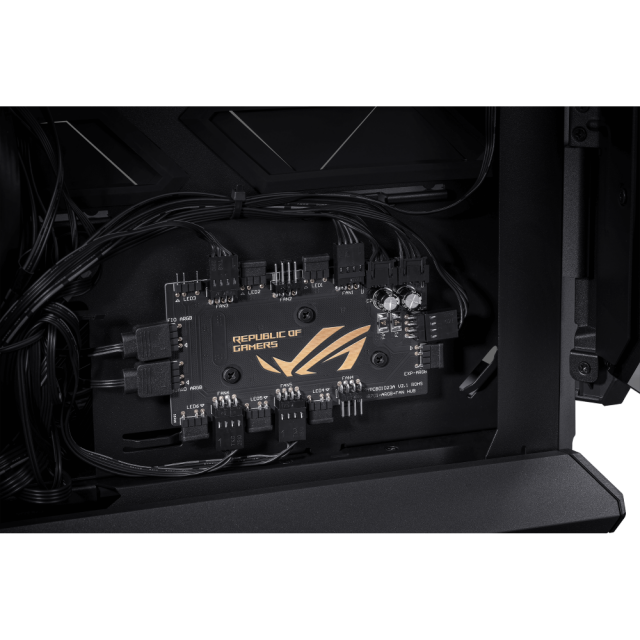

- ARGB fan hub integrat: controleaza pana la 8 dispozitive ARGB si 6 ventilatoare PWM

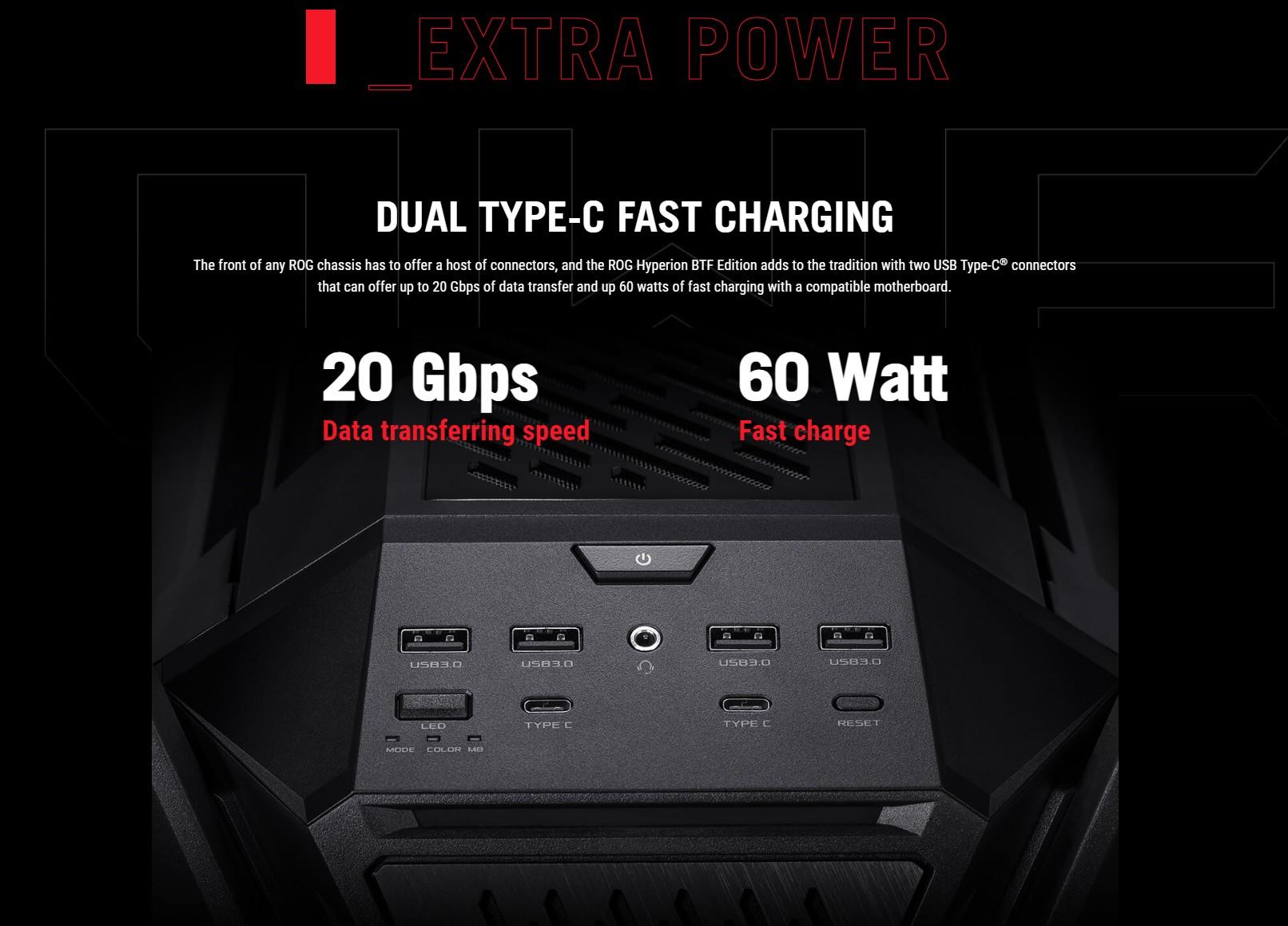

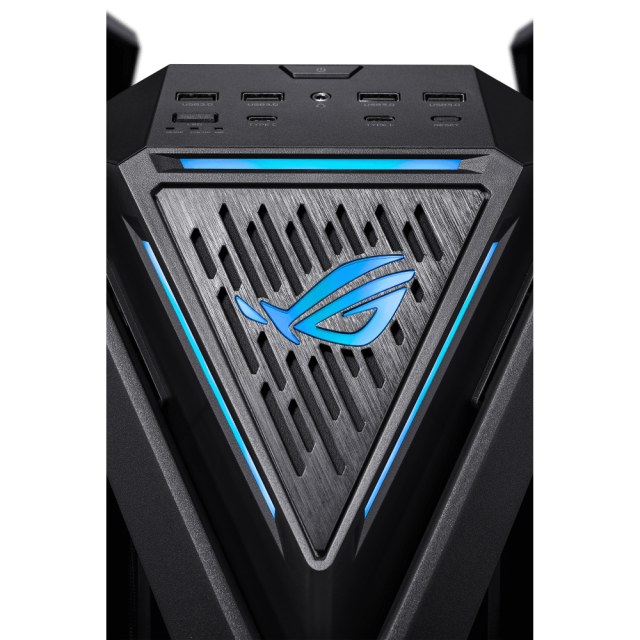

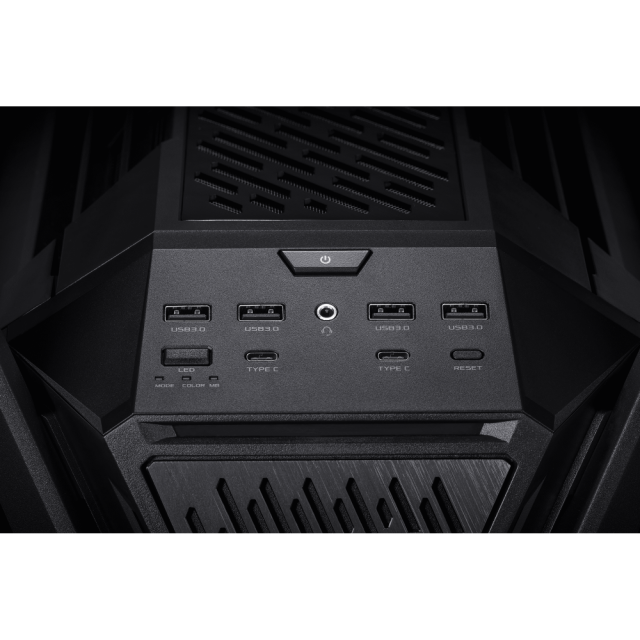

- Front I/O modern: 2x USB-C (20Gbps, 60W fast charge), 4x USB-A, audio combo – conectivitate completa

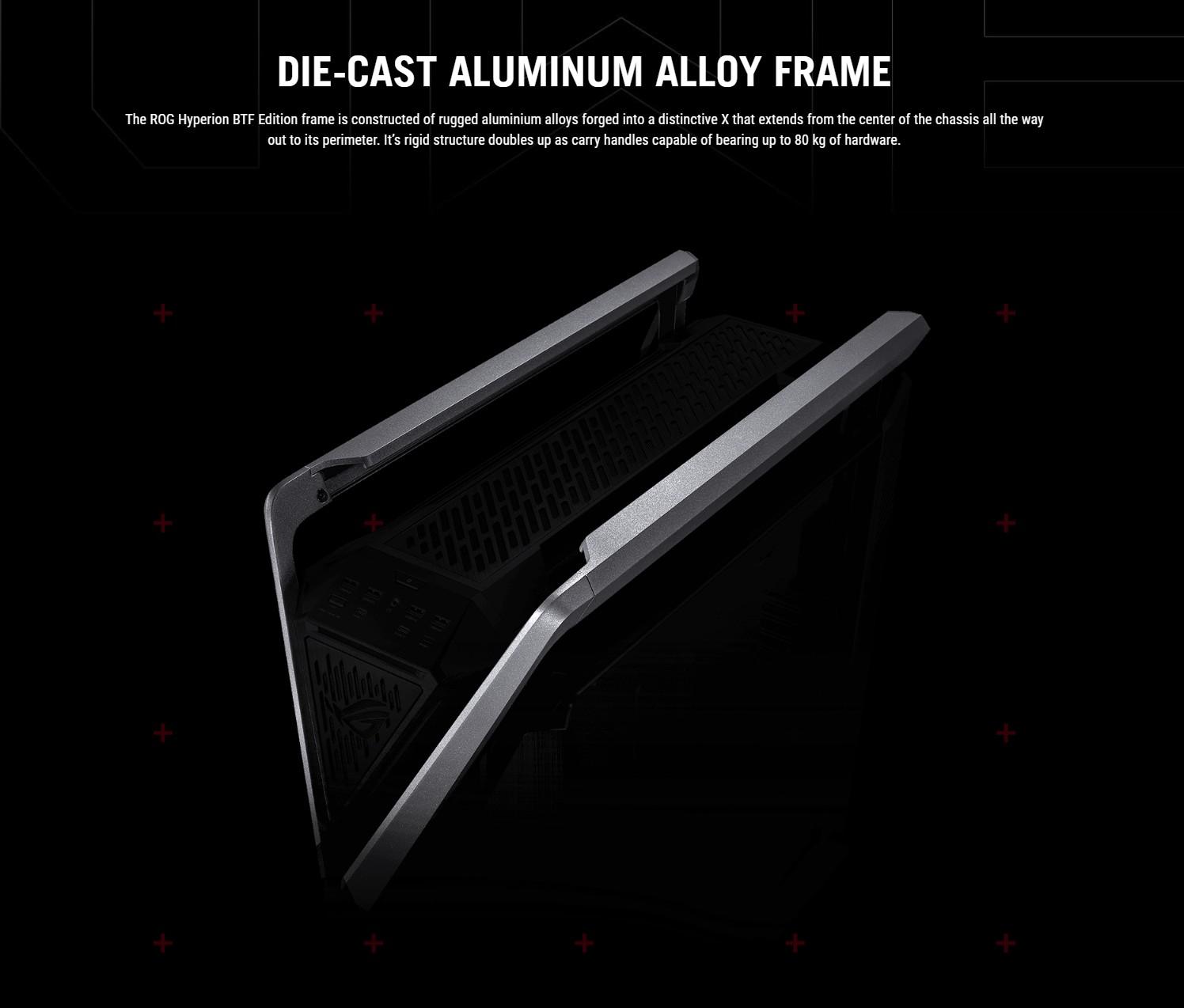

- Constructie solida: cadru din aluminiu ranforsat – manere integrate rezistente pana la 80 kg

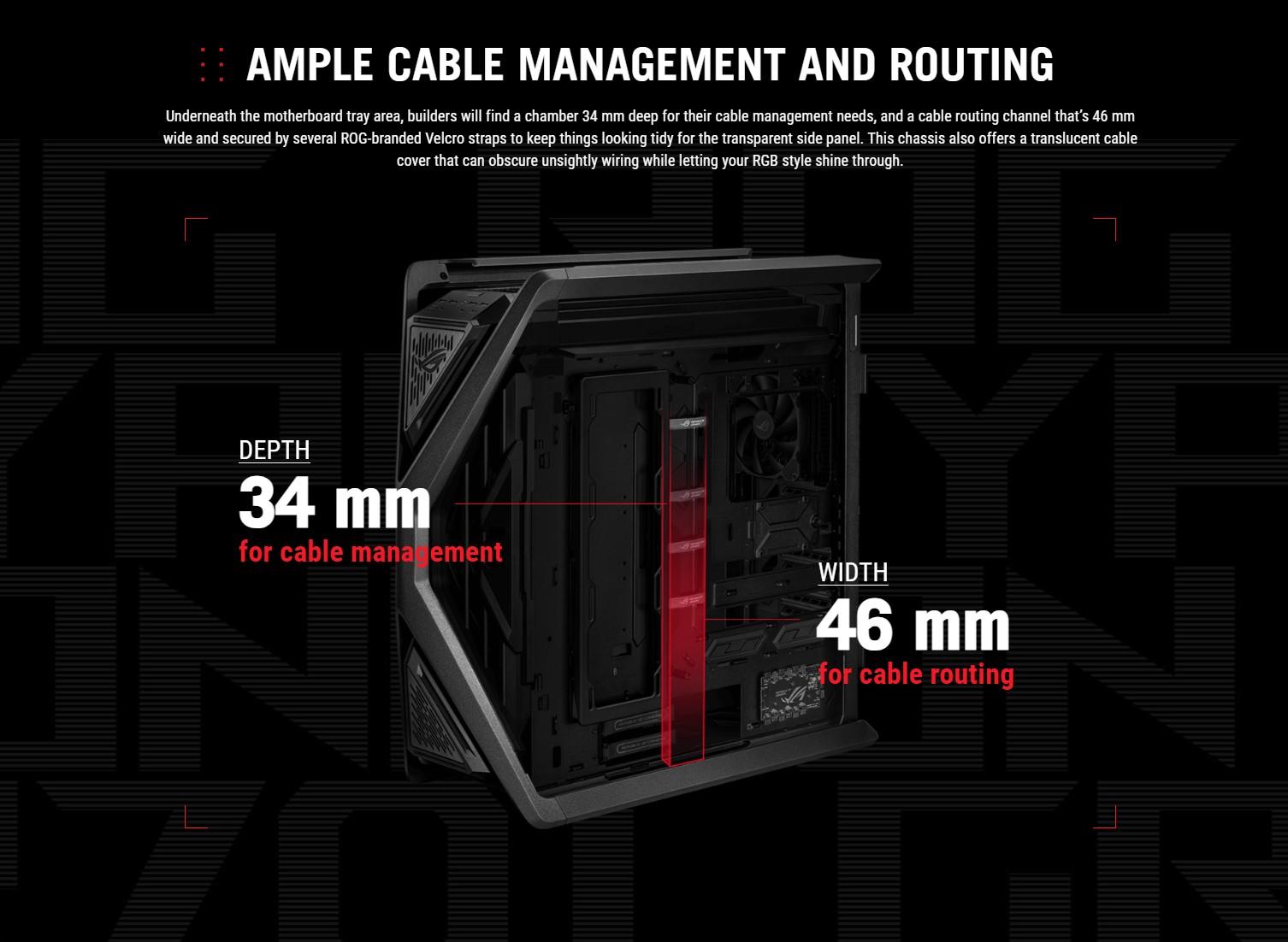

- Spatiu generos pentru cabluri: canal de 46 mm latime + camera de 34 mm adancime – organizare impecabila
- Accesorii incluse: suport GPU metalic, sertar pentru componente, filtre de praf detasabile

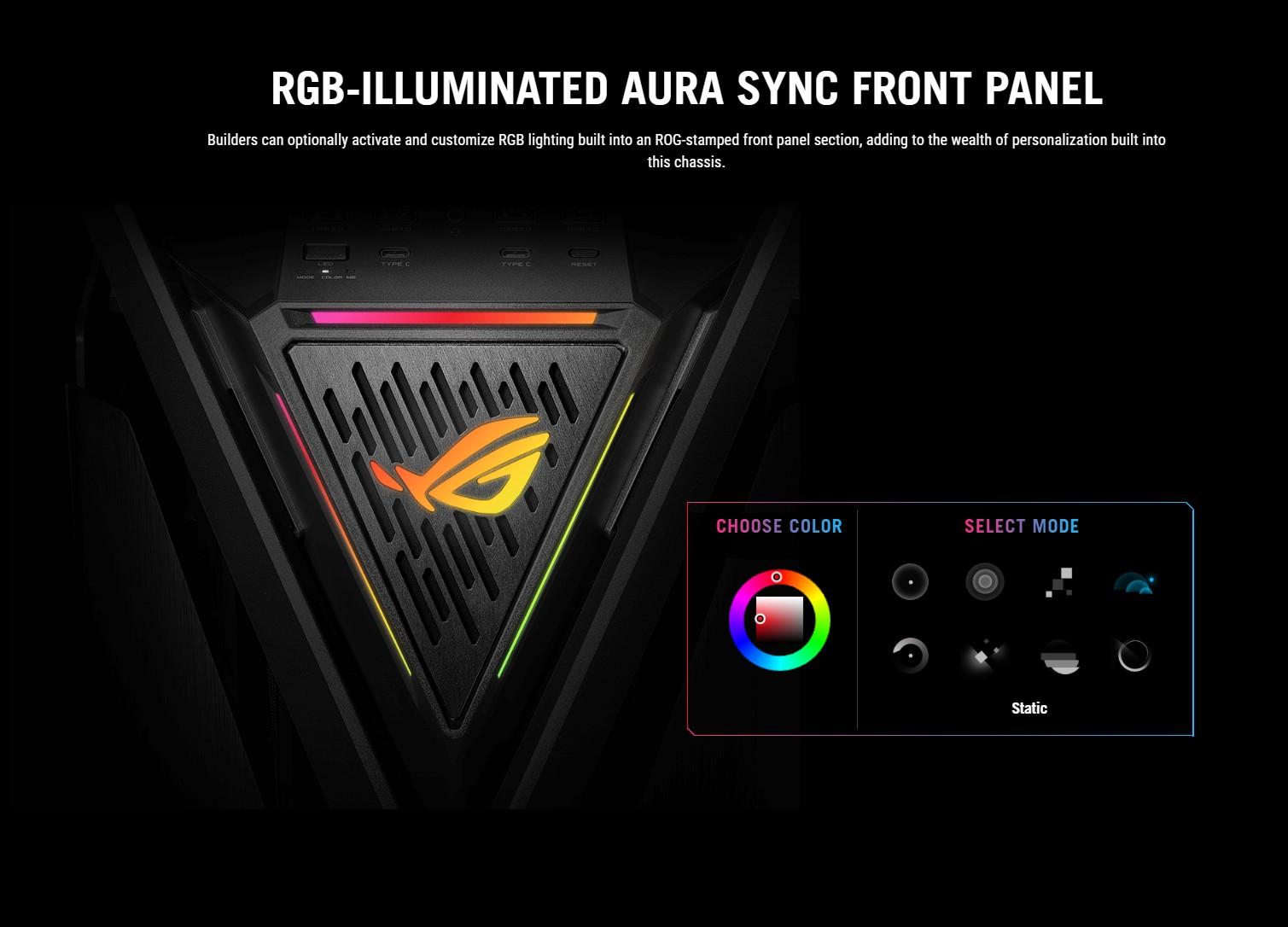

- Iluminare ARGB interna si externa: panou luminos ROG + compatibil Aura Sync – personalizare vizuala completa
- Compatibilitate extinsa: placi E-ATX, ATX, mATX, Mini-ITX + PSU pana la 240 mm
X-TRA EVERYTHING
The ROG Hyperion GR701 BTF Edition brings an X factor in both form and function that builders around the world have been craving.
With support for dual 420 mm radiators, towering video cards, a fully integrated 2-way aluminum graphics card holder, 60-watt device charging and dual front USB-C connectors for compatible ROG motherboards, it is truly a PC chassis in the coveted ROG style.
PREMIUM MATERIALS AND CRAFTING
The GR701 BTF Edition is forged with high-end materials that are given extra treatments and distinctive polishing methods, to deliver the luxurious look and feel that elevates an ROG chassis above its many challenges.

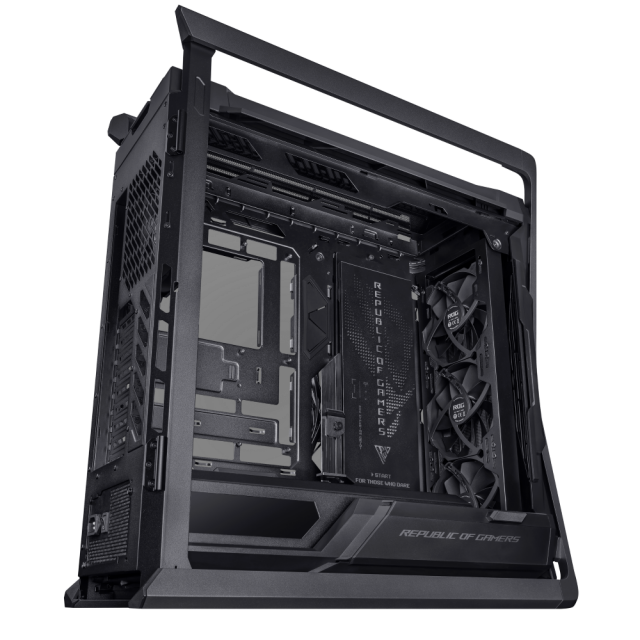

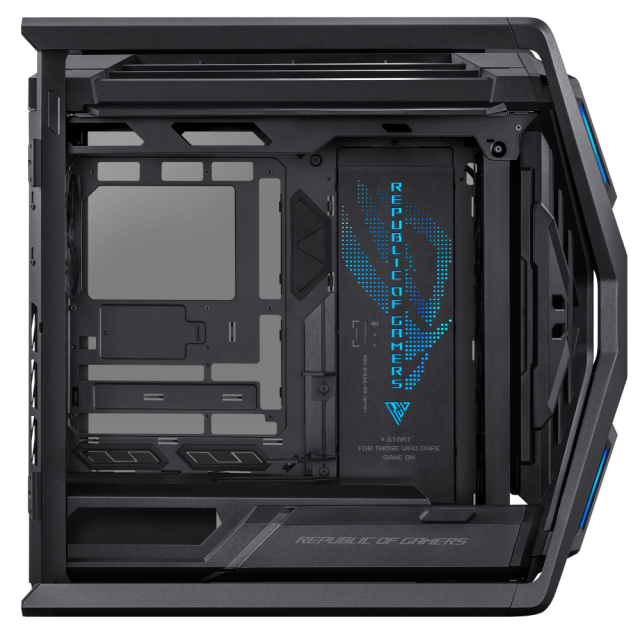

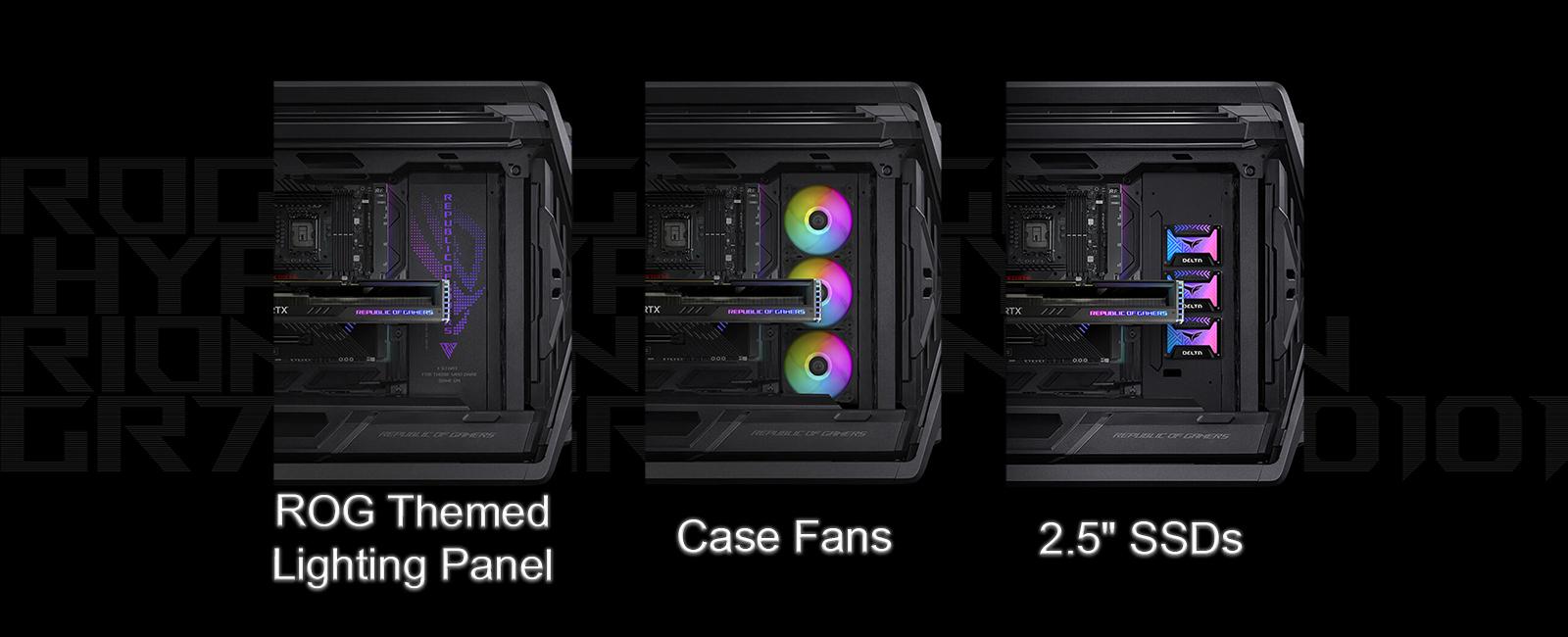

Multi-function Device Installation
In between the motherboard tray and the front of the chassis sits an innovative vertical installation area that can support a variety of needs. Builders can mount multiple system fans and 2.5-inch SSDs, or a 360 mm radiator, liquid cooling distribution panel, or ROG-themed lighting panel.

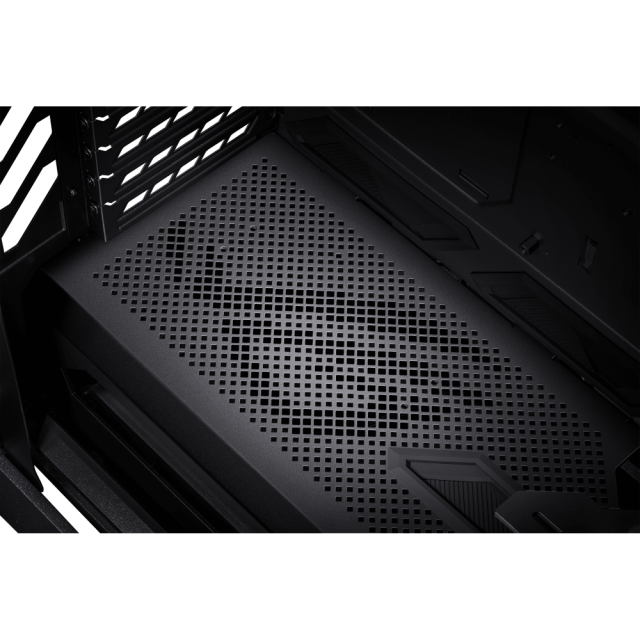

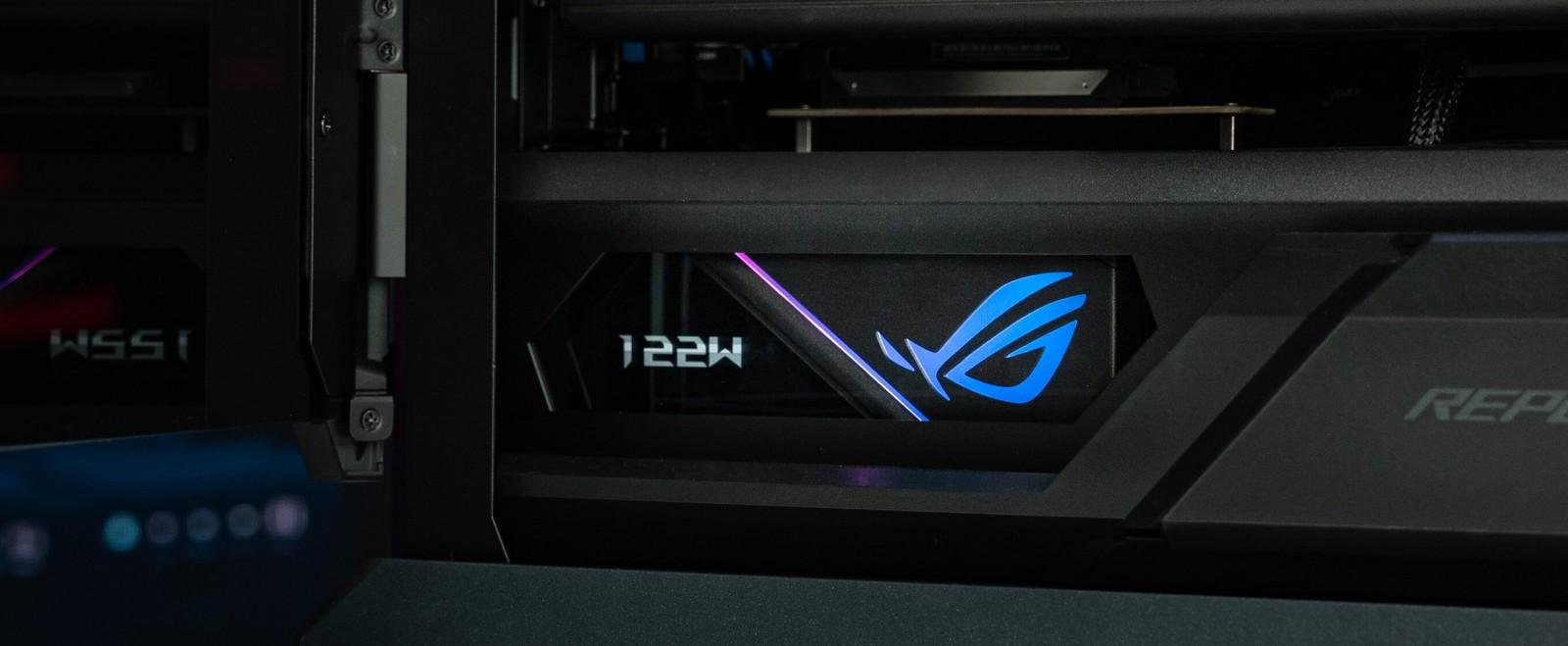

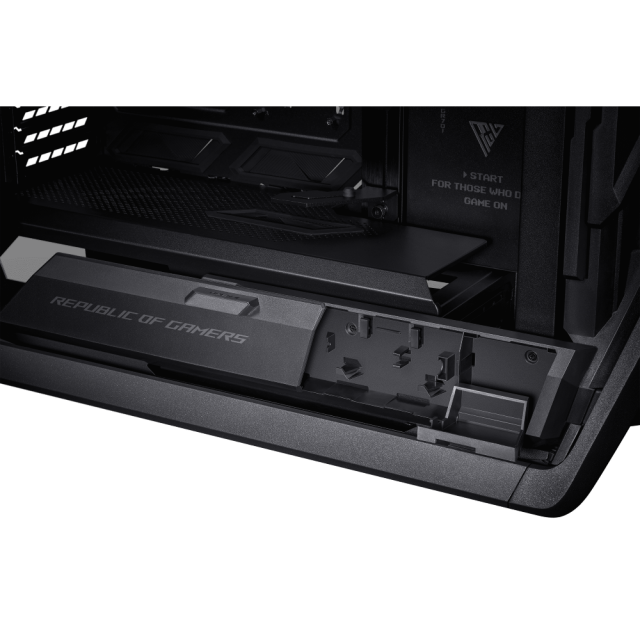

An Enhanced Power Supply Shroud
Last but not least, the shroud for your power supply unit features an open section for PSUs like the ROG Thor, which features a special OLED panel that displays your current watt consumption. The mesh topping the shroud is also shaped to reveal another subtle ROG logo, while being designed to prevent screws from falling within.
Specifications
| Model | ROG Hyperion GR701 BTF Edition | Cooling Support (Rear) | 1 x 120 mm 1 x 140 mm |
| BTF motherboard compatible | ROG Hyperion GR701 BTF Edition ONLY | Pre-installed Fans (Front) | 3 x 140 mm PWM |
| Motherboard Support | EATX (12"x10.9") ATX Micro-ATX Mini-ITX |
Pre-Installed Fan (Rear) | 1 x 140 mm |
| Drive Bays | 5 x 2.5" Bay 2 x 2.5"/3.5" Combo Bay |
Maximum CPU Cooler Height | 190 mm |

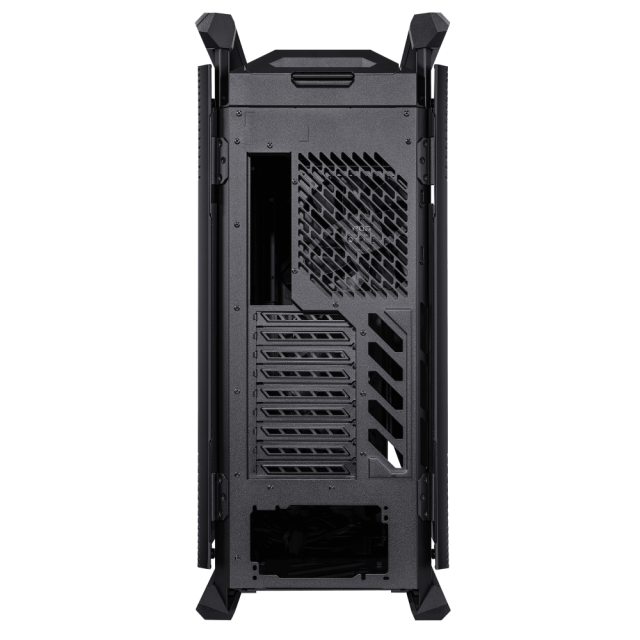

| Expansion Slots | 9 3 (additional vertical) |
Maximum GPU Length
|
460 mm |
| Front I/O Port | 1 x headphone / Microphone 4 x USB 3.2Gen1 1 x USB 3.2 Gen2 Type C LED Control Button Reset Button 1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2x2 Type C this spec might vary by region |
Maximum PSU Length | 240 mm |
| Tempered Glass | Left Side Right Side |
Removable Dust Filters | Top Bottom Right |
| Radiator Support (Front) | 120 mm 140 mm 240 mm 280 mm 360 mm 420 mm |
Dimensions | 268 * 639 * 659 mm |
| Radiator Support (Top) | 120 mm 140 mm 240 mm 280 mm 360 mm 420 mm |
Weight
|
20.8 Kg 21.3 Kg (GR701 BTF Edition) |
| Cooling Support (Front) | 3 x 120 mm 3 x 140 mm |
Maximum Cable Management Space | 34 mm |
| AURA Sync | ARGB |
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- Unless otherwise stated, all performance claims are based on theoretical performance. Actual figures may vary in real-world situations.
- The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
