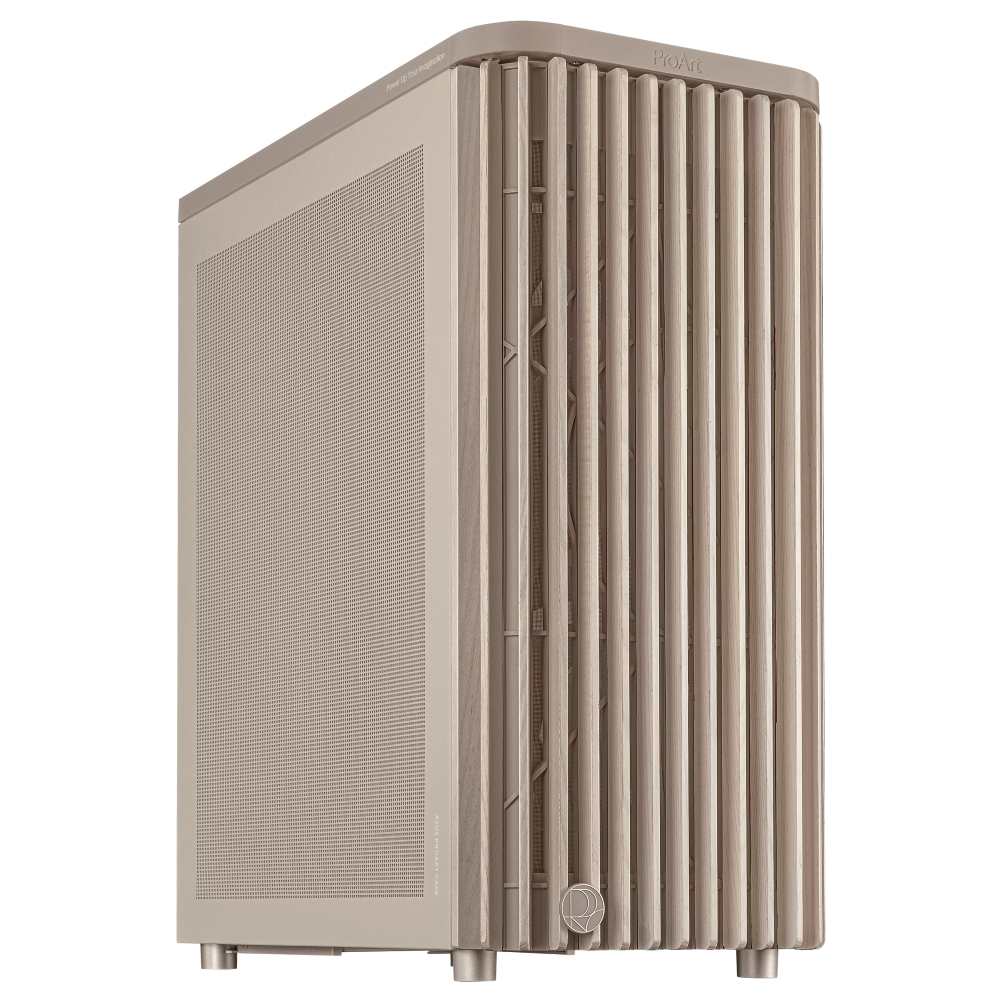

ASUS ProArt PA401 Wood Edition Beige
Carcasa ASUS ProArt PA401 Wood Edition Beige - Mesh Panel
Întrebare despre ASUS ProArt PA401 Wood Edition Beige
| Garanție | 24 luni |
| Form Factor | Mid Tower |
| Format | ATX |
| Ventilatoare incluse | 1x 120mm, 2x 160mm |
| Panou frontal | Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C |
| Culoare | Bej |
| Lungime | 412 mm |
| Lăţime | 225 mm |
| Înălţime | 503 mm |
| Înălțimea maximă a coolerului cu aer | 160 mm |
| Lungimea maximă a plăcii video | 315 mm |
| În plus | Fan Hub |
| Ventilatoare suportate în față | 2x 140mm, 2x 160mm |
| Ventilatoare suportate în spate | 1x 120mm |
| Ventilatoare suportate în partea de sus | 2x 120mm, 2x 140mm |
| Coolere cu lichid suportate în partea de sus | 1x 240mm, 1x 120mm, 1x 140mm |
| Panou Mesh frontal | Da |
Related products
Carcasa ofera un design modern cu accente scandinave si materiale premium, combinand estetica naturala cu functionalitate avansata. Panoul frontal din lemn certificat FSC aduce un aspect cald si minimalist, in timp ce panoul lateral tip mesh imbunatateste racirea si fluxul de aer. Structura din otel SECC cu acoperire powder‑coated asigura durabilitate si rigiditate pe termen lung.
Design si materiale
-
Panou frontal: realizat din lemn certificat FSC – sustenabil si ecologic
-
Culoare: bej elegant, cu lamele din lemn pentru un stil scandinav
-

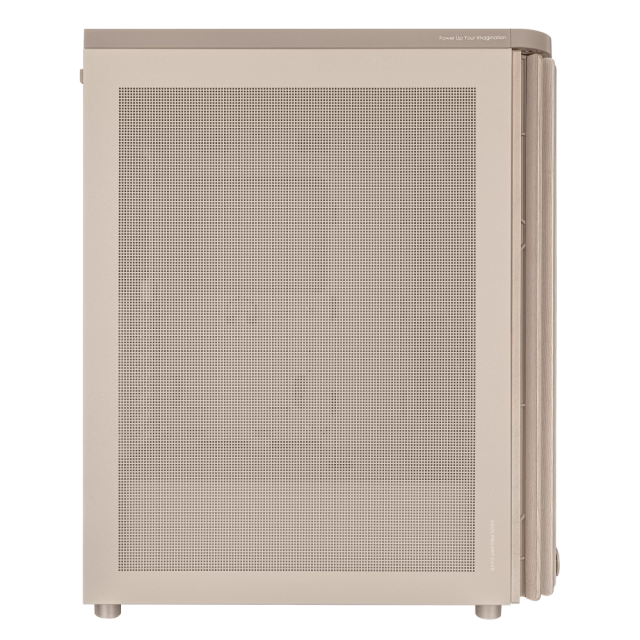

Panou lateral: design mesh pentru racire si airflow imbunatatite
-
Sasiu: otel SECC cu acoperire powder coating

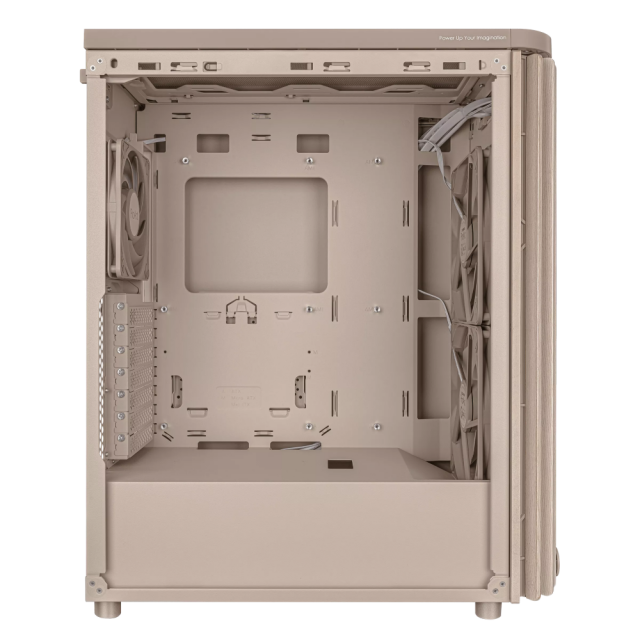

Compatibilitate si instalare
-
Form factor: ATX mid‑tower
-
Placi de baza compatibile: ATX, micro‑ATX, mini‑ITX
-
Placi video: pana la 315 mm lungime
-
Coolere CPU: pana la 160 mm inaltime
-
Radiatoare: pana la 240 mm montate in partea superioara
-
Sursa: suport pentru PSU detasabil – instalare mai usoara
Racire
-

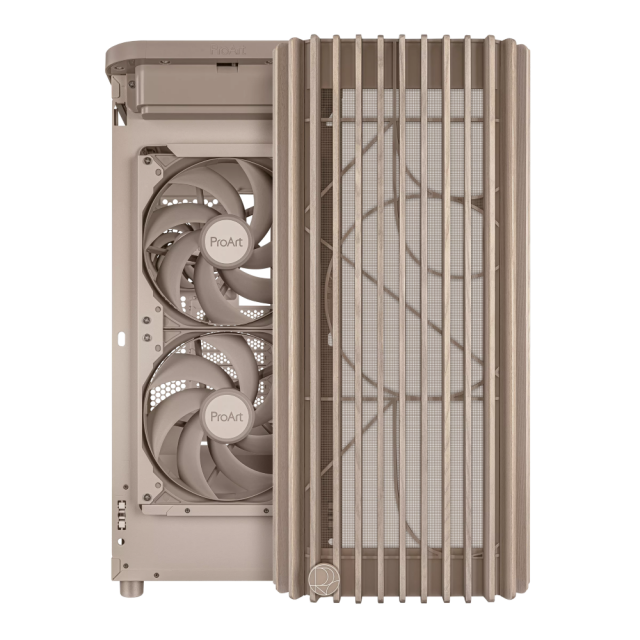

Ventilatoare frontale: doua ventilatoare unice de 160 × 32 mm cu design ring blade – airflow de pana la 138 CFM
-
Ventilator spate: 120 mm preinstalat
-
Control PWM: control pe doua zone pentru optimizarea turatiei
-
Panouri mesh: cresc eficienta termica si reduc temperaturile interne

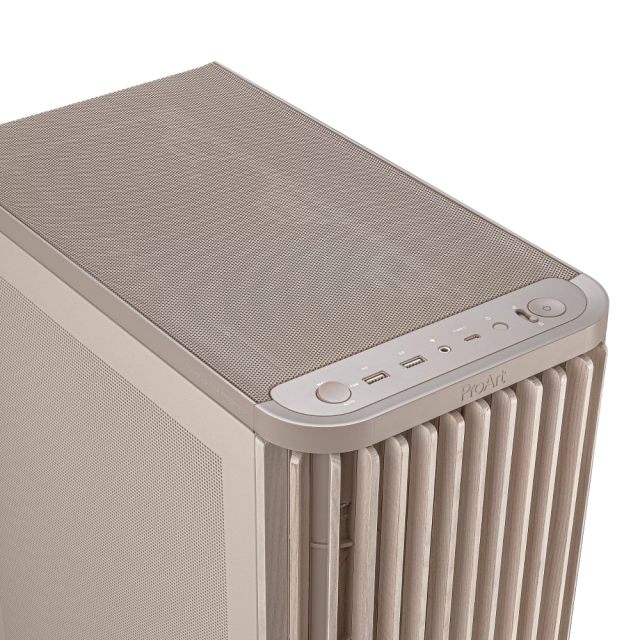

I/O si functionalitati
-
Port USB Type‑C 20Gbps: interfata moderna si rapida
-
Blocare Power & Reset: previne opririle accidentale
-

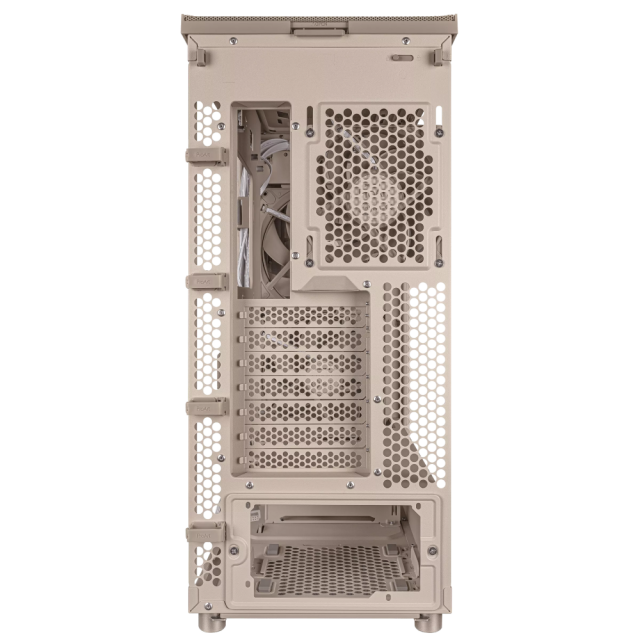

Cable management: cleme integrate in partea din spate pentru un interior curat
Avantaje practice
-
Stil scandinav: aspect cald, minimalist – ideal pentru studiouri si spatii creative
-
Performanta termica ridicata: datorita panourilor mesh si ventilatoarelor mari
-
Instalare usoara: mecanism de blocare a panourilor si suport PSU modular

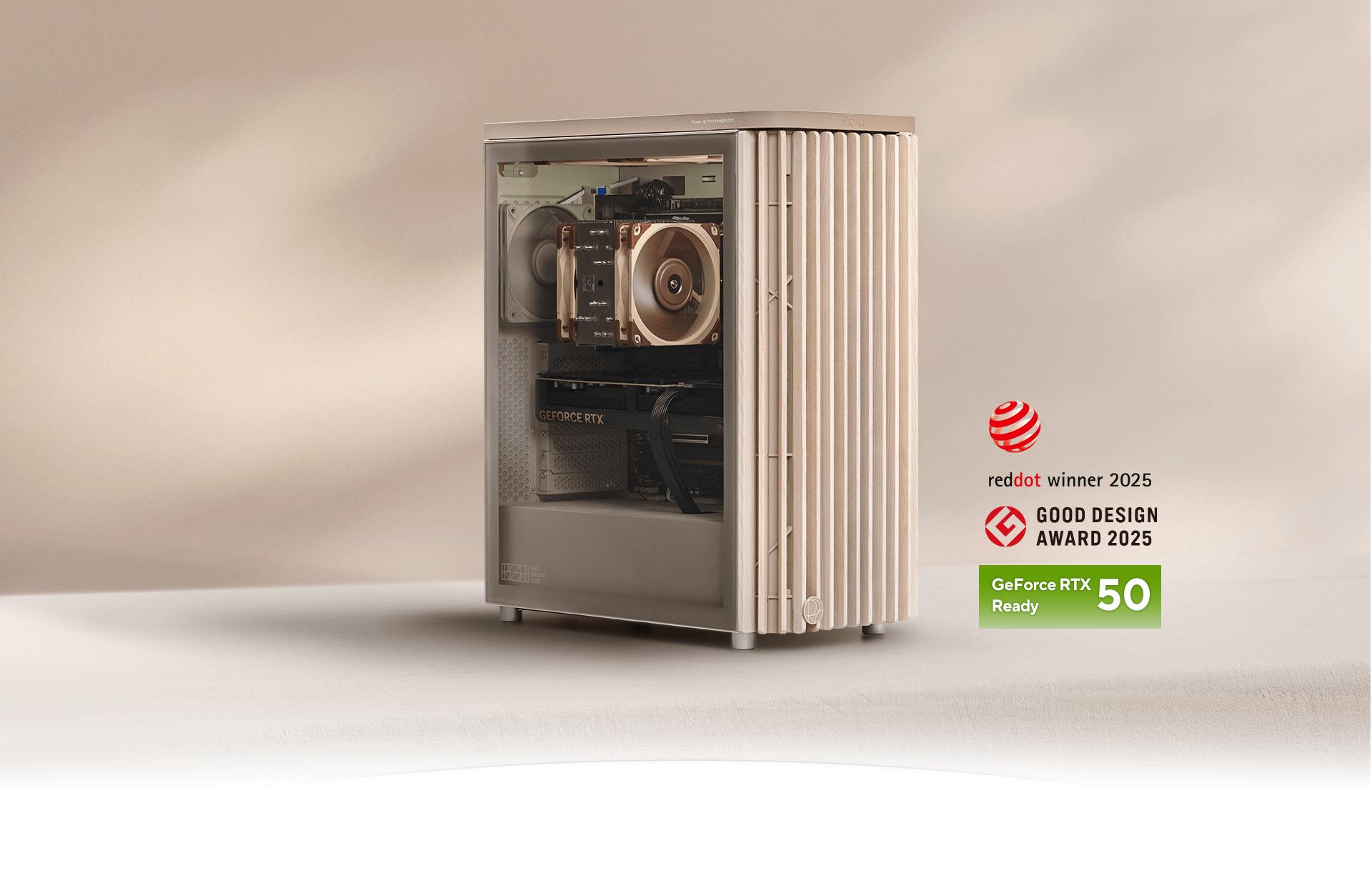

ProArt PA401 Wood Edition Beige
Tempered Glass Panel
Subtle Elegance, Optimal Airflow

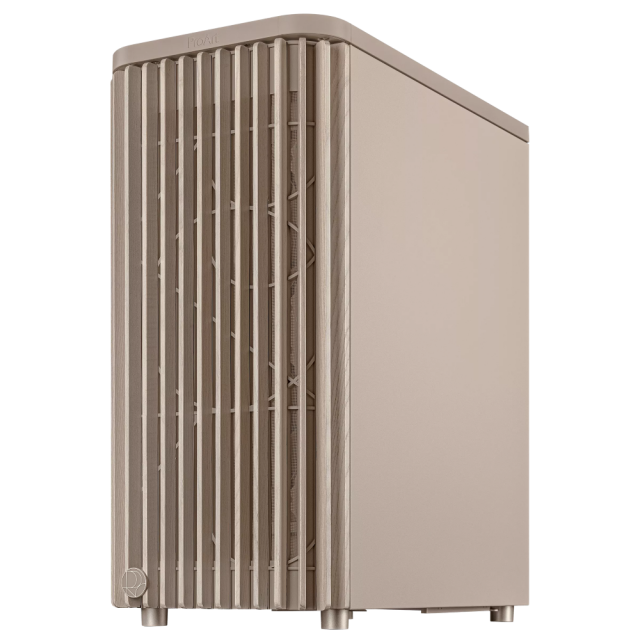

The ProArt PA401 Wood Edition Beige showcases a wooden front panel that creates a distinctive, elegant style while promoting sustainability.
The wood used is certified by the Forest Stewardship Council (FSC), and is finished using a six-stage process.The case also boasts optimal built-in cooling,
with two 160mm front fans and one 120mm rear fan, along with an integrated fan hub, enabling optimal airflow.
Open grille for maximum air intake
160 x 32mm front ring fan blades for enhanced thermal performance
Durable, FSC certified ash wood

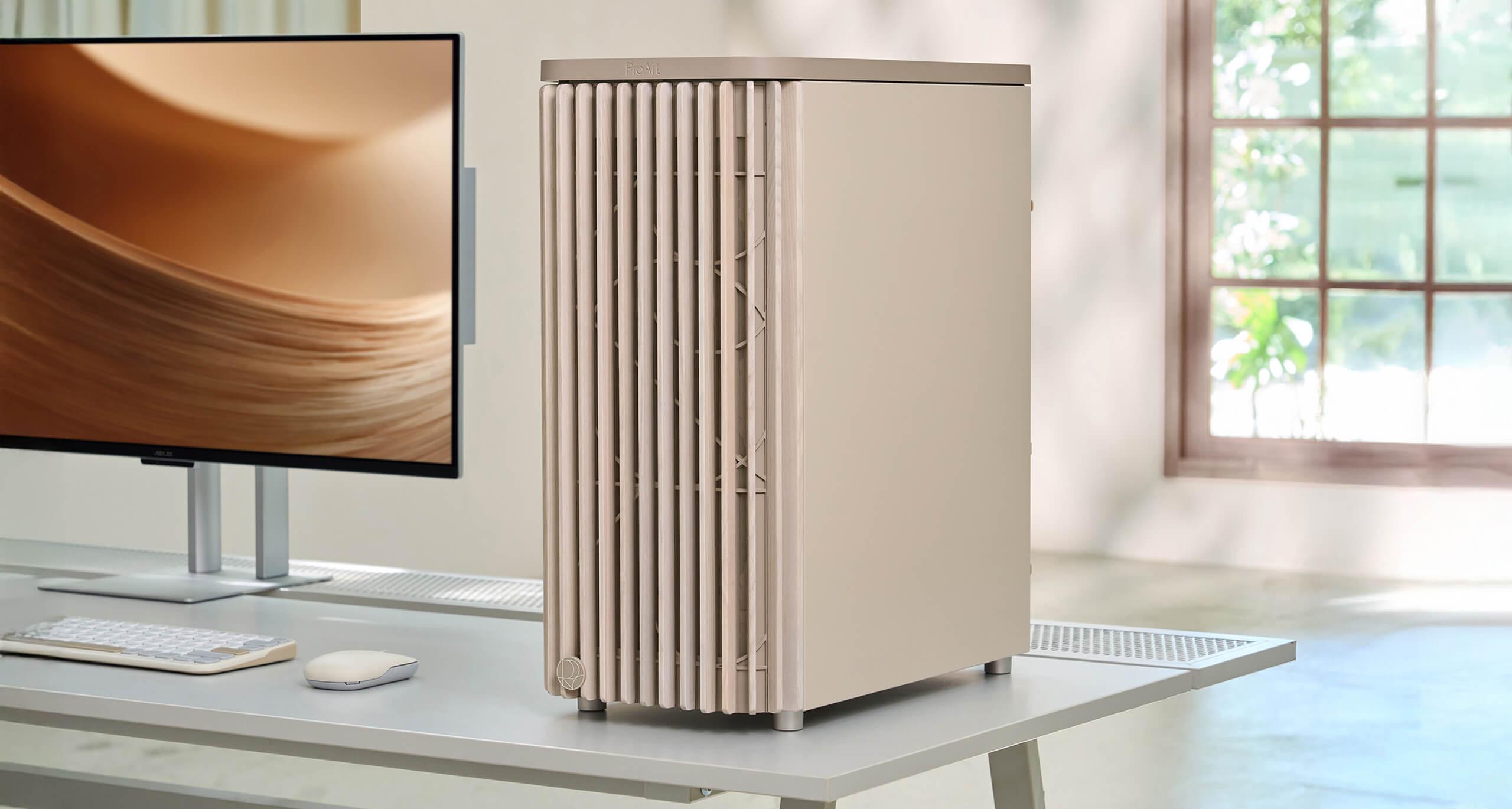

Elevated Color Perfection
Further refining the signature ash wood front panel on ProArt PA401, a new beige finish brings a modern aesthetic to the premium wood material.
Plus, an updated white cable set ensures cohesive visual flow throughout the build.
Specifications
| Model | ProArt PA401 Wood Edition Beige - Tempered Glass Panel | Pre-installed Fans (Front) | 2 x 160 mm |
| Motherboard Support | ATX | Pre-installed Fans (Rear) | 1 x 120 mm (vary by model) |
| Drive Bays | 2 x 2.5" Bay 2 x 2.5"/3.5" Combo Bay |
Maximum CPU Cooler Height | 160 mm |
| Expansion Slots | 7 | Maximum GPU Length | 315 mm |
| Front I/O Port | 1 x headphone / Microphone 2 x USB 3.2 Gen1 1 x USB 3.2 Gen 2x2 Type C |
Maximum PSU Length | 170 mm |
| Radiator Support (Top) | 120 mm 140 mm 240 mm |
Removable Dust Filters | Front Bottom |
| Cooling Support (Front) | 2 x 140 mm 2 x 160 mm |
Dimensions | 412 x 225 x 503 mm (D*W *H) |
| Cooling Support (Top) | 2 x 120 mm 2 x 140 mm |
Weight | 8.61 Kg |
| Cooling Support (Rear) | 1 x 120 mm | Accessory | Pre-installed Fan Hub Support PWM Fan Output x 5 |
