ASRock B850 Pro-A

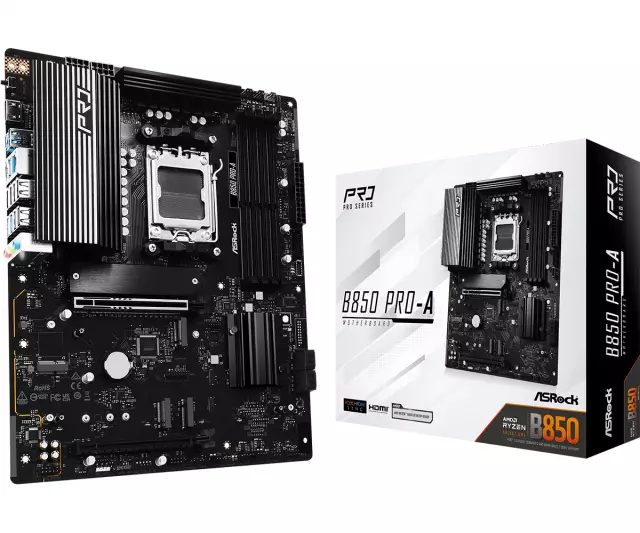

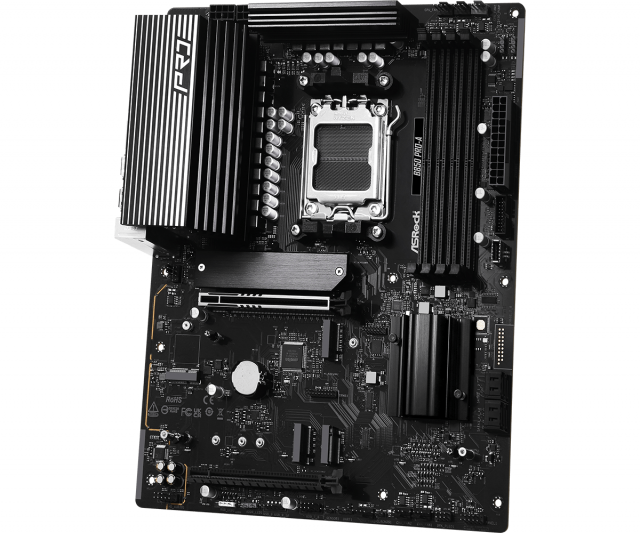

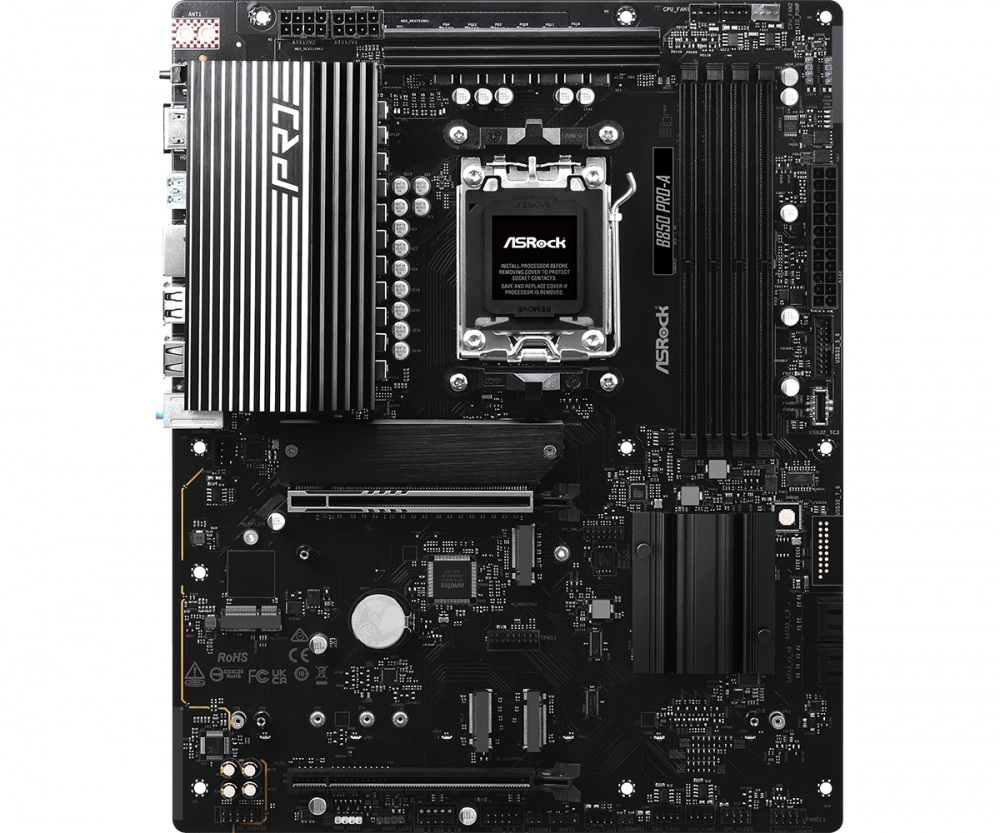

Placa de baza ASRock B850 PRO-A socket AM5
Cod produs: ASR-MB-B850-PRO-A
Întrebare despre ASRock B850 Pro-A
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 36 luni |
| Socket | AMD AM5 |
| Form Factor | ATX |
| Chipset | AMD B850 |
| Numărul de sloturi pentru memorie | 4 |
| Capacitate RAM | până la 256 GB |
| Frecvența memoriei | până la 8000 MHz |
| Iluminare RGB | Nu |
| Memorie suportată | DDR5 |
| Wi-Fi încorporat | Nu |
Related products
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 192 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B650
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1700
Form Factor:
ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 192 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 192 GB
Socket:
Intel 1851
Form Factor:
ATX
Chipset:
Intel Z890
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
2
Capacitate RAM:
până la 128 GB
Socket:
Intel 1851
Form Factor:
ATX
Chipset:
Intel B860
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD A620A
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB

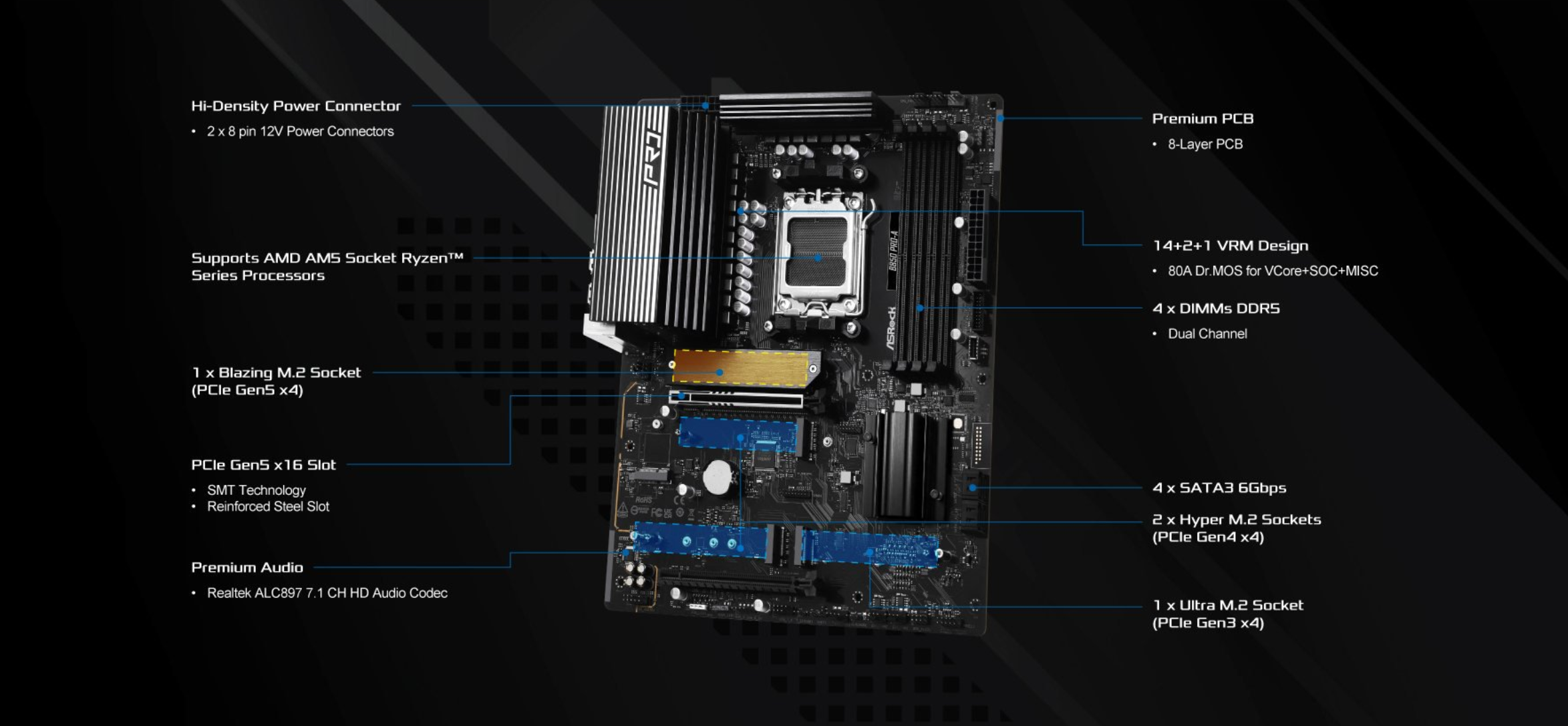

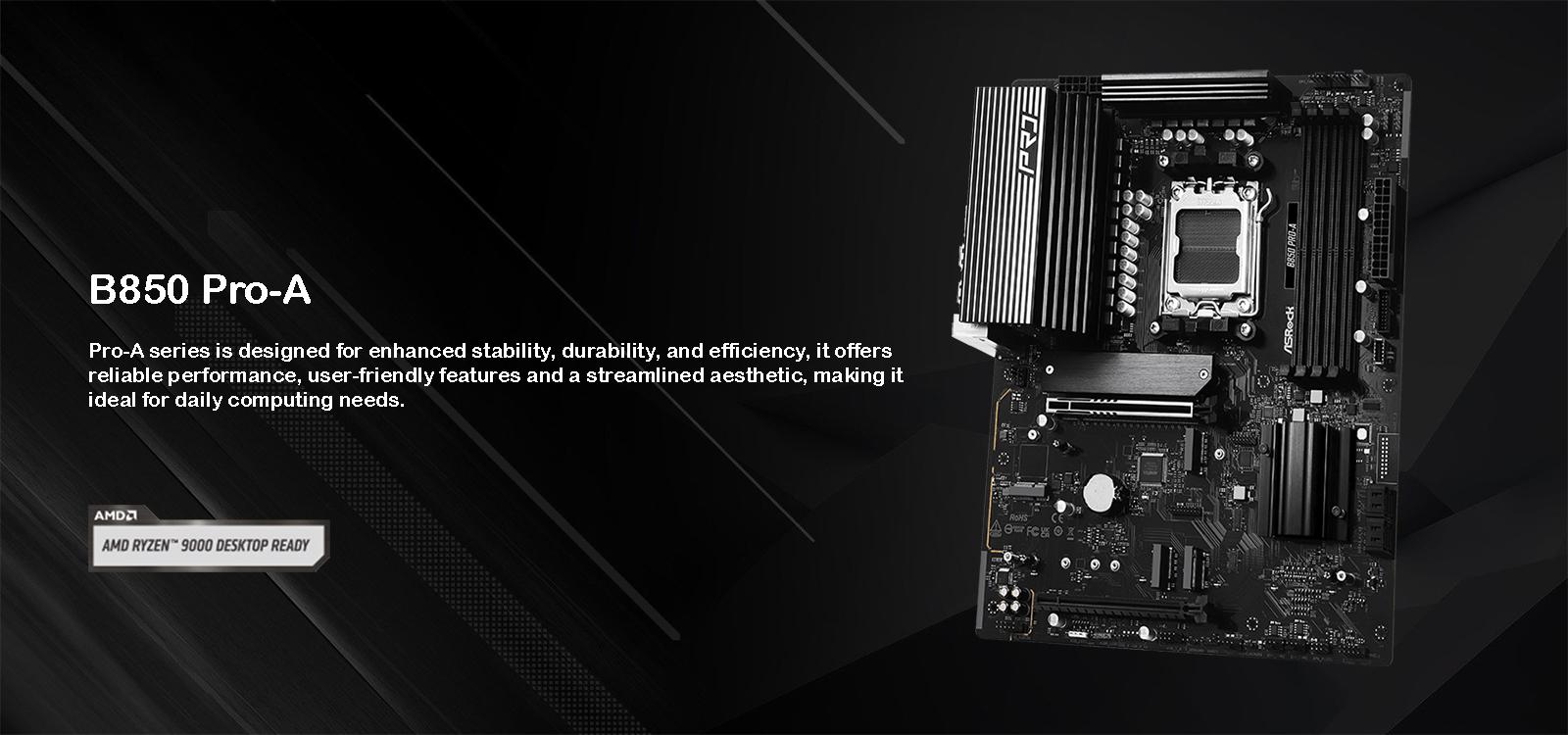

ASRock B850 PRO-A este o placa de baza ATX din seria Pro-A, proiectata pentru a oferi stabilitate, durabilitate si eficienta sporite, fiind ideala pentru utilizare zilnica, gaming si sisteme de performanta.
Specificatii principale:
-
Compatibilitate procesor: AMD Ryzen seriile 7000, 8000 si 9000 pe socket AM5
-
Memorie: 4 sloturi DDR5, dual-channel, pana la 8000+ MHz (OC), capacitate maxima 256 GB
-
Alimentare: Design robust cu 14+2+1 faze, Dr.MOS de 80A pentru livrare stabila a energiei
-
Sloturi de expansiune:
-
1 x PCIe 5.0 x16
-
1 x PCIe 4.0 x16
-
-
Stocare:
-
1 x Blazing M.2 (PCIe Gen5x4)
-
2 x Hyper M.2 (PCIe Gen4x4)
-
1 x Ultra M.2 (PCIe Gen3x4)
-
-
Conectivitate:
-
1 x USB 3.2 Gen2x2 Type-C (frontal)
-
1 x USB 3.2 Gen2 Type-C (spate)
-
1 x USB 3.2 Gen1 Type-C (spate, cu suport DP-alt mode)
-
8 x USB 3.2 Gen1 (4 spate, 4 frontale)
-
-
Retea: LAN 2.5G Realtek Dragon RTL8125BG
-
Audio: Realtek ALC897 7.1 HD cu suport Nahimic Audio
-
Format: ATX (30.5 x 24.4 cm)
Specifications
| Unique Feature | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| CPU | - Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors* *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
|
| Chipset | - AMD B850 |
| Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x USB 3.2 Gen1 Type-C, supports DP 1.4 HBR3 and max. resolution up to 4K 60Hz (DP-alt mode supports DP1.4a) |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1) * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
If M2_3 is occupied, PCIE2 will be disabled. Supports NVMe SSD as boot disks |
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode* - 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061: - 2 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks
M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors. If M2_3 is occupied, PCIE2 will be disabled. If SATA3_1 or SATA3_2 is occupied, M2_4 will downgrade to Gen3x2 mode. |
| RAID | - Supports RAID 0 and RAID 1 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| USB | CPU: - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen1 Type-C (Rear) - 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2)) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front) - 9 x USB 2.0 (6 Rear, 3 Front) *All USB ports support ESD Protection
|

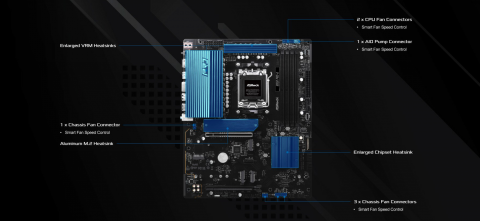

| Connector | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) * Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. |

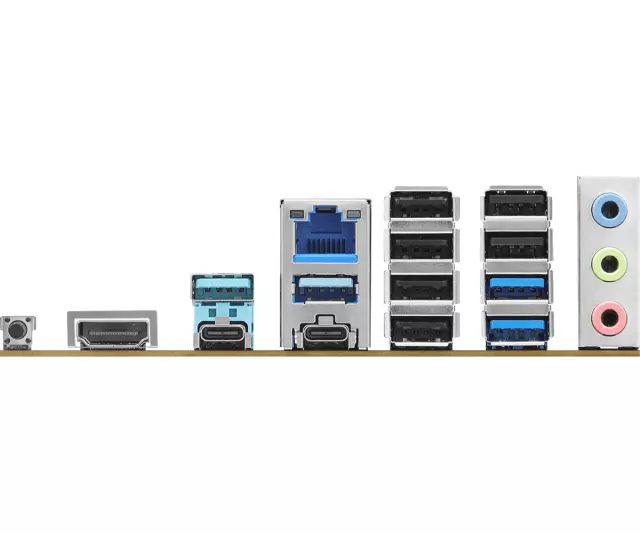

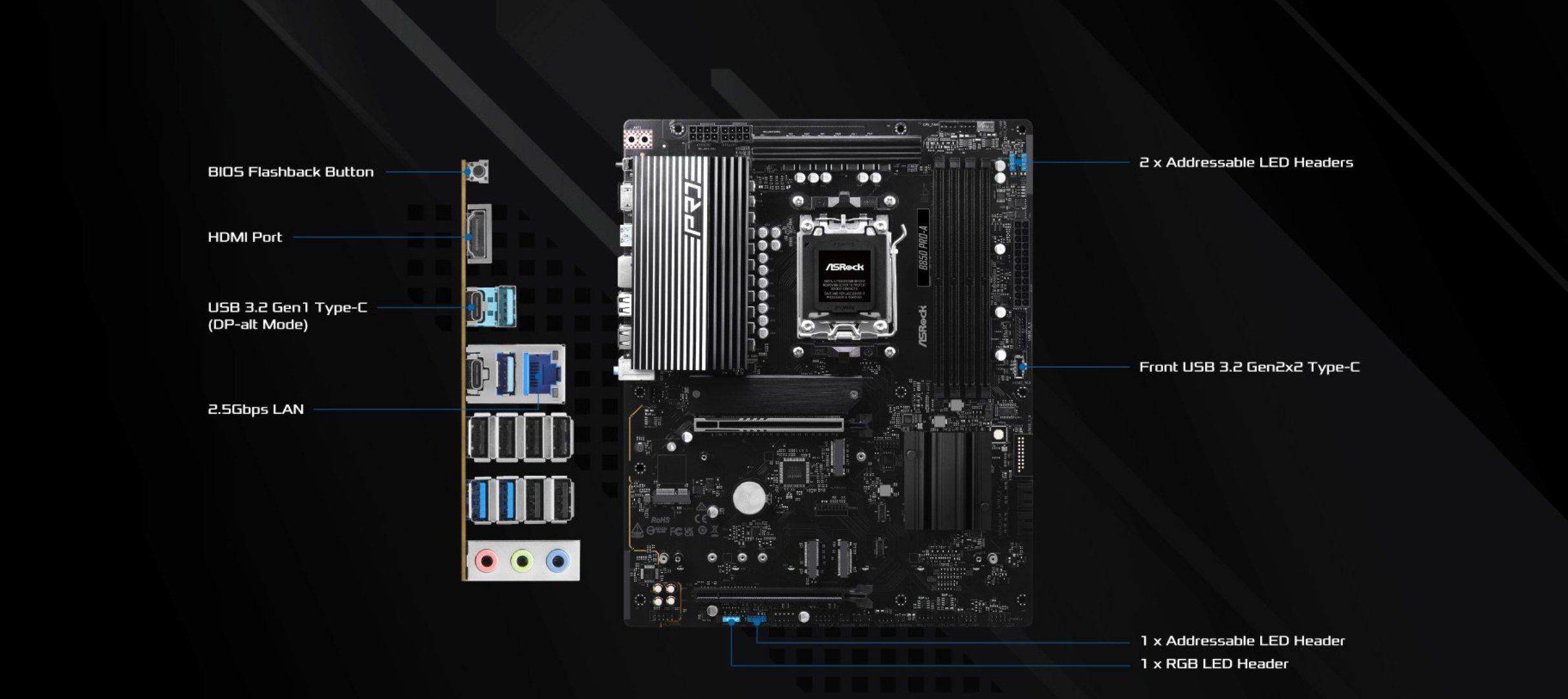

| Rear Panel I/O | - 2 x Antenna Ports - 1 x HDMI Port - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 1 x USB 3.2 Gen1 Type-C Port (DP-alt mode supports DP1.4a) - 4 x USB 3.2 Gen1 Type-A Ports - 6 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Accessories | - 1 x I/O Shield - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB |
| OS | - Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
