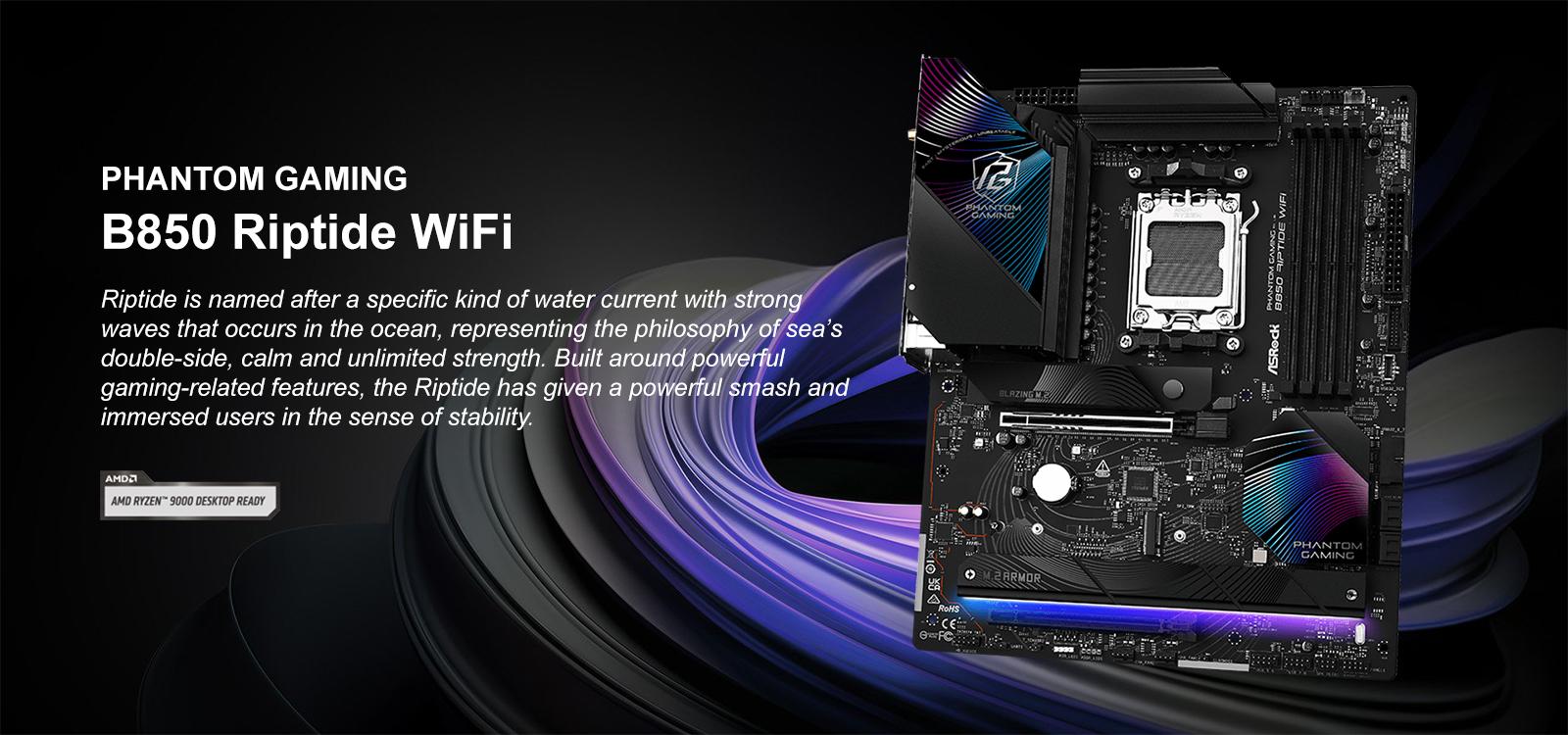

ASRock B850 PG Riptide WIFI7

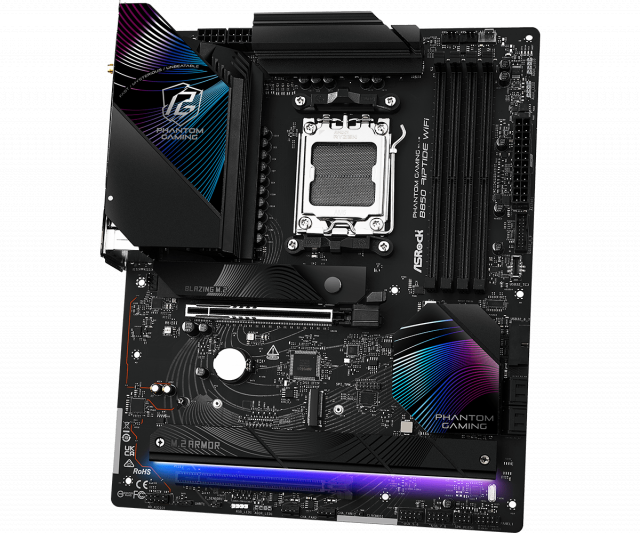

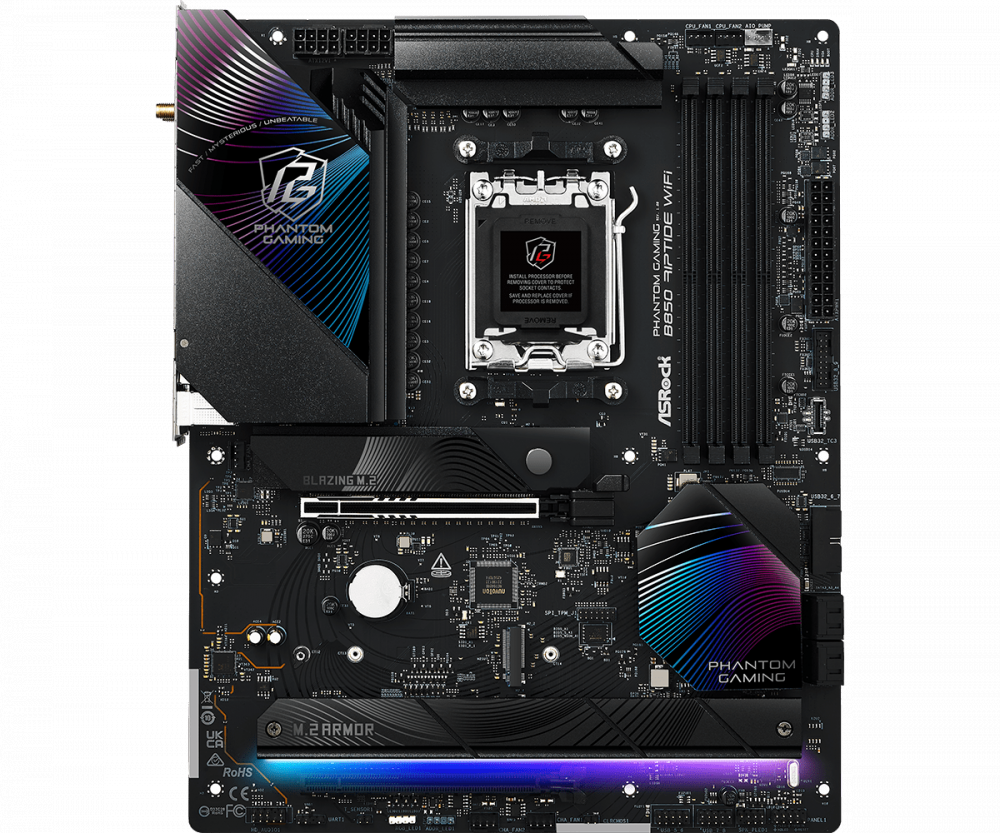

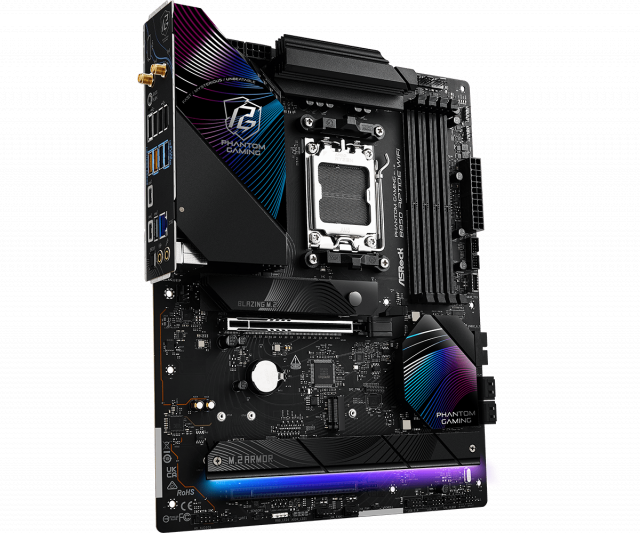

Placa de baza ASRock B850 PHANTOM GAMING RIPTIDE WIFI7 socket AM5
Cod produs: ASR-MB-B850-RIPTIDE-WIFI
Întrebare despre ASRock B850 PG Riptide WIFI7
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 36 luni |
| Socket | AMD AM5 |
| Form Factor | ATX |
| Chipset | AMD B850 |
| Numărul de sloturi pentru memorie | 4 |
| Capacitate RAM | până la 256 GB |
| Frecvența memoriei | până la 8000 MHz |
| Iluminare RGB | Dа |
| Memorie suportată | DDR5 |
| Wi-Fi încorporat | Da |
Related products
Socket:
Intel 1851
Form Factor:
ATX
Chipset:
Intel B860
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD X870
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD X870
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
ATX
Chipset:
Intel B860
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
ATX
Chipset:
Intel Z890
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
ATX
Chipset:
Intel Z890
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1851
Form Factor:
ATX
Chipset:
Intel Z890
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD X870
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
Micro ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
AMD AM5
Form Factor:
ATX
Chipset:
AMD B850
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 256 GB
Socket:
Intel 1700
Form Factor:
Micro ATX
Chipset:
Intel B760
Numărul de sloturi pentru memorie:
4
Capacitate RAM:
până la 192 GB
ASRock B850 RIPTIDE WIFI7 socket AM5 este o placa de baza de gaming, conceputa pentru procesoarele AMD Ryzen seria 9000, 8000 si 7000 pe socket AM5. Ofera performanta ridicata, conectivitate avansata si un design robust.
Caracteristici principale:
- Suport pentru DDR5 – pana la 8200 MHz (OC), 4 DIMM-uri, capacitate maxima 256GB.
- Slot PCIe 5.0 x16 pentru placi grafice de ultima generatie.
- 4 sloturi M.2 (1x PCIe Gen5x4, 3x PCIe Gen4x4) pentru SSD-uri ultra-rapide.
- Wi-Fi 7 si Bluetooth 5.4 integrate pentru conectivitate fara fir de mare viteza.
- LAN 2.5G Realtek Dragon pentru retea stabila si rapida.
- Audio HD 7.1 cu codec Realtek ALC4082 pentru o experienta sonora premium.
Aceasta placa de baza este ideala pentru gaming si performanta extrema, oferind suport pentru cele mai noi tehnologii.
Specifications

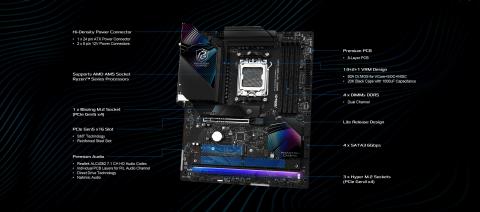

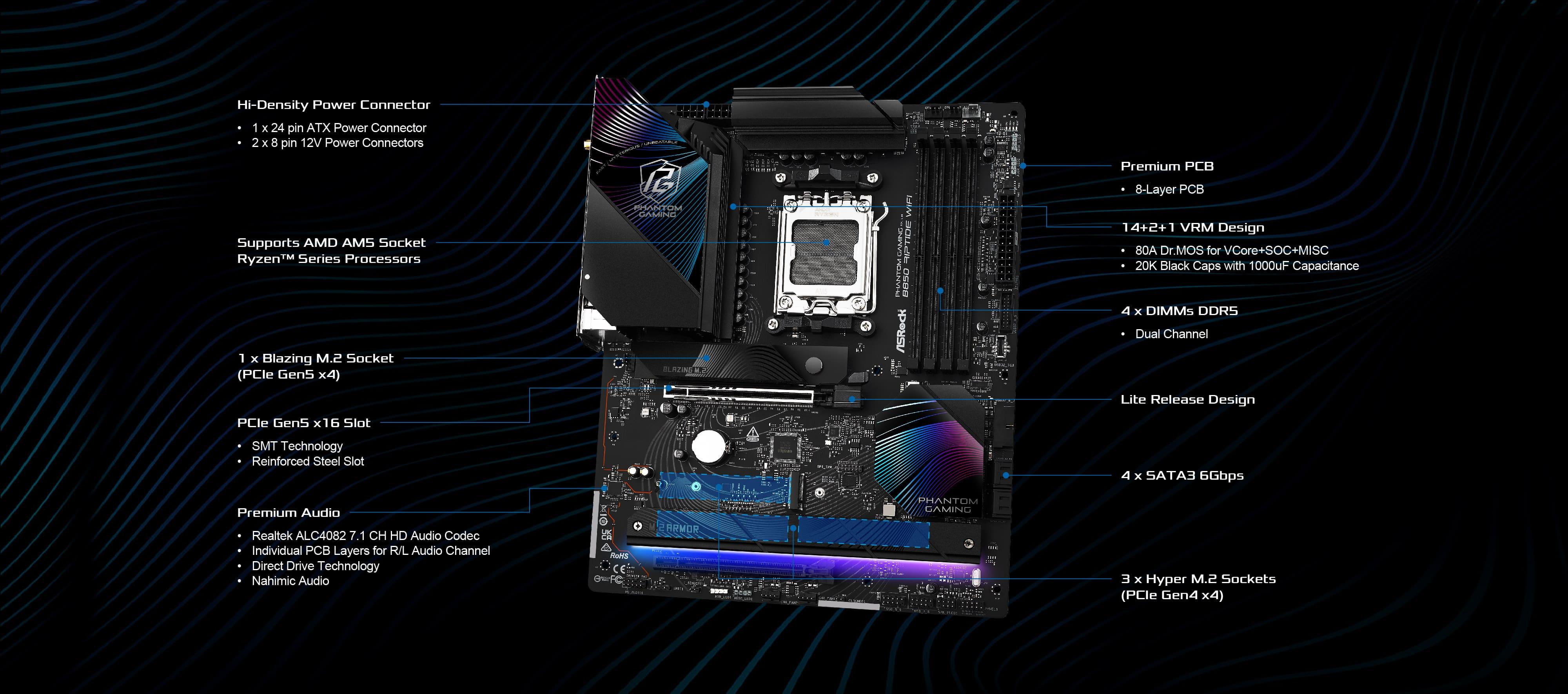

| Unique Feature | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming - Killer 2.5G LAN, 802.11be Wi-Fi 7 Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| CPU | - Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors* *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
|
| Chipset | - AMD B850 |
| Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120H |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - Individual PCB Layers for R/L Audio Channel - Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Killer E3100G - Supports Killer LAN Software |
| Wireless LAN | - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO *The Wi-Fi 7 module is supported by Microsoft Windows 11 only. There is no driver available for Windows 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
|
| Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1) * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
If M2_4 is occupied, PCIE2 will be disabled. Supports NVMe SSD as boot disks |
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* ASMedia ASM1061: - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks
M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors. If M2_4 is occupied, PCIE2 will be disabled. |
| RAID |
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| USB | CPU: - 2 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3)) - 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1)) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4)) - 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) * All USB ports support ESD Protection
|

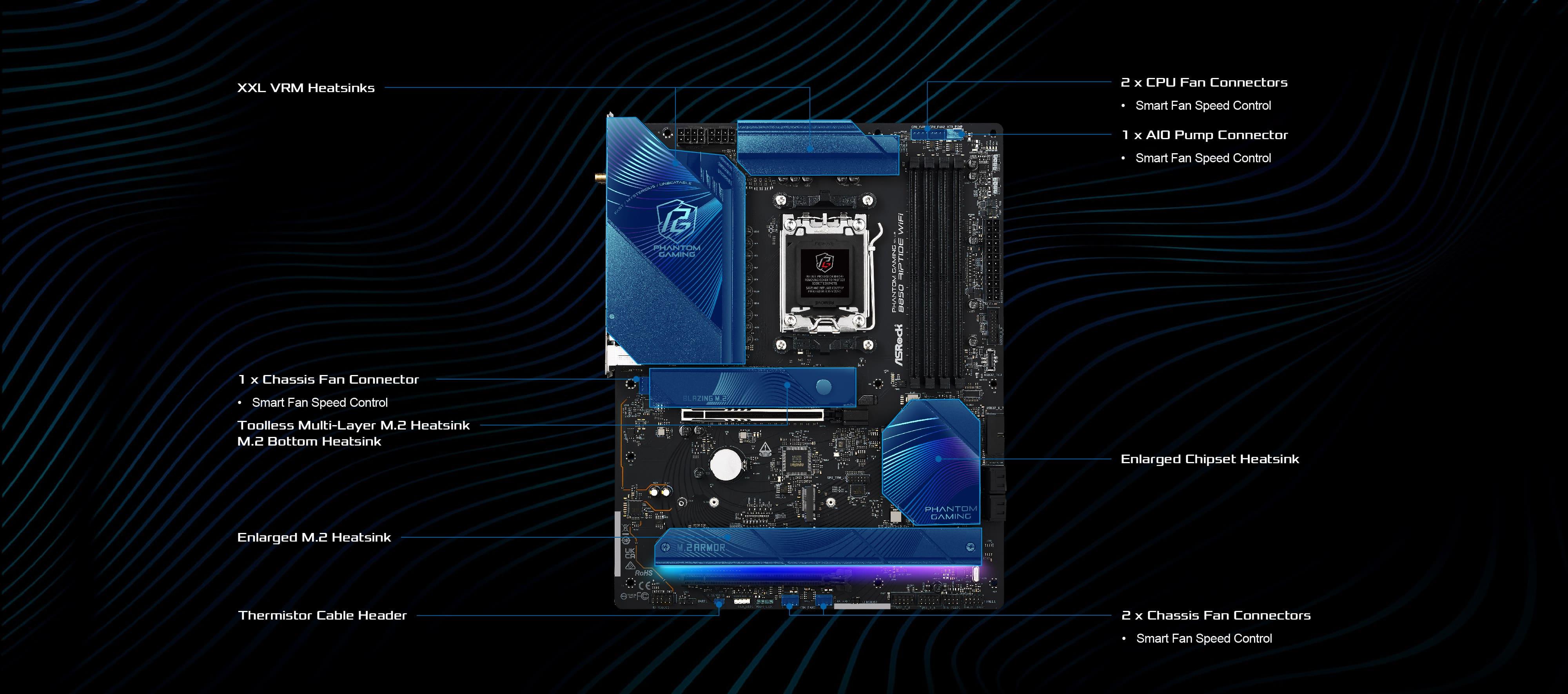

| Connector | - 1 x SPI TPM Header - 1 x Thermistor Cable Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) *Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. |

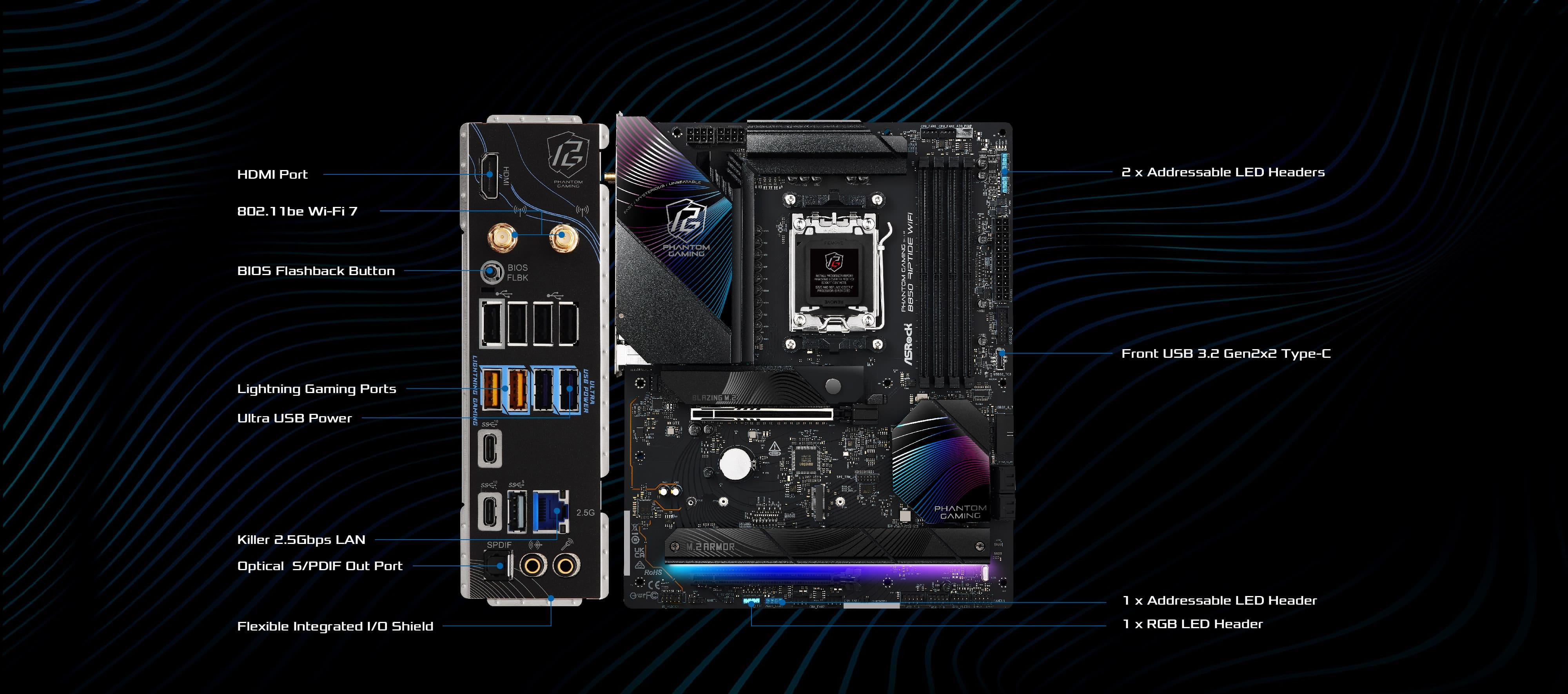

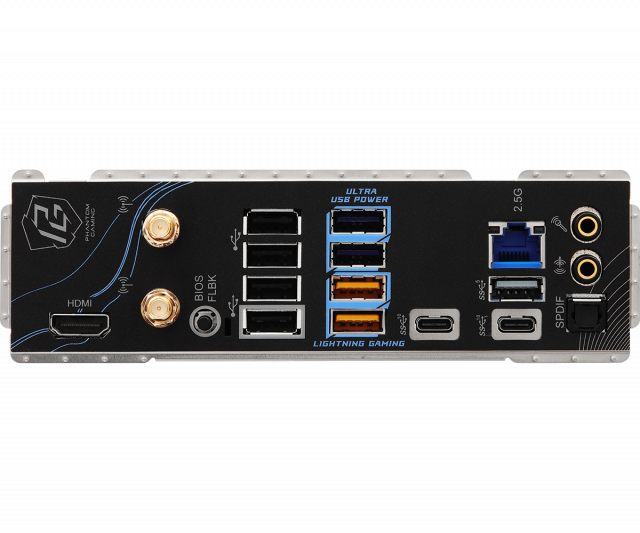

| Rear Panel I/O | - 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB 3.2 Gen2 Type-C Ports (10 Gb/s) - 3 x USB 3.2 Gen1 Type-A Ports* - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)** - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) * USB32_12 are Lightning Gaming Ports.
** USB32_34 supports Ultra USB Power. Device exceeds USB 3.2 Type-A power rating of 5V@0.9A (4.5W) may trigger over-current protection (OCP), will require system reboot to restore USB power. |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Accessories | - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 1 x ARGB Splitter Cable - 1 x Thermistor Cable |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB |
| OS | - Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
