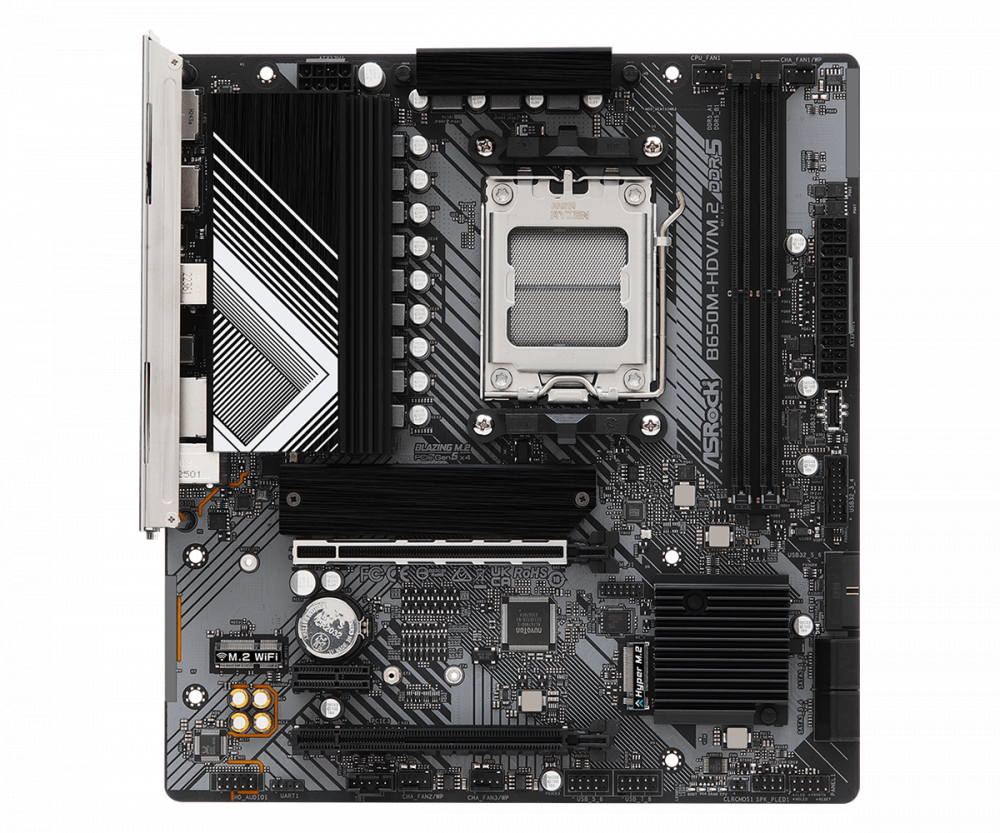

Build for The Most Advanced PC

AM5 Changes Everything

AMD EXPO Technology

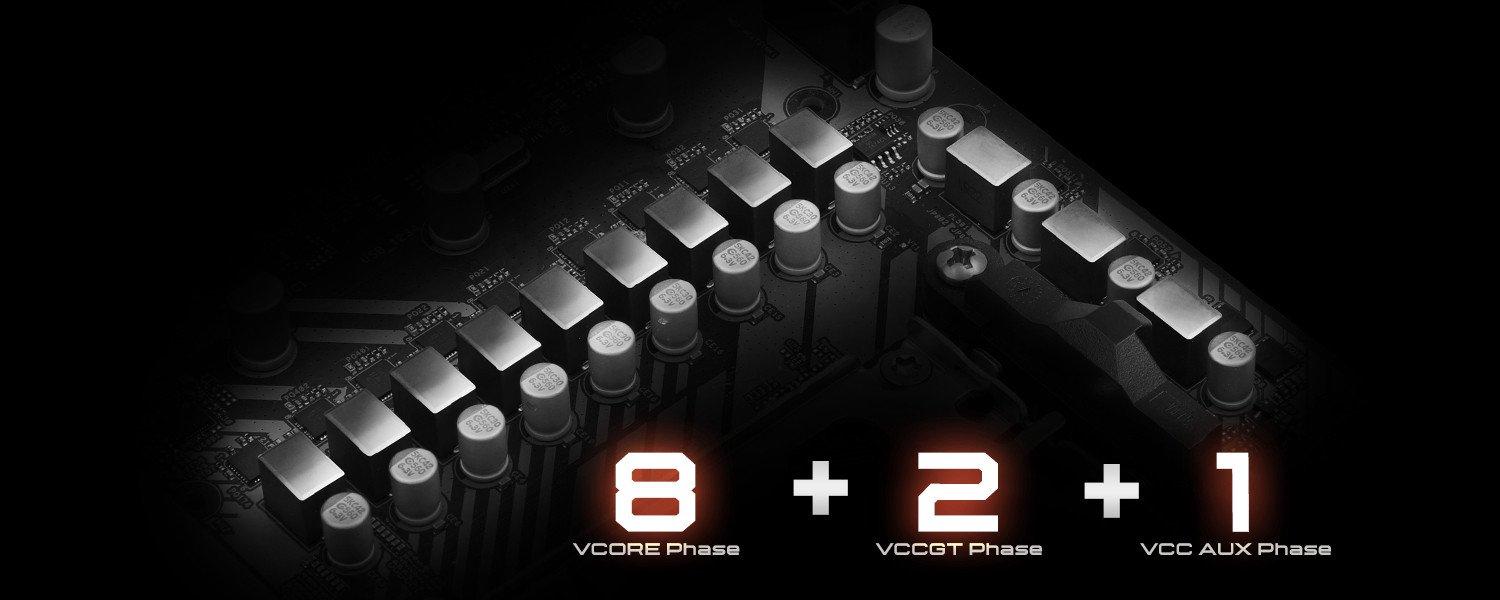

Optimized VRM Design

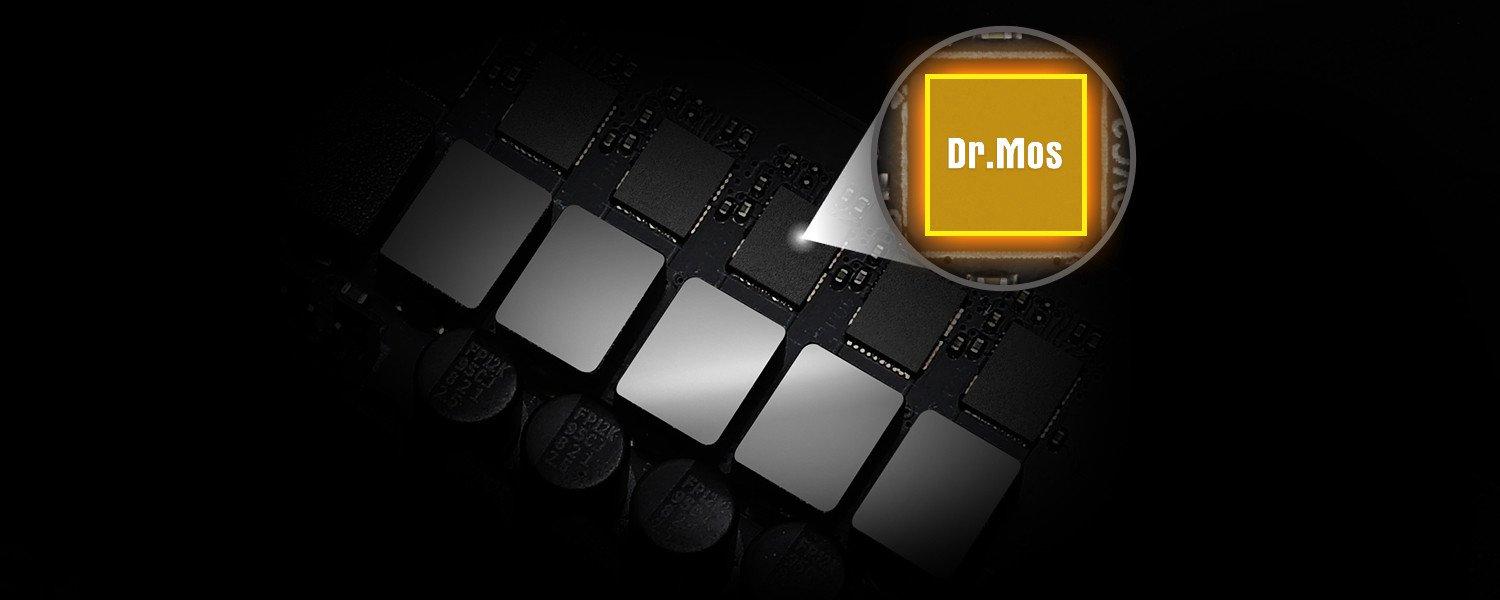

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional
discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

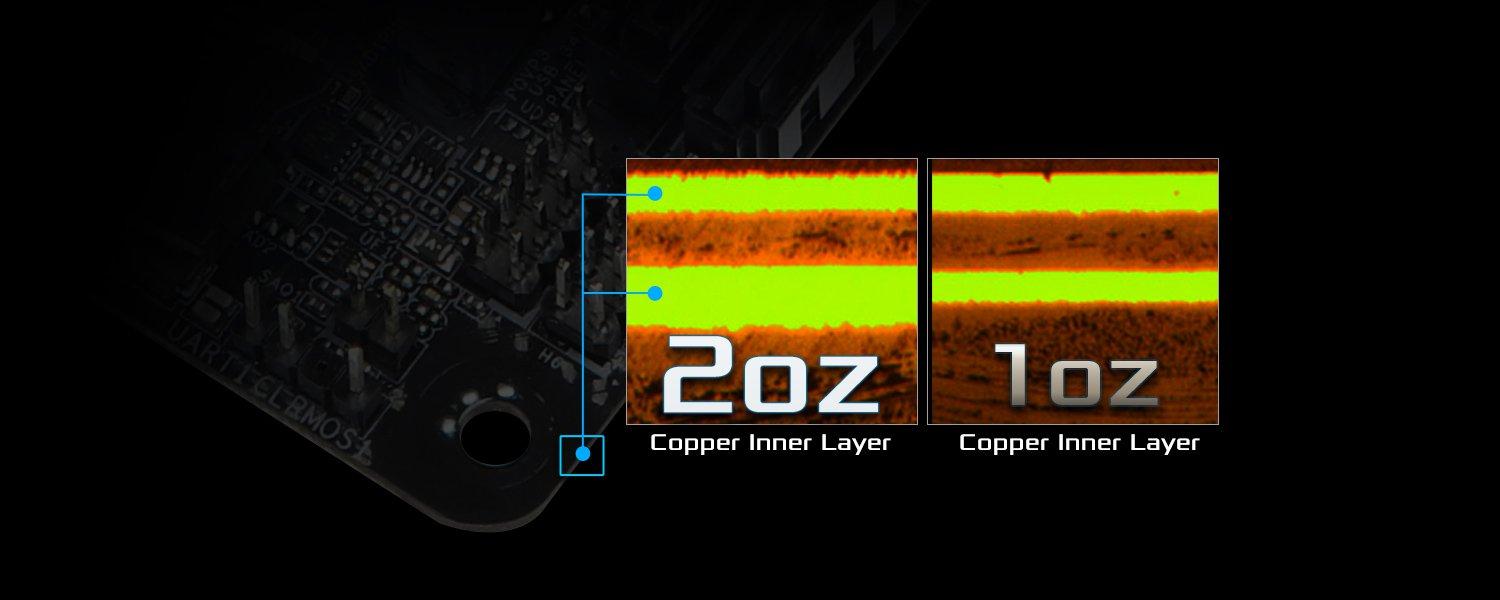

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher
energy efficiency for overclocking.

DDR5 Memory with Protection Circuit

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC
power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble
free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

Reinforced Steel Slot
[PCIe 4.0 Version]

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even
HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the
distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and
lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer

●Sound Tracker

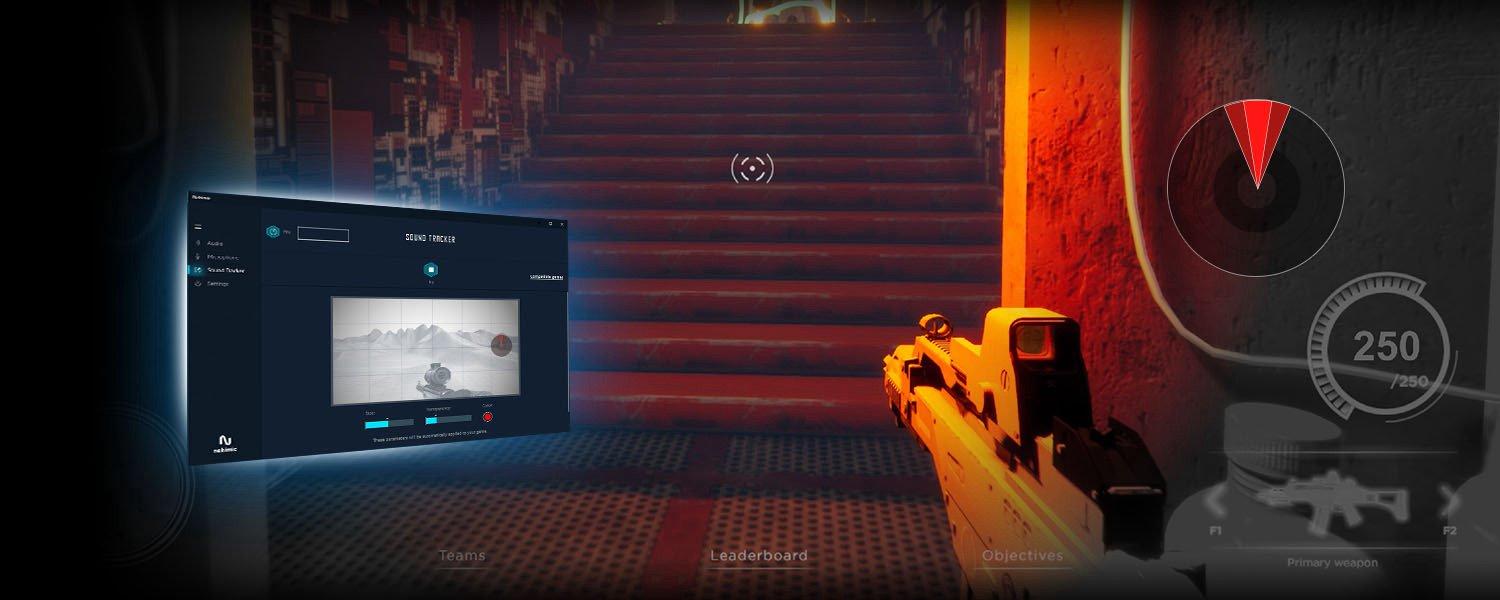

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming.
Each sound is properly positioned in 360° on a radar for a full immersion during the game.

●Works on any devices!

Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI,
S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them.
Nahimic measure and improve to optimize our technology and offer you the best experience.

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to
previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future
ultrafast SSDs.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of
home networking, content creators, online gamers and high-quality streaming media. Boost networking performance
up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised
connectivity experience for gaming, file transfers and backups.

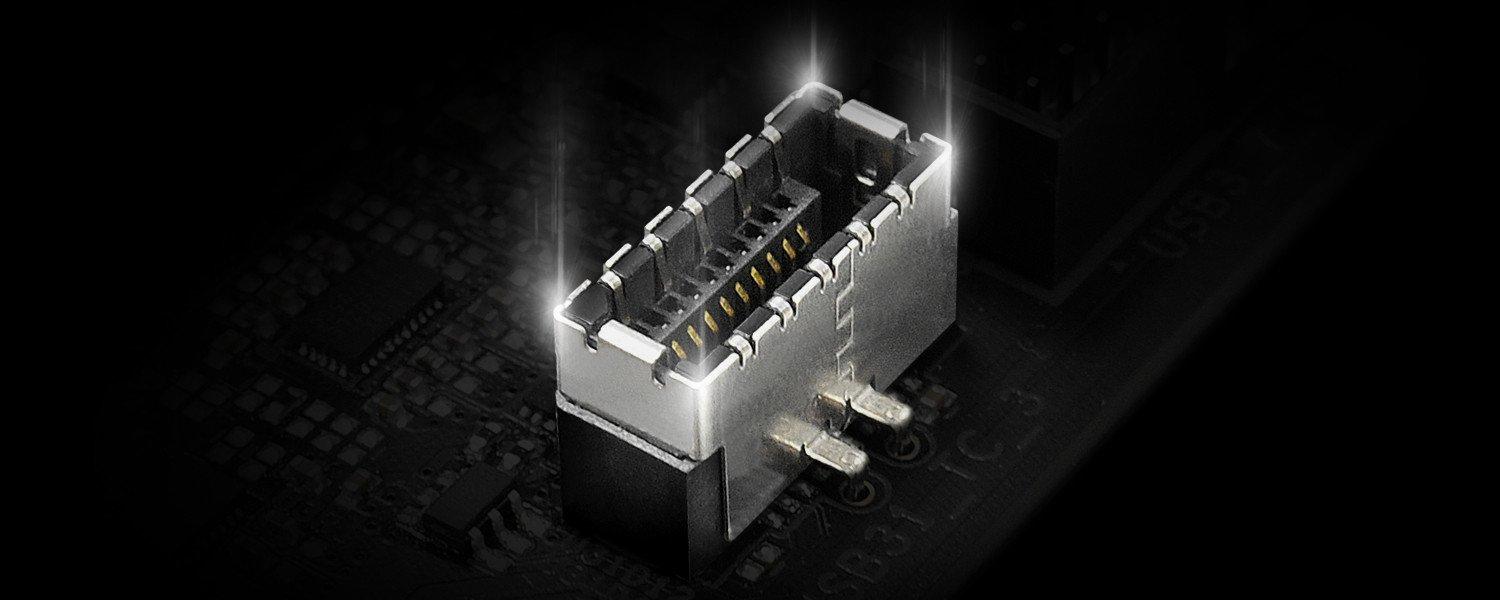

Front USB 3.2 Gen2 Type-C

Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB
design to the front panel of computer case.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

EZ Setting

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in
BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and
install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with
a USB and power supply, No CPU, RAM or other components required.

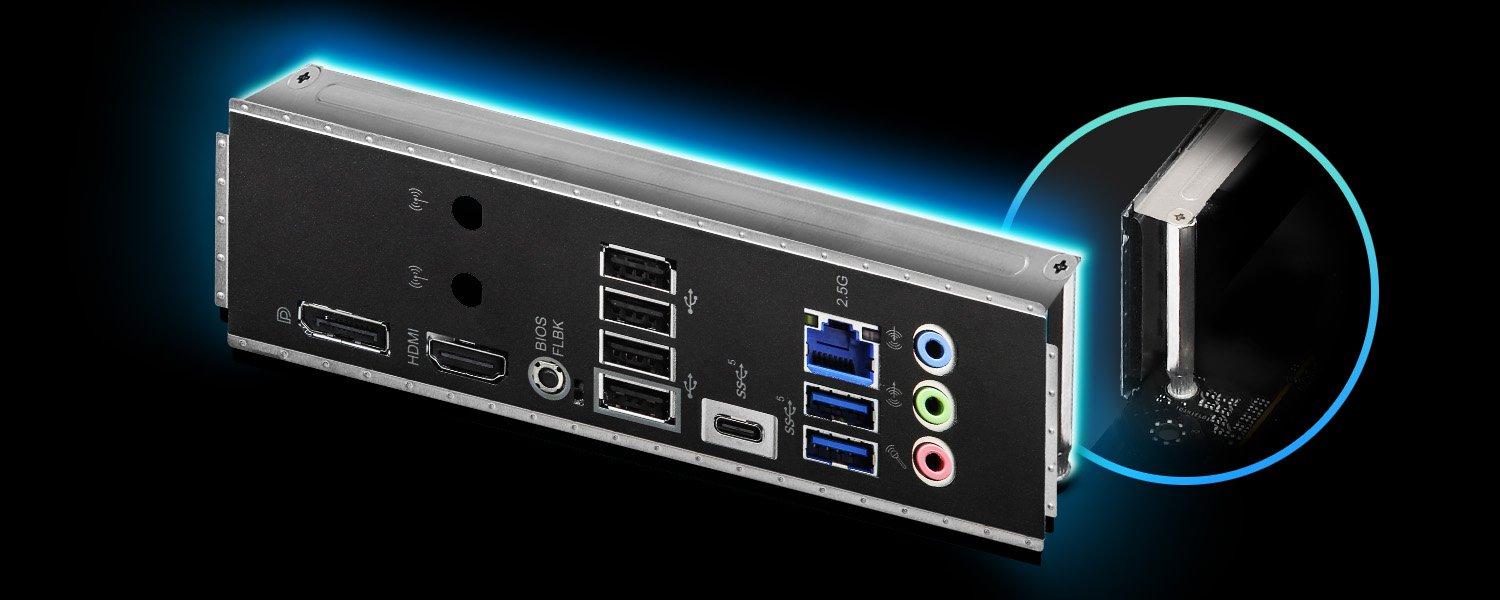

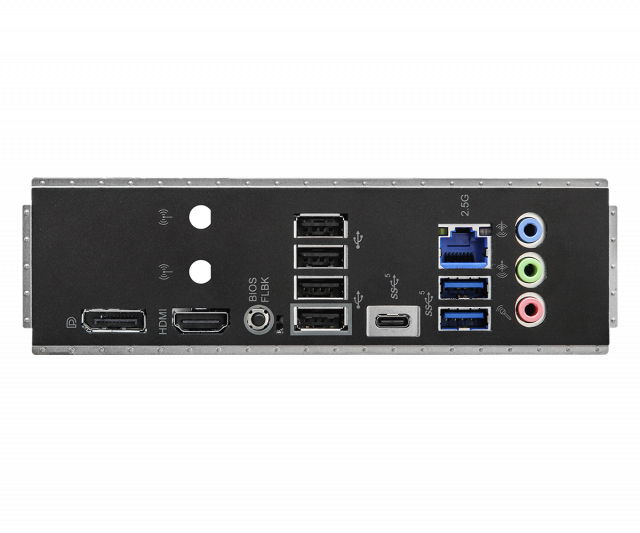

ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield
design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up
the set-up process.
