Arctic Freezer 4U-M Rev. 2
Cooler procesor ARCTIC Freezer 4U-M Rev.2 - ACFRE00133B
Cod produs: ARCTIC-FAN-ACFRE00133B
Întrebare despre Arctic Freezer 4U-M Rev. 2
Livrare gratuită
pentru comenzi peste 399 Lei
Specificații tehnice
| Garanție | 72 luni |
| Tip | Răcire cu aer |
| Socket | sTRX4, TR4, sWRX8, SP3, sTR5, SP6, 4677, 4710, 4189 |
| Înălţime | 145 mm |
| Turatia ventilatorului | până la 2300 RPM |
| Flux de aer | până la 71.9 CFM |
| Nivel de zgomot | până la 40 dBA |
| Dimensiune ventilator | 120 mm x2 |
| Conector | 4-pin PWM |
| Iluminare | Nu |
| Culoare | Negru, Gri |
Related products
Tip:
Răcire cu aer
Socket:
AM4, 1700, AM5, 1851
Înălţime:
159 mm
Turatia ventilatorului:
până la 2000 RPM
Flux de aer:
până la 56.3 CFM
Tip:
Răcire cu aer
Socket:
AM4, 1700, AM5, 1851
Înălţime:
159 mm
Turatia ventilatorului:
până la 2000 RPM
Flux de aer:
până la 56.3 CFM
Tip:
Răcire cu aer
Socket:
AM4, 1700, AM5, 1851
Înălţime:
159 mm
Turatia ventilatorului:
până la 1800 RPM
Flux de aer:
până la 56.3 CFM
Tip:
Răcire cu aer
Socket:
AM4, 1700, AM5, 1851
Înălţime:
159 mm
Turatia ventilatorului:
până la 1800 RPM
Flux de aer:
până la 56.3 CFM
Tip:
Răcire cu aer
Socket:
AM4, 1700, AM5, 1851
Înălţime:
159 mm
Turatia ventilatorului:
până la 1800 RPM
Flux de aer:
până la 56.3 CFM
Tip:
Răcire cu aer
Socket:
AM4, 1700, AM5, 1851
Înălţime:
159 mm
Turatia ventilatorului:
până la 1800 RPM
Flux de aer:
până la 56.3 CFM
Tip:
Răcire cu Lichid
Socket:
AM4, 1700, AM5, 1851
Turatia ventilatorului:
până la 1900 RPM
Flux de aer:
până la 69.9 CFM
Tip:
Răcire cu Lichid
Socket:
AM4, 1700, AM5, 1851
Turatia ventilatorului:
până la 3000 RPM
Flux de aer:
până la 77 CFM
Tip:
Răcire cu Lichid
Socket:
AM4, 1700, AM5, 1851
Turatia ventilatorului:
până la 3000 RPM
Flux de aer:
până la 77 CFM
Tip:
Răcire cu aer
Socket:
AM4, AM5
Înălţime:
136 mm
Turatia ventilatorului:
până la 2300 RPM
Tip:
Răcire cu aer
Socket:
AM4, AM5
Înălţime:
136 mm
Turatia ventilatorului:
până la 2300 RPM
Tip:
Răcire cu aer
Socket:
1700, 1851
Înălţime:
136 mm
Turatia ventilatorului:
până la 2300 RPM

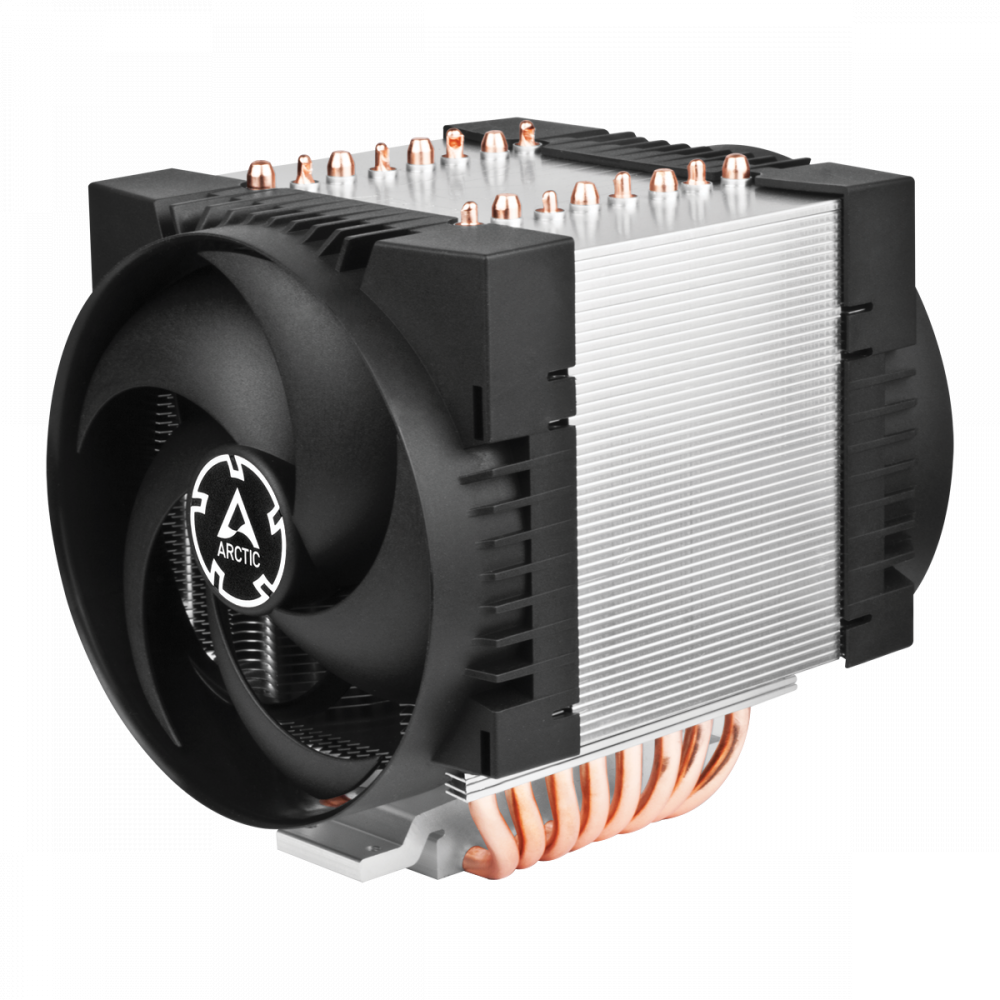

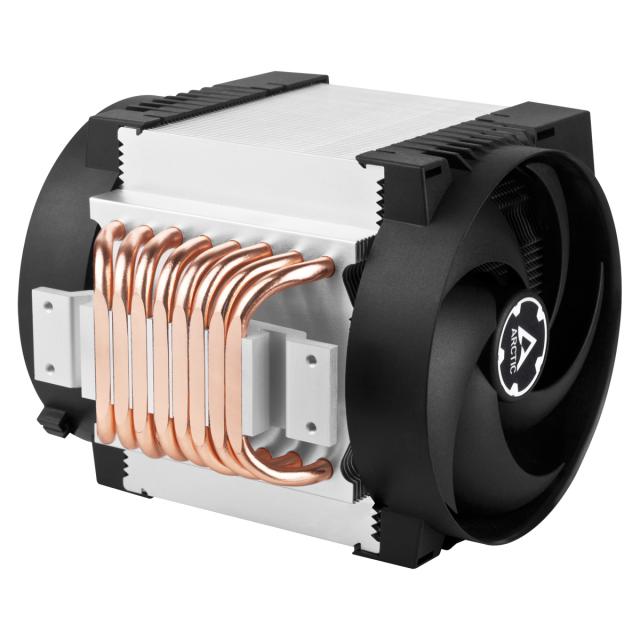

Freezer 4U-M Rev. 2 este un cooler server puternic si eficient energetic, creat pentru procesoare high‑performance de la Intel, AMD si chiar ARM Ampere. Este optimizat pentru utilizare in carcase server 4U si poate raci procesoare cu 64–128 nuclee si un TDP de pana la 350 W.
Caracteristici principale
Compatibilitate:
-
Intel: LGA4189, LGA4677
-
AMD: SP6, sTR5, SP3, TR4, sTRX4, sWRX8
-
ARM: Ampere Altra (cu kit de montaj suplimentar sau versiune integrata)
Eficienta energetica: consum de doar 2.88 W, extrem de redus pentru un cooler din aceasta categorie.
Capacitate de racire: proiectat pentru procesoare cu TDP de pana la 350 W, inclusiv modele EPYC si Xeon.
Format: design 4U single‑tower, optimizat pentru carcase server cu spatiu limitat.
RAM clearance: aproximativ 53 mm, permitand utilizarea memoriilor cu radiatoare moderate.

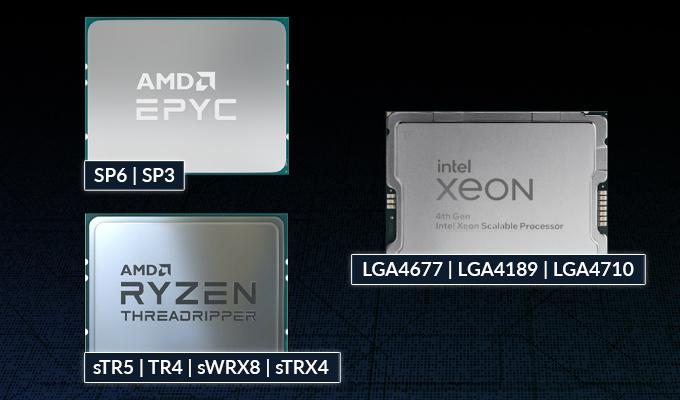

Versatile Multi-Compatible Server Cooler
The Freezer 4U-M Rev. 2 is compatible with a wide range of Intel and AMD server processors, including Intel sockets LGA4189 and LGA4677, as well as AMD sockets SP6, sTR5, SP3, TR4, sTRX4, and sWRX8. With a power consumption of only 2.88 watts while delivering high cooling performance, it emphasizes energy efficiency and is ideal for cooling high-performance processors with up to 64 cores and a TDP of up to 350 watts.
Looking for Other Sockets?

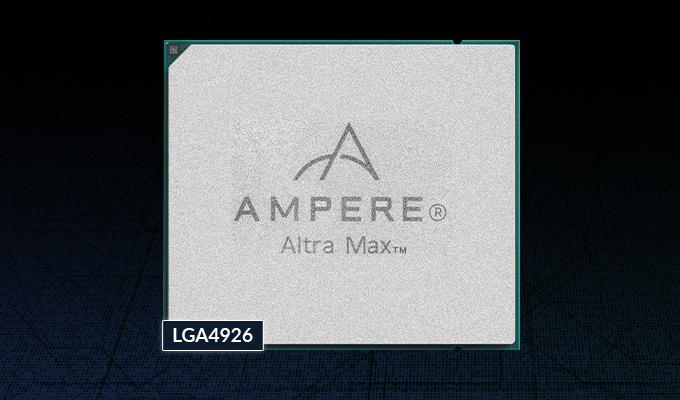

The Freezer 4U is also available in versions for AMD SP5, Ampere Altra and AmpereOne.

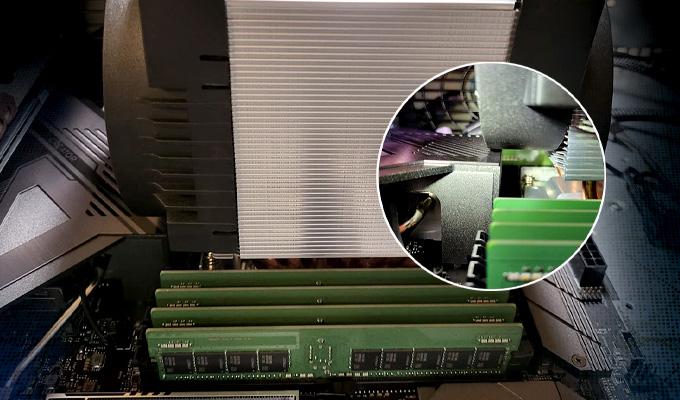

RAM Compatibility and Clearance
The Freezer 4U-M Rev. 2 offers a generous 53 mm of clearance for memory, allowing the use of RAM modules with moderate heatsinks. This space facilitates efficient airflow and ensures compatibility with various types of RAM.

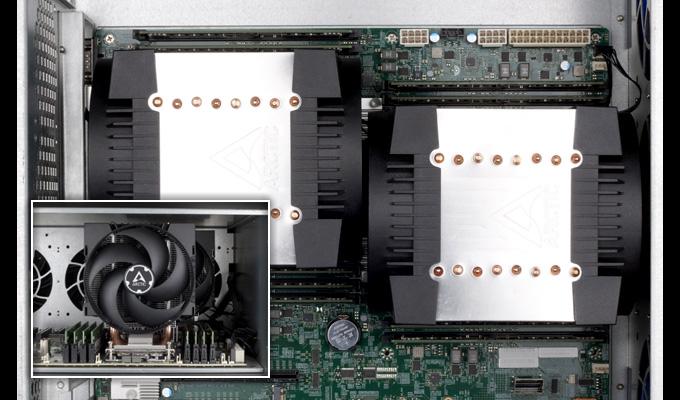

Compact Design and Dual Socket Compatibility
With an optimised installation height of only 145 mm, it fits into both classic 4U server racks and most consumer 4U cases available on the market. The Freezer 4U-M Rev. 2 features a compact design with dimensions of just 156 x 124 mm. This also makes it suitable for dual-socket motherboards. To adjust the airflow direction if required, the fans can be easily swapped over.

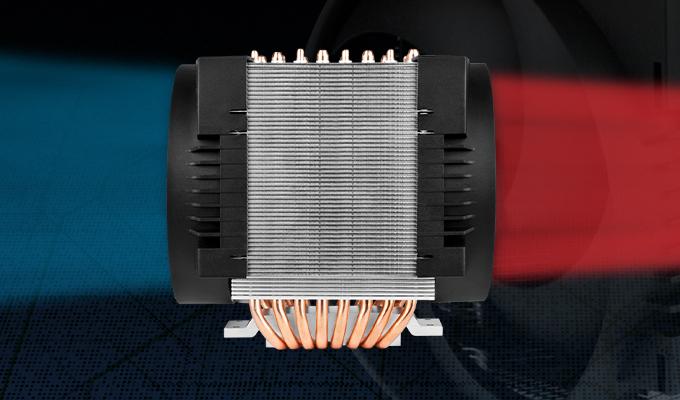

Powerful Fans in Push-Pull Configuration
The installed PWM fans benefit from all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer 4U-M Rev. 2's high fin density and provide efficient heat dissipation in push-pull mode, even in power-hungry applications. Especially office workstations benefit from the quiet fans. The dual configuration also allows for inherent redundancy and protects the system from total shutdown caused by heat.
Designed for continuous operation
Both fans of the Freezer 4U-M Rev. 2 are equipped with dual ball bearings, which allows for 24/7 continuous operation without the slightest compromise in performance. This type of bearing is much more resistant to contamination and wear caused by high temperatures than conventional sleeve bearings or Fluid-Dynamic bearings and is therefore the perfect choice if you want to ensure fault-free continuous operation.

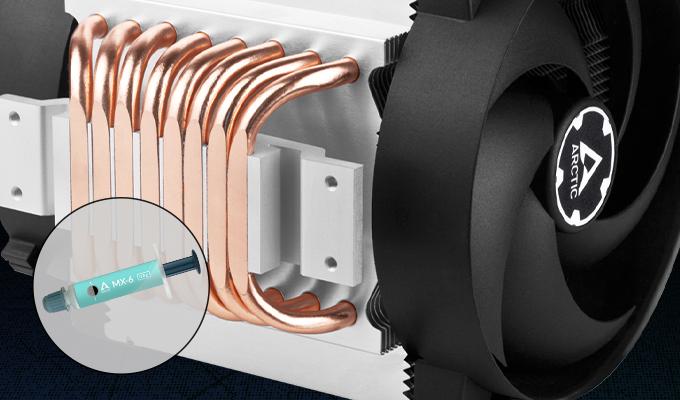

Premium Thermal Paste Included
The Freezer 4U-M Rev. 2 comes with MX-6 thermal paste. ARCTIC's Ultimate Performance thermal paste reduces the heat build-up between the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore absolutely safe to use.
Specifications
General Specifications
| Thermal Compound | ARCTIC MX-6 0.8 g Syringe incl. | Dimensions | 124 (L) x 156 (W) x 145 (H) mm |
| Operating Ambient Temperature | 0–40 °C | Weight | 1332 g |
| Packaging |
Width: 160 mm |
||
Compatibillity
| Intel | LGA4710, LGA 4677, LGA 4189 | Ampere | *LGA4926 (separate mounting kit required) * *An Ampere-compatible variant is available here |
| AMD | SP6, sTR5, SP3, TR4, sTRX4, sWRX8 | Server Rack Unit | 4U & up |

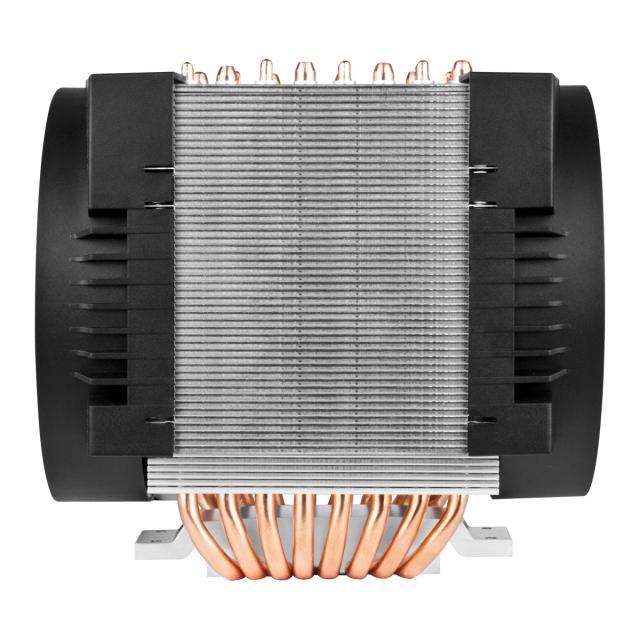

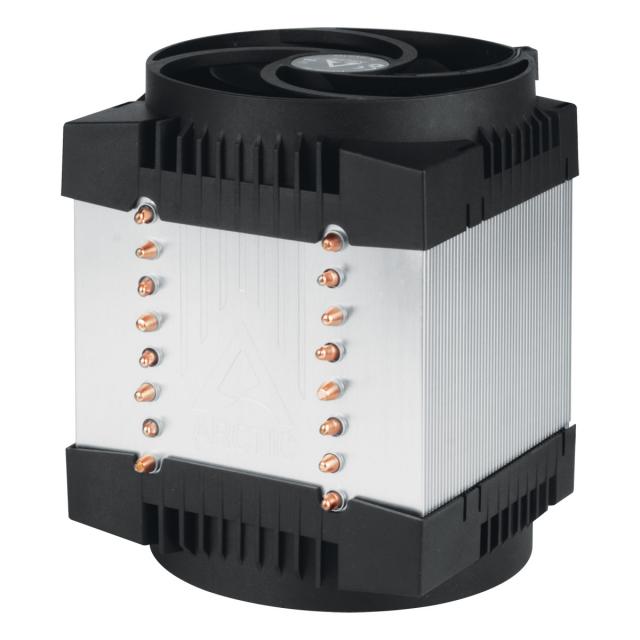

Heatsink
| Heatpipes | Direct Touch, Ø 6 mm x 8 | Number of Fins | 57 |
| Fin Material | Aluminium |
Fan Specifications
| Fan | 2 x 120 mm PWM Fans | Noise Level | 40 dBA |
| Fan Speed | 400–2300 rpm, PWM Controlled | Air Flow | 71.90 cfm | 122.16 m³/h |
| Connector | 4-Pin Plug | Static Pressure | 3.30 mmH2O |
| Cable Length | 200 mm | Current | Voltage | 0.12 A | 12 V DC |
| Bearing | Dual Ball Bearing | Startup Voltage | 8 V DC |
